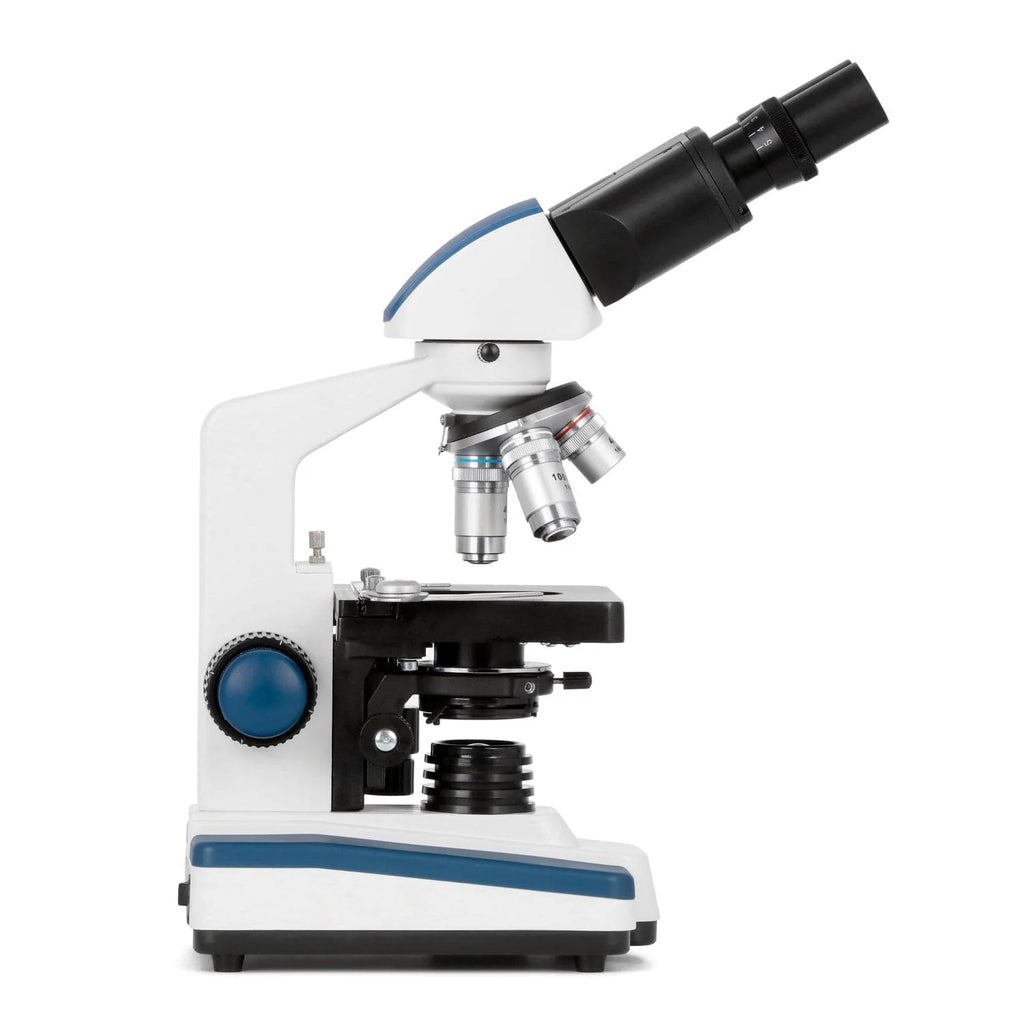

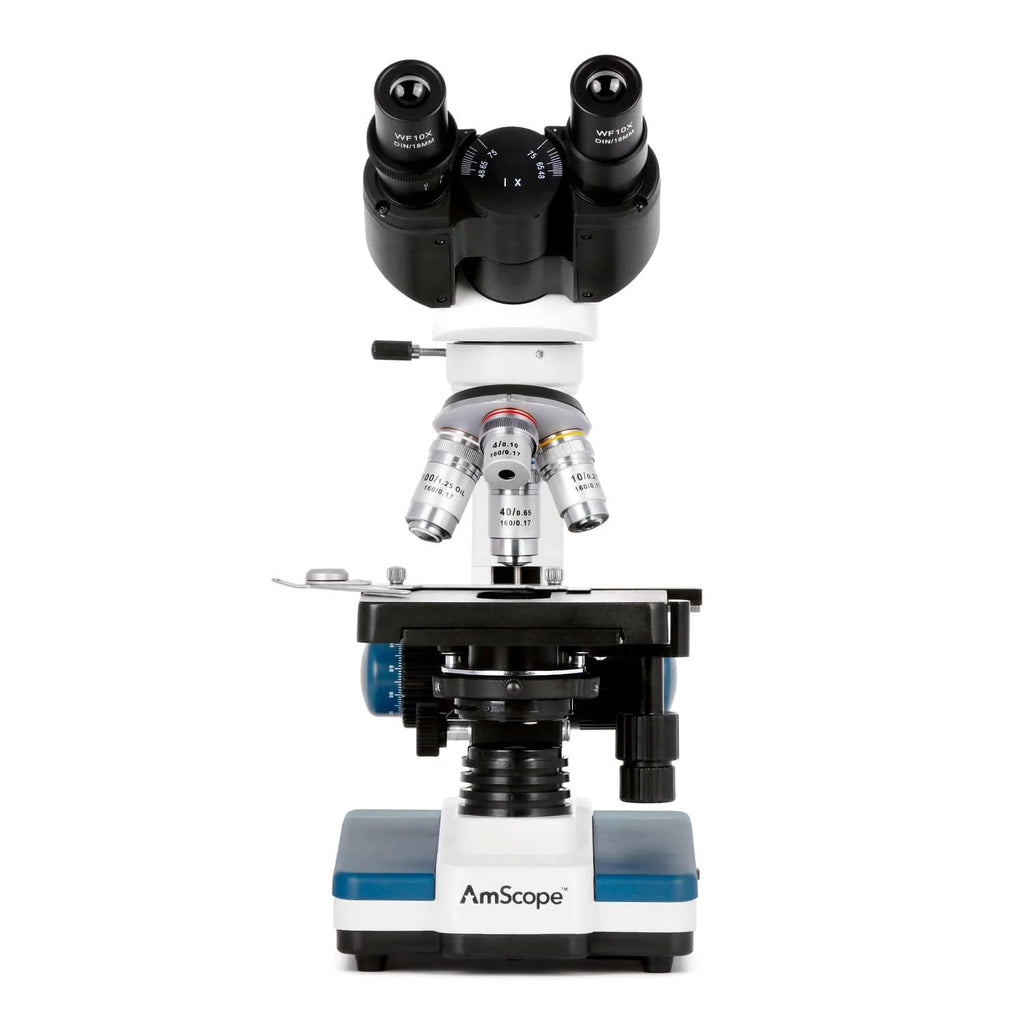

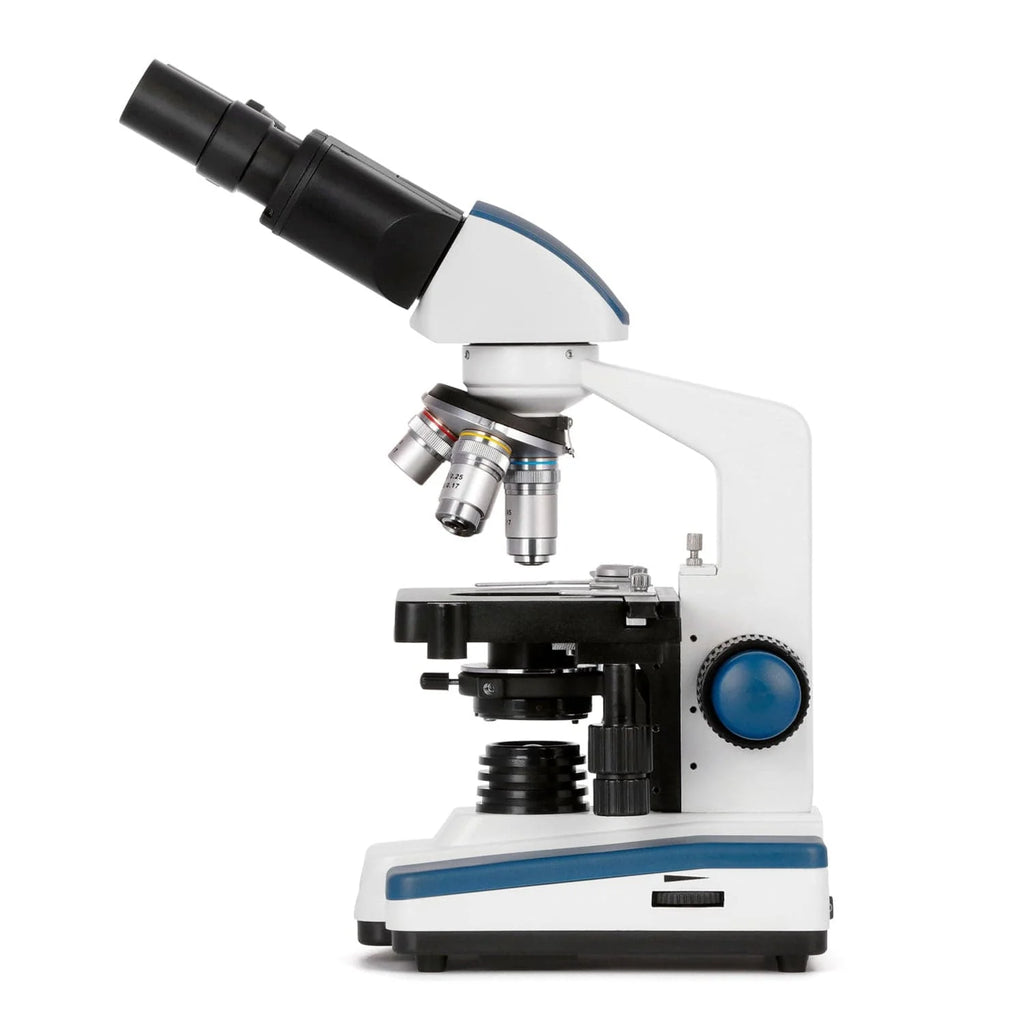

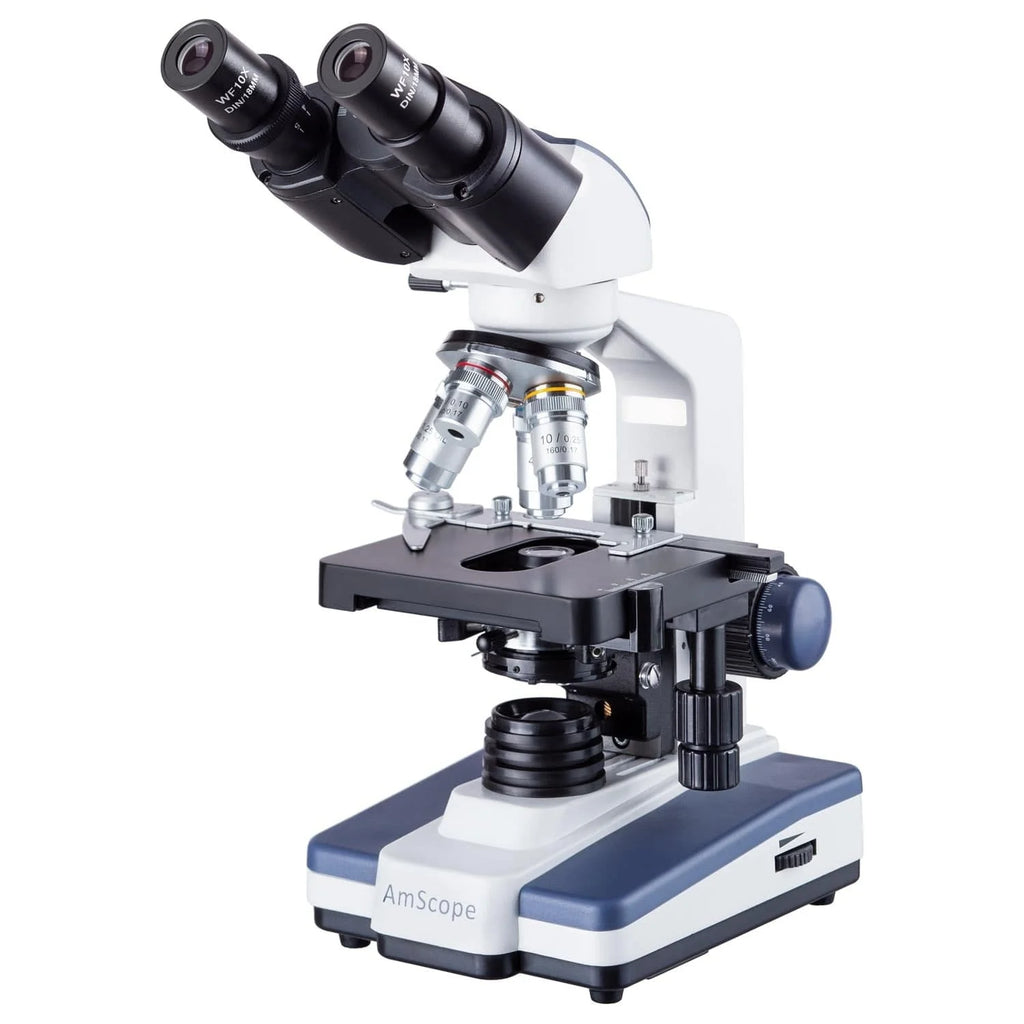

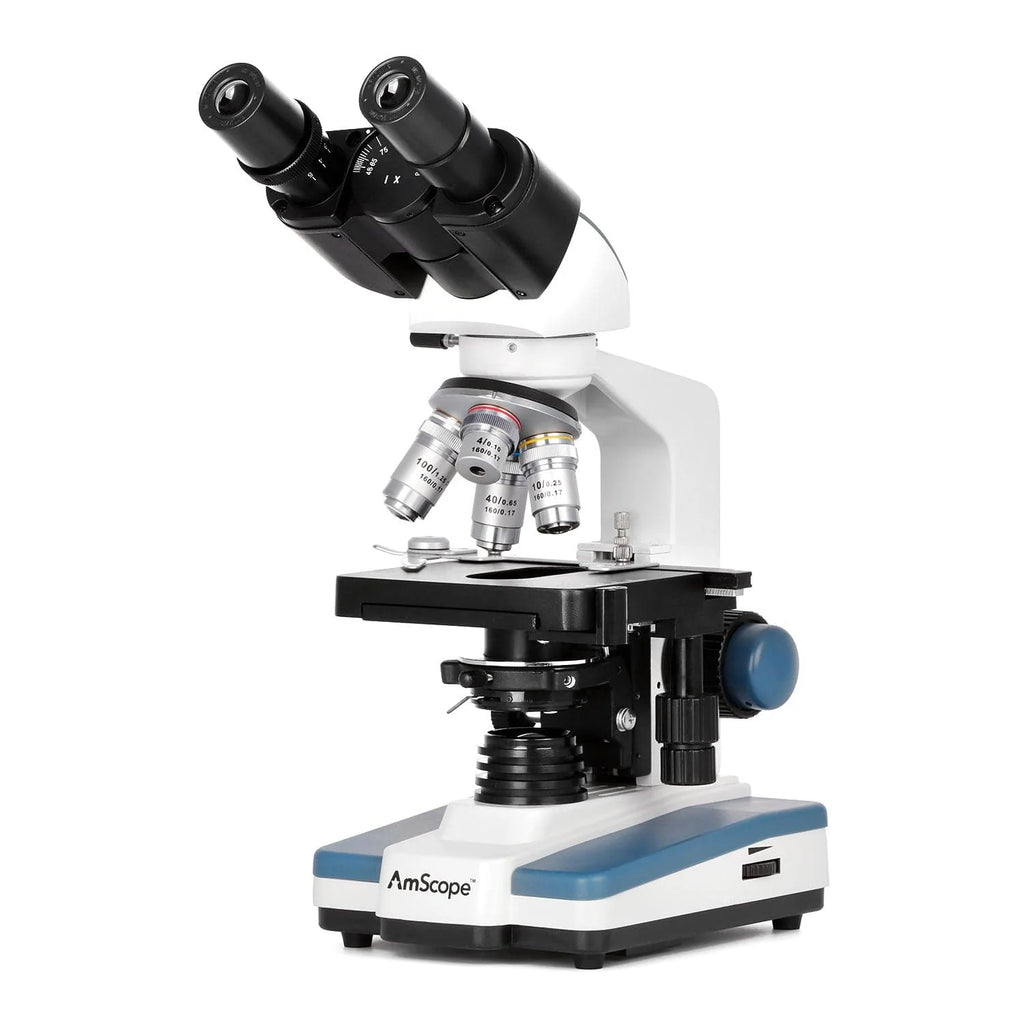

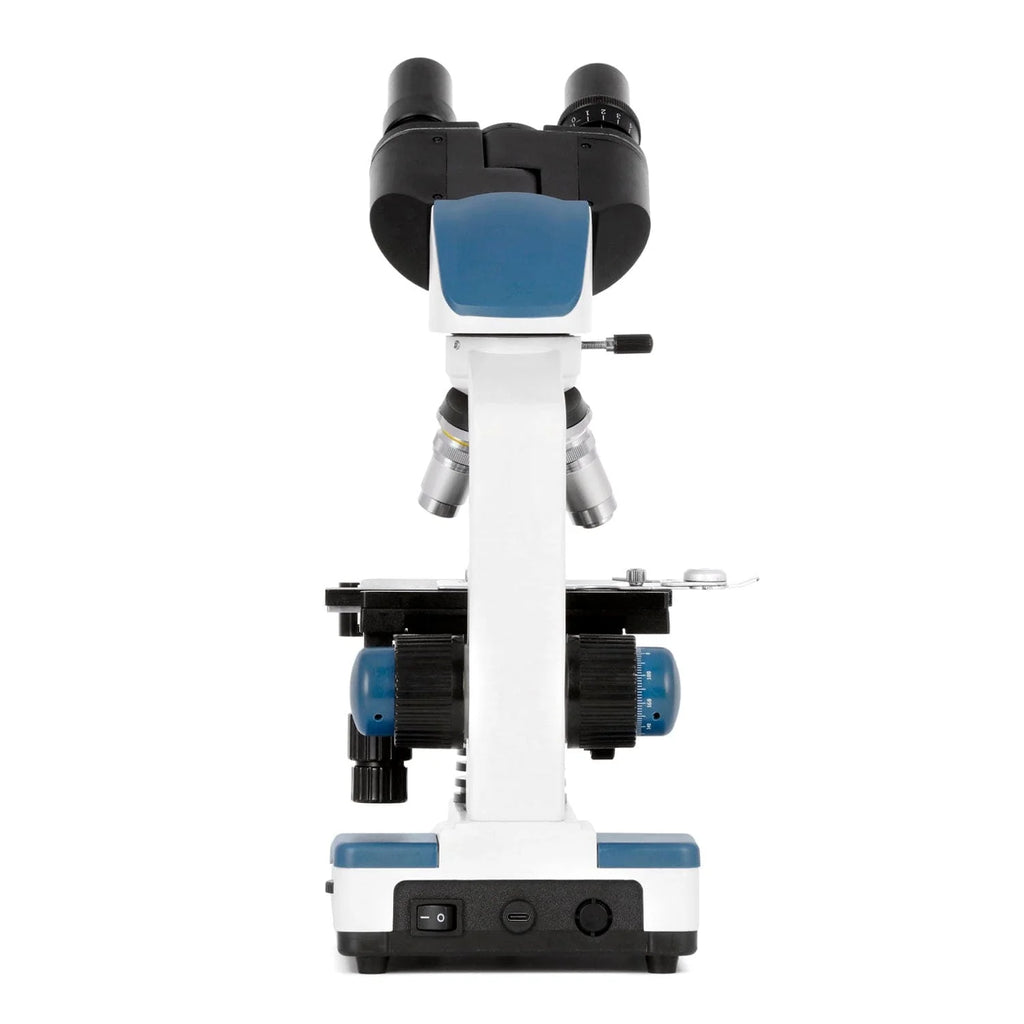

B120C Binocular Compound Microscope with 40X–2500X Magnification, 1W LED Illumination and Mechanical Stage

The AmScope B120C is a binocular compound microscope for teaching and specimen examination. Achromatic objective lenses and two pairs of eyepieces provide a 40X–2500X magnification range, while transmitted LED lighting and a mechanical stage support slide viewing.

Key Features

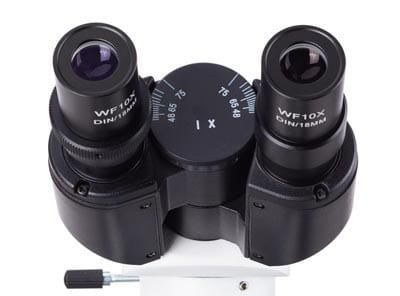

• Siedentopf binocular head with a 30-degree incline, 360-degree rotation and 53–77mm interpupillary adjustment.
• Left ocular diopter adjustment and 23mm ocular tubes.

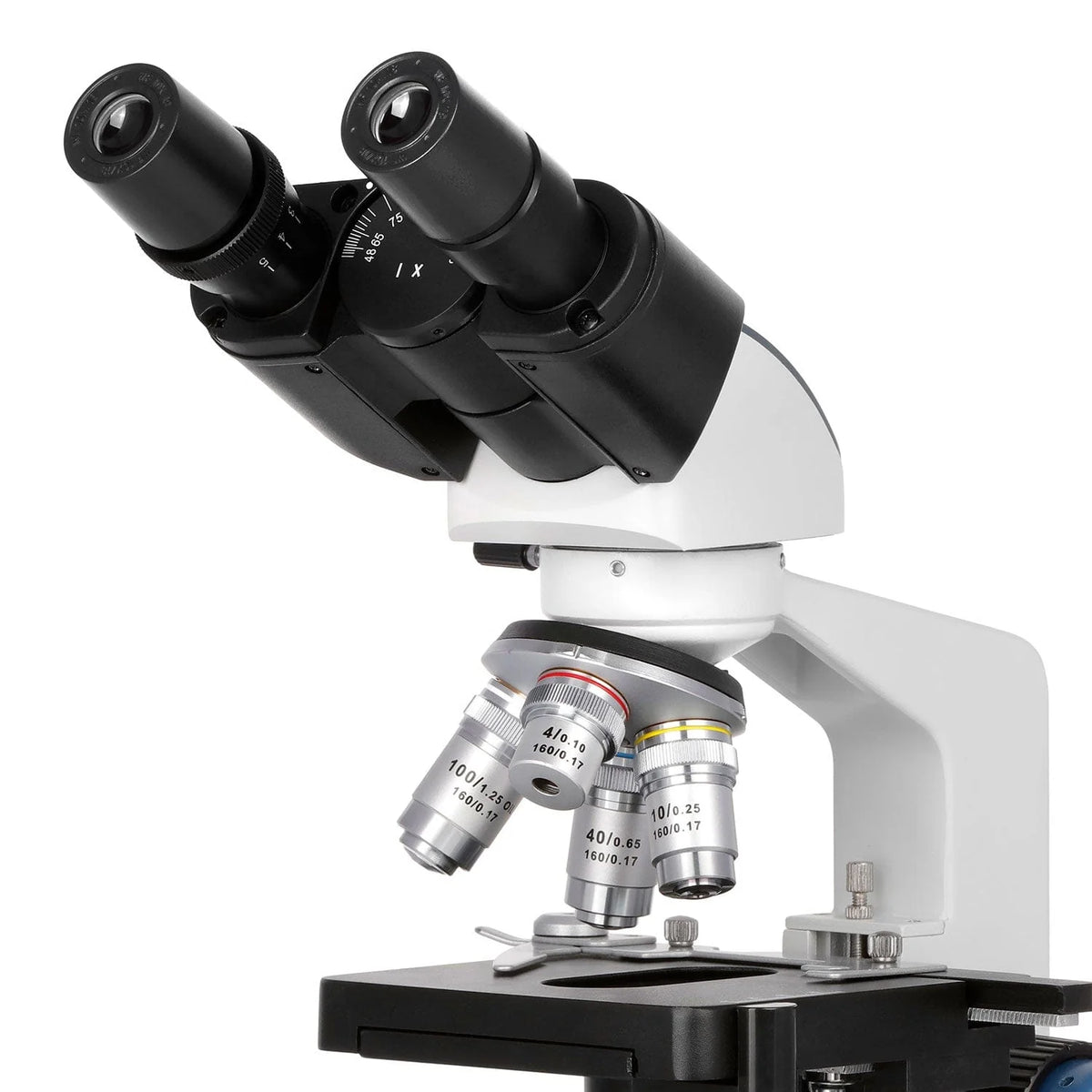

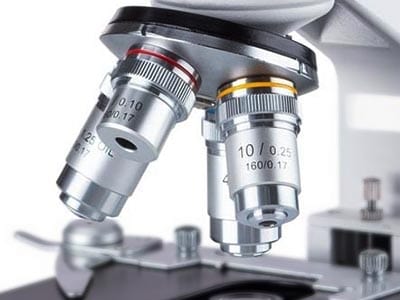

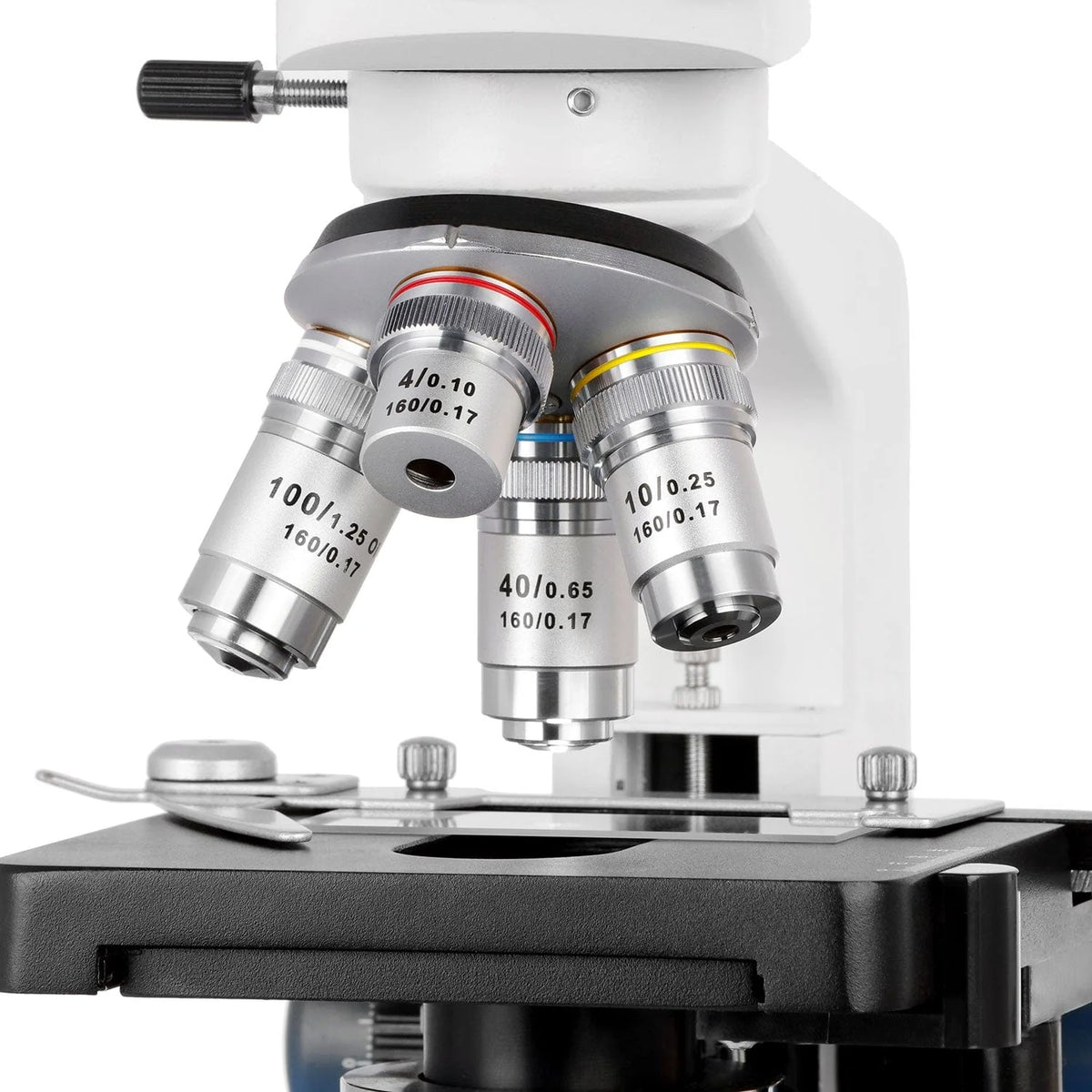

• Four-position objective turret with achromatic 4X, 10X, 40X and 100X lenses; the 100X objective uses immersion oil.
• Coaxial coarse and fine focusing and low-position mechanical-stage controls.
• Variable-intensity 1W LED illumination with a fly-eye lens.
• Centerable NA1.25 Abbe condenser, iris diaphragm and rack-and-pinion condenser holder.

Specifications

• Model: B120C; optical system: finite-conjugate; mechanical tube length: 160mm
• Eyepieces: one pair each of 10X and 25X; magnification range: 40X–2500X
• Objectives: DIN standard, 45mm parfocal distance, RMS 20.32mm mounting thread
• Focus range: 30mm; fine-focus division: 0.002mm

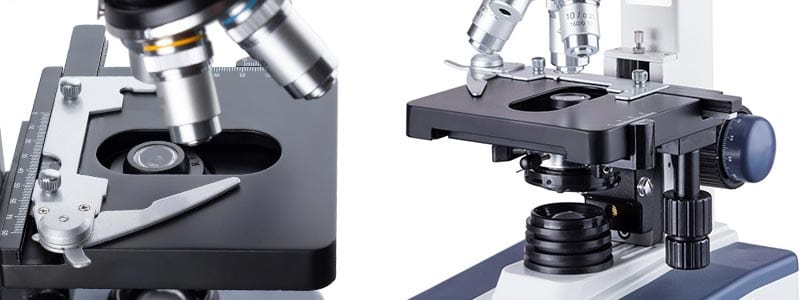

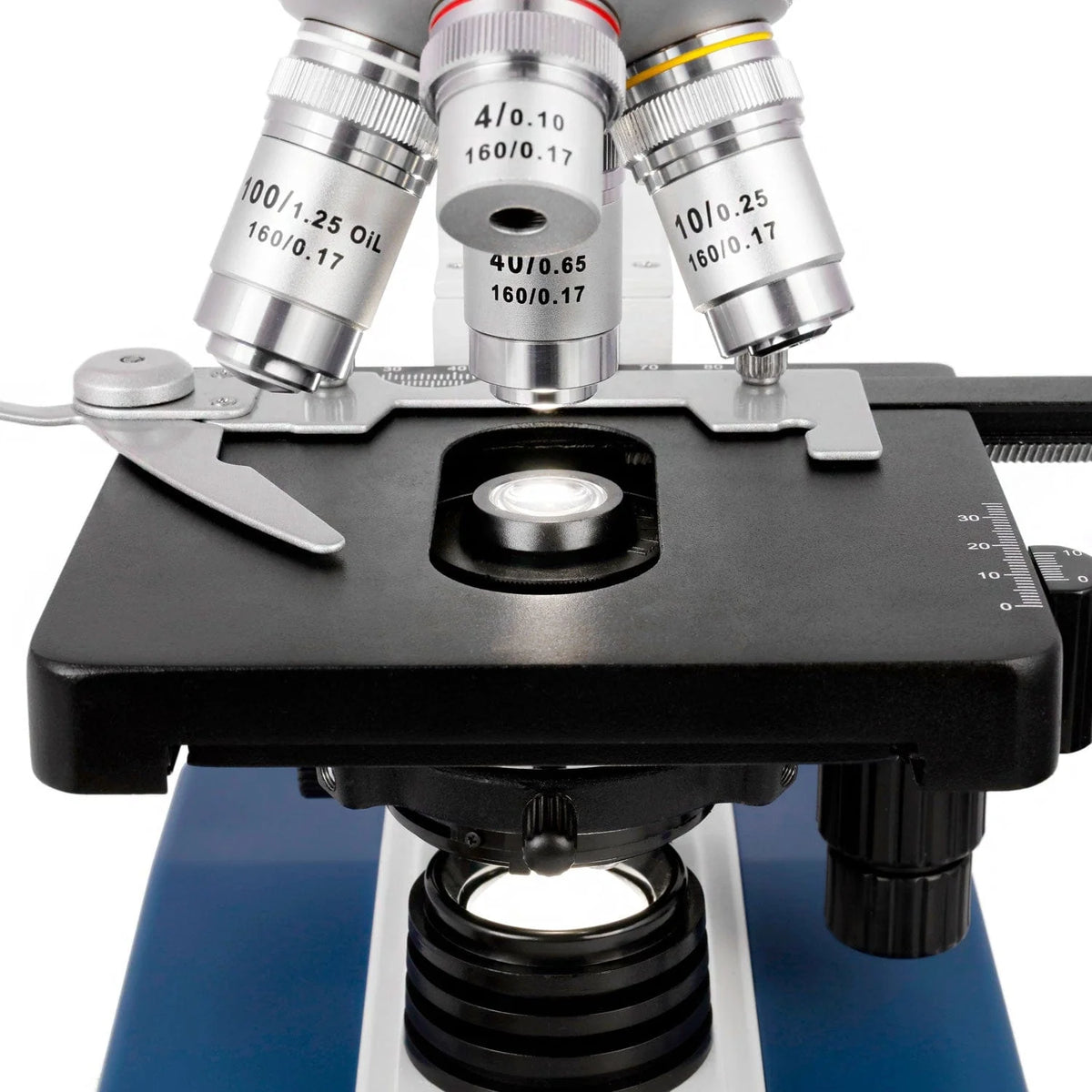

• Double-layer stage with caliper: 118 × 127mm; X-Y travel: 70 × 21mm
• Power input: 100–240VAC, 50/60Hz; LED illuminator: 1W
• Dimensions: 28 × 17.8 × 35cm / 11 × 7 × 13¾in

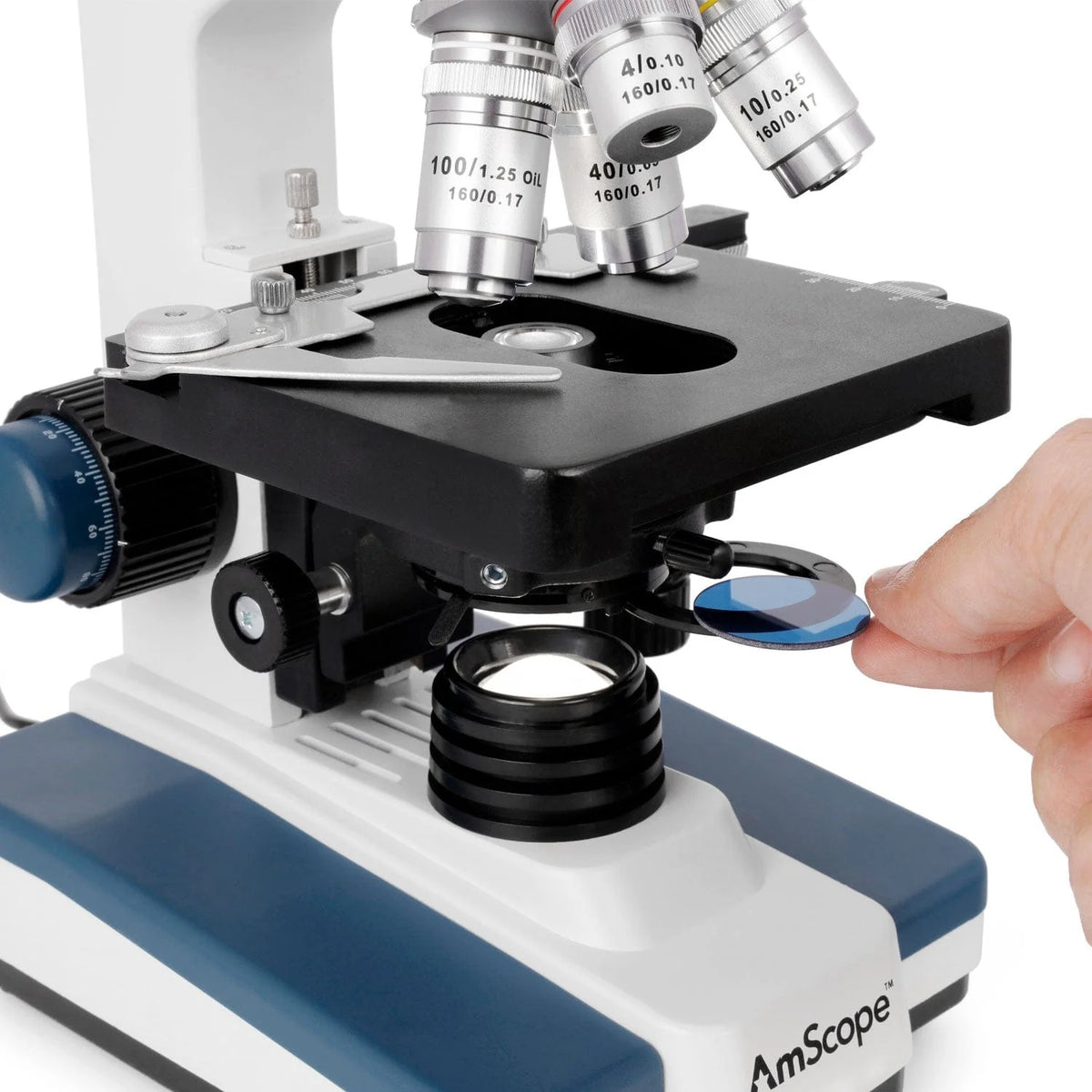

• Included: binocular head, microscope body, four objective lenses, two pairs of eyepieces, blue filter, dust cover and sample immersion oil
