Matrix 1S HD 3-in-1 Brushless Flight Controller with BMI270 Gyro, ELRS 2.4GHz Receiver and 12A ESC

Matrix 1S HD 3-in-1 Brushless Flight Controller with BMI270 Gyro, ELRS 2.4GHz Receiver and 12A ESC

$63.15
$63.15

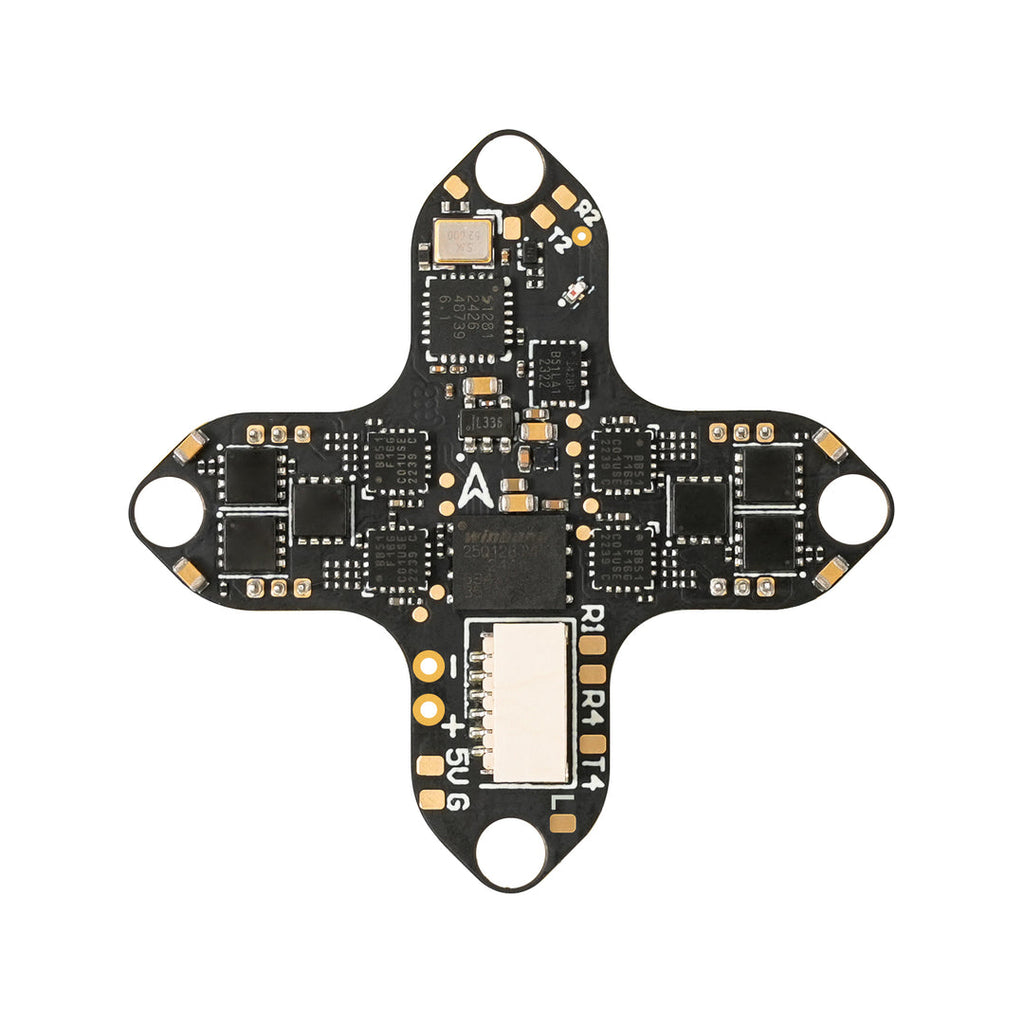

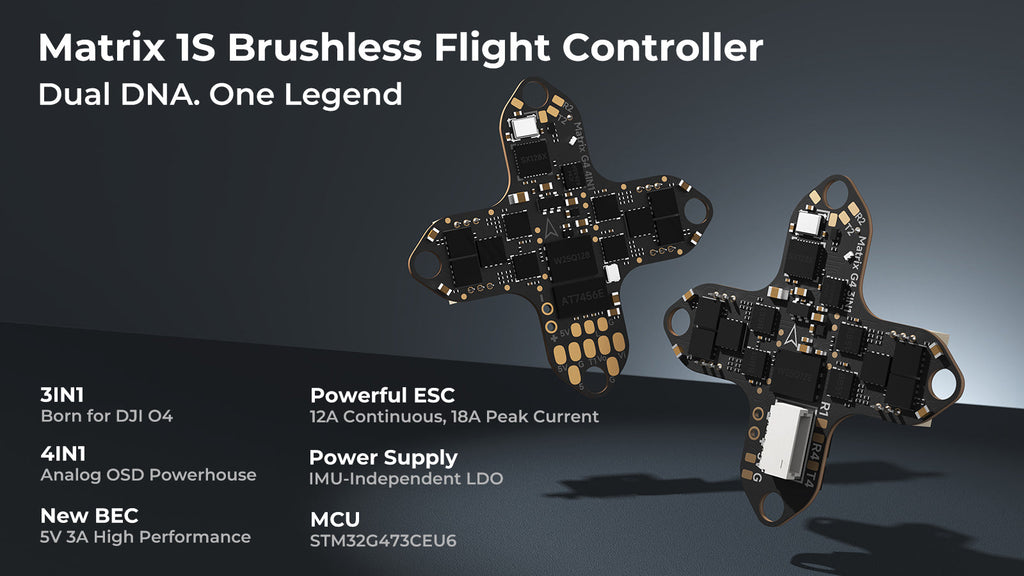

The BETAFPV Matrix 1S HD 3-in-1 combines a brushless flight controller, 12A ESC and serial ELRS 2.4GHz receiver for compatible digital 1S whoop builds using the BMI270 gyro version.

Key Features

  • STM32G473 processor handles flight-control tasks.
  • Integrated ESC supports 12A continuous and 18A peak current.

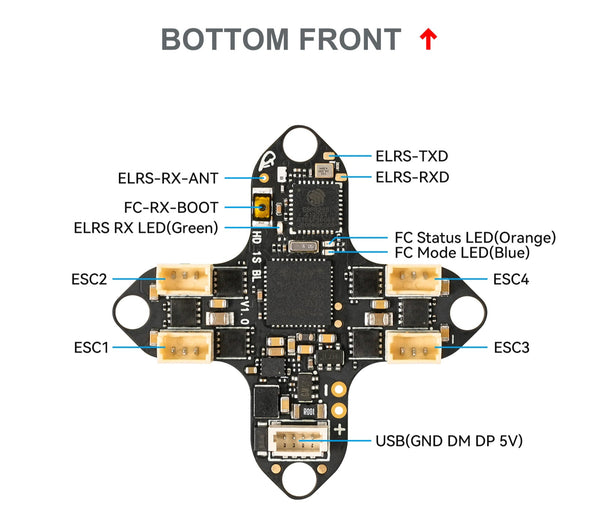

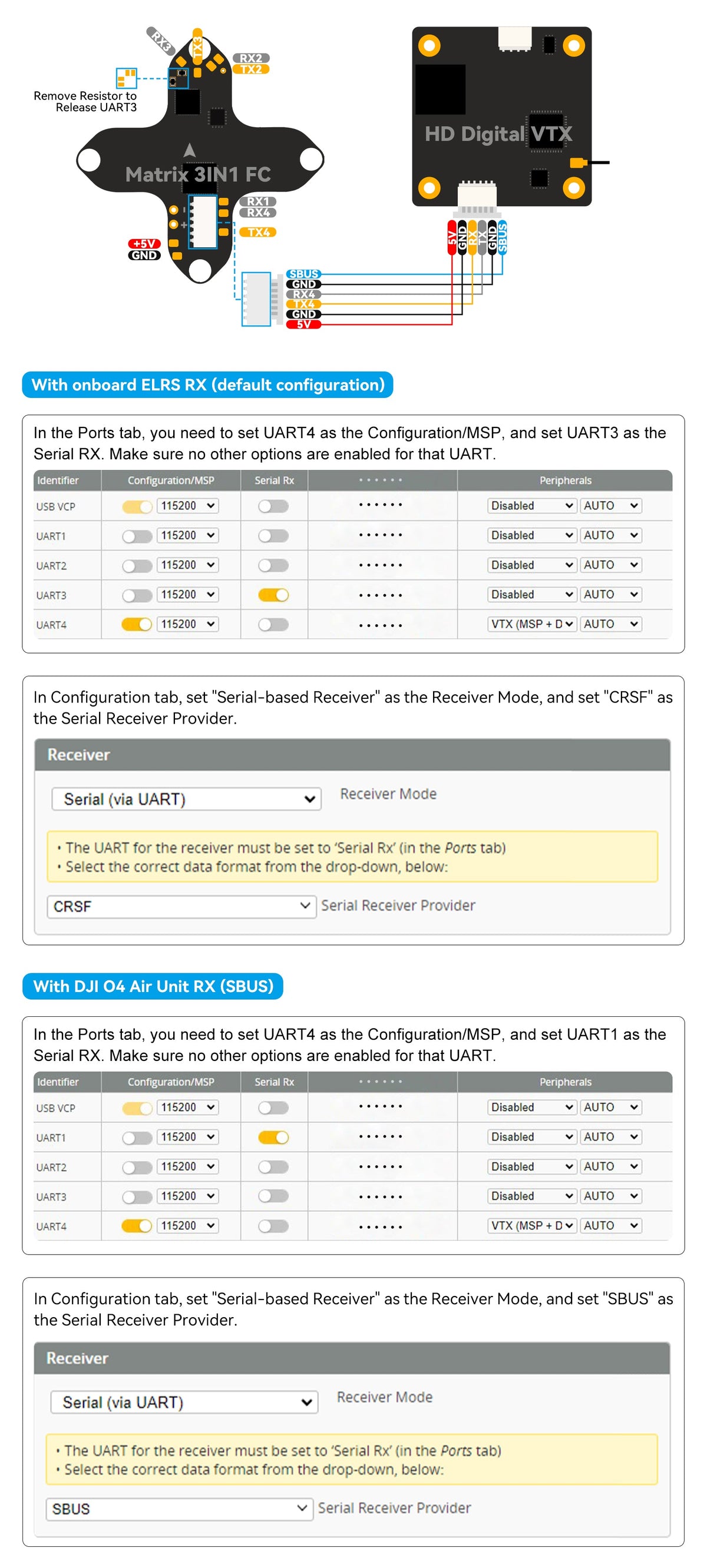

  • Built-in serial ELRS 2.4GHz receiver communicates through CRSF.

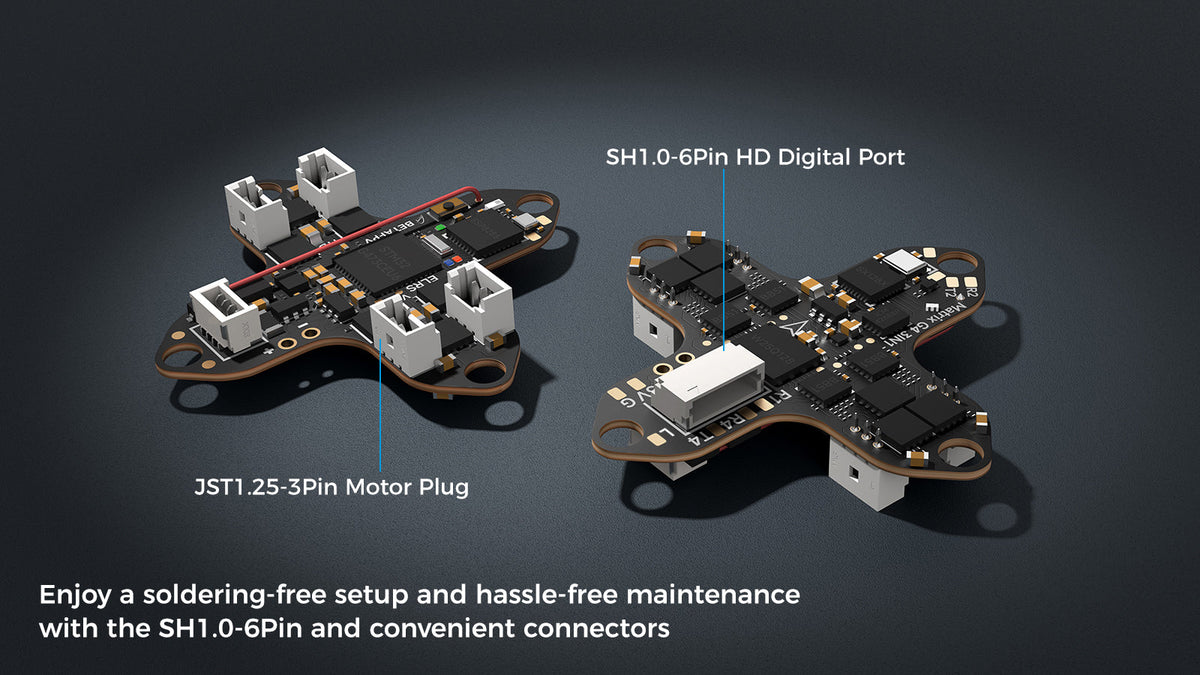

  • SH1.0 six-pin HD digital VTX port supports compatible digital video hardware.
  • JST1.25 motor plugs and the digital port simplify installation.
  • Independent 3.3V LDO supplies the IMU to reduce power interference.

Specifications

  • Brand: BETAFPV
  • Product: Matrix 1S HD 3-in-1
  • Gyro version: BMI270
  • Power input: 1S only
  • Receiver: Serial ELRS 2.4GHz
  • ESC: 12A continuous, 18A peak

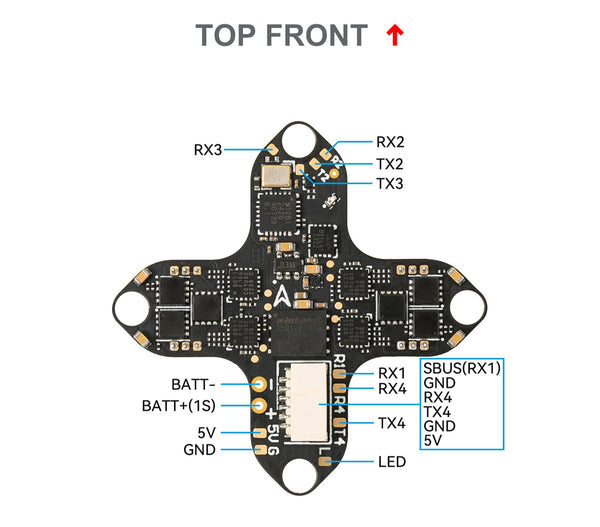

  • Battery connector: BT2.0
  • Motor plugs: JST1.25 three-pin
  • HD digital VTX port: SH1.0 six-pin
  • Firmware family: Betaflight BETAFPVG473

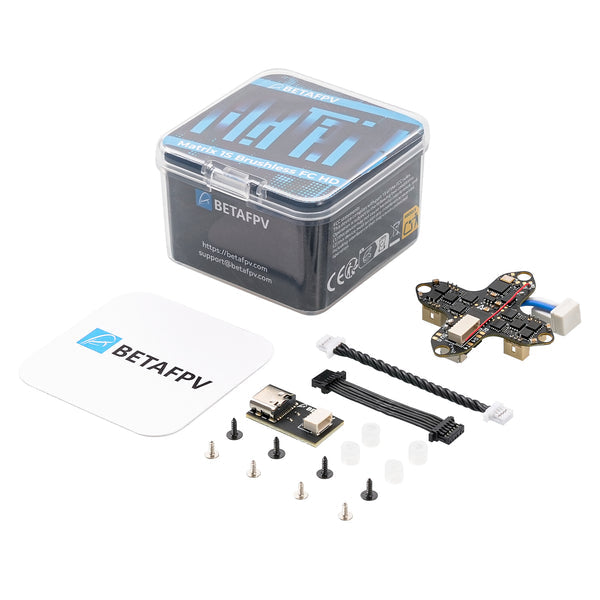

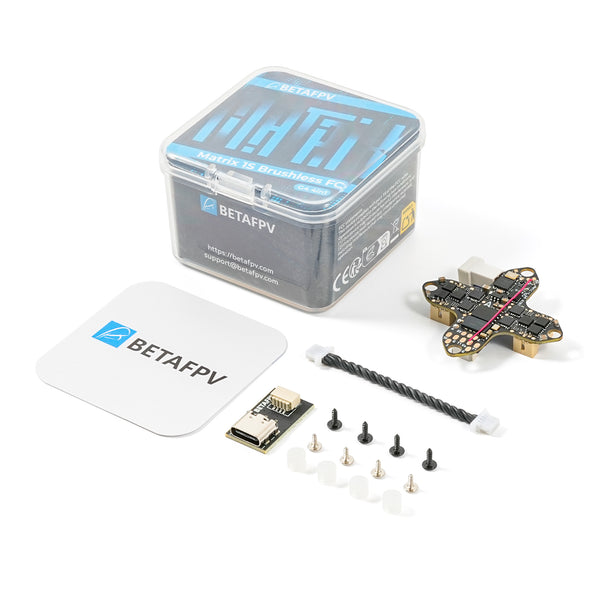

  • Included: One Matrix 1S HD 3-in-1 flight controller set

Verify the BMI270 gyro target and compatible firmware before flashing. Installation, power and motor choices must match a 1S whoop build.
