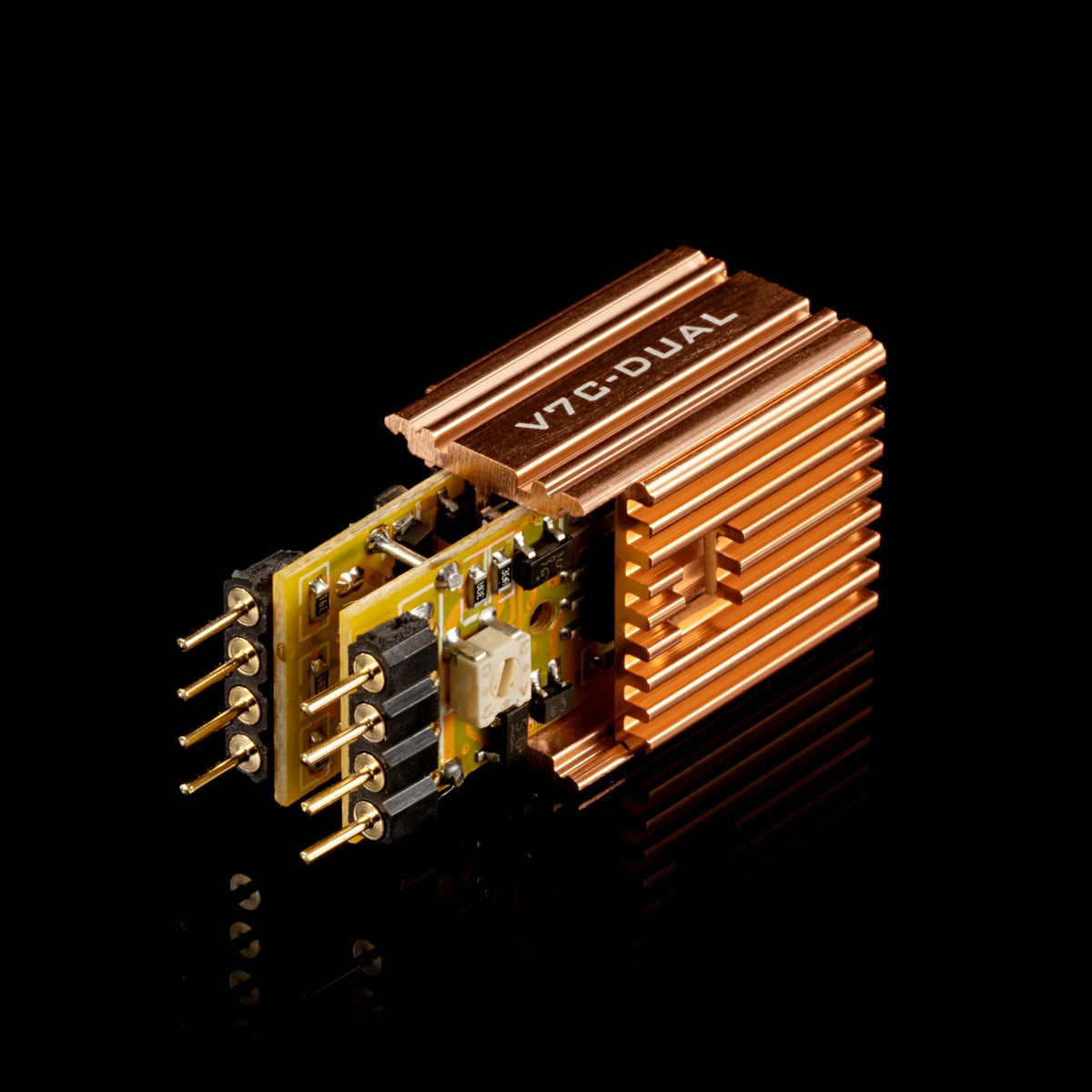

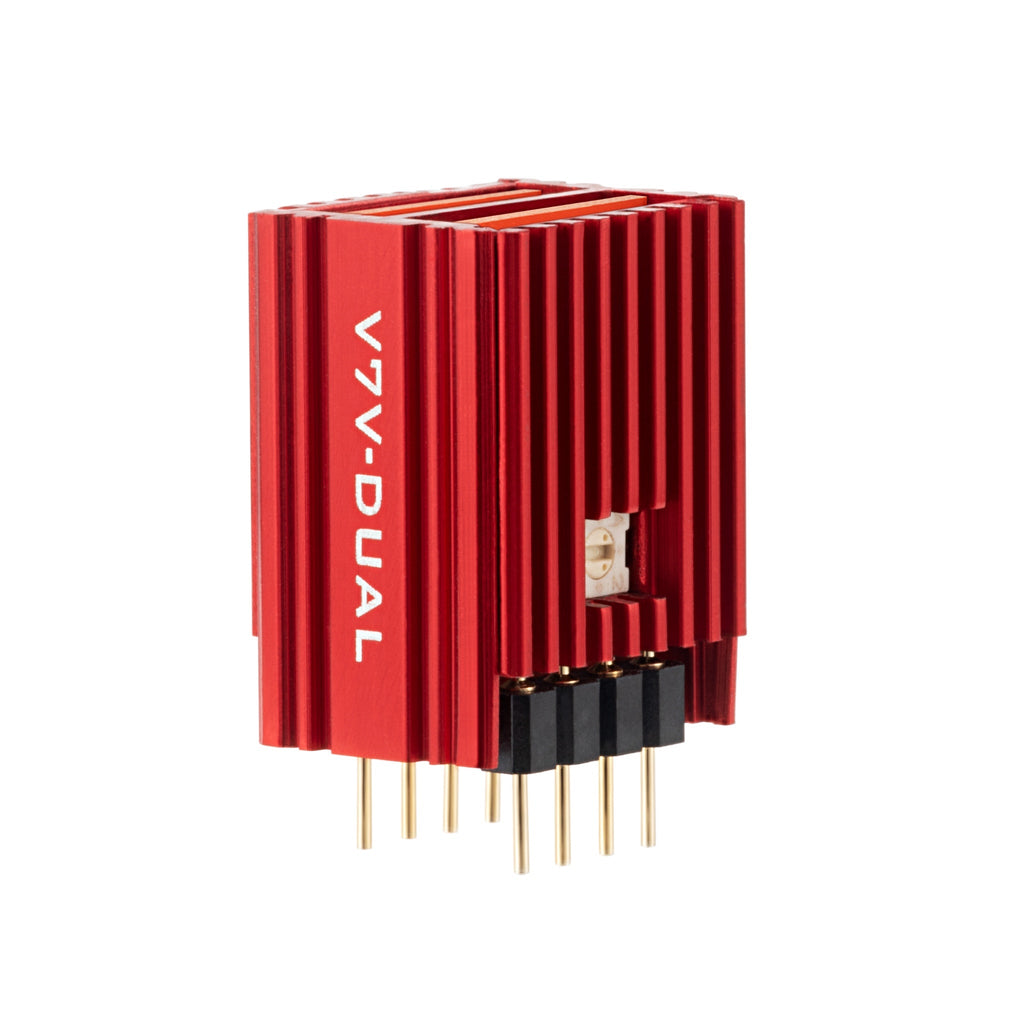

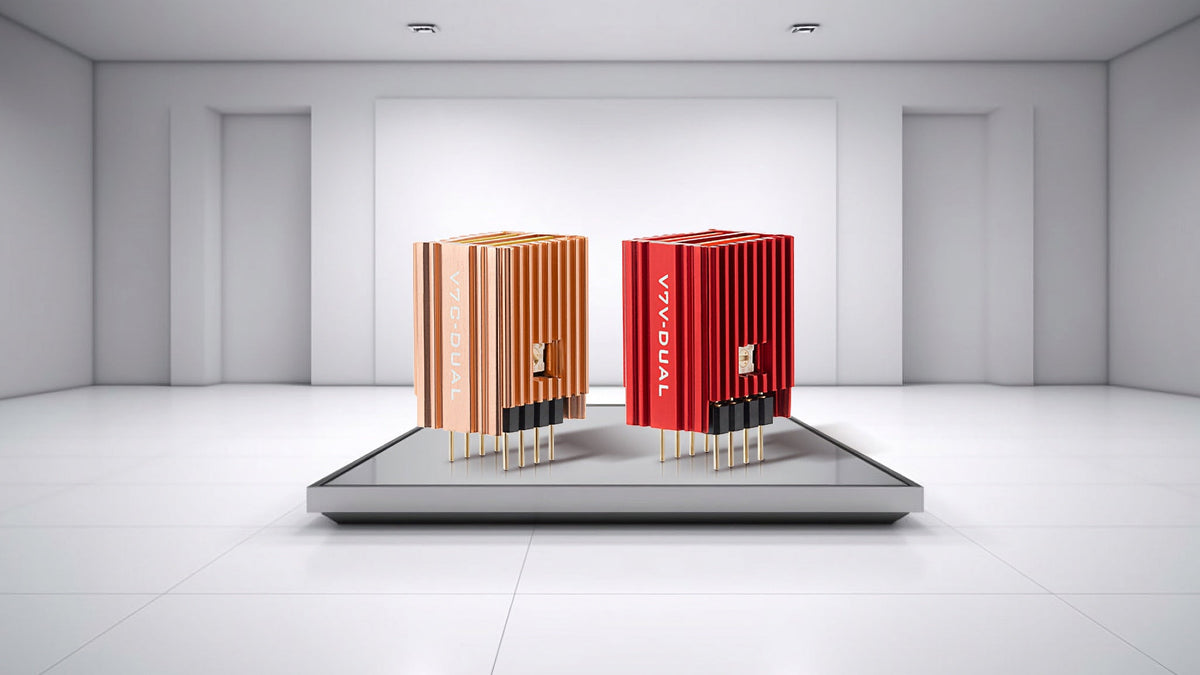

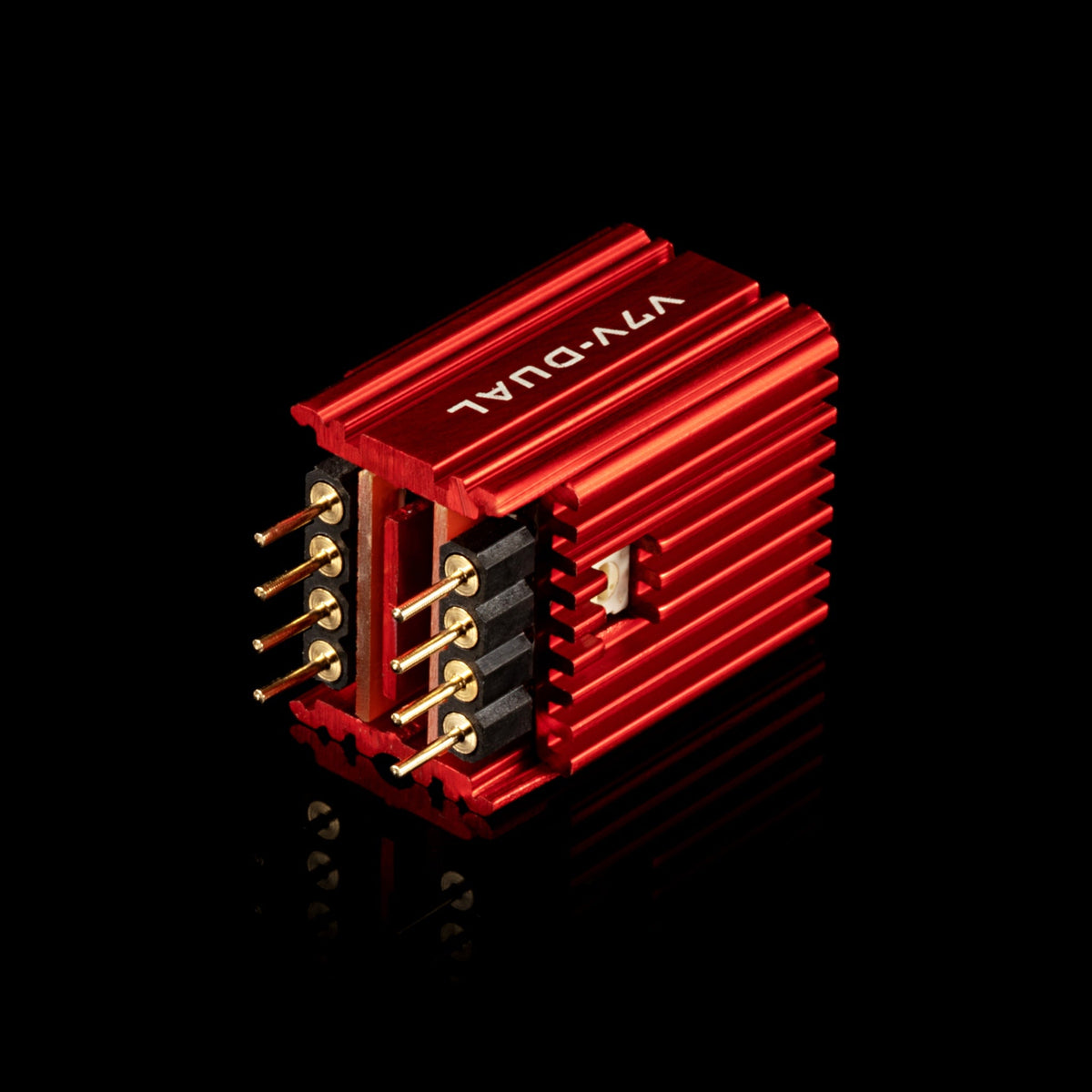

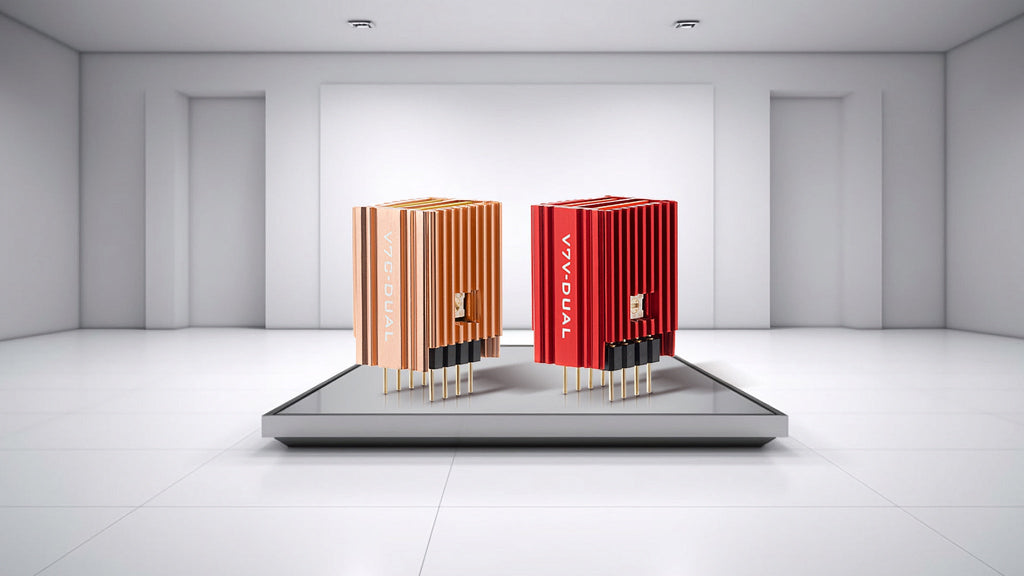

Burson V7 Pro Fully Discrete Audio Opamp Pair with Eight-Layer PCB, Aluminum Heat Sink and Single or Dual Channel Options

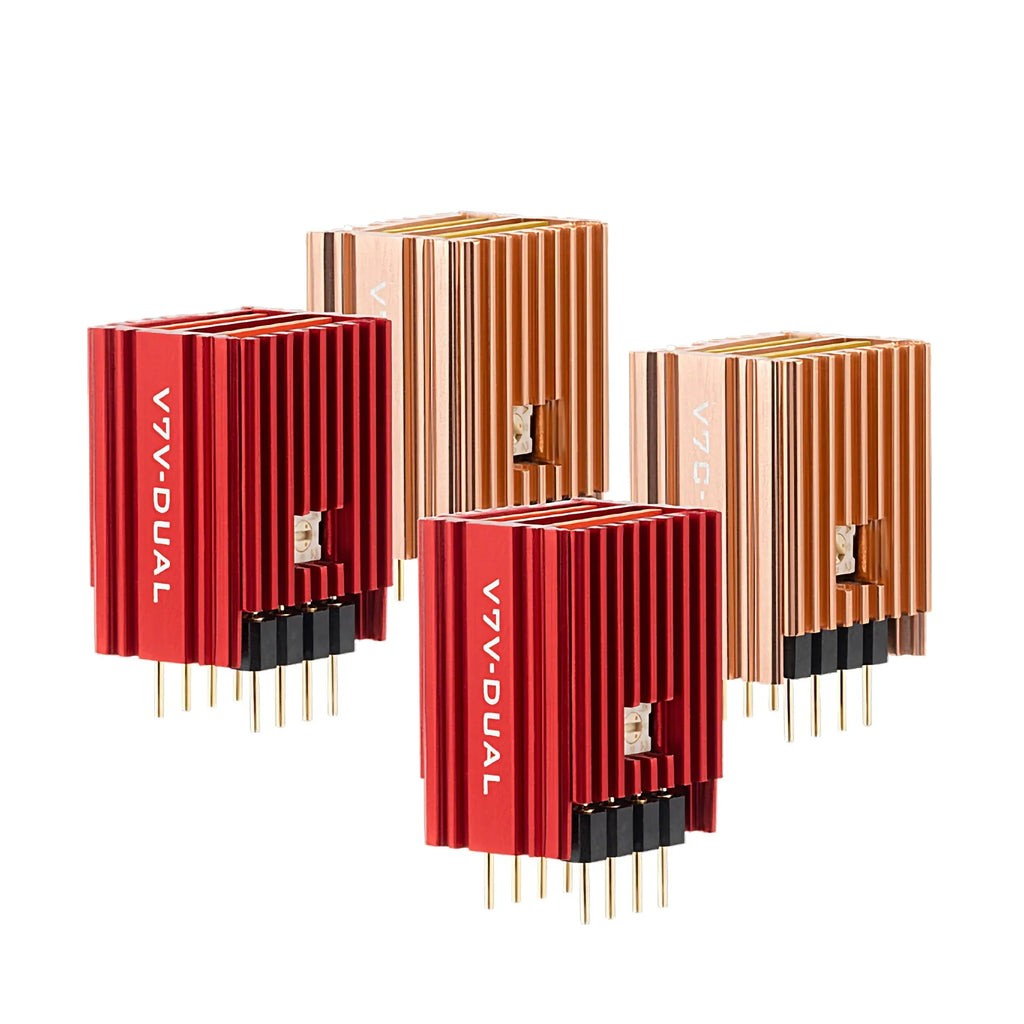

Burson V7 Pro is a pair of fully discrete operational amplifier modules for compatible audio circuits. The available variants combine Vivid or Classic design, single- or dual-channel operation and the listed New or Open Box condition.

Key Features

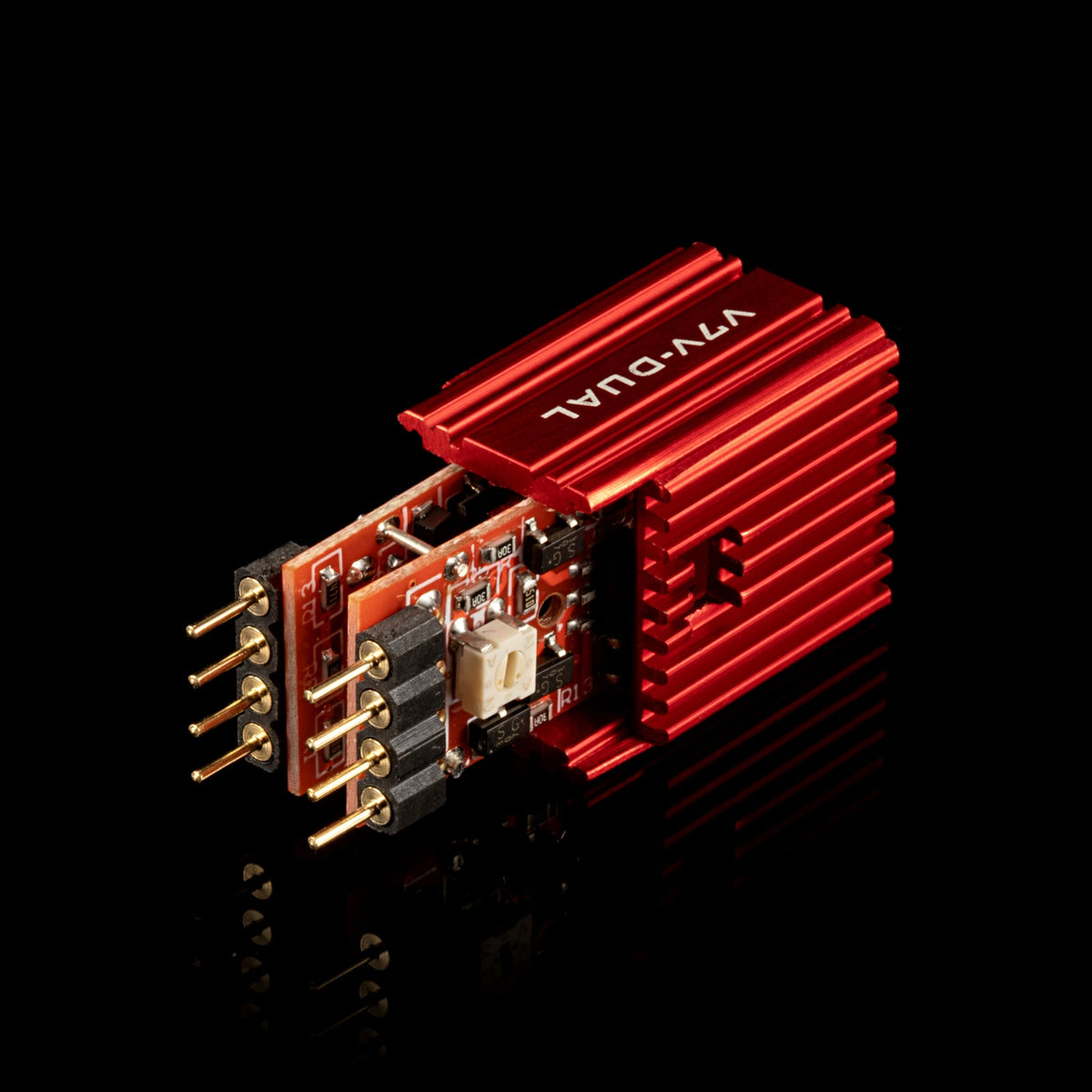

• Eight-layer PCB separates signal paths, grounding and shielding, with a shortened signal path.

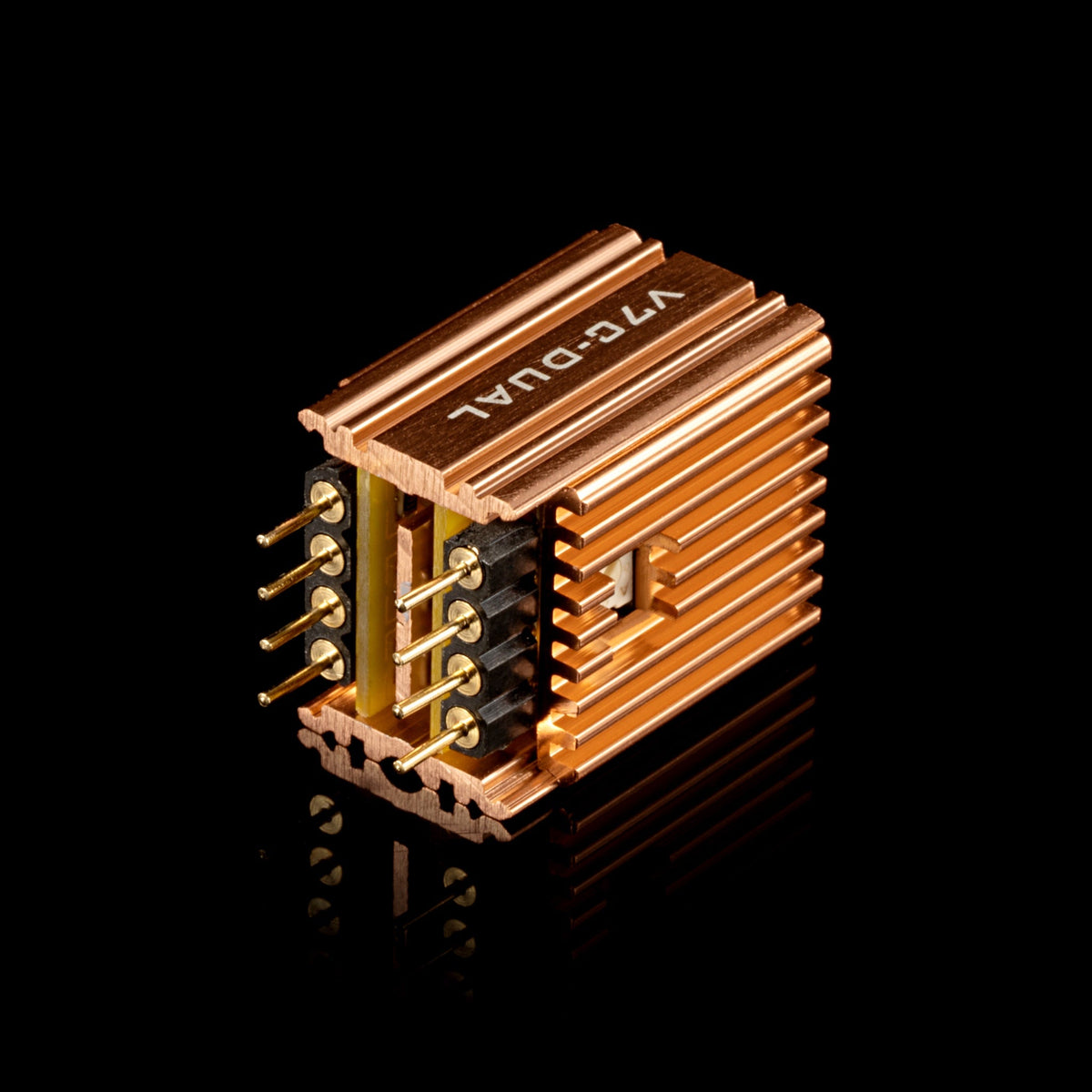

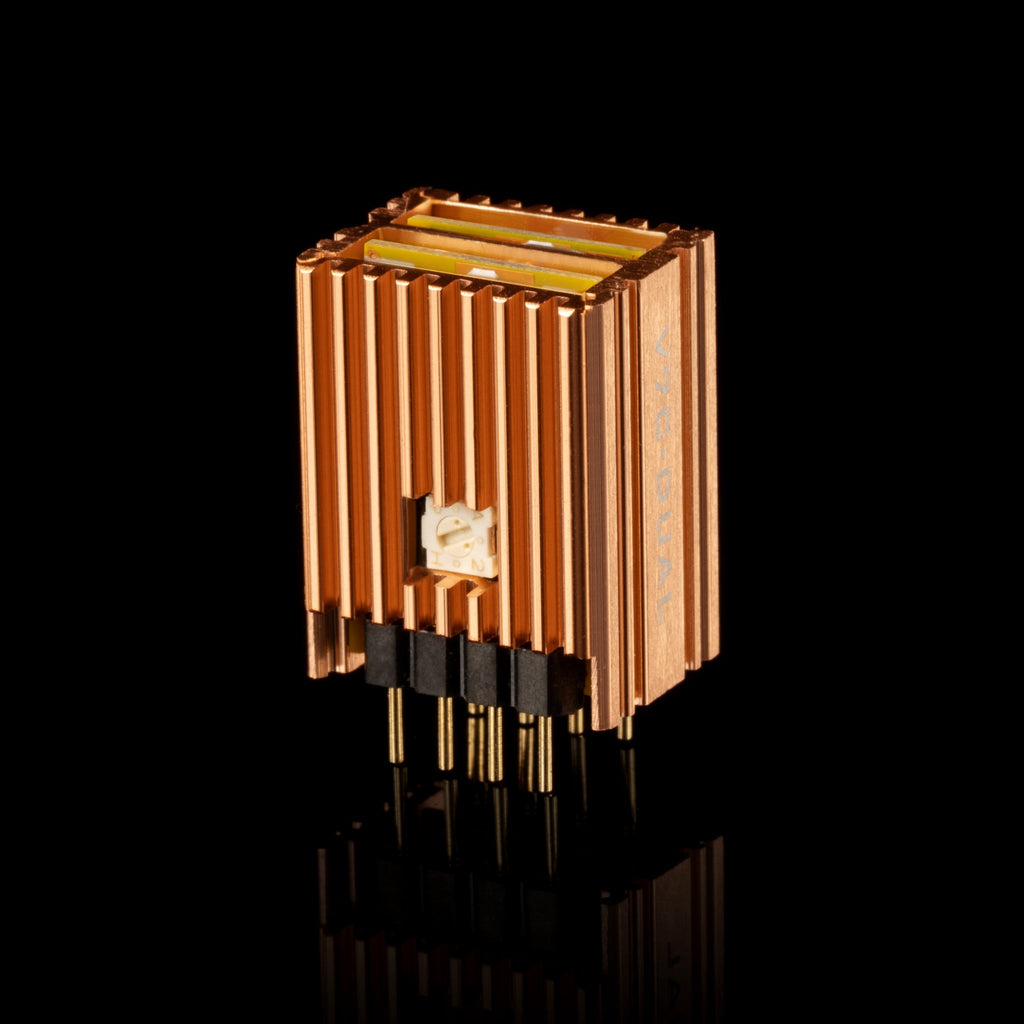

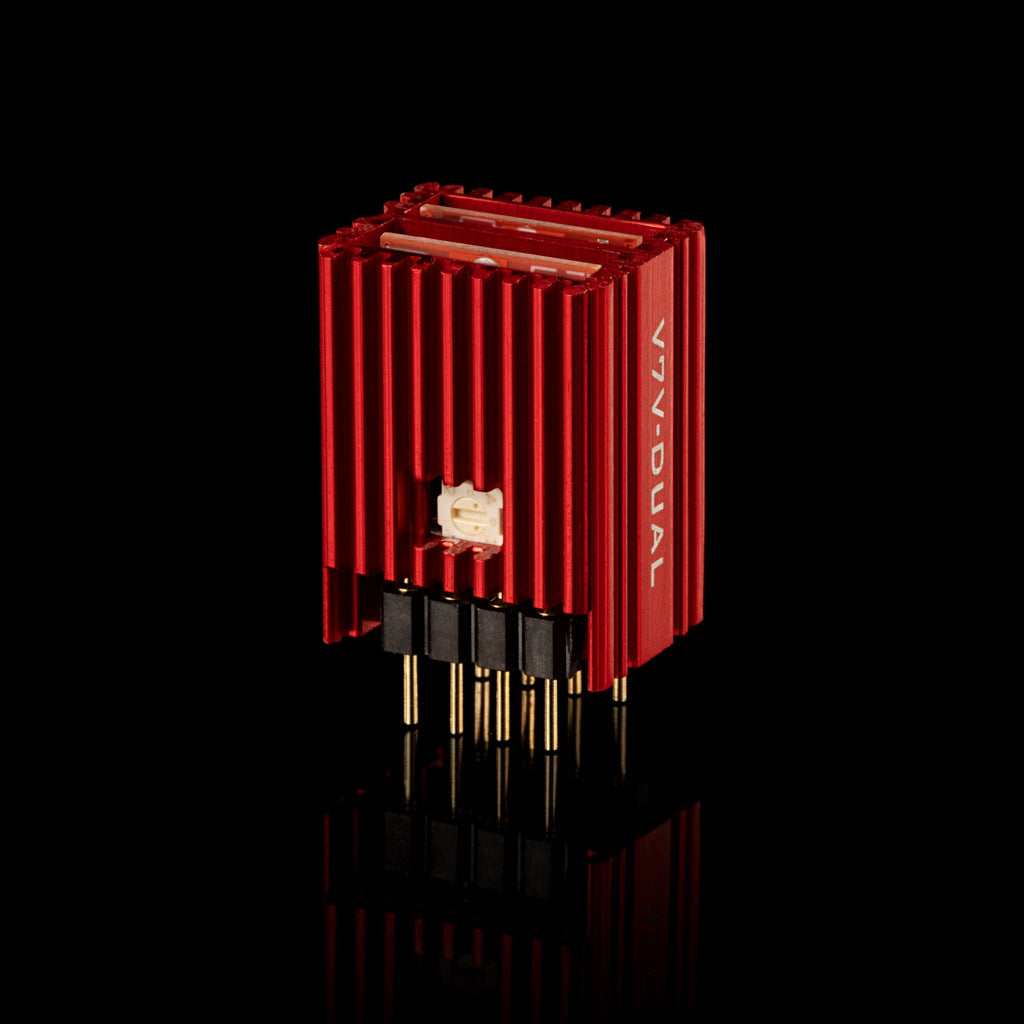

• High-density aluminum shell transfers heat from the PCB and protects its components.
• The linked V7 data sheet describes a matched FET input pair, current-mirror amplification core and matched-transistor emitter-follower output stage.
• Unity-gain stability and reverse-voltage protection are stated for both V7 Vivid and V7 Classic.

Specifications

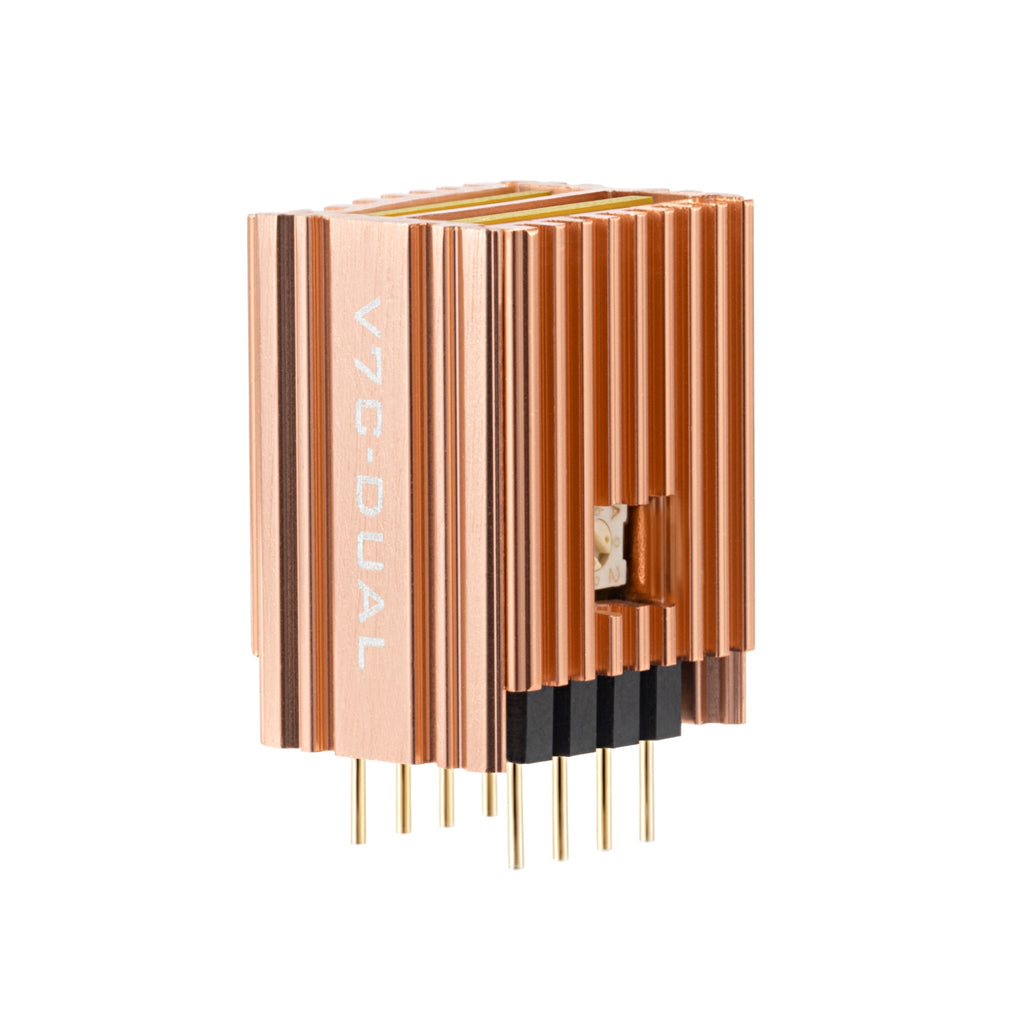

• Module dimensions: 15×13×19mm.
• Stated supply range: ±4V to ±15V rails, listed as 8–30V DC in the comparison table.
• Quiescent current: 10mA for a single-channel module or 20mA for a dual-channel module.

Package and Compatibility

Each listed variant is a pair of opamp modules. Single and Dual identify channel configuration, not package quantity. Check the host circuit’s supply, electrical configuration and physical clearance before installation. Select the exact configuration and condition shown in the variant.
