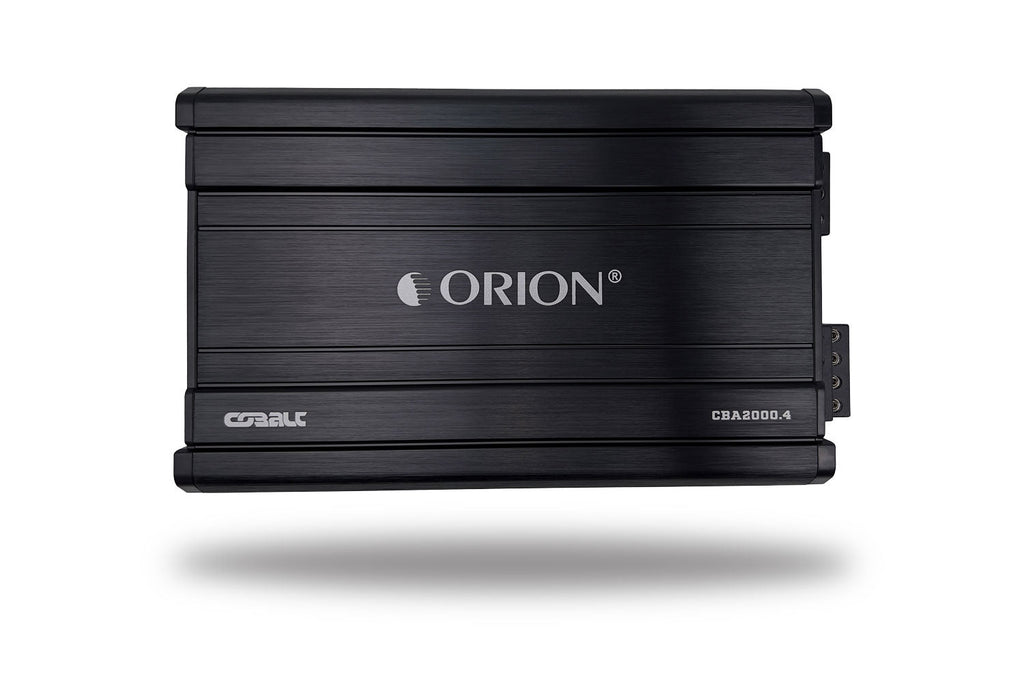

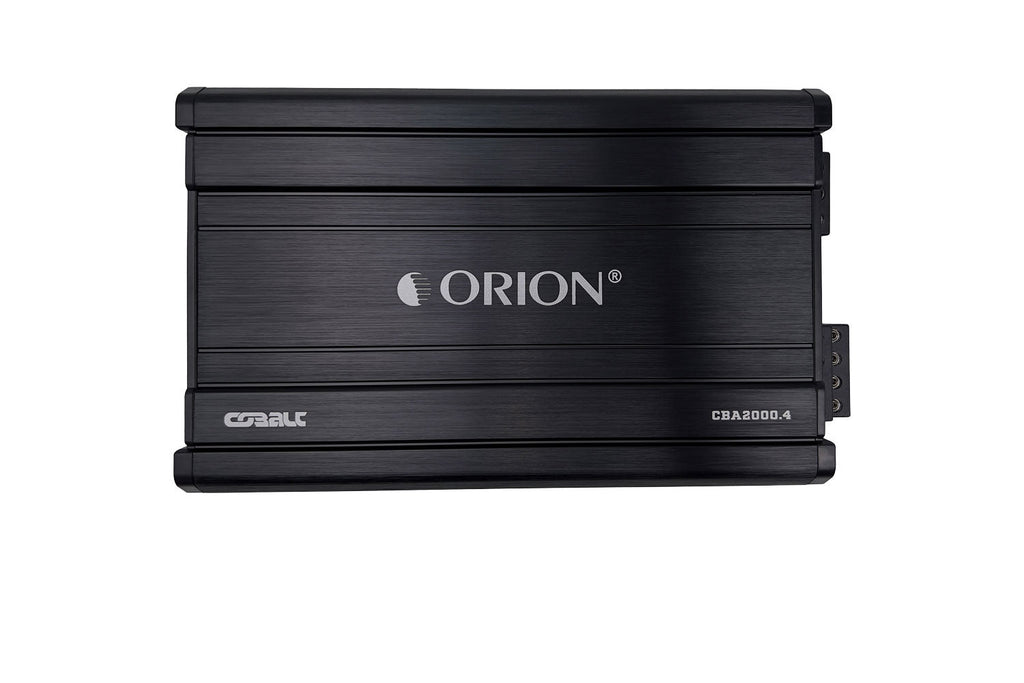

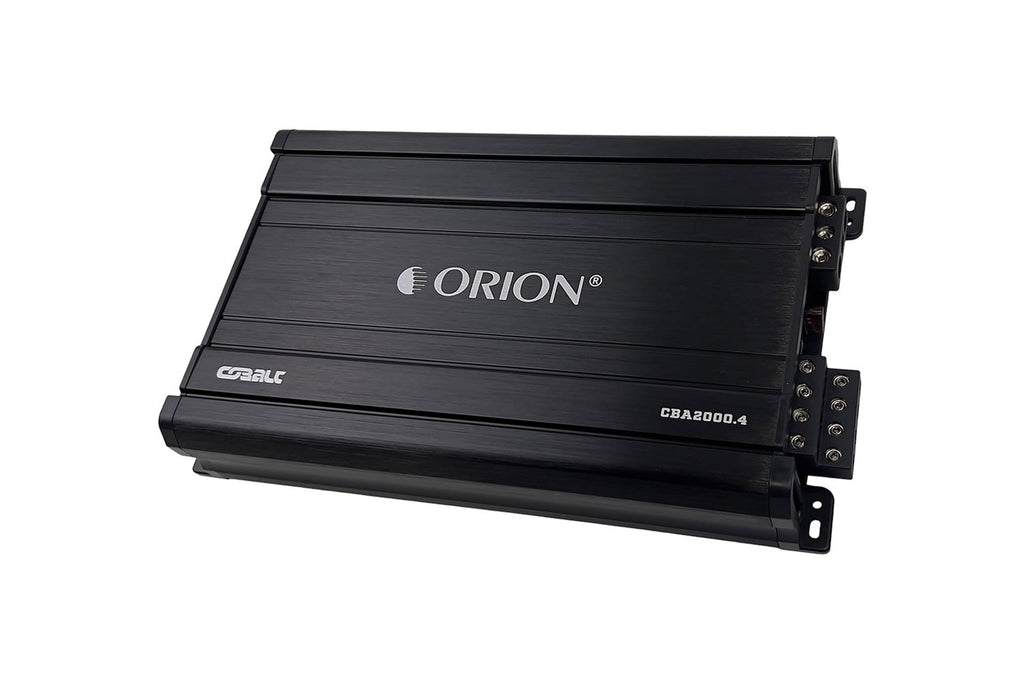

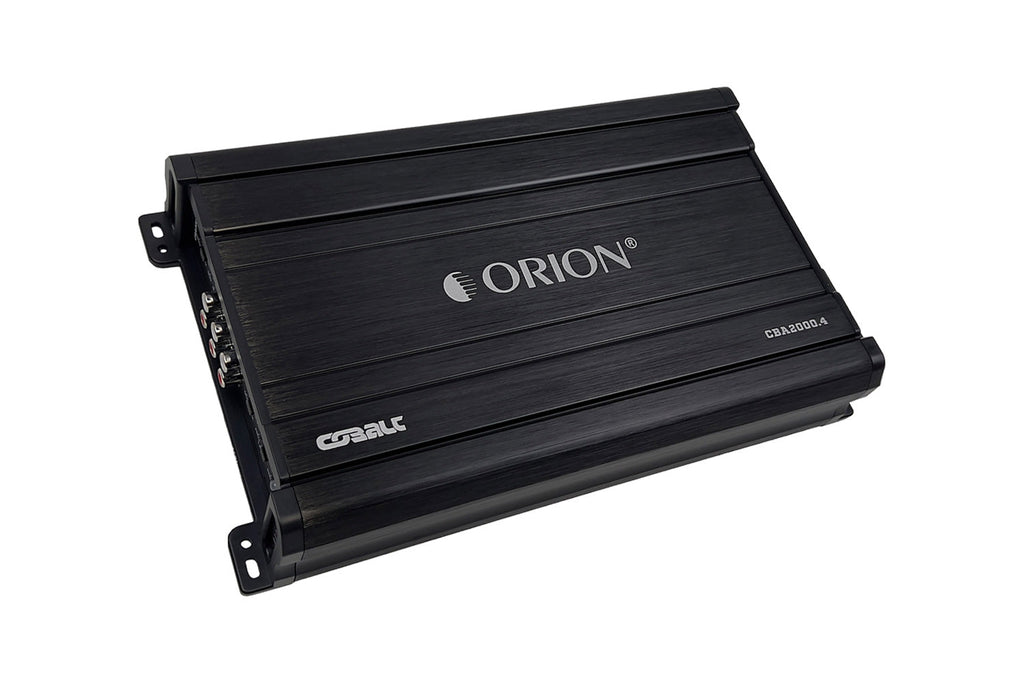

CBA2000.4 2000W Max Four-Channel Class A/B Car Audio Amplifier with Variable Crossovers and Bass Boost

This four-channel Class A/B car audio amplifier supplies full-range power for door speakers, midrange drivers and multi-speaker system upgrades.

Key Features

• Maximum listed output is 2000W across a four-channel Class A/B design.
• Rated output is 4 x 40W RMS at 4 ohms, 4 x 75W RMS at 2 ohms or 2 x 150W bridged at 4 ohms.

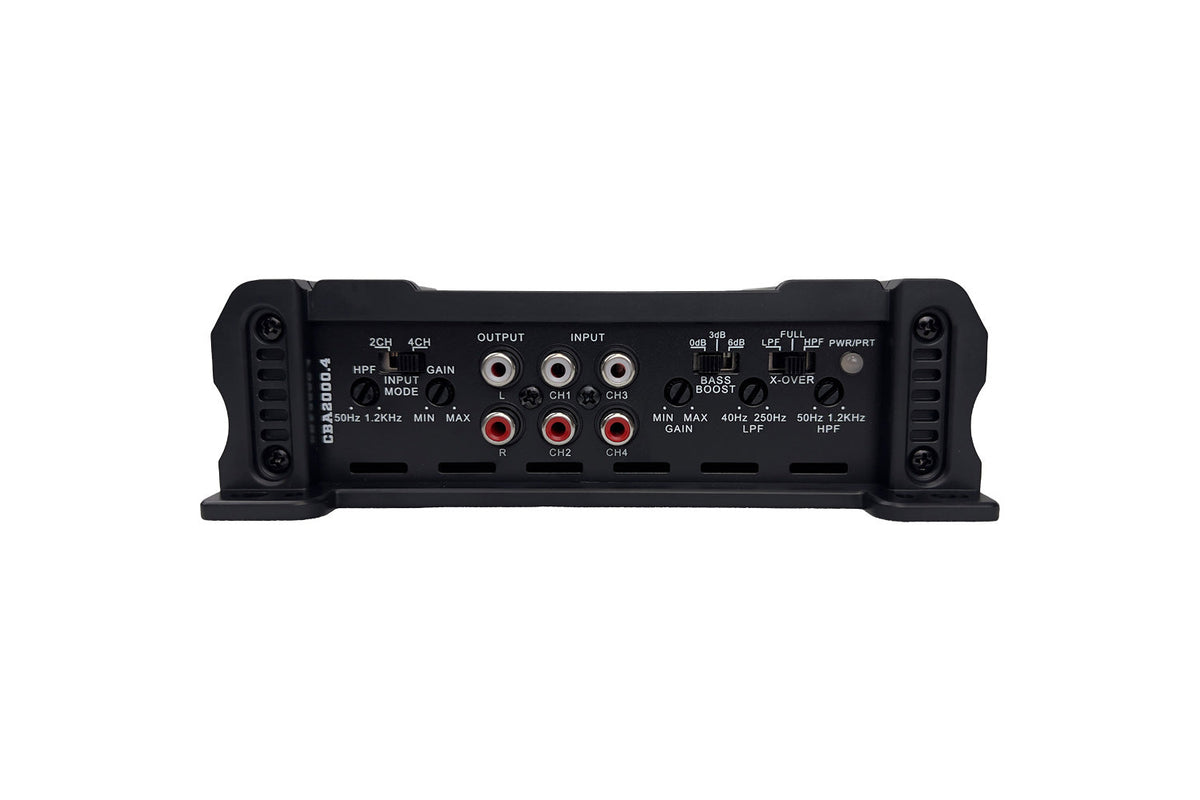

• Variable high-pass and low-pass crossovers support system tuning.
• Selectable 0, +3 or +6dB bass boost adjusts low-frequency emphasis.
• Full-range frequency response covers 10Hz to 30kHz.

Specifications

• Model: CBA2000.4
• Amplifier class: A/B
• Channels: Four
• Maximum power: 2000W
• Frequency response: 10Hz–30kHz
• High-pass crossover: 50Hz–1.2kHz variable
• Low-pass crossover: 40Hz–250Hz variable
• Input sensitivity: 0.2V–6.0V
• Supply voltage: 10–16V
• Dimensions: 12.17 x 7.09 x 2.13 in
• Item code: ORI-CBA2000.4
