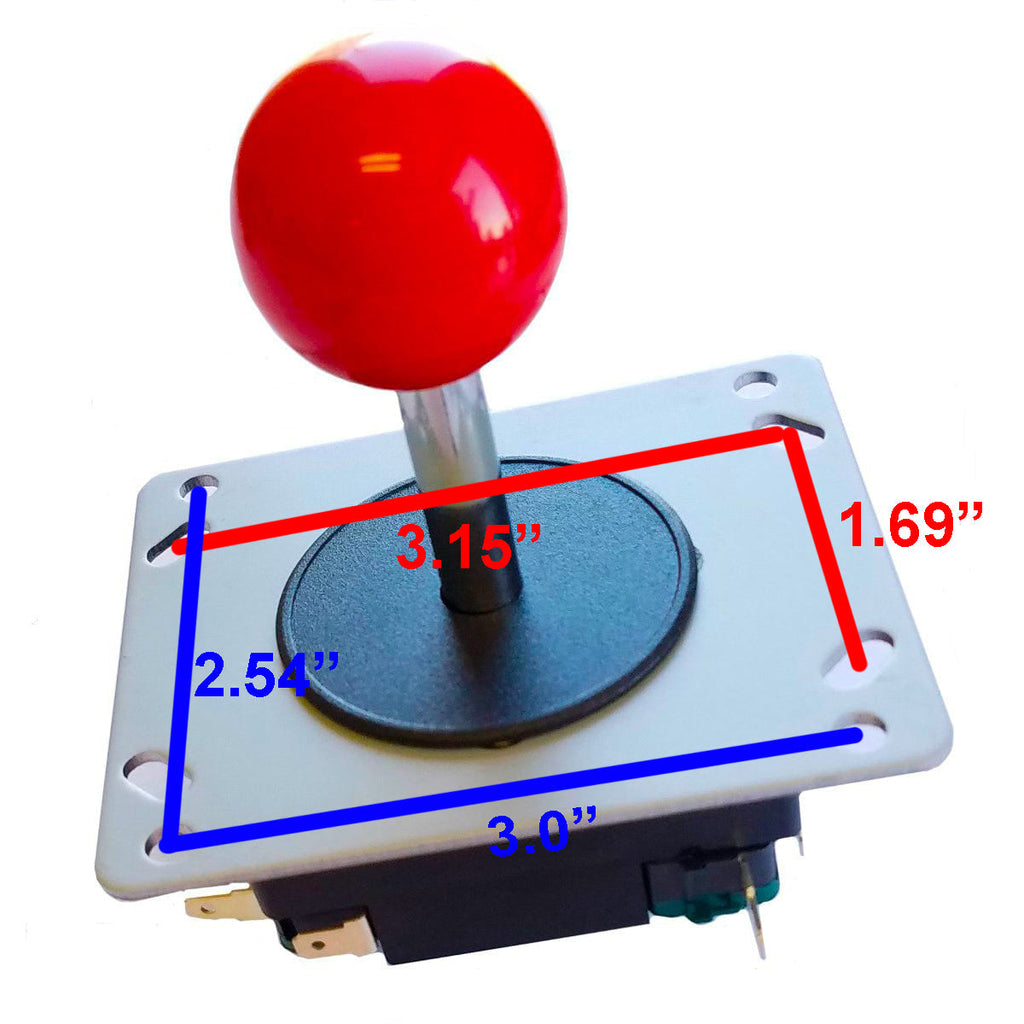

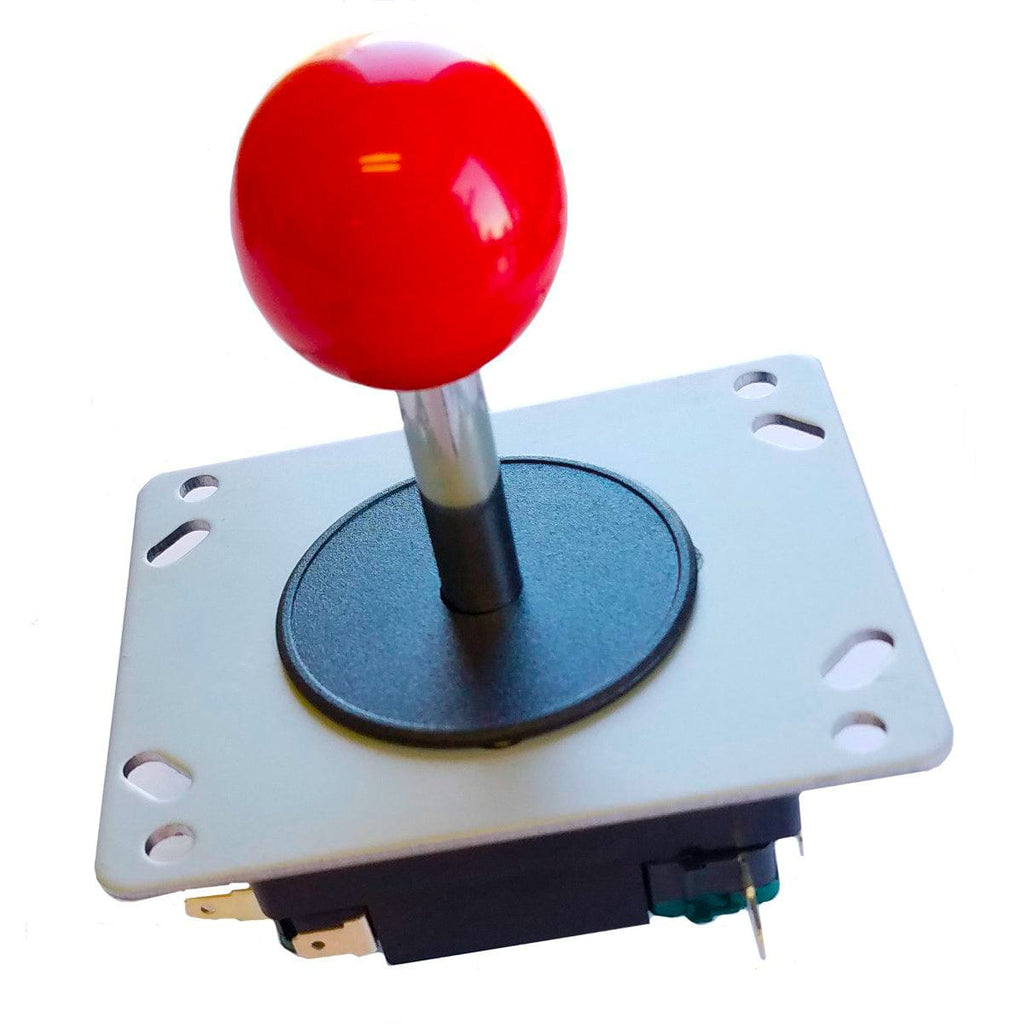

Classic Red Ball Arcade Joystick with Selectable 4-Way or 8-Way Control and Four Preinstalled Microswitches

This classic arcade joystick combines a round red ball handle with selectable 4-way or 8-way operation for compatible wood and metal control panels.

Key Features

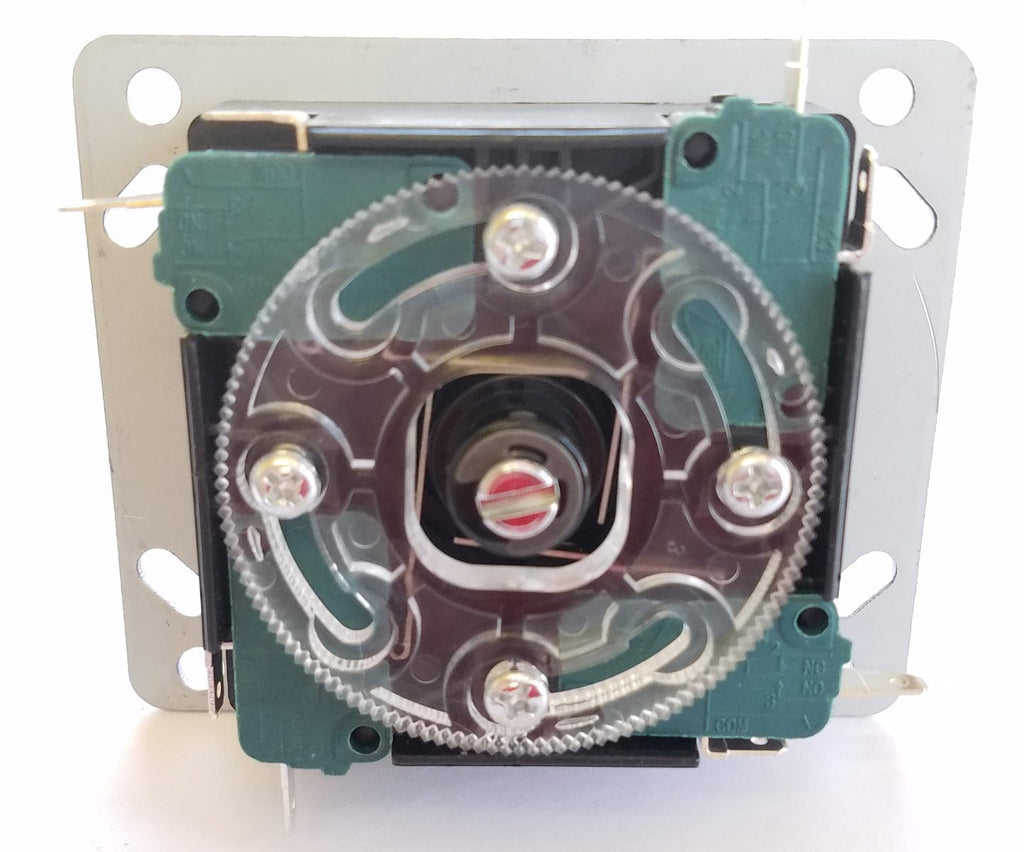

• Bottom plate flips to change between 4-way and 8-way control.
• Spring mechanism returns the joystick smoothly to center.
• Red ball handle connects to a strong steel shaft.
• Four microswitches are installed and ready for wiring.

Specifications

• Operation: Selectable 4-way or 8-way
• Handle: Round red ball
• Shaft material: Steel
• Microswitch quantity: Four
• Terminal size: 0.187 inch
• Microswitch test rating: 10,000,000 cycles
• Panel compatibility: Wood and metal control panels

Setup

Choose the required directional mode by flipping the bottom black plate, secure the joystick to the compatible control panel and connect the four microswitch terminals.
