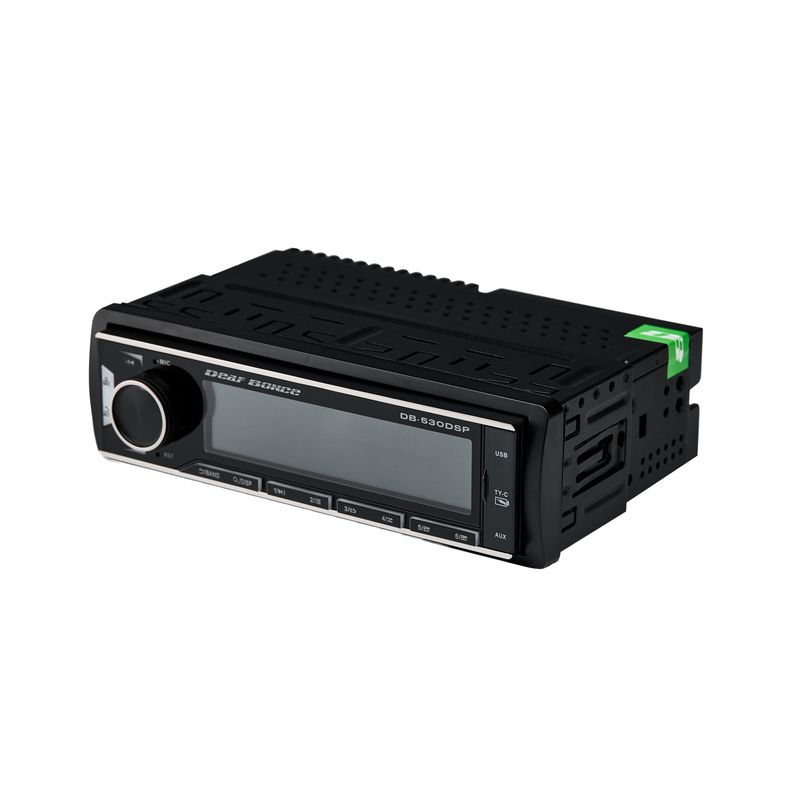

DB-530DSP Single-DIN Car Audio Digital Signal Processor with 4x25W RMS Amplifier, 8 RCA Outputs and Bluetooth

The Deaf Bonce DB-530DSP is a compact single-DIN car-audio signal processor with a built-in four-channel amplifier, eight RCA outputs and detailed tuning controls.

Key Features

• Built-in Class AB amplifier delivers 4 × 25W RMS at 4 ohms.
• Eight RCA outputs include six full-range channels and two subwoofer channels.
• High-pass and low-pass crossovers offer selectable 6–24dB-per-octave slopes.
• Time alignment adjusts up to 18ms in 0.1ms steps.
• Bluetooth A2DP streaming, hands-free calling, AM/FM radio with RDS, USB and 3.5mm AUX are integrated.

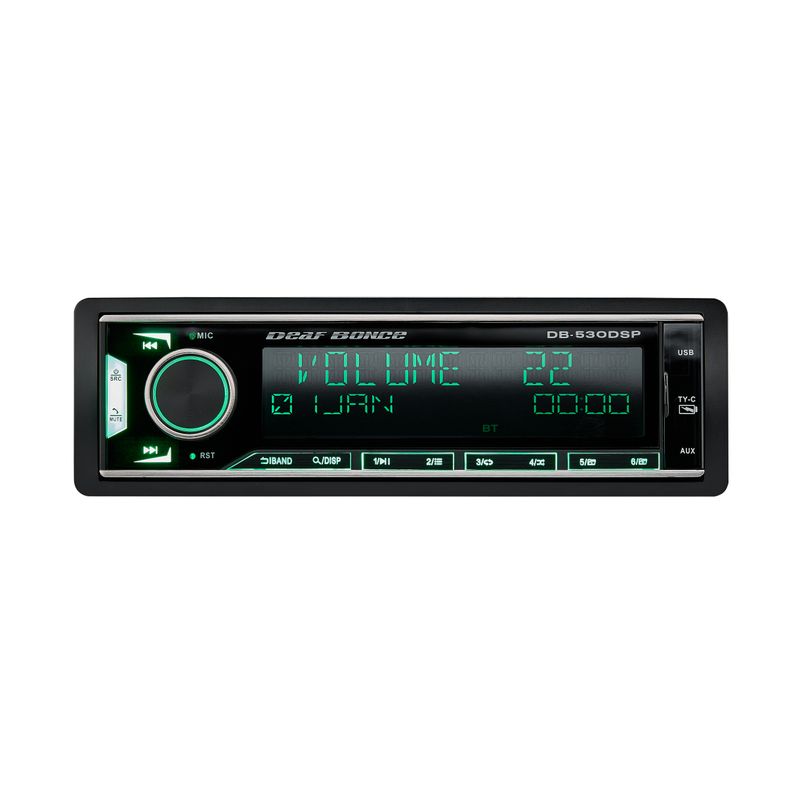

• VA LCD uses seven-color, two-zone RGB illumination.

Specifications

• Brand: Deaf Bonce
• Model: DB-530DSP
• Amplifier: Class AB, 4 × 25W RMS at 4Ω

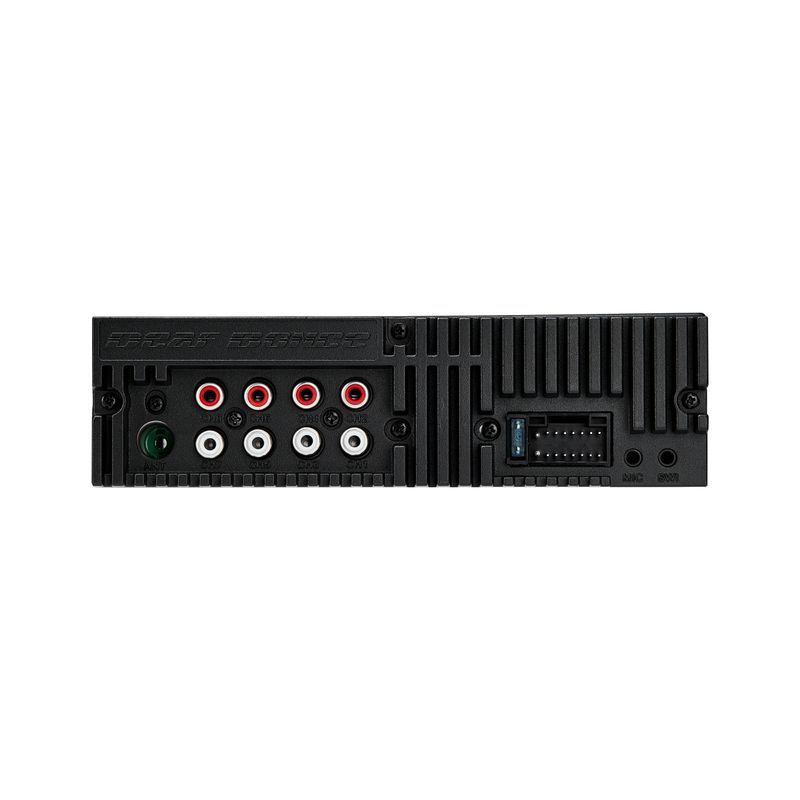

• RCA outputs: 8
• Full-range response: 20Hz–20kHz
• Subwoofer response: 20Hz–800Hz
• Signal-to-noise ratio: At least 80dB
• Operating voltage: 10–17V
• Dimensions: 188 × 58 × 138mm
• SKU: DEF-DB-530DSP
