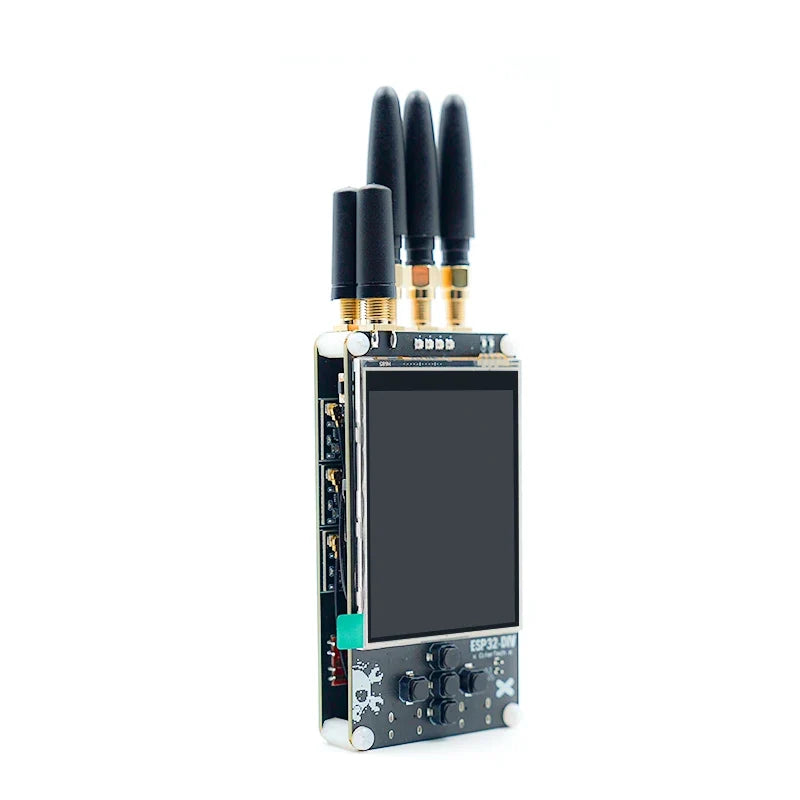

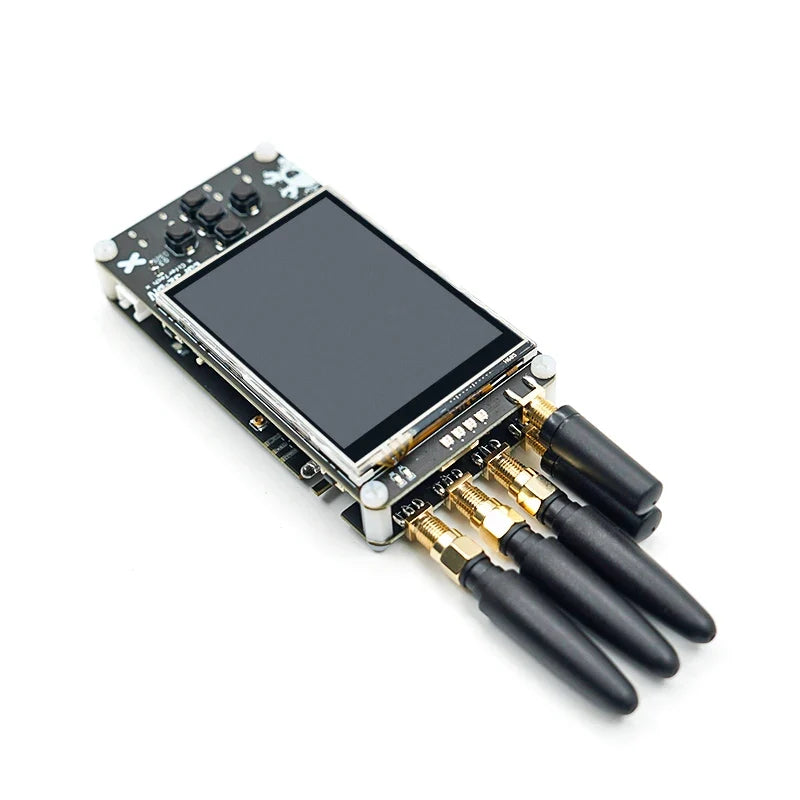

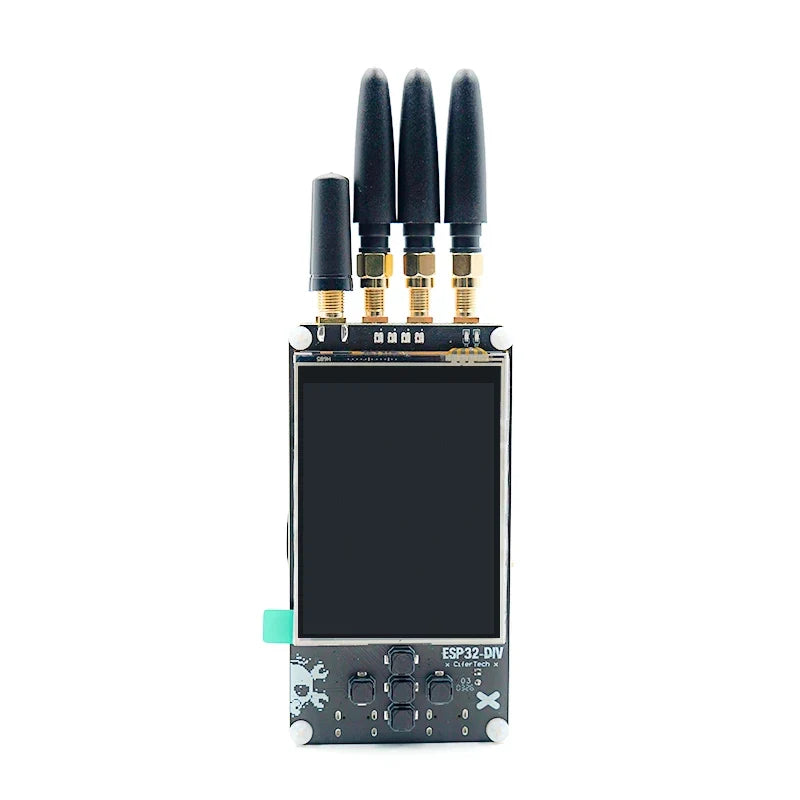

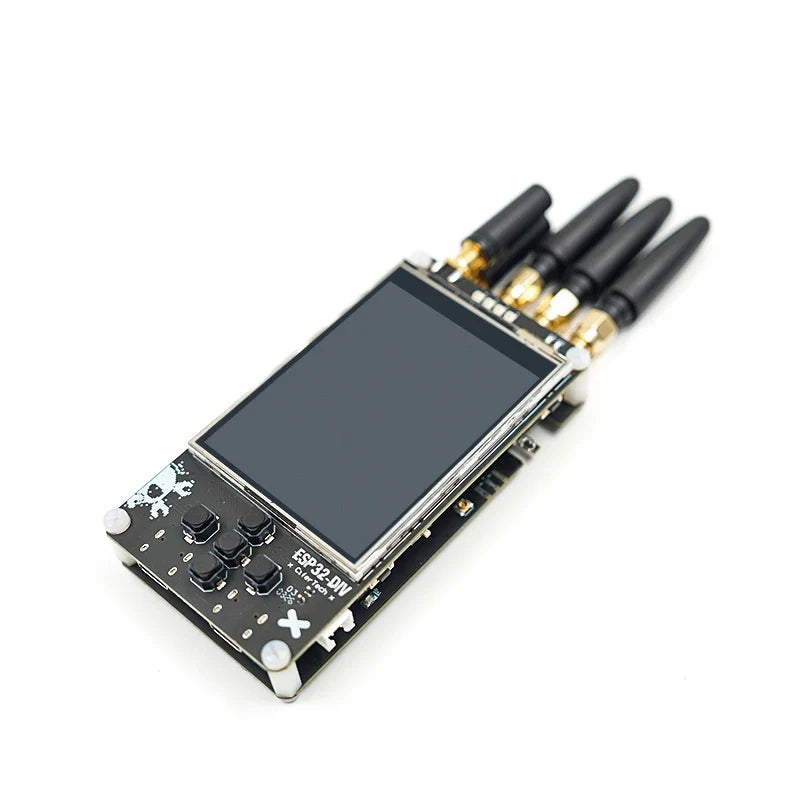

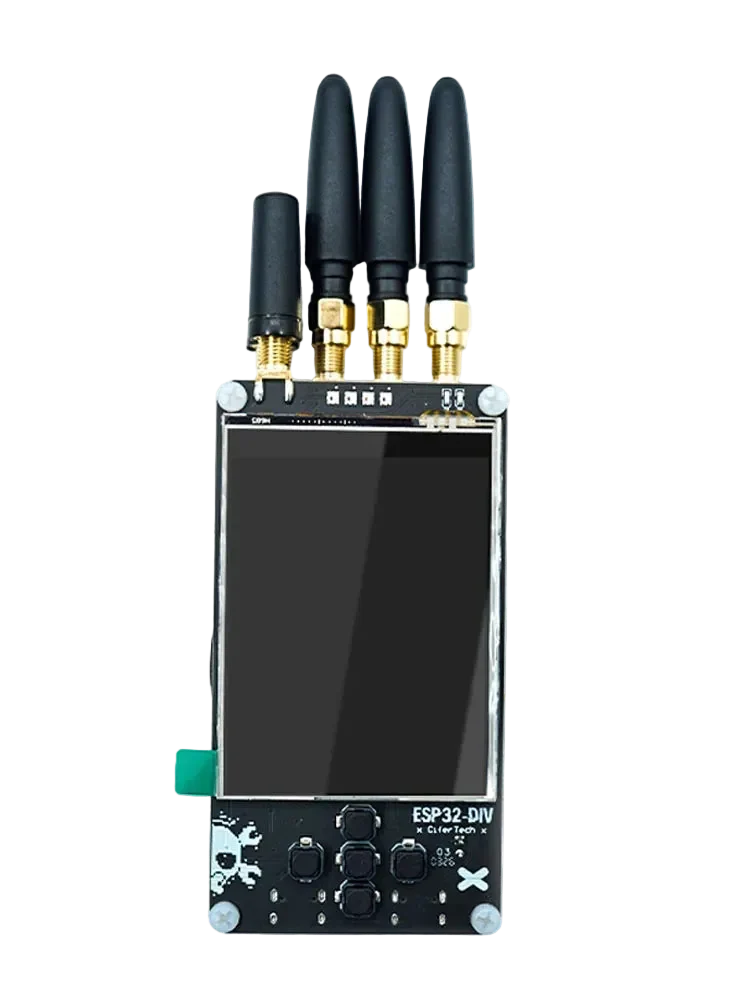

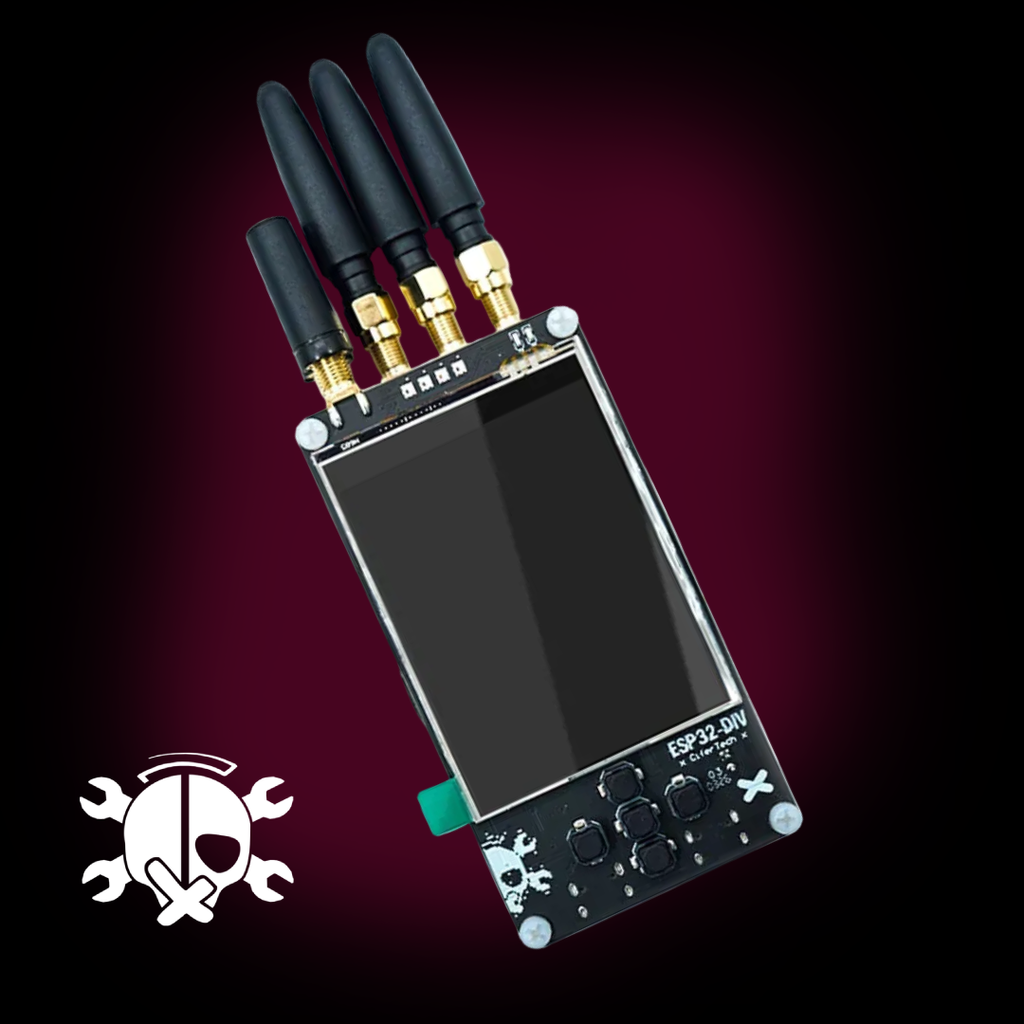

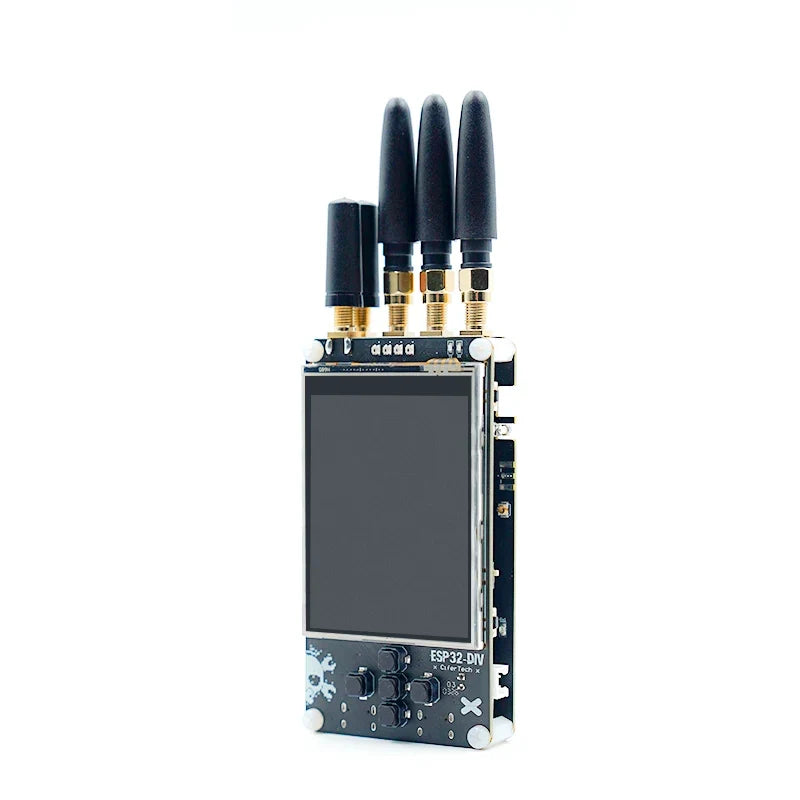

ESP32-S3 Handheld Multi-Band Wireless Development Kit with 2.8-Inch Touchscreen, NRF24L01 and CC1101

This ESP32-S3 handheld development kit combines a touchscreen interface with integrated 2.4GHz, Sub-GHz, Wi-Fi, Bluetooth Low Energy and infrared hardware for compatible embedded and laboratory projects.

Key Features

• ESP32-S3 controller includes 16MB of flash storage.
• RF shield integrates three NRF24L01 modules and one CC1101 transceiver.
• 2.8-inch ILI9341 TFT touchscreen supports portable control and status viewing.
• Built-in Wi-Fi and Bluetooth Low Energy come from the ESP32-S3 platform.
• TF/SD card slot supports compatible removable storage.
• Four WS2812B RGB LEDs and an integrated buzzer provide visual and audible feedback.
• USB-C supports power and data, while external SMA connectors support compatible antennas.
• IP5306 manages charging and power delivery for an installed compatible battery.

Specifications

• Model: ESP32-DIV V2.0
• Main controller: ESP32-S3
• Flash: 16MB
• Display: 2.8-inch ILI9341 TFT touchscreen
• 2.4GHz RF modules: Three NRF24L01
• Sub-GHz transceiver: One CC1101
• Wireless: Wi-Fi and Bluetooth Low Energy
• Other interfaces: Infrared transceiver, TF/SD slot, USB-C and external SMA connectors
• Indicators: Four WS2812B RGB LEDs and buzzer
• Power management: IP5306
• Battery: Not included
• Package: Main board, integrated RF shield and protective enclosure
