FD70 Electric Flip-Down Ceiling TV Mount for 32–70-Inch Screens with 77lb Capacity, RF Remote, Memory Settings and Steel Frame

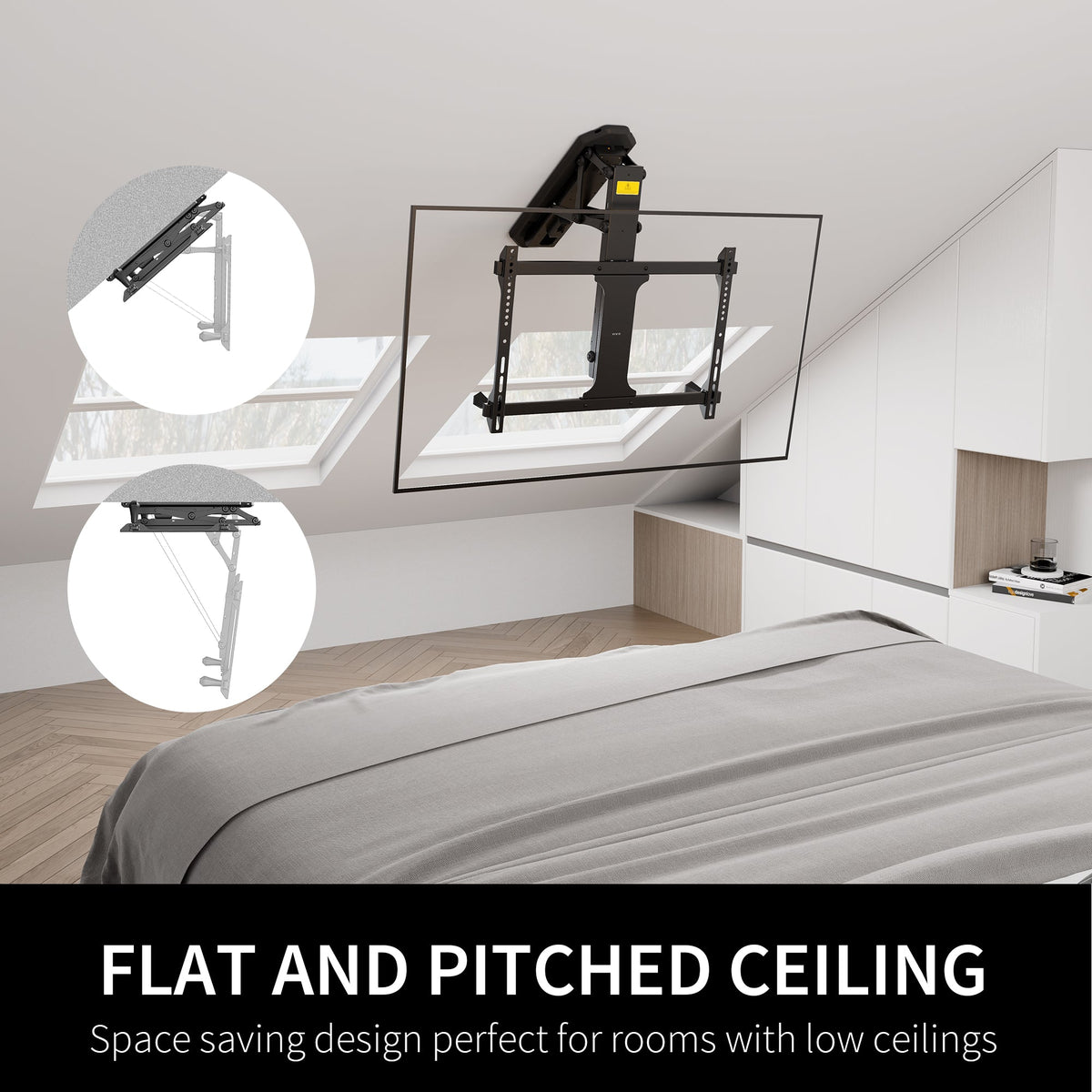

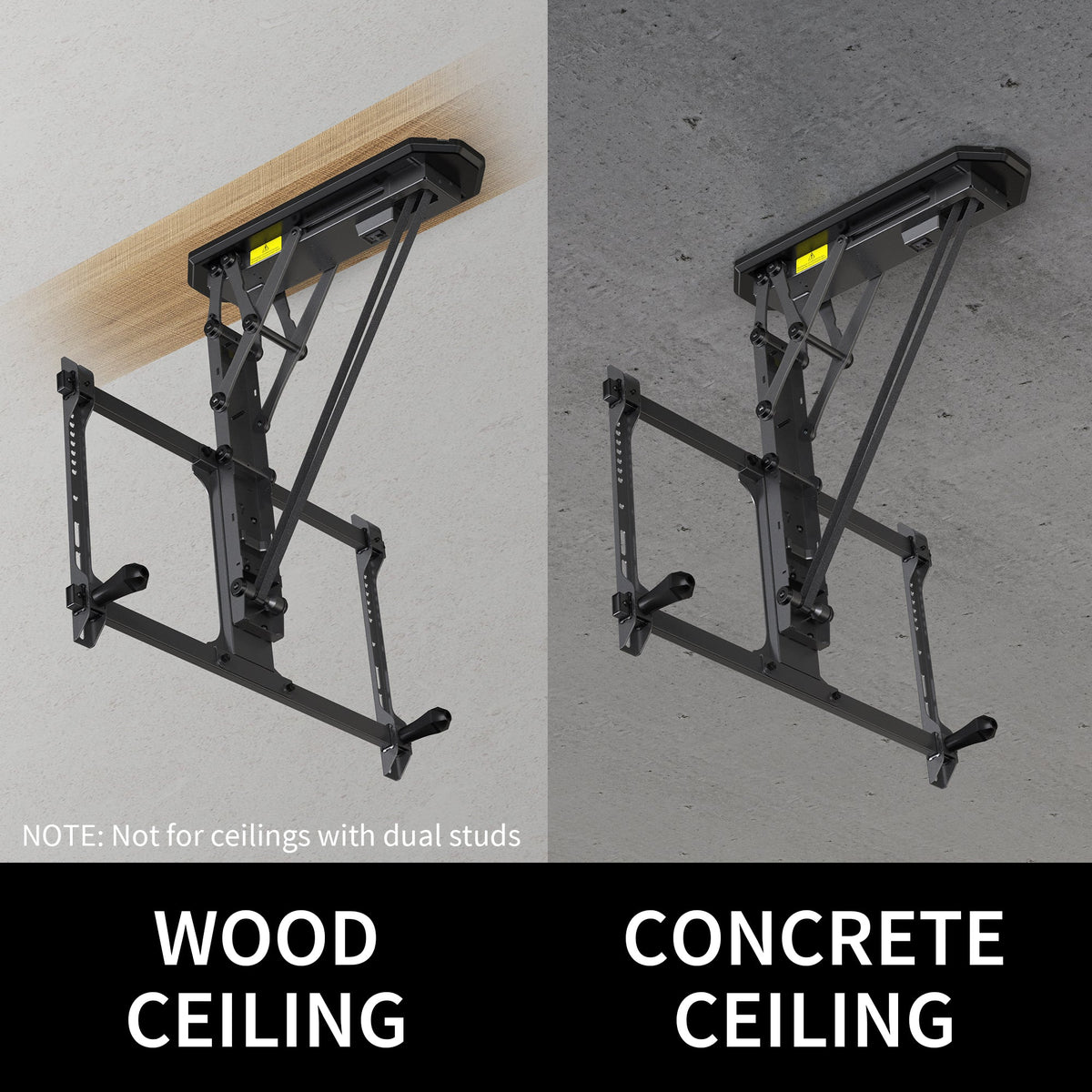

FD70 is an electric flip-down ceiling mount for 32–70-inch flat or curved televisions weighing up to 77lb. Choose Black or White finish. The mount folds against the ceiling when stored and supports flat or pitched mounting surfaces.

Key Features

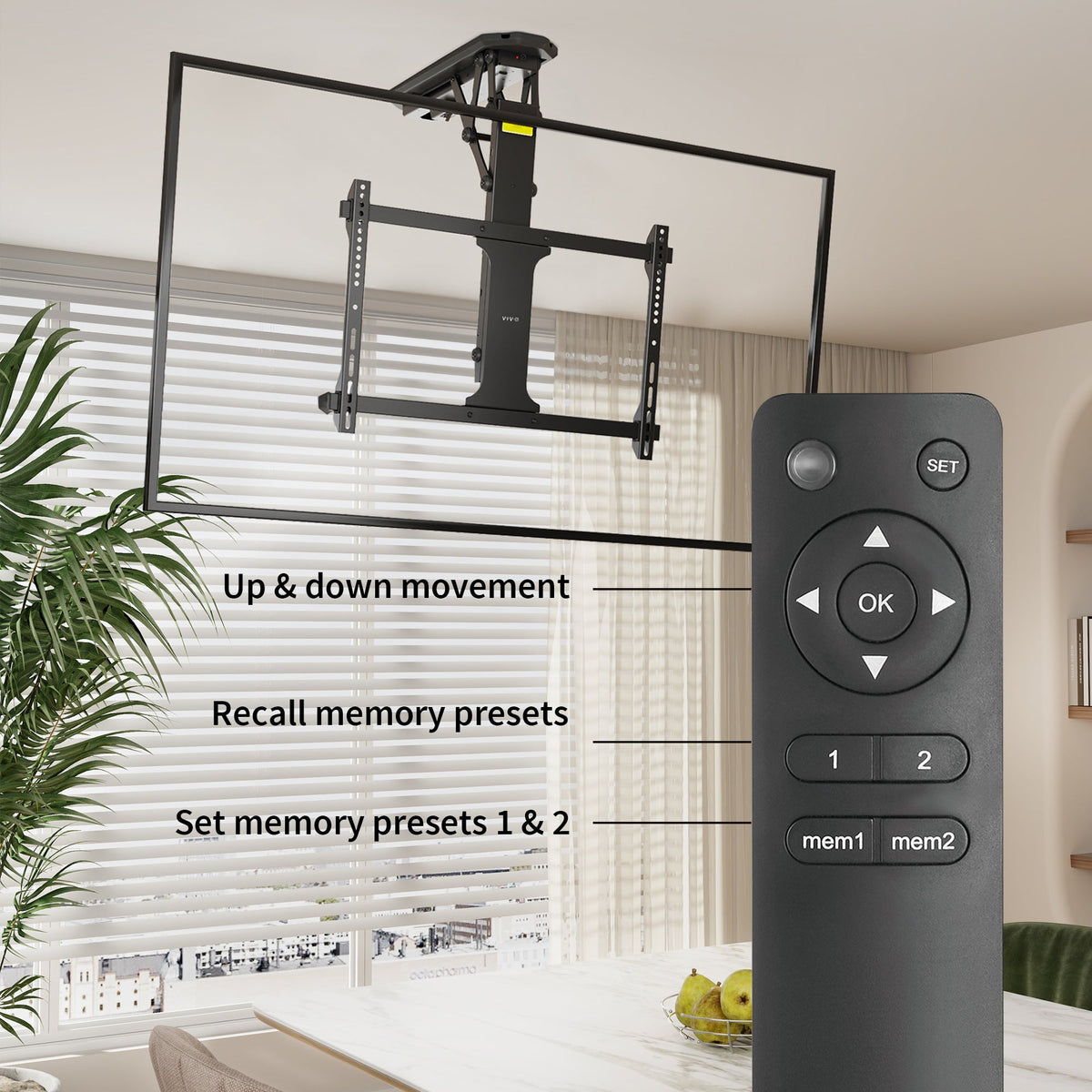

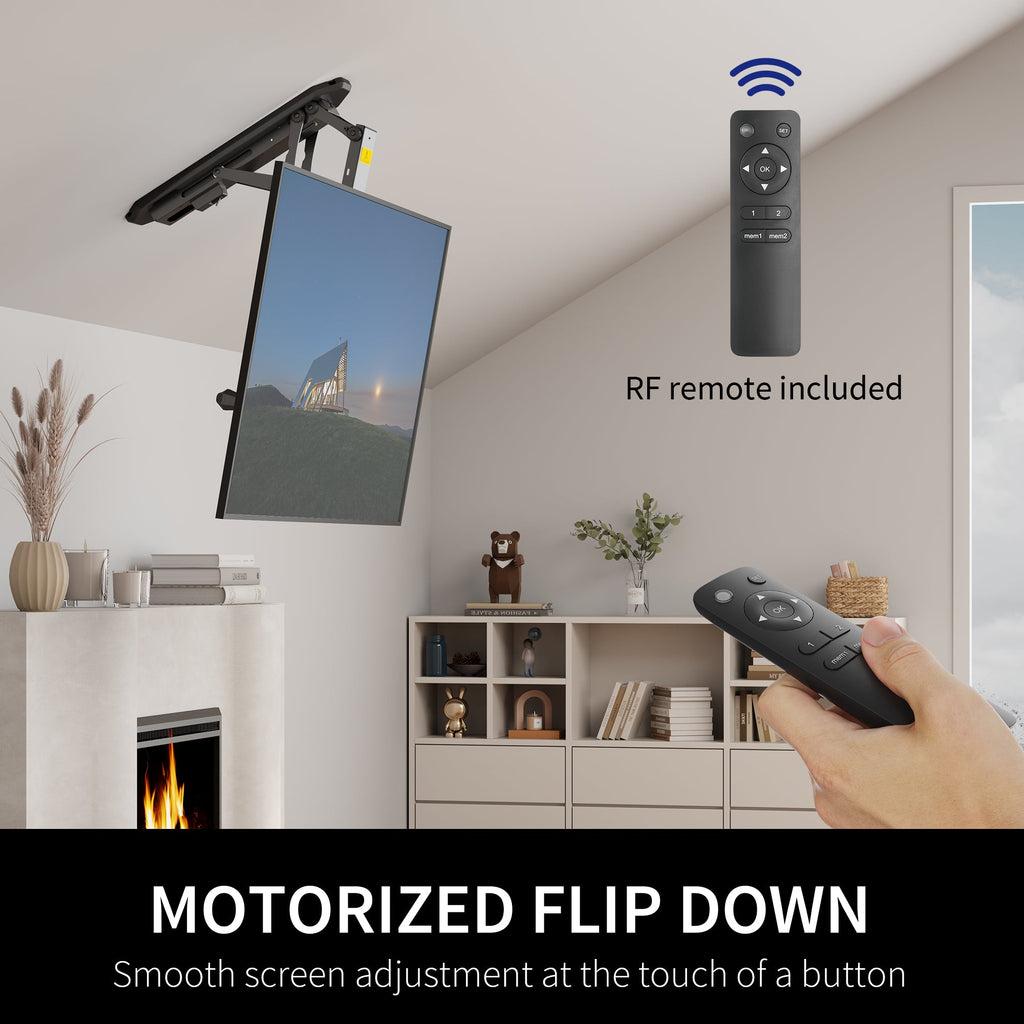

• Included RF remote offers two memory settings; app control supports three. Tuya, Amazon Alexa and Google Home control options are supported.

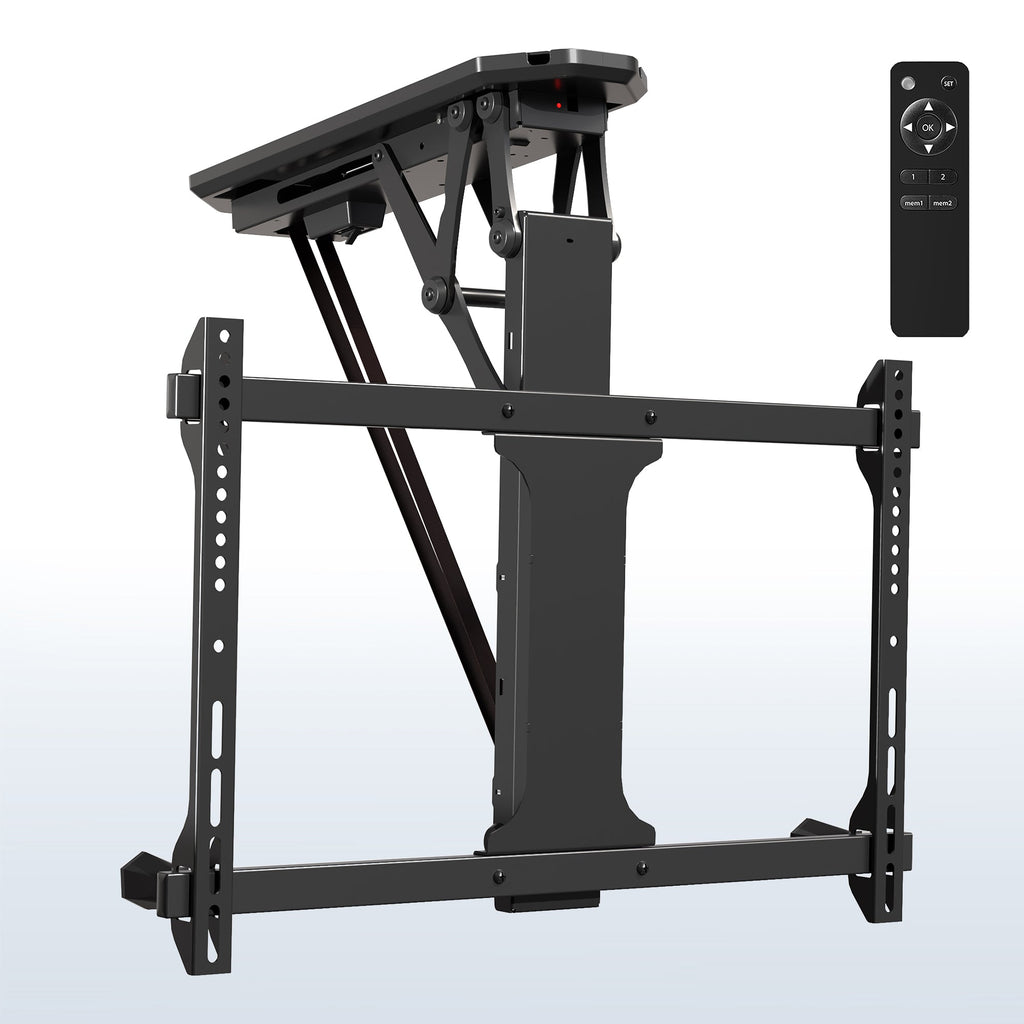

• Steel construction, removable VESA mounting plate and adjustable screen height.

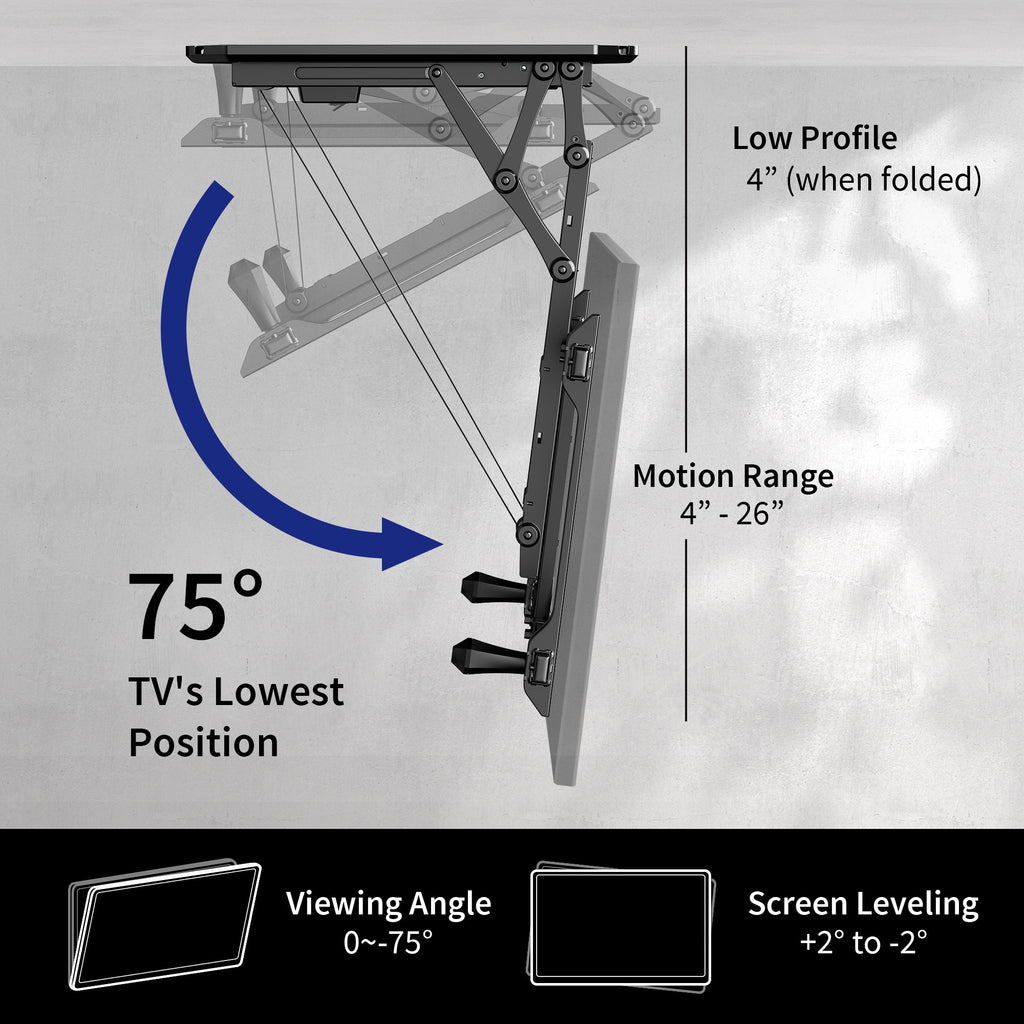

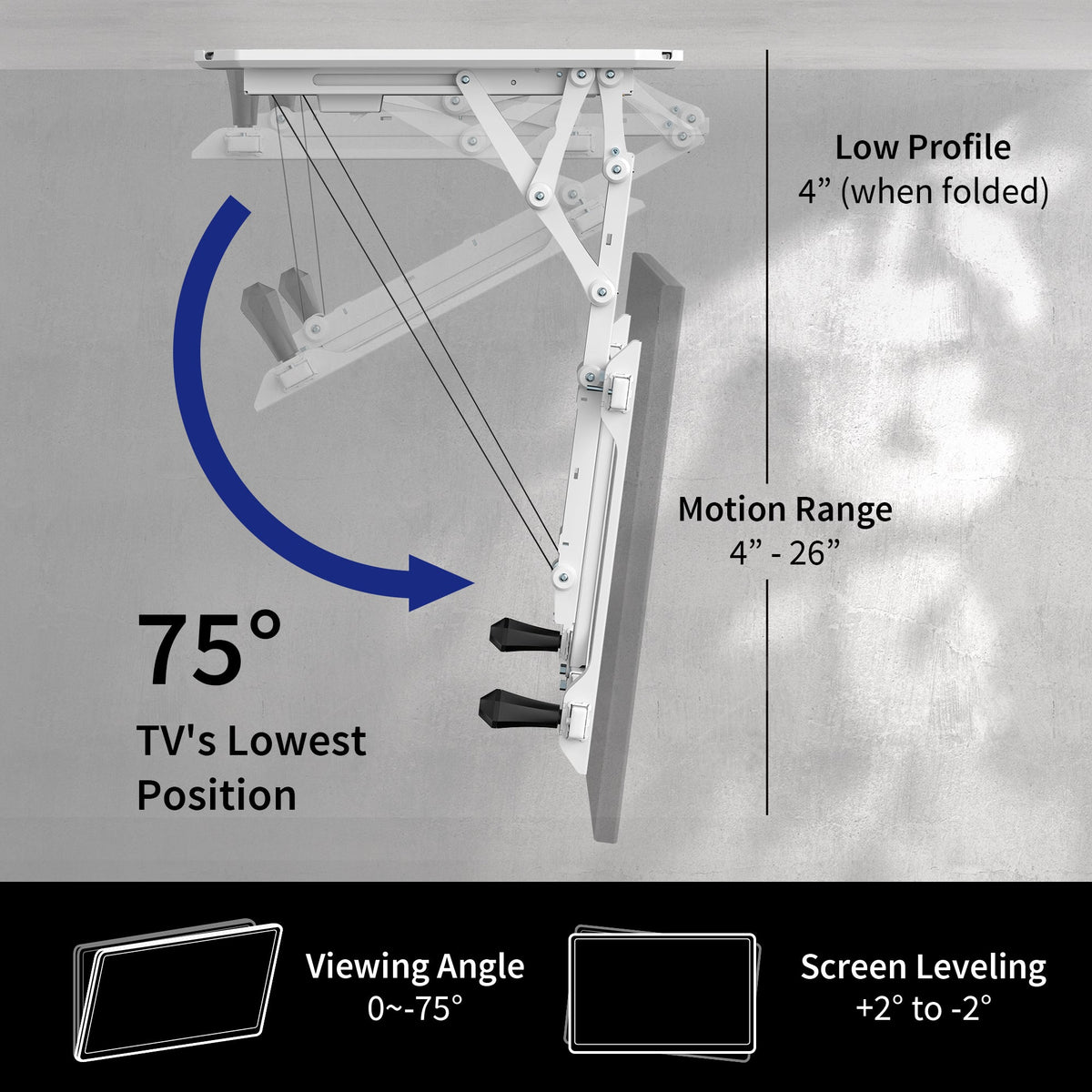

• Tilt range: 0° to −75°; screen leveling: +2° to −2°.

Specifications

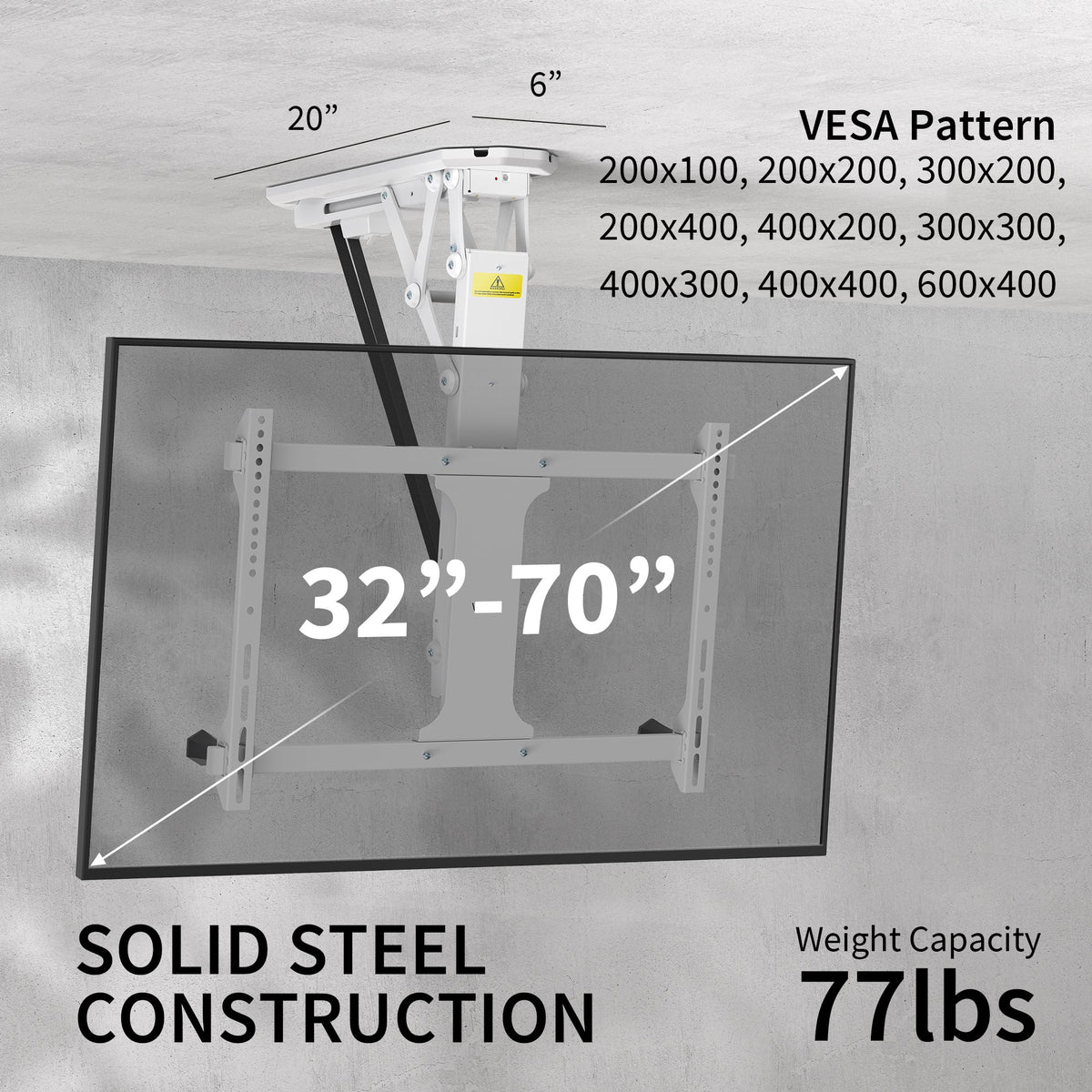

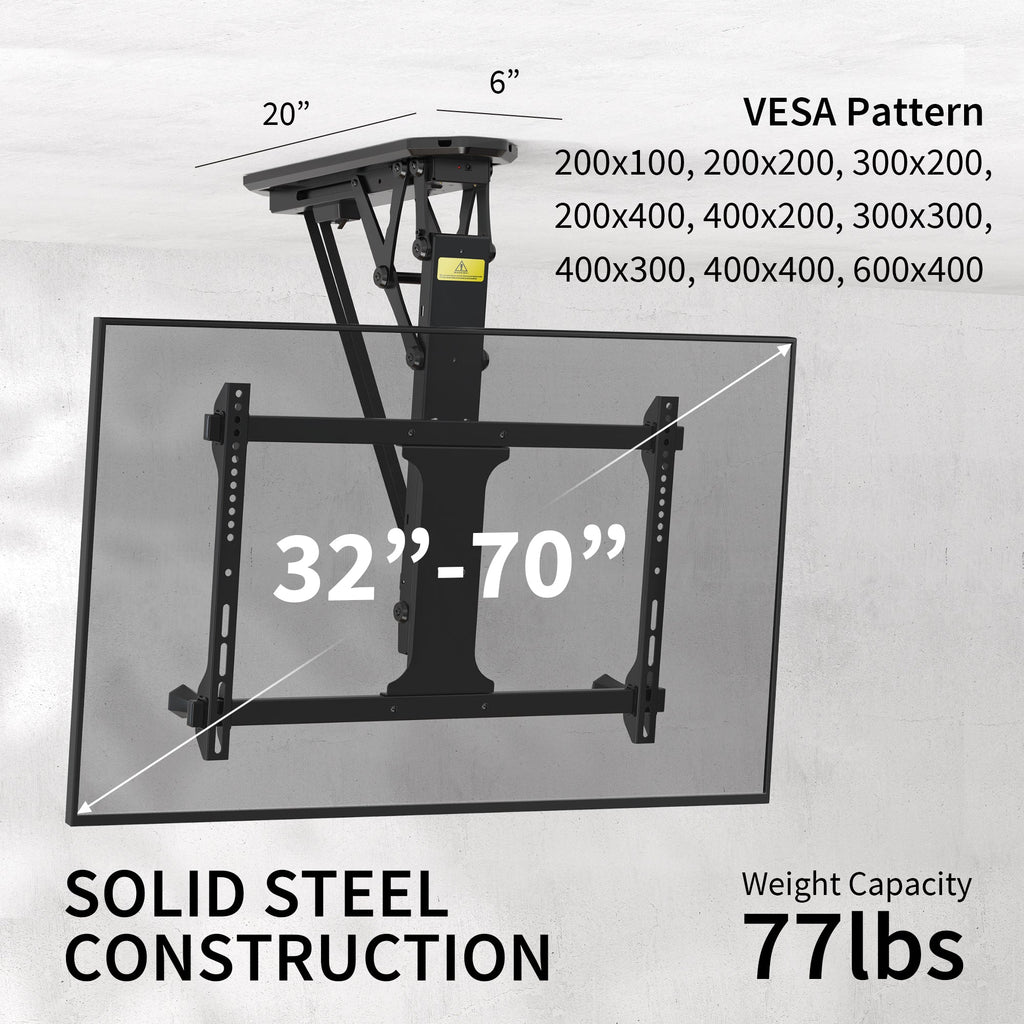

• Height adjustment: 4–26 inches. Base: 20 × 6 inches. Folded profile: 4.3 inches.
• VESA patterns: 200×100, 200×200, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400 and 600×400mm.
• For screens over 50 inches, centered VESA holes provide better ceiling clearance; a lower-positioned pattern may require a separate MOUNT-AD165 extender.

Package and Installation

Mount, center plate, ceiling template, decorative covers, VESA brackets, bracket rails, AC adapter, remote, cable ties, leveling knobs and mounting hardware. Do not install into drywall alone or exceed the load limit. Connect the adapter to the mount before plugging it into the AC outlet, and keep cables clear of the folding mechanism.
