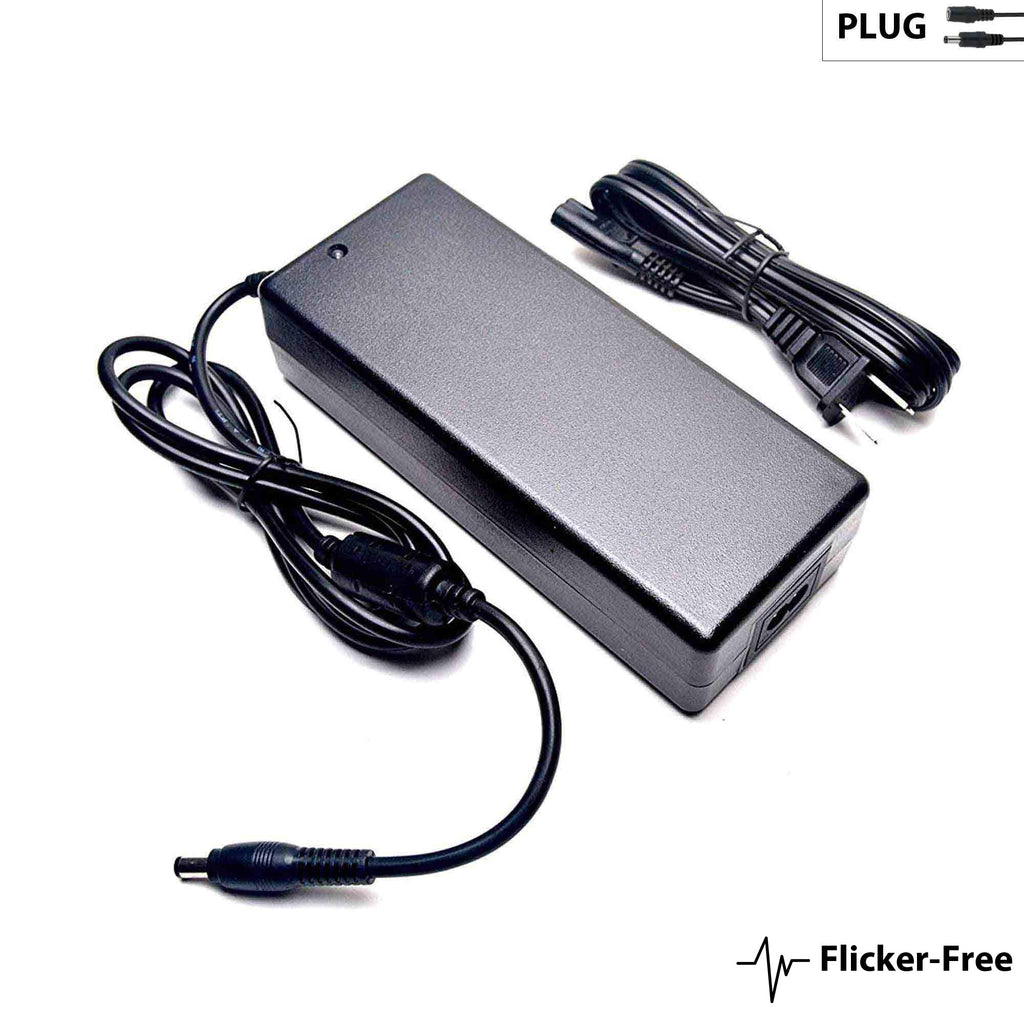

FilmGrade 120W Constant-Voltage LED Power Supply with 12V 10A or 24V 5A Output and DC Barrel Plug

The FilmGrade constant-voltage power supply connects compatible LED strip lighting to mains power. Choose the 12V model for a matching 12V load or the 24V model for a matching 24V load; each model supports up to 120W.

Key Features

• 12V DC output at up to 10A, or 24V DC output at up to 5A, according to the selected model.
• Low-ripple, low-noise output for flicker-free LED operation.

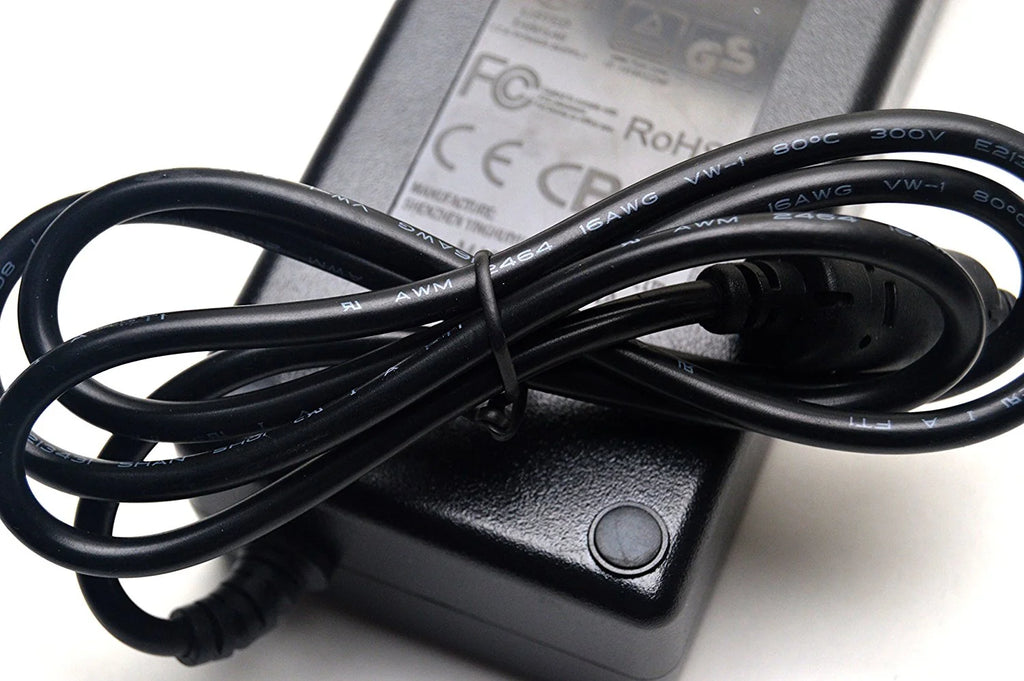

• Standard 5.5×2.1mm male DC barrel output on a heavy-duty 16AWG lead.
• Impact-resistant polycarbonate enclosure and Class II insulation.
• Short-circuit, overload and overvoltage protection.

Specifications

12V sheet’s connection illustration shows a 24V label; confirm the selected unit’s output label before connecting.

• Part number 3091: 12V DC, maximum 10A / 120W.
• Part number 3092: 24V DC, maximum 5A / 120W.
• Input: 100–240V AC, 50–60Hz.
• Output voltage tolerance: ±2%.

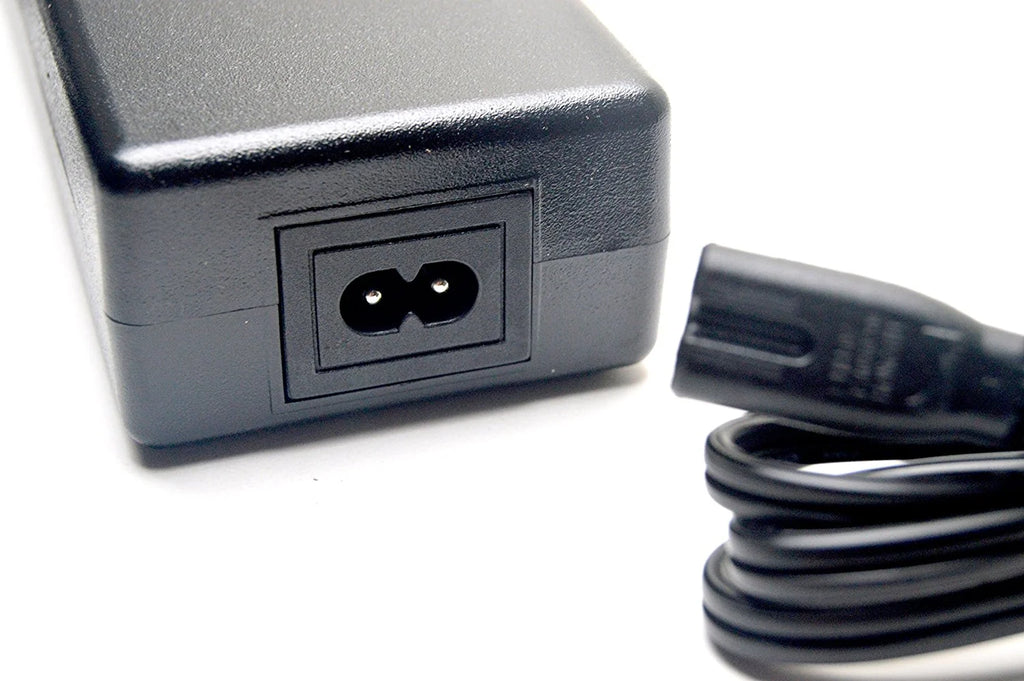

• AC connection: USA two-prong plug.
• AC and DC cable lengths: 4ft / 1200mm each.

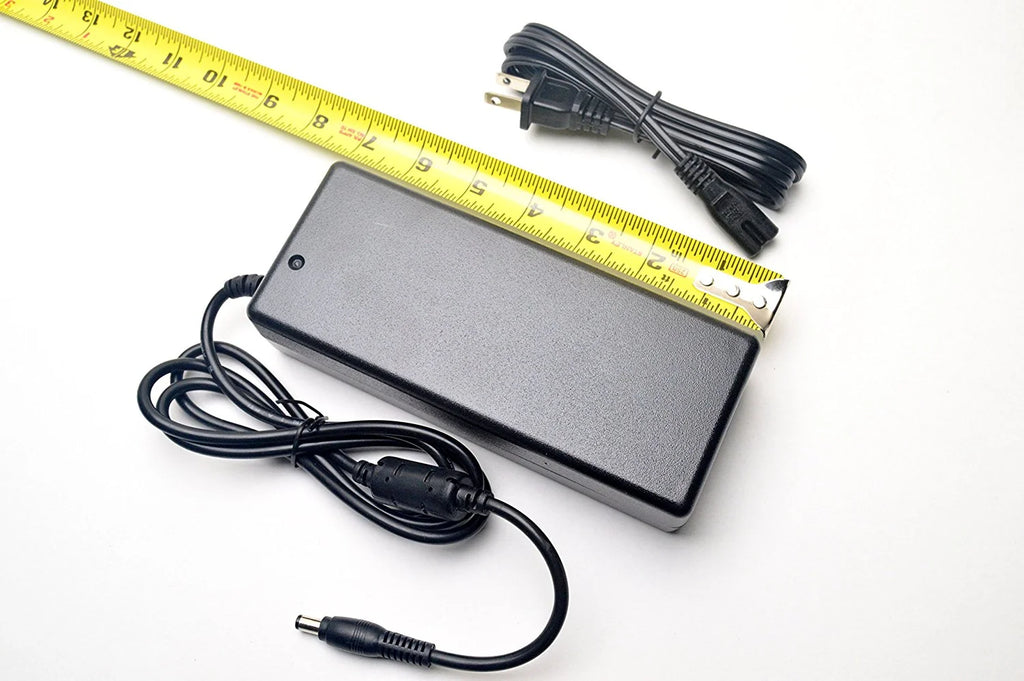

• Enclosure: 176×76×42mm / approximately 6.9×3.0×1.65in.
• Use: indoor only.

Compatibility & Installation

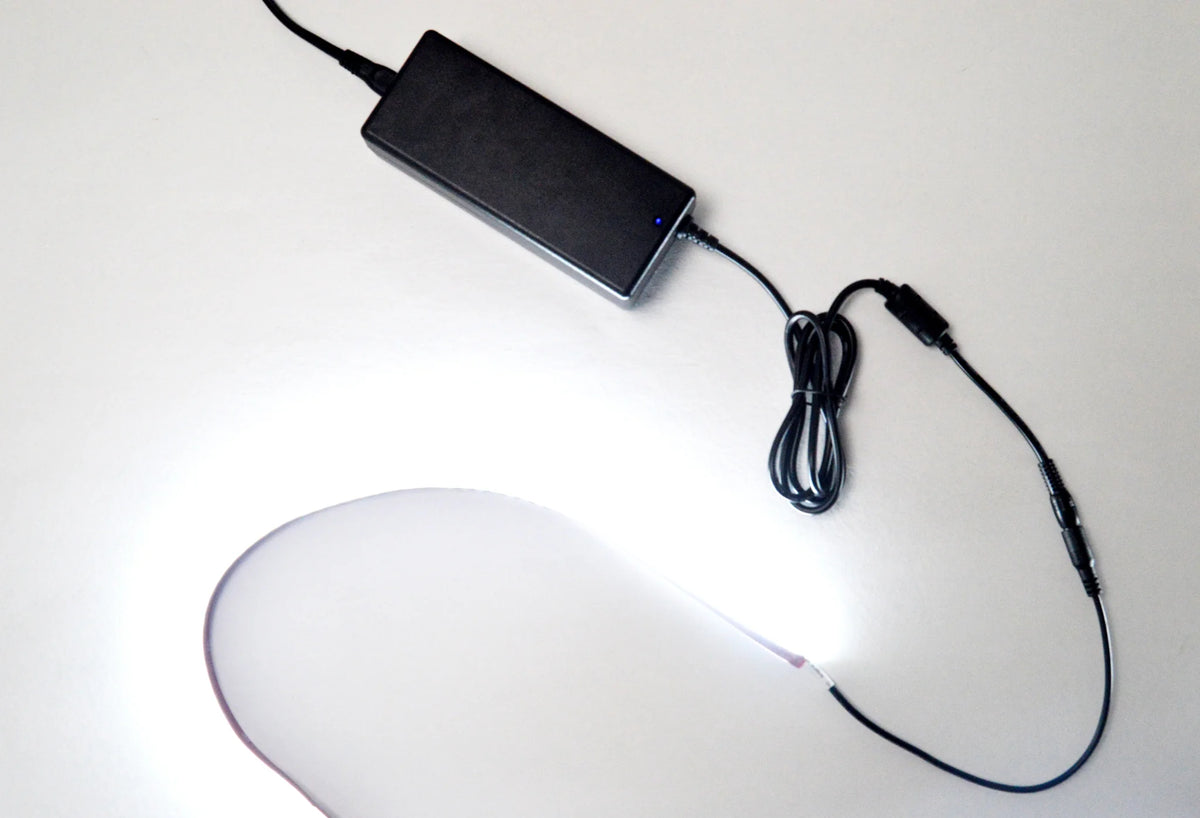

Match the selected output voltage to your LED strip and keep the load within the model’s current and power limits. The 12V model is specified for FilmGrade WHITE 12V strips, and the 24V model for FilmGrade WHITE 24V strips. Optional brightness control requires a separate FilmGrade dimmer between the supply and the LED strip. A separate PN7094 adapter can convert the barrel connection to wire terminals.

Package Contents

One FilmGrade power supply in the selected 12V or 24V configuration, with the AC and DC leads described above. LED strips, an inline dimmer and the PN7094 adapter are separate products.
