FilmGrade Flicker-Free LED Dimmer with SmoothDim Rotary Control, 6–60V DC Input and Barrel Connectors

The FilmGrade LED dimmer adjusts the brightness of compatible DC LED systems using a rotary dial. SmoothDim technology enhances the dimming curve for gradual control from 100% down to 0%.

Key Features

• Flicker-free dimming output, tested at frame rates up to 240fps.
• Supports LED systems operating from 6–60V DC, including compatible 12V and 24V FilmGrade white LED strips.

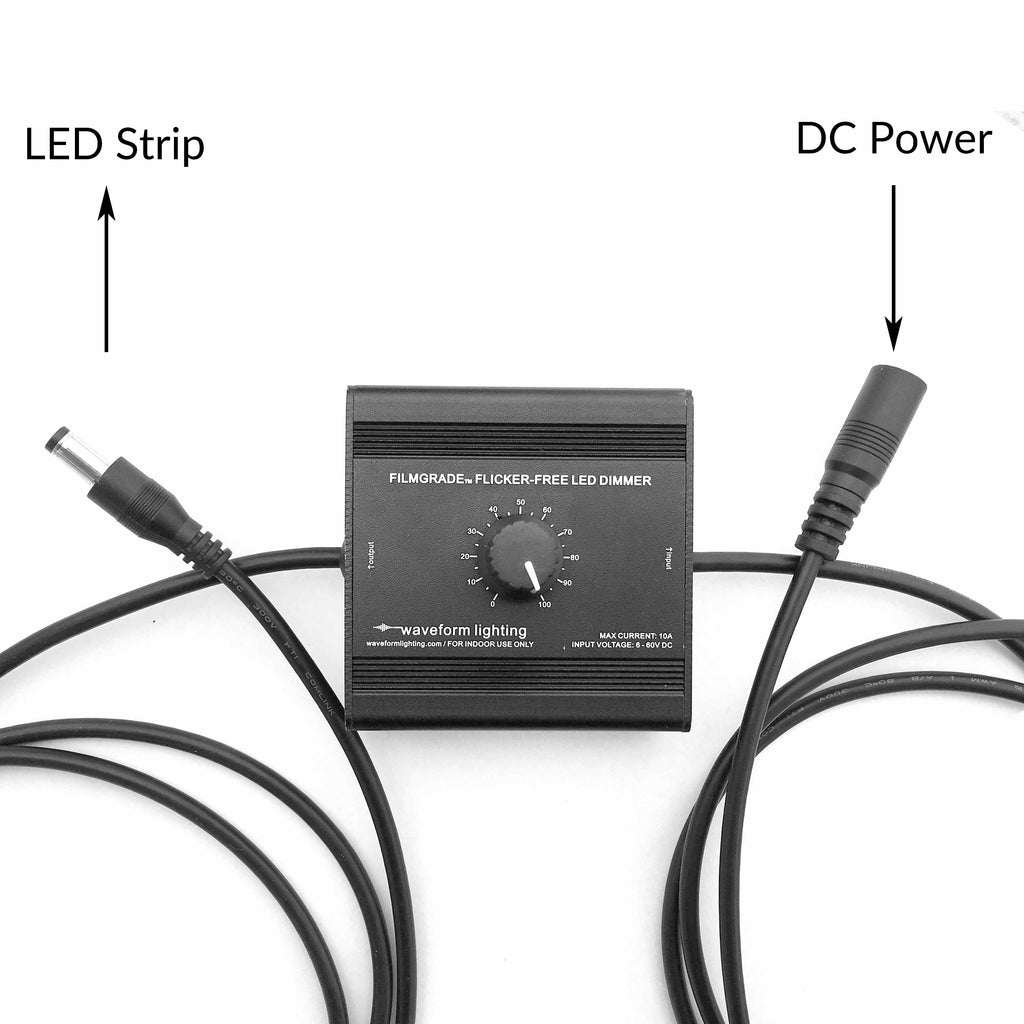

• Connects inline between a compatible power supply and LED product.
• Female input and male output barrel connectors provide plug-and-play connections.
• Each end has a 4-ft / 1.2m lead made with 16AWG wire.

Specifications

• Model: FilmGrade LED Dimmer, part number 3081.
• DC voltage range: 6–60V.
• Maximum input/output current rating: 10A. The listed compatible LED setup must draw less than 10A.

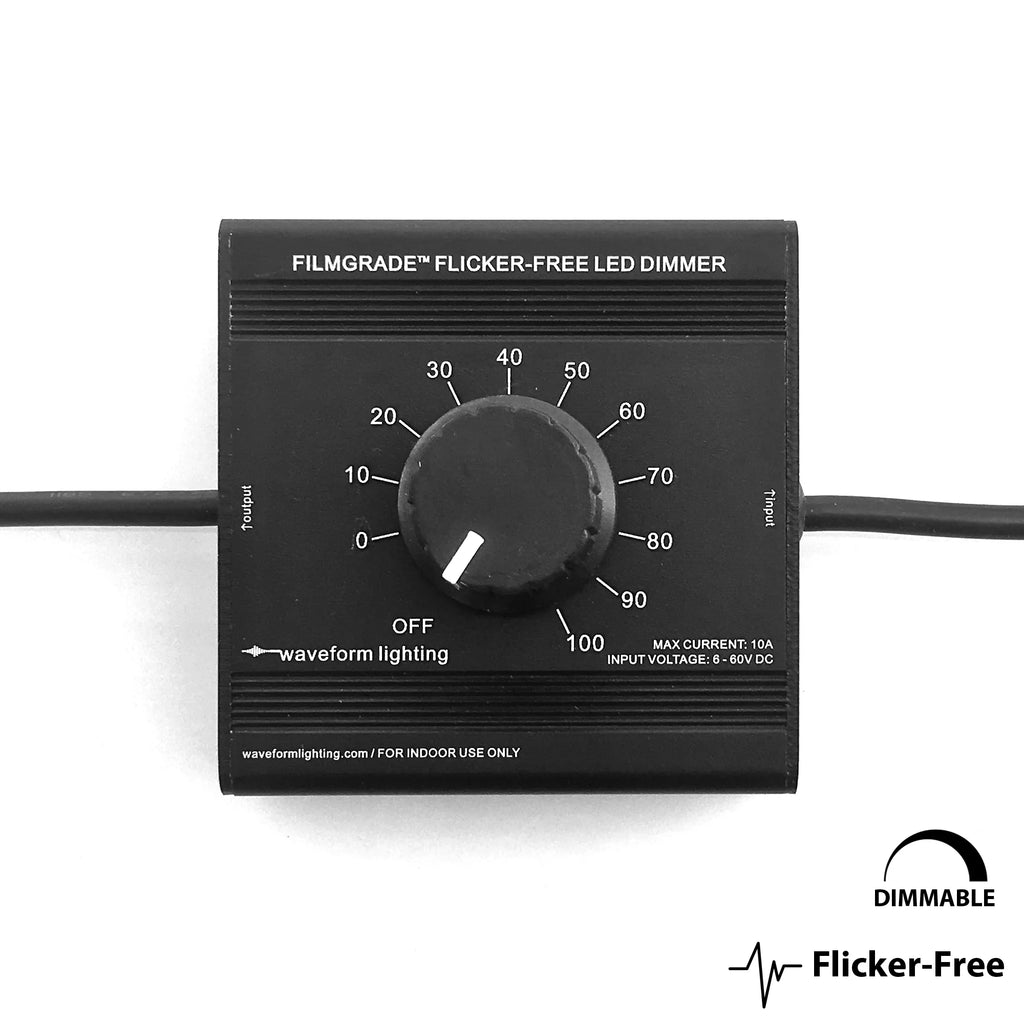

• Brightness adjustment: 0–100%, rotary dial with SmoothDim technology.
• Connectors: 5.5×2.1mm DC barrel; female input, male output.

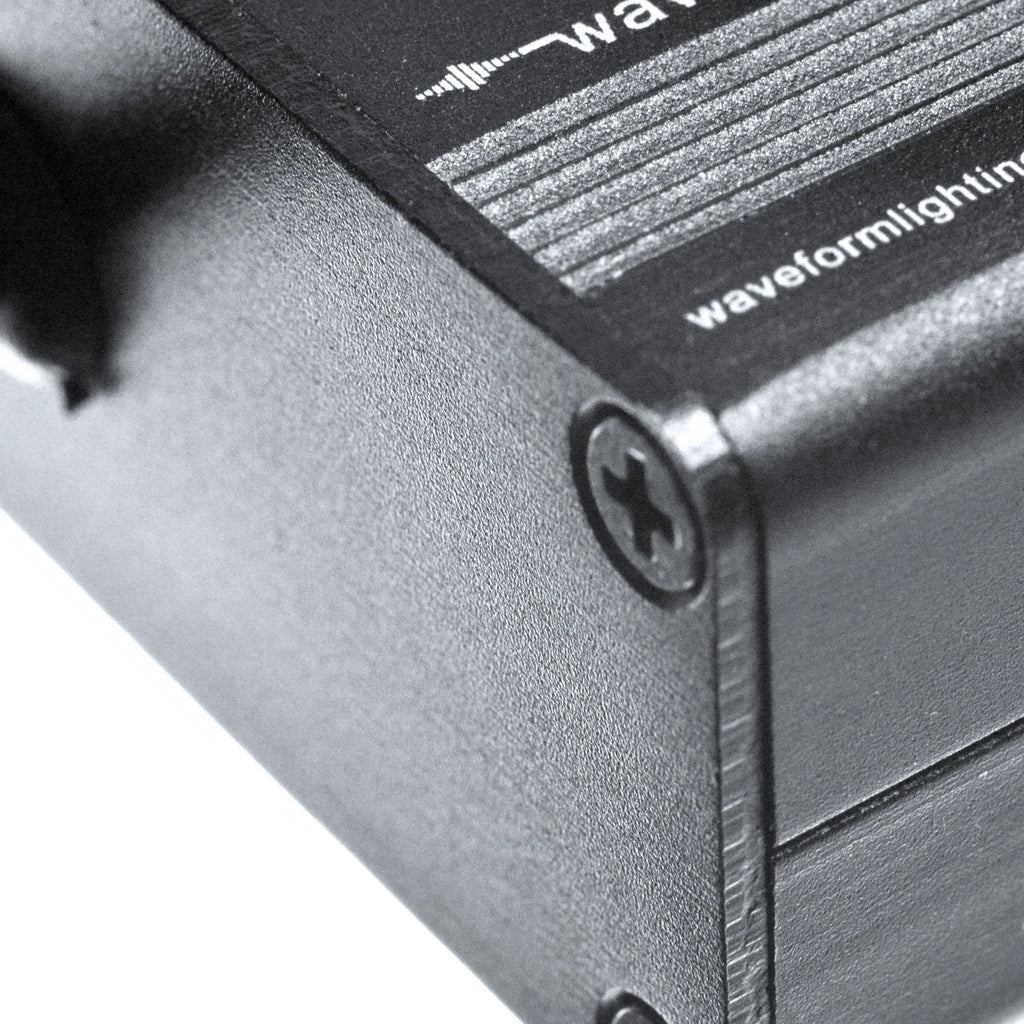

• Enclosure dimensions: 63×25×60mm / 2.48×0.98×2.36in.
• Weight: 190g.

Package Contents

FilmGrade dimmer with its input and output leads. Use it with a compatible DC power supply and LED load.
