Gain-Master 5/8-Wave Vertical CB and 10-Meter Antenna with 25.5–30 MHz Band and SO-239 Connector
$303.75
Sale price
$303.75
Regular price

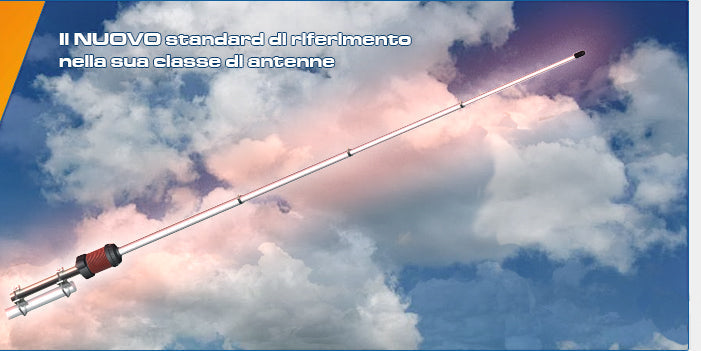

The Gain-Master is a center-fed 5/8-wave vertical antenna for 25.5–30 MHz CB and 10-meter amateur-radio operation, with omnidirectional coverage and linear vertical polarization.
Key Features
- 25.5–30 MHz operating range with no tuning required.
- 500 W CW continuous maximum power rating.

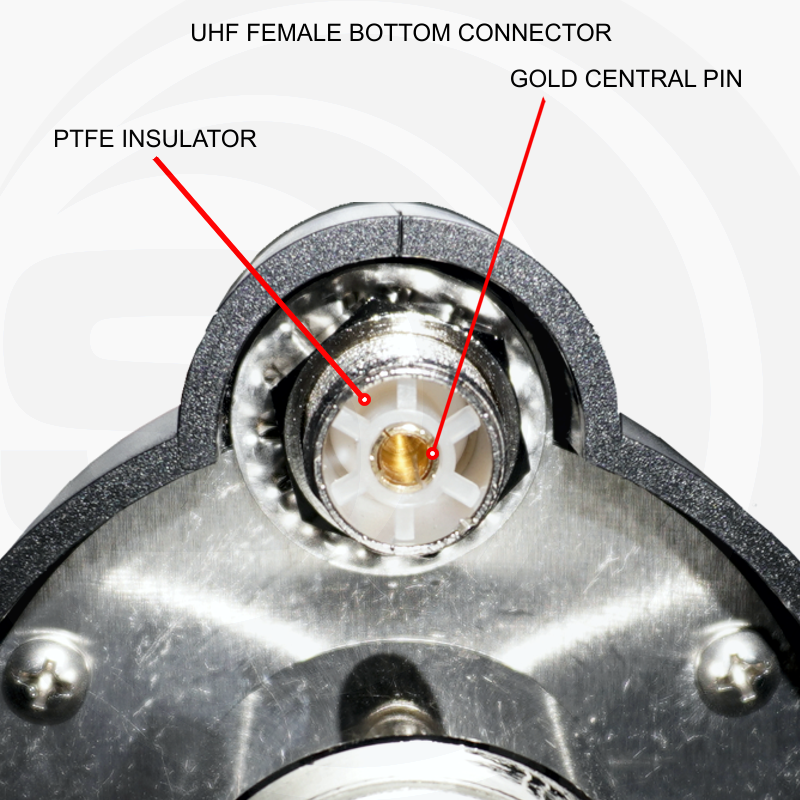

- UHF female SO-239 connector.
- Shorted-to-ground protection.

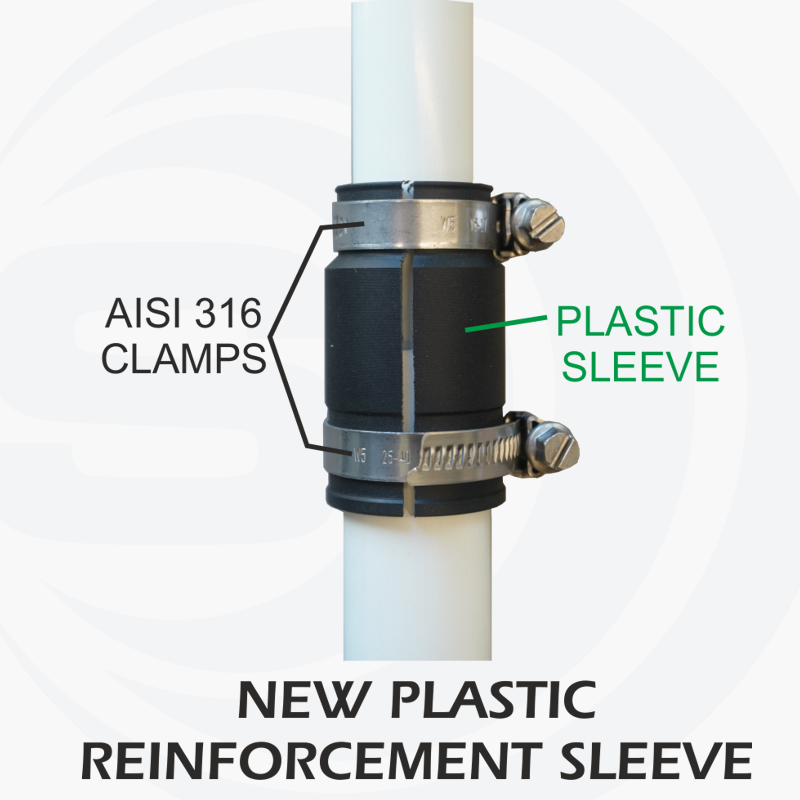

- Updated reinforced plastic sleeve and pole bracket for diameters up to 60 mm.
Specifications
- Model: Gain-Master
- Manufacturer code: 2113220.00
- Frequency range: 25.5–30 MHz
- Radiation: Omnidirectional
- Polarization: Linear vertical
- Approximate height: 7360 mm / 24.15 ft
- Approximate weight: 3000 g / 6.61 lb
- Materials: Anodized aluminum, copper, stainless steel, fiberglass and UV-stabilized thermoplastic
- Mounting: Pole
VSWR, wind rating, feedline contents, mounting hardware contents and warranty are unavailable.
