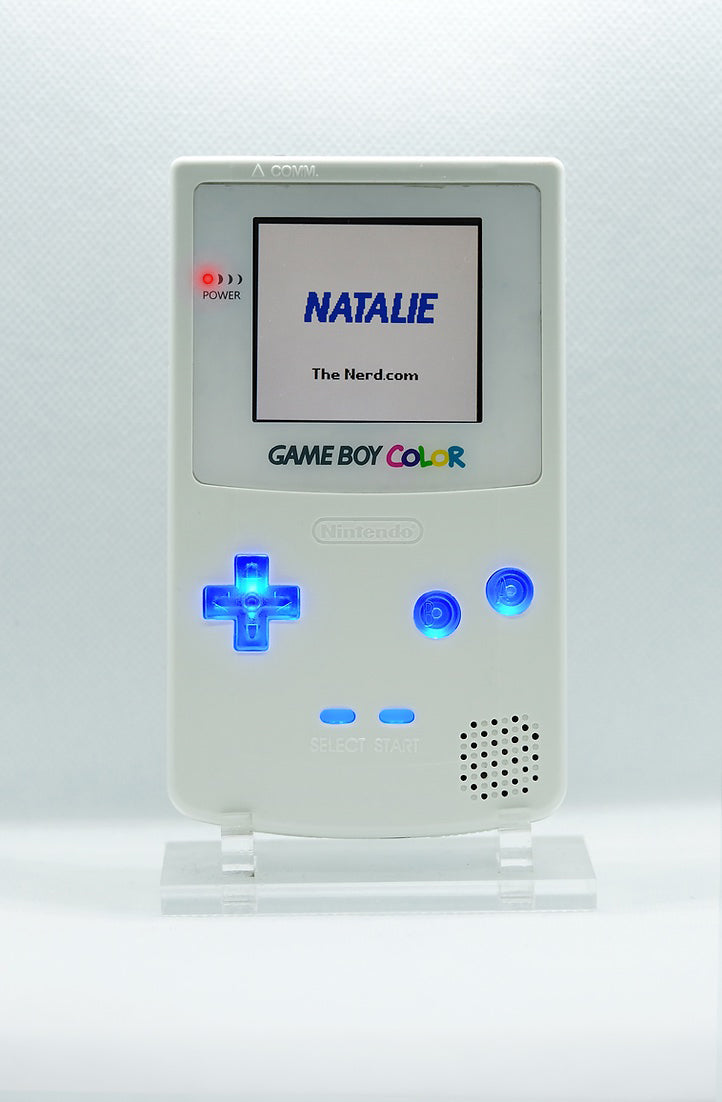

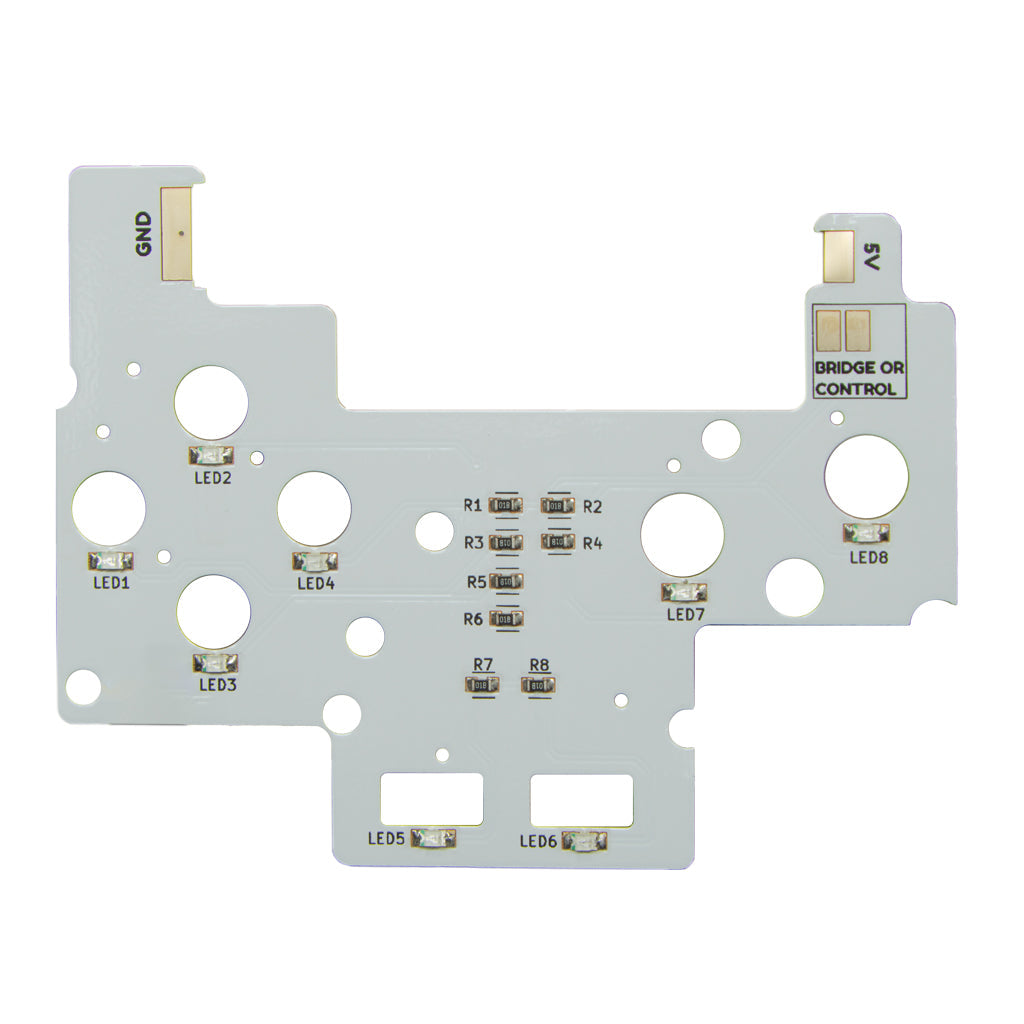

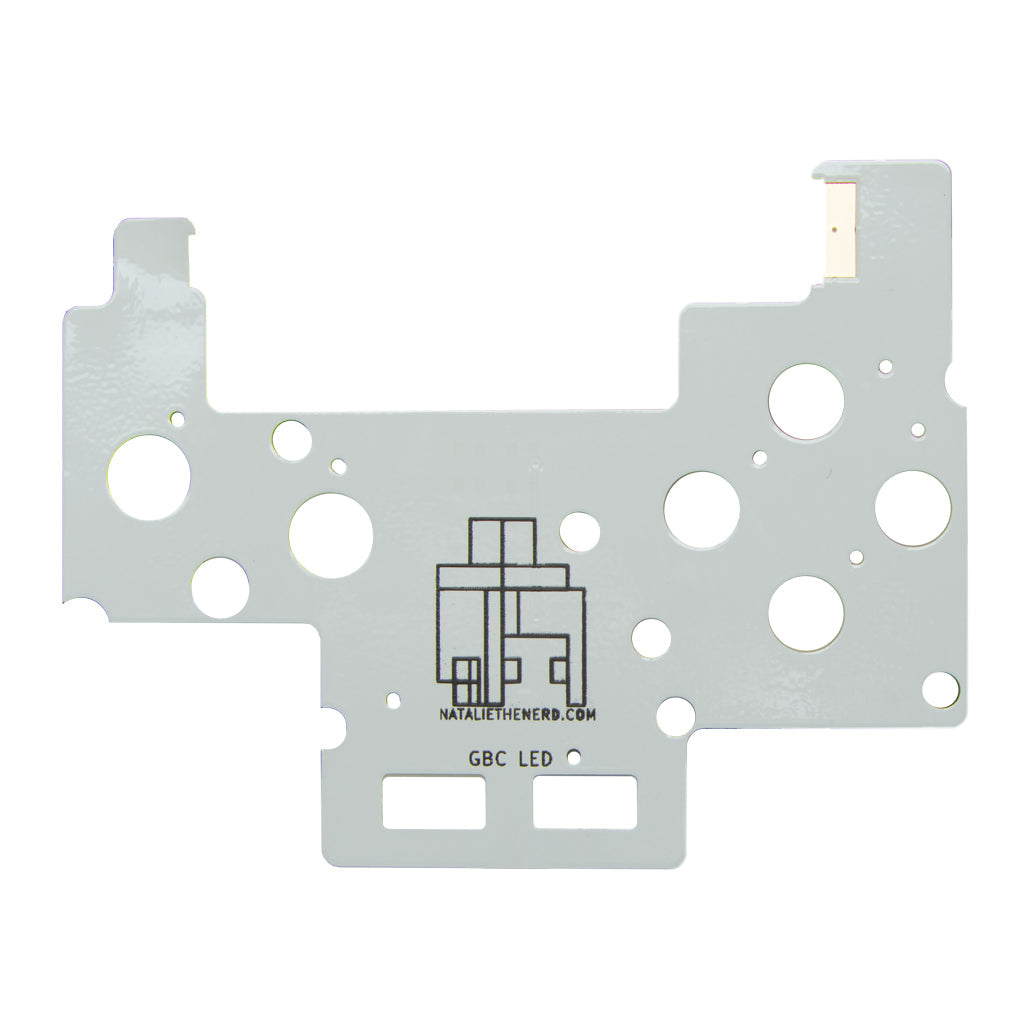

Game Boy Color Flexible PCB LED Button Board with Six Lighting Colors and Two-Point Solder Installation

This flexible PCB LED board adds illuminated buttons to a Game Boy Color in one of six colors. The board uses two solder points and draws 30mA.

Key Features

• LED illumination for console buttons.
• Choose Blue, Green, Pink, Red, White or Yellow lighting.
• Flexible PCB design.
• Two solder points support installation.
• 30mA stated power draw.
• Compatible with Game Boy Color and Game Boy Pocket, except the Pocket power LED.

Specifications

• Product: Game Boy Color LED board
• Board type: Flexible PCB
• Power draw: 30mA
• Included: One LED board in the selected color
• Installation: Two solder points

Installation Notes

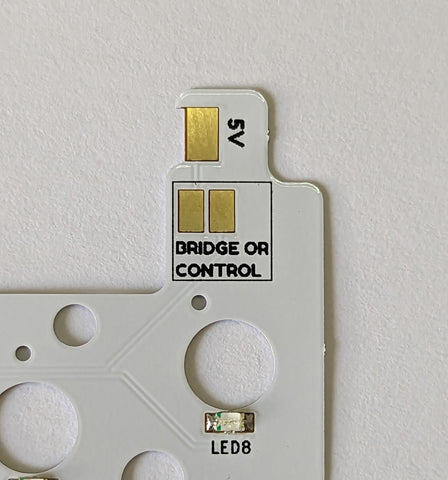

Do not remove the console power LED. The Bridge or Control pads must be bridged or connected to a separately sold LED Control Board. Transparent buttons are required for the lighting effect to remain visible; clear buttons and the control board are not included.
