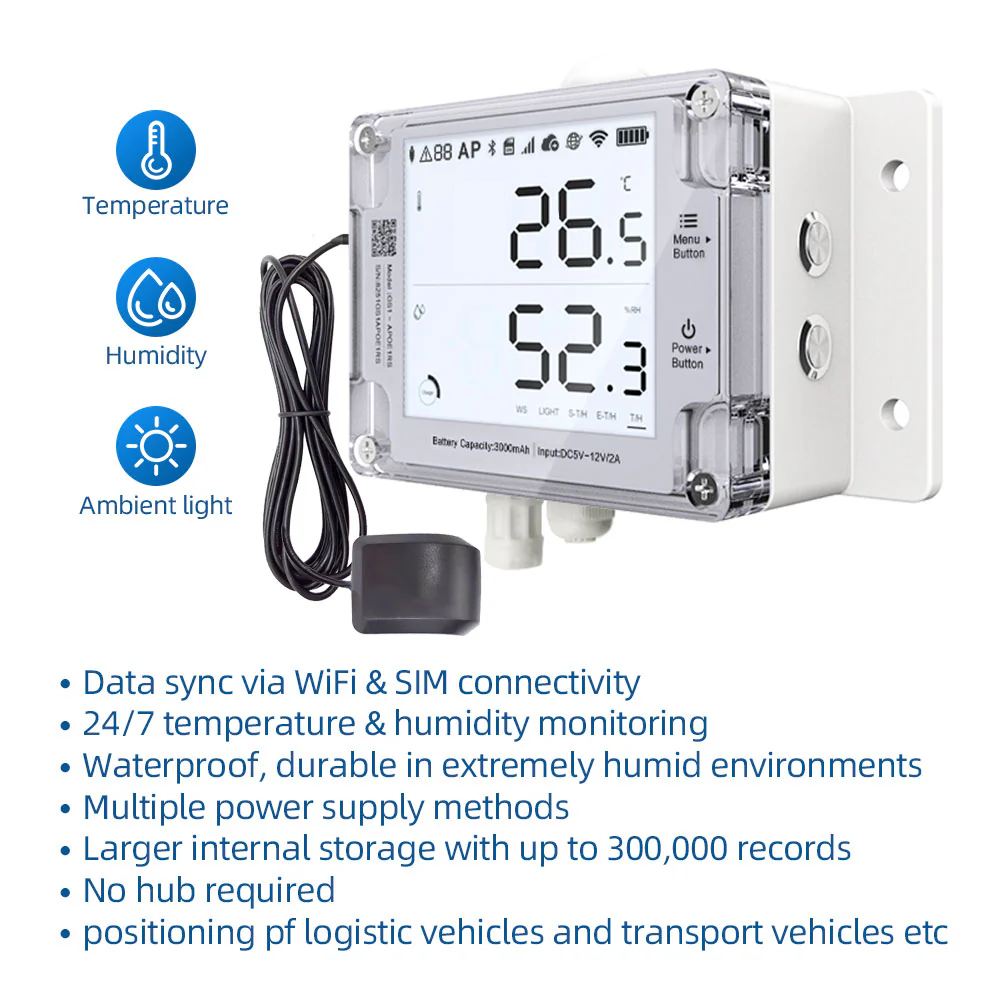

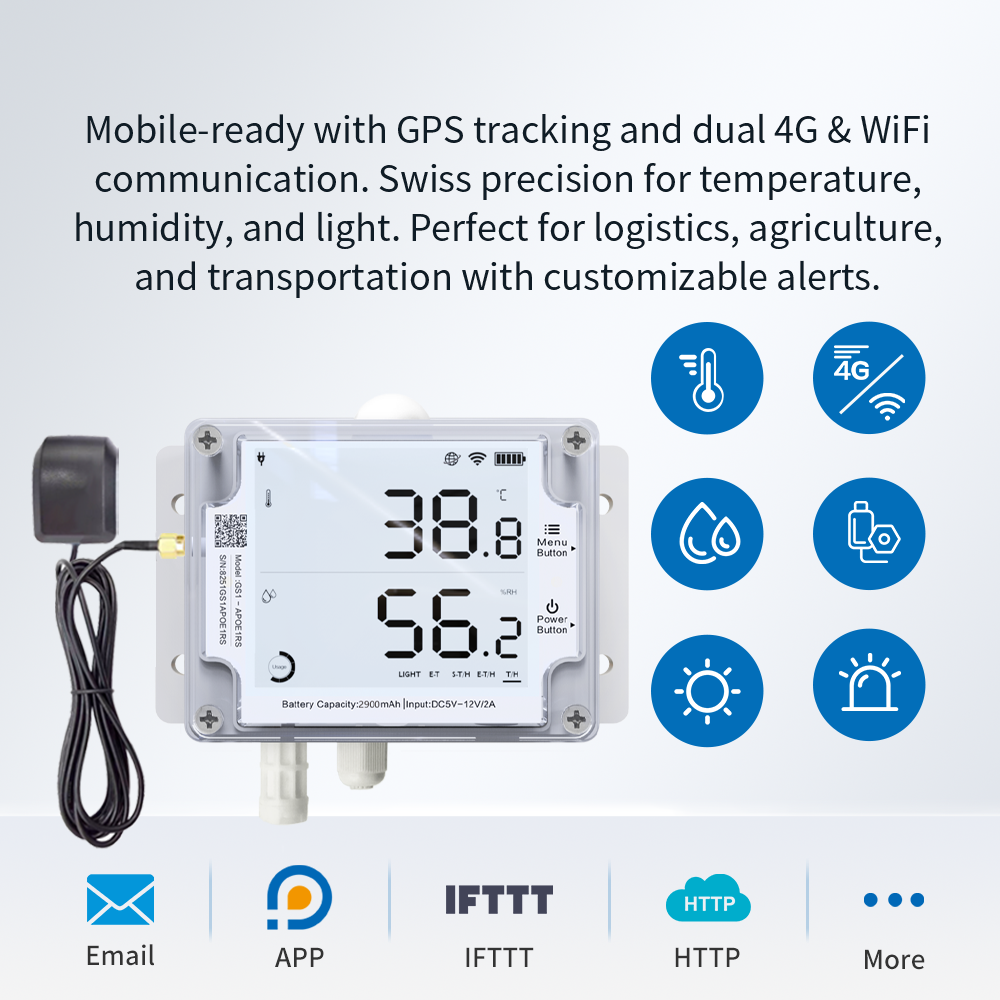

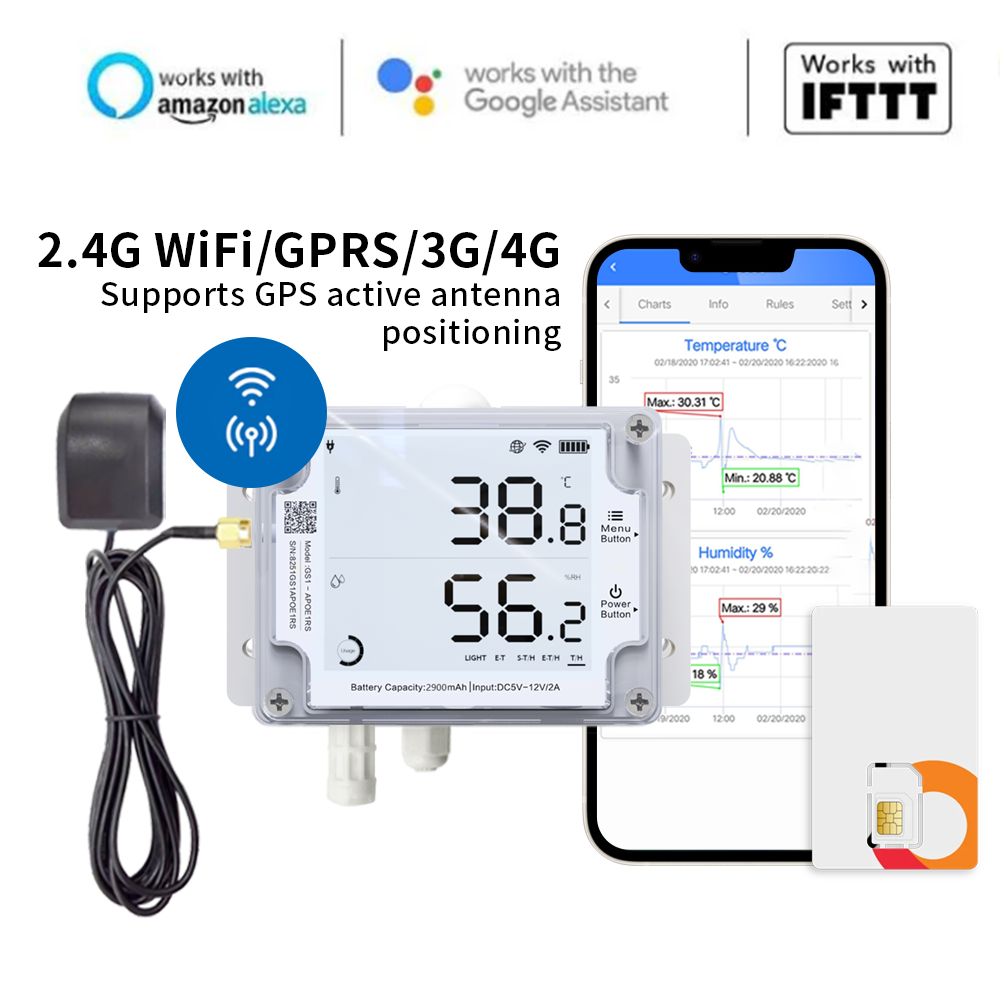

GS1-PL4G1RS Environmental Sensor with GPS Tracking, WiFi and Cellular Connectivity for Temperature, Humidity and Light Monitoring

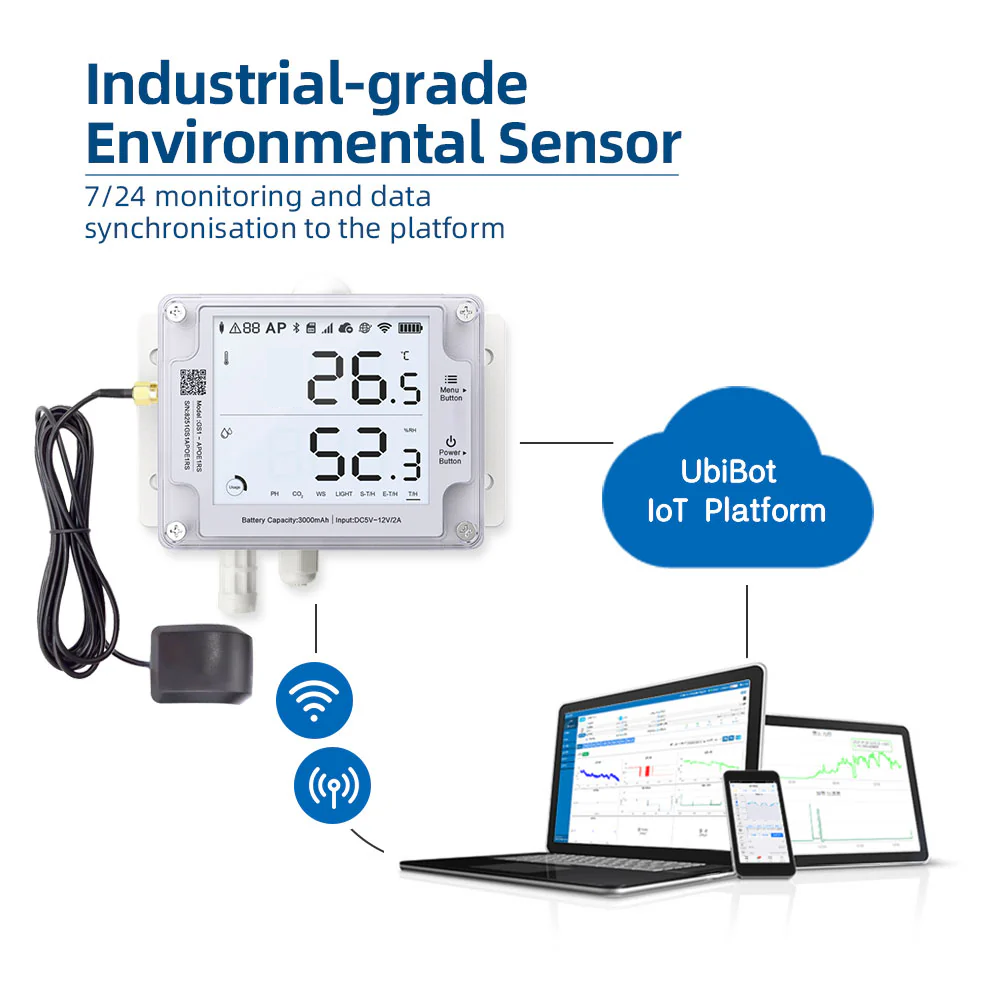

GS1-PL4G1RS monitors temperature, humidity and ambient light while providing GPS tracking for long-distance transport applications. WiFi and cellular connectivity support remote monitoring, while internal memory retains up to 300,000 sensor records.

Key Features

• 4-inch LCD displays environmental conditions. WiFi operates on 2.4GHz channels 1–13; 5GHz WiFi is not supported.
• GPS, GLONASS, BeiDou, Galileo and QZSS support with an external BD GPS active antenna. Stated tracking accuracy is 50–100m for long-distance transportation.

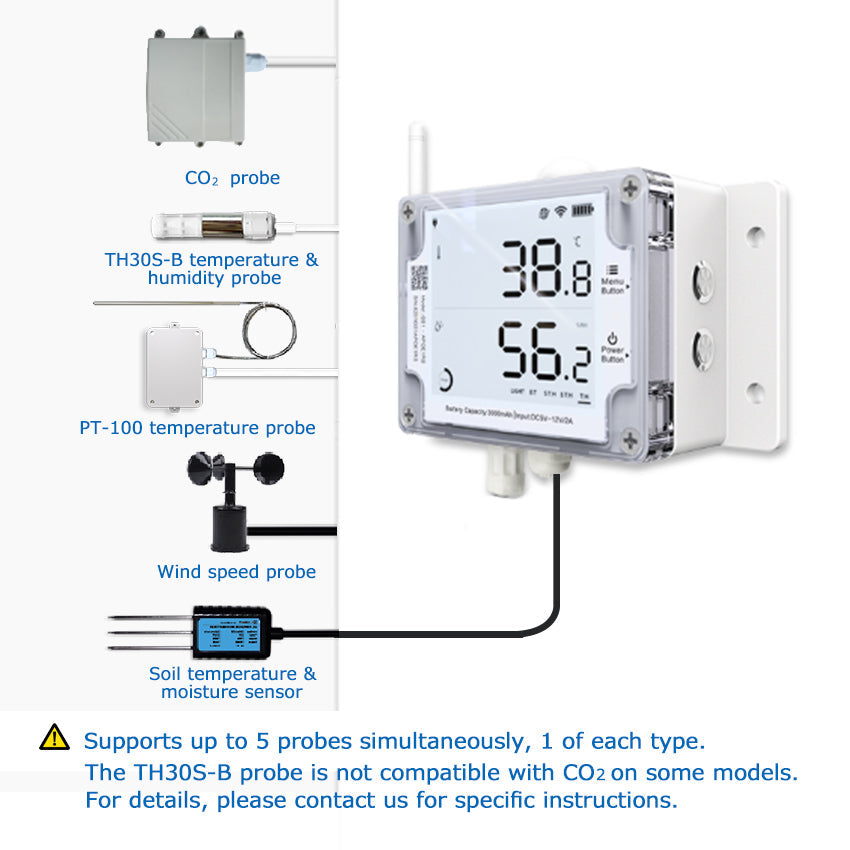

• RS485 supports TH30S-B, soil, PT-100, wind-speed and CO2 probes, with only one probe of each type connected at a time.

Specifications

• Temperature range: −20 to 60°C (−4 to 140°F), accuracy ±0.2°C. Humidity: 10–90% RH, non-condensing, accuracy ±2%. Light: 0–83,000 lux, accuracy ±2%.
• Power: internal 2500mAh lithium battery, 5V USB-C or 12V DC. The 12V power supply is not included.
• LTE-FDD bands B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66; LTE-TDD B34/B38/B39/B40/B41; WCDMA B1/B2/B4/B5/B6/B8/B19; GSM 850/900/1800/1900MHz. Check network band compatibility before purchase.
• ABS+PC housing measures 11.5×9×5.5cm and weighs 450g ±3g. Ports: USB-C and 3.5mm audio.
• IP65 protection does not support humidity above 90%. Outdoor use should be sheltered or protected with a suitable weatherproof box.

Package Contents

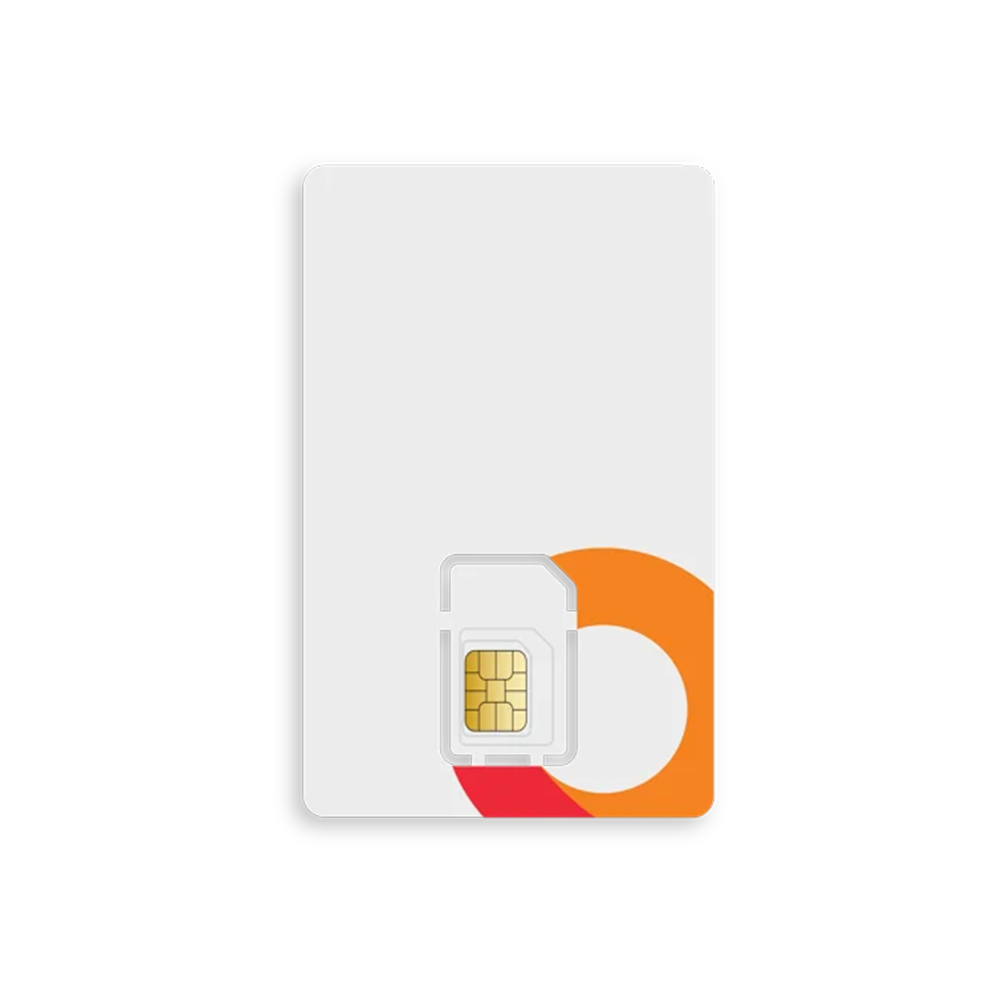

GS1-PL4G1RS device, UbiBot Global SIM card, external BD GPS active antenna, manual and USB-C cable. External probes are separate accessories.
