HB0704 Seven-Port Docking Station for Switch 2 with HDMI, Gigabit Ethernet, USB Expansion and Detachable Base

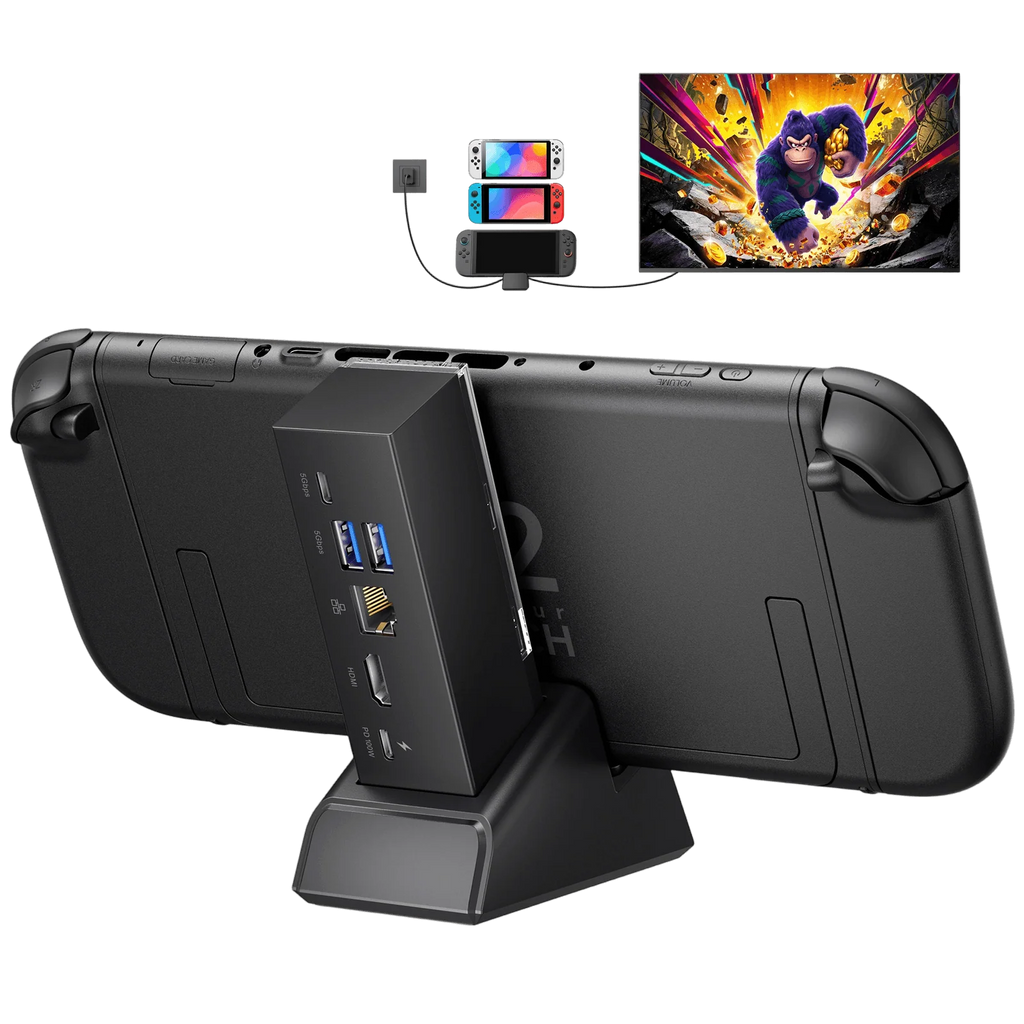

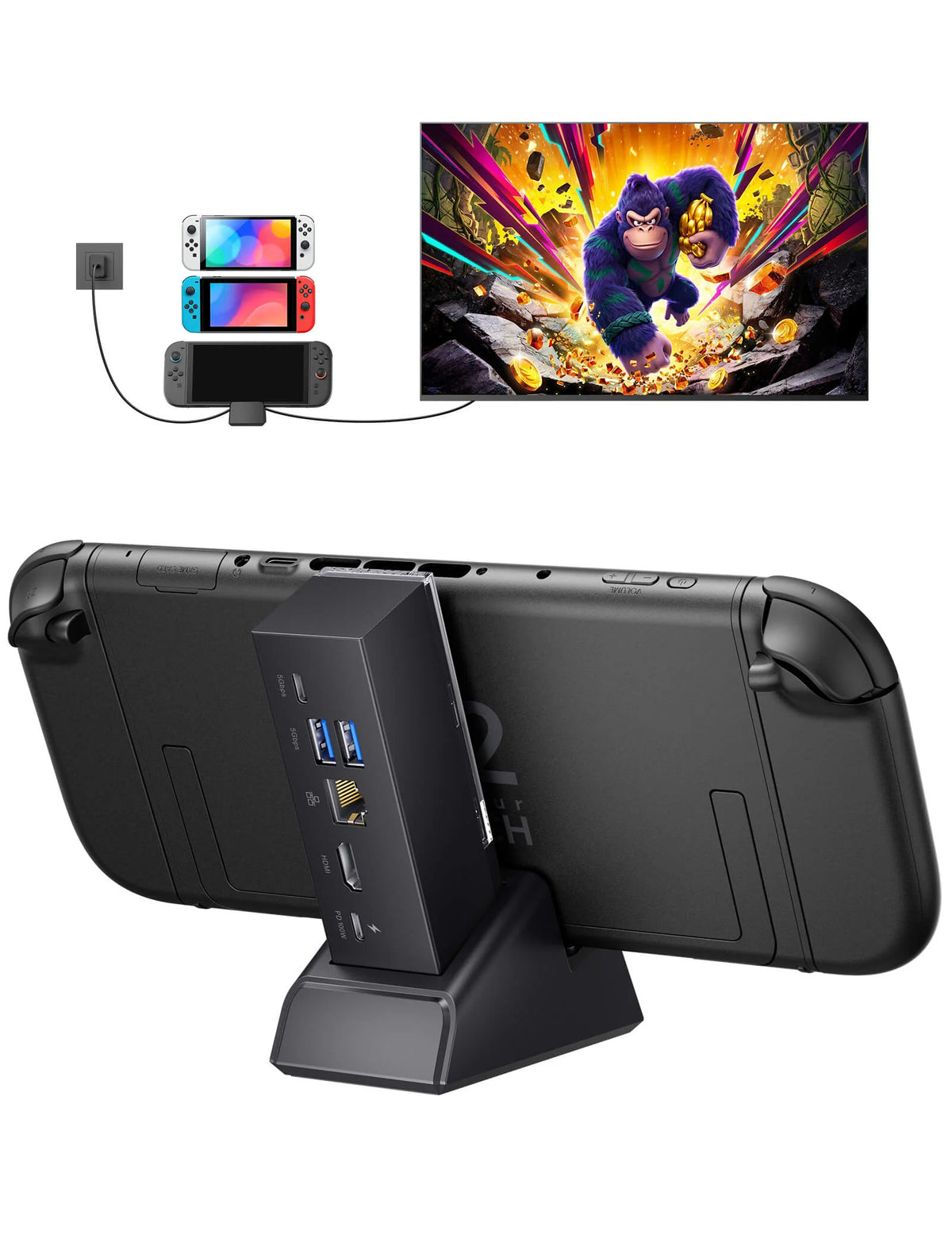

The HB0704 is a seven-port docking station for Nintendo Switch 2, Switch and Switch OLED. It combines TV output, wired Ethernet, USB expansion and USB-C power input with a magnetically detachable base.

Key Features

• HDMI 2.1 output supports compatible displays and source devices. Switch 2 output is limited to 4K at 60Hz; Switch and Switch OLED output is limited to 1080p at 60Hz.

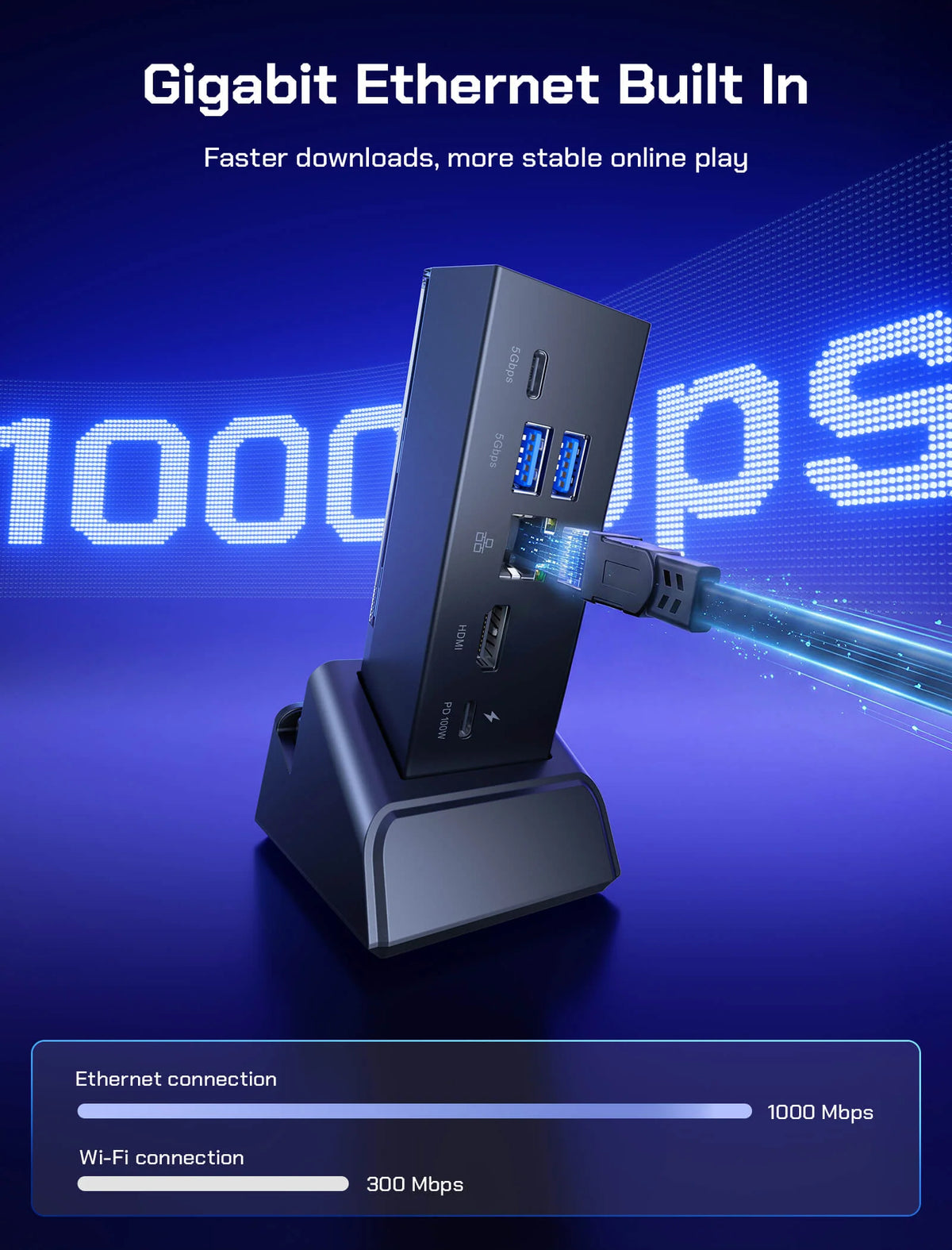

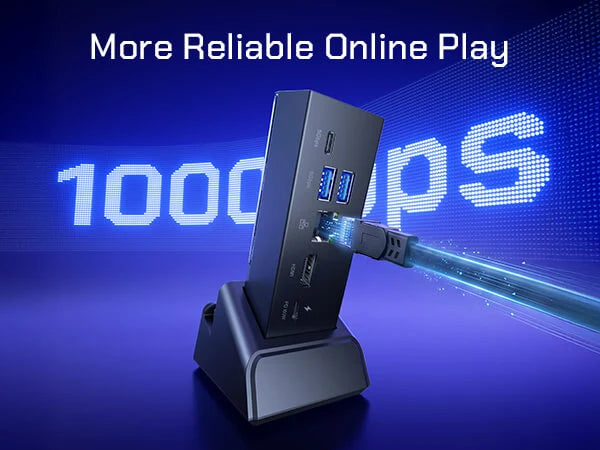

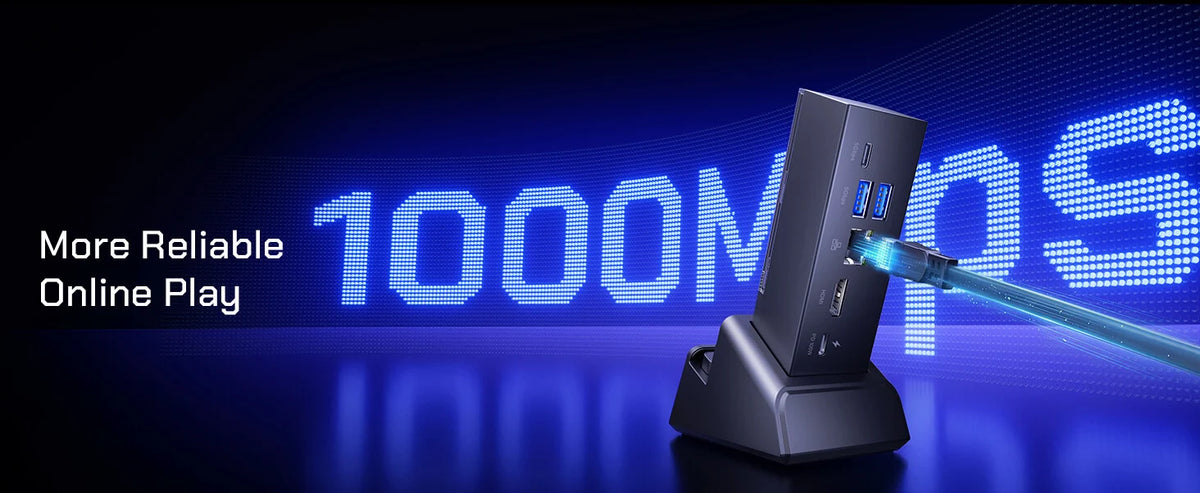

• Gigabit Ethernet port supports wired networking up to 1000Mbps.

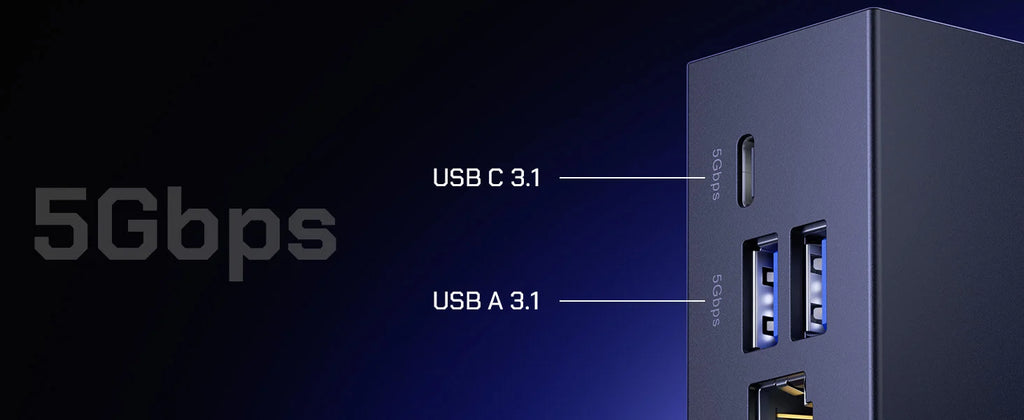

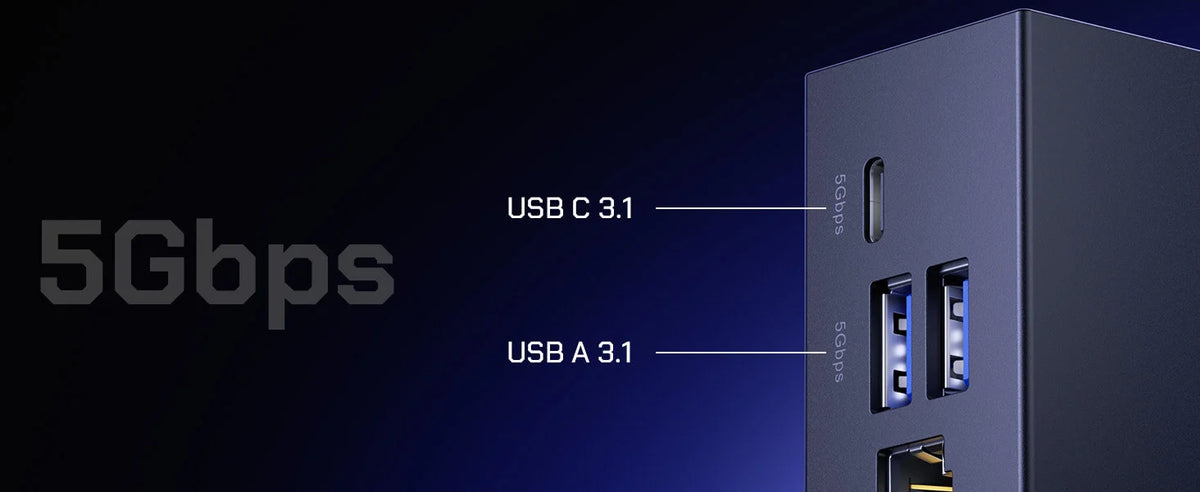

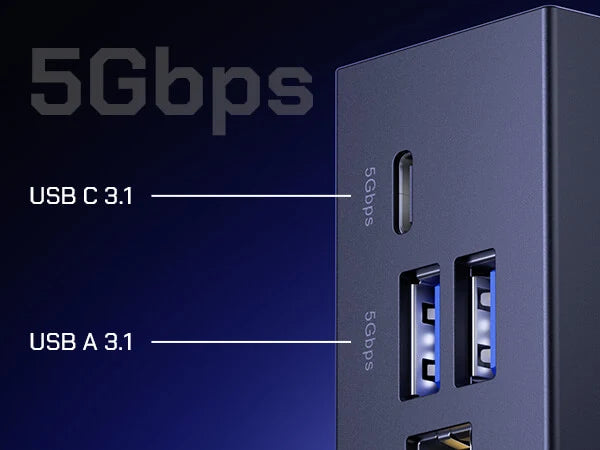

• One USB-C data port and two USB-A ports provide up to 5Gbps with compatible devices and 5V/1A peripheral output.
• USB data transfer is not supported when connected to a Switch-series console; do not expect the dock’s interface rate as console data throughput.

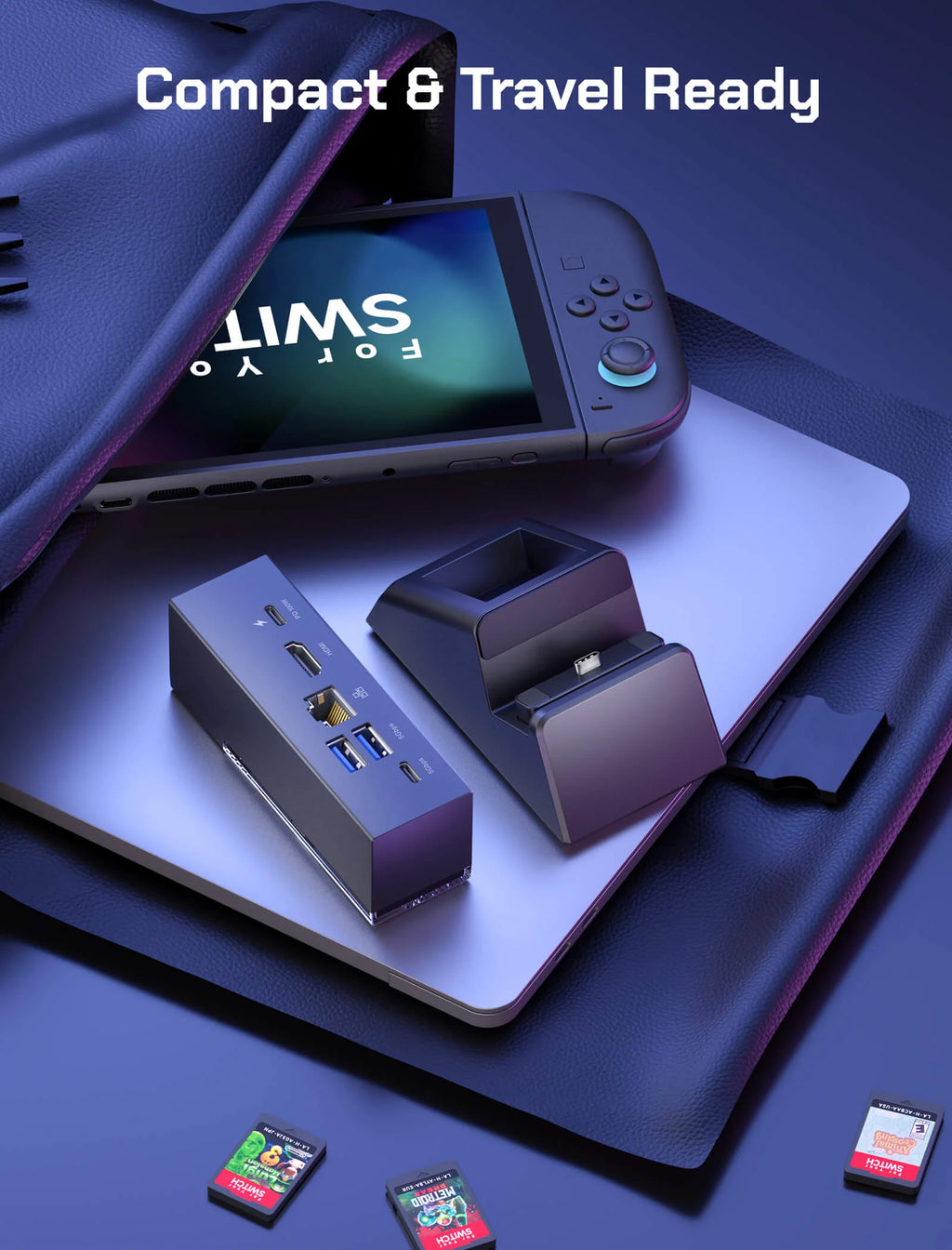

• The dock detaches from its magnetic base for use with compatible USB-C laptops, phones and tablets.
• Insert a custom card between the front cover and dock to personalize the setup.
• Supports protective cases up to 3mm thick.

Specifications

• Model: HB0704

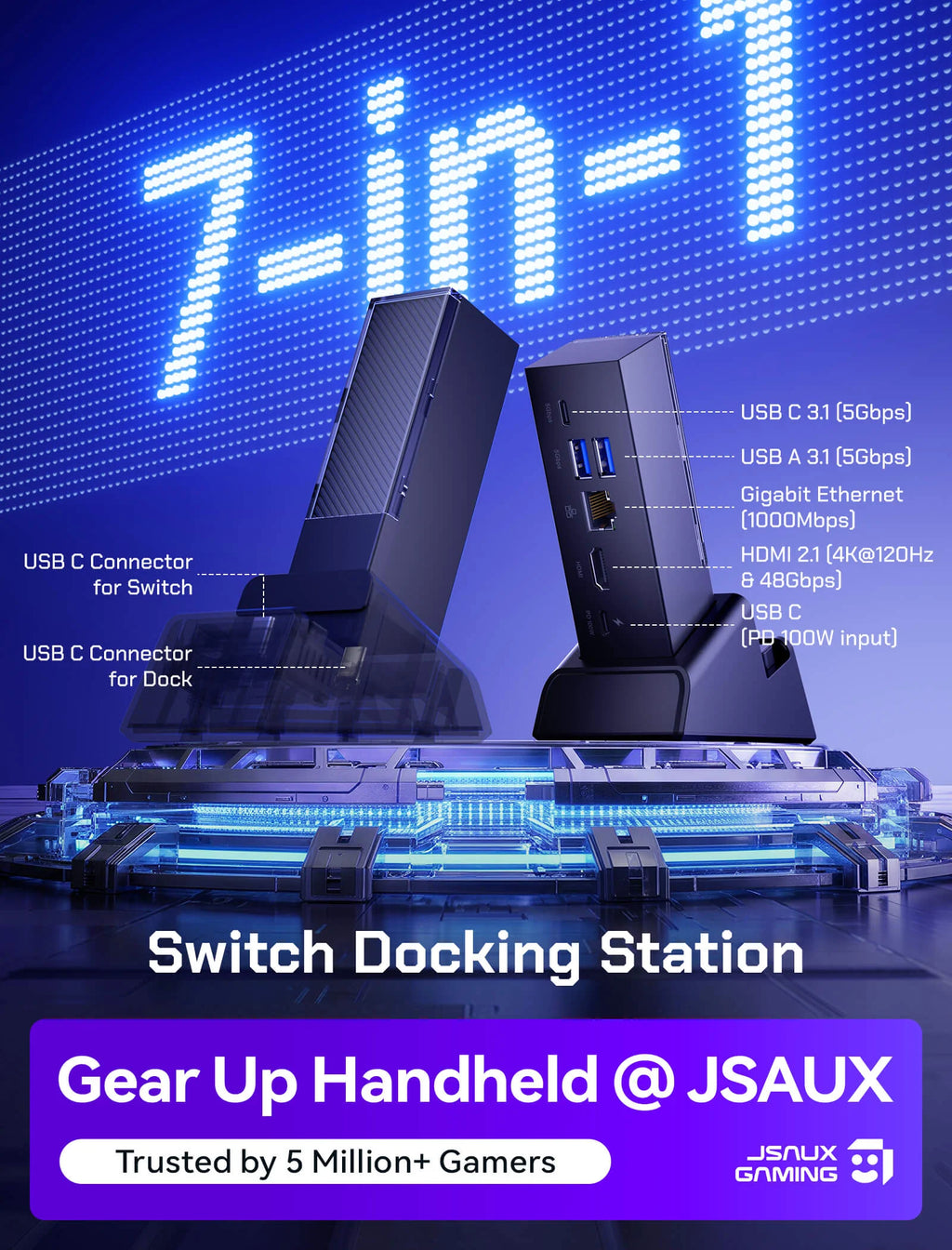

• Ports: HDMI, RJ45, one USB-C data port, two USB-A ports, USB-C PD input and USB-C male console connector

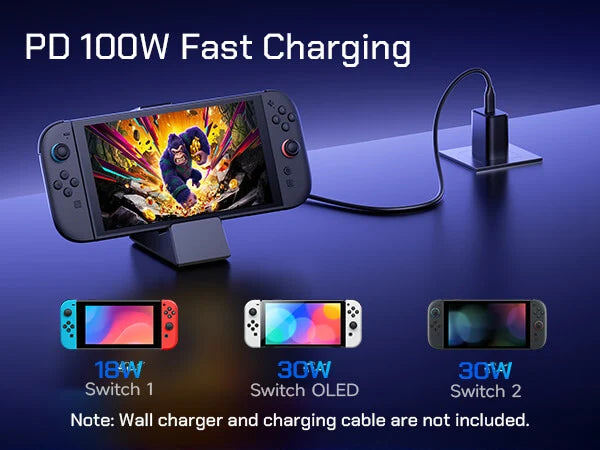

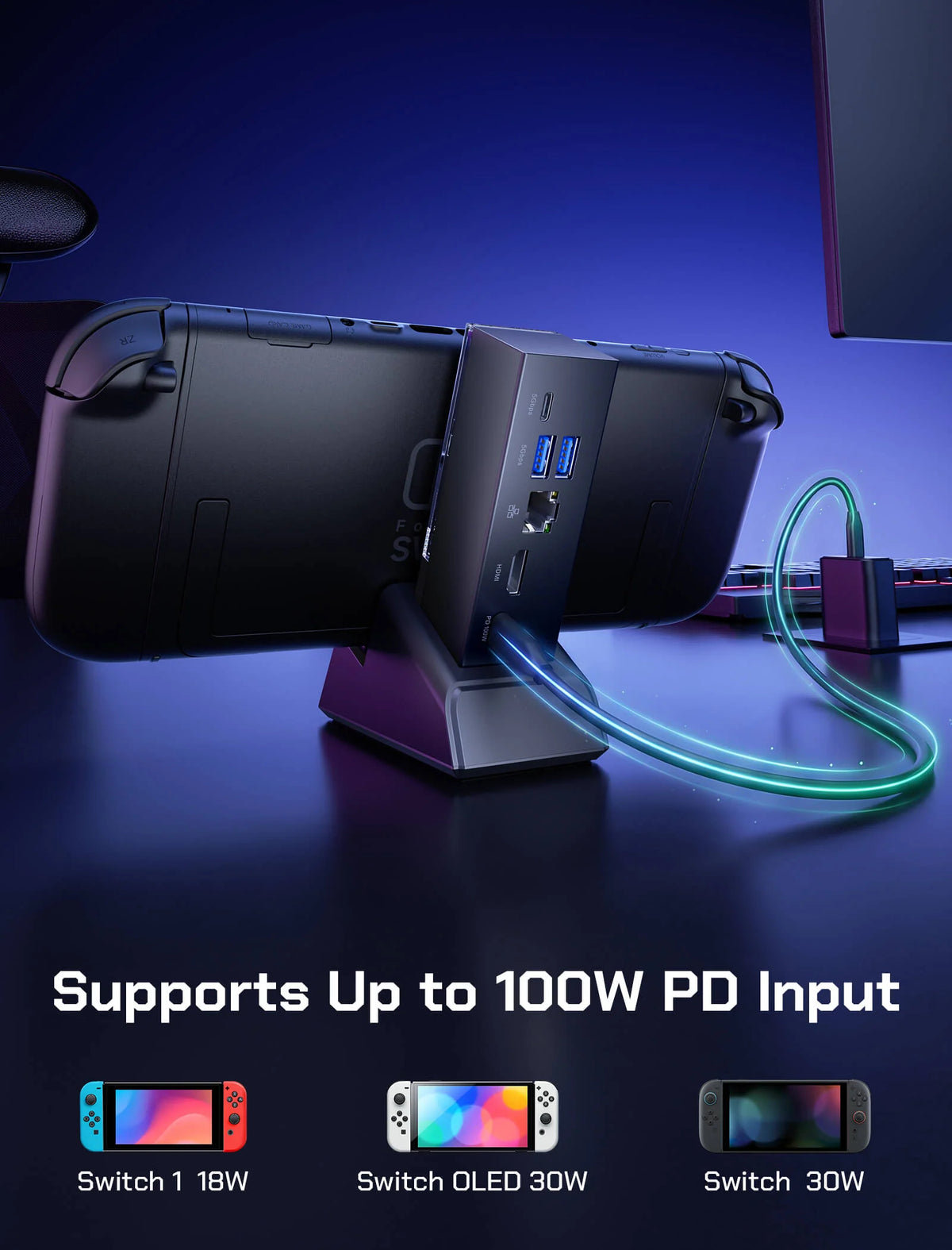

• Dock power input: USB-C PD up to 100W, 20V/5A
• Switch 2 charging: Limited to 30W
• Switch 2 TV mode requires a 65W power supply.
• Dock dimensions: 108 × 33 × 31mm
• Dock with stand: 125 × 85 × 49mm; weight: 296g
• Driver-free, plug-and-play and hot-swappable operation

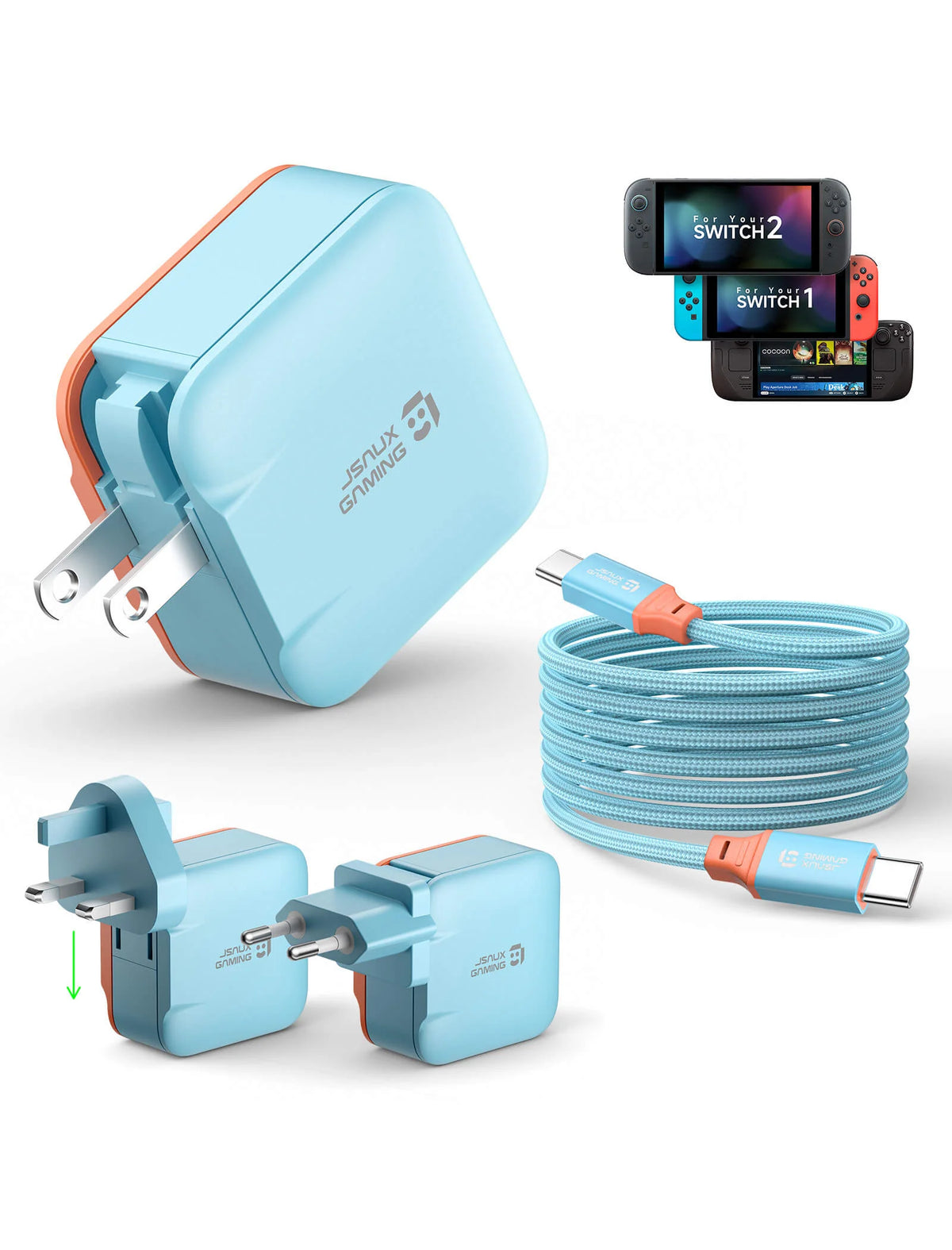

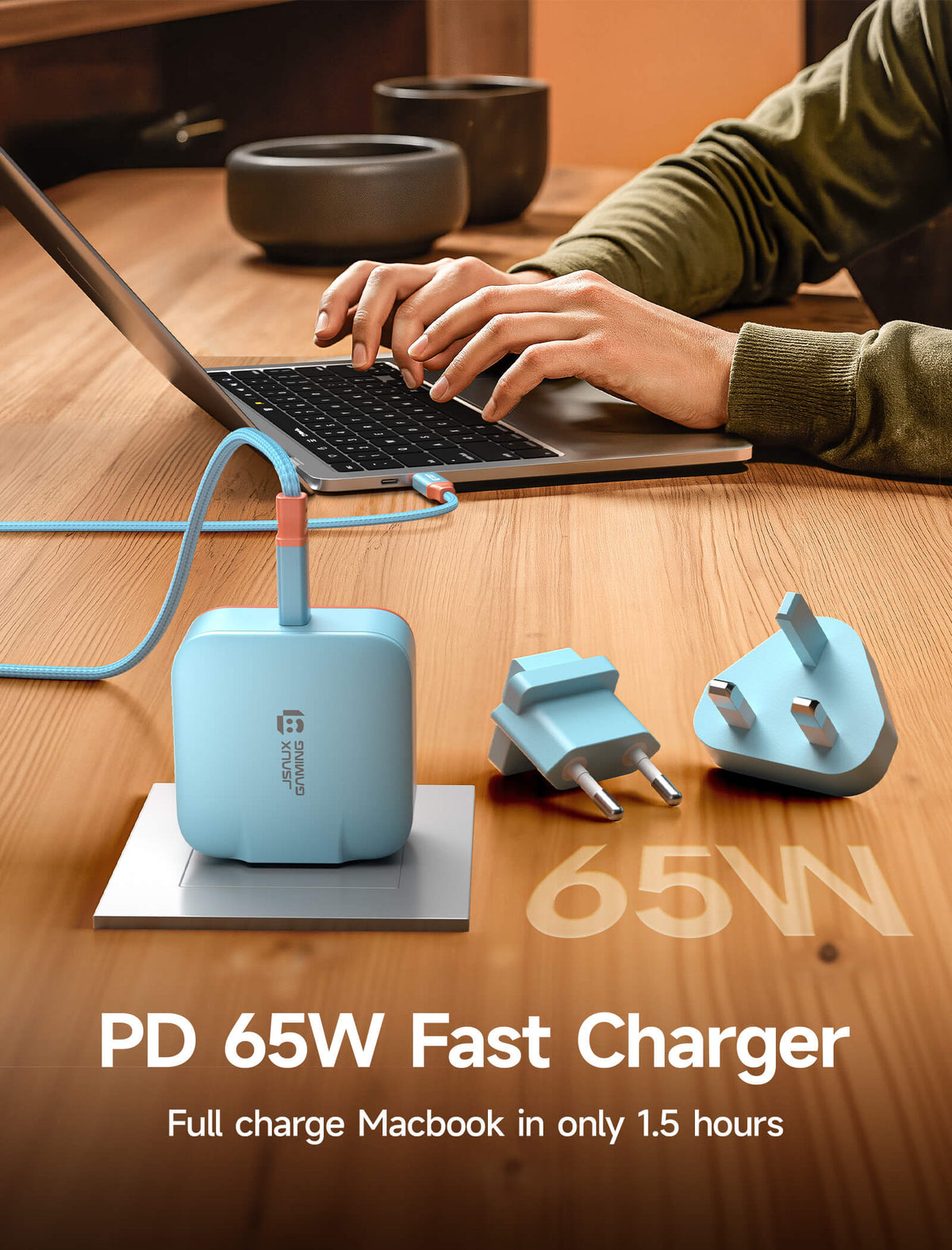

• Package options: Dock alone, or Dock & 65W Charger
• Charger regional plug and AC input specifications are not provided for the bundle. No additional cables or accessories are promised.
