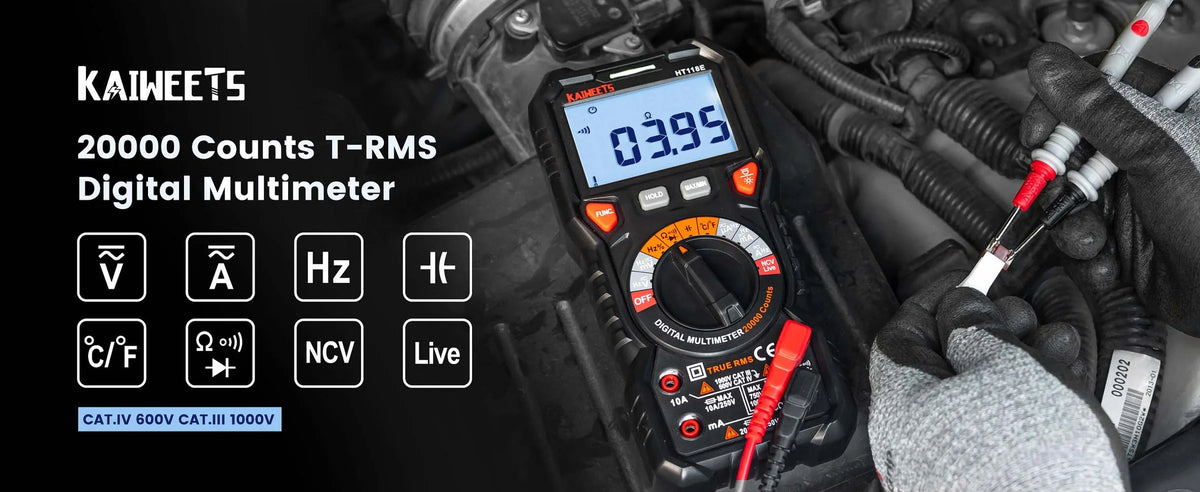

HT118E 20000-Count Digital Multimeter with Auto-Ranging, Non-Contact Voltage Detection and Included AAA Battery Kit

The KAIWEETS HT118E is a 20000-count digital multimeter for voltage, current, resistance and other electrical measurements. Auto-ranging, non-contact voltage detection and live-wire alerts combine with data hold and a rear flashlight for everyday testing.

Key Features

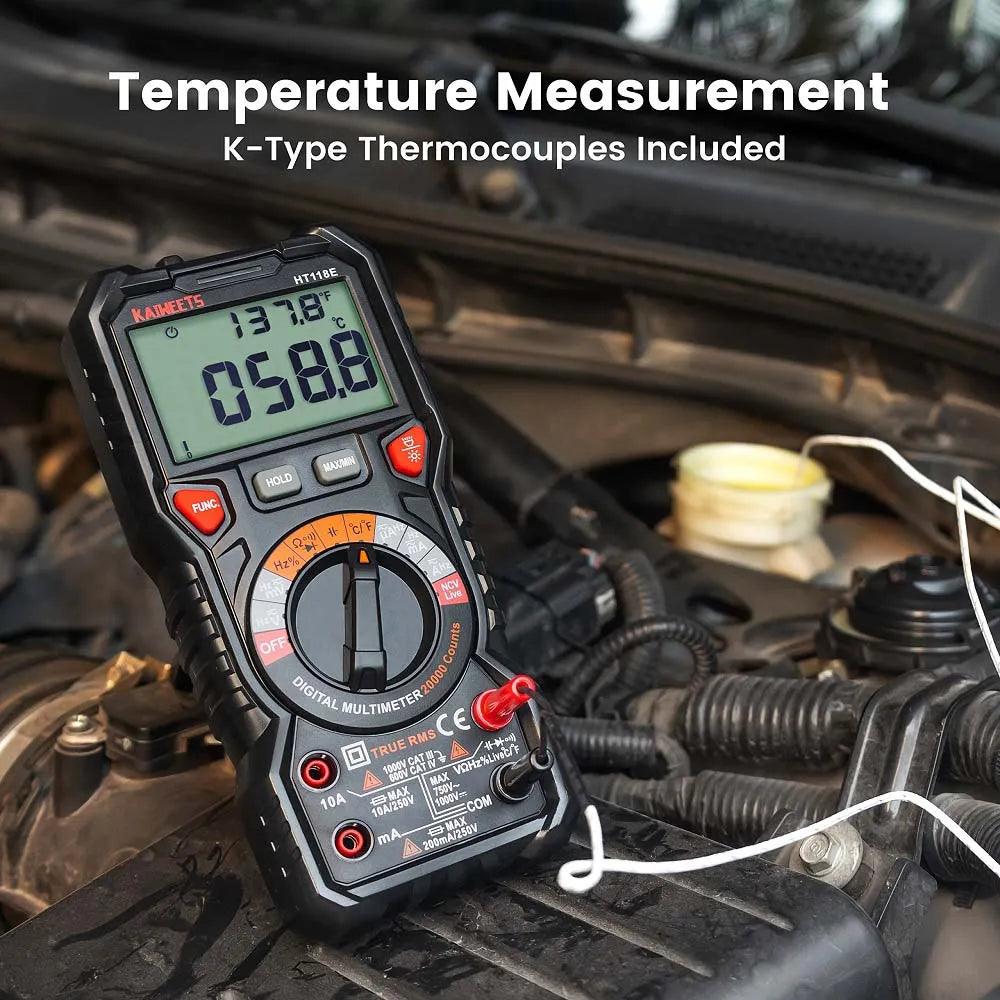

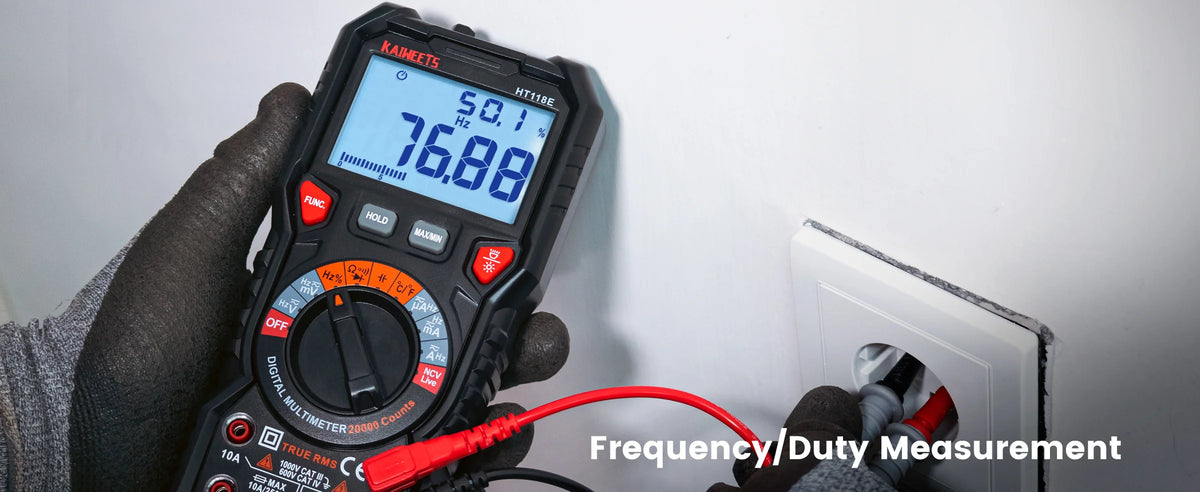

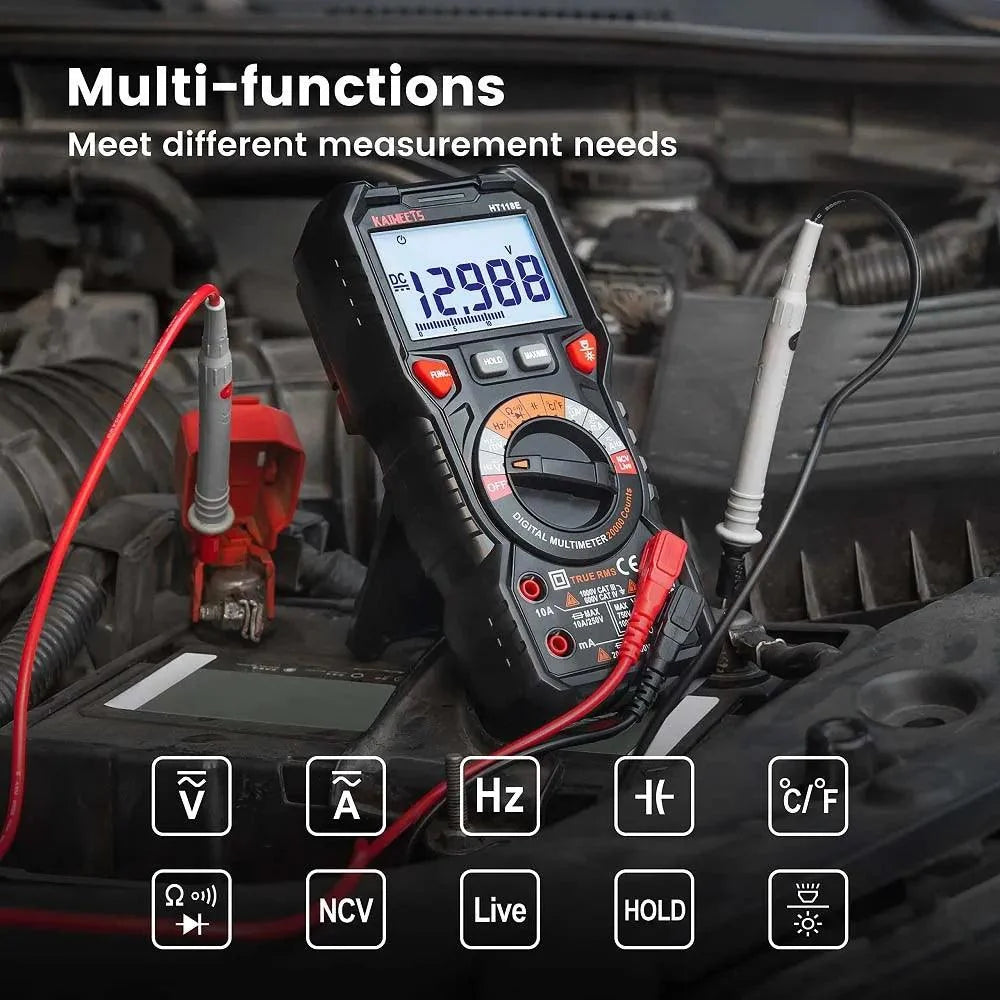

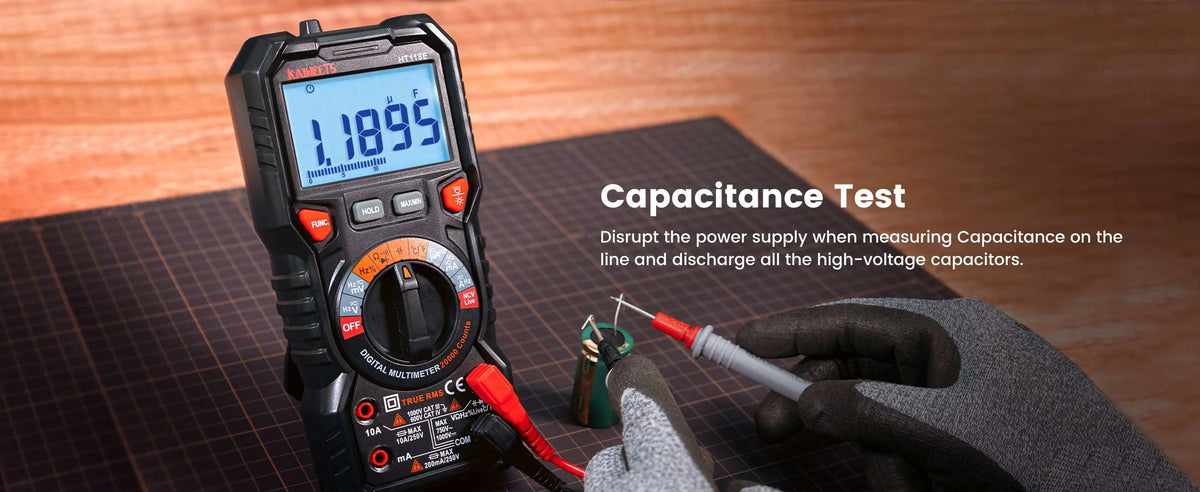

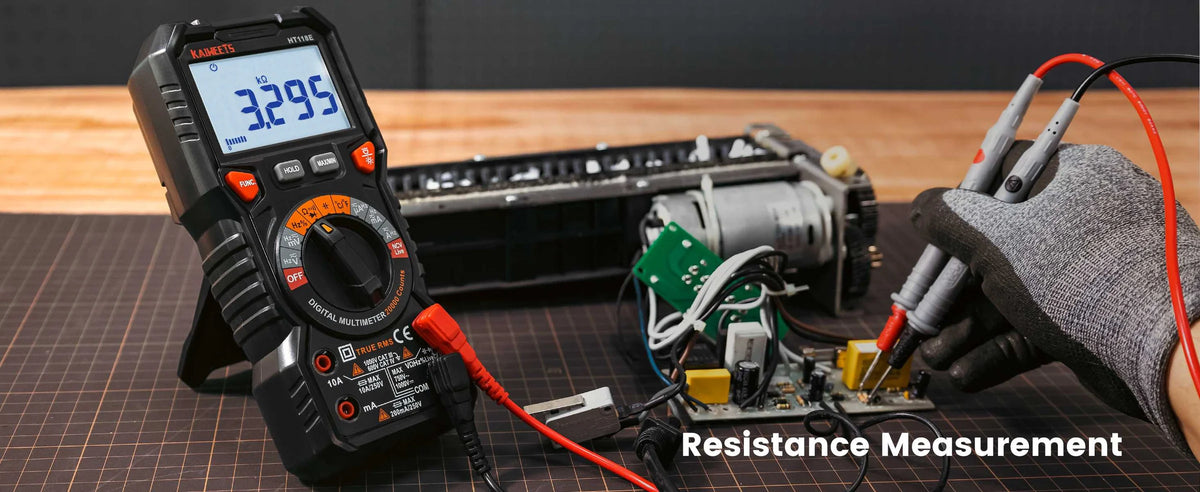

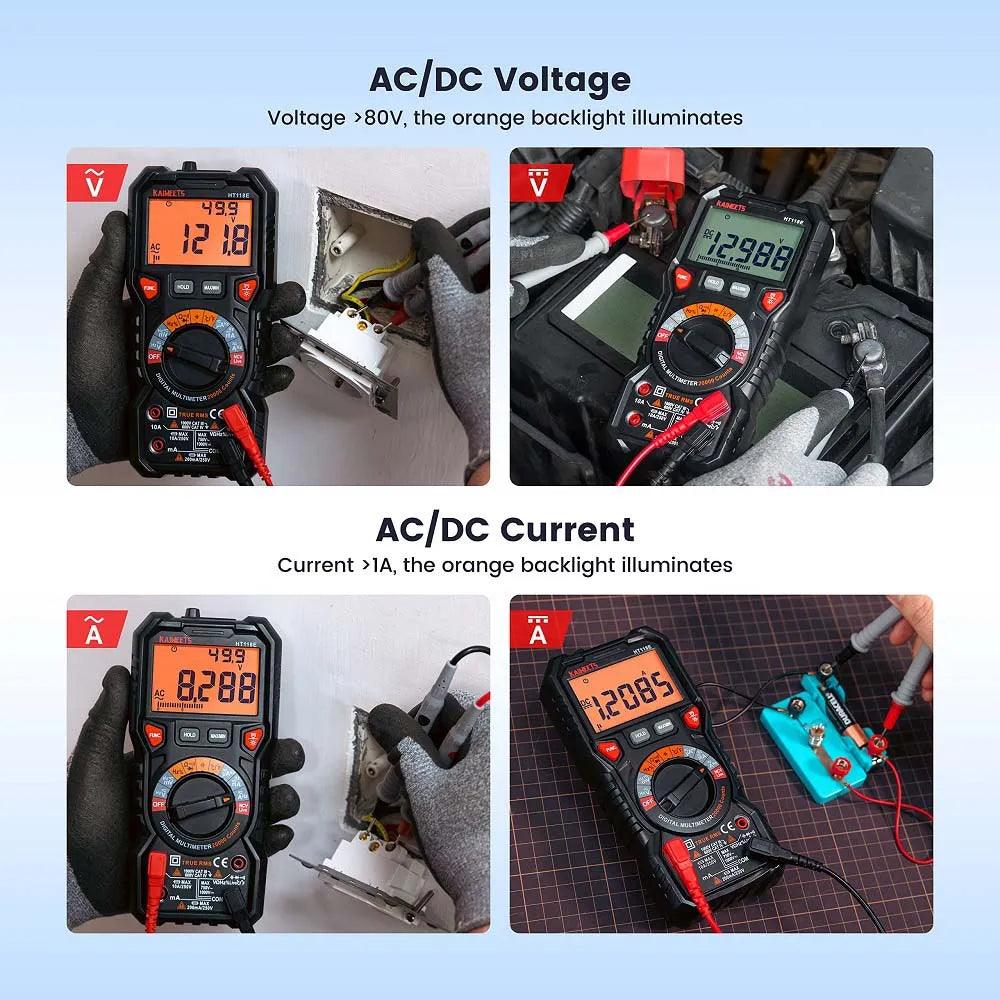

• Measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle and temperature.

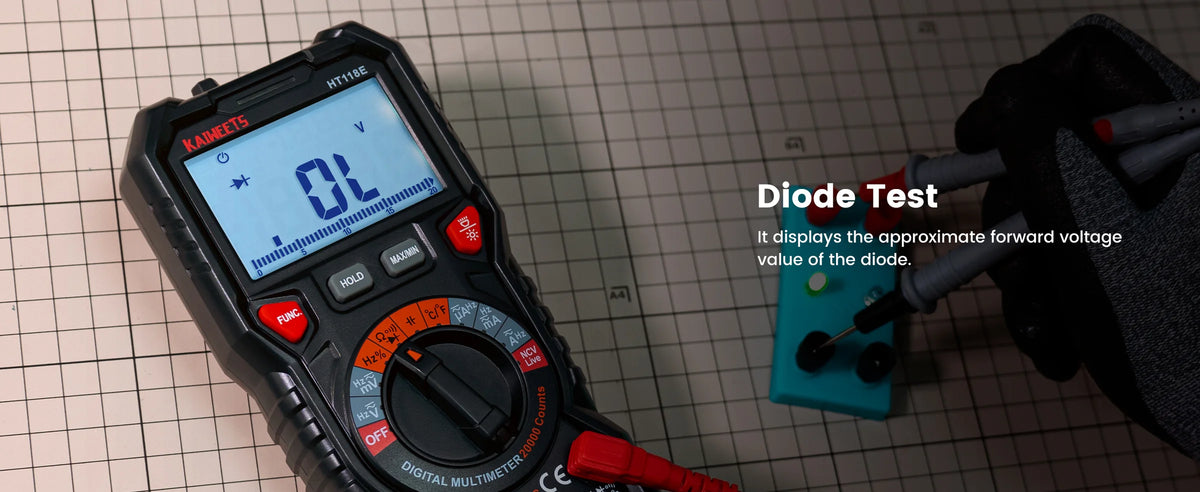

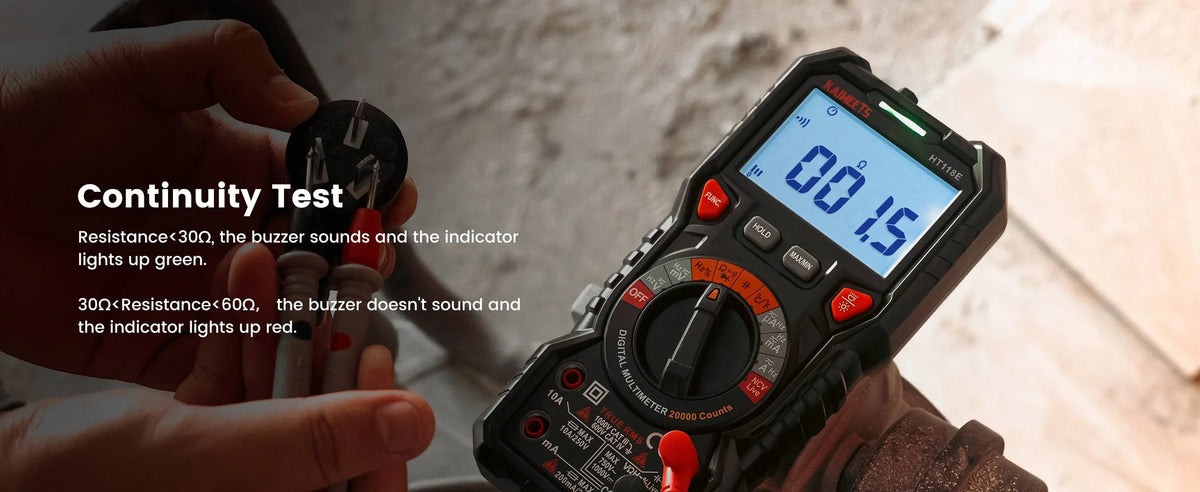

• Diode and continuity test functions.

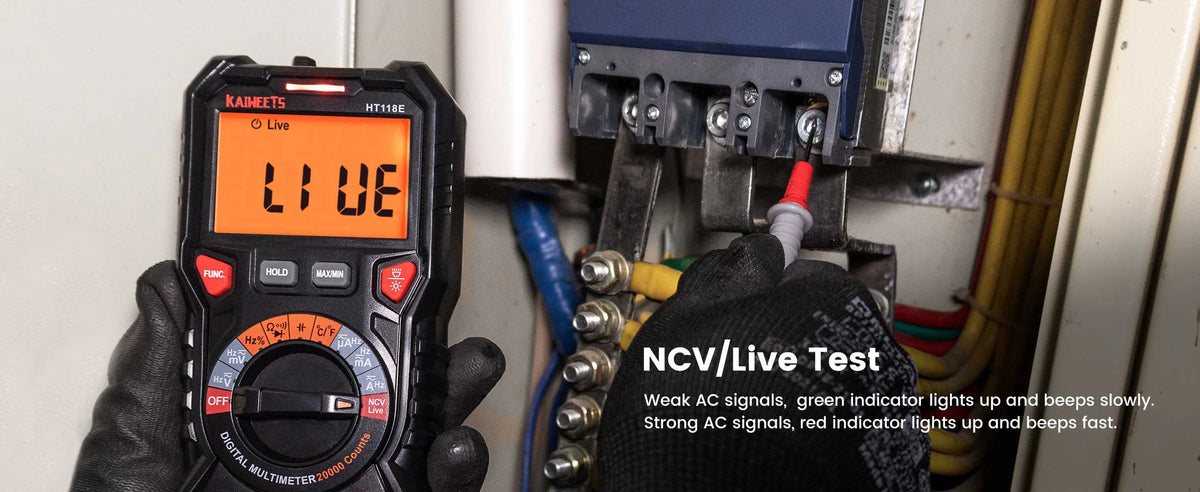

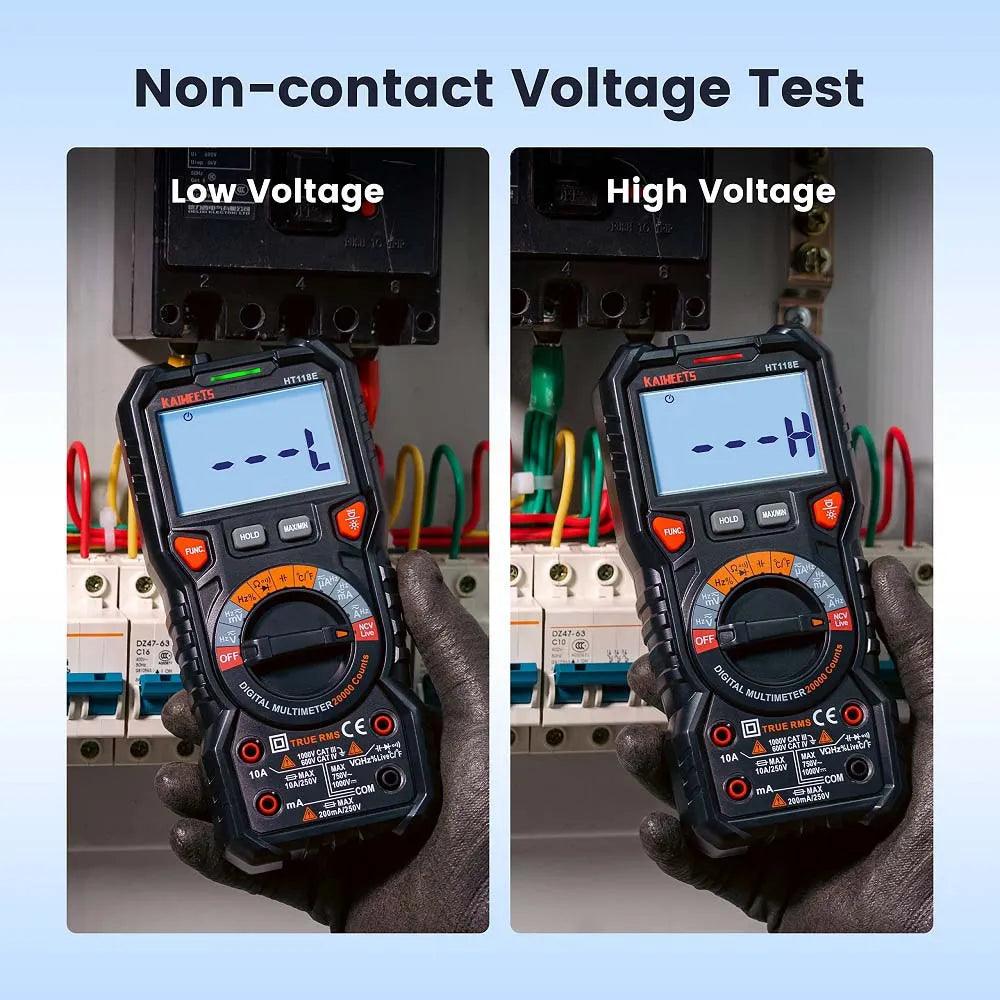

• Non-contact voltage detection and live-wire detection with audible and visual alerts; the screen turns red during live-wire detection.

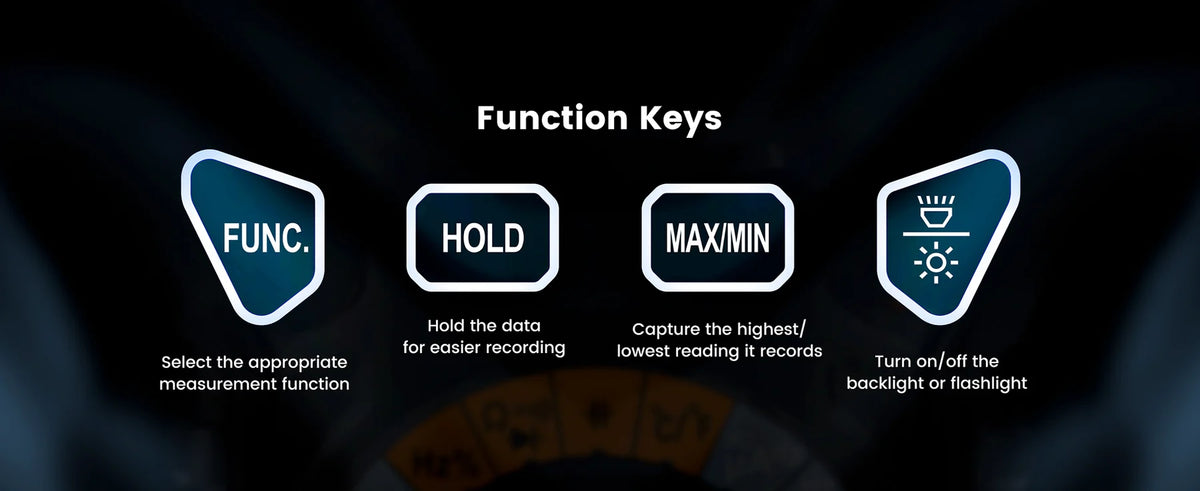

• Minimum/maximum recording, data hold, low-battery indication and automatic power-off.

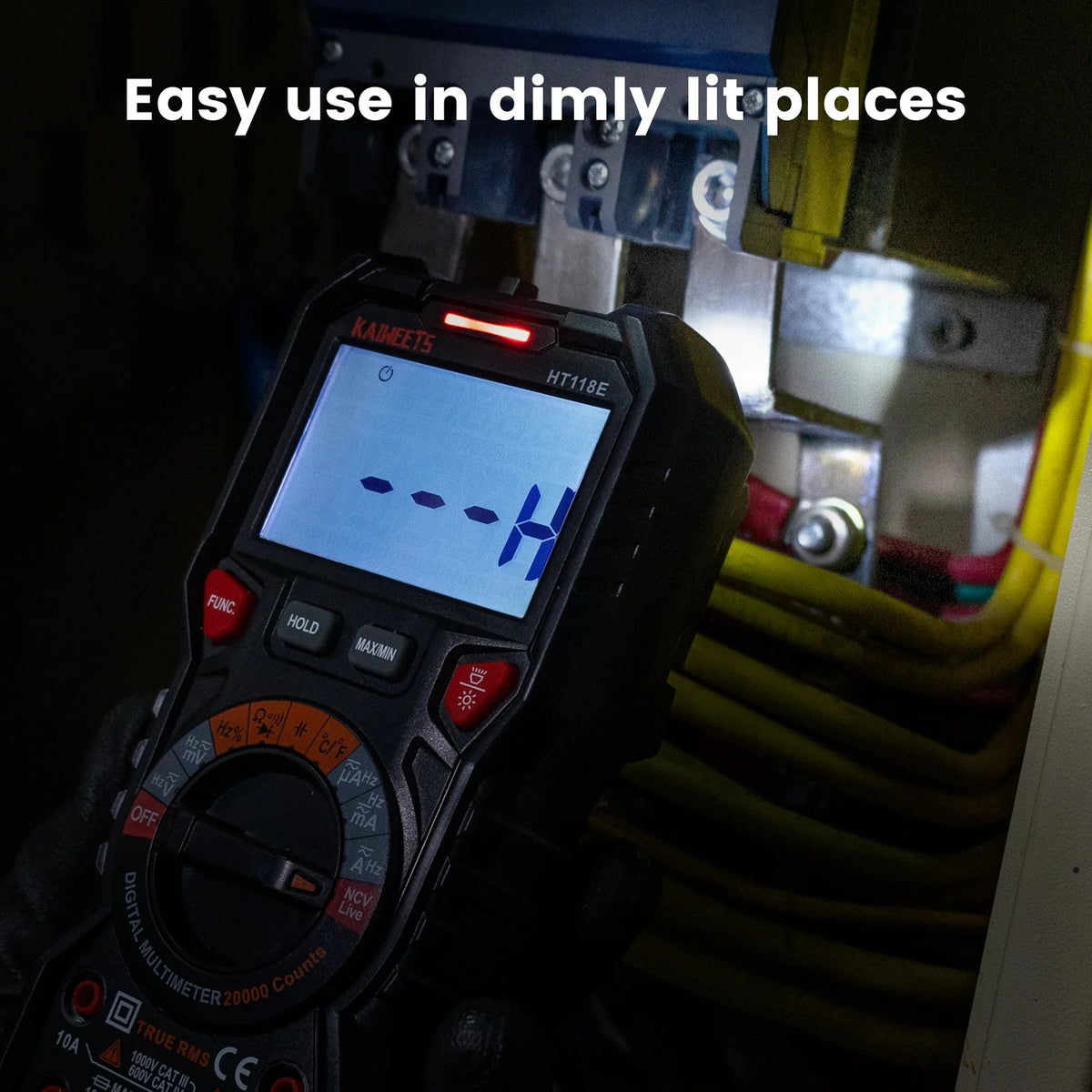

• Rear flashlight, kickstand and probe-storage slots.

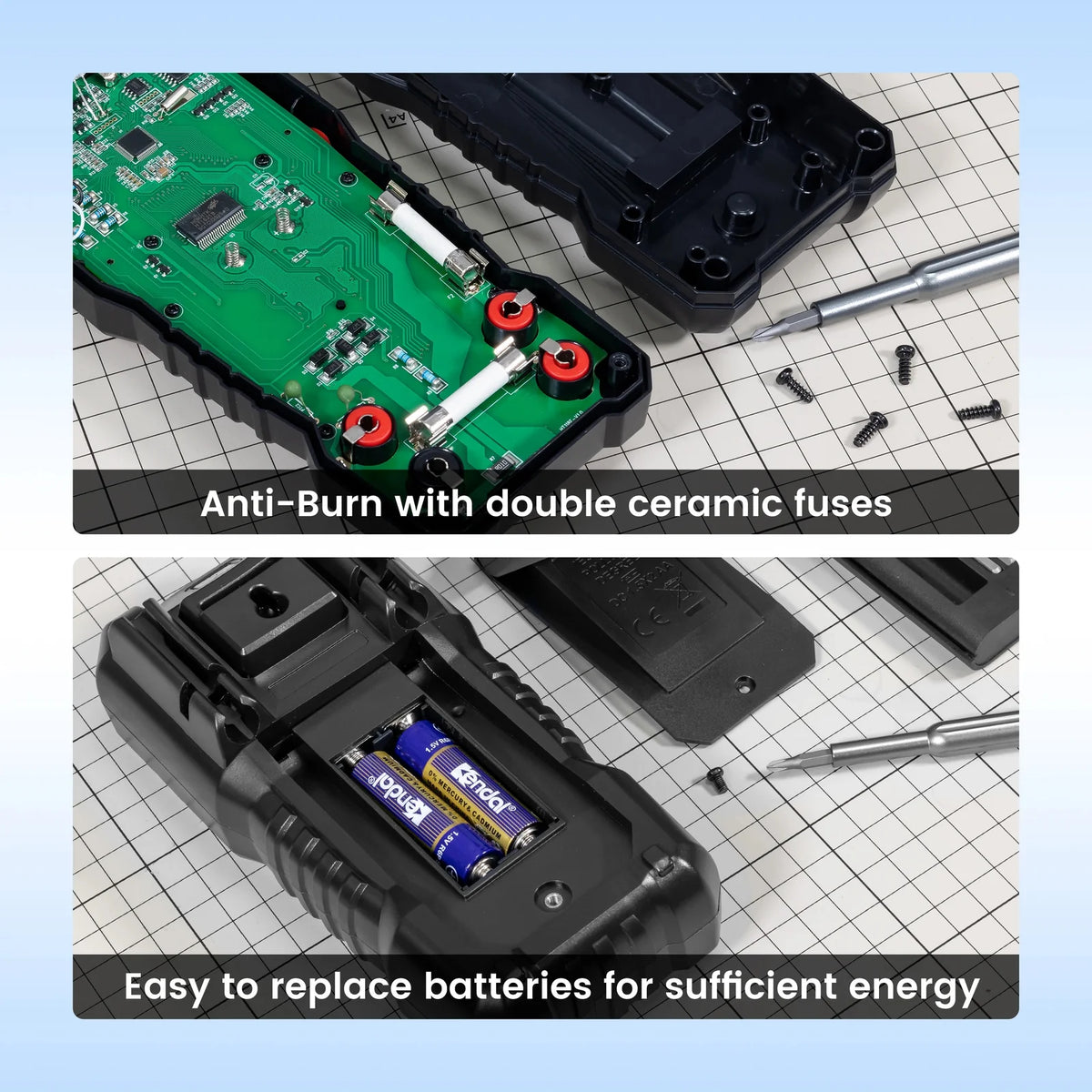

• Silicone protective cover, two ceramic fuses and thermistor protection circuitry.
• Two included AAA batteries power the meter.

Specifications

• Model: HT118E; display count: 20000
• DC voltage ranges: 200mV, 2V, 20V, 200V and 1000V
• AC voltage ranges: 200mV, 2V, 20V, 200V and 750V
• Current ranges: 200μA, 2000μA, 20mA, 200mA and 10A
• Maximum resistance range: 100MΩ; maximum frequency range: 10MHz
• Duty-cycle range: 1%–99%

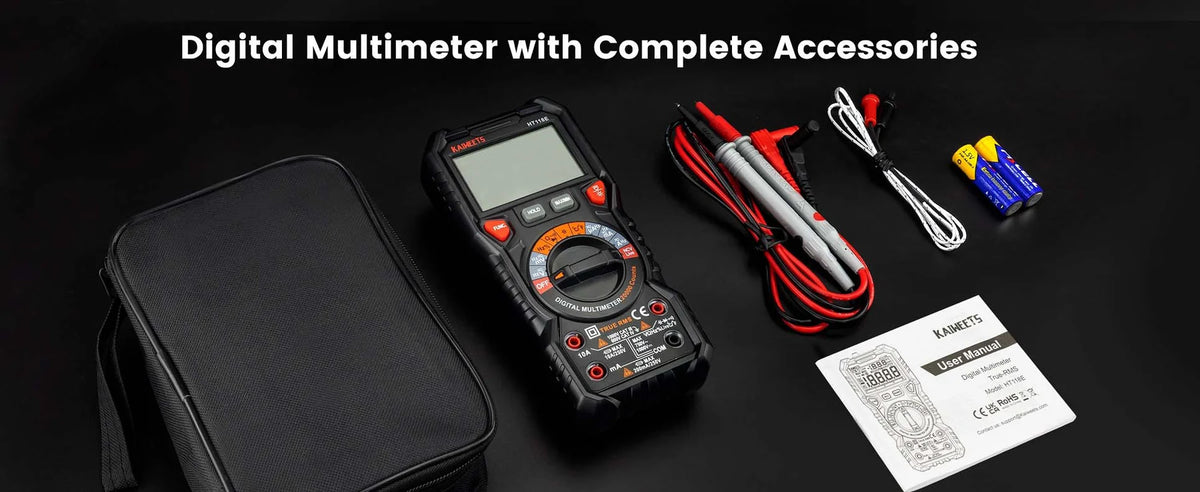

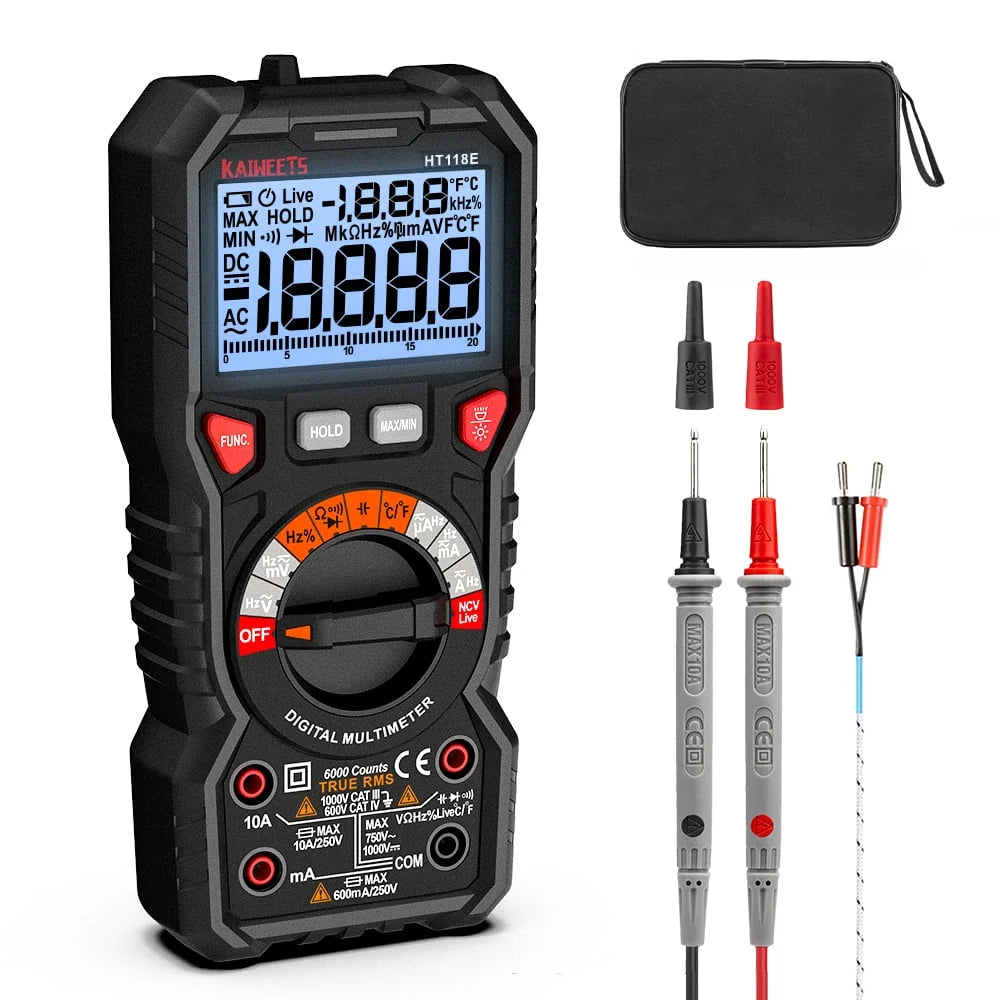

• Included: multimeter, two test leads, user manual, thermocouple, two AAA batteries and EVA bag
• Use the appropriate measurement function, range and rated accessories for the circuit.
