iFlash Quad MicroSD Storage Adapter for iPod Video and Classic with Four Card Slots and 40-Pin ZIF Connection

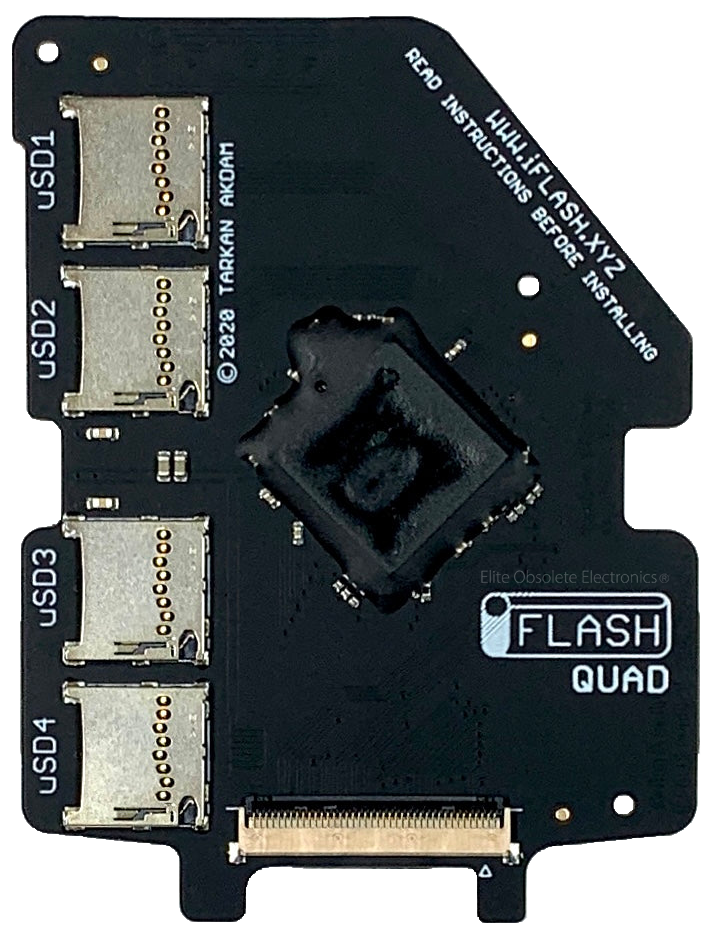

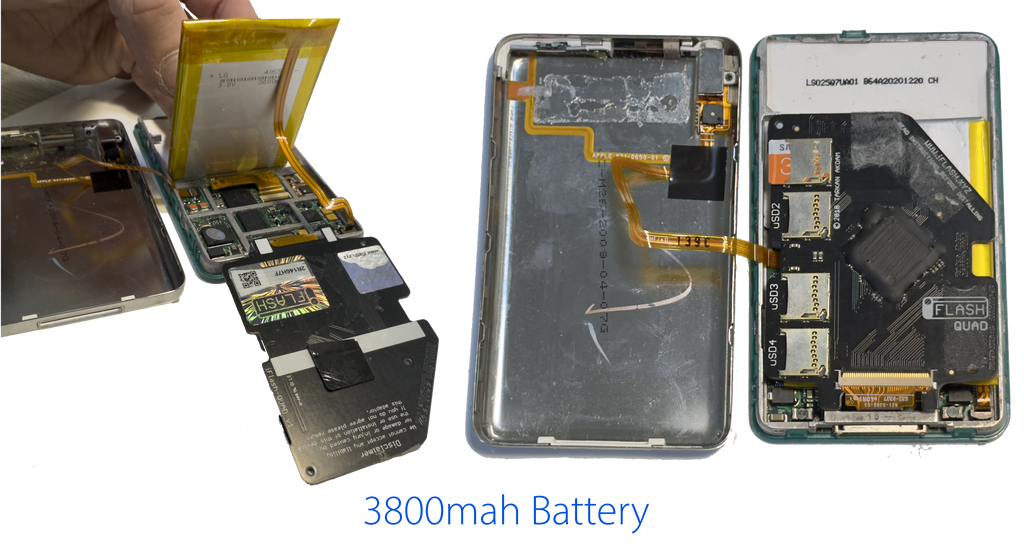

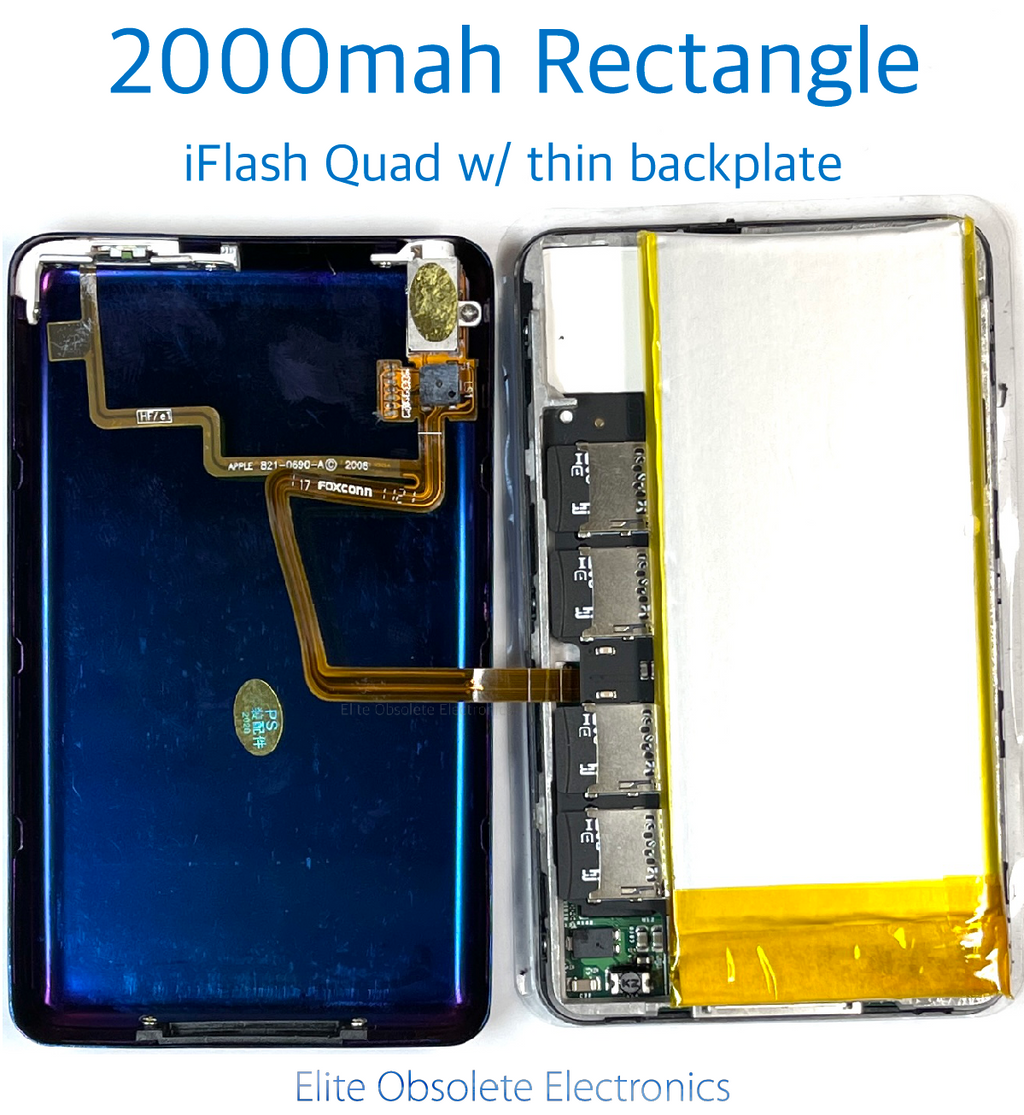

The iFlash Quad replaces the hard-drive storage connection in compatible iPod Video and Classic models with a four-slot MicroSD adapter. Its 2mm board connects through the iPod's HDD ribbon using a 40-pin ZIF interface.

Key Features

• Use one MicroSD card in standard mode or two, three or four cards in mixed JBOD mode.
• Supports mixing card capacities, subject to the iPod model's limits and the manufacturer's known working card list.
• Gold-plated iFlash ZIF connector designed for the Apple HDD ribbon.
• SMK MicroSD connectors and support for SDHC, SDXC and UHS-I U1/U3 cards.

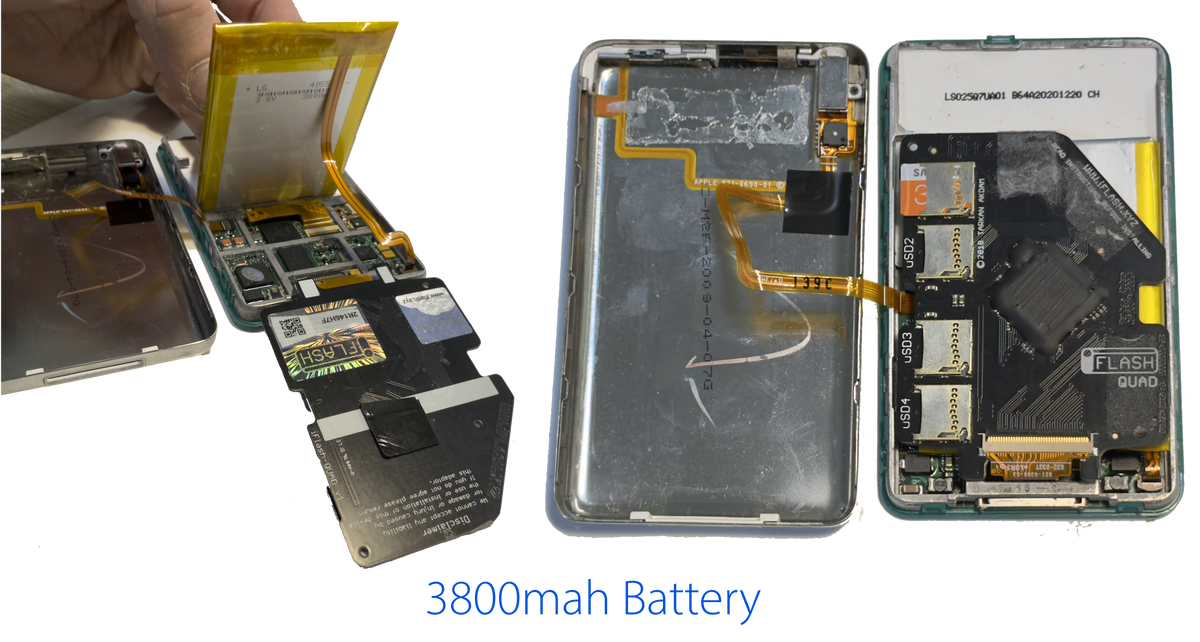

• Requires opening the iPod, replacing its internal storage connection, and restoring and syncing through iTunes after installation.

Specifications

• Model: iFlash Quad
• Product type: Internal MicroSD storage adapter board
• MicroSD slots: Four
• Supported card count: One to four
• Board thickness: 2mm
• iPod connection: 40-pin ZIF, using the Apple HDD ribbon

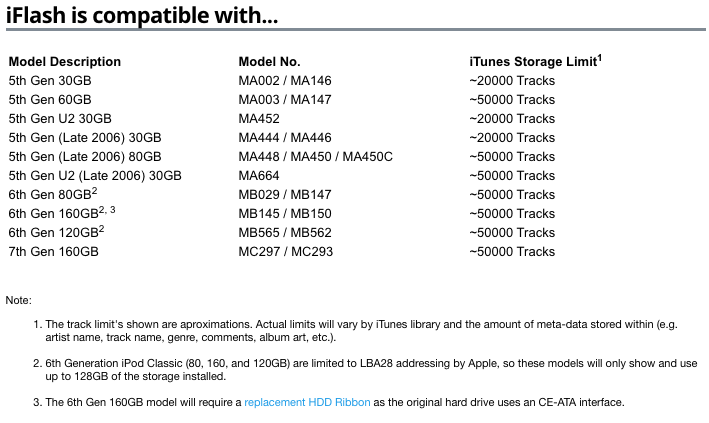

• Compatible iPod Video models: 5G 30GB/60GB and 5.5G 30GB/80GB, model family A1136
• Compatible iPod Classic models: 6G 80GB/120GB/160GB and late-2009 7G 160GB, model family A1238
• 6G Classic limitation: 128GB with SD cards under the manufacturer's stated compatibility guidance
• 4G iPods: Require a separate iFlash converter; not directly covered by this installation
• Card selection: Follow the manufacturer's model limitations and known working card list; every card brand or capacity is not guaranteed
• Package scope: Adapter board; no MicroSD capacity or included iPod is specified by the merchant
