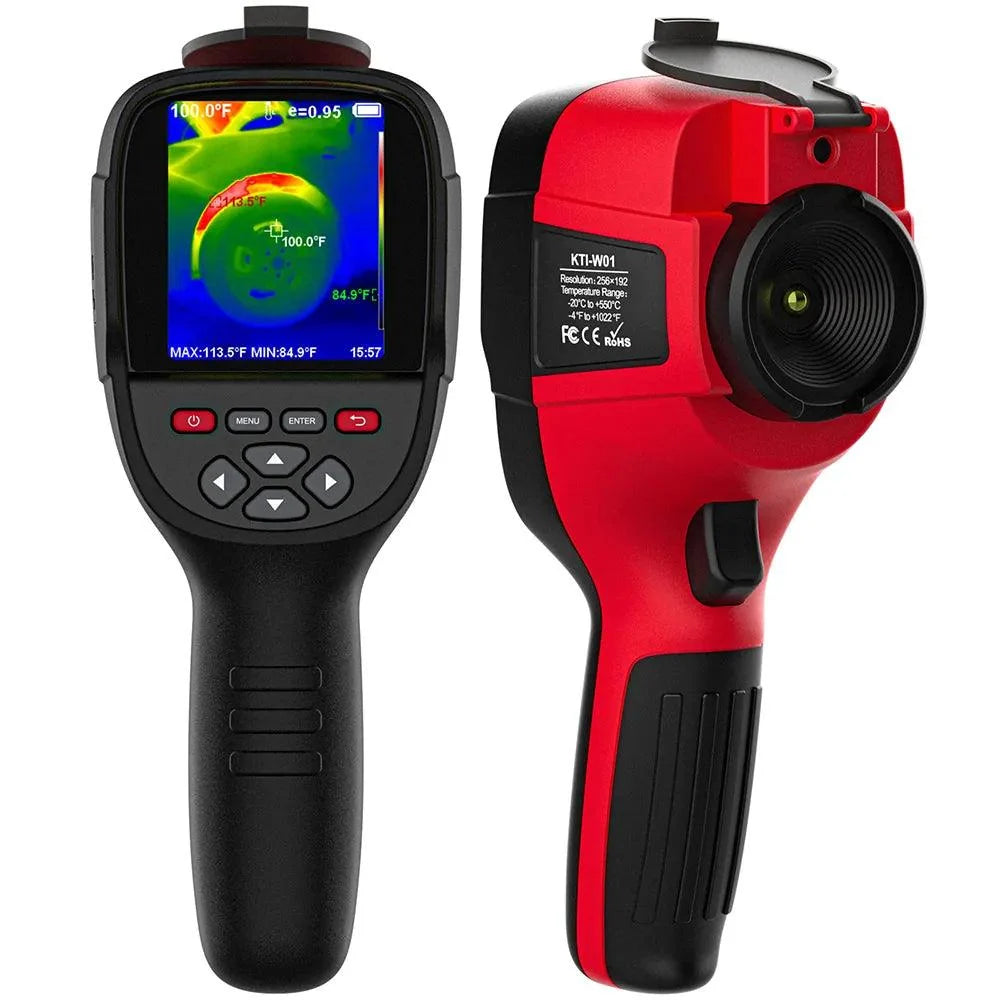

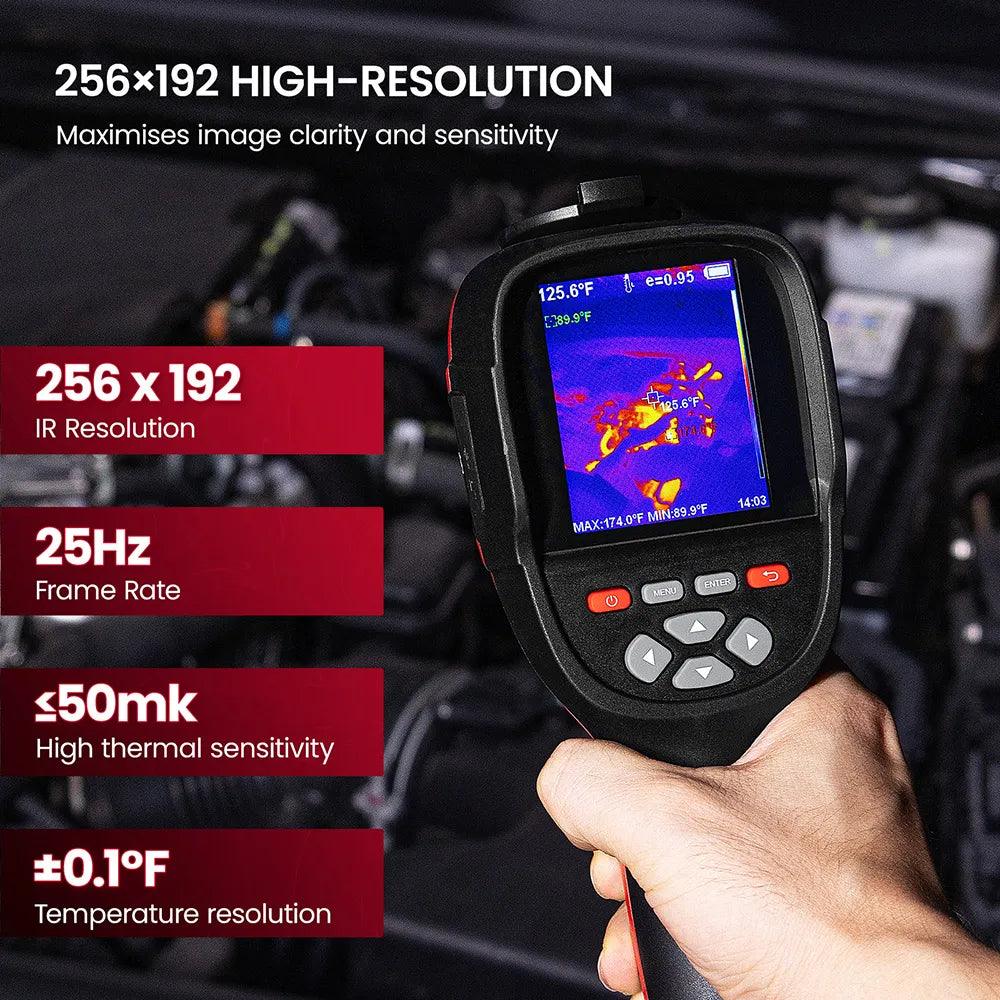

KTI-W01 Thermal Imaging Camera with 256 × 192 Infrared Resolution, 3.2in Display, USB Analysis and 3500mAh Battery

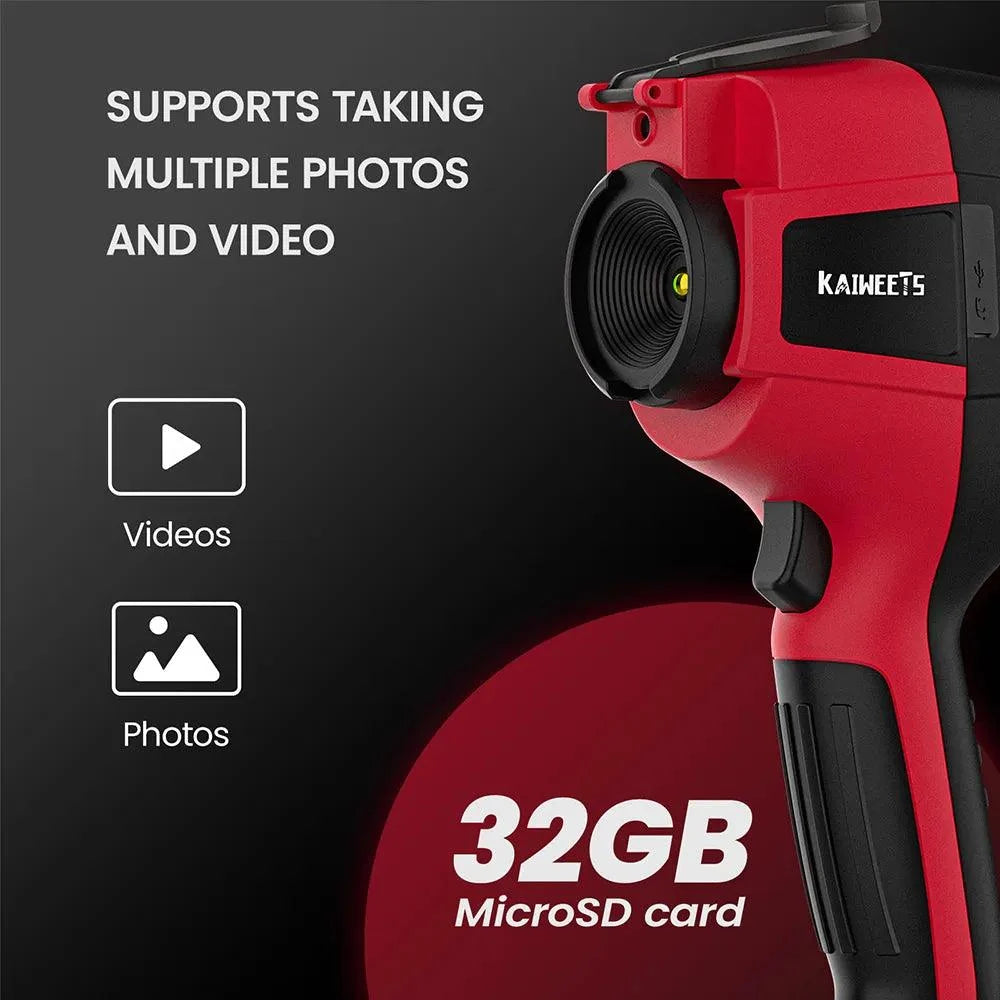

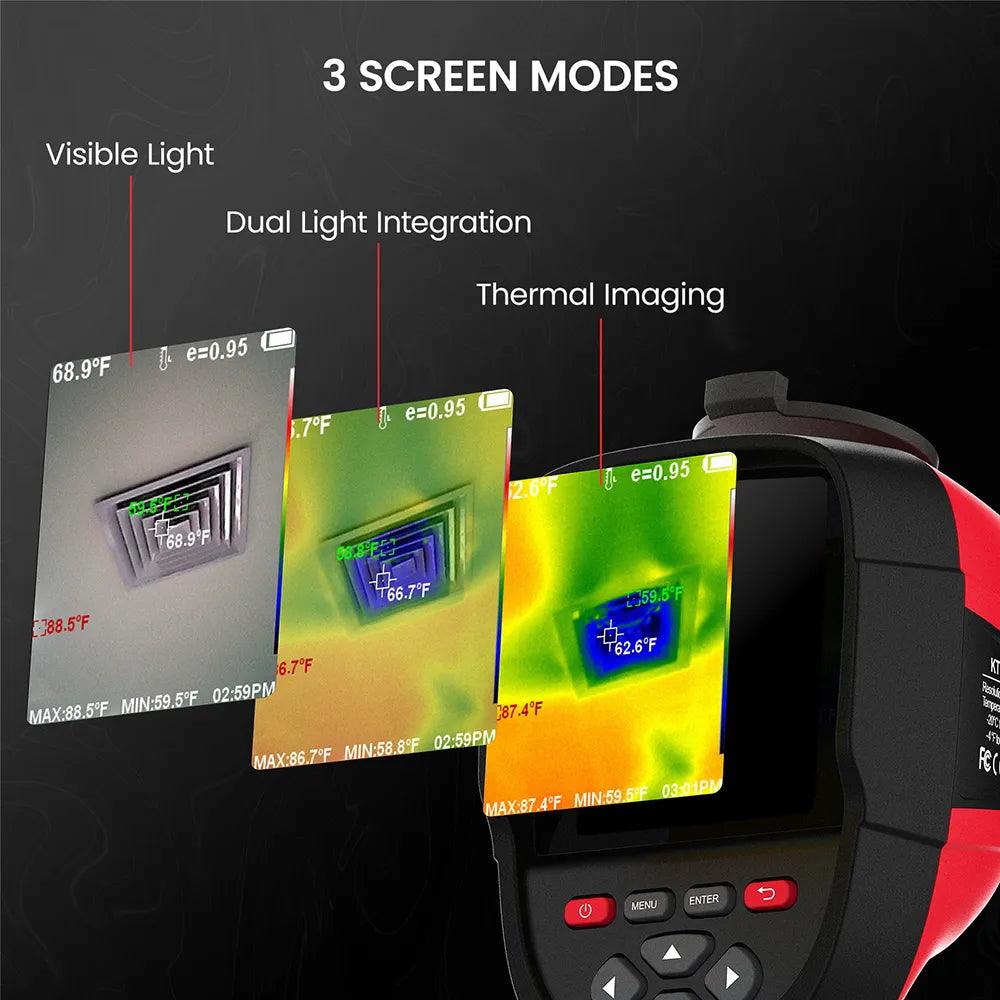

The KAIWEETS KTI-W01 handheld thermal camera combines a 256 × 192 infrared sensor with visible-light imaging and a 3.2in color display. View infrared, visible or fused images, track hot and cold spots and save photos or video for inspection work.

Key Features

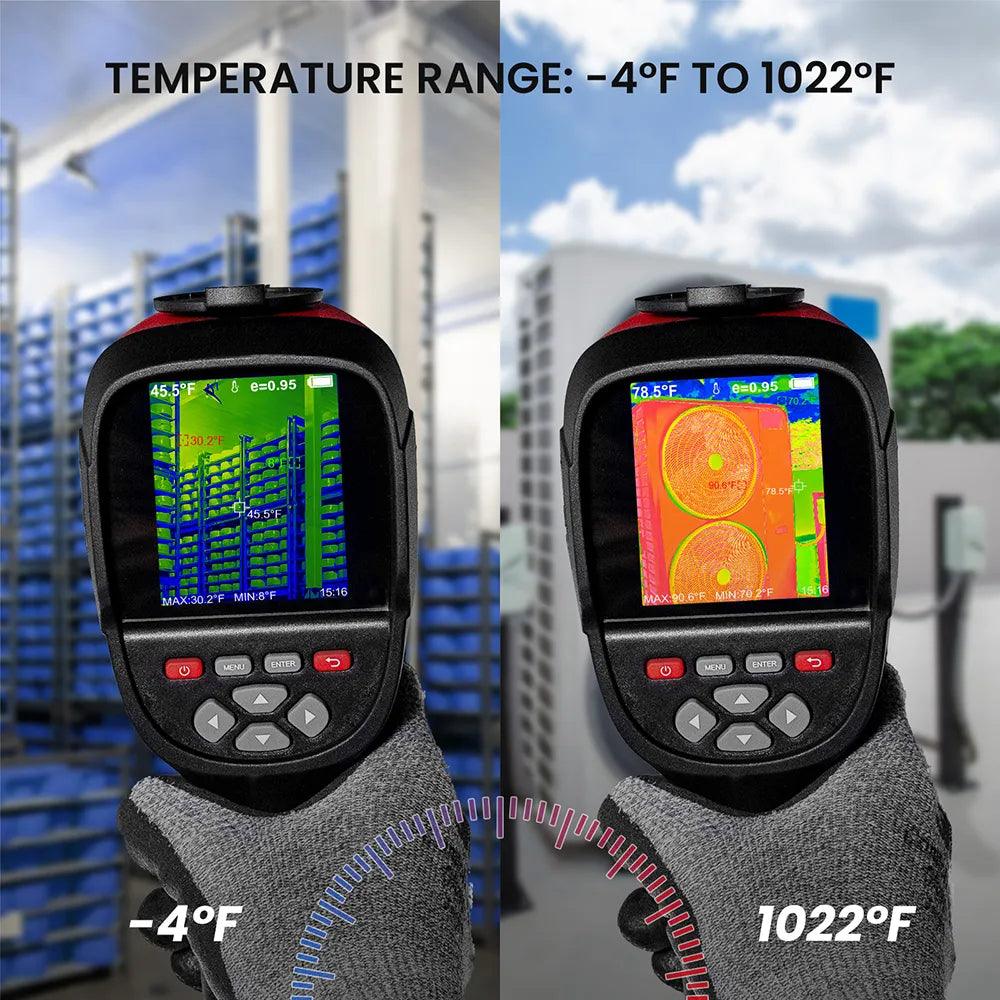

• 25Hz frame rate and a -20°C to 550°C measurement range.

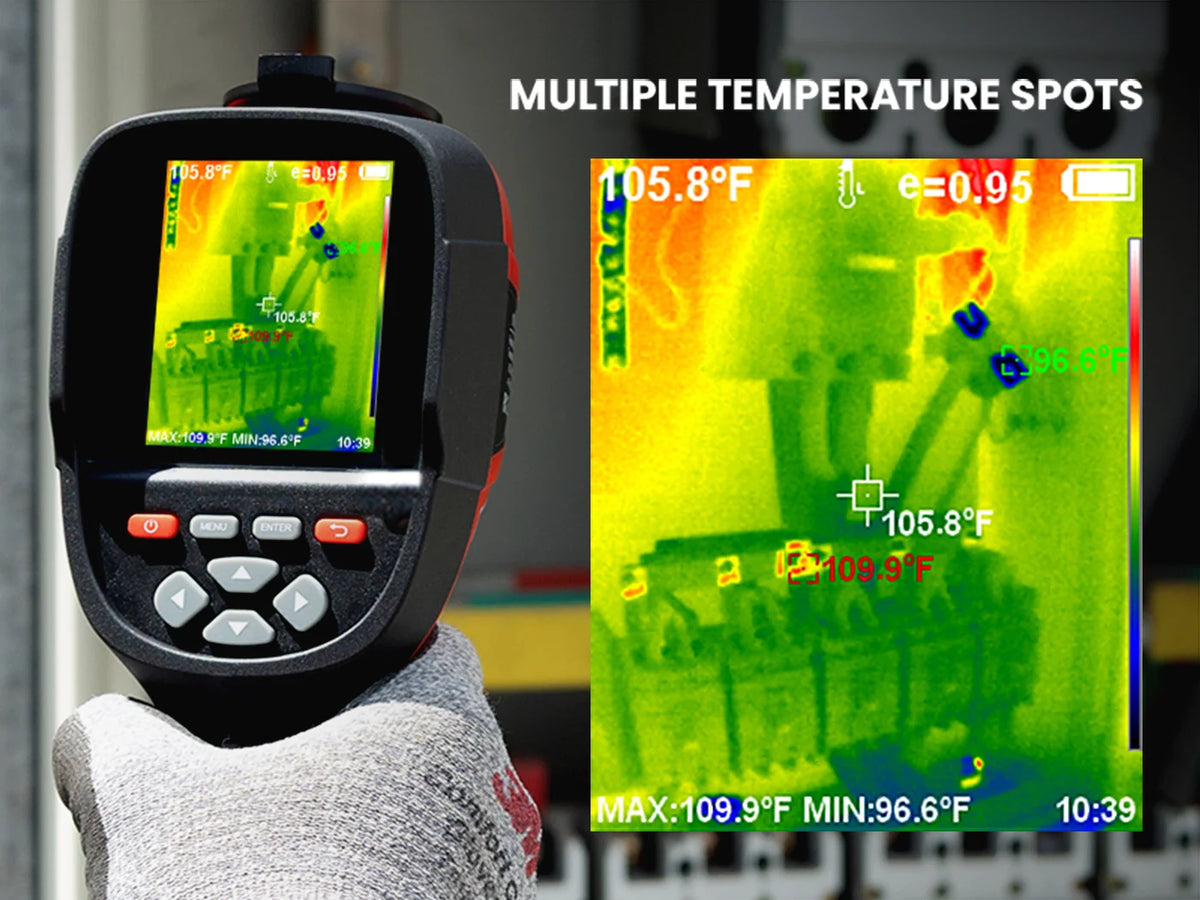

• Center-point measurement and automatic hot/cold spot tracking.

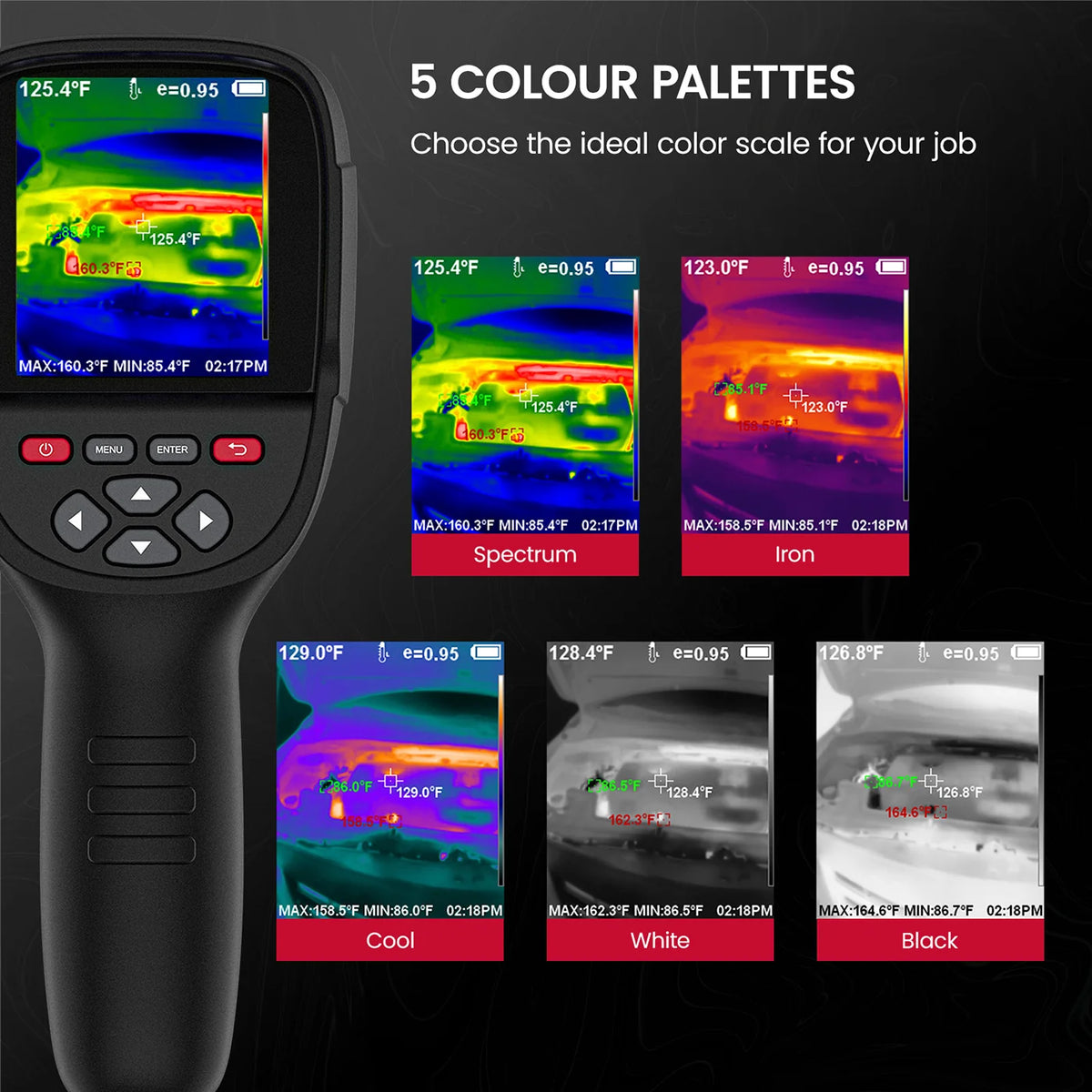

• Five palettes: Spectrum, Iron, Cool, White and Black.
• Emissivity adjusts from 0.01 to 1.00.

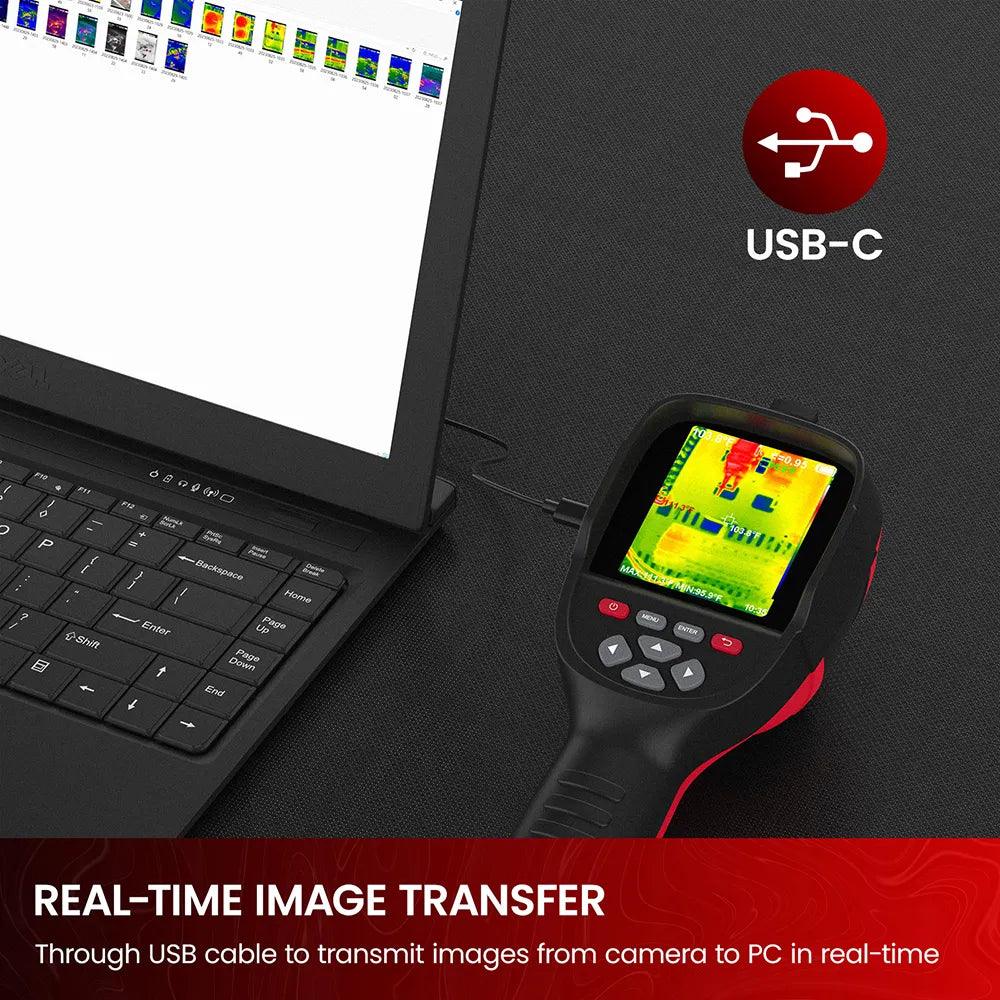

• Connect to a Windows PC over USB for image analysis, temperature measurements and reports.
• Built-in 3500mAh rechargeable Li-ion battery provides approximately 6–8 hours of operation, depending on use.
• Automatic shutoff and an IP54-rated housing.

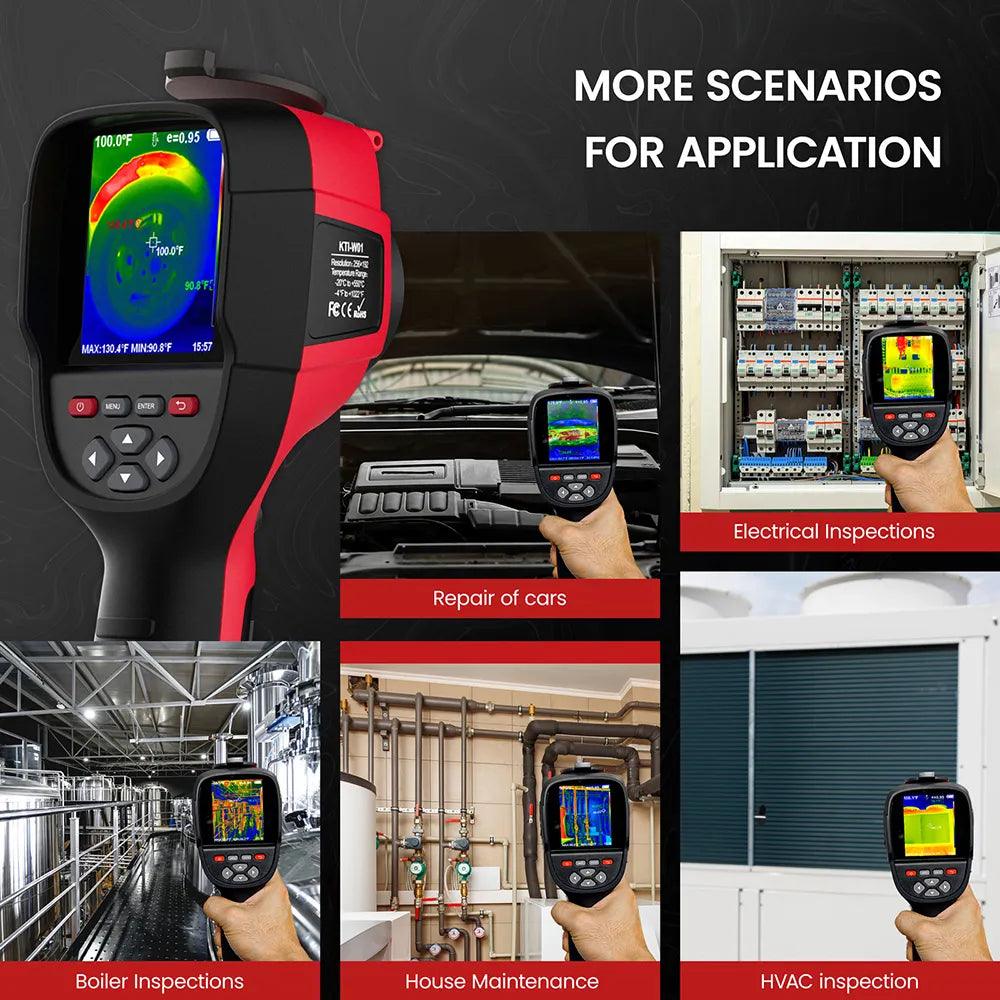

• Suitable for home, insulation, HVAC, electrical and mechanical inspections.

Specifications

• Model: KTI-W01
• Infrared resolution: 256 × 192; infrared band: 8–14μm
• Visible resolution: 640 × 480

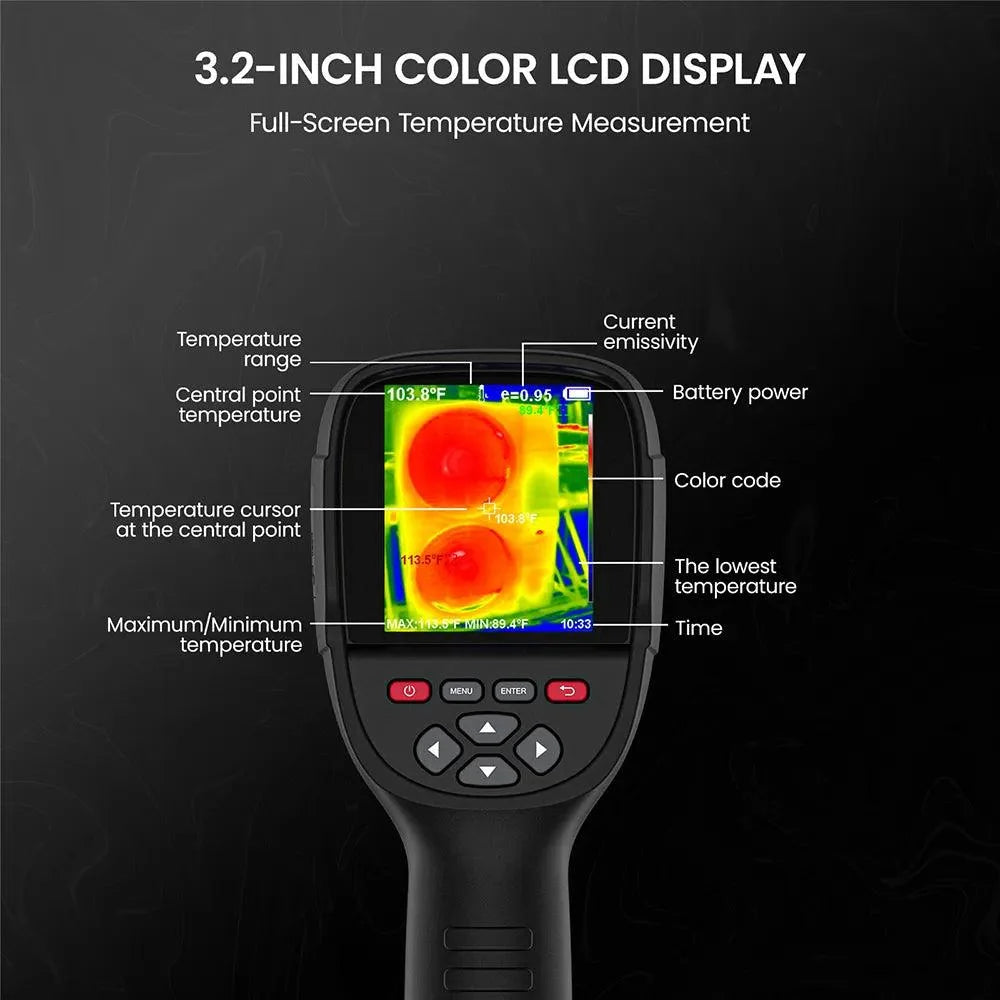

• Display: 3.2in, 240 × 320
• Measurement accuracy: ±2°C or ±2% from -15°C to 550°C; ±4°C from -20°C to -15°C

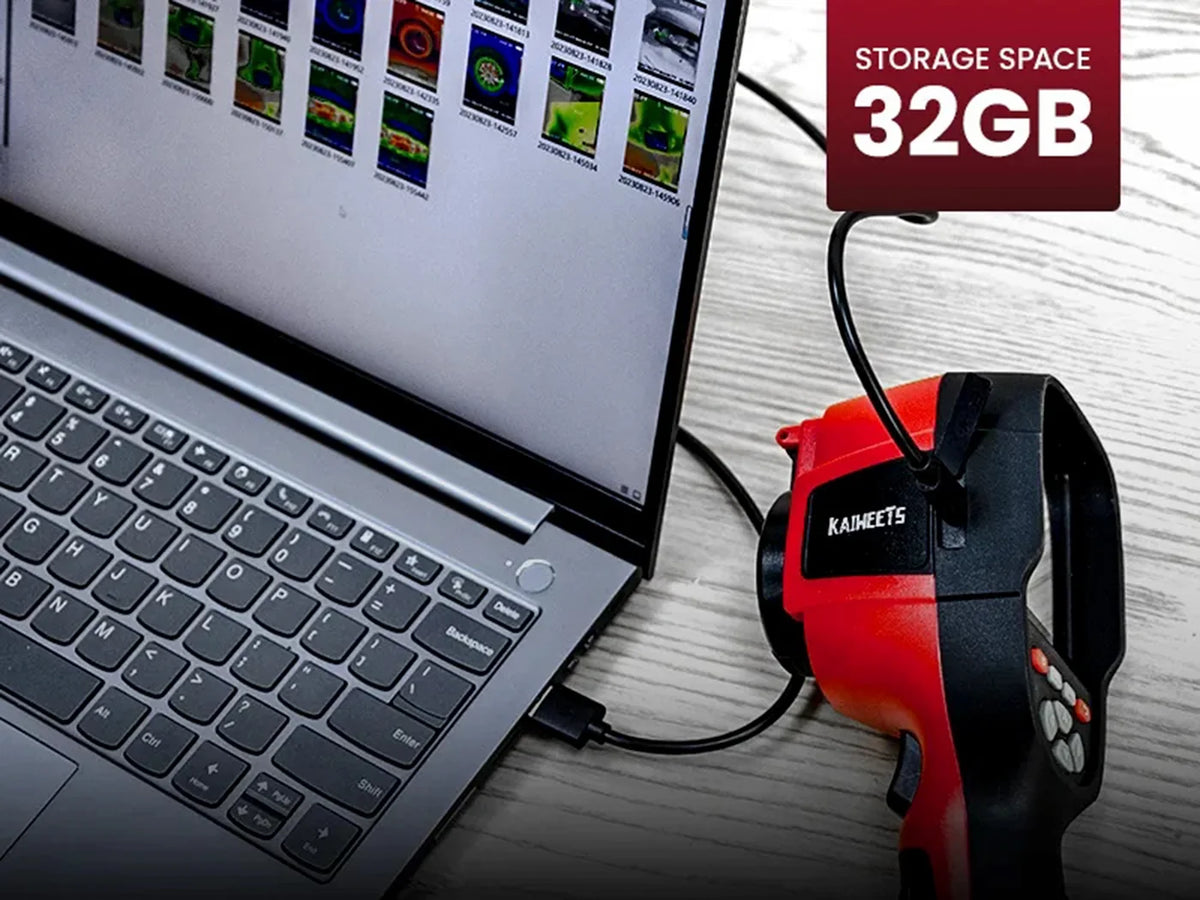

• Storage: 32GB eMMC nominal, approximately 28GB usable
• Operating temperature: -10°C to 50°C; storage temperature: -20°C to 60°C
• Battery: built-in rechargeable Li-ion, 3500mAh
• Region selections: US and NOT US

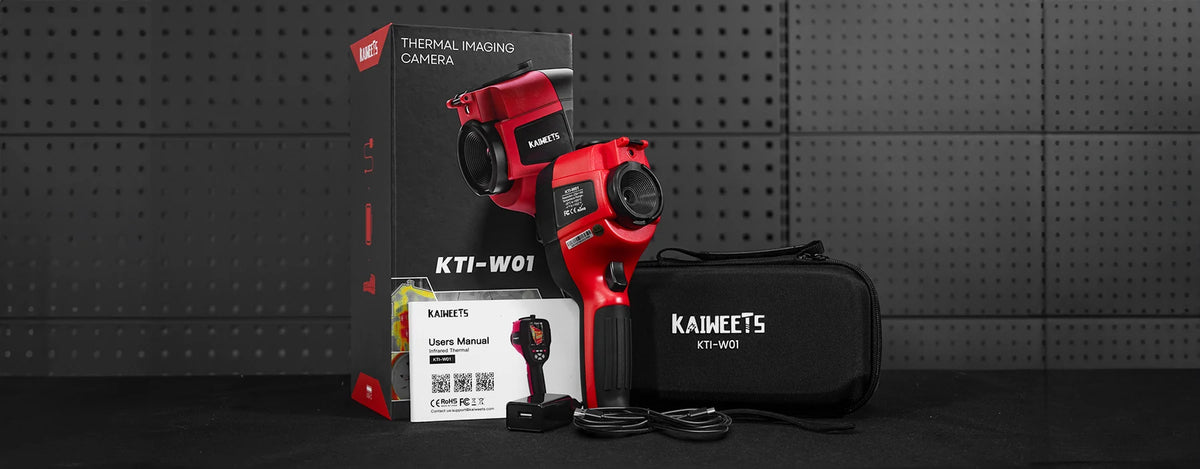

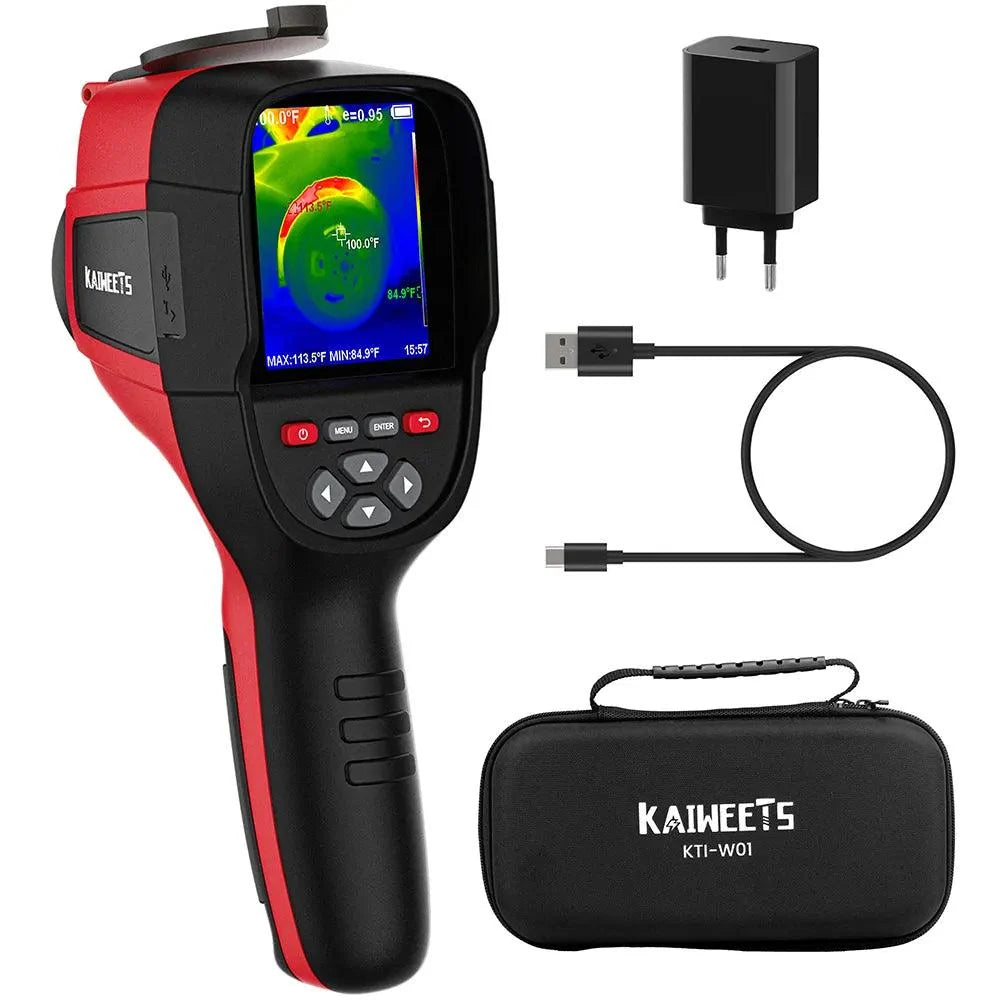

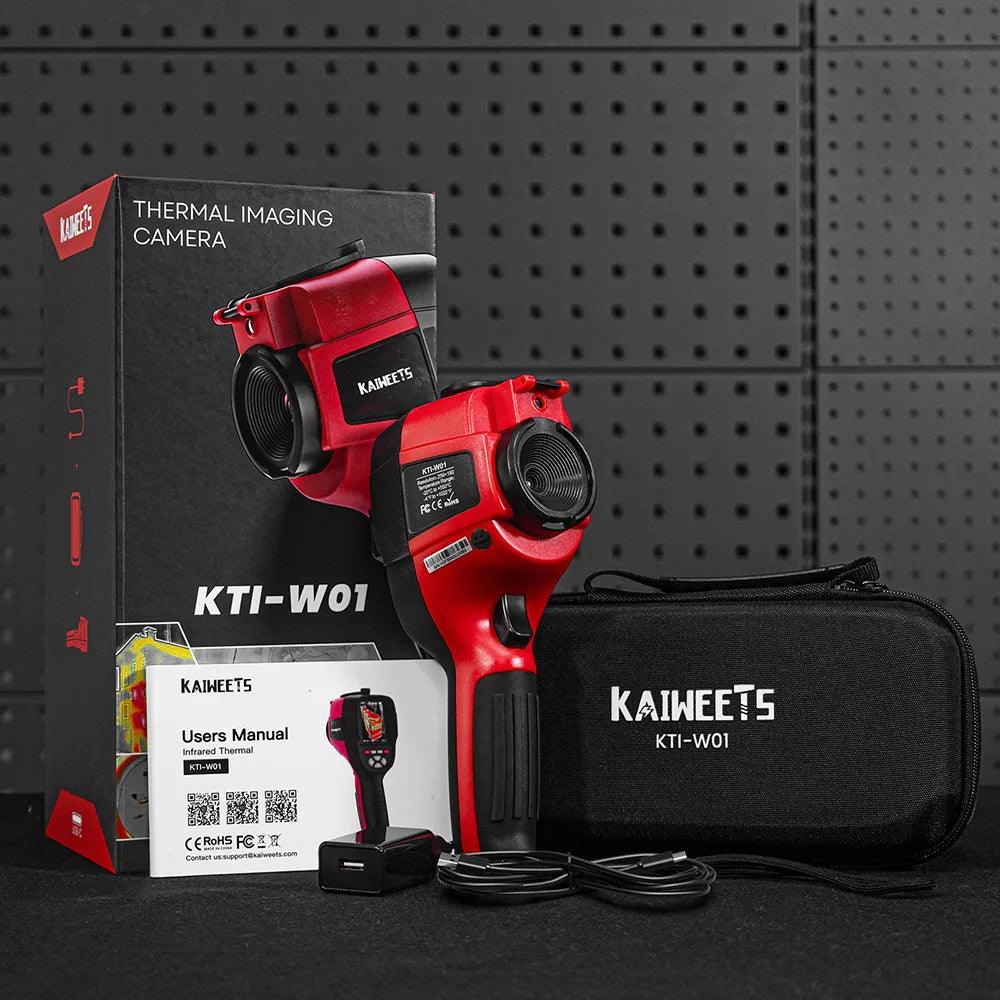

• Included: thermal imager, Type-C data cable, user manual, 5V charger, packaging box and EVA protective bag
