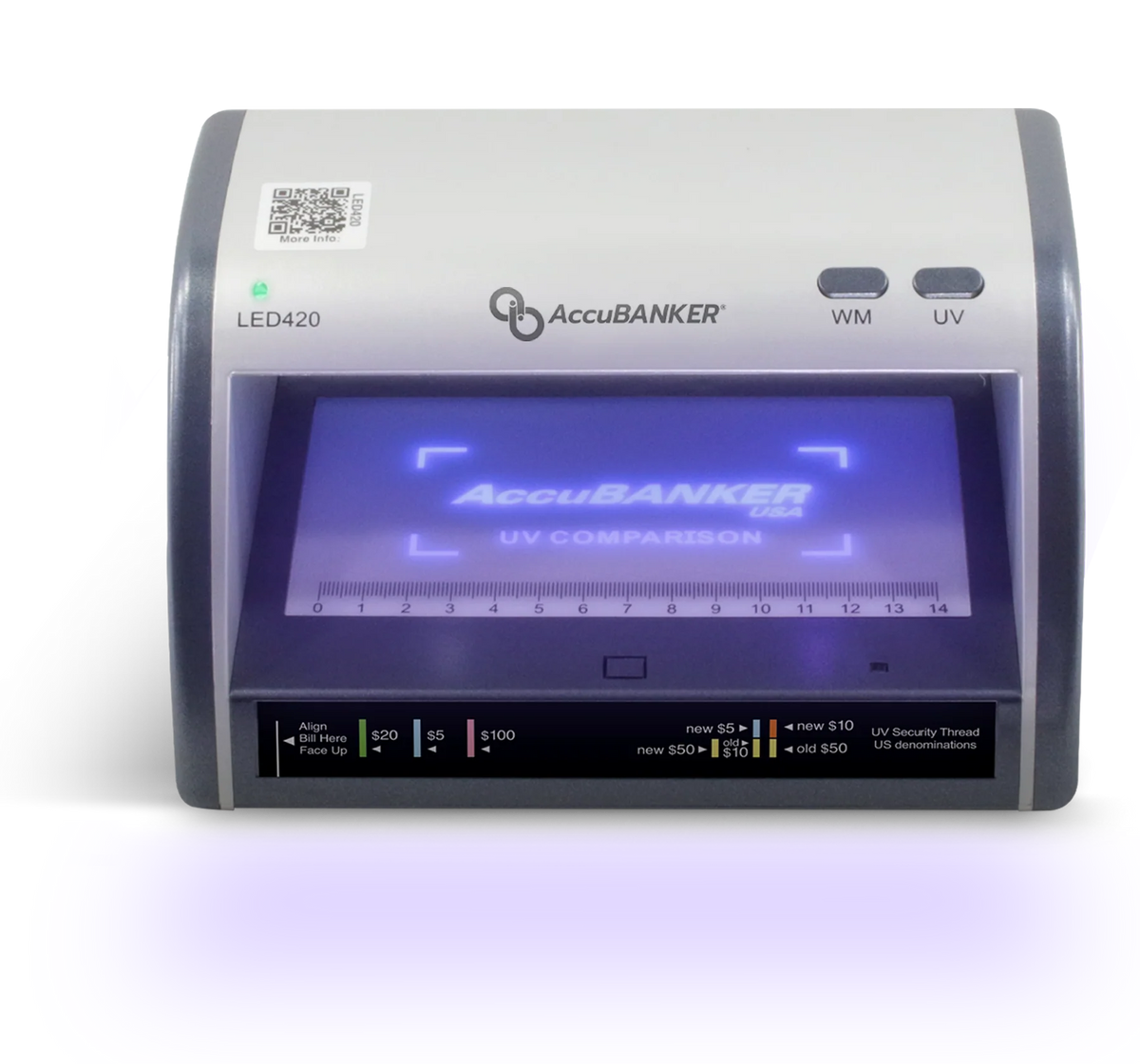

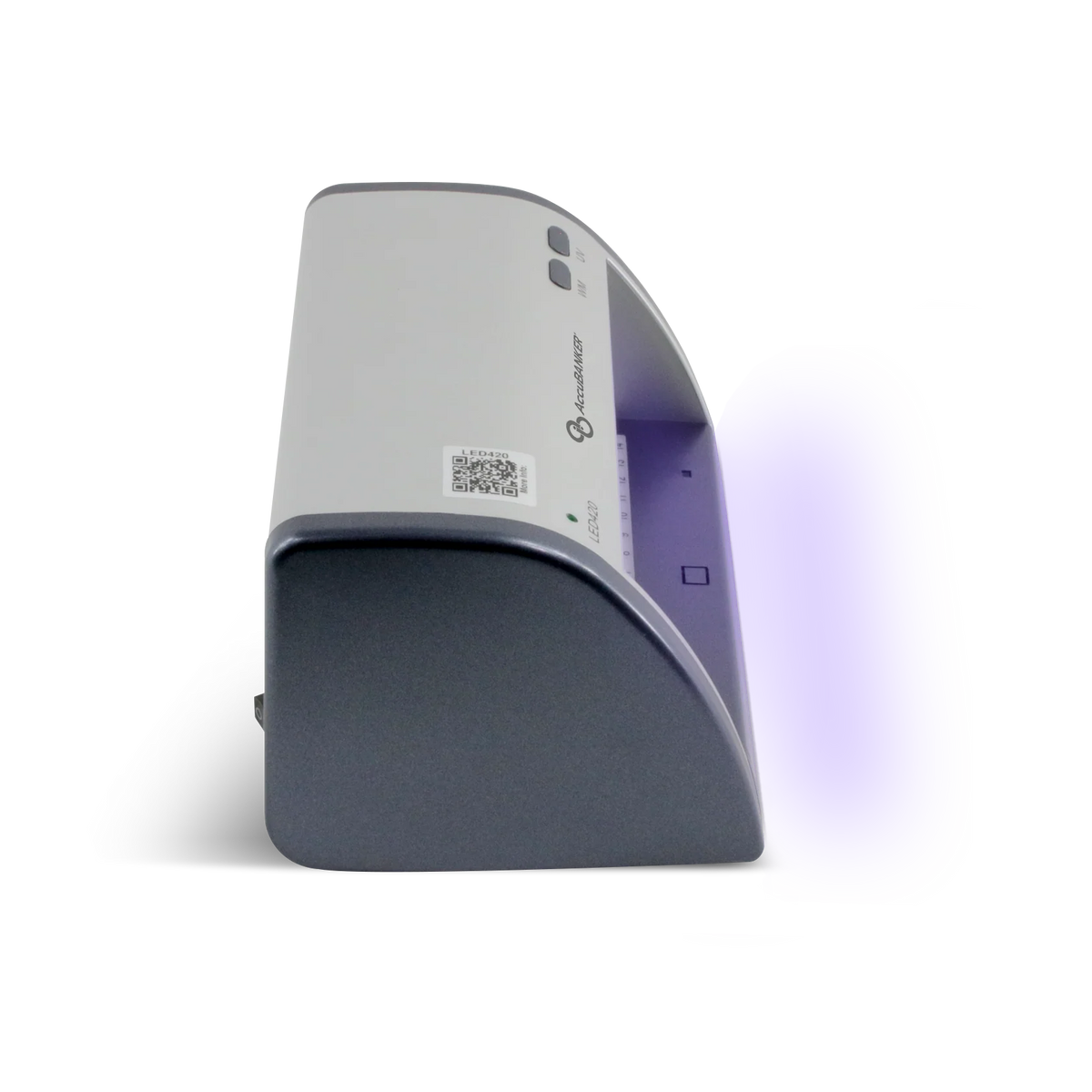

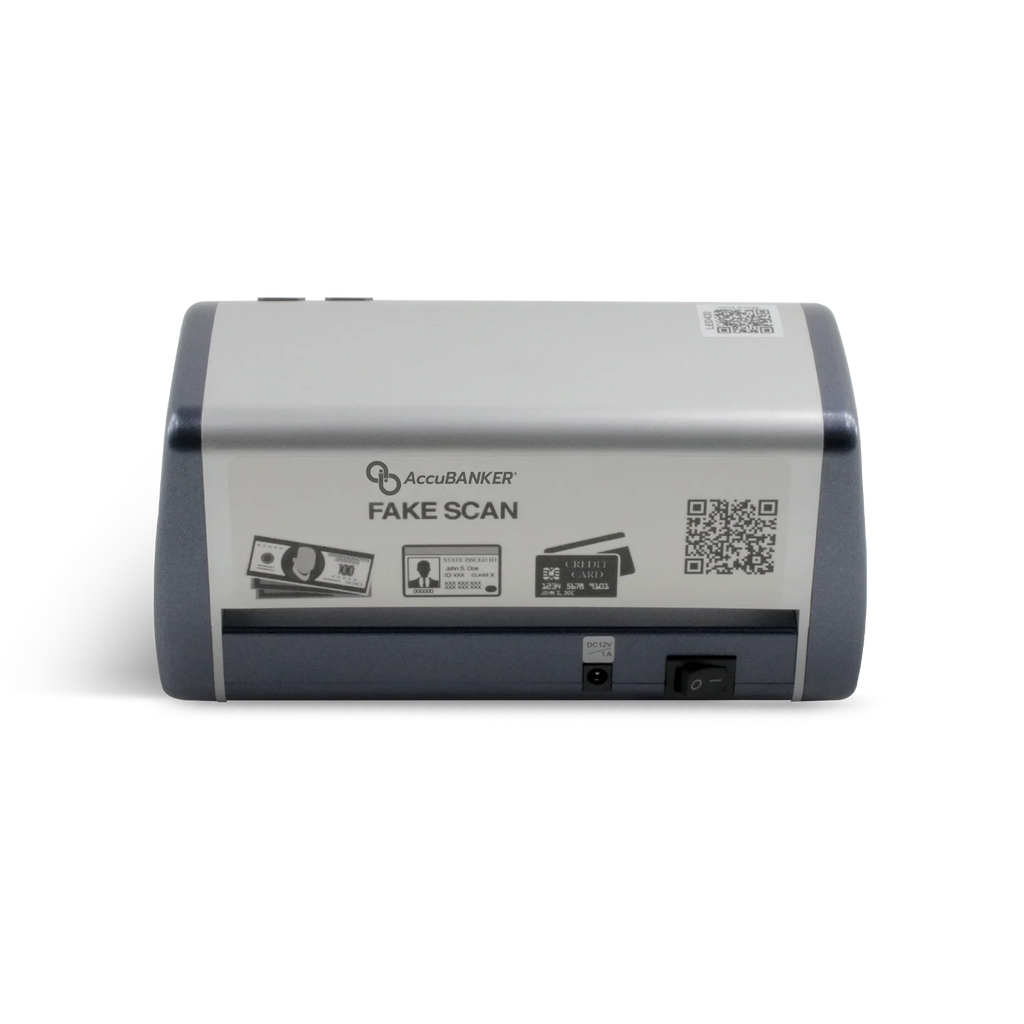

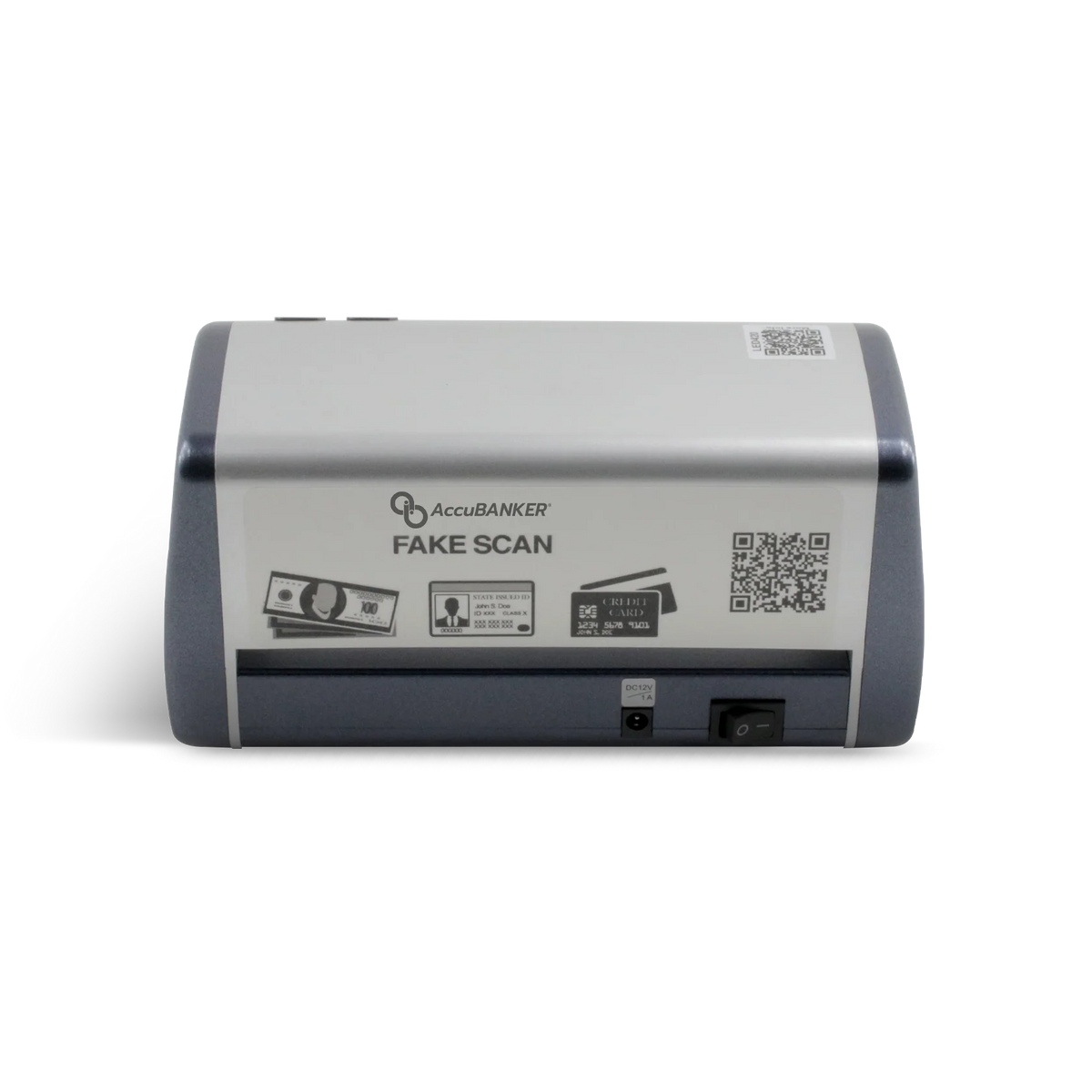

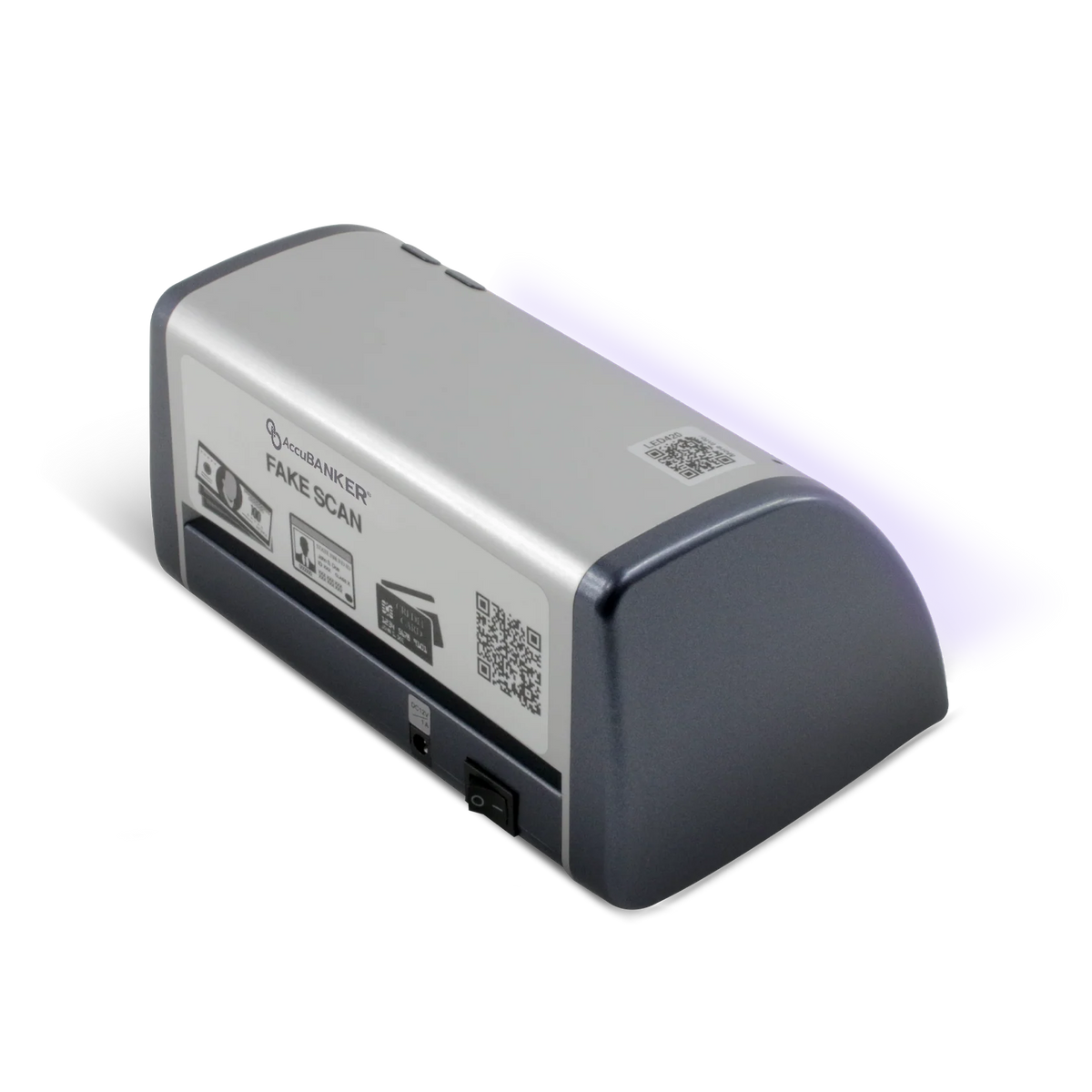

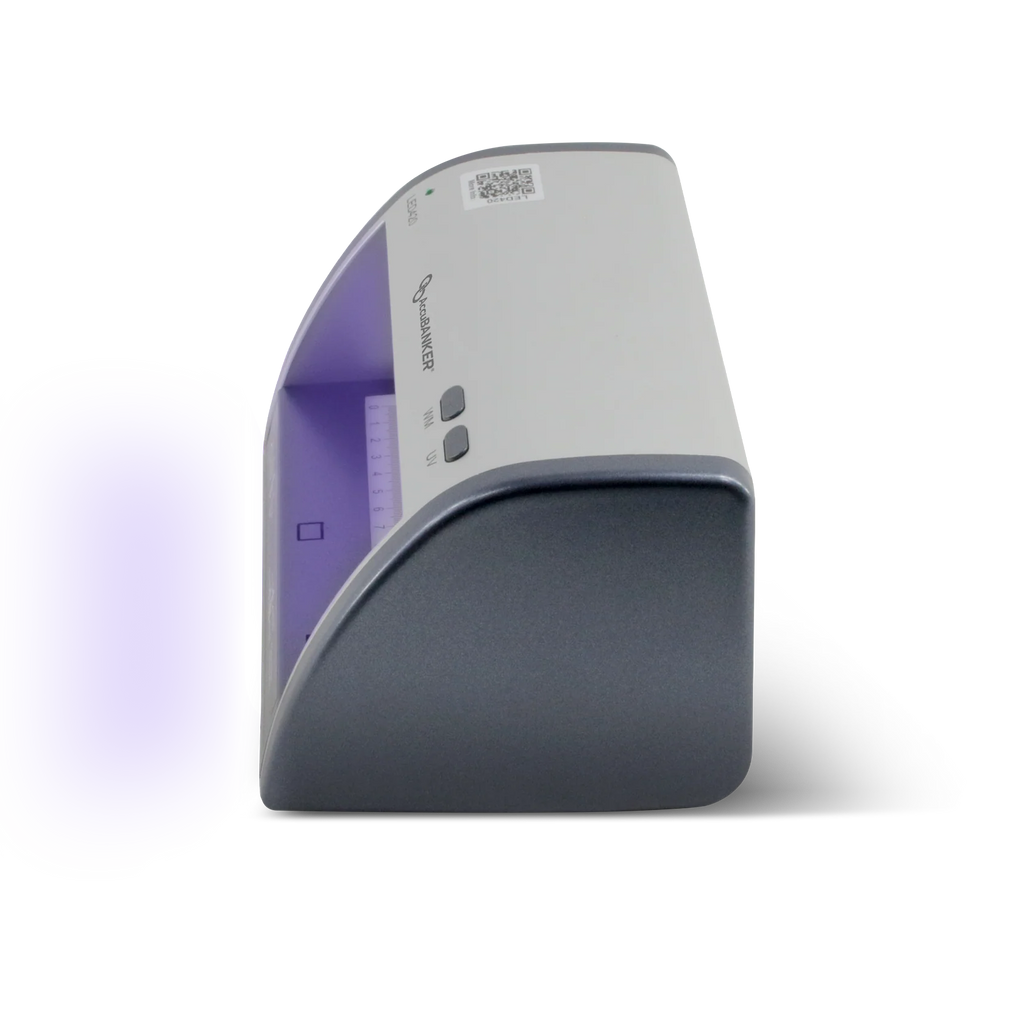

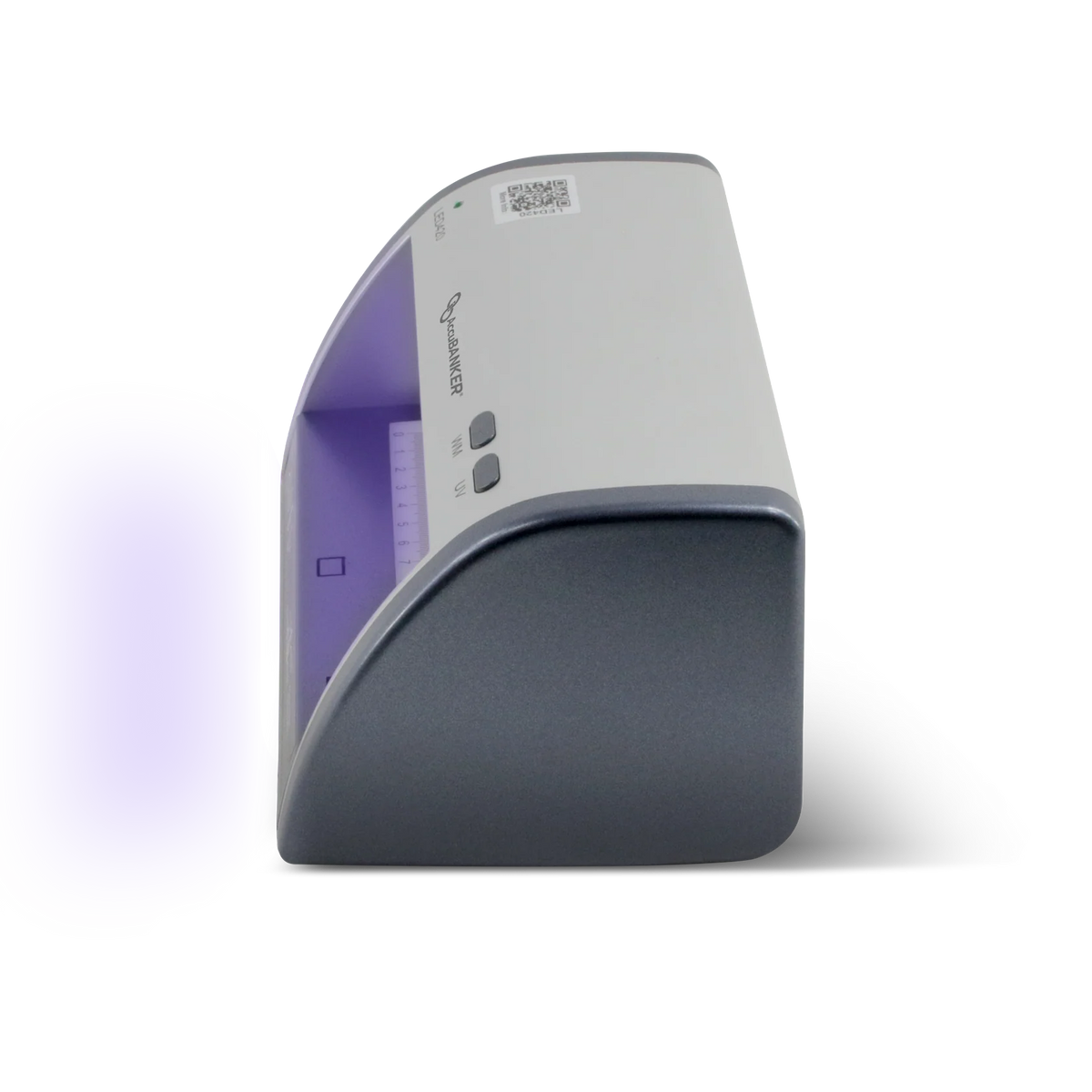

LED420 Manual Bill and Document Validator with UV and White LEDs, Integrated Ruler and Optional Stand Package

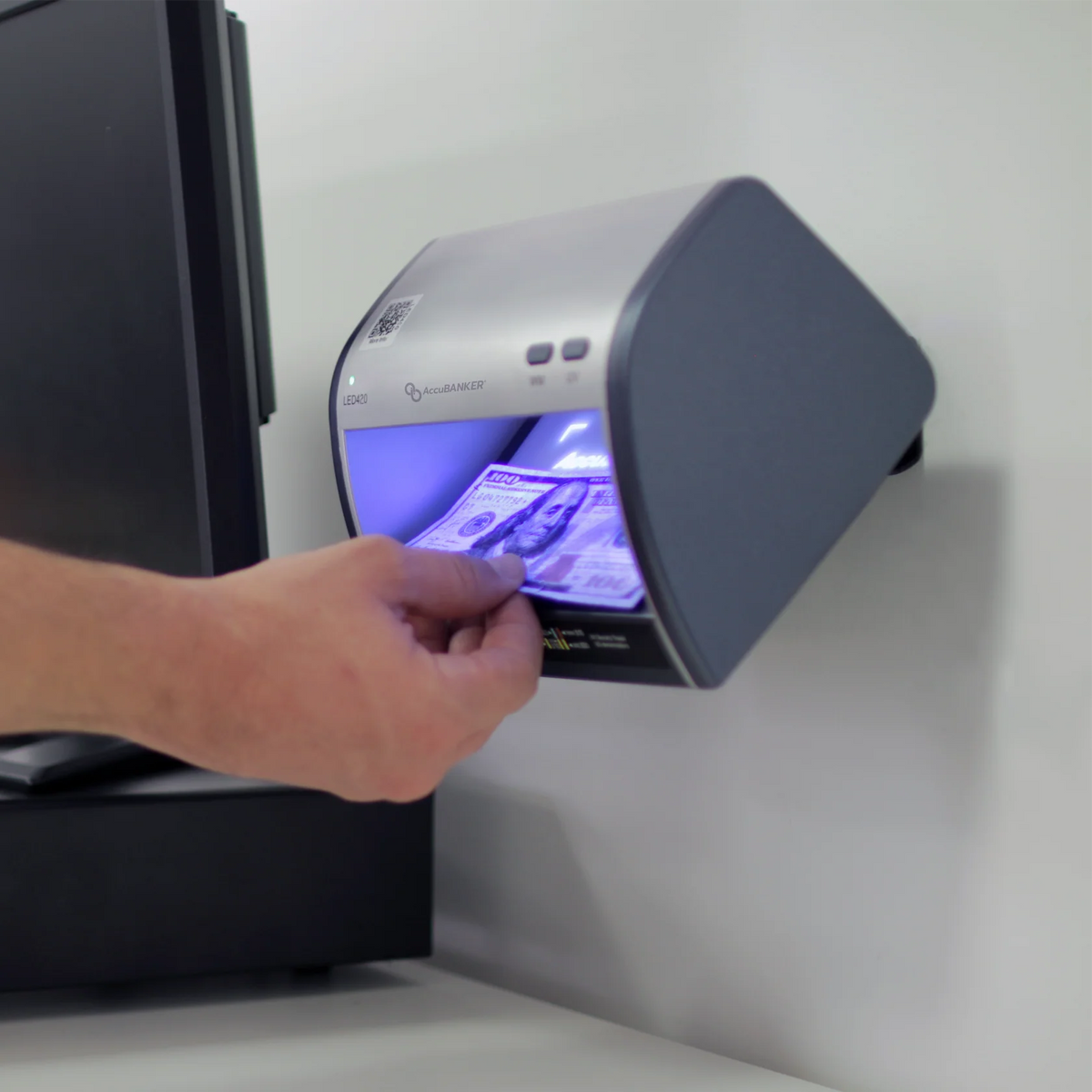

The LED420 is a manual bill and document validator that illuminates security features for inspection by eye. UV and white LEDs, an integrated ruler and a security-thread reference label help the operator compare a document with a known genuine reference. Select the listed US or Euro plug configuration, with or without the stand package.

Key Features

• Three inspection methods: ultraviolet, watermark and dimensional comparison.

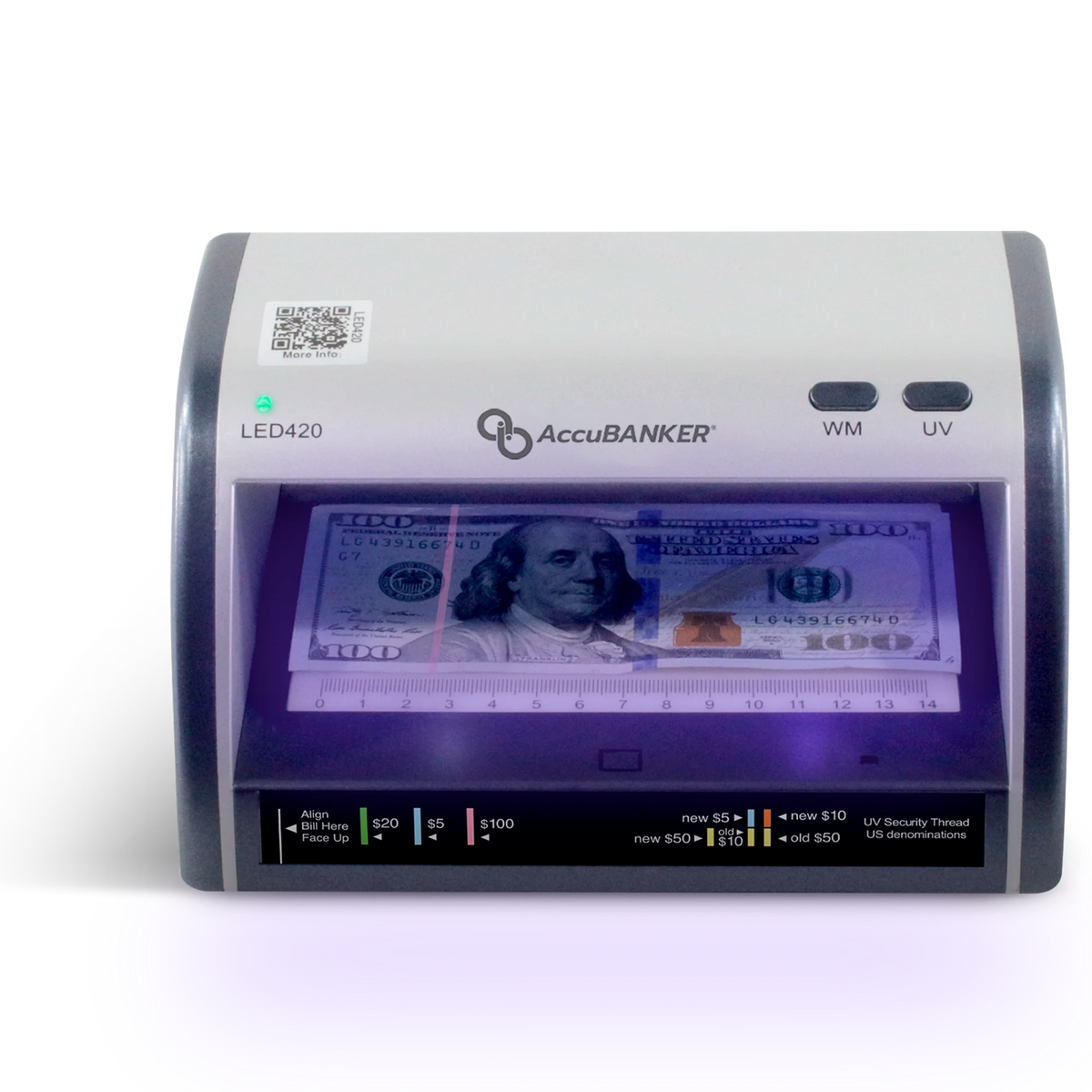

• Super-bright UV LEDs illuminate fluorescent security features, while white LEDs illuminate the watermark inspection window.
• An integrated ruler supports size comparison, and the security-thread label gives US-dollar thread color and position references.
• UV and watermark selector buttons control the inspection lights; a function activator sensor can activate the UV light when a document is placed in the inspection area.
• The internal timer keeps the selected inspection light on for about 50 seconds; press the corresponding button when more time is needed.
• Manual inspection supports bills, credit cards, IDs, passports and other security documents. Results depend on the operator's comparison and the features present on the document.

Specifications

• Model: LED420. This model uses UV, watermark and dimension inspection, without the LED430 magnetic head or magnifier functions.
• Supplied external adapter: 100-240V AC, 50-60Hz input; 12V DC, 1A output. Select the listed 110v US Plug or 220v Euro Plug configuration.
• Maximum power consumption: 4W. Operating ambient range: 0-40 degrees C.
• Device dimensions: 8.55 x 5.67 x 4.45in (21.72 x 14.40 x 11.30cm); net weight: 1.24lb (0.56kg).

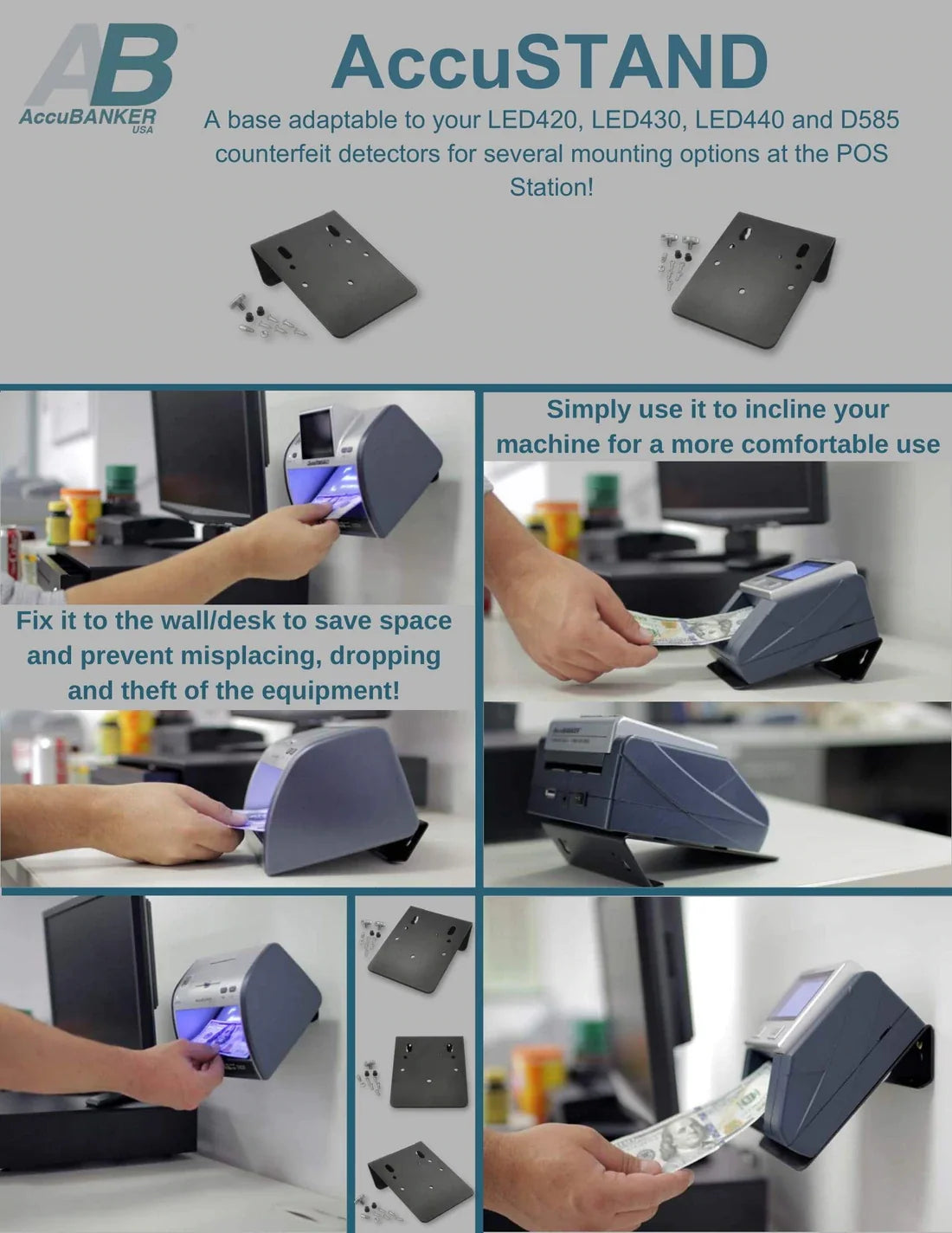

• Package includes the LED420 and its power adapter. The LED420 + AccuSTAND selection additionally includes the stand; the base LED420 selection does not promise a stand.
• Use the specified adapter, follow the supplied operating instructions and avoid looking directly at the UV LEDs.
