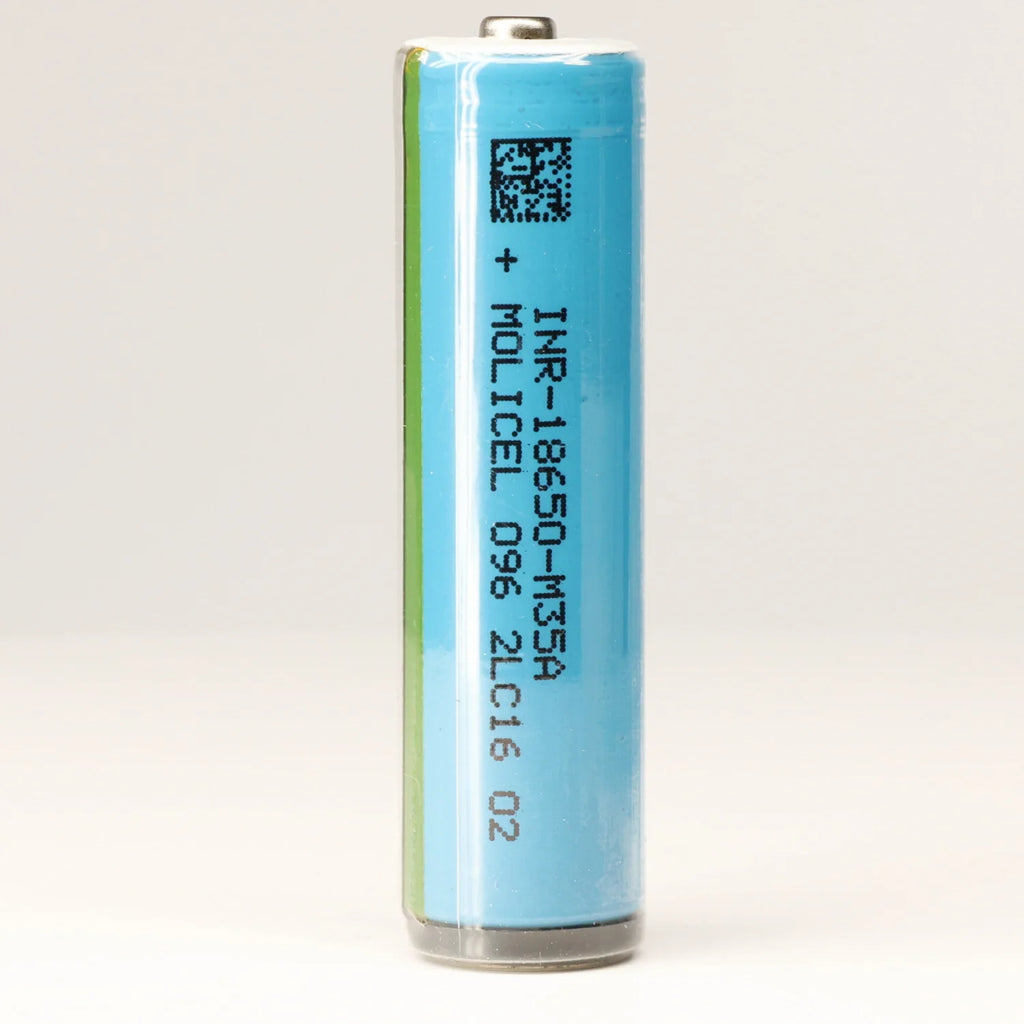

M35A Protected Button Top 18650 Lithium-Ion Battery, 3500mAh 3.6V with 10A Discharge and Built-In PCB

The Molicel M35A protected button top cell is a rechargeable 18650 lithium-ion battery rated at 3500mAh and 10A continuous discharge. Its built-in protection circuit adds overcharge, over-discharge and short-circuit protection.

Key Features

• Button top construction with a protection PCB.
• Designed for compatible low-to-medium-drain electronics, flashlights and LED devices.
• Rechargeable design with an approximate rating of 300 or more charge cycles.

Specifications

• Model: M35A protected button top
• Cell format: 18650; chemistry: lithium-ion
• Capacity: 3500mAh
• Nominal voltage: 3.6V
• Full charge voltage: 4.2V
• Discharge cutoff voltage: 2.5V
• Continuous discharge current: 10A
• Diameter with PCB and wrap: 18.6mm
• Length with button top and PCB: approximately 69.5mm

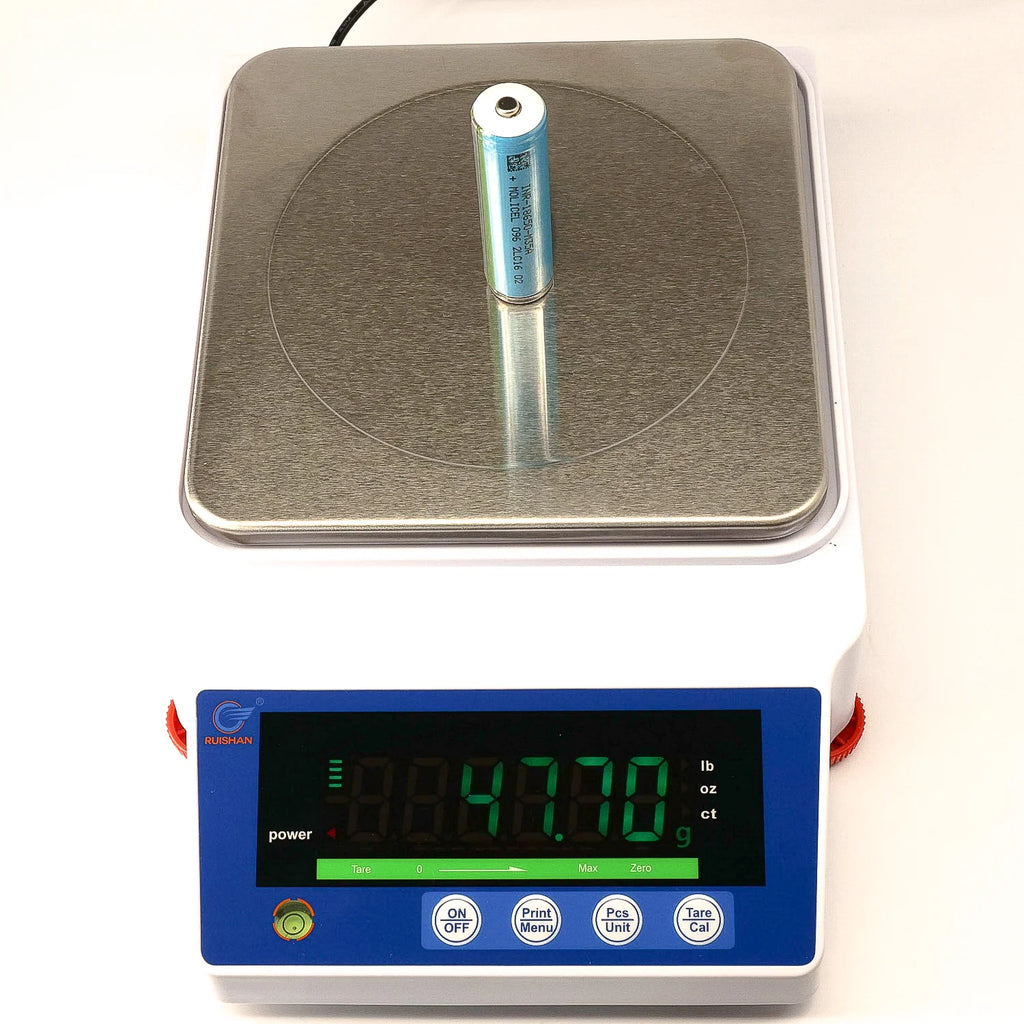

• Weight: approximately 50g

Check device specifications and battery compartment space before use. Charge with a compatible lithium-ion smart charger, store in a protective case and avoid contact with loose metal objects. Do not use damaged cells or wrappers, or use the cell in e-cigarettes or vaporizers.
