M5-K132-Adv Cardputer with ESP32-S3FN8, 56-Key Mechanical Keyboard, 1.14-Inch Display and 1750mAh Battery

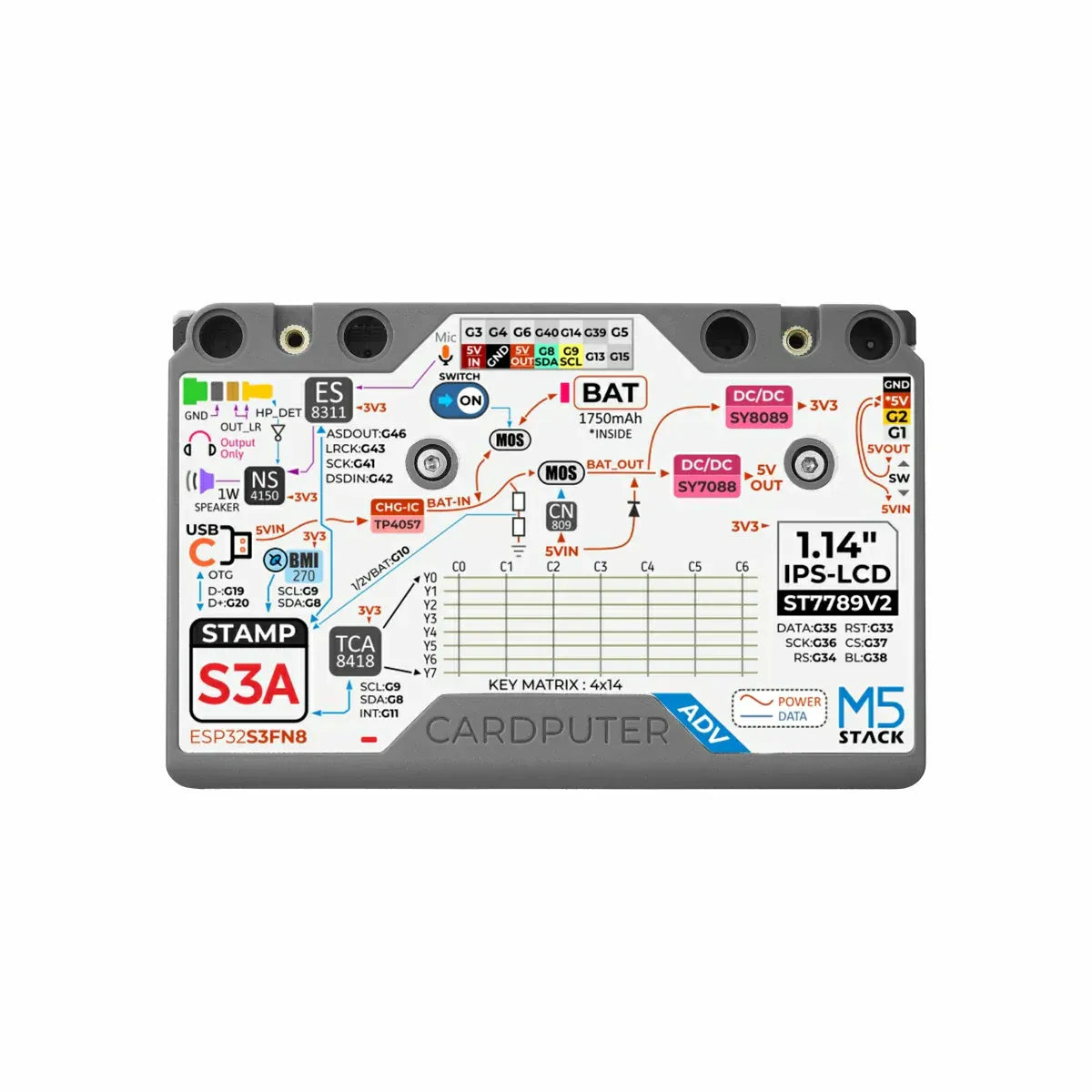

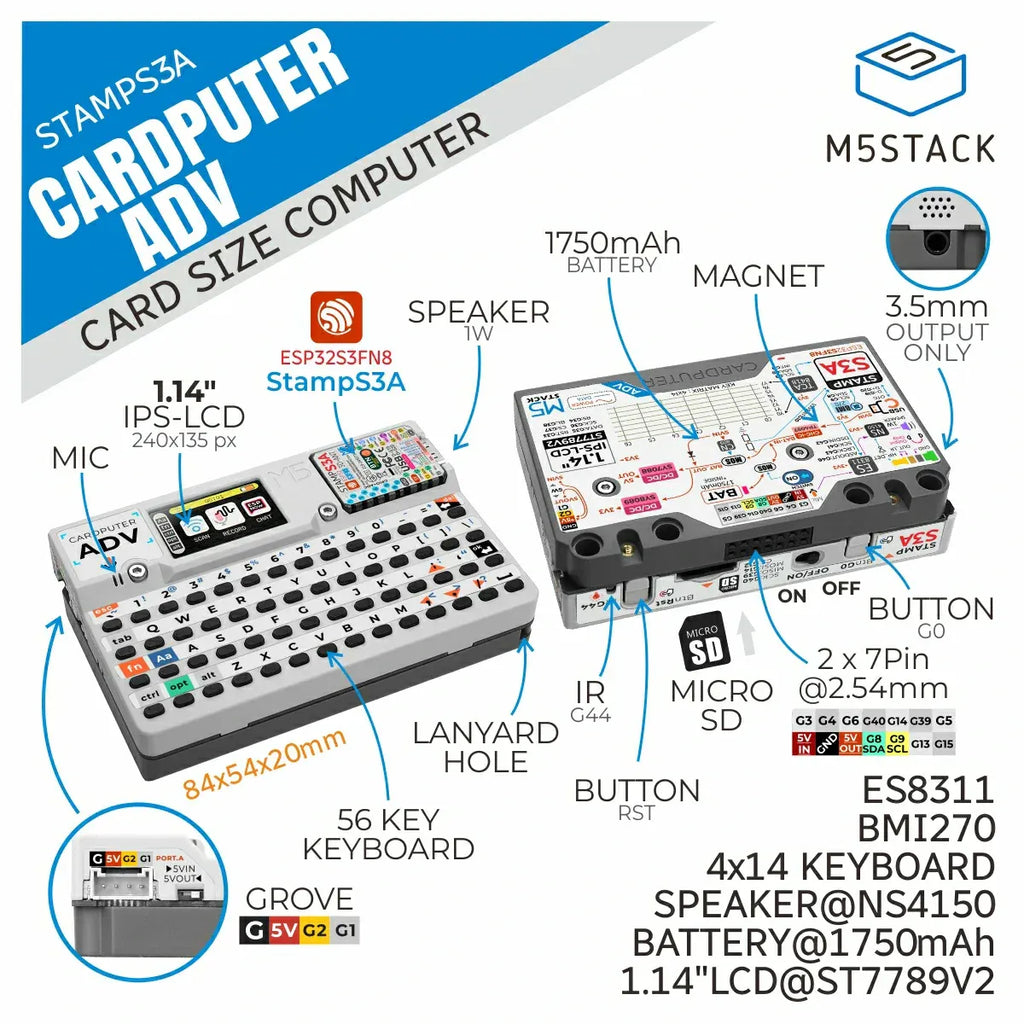

The M5Stack M5-K132-Adv Cardputer is a compact programmable computer for portable ESP32 development, prototyping and device control. It combines a Stamp-S3A core, display, mechanical keyboard, audio hardware, motion sensing and expansion interfaces in one handheld unit.

Key Features

• Stamp-S3A core with ESP32-S3FN8 dual-core Xtensa LX7 processor, up to 240MHz operation and 8MB flash.

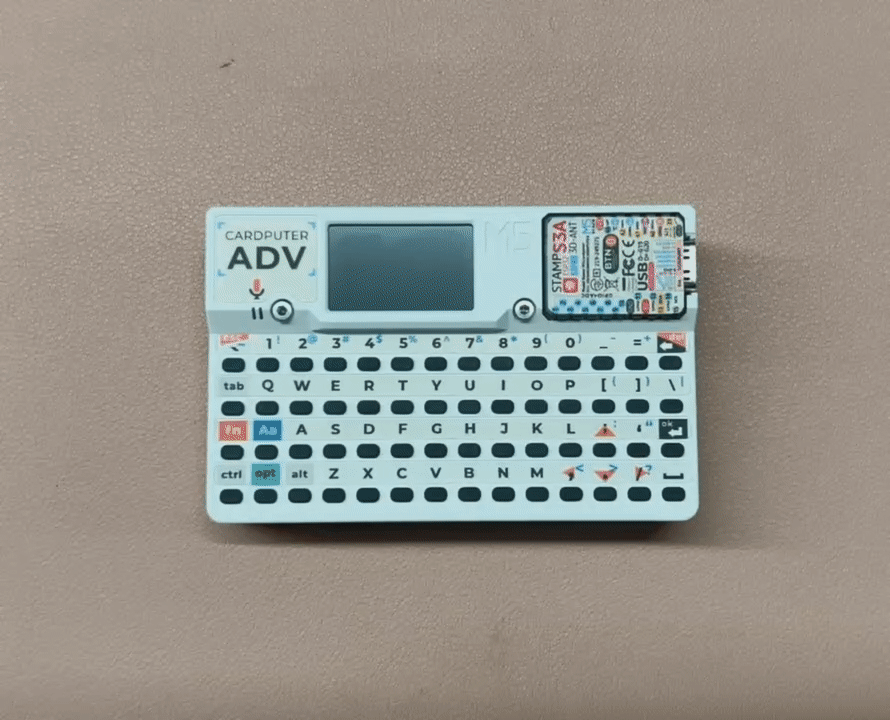

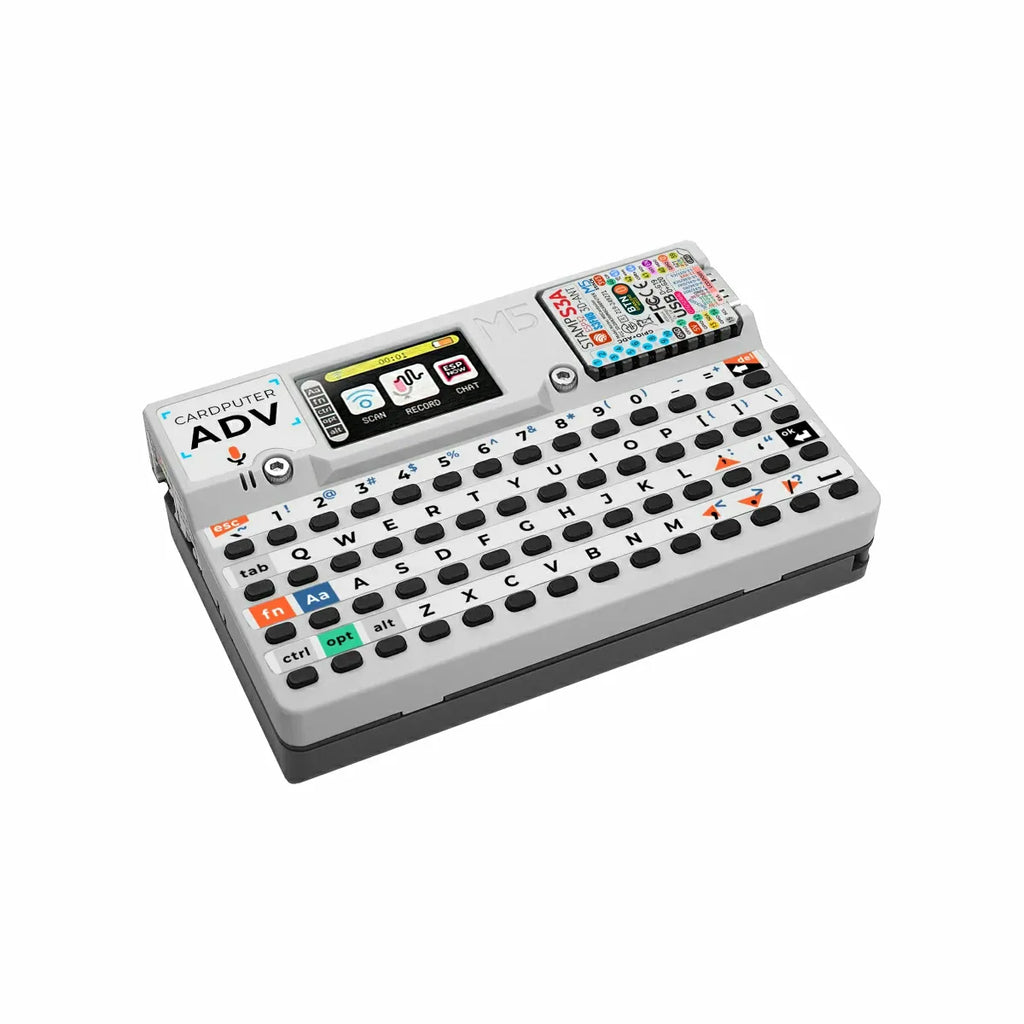

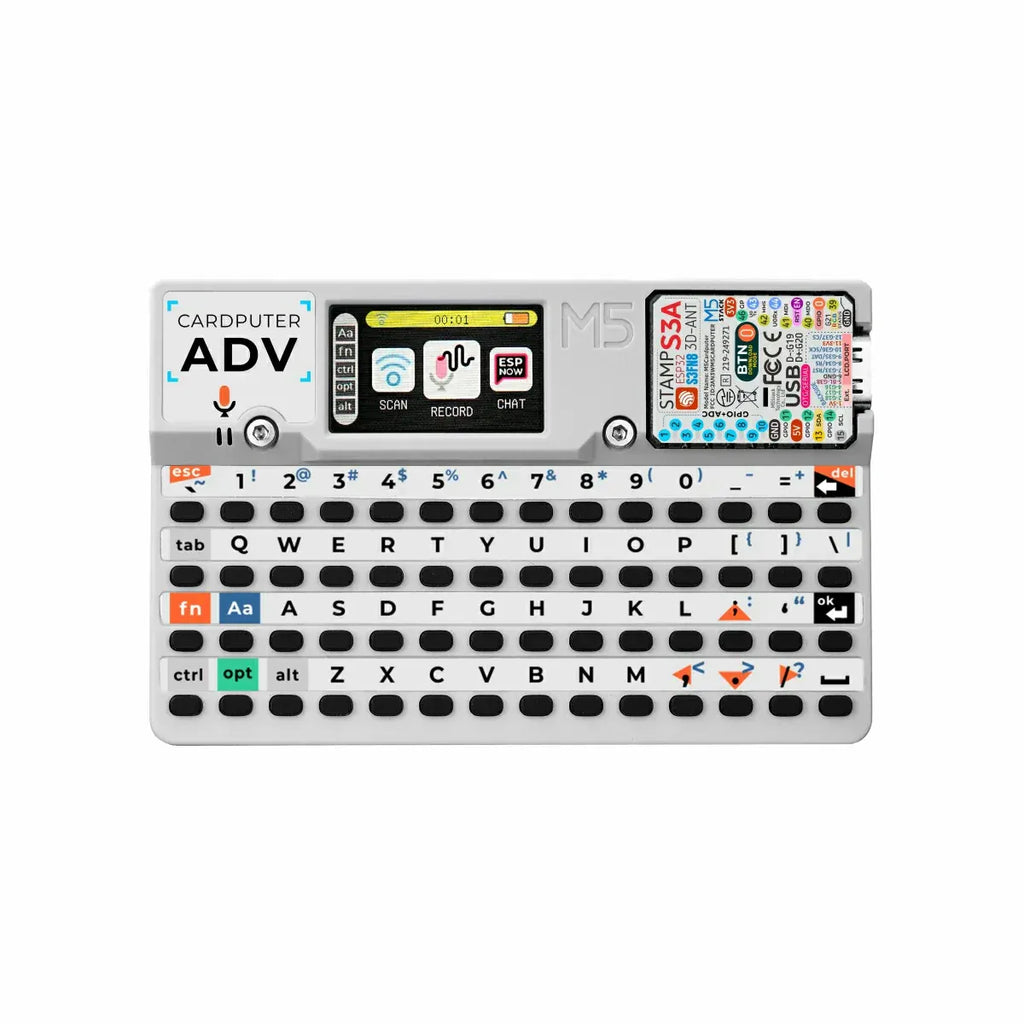

• 1.14-inch ST7789V2 LCD with 240 × 135 resolution and a 56-key mechanical keyboard.

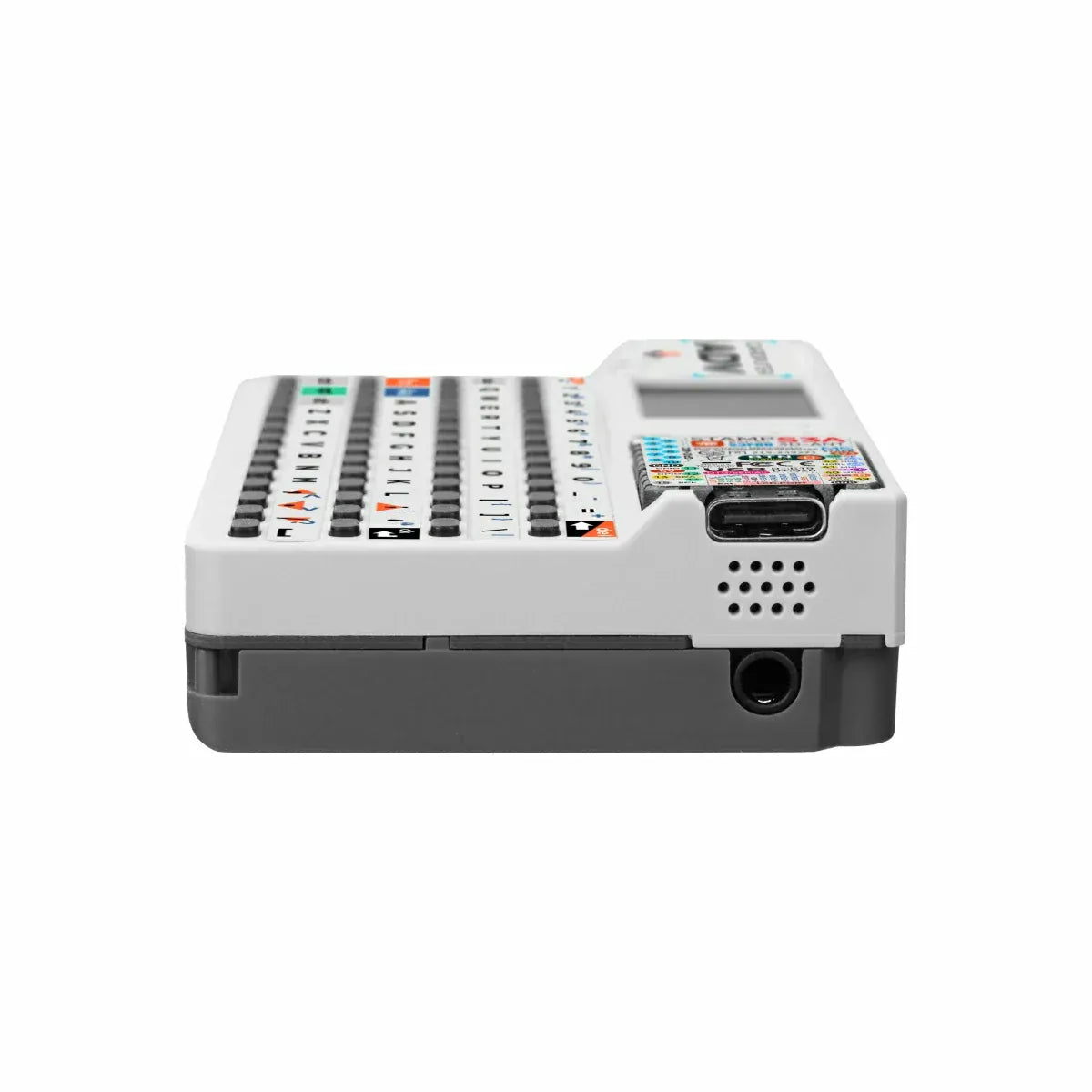

• Integrated ES8311 audio codec, MEMS microphone, NS4150B amplifier, 8-ohm 1W speaker and 3.5mm audio jack.

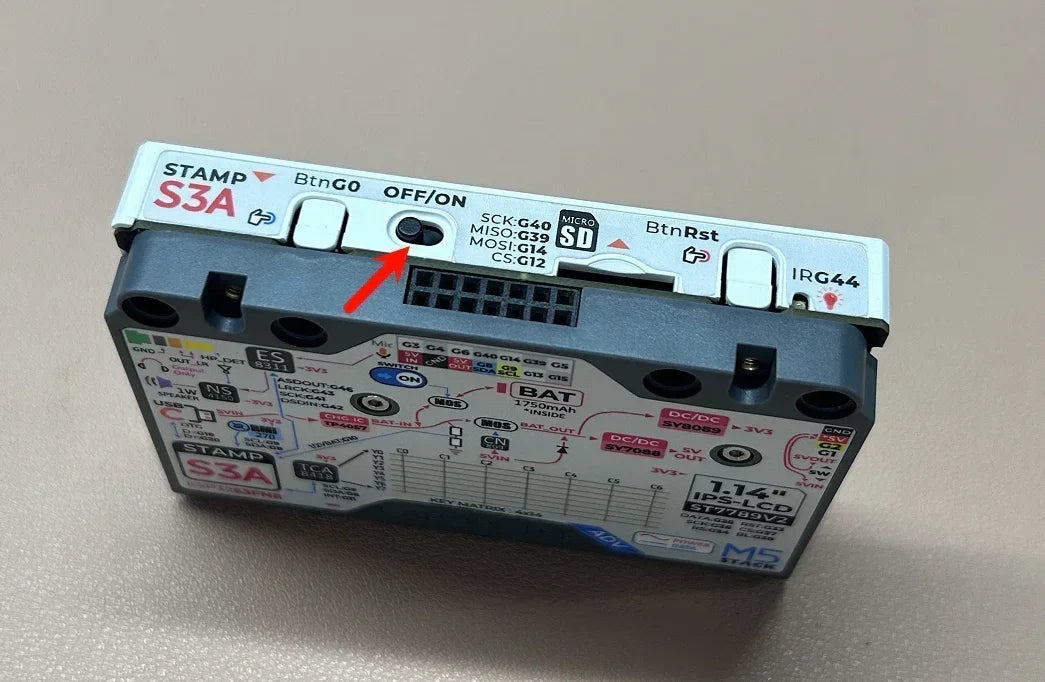

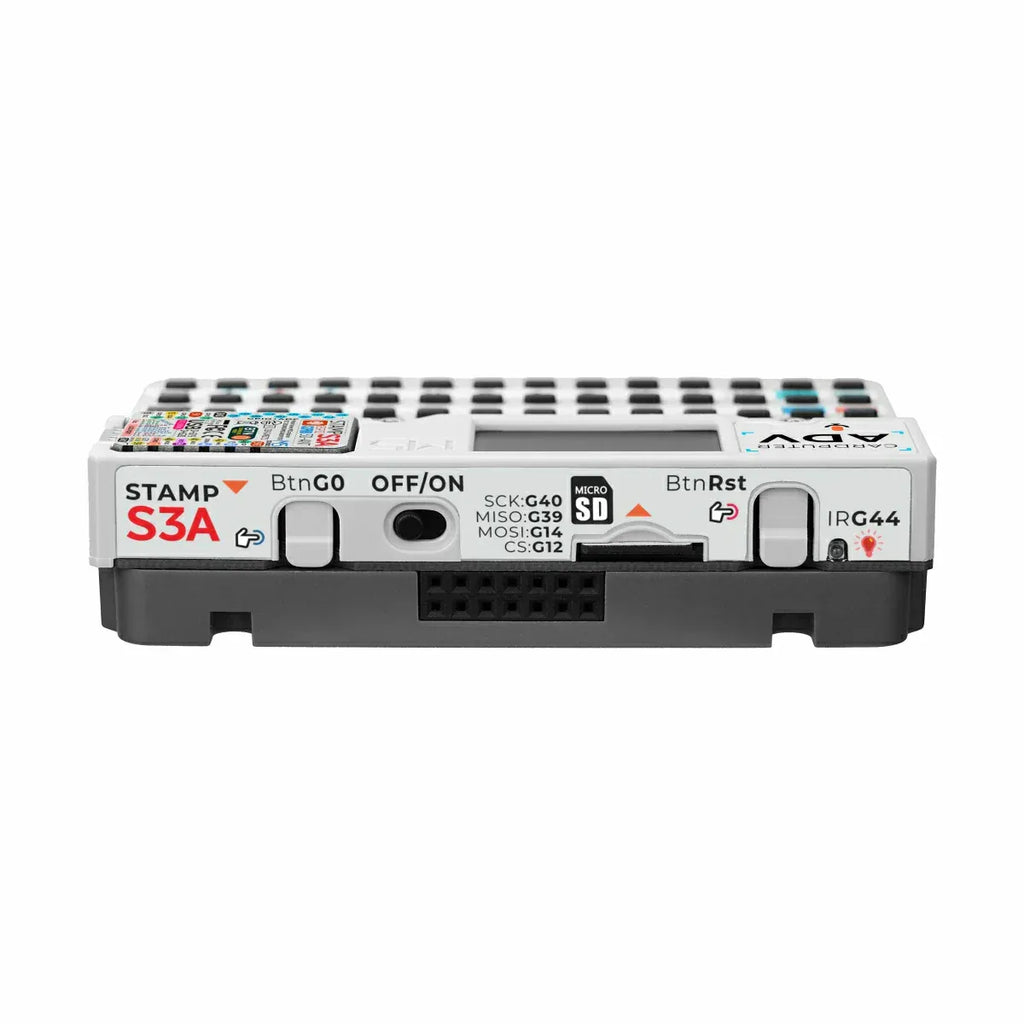

• BMI270 6-axis IMU, infrared emitter, microSD slot and independent power switch.
• Supports 2.4GHz Wi-Fi, Bluetooth 5.0, Arduino IDE, ESP-IDF, MicroPython and UIFlow.

Specifications

• Model: M5-K132-Adv
• Battery: Built-in 1750mAh lithium battery

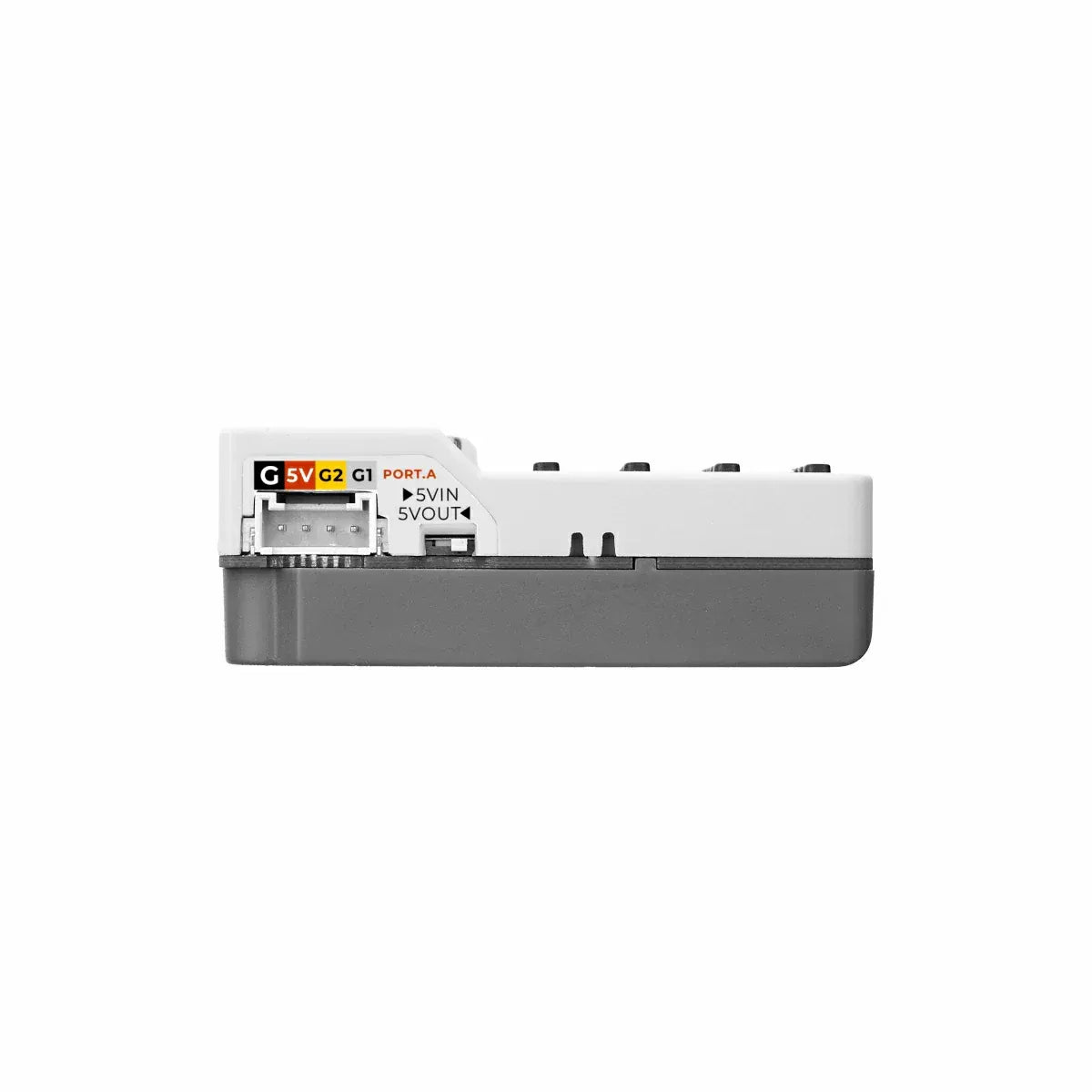

• Interfaces: HY2.0-4P and EXT 2.54-14P
• Keyboard actuation force: 160gf
• Operating temperature: 0–40°C
• Dimensions: 84 × 54 × 19.6mm
• Weight: 81g
• Mounting: Magnetic base and LEGO-compatible mounting points
