M5-K152 Cardputer Mesh Kit for Meshtastic with ESP32-S3, SX1262 LoRa, GNSS, Keyboard and 1750mAh Battery

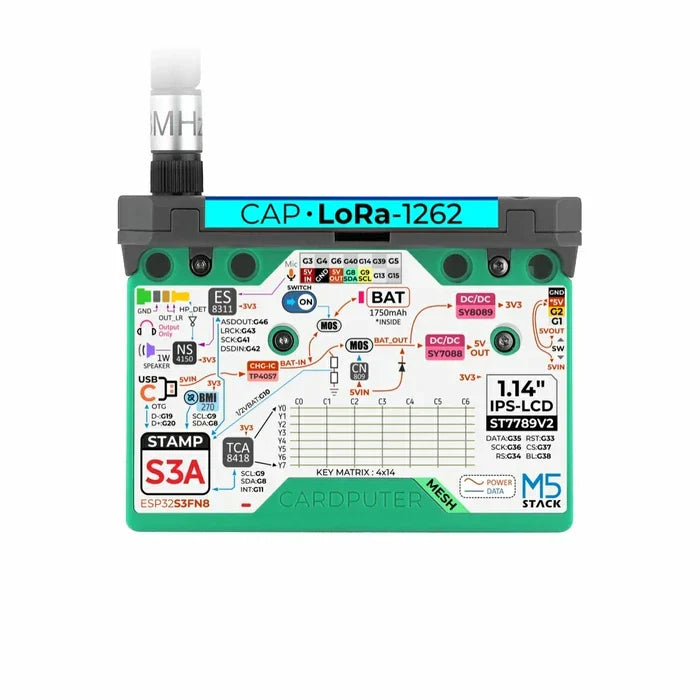

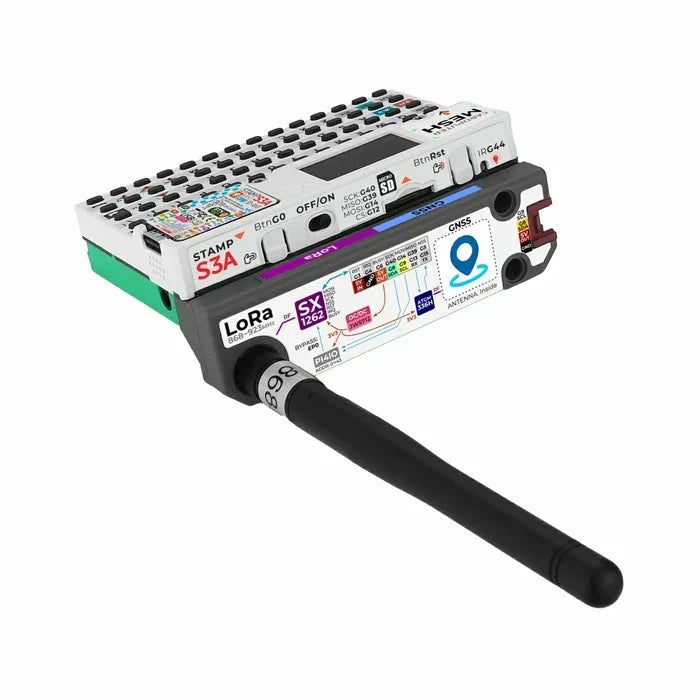

The M5Stack M5-K152 Cardputer Mesh Kit combines a Cardputer-Adv handheld with a Cap LoRa-1262 module and GNSS hardware for Meshtastic, LoRa communication and portable ESP32-S3 development. It includes a screen, keyboard, battery, audio hardware and expansion interfaces in one compact kit.

Key Features

• ESP32-S3FN8 dual-core controller with up to 240MHz operation and 8MB flash.

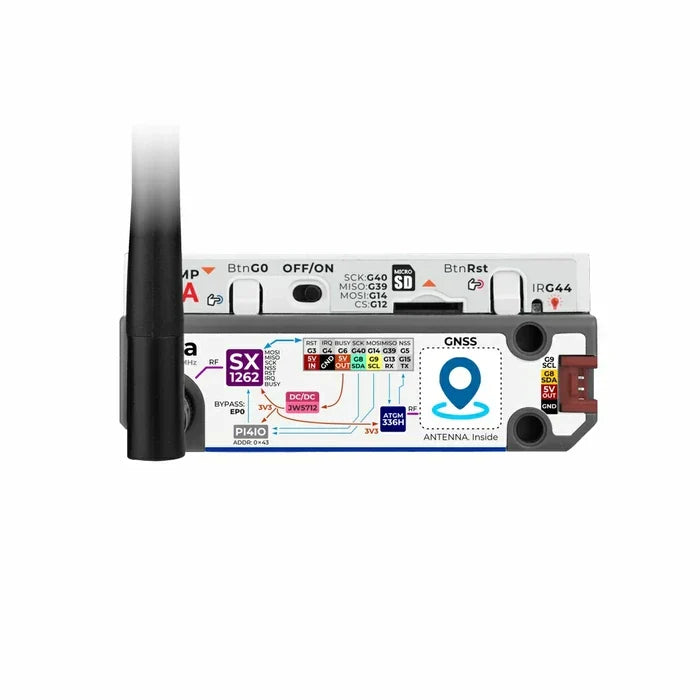

• SX1262 LoRa radio supports the 868–923MHz range and up to +22dBm transmit power.
• Integrated GNSS supports GPS, QZSS, BD2, BD3, Galileo and GLONASS.

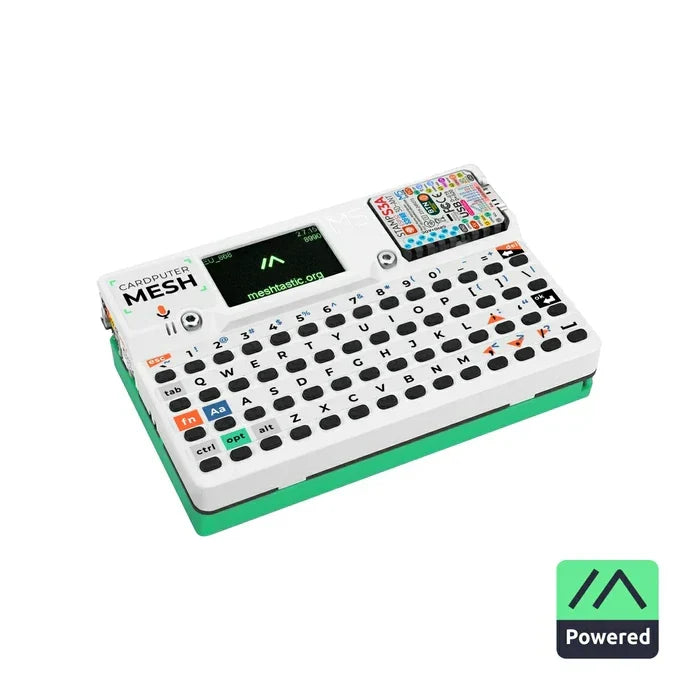

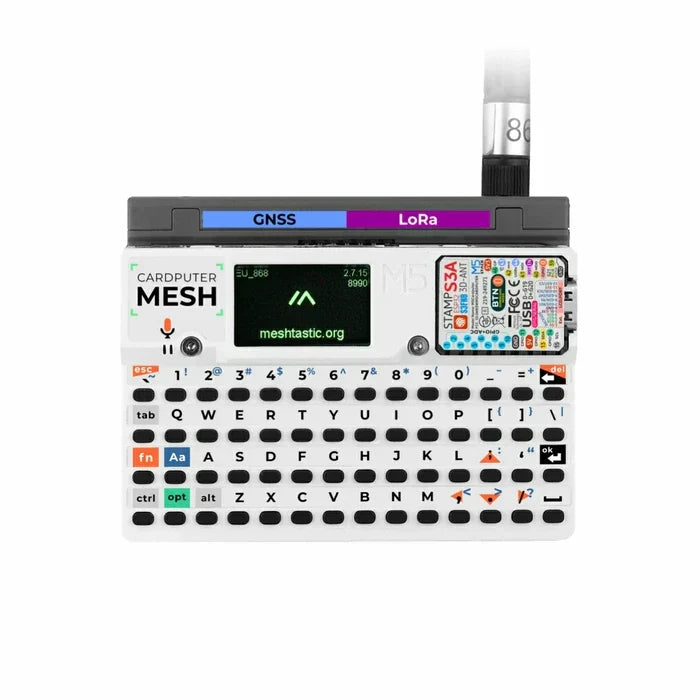

• 1.14-inch 240 × 135 display and 56-key keyboard.
• Supports Arduino, UiFlow2, ESP-IDF and PlatformIO development.

Specifications

• Battery: Built-in 1750mAh rechargeable battery
• Storage: microSD expansion

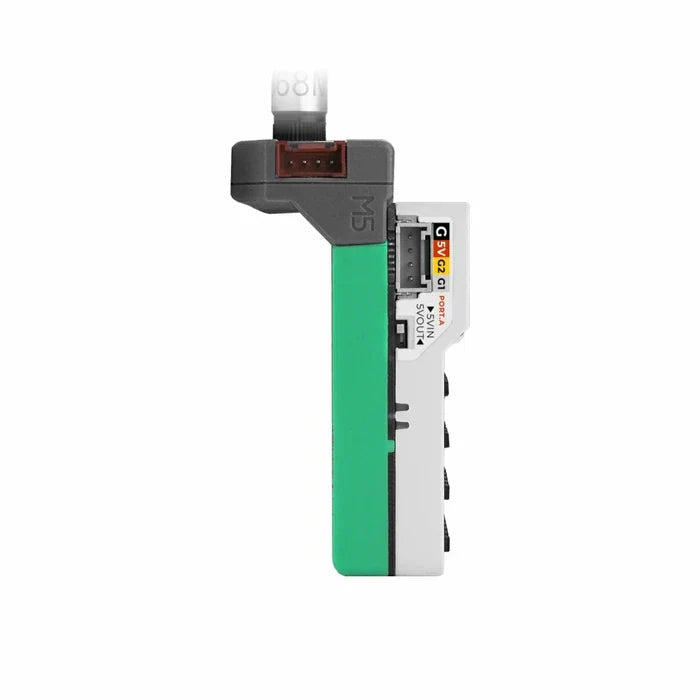

• Interfaces: HY2.0-4P and EXT 2.54-14P
• Audio: ES8311 codec, 1W speaker and MEMS microphone
• IMU: BMI270
• Product weight: 77.2g
• SKU: M5-K152

Package Contents

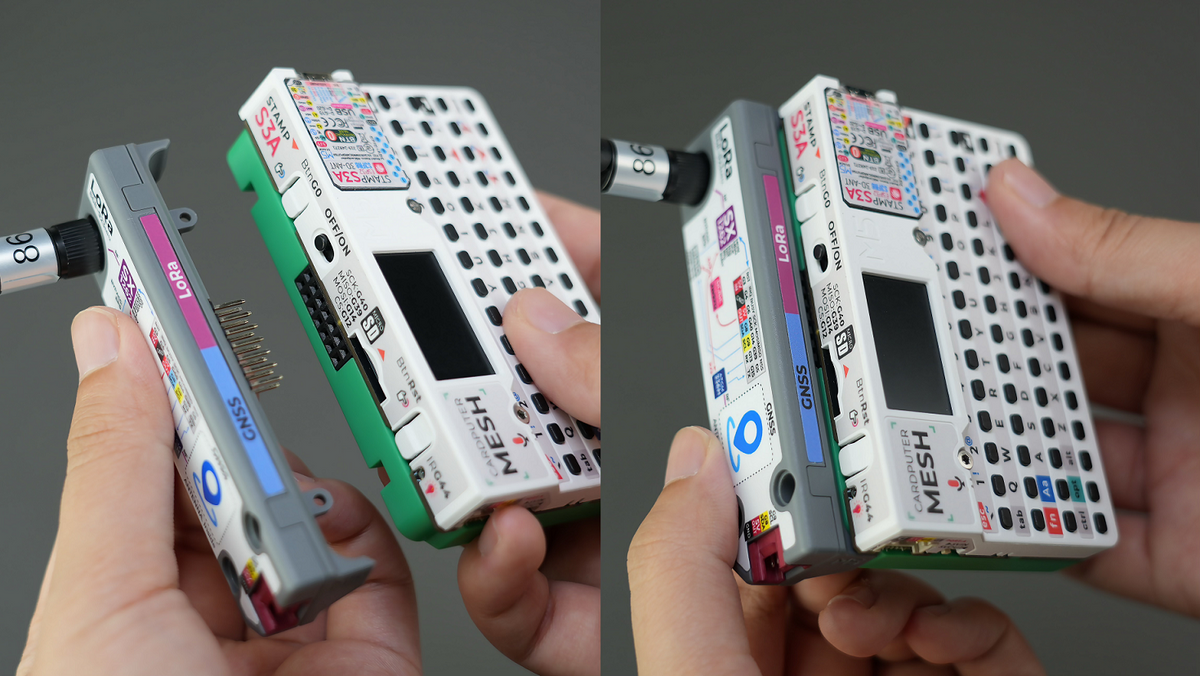

One Cardputer-Adv with green back shell, one Cap LoRa-1262, one RP-SMA LoRa antenna, two M2 × 4mm screws, one 1.5mm hex key and one safety warning sticker.

Setup Note

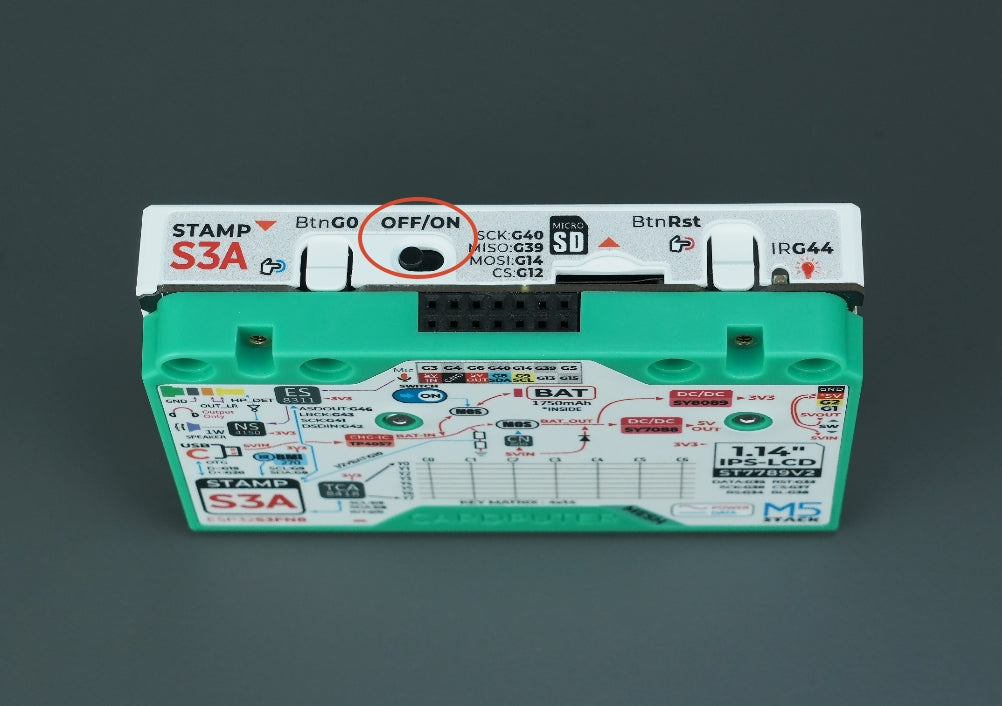

Install the supplied antenna before transmitting. The source instructs users to switch the power switch on before charging.
