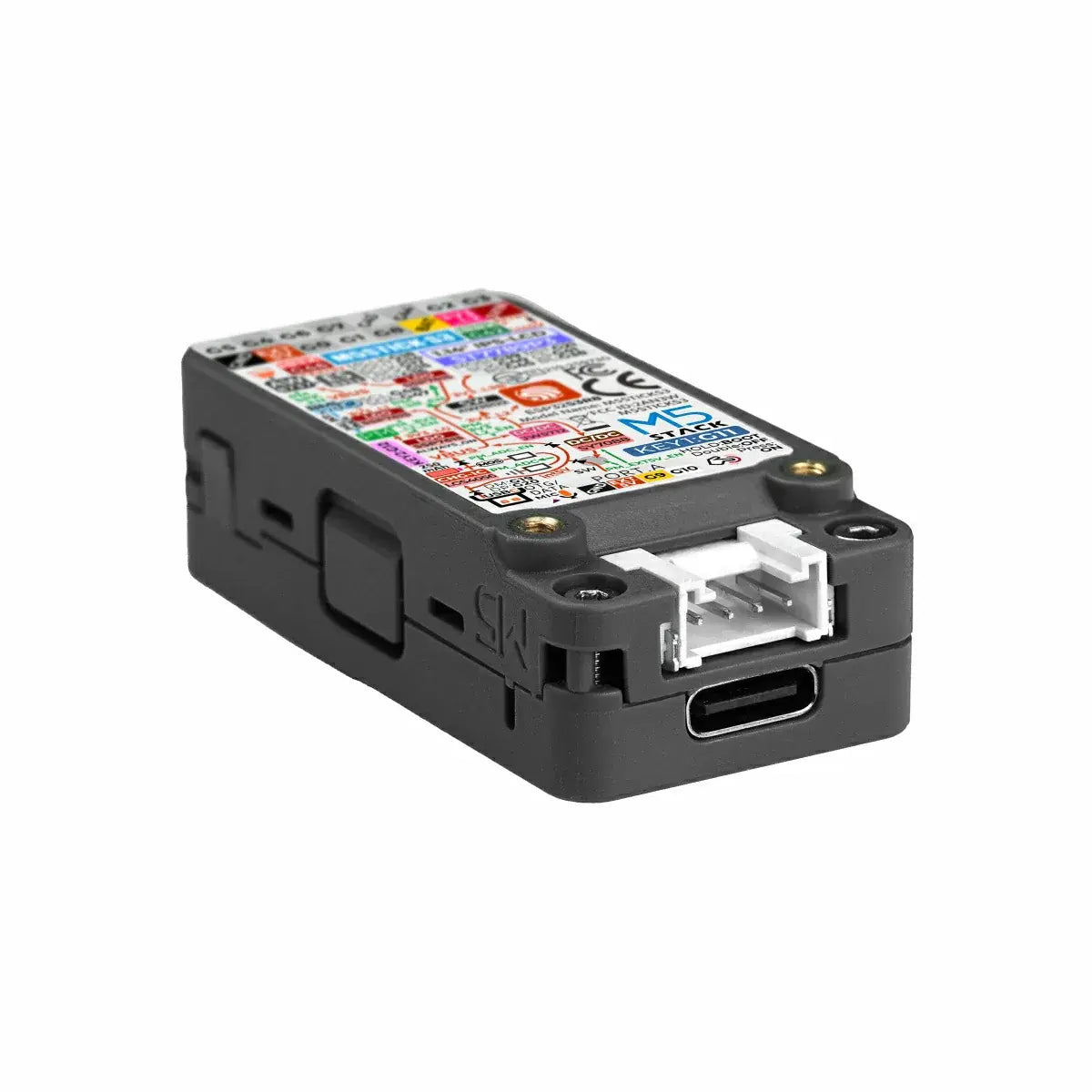

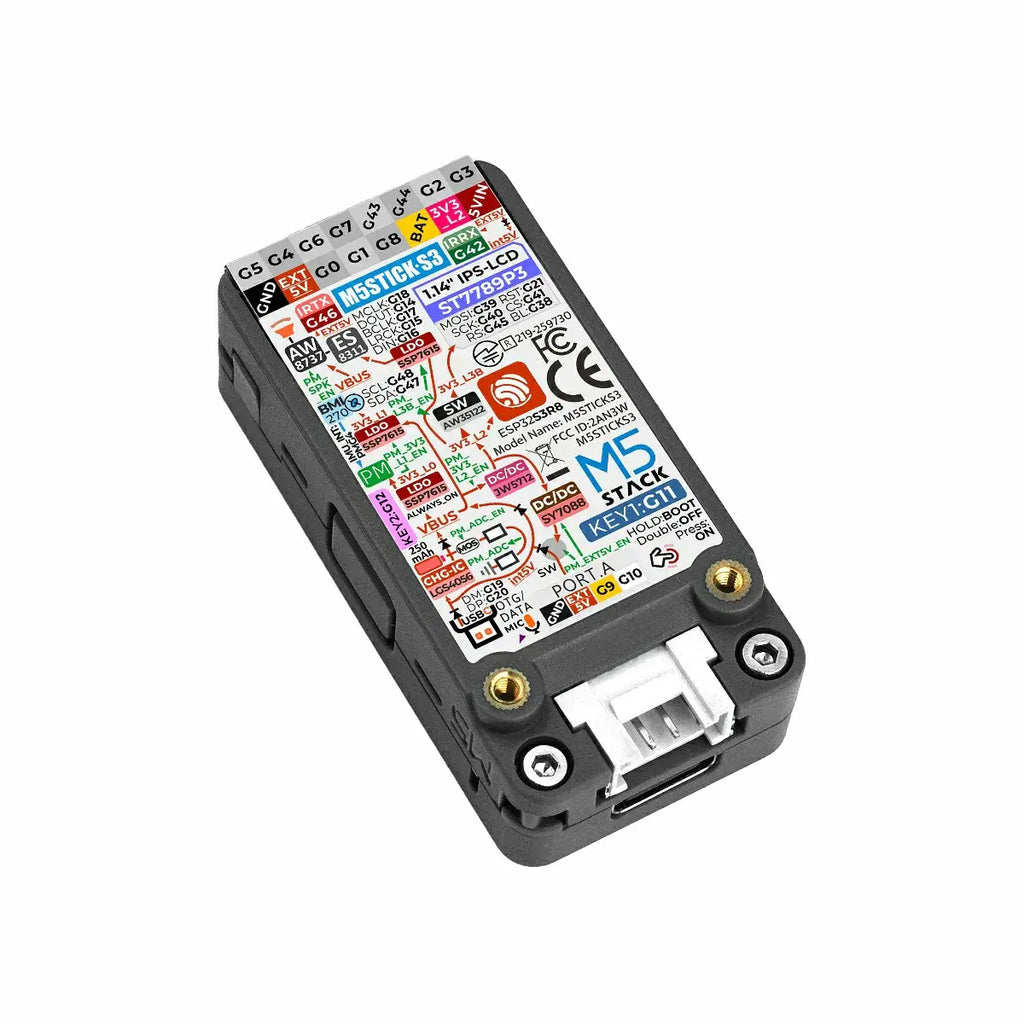

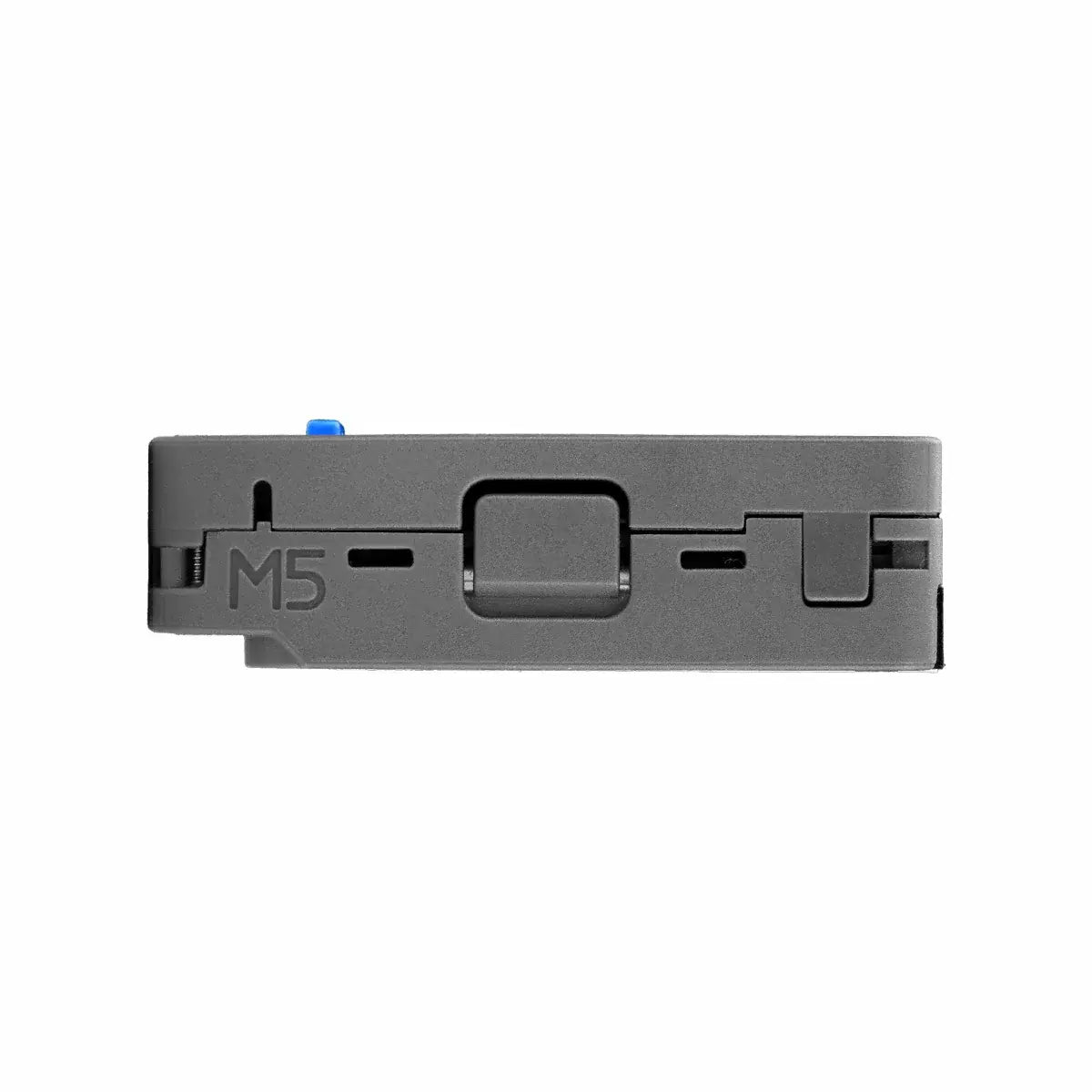

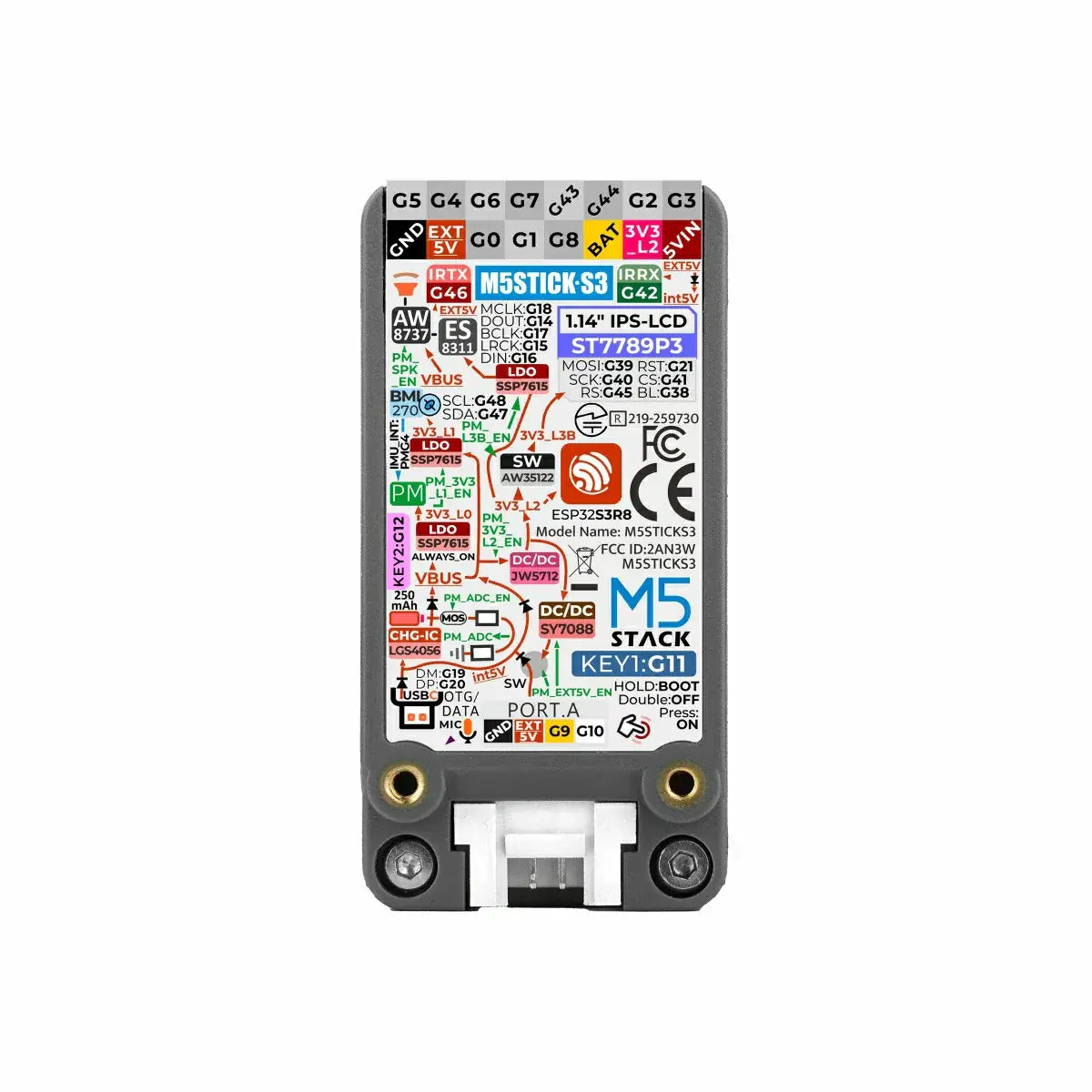

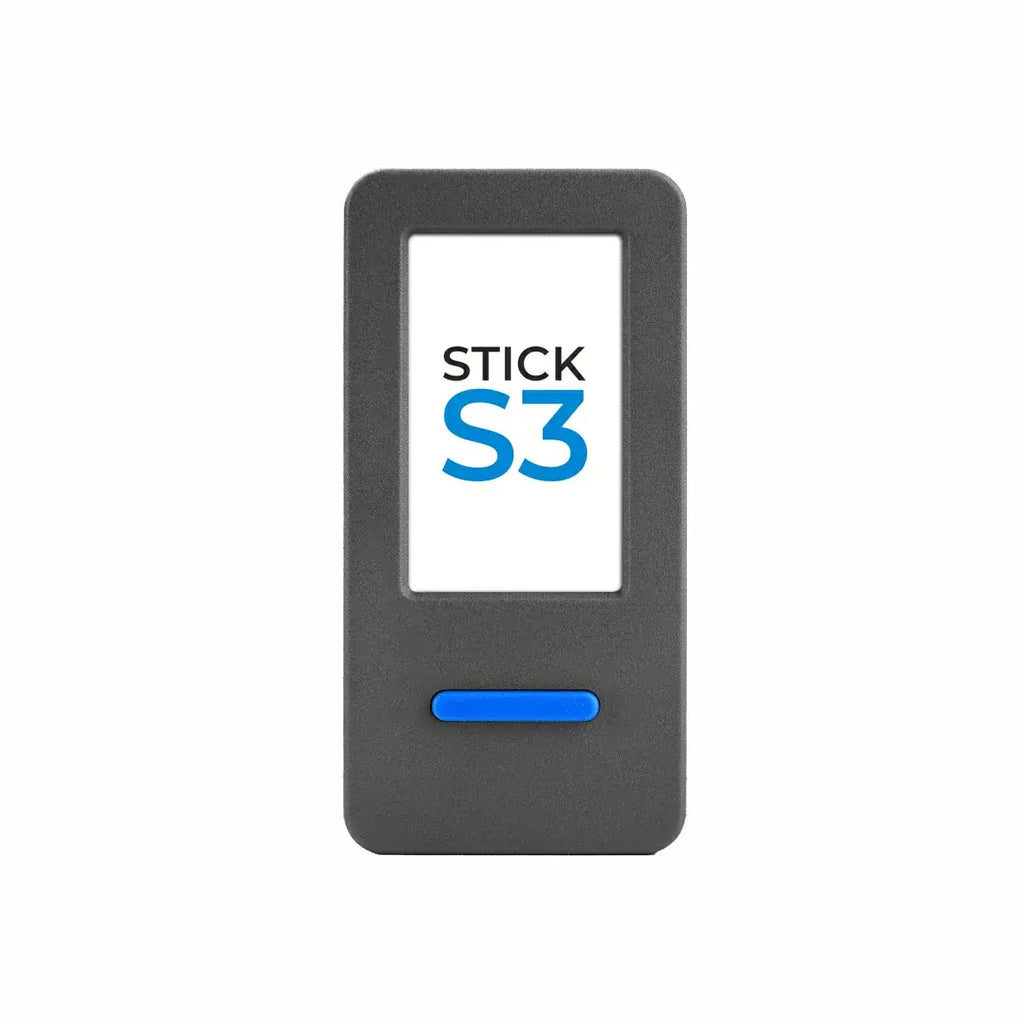

M5StickS3 ESP32-S3 Mini IoT Development Kit with 1.14-Inch LCD, Wi-Fi, Audio and 250mAh Battery

The M5Stack M5StickS3 is a compact ESP32-S3 programmable controller for portable IoT, smart-home and voice-interface projects.

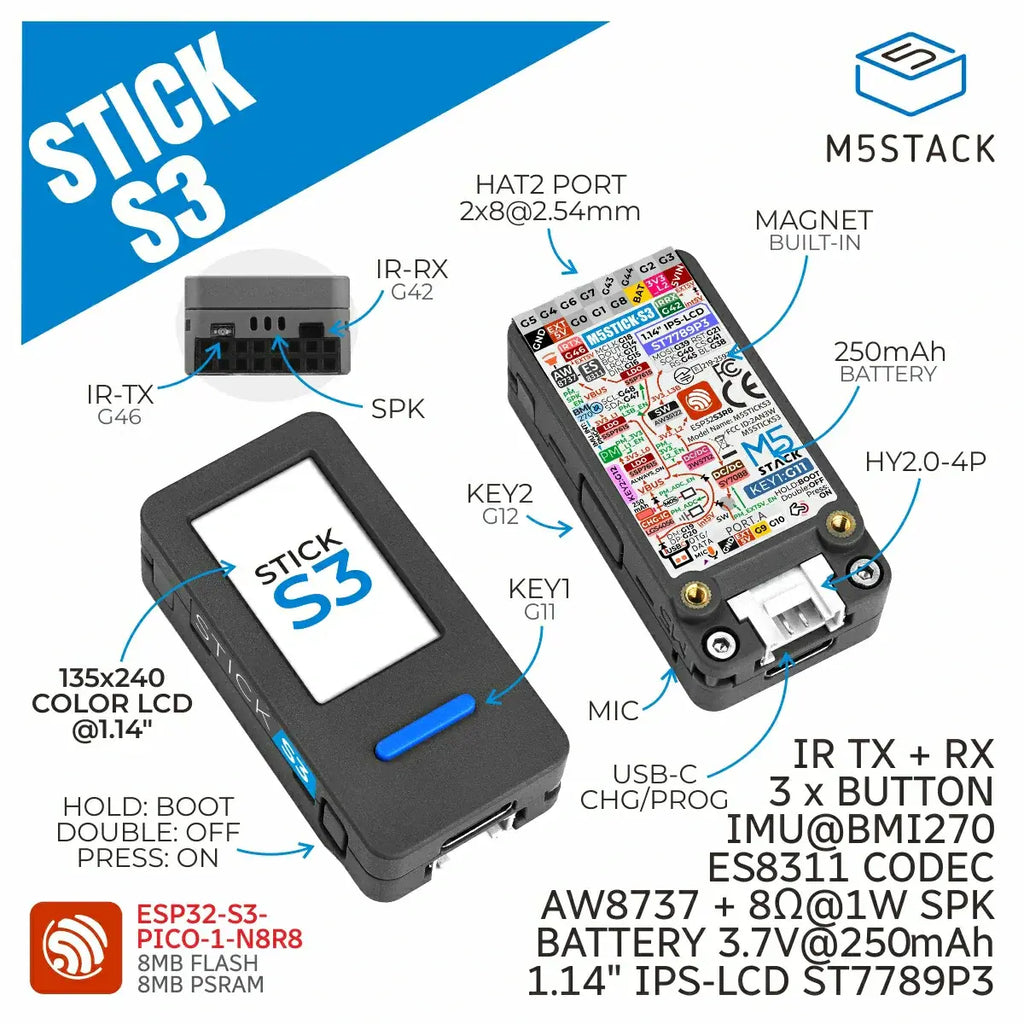

Key Features

• ESP32-S3-PICO-1-N8R8 processor runs at up to 240MHz with 8MB Flash and 8MB PSRAM.

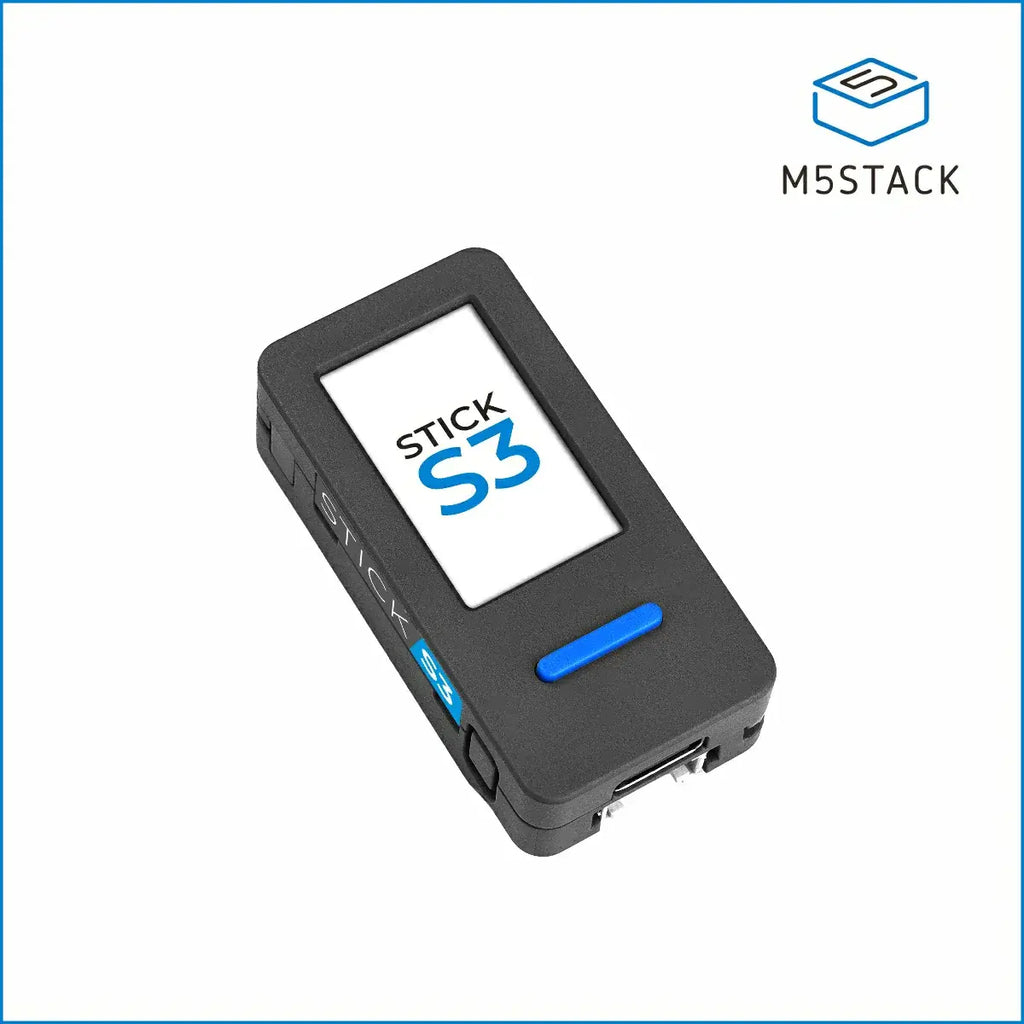

• 1.14-inch 135 × 240 LCD, six-axis IMU and programmable buttons support compact interfaces.
• Integrated ES8311 audio codec, MEMS microphone, amplifier and speaker support audio projects.
• Built-in IR transmitter and receiver support compatible infrared-control projects.
• 250mAh lithium-ion battery supports portable development.

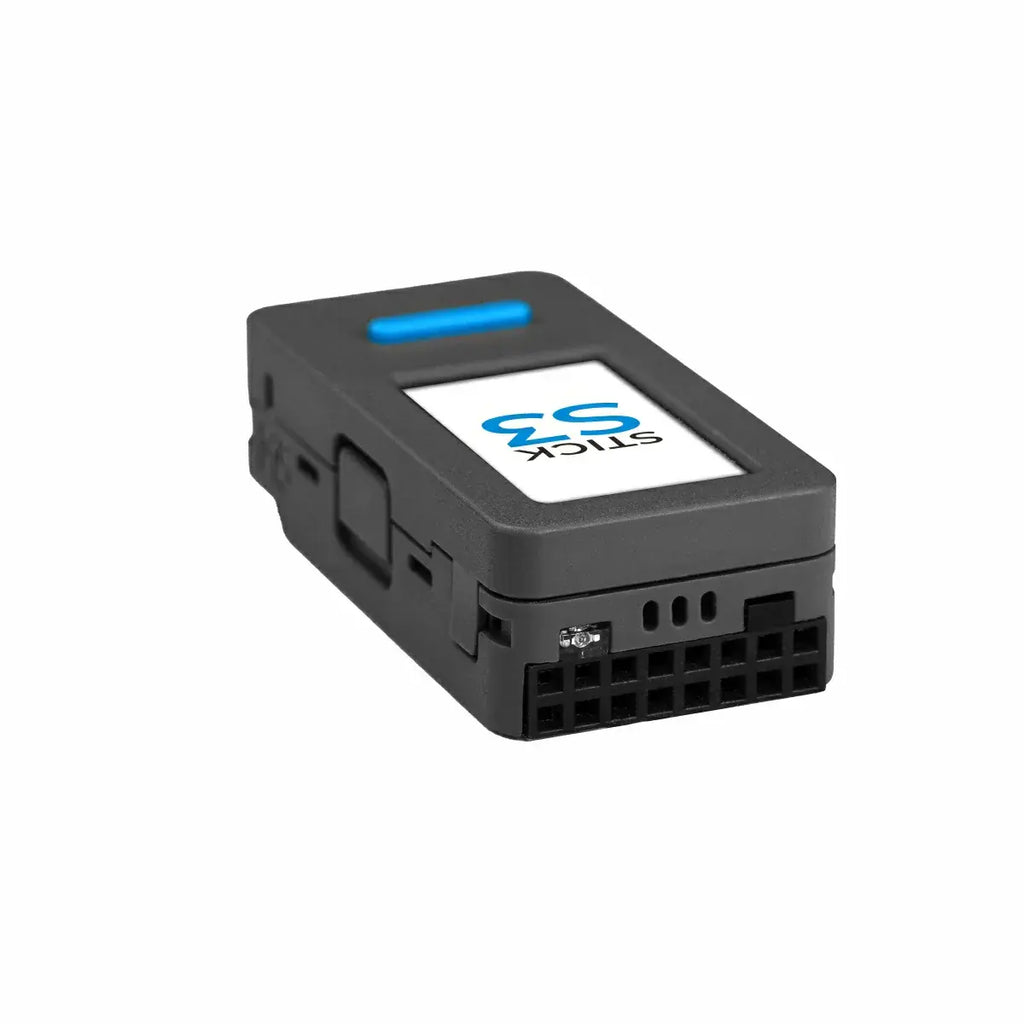

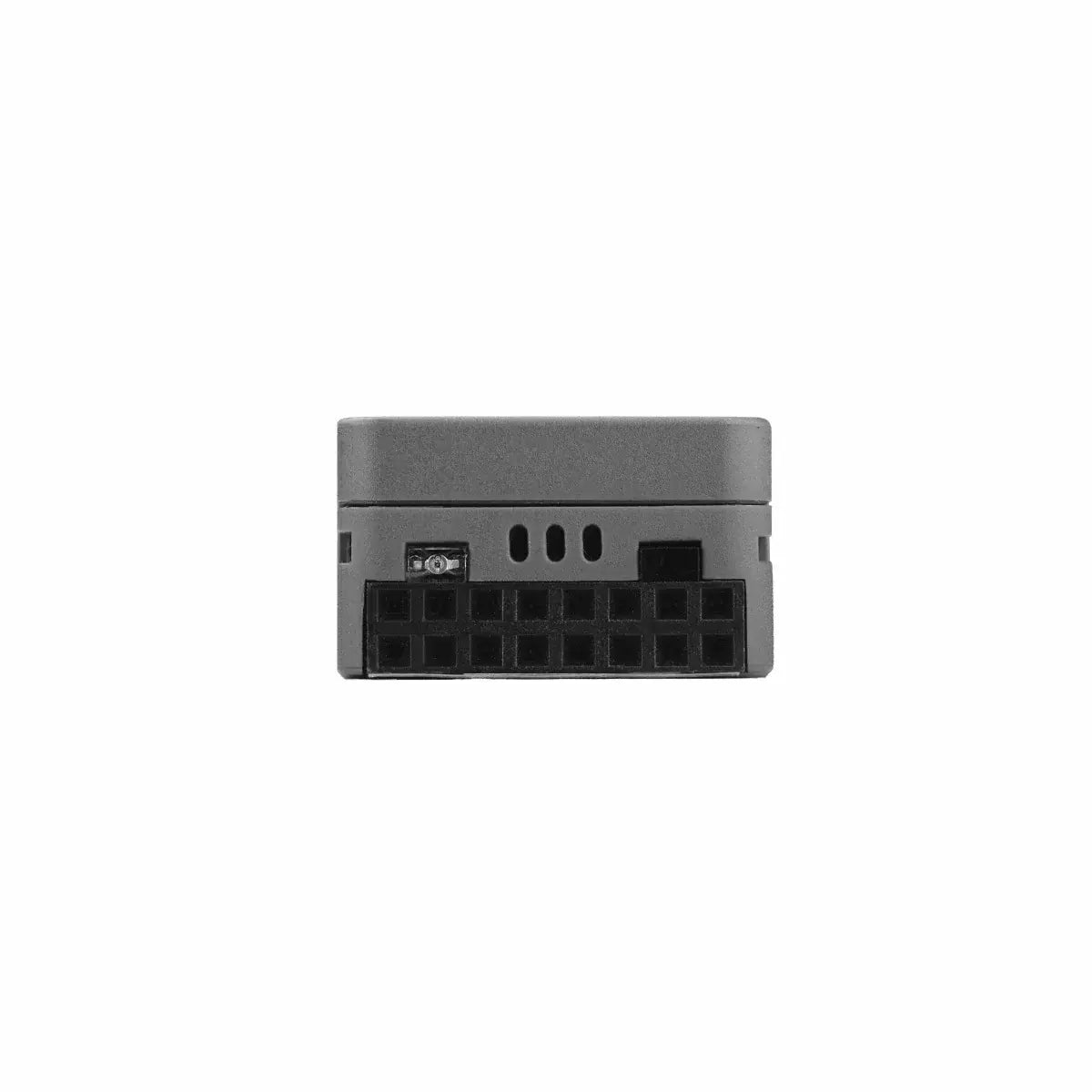

• Grove and Hat2 connections expand the board for compatible modules.

Specifications

• Brand and model: M5Stack M5StickS3
• Processor: Dual-core ESP32-S3-PICO-1-N8R8, up to 240MHz
• Wireless: 2.4GHz Wi-Fi
• Memory: 8MB Flash and 8MB PSRAM
• Display: 1.14-inch, 135 × 240
• Power input: USB-C, 5V DC
• Battery: 250mAh lithium-ion
• Size: 48 × 24 × 15mm
• Weight: 20g

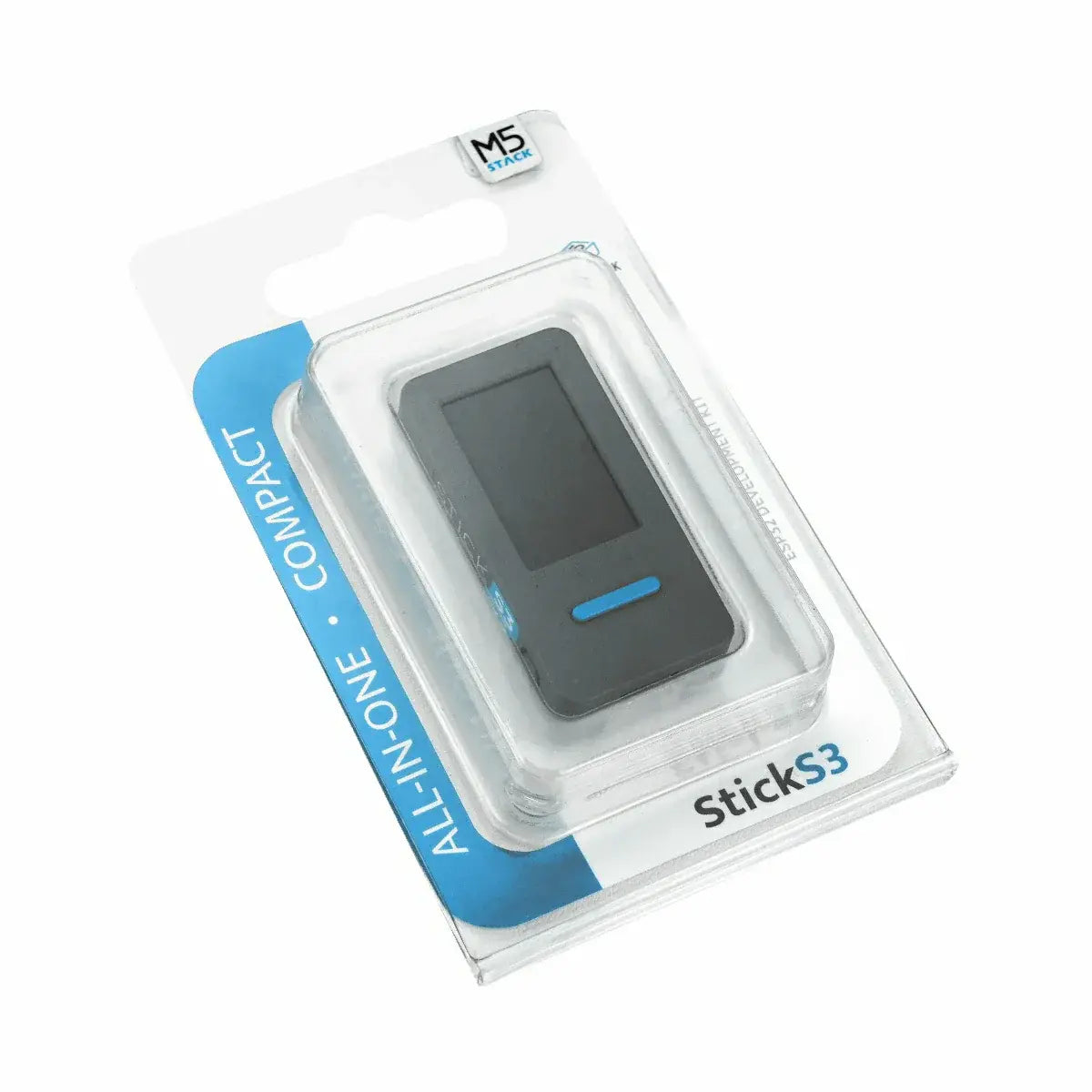

• Included: One M5StickS3
