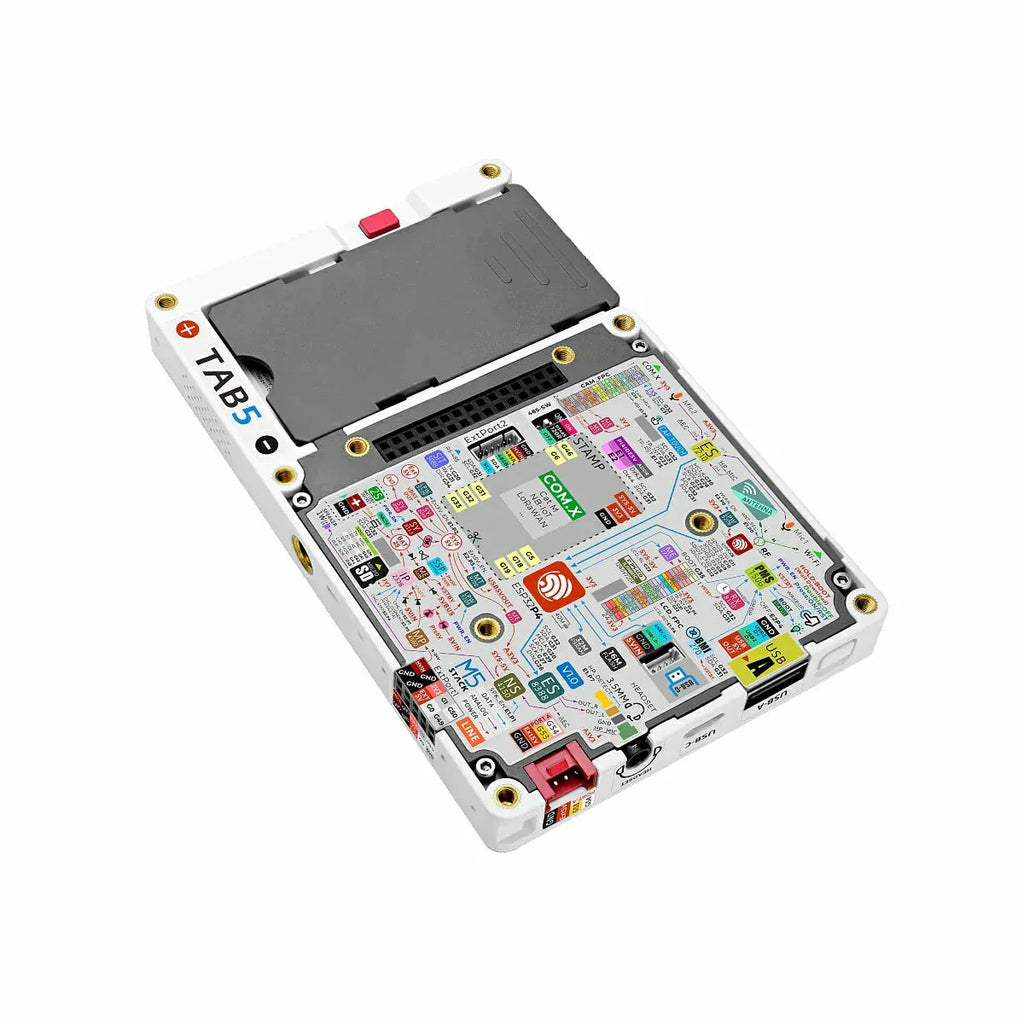

Tab5 ESP32-P4 IoT Development Kit with 5-Inch Touchscreen, Wi-Fi 6, Camera and NP-F550 Battery

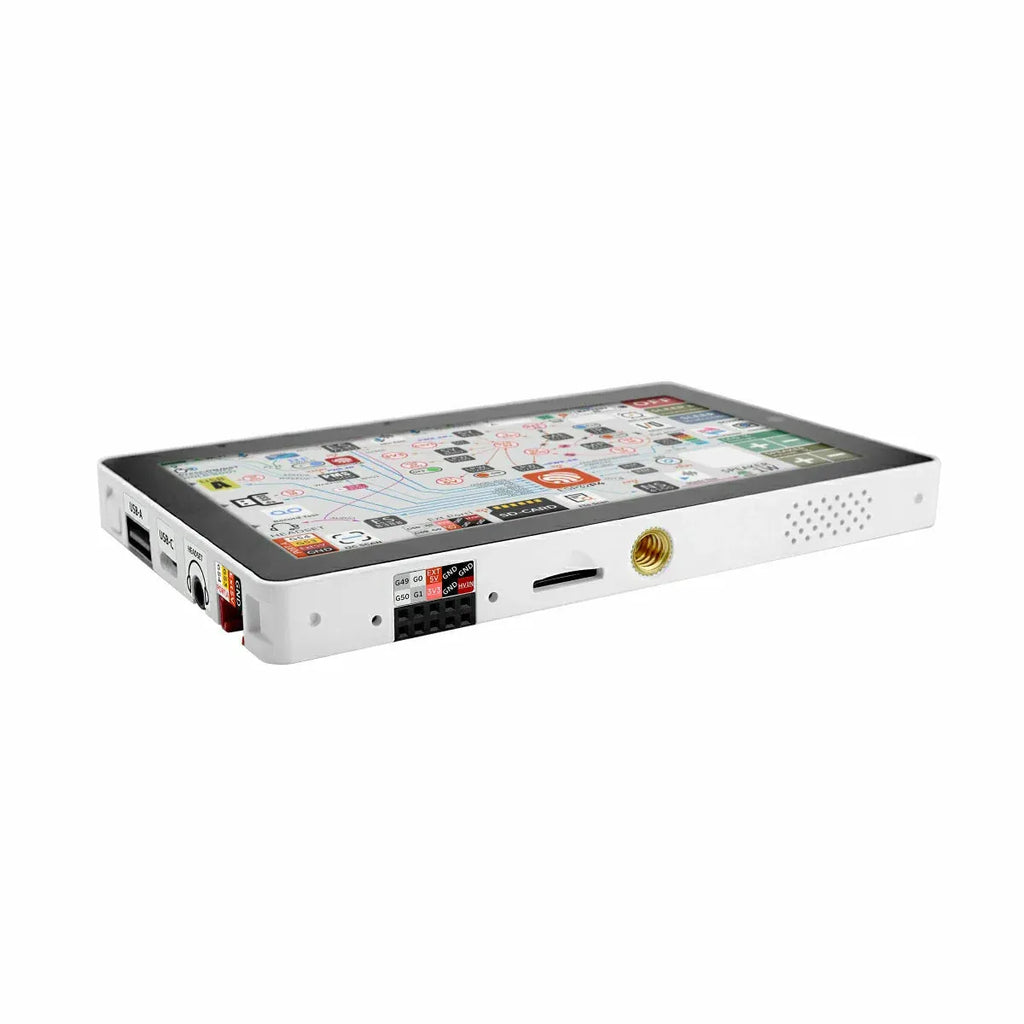

The M5Stack Tab5 is a portable ESP32-P4 IoT development kit with a 5-inch touchscreen, Wi-Fi 6 connectivity, camera, audio hardware and an included removable NP-F550 battery.

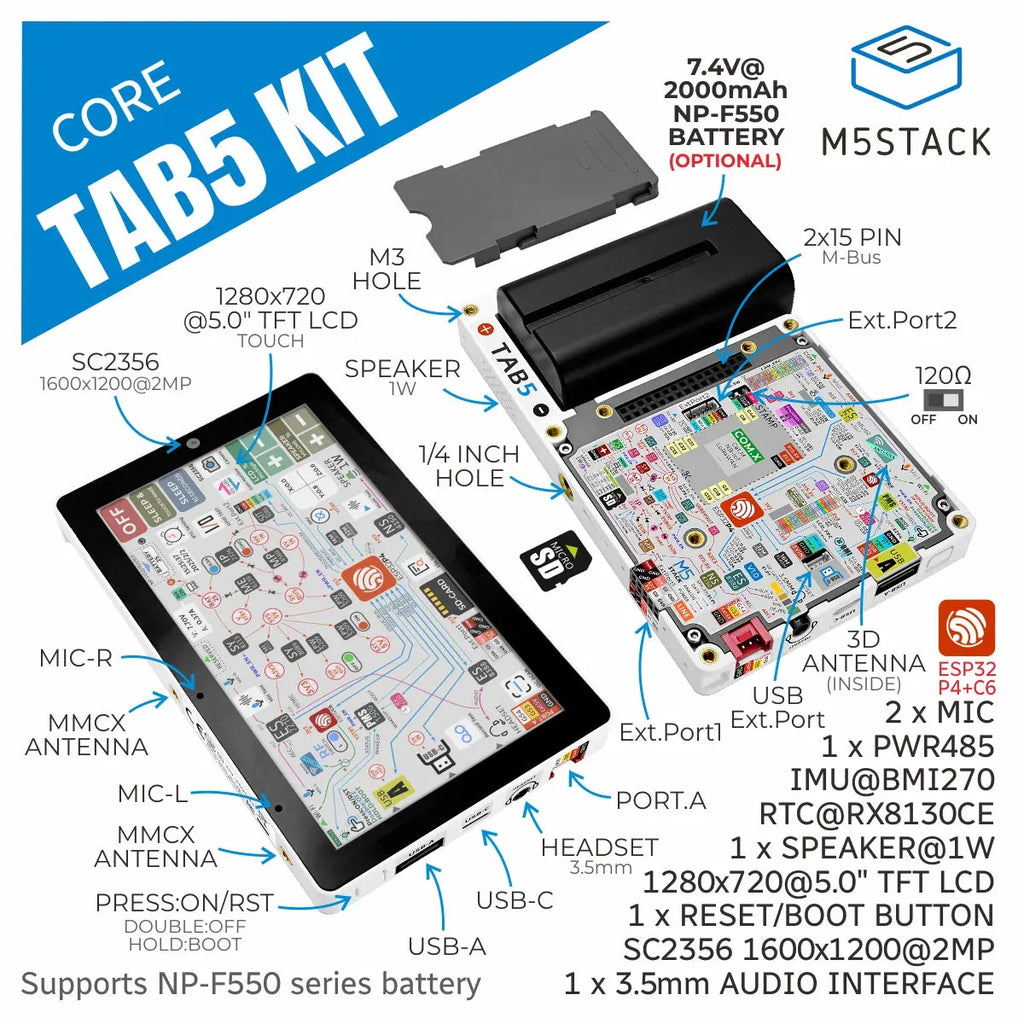

Key Features

• ESP32-P4 processor with 16MB Flash and 32MB PSRAM.
• ESP32-C6 wireless module supports 2.4GHz Wi-Fi 6, Thread and Zigbee.

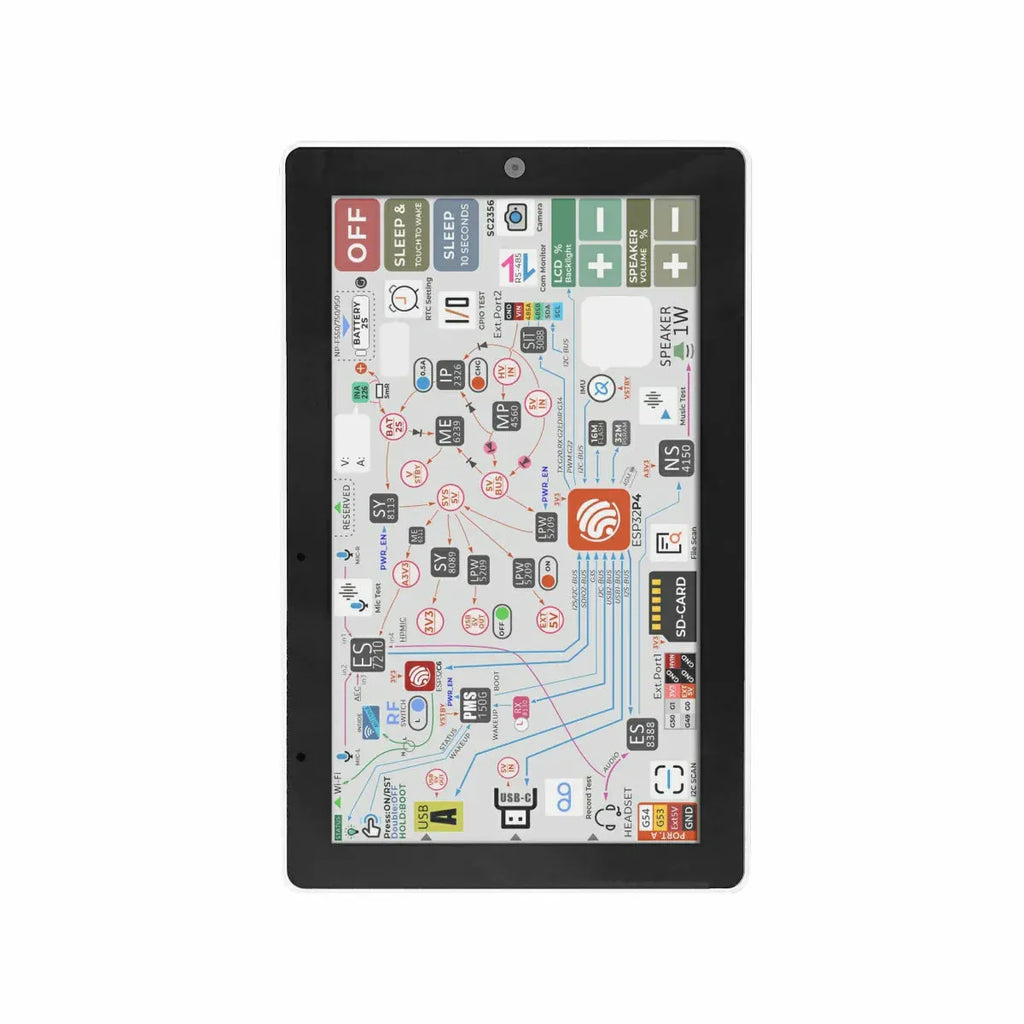

• 5-inch 1280×720 IPS display with GT911 multi-point touch control.

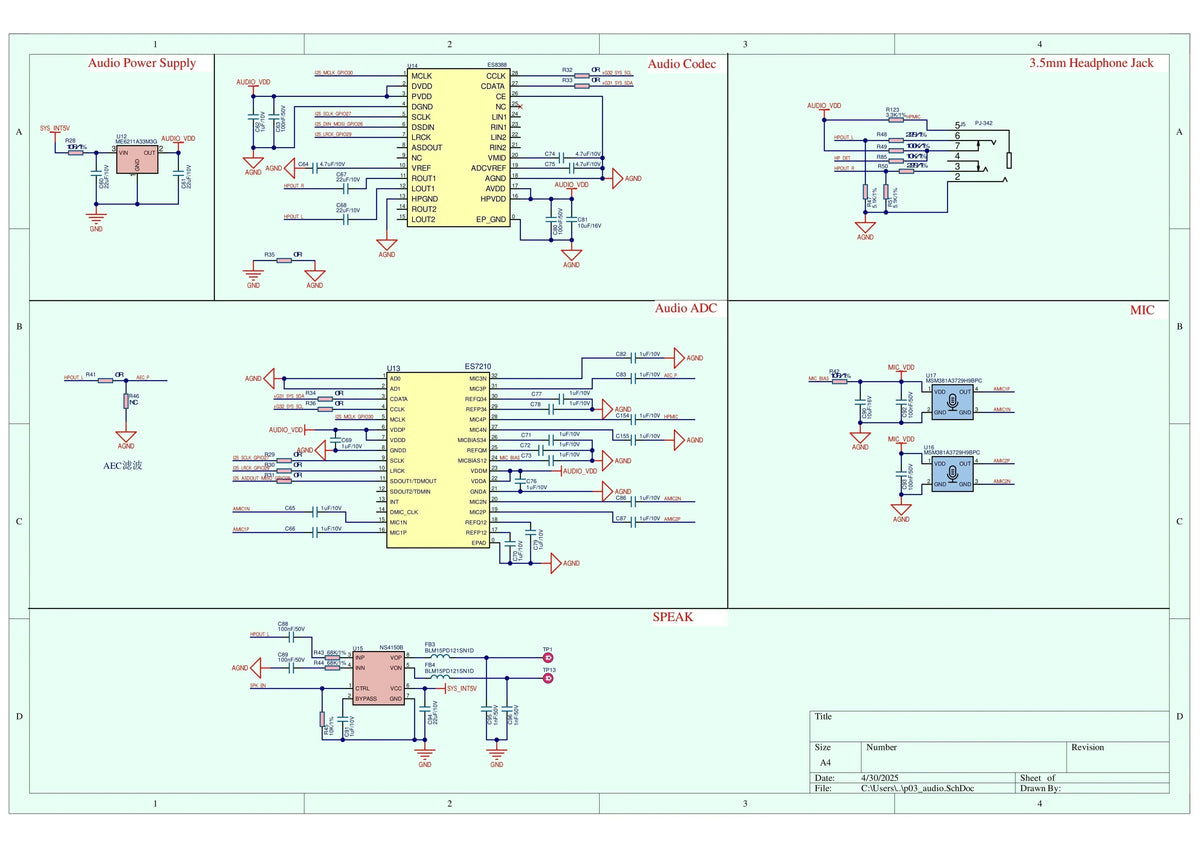

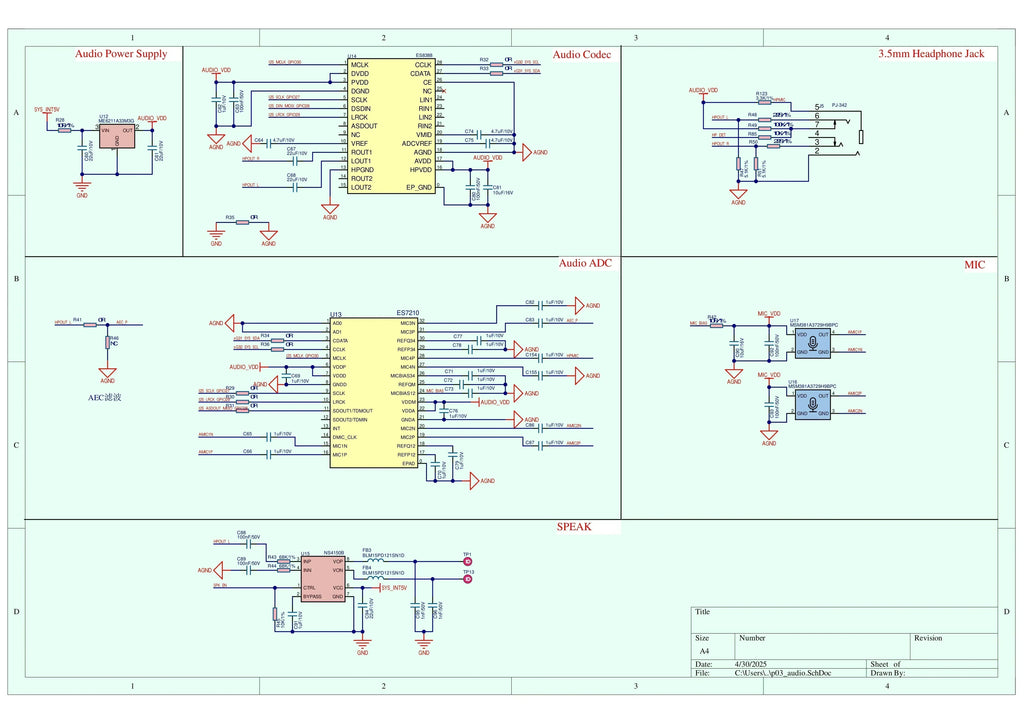

• 2MP MIPI-CSI camera, dual microphones, 1W speaker and 3.5mm headphone jack.

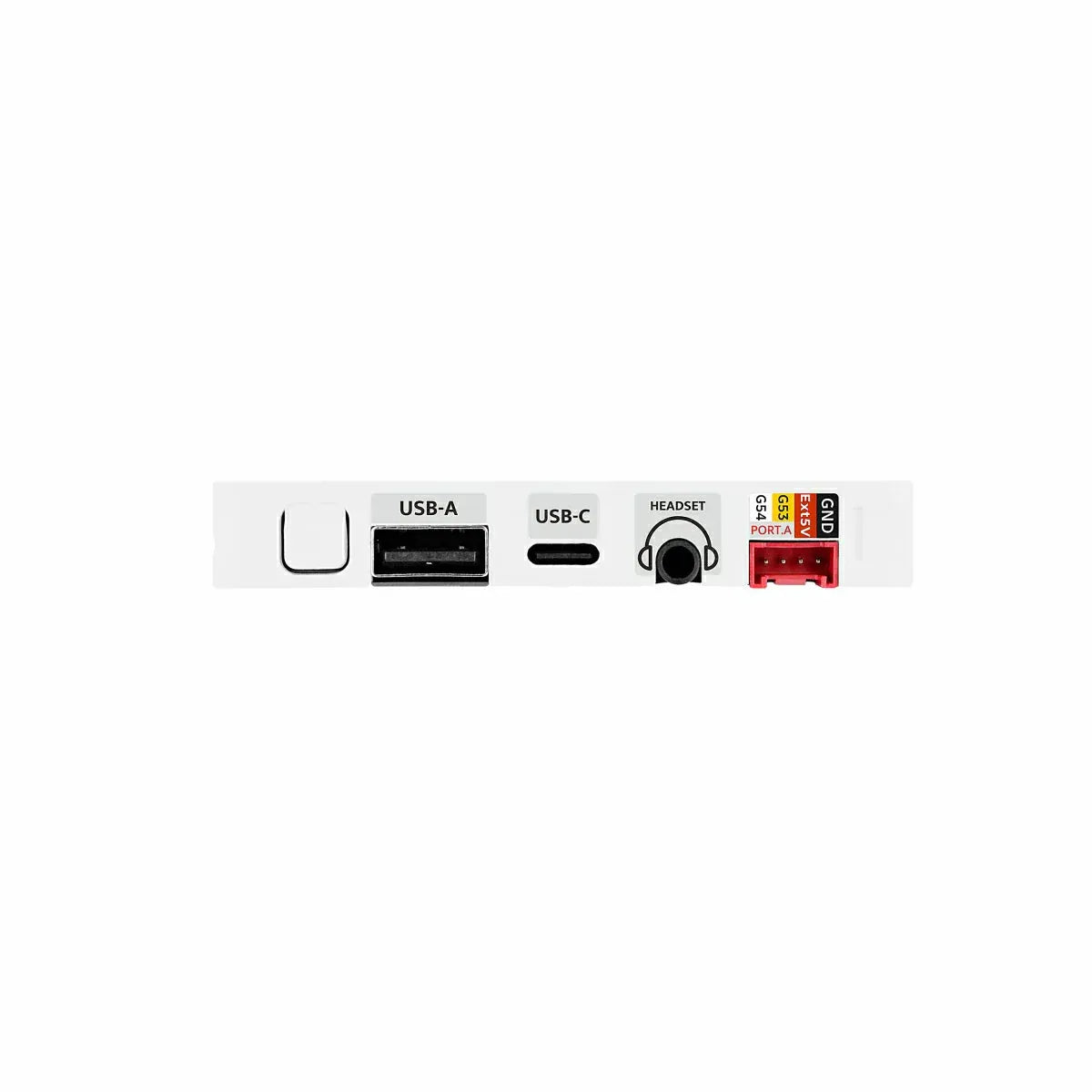

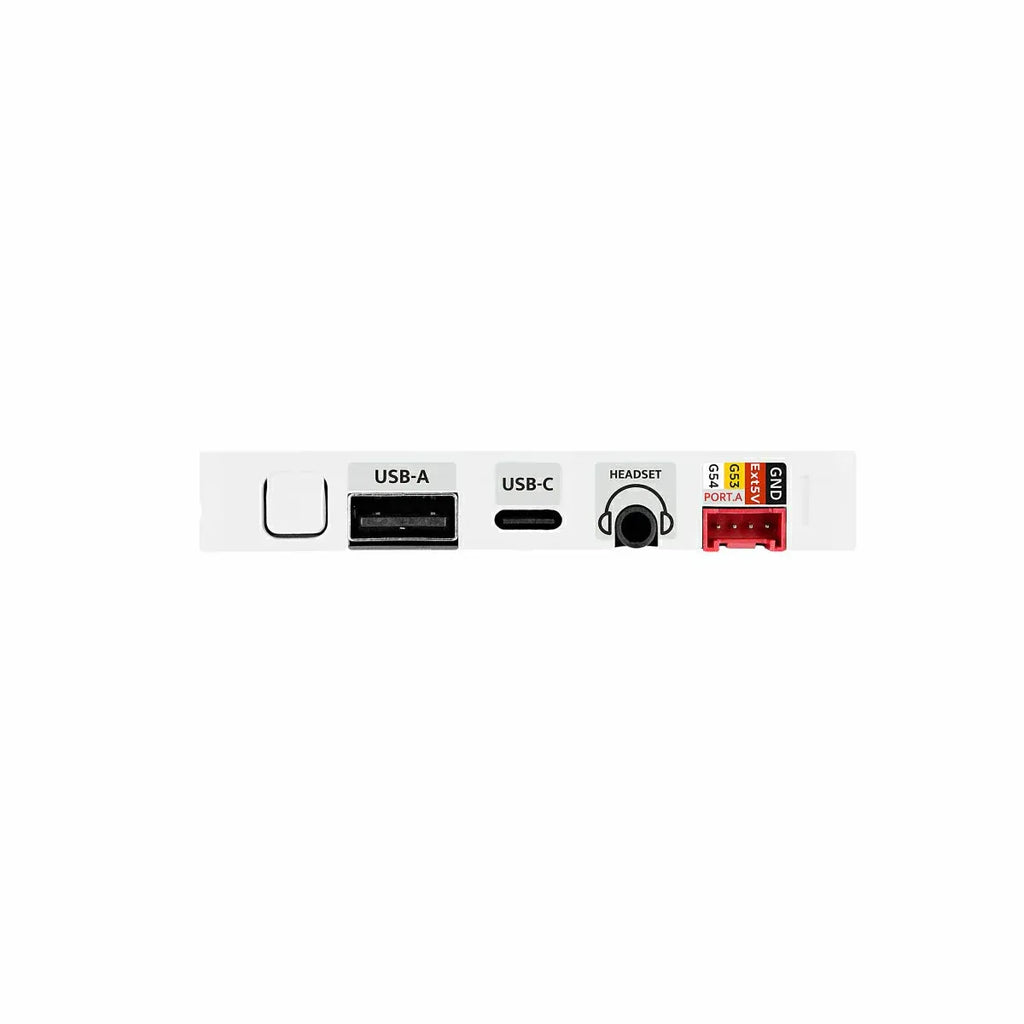

• USB-A host, USB-C OTG, RS-485, Grove, M5BUS, GPIO and MicroSD expansion.
• BMI270 six-axis motion sensor and RX8130CE real-time clock.

Specifications

• Brand and model: M5Stack Tab5 Kit K145
• Main controller: ESP32-P4NRW32, up to 400MHz
• Wireless module: ESP32-C6-MINI-1U
• Memory: 16MB Flash, 32MB PSRAM
• Display: 5-inch IPS TFT, 1280×720
• Camera: SC2356, 2MP, 1600×1200
• RS-485 supply range: 6–24V

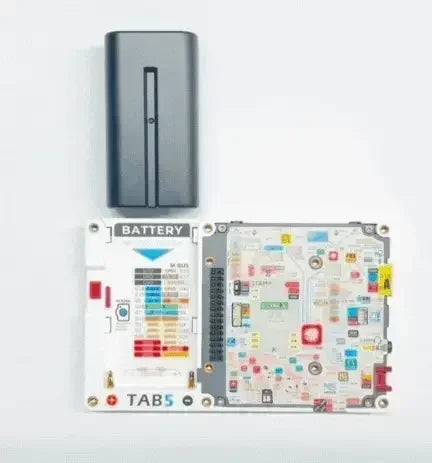

• Battery: Removable NP-F550 lithium battery, 7.4V, 2000mAh, 14.8Wh
• Kit size: 128 × 80 × 26.7mm
• Included: Tab5 Kit, 1.25-6P single-end cable and NP-F550 battery

Development requires compatible software, power and peripheral connections for the intended project.
