M7AC AC/DC Smart Battery Charger with Balance Charging and IPS Display for 1–6S Lithium Battery Packs

The M7AC is an AC/DC smart charger for rechargeable battery packs, with balance charging, XT30 and XT60 charging outputs and a 2.4-inch IPS display. Its integrated AC supply and separate DC input support bench or field setups, while measurement and signal functions add tools for RC electronics.

Key Features

• Charges 1–6S LiPo, LiHV, LiFe, lithium-ion and LTO packs, 1–16S NiMH packs and 1–10S lead-acid packs.
• The integrated AC power supply is rated at 100W; a separate 7–28V DC input supports compatible external power sources.

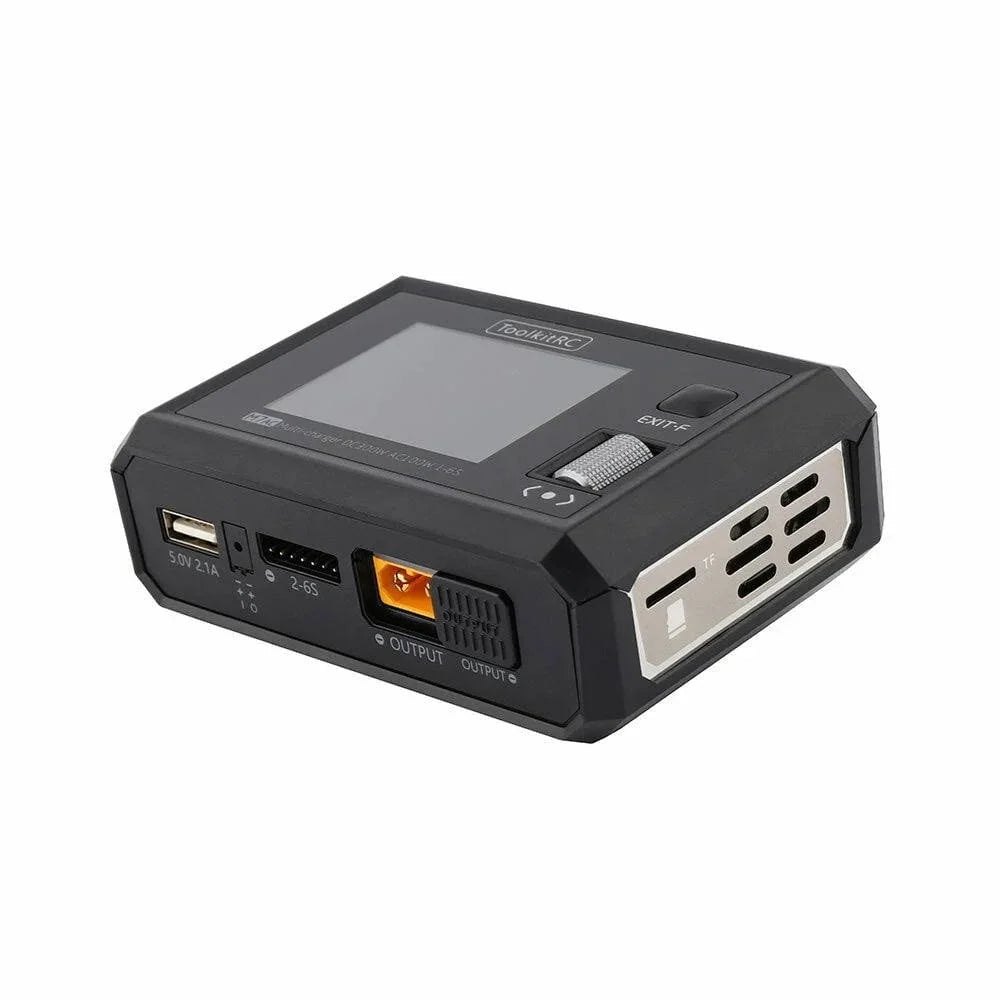

• XT30 and XT60 charging outputs and balance charging support compatible packs.

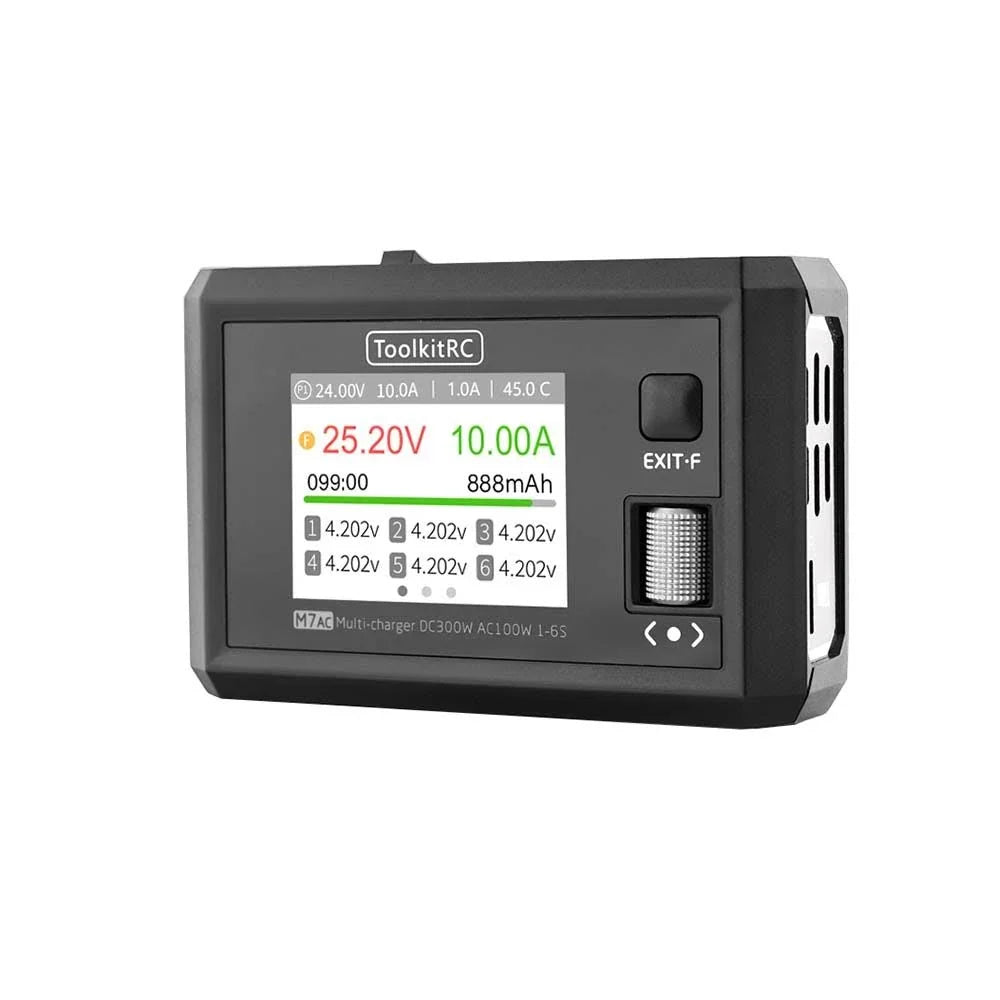

• The color IPS screen, scroll wheel and customizable voice alerts provide control and charging feedback.
• Electrical measurement includes pack voltage and internal resistance, plus PWM, PPM, SBUS and ESC testing functions.
• Signal generation and an adjustable CC/CV power supply extend its use beyond charging.
• A 5V USB output provides up to 10W and supports firmware upgrades; an SD slot is also listed.

Specifications

• Model: M7AC; included: one M7AC charger
• AC input: 100–240V, listed maximum 100W/1.5A
• DC input: 7–28V, up to 20A
• Maximum charger rating: 300W, up to 15A; this is not a300W AC output rating
• Balance current: 800mA at 4.2V
• Discharge: recycle mode up to 300W/15A; normal mode15W/3A
• Display: 2.4-inch IPS,320×240 pixels
• Pack voltage measurement: 1–5V per cell for1–6S packs
• Internal resistance range: 0.1–99mΩ for1–6S packs
• Measurement inputs: PWM880–2200µs at 20–400Hz; PPM8 channels at 20–50Hz; SBUS16 channels at 20–100Hz
• Signal outputs: PWM500–2500µs at 20–1000Hz; PPM880–2200µs,8 channels at 20–50Hz; SBUS880–2200µs,16 channels at 20–100Hz
• Adjustable power supply: 1–28V,1–15A, CC/CV modes; listed overcurrent cutoff under 5ms
• USB output: 5V, up to 10W
