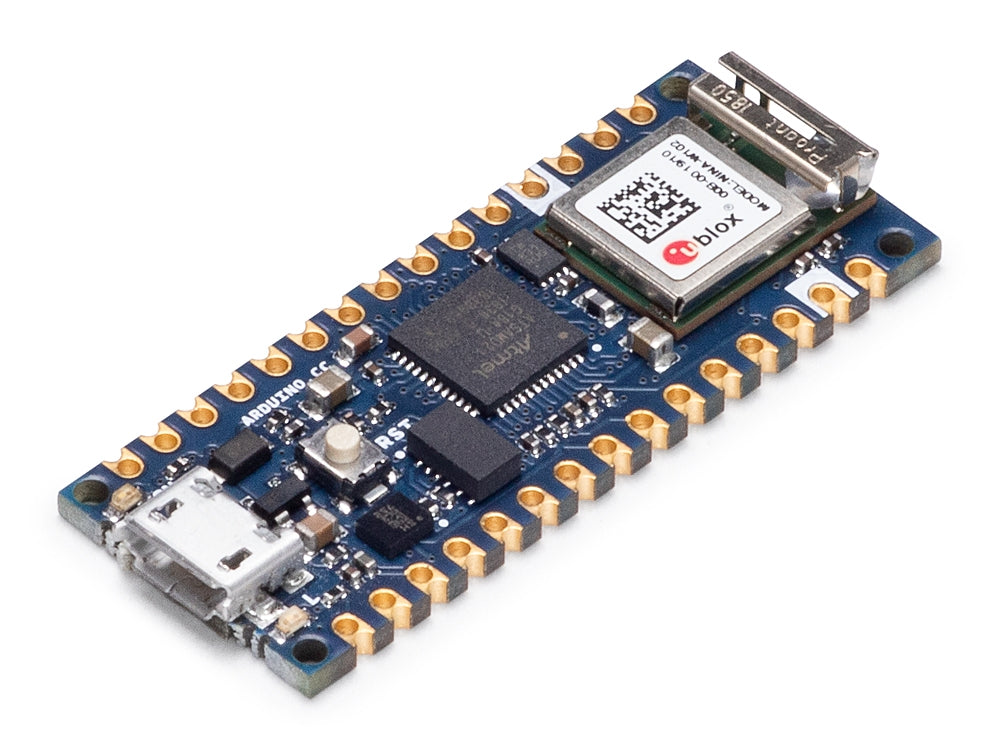

Nano 33 IoT Development Board with SAMD21 Cortex-M0+, 2.4GHz Wi-Fi, Bluetooth LE, Secure Element and 6-Axis IMU

Nano 33 IoT is a compact development board for connected sensors, Bluetooth Low Energy devices and other wireless prototypes.

Key Features

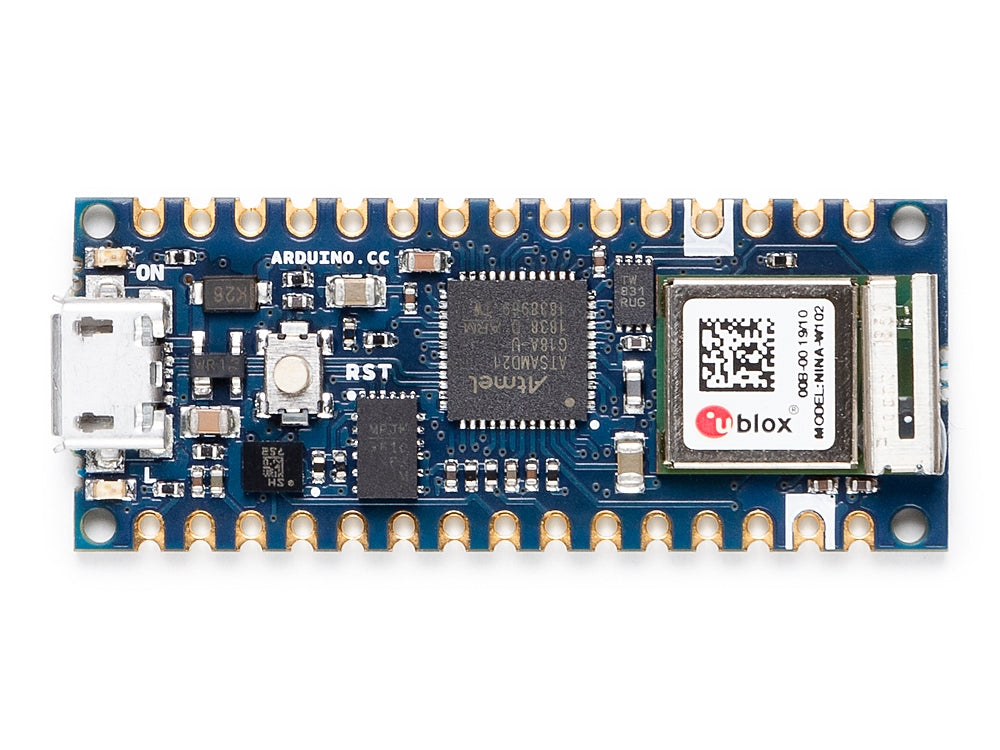

• SAMD21 Cortex-M0+ 32-bit microcontroller runs at 48MHz.
• u-blox NINA-W102 module provides 2.4GHz Wi-Fi, Bluetooth and Bluetooth Low Energy connectivity.
• ATECC608A secure element supports protected communication.
• Integrated LSM6DS3 six-axis IMU supports motion and orientation projects.
• Works with Arduino IoT Cloud, WiFiNINA and ArduinoBLE resources.
• Nano form factor measures 45 × 18mm.

Specifications

• Microcontroller: SAMD21 Cortex-M0+ 32-bit ARM MCU
• Radio module: u-blox NINA-W102
• Secure element: ATECC608A
• Operating voltage: 3.3V
• Input voltage limit: 21V
• Clock speed: 48MHz
• Memory: 256KB flash and 32KB SRAM

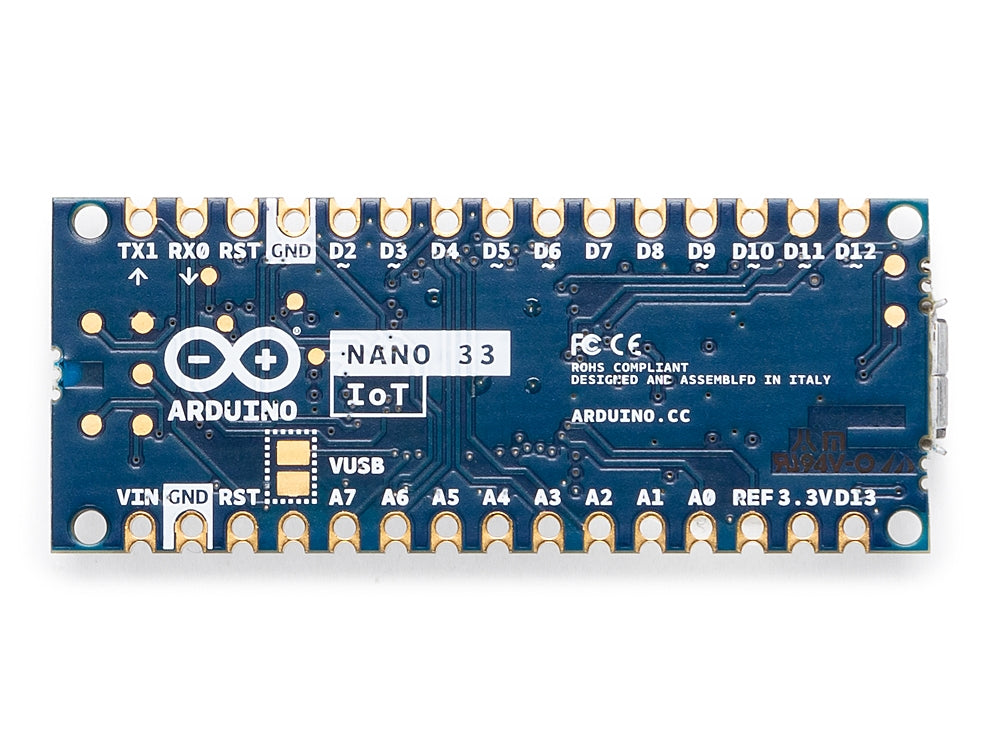

• I/O: 14 digital pins, 11 PWM pins and 8 analog inputs
• Analog output: One 10-bit DAC
• Interfaces: UART, SPI, I2C and native USB
• Dimensions: 45 × 18mm
• Weight: 5g with headers
• Product code: ABX00027

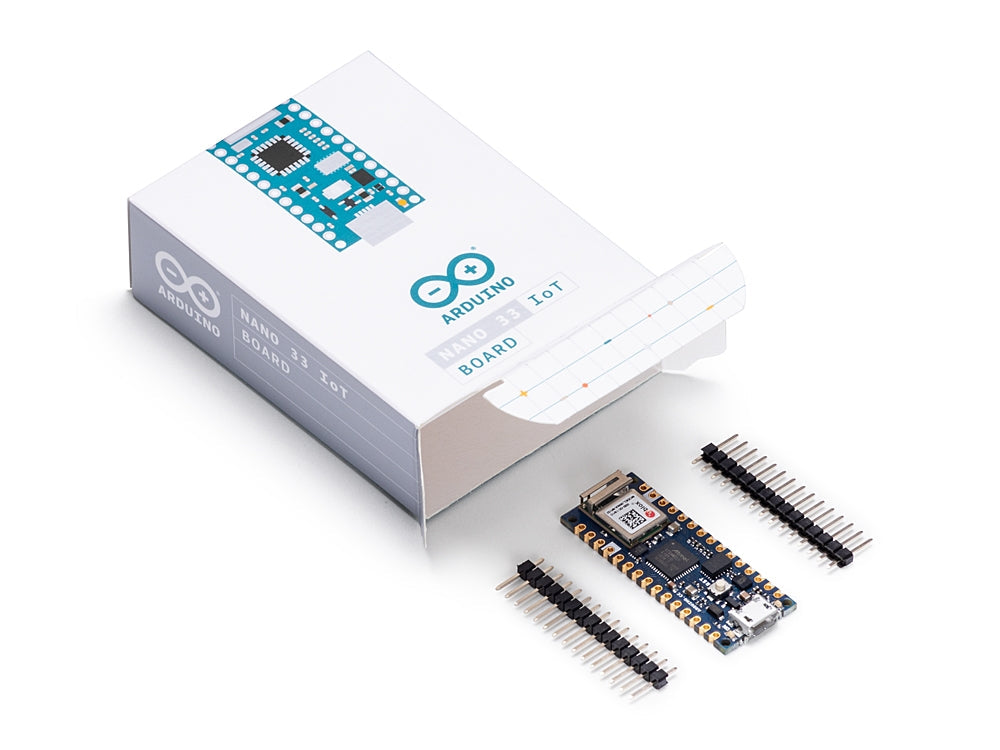

This ABX00027 configuration is supplied without mounted headers. The board uses 3.3V logic and is not 5V tolerant.
