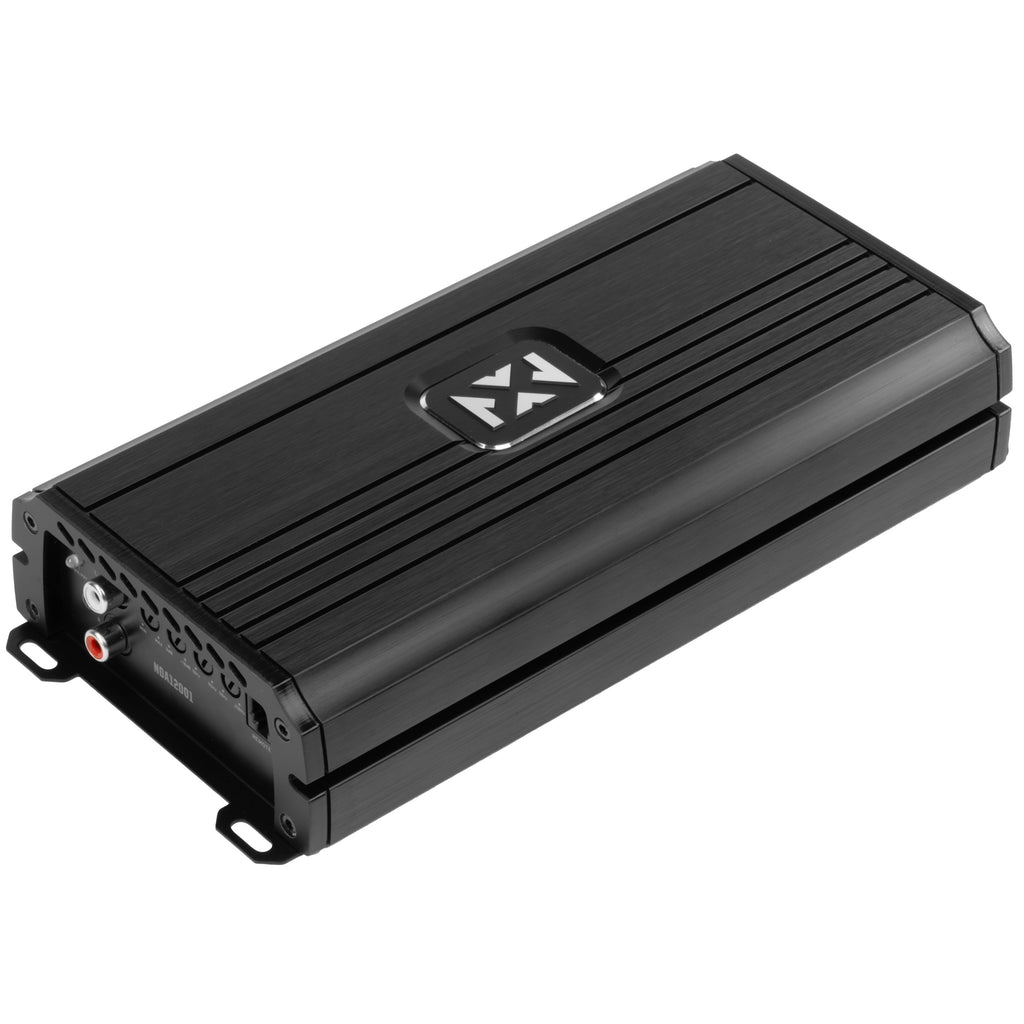

NDA12001 1200W RMS Class-D 1-Ohm Stable Monoblock Car Amplifier with Wired Bass Level Remote

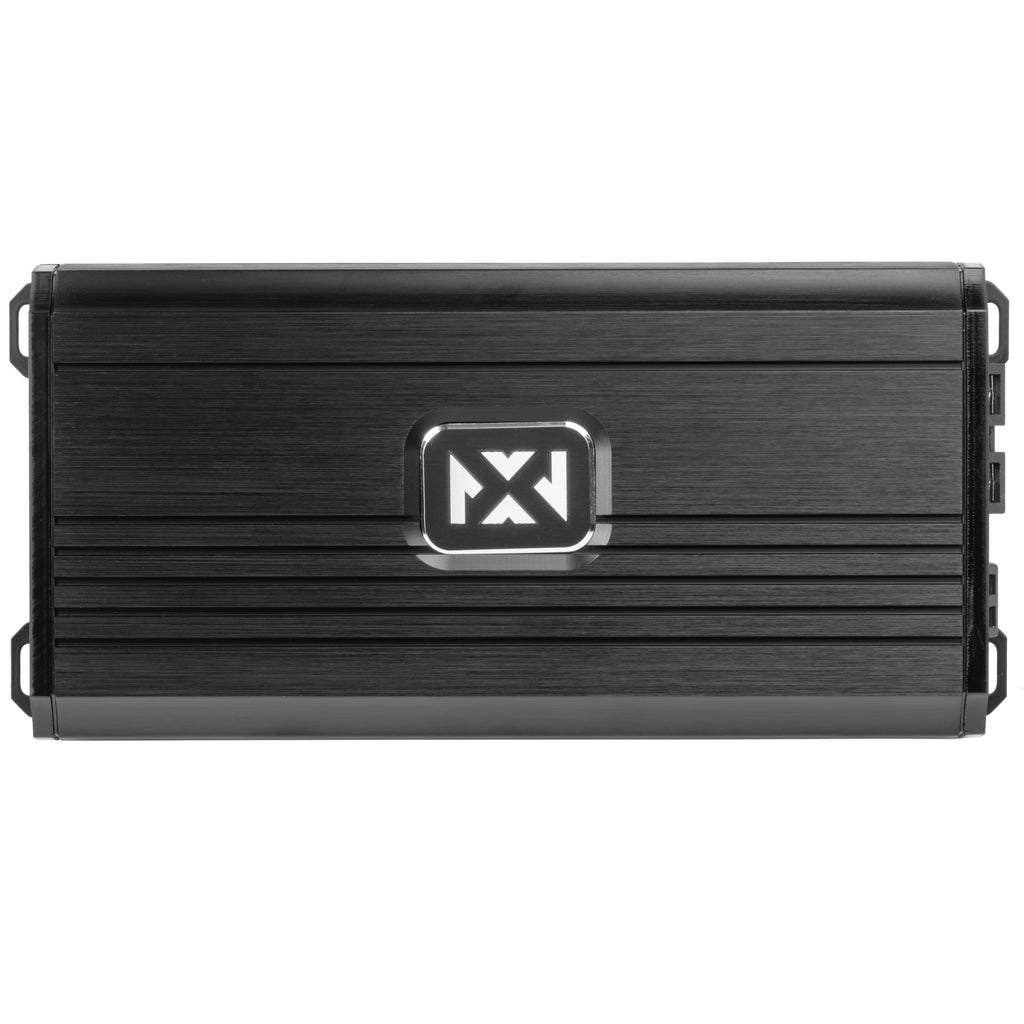

The NDA12001 is a compact N-Series Class-D monoblock car amplifier rated for up to 1200W RMS at 1 ohm and supplied with a wired bass-level remote.

Key Features

• Delivers 1200W RMS at 1 ohm, 850W RMS at 2 ohms or 500W RMS at 4 ohms.
• High-level and low-level inputs support integration with a range of vehicle audio systems.
• Signal-sensing remote turn-on can activate the amplifier from a compatible input signal.
• Balanced differential inputs help reject noise picked up by signal cables.

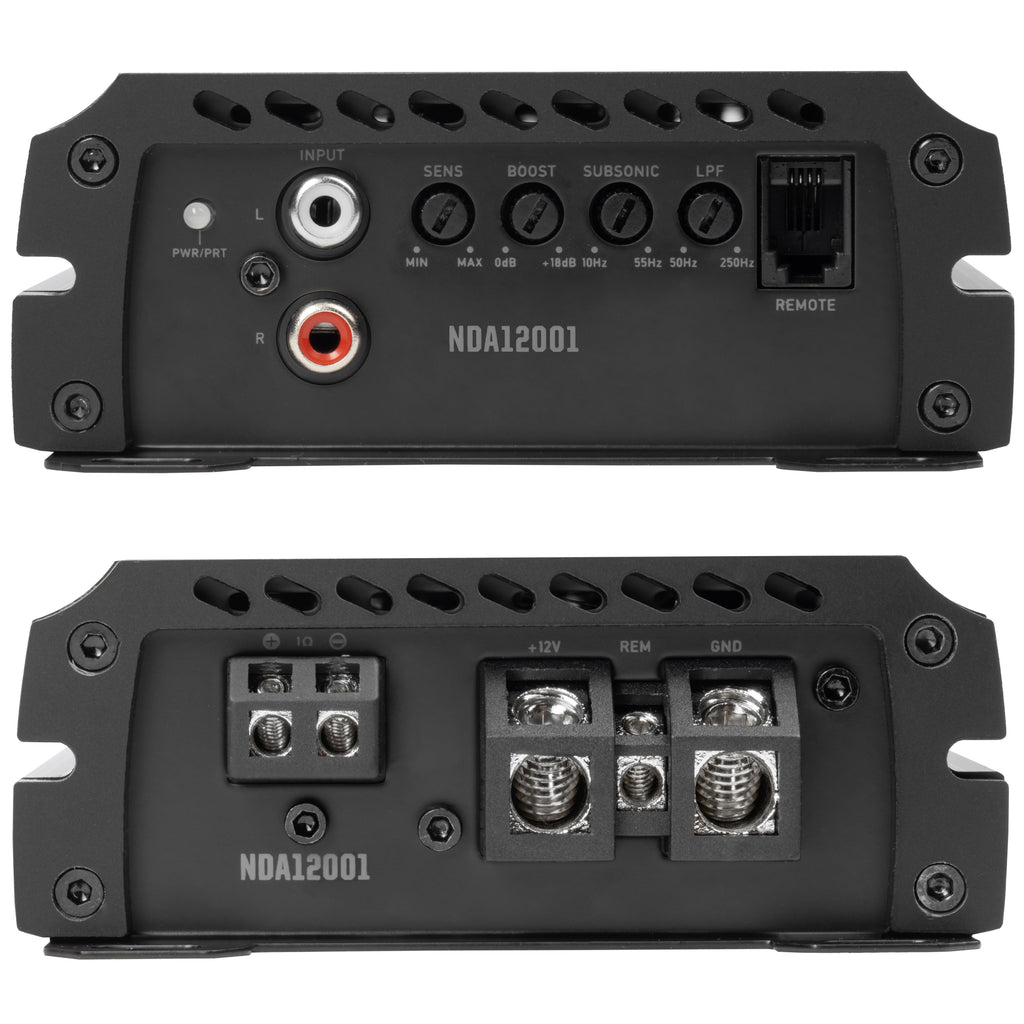

• Variable low-pass, subsonic and bass-boost controls support subwoofer tuning.
• Protection circuitry covers thermal conditions, overload, speaker shorts and DC offset.

Specifications

• Model: NDA12001
• Amplifier class: Class D
• Channels: One mono channel
• Minimum impedance: 1 ohm
• Total RMS output: 1200W
• Peak output: 2400W
• Frequency response: 20–250Hz
• Total harmonic distortion: Less than 0.1%
• Signal-to-noise ratio: Greater than 96dB
• Input sensitivity: 0.2–10V, high or low level
• Low-pass filter: 50–250Hz
• Subsonic filter: 10–55Hz
• Bass boost: 0–18dB
• Dimensions: 9.37 × 4.42 × 1.73 inches
• Installation: 4 AWG amplifier wiring kit recommended

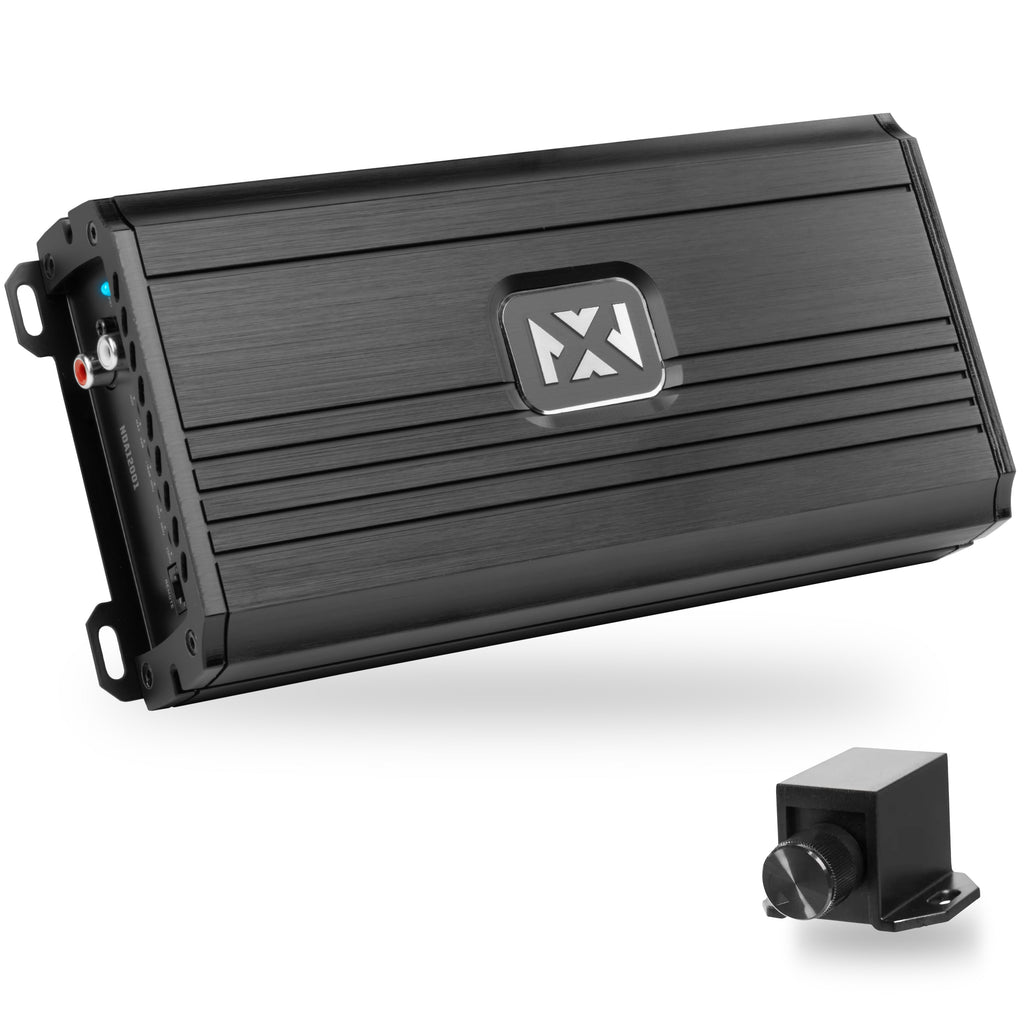

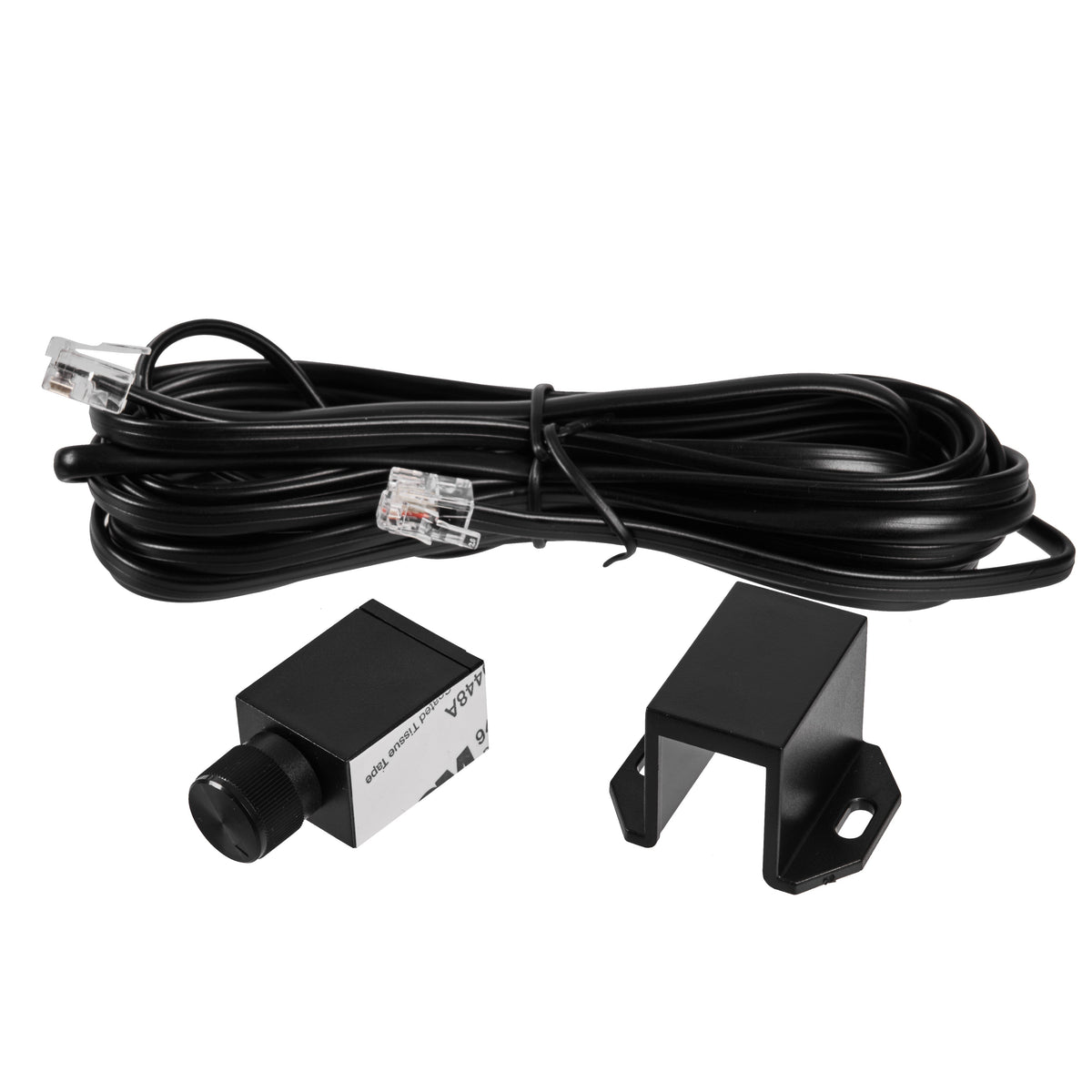

• Included: Wired bass-level remote control
• Manufacturer warranty: One year from original purchase date
