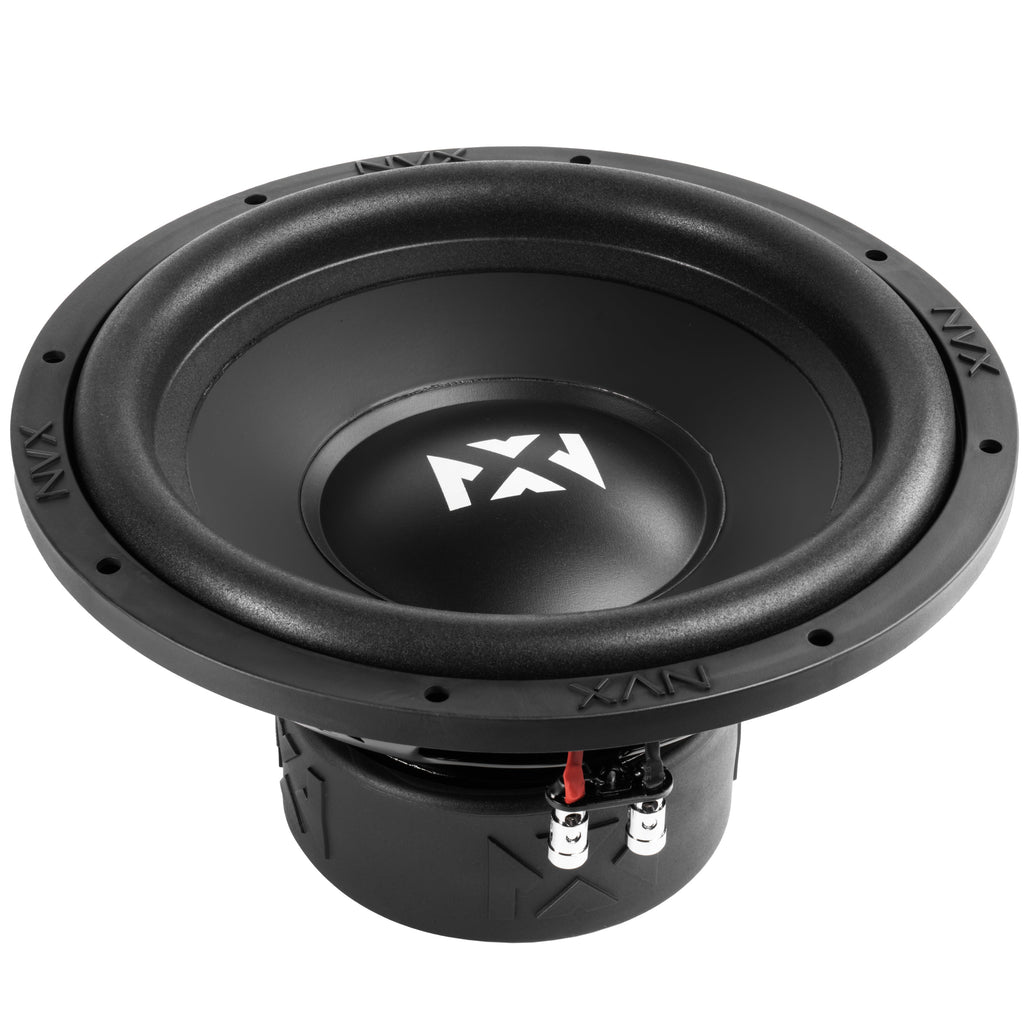

NSW122v3 High-Output 12-Inch Dual 2-Ohm Car Subwoofer with 500W RMS, 1000W Peak and 12.5mm Xmax

The NSW122v3 is a 12-inch dual 2-ohm car subwoofer rated for 500W RMS and 1000W peak power handling, with 12.5mm Xmax for low-frequency output.

Key Features

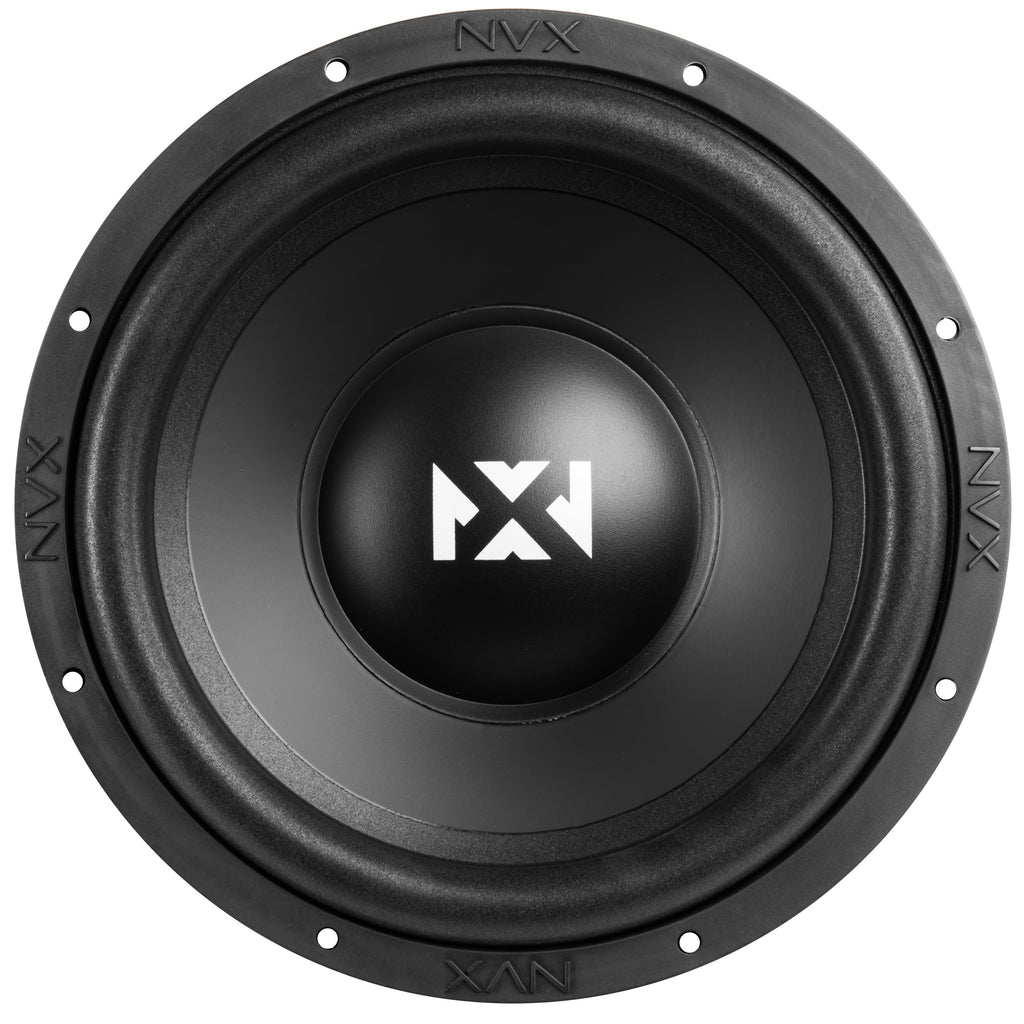

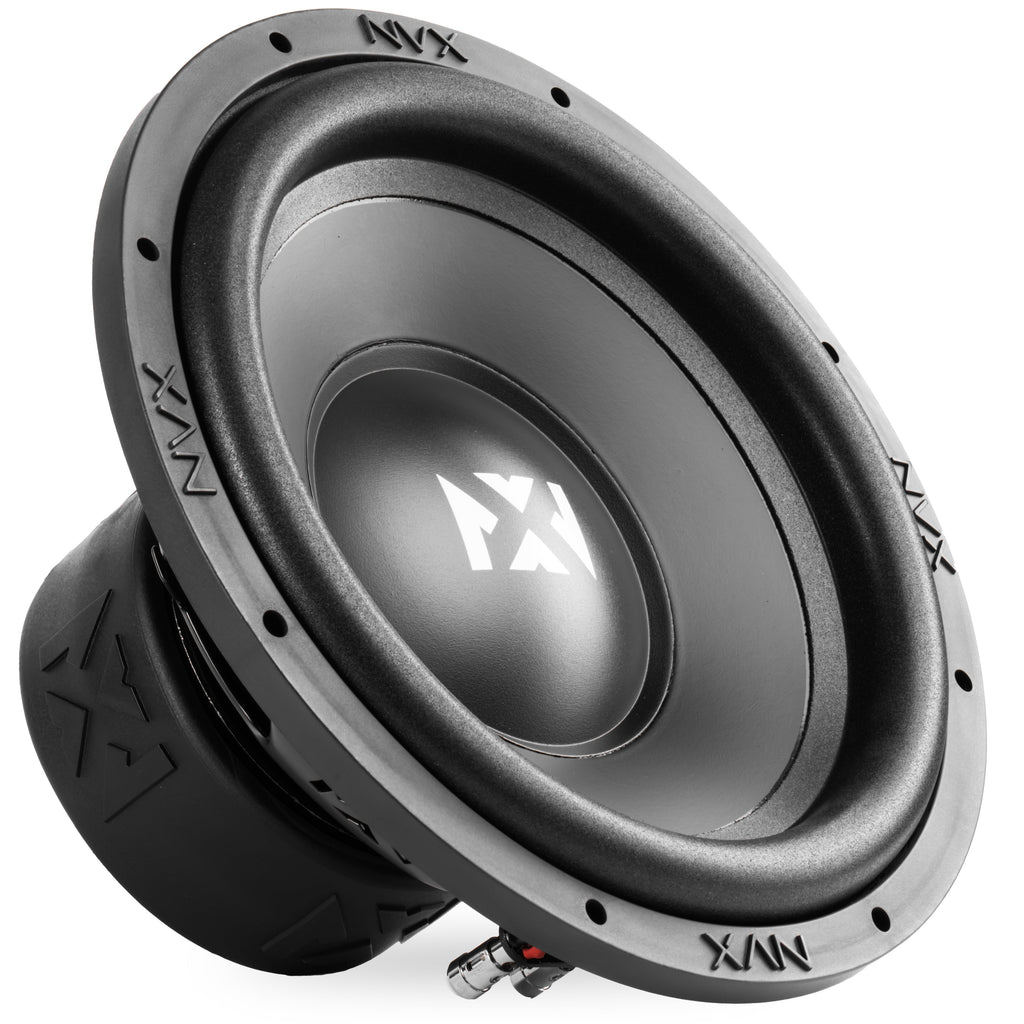

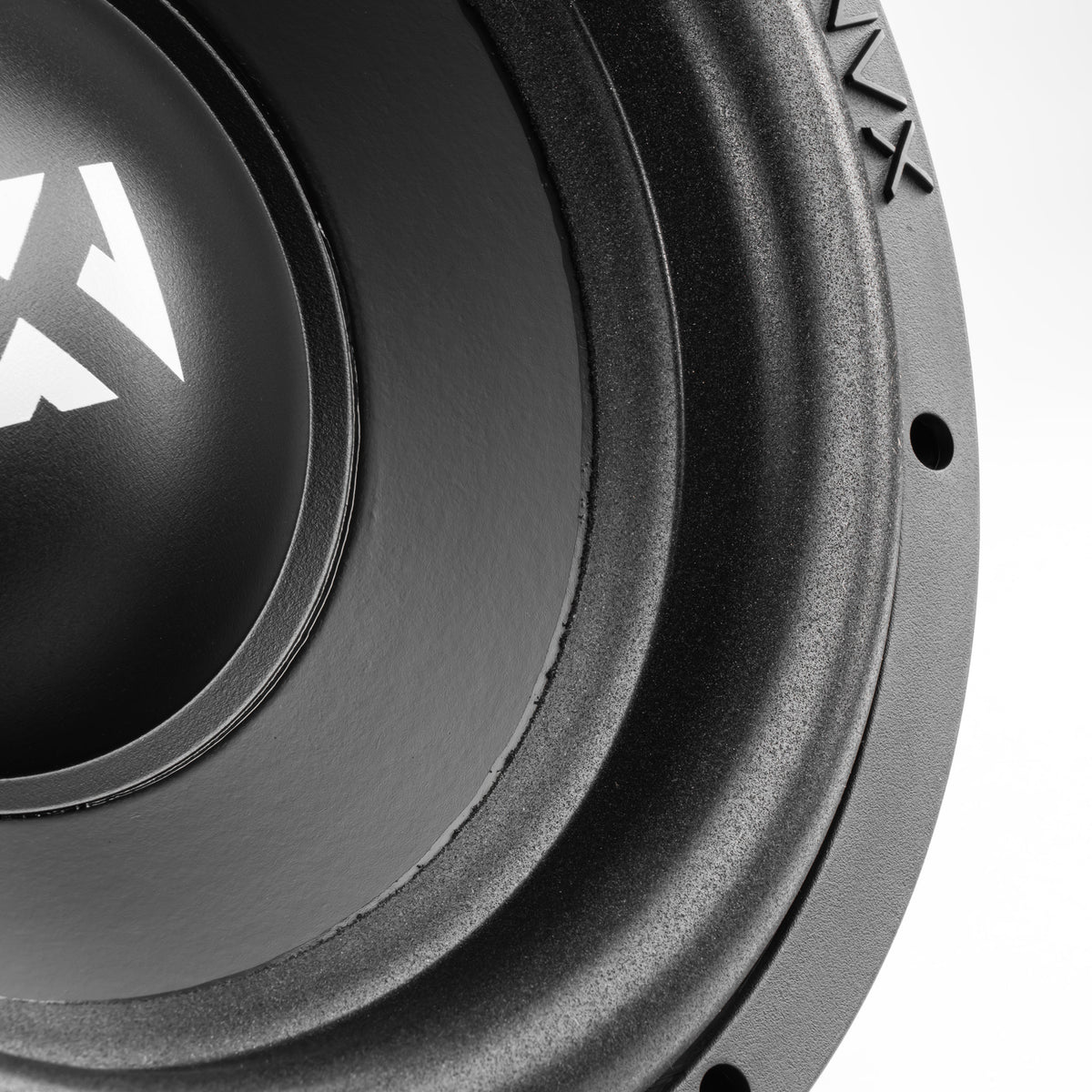

• Enhanced pressed-paper cone uses a high-roll foam surround.

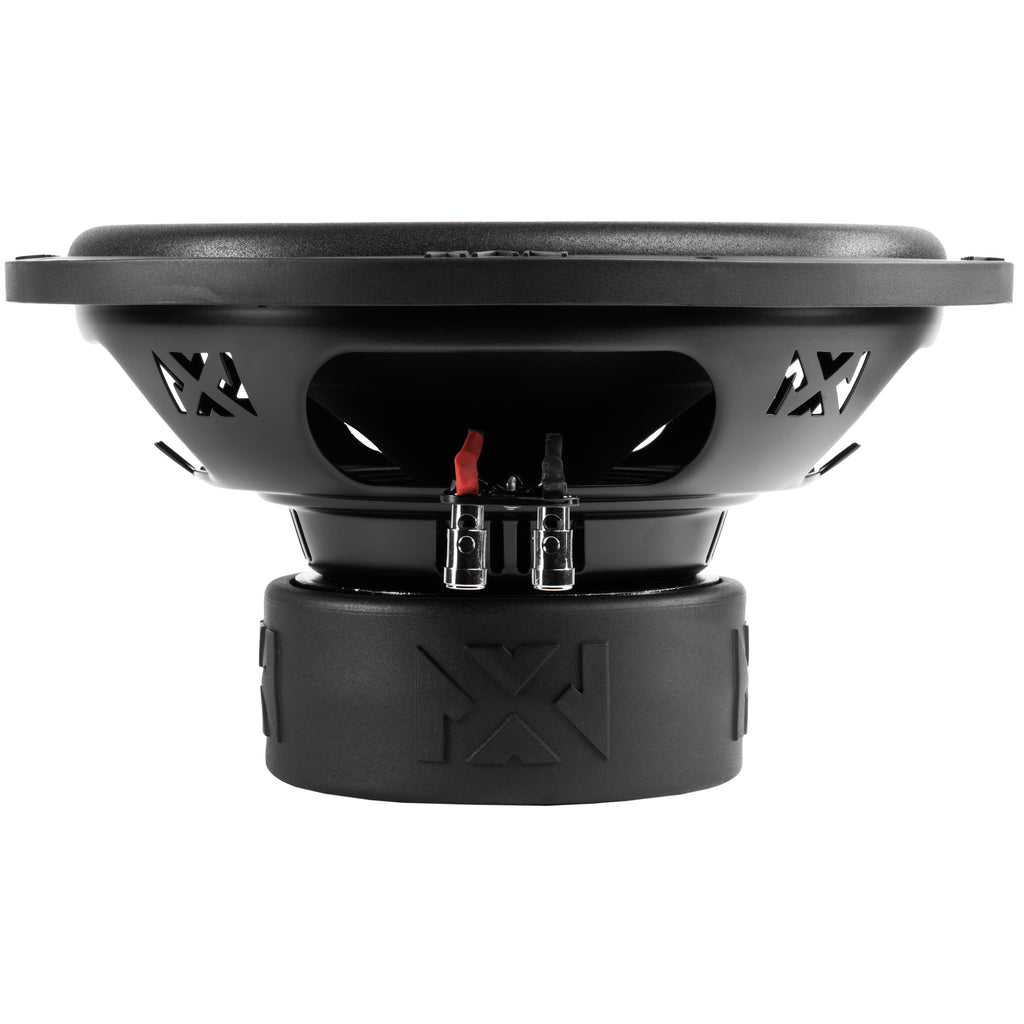

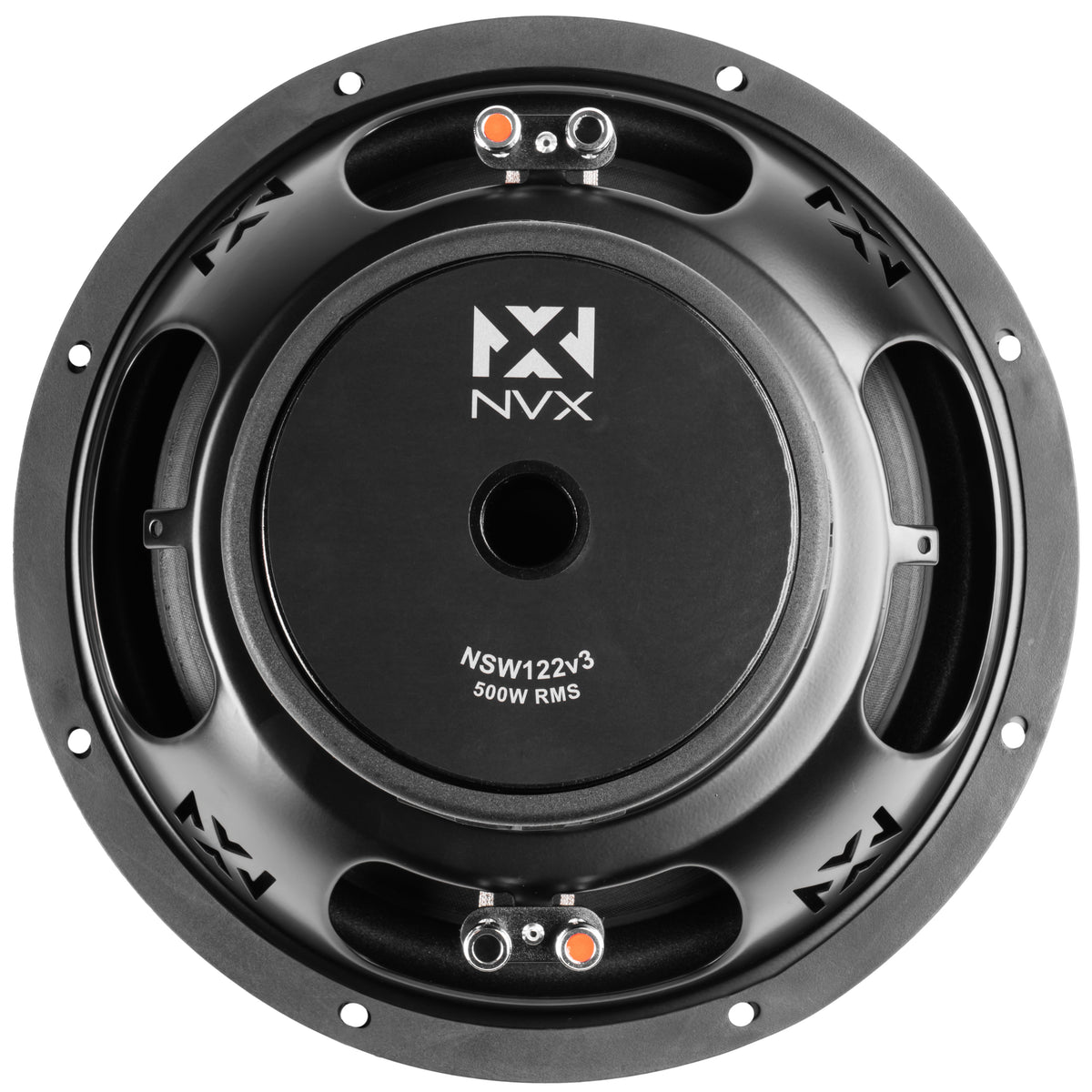

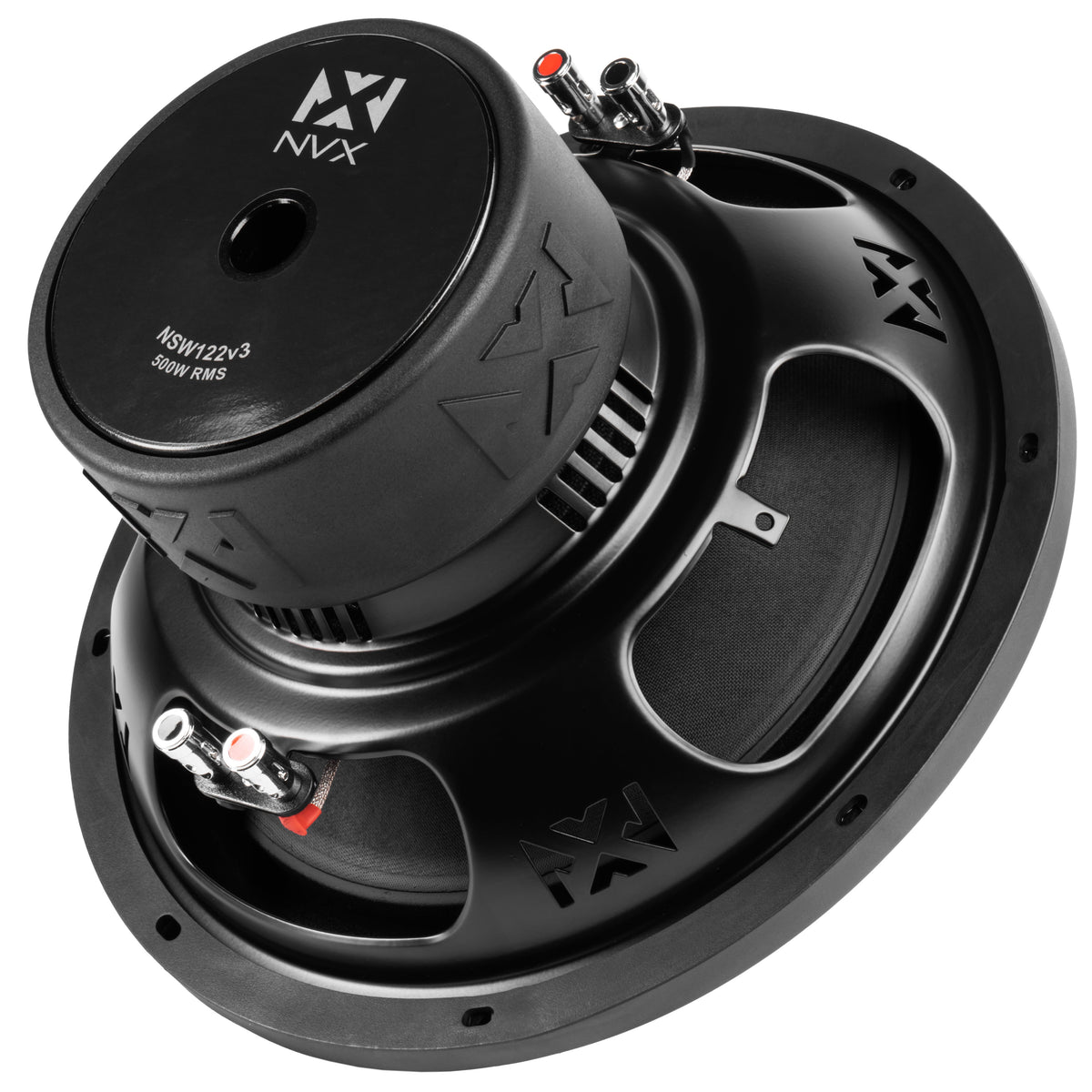

• Stamped-steel vented basket supports airflow around the motor assembly.
• 2.0-inch high-temperature copper voice coil uses an aluminum former.

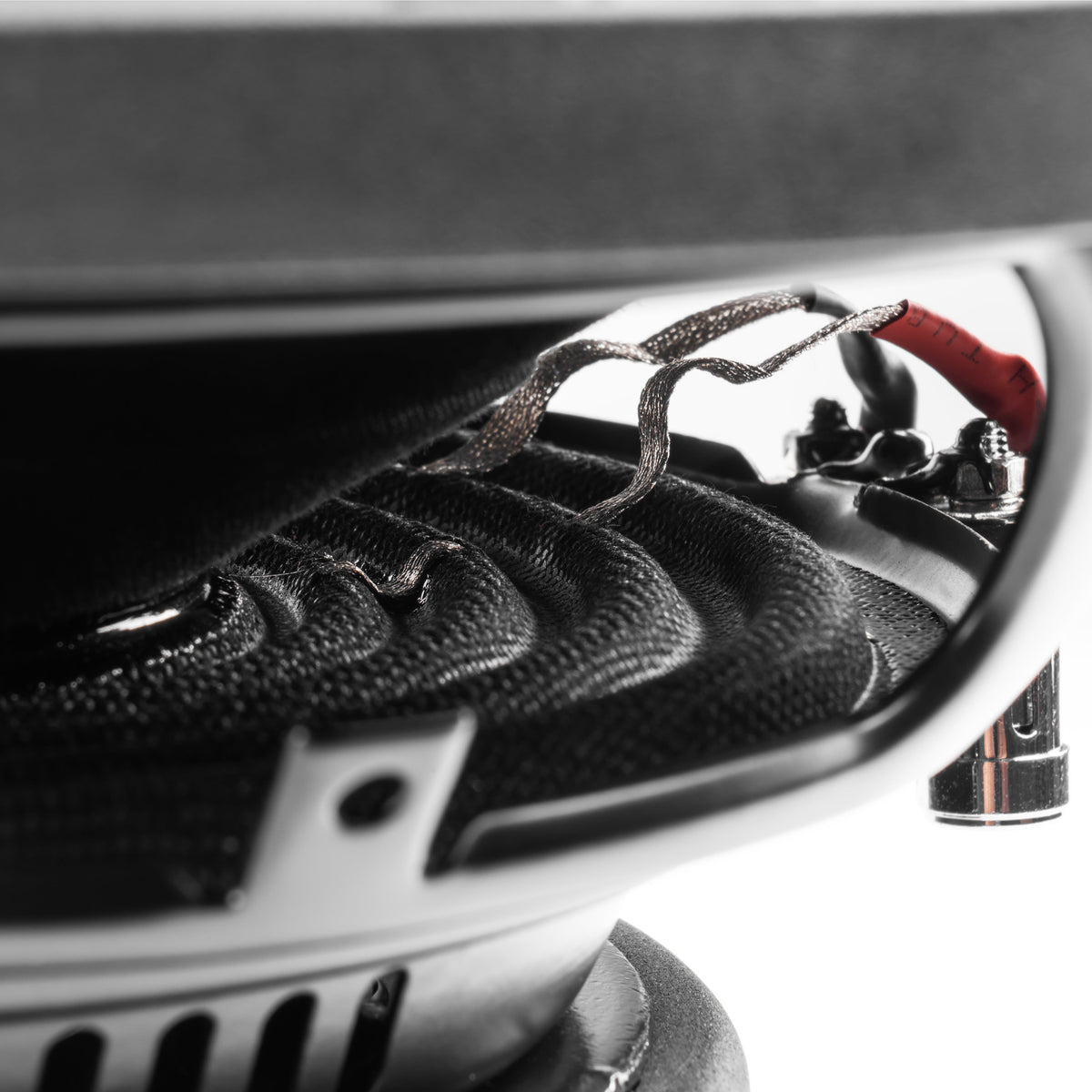

• Progressive-roll single-layer spider integrates the tinsel leads.

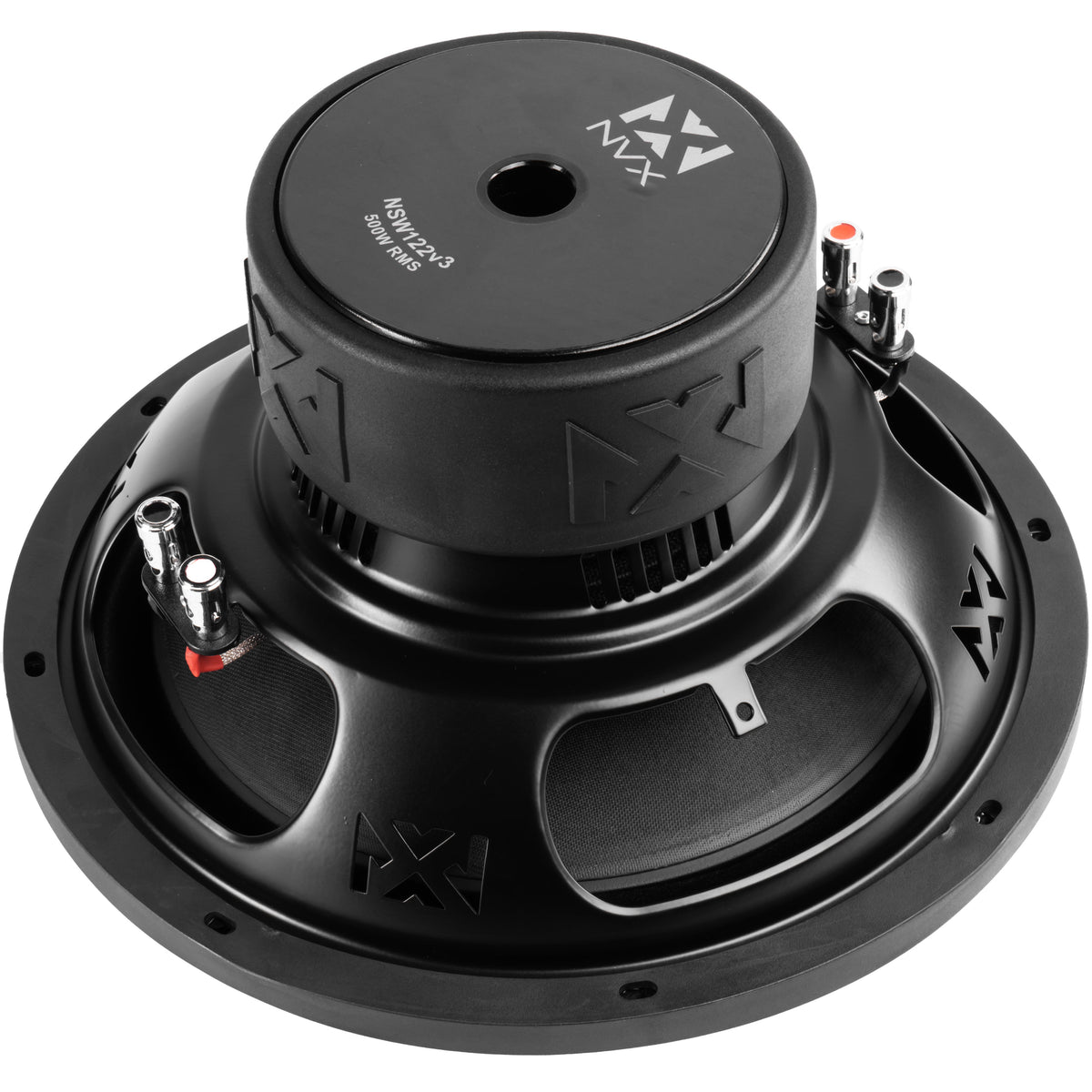

• Double-stacked 112oz ferrite magnet includes a protective rubber boot.
• High-velocity pole vent supports voice-coil cooling.

Specifications

• Model: NSW122v3
• Series: N-Series v3
• Diameter: 12 inches

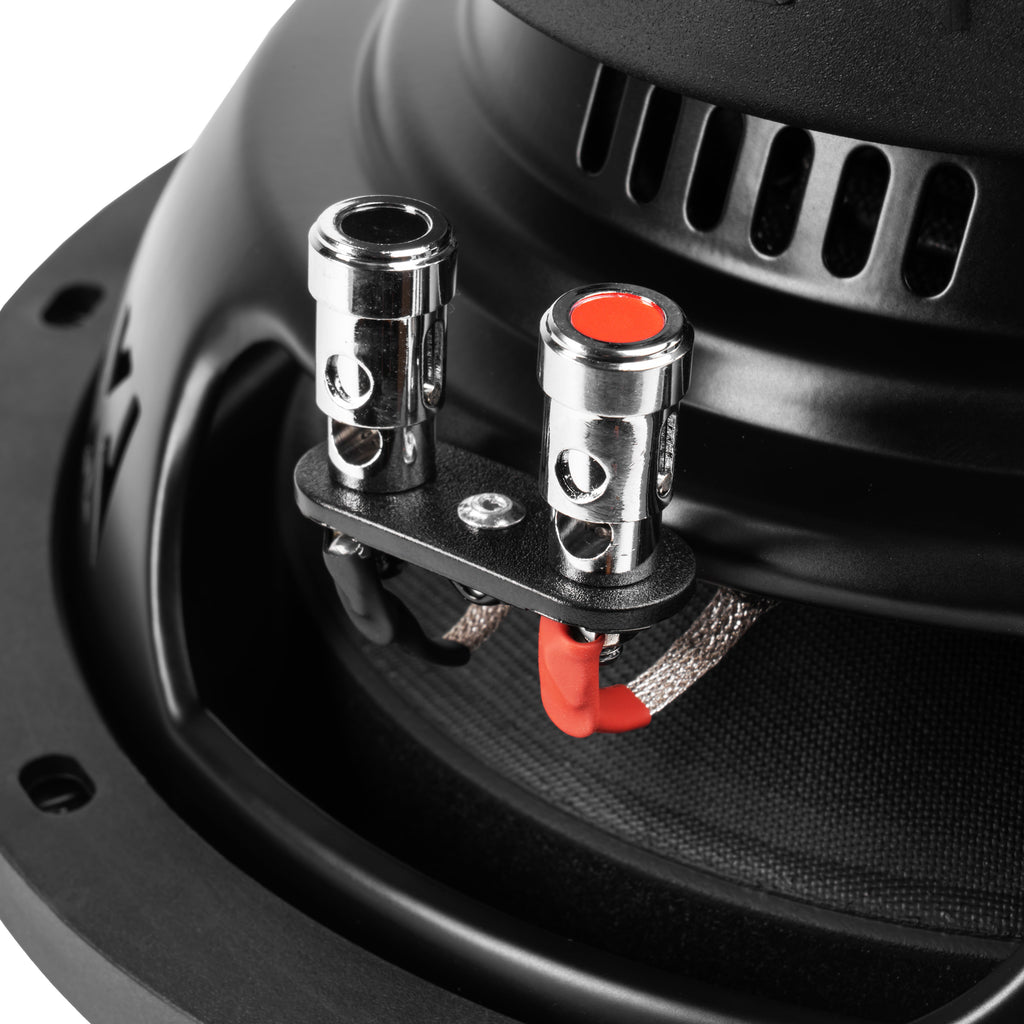

• Voice coils: Dual 2 ohm
• Power handling: 500W RMS; 1000W peak
• Xmax: 12.5mm
• Frequency response: 20–200Hz
• Resonance frequency: 34.67Hz
• Sensitivity: 87dB
• Recommended sealed enclosure: 1.25 cubic feet
• Recommended ported enclosure: 2.0 cubic feet
• Top-mount depth: 6.0 inches
• Cutout diameter: 10.86 inches
• Compliance: CTA-2031
