VAD10001v2 1000W RMS Marine Class-D Monoblock Car Amplifier with Wired Bass Remote and Filters

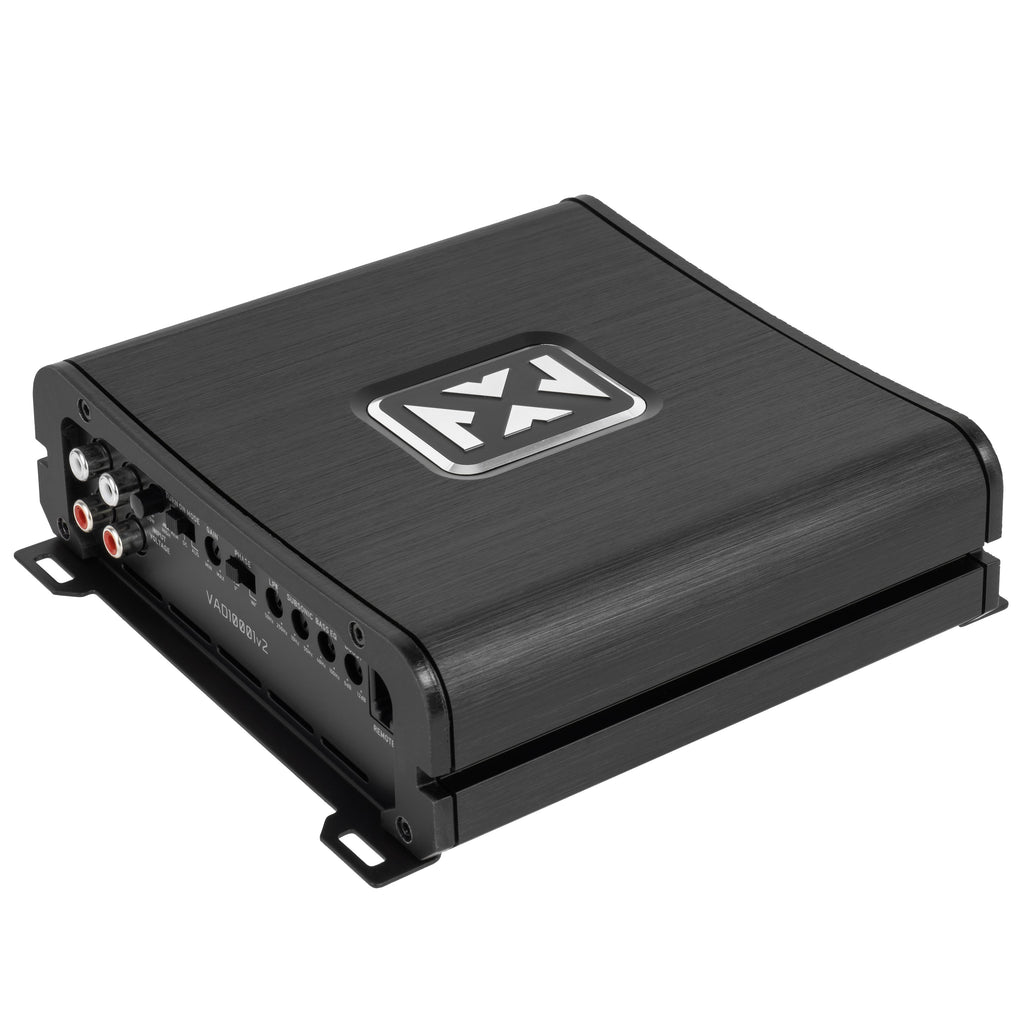

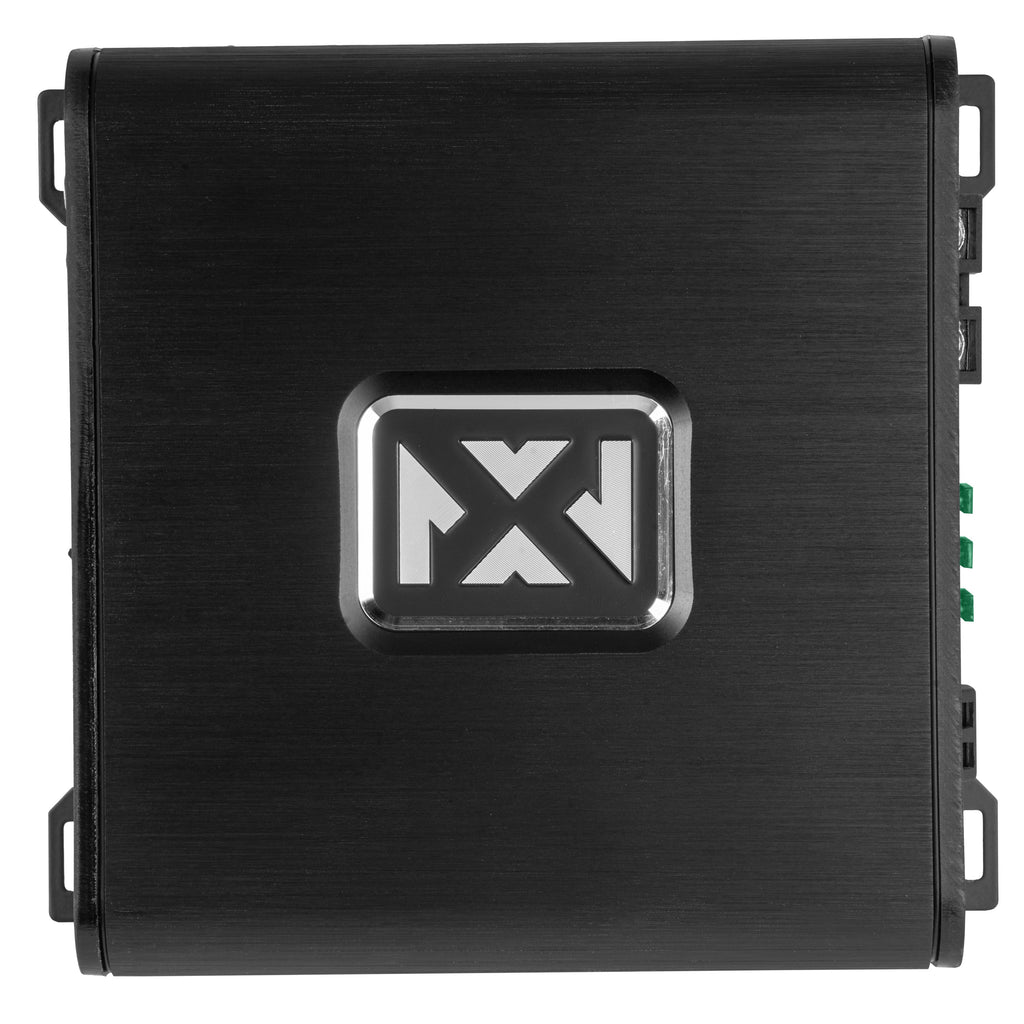

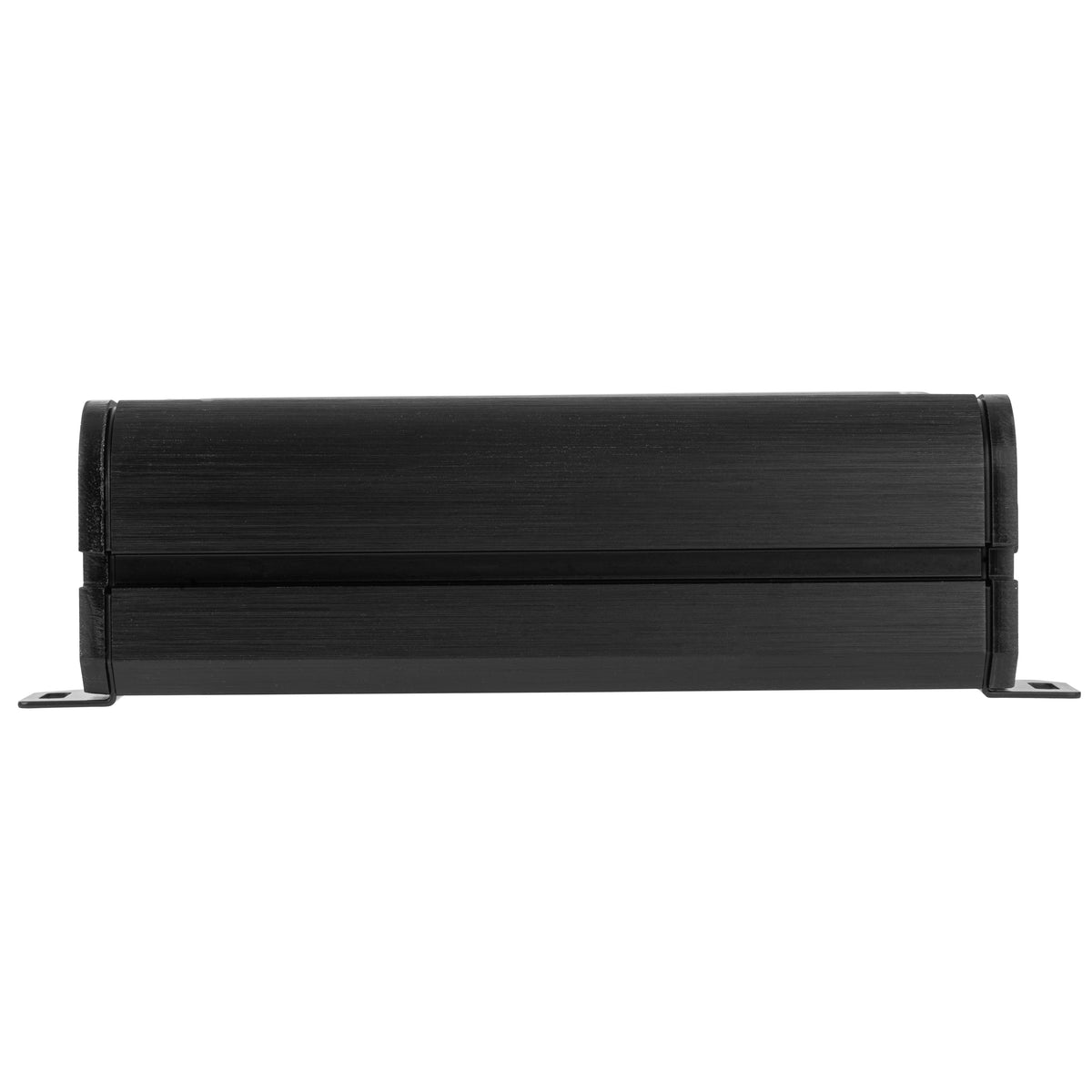

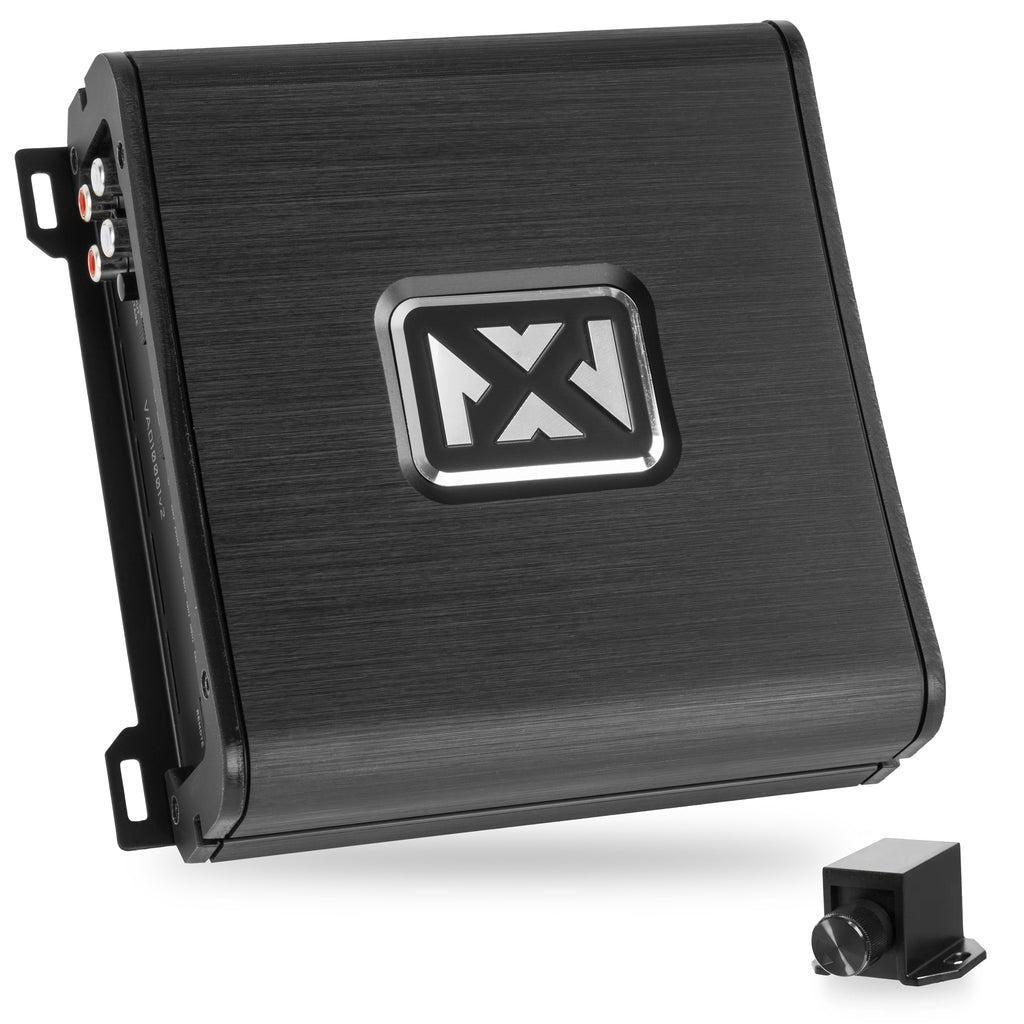

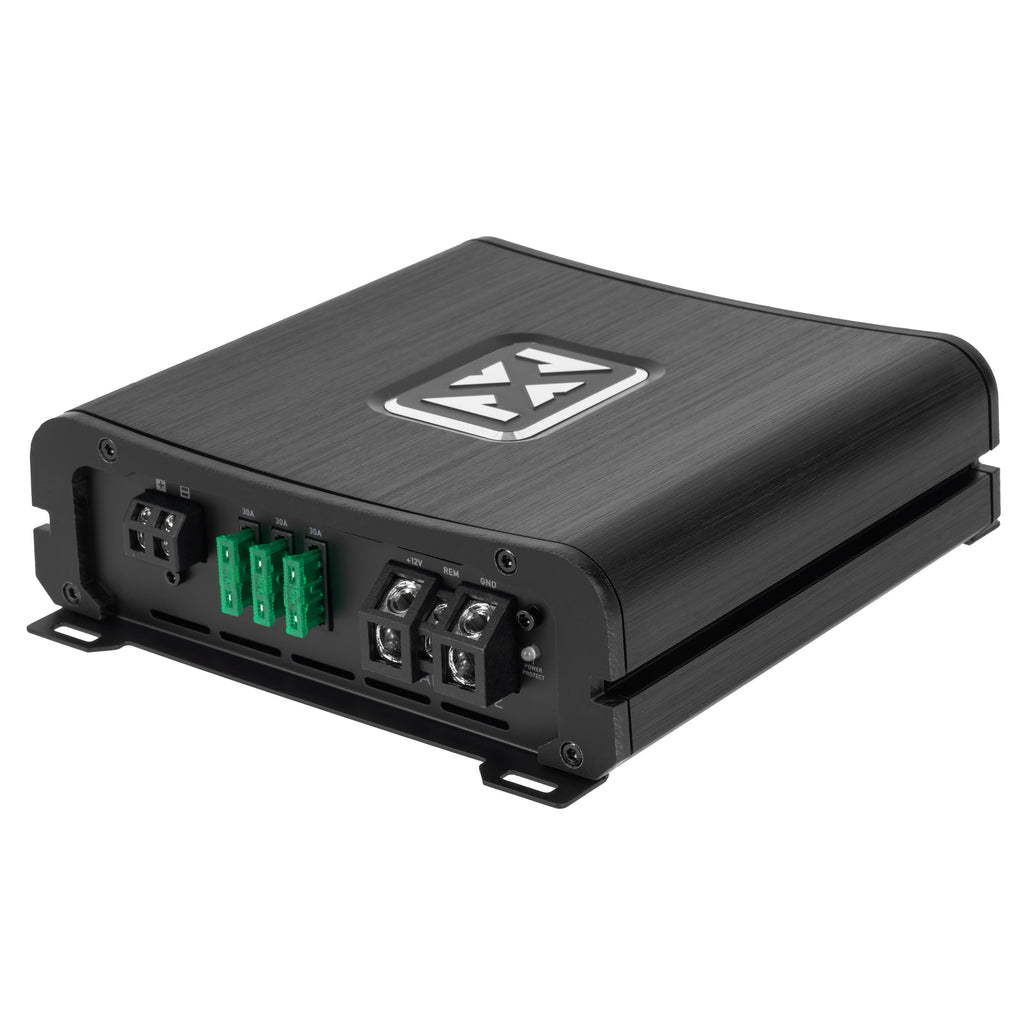

The NVX VAD10001v2 is a marine-certified Class-D monoblock amplifier designed to power a compatible vehicle or marine subwoofer at loads down to one ohm.

Key Features

• Delivers 420W RMS at 4 ohms, 760W at 2 ohms or 1000W at 1 ohm.
• Conformal-coated marine-grade circuit board resists harsh installation environments.

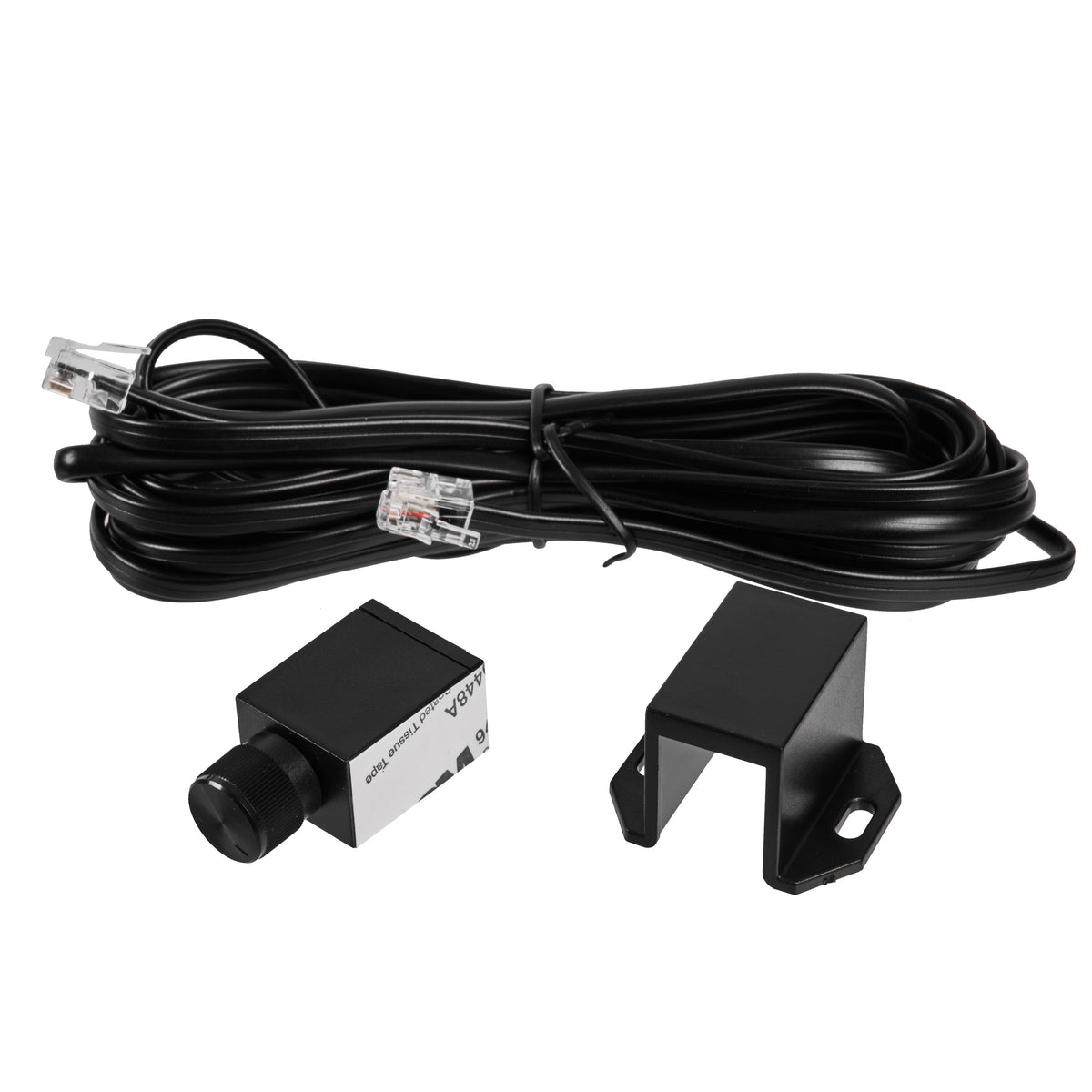

• Wired bass-level remote provides convenient adjustment from the listening position.

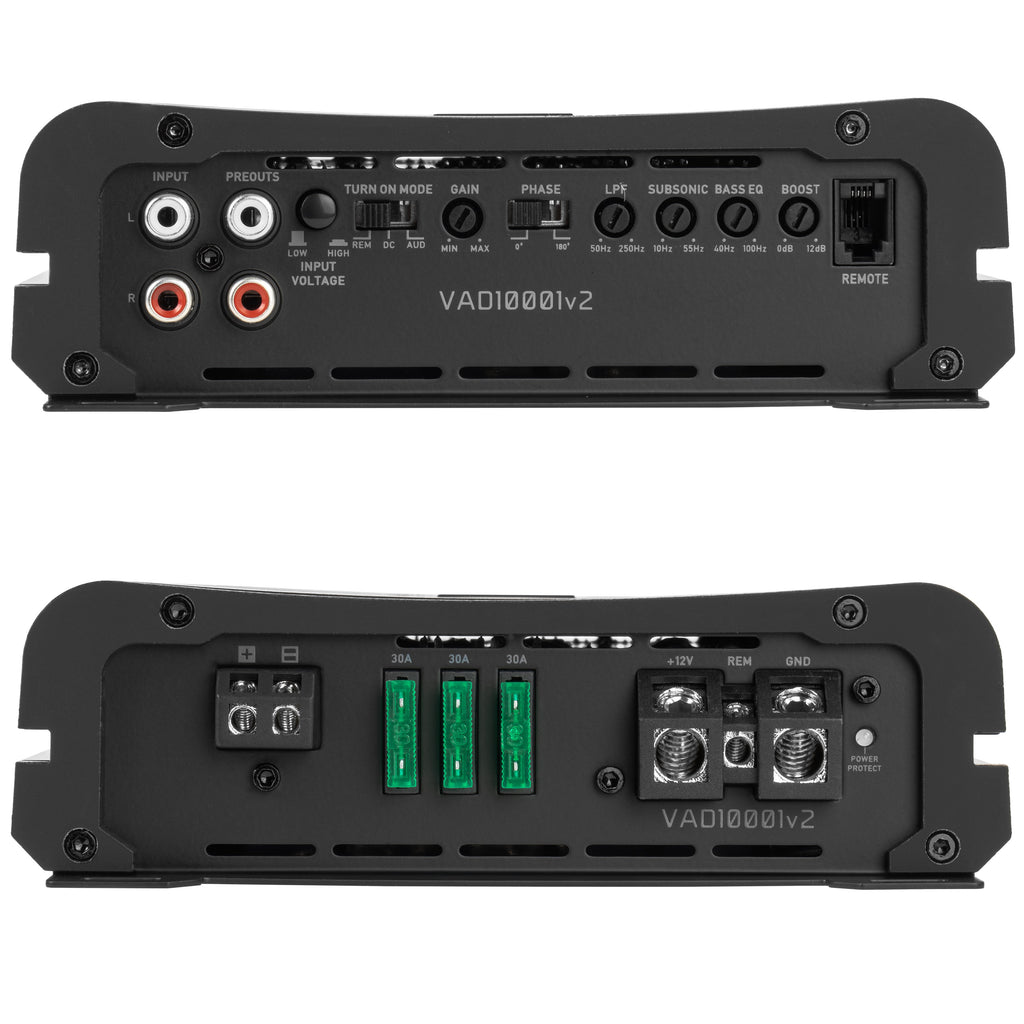

• Balanced differential, RCA and speaker-level connections support flexible installation.
• Signal-sensing turn-on supports remote, DC-offset and audio activation.
• Four-way protection covers thermal load, overload, speaker short and DC offset.

Specifications

• Brand and model: NVX VAD10001v2
• Amplifier class: D
• Channels: One
• Minimum impedance: 1 ohm
• Total RMS output: 1000W
• Frequency response: 20–250Hz
• Input sensitivity: 0.2–18V
• THD: 0.3%
• Signal-to-noise ratio: Greater than 85dB
• Low-pass filter: 50–250Hz, 24dB/octave
• Subsonic filter: 10–55Hz, 24dB/octave
• Bass boost: 0–12dB at 45Hz
• Fuse rating: 90A
• Dimensions: 7.16 × 6.81 × 2.05 inches
