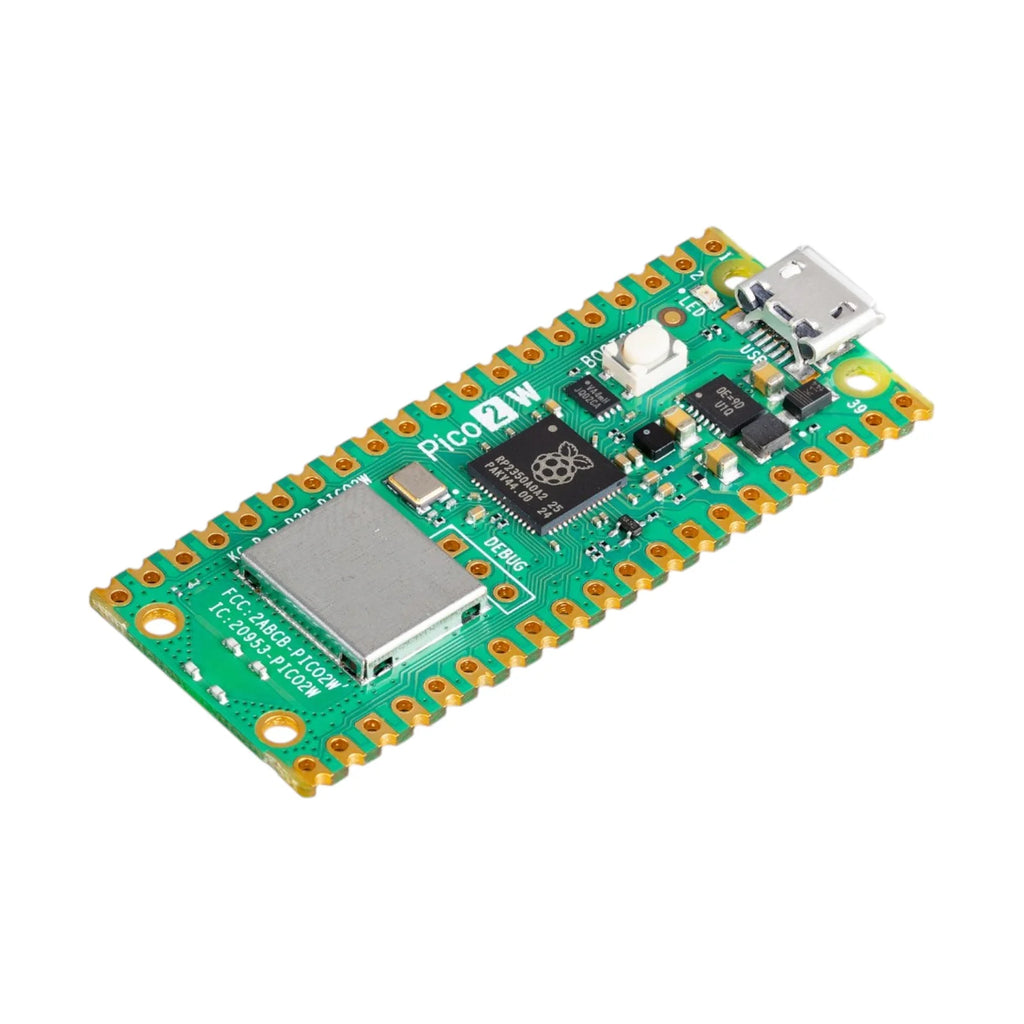

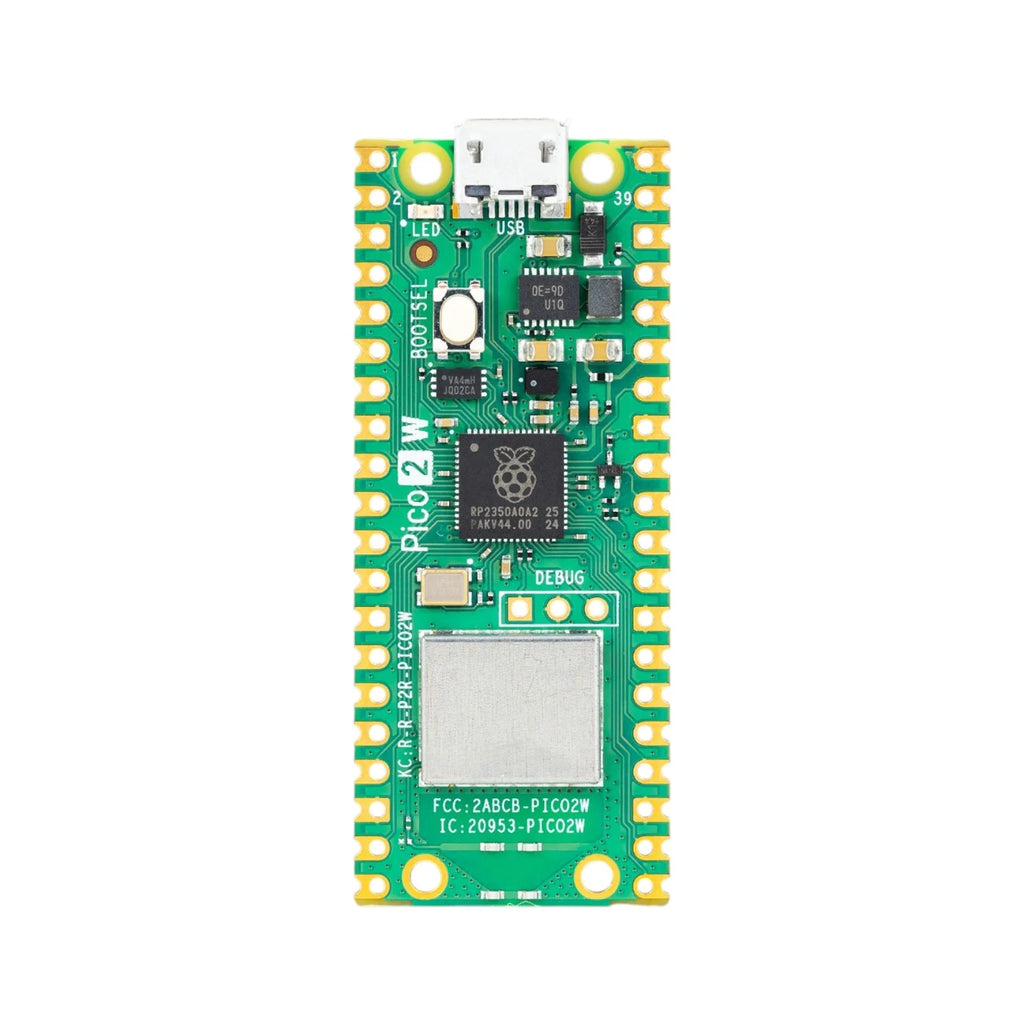

Pico 2 W Wireless Microcontroller Development Board with RP2350 Dual-Core Processing for Connected Projects

Pico 2 W is a wireless microcontroller development board for connected devices, sensors and embedded projects. Its RP2350 processor offers a choice of dual Arm Cortex-M33 or dual Hazard3 RISC-V cores running at 150MHz. Built-in 2.4GHz Wi-Fi and Bluetooth 5.2 let you add wireless connectivity to your designs.

Key Features

• Selectable Arm or RISC-V dual-core processing.
• 520KB SRAM and 4MB onboard QSPI flash for your programs.
• 802.11n wireless LAN and Bluetooth 5.2 with BLE support.
• 26 GPIO pins with UART, SPI, I2C, PWM and programmable I/O interfaces.
• C/C++ SDK and MicroPython support for embedded programming.
• Arm TrustZone and secure boot support for application security.

Specifications

• Model: Pico 2 W
• Processor: RP2350 at 150MHz
• Memory: 520KB SRAM; 4MB QSPI flash
• Wireless: 2.4GHz 802.11n Wi-Fi; Bluetooth 5.2 with BLE
• Interfaces: USB 1.1, 2 UART, 2 SPI, 2 I2C, 16 PWM channels, 12 PIO state machines
• Supported input: 1.8–5.5V DC
• Operating temperature: -20°C to +85°C
