PR18-15 0–15A Snap-In Ammeter with Internal Shunt and 0.250-Inch Terminals for 10A Battery Chargers

The Power Forged® PR18-15 is a snap-in 0–15A ammeter made as an original replacement for various 10A battery chargers from Schauer, Schumacher and other manufacturers.

Key Features

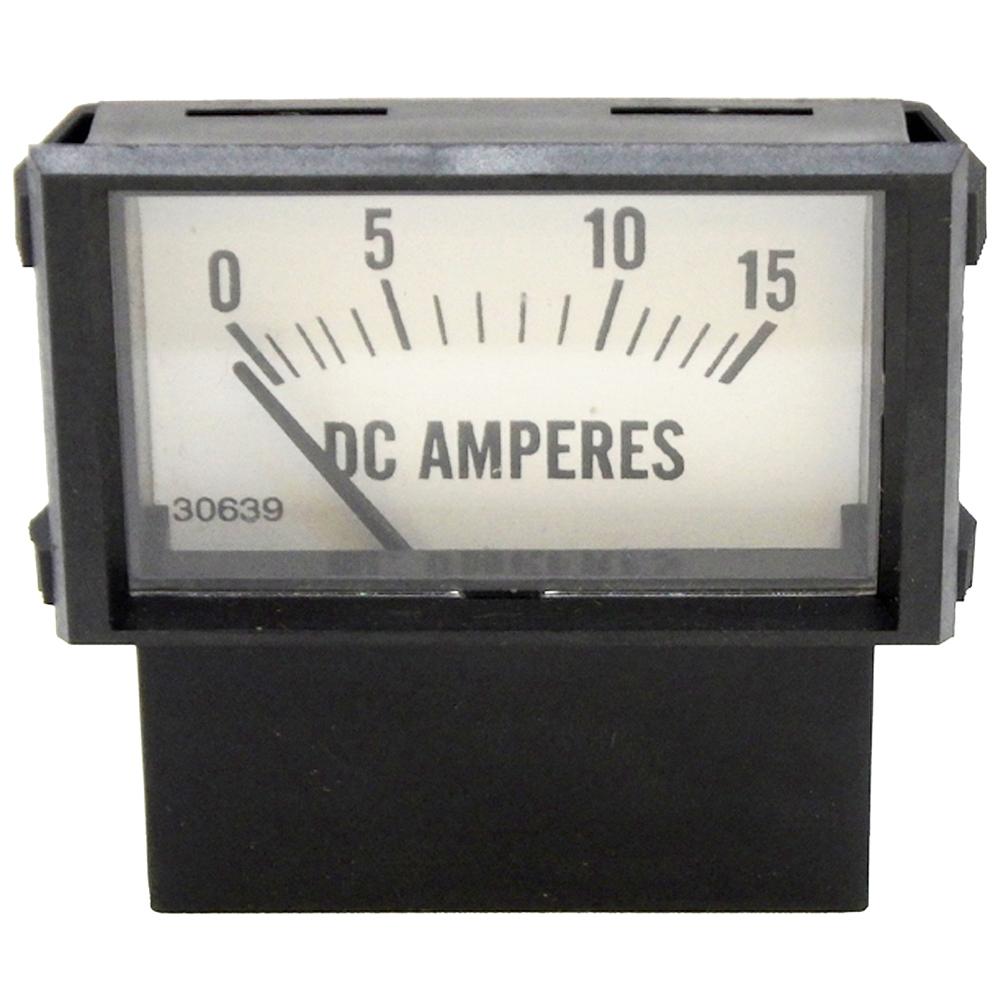

• 0–15 amp analog scale.
• Internal shunt carries charging current through the meter.
• Bottom movement places the needle pivot at the bottom.
• Snap-in panel mounting.

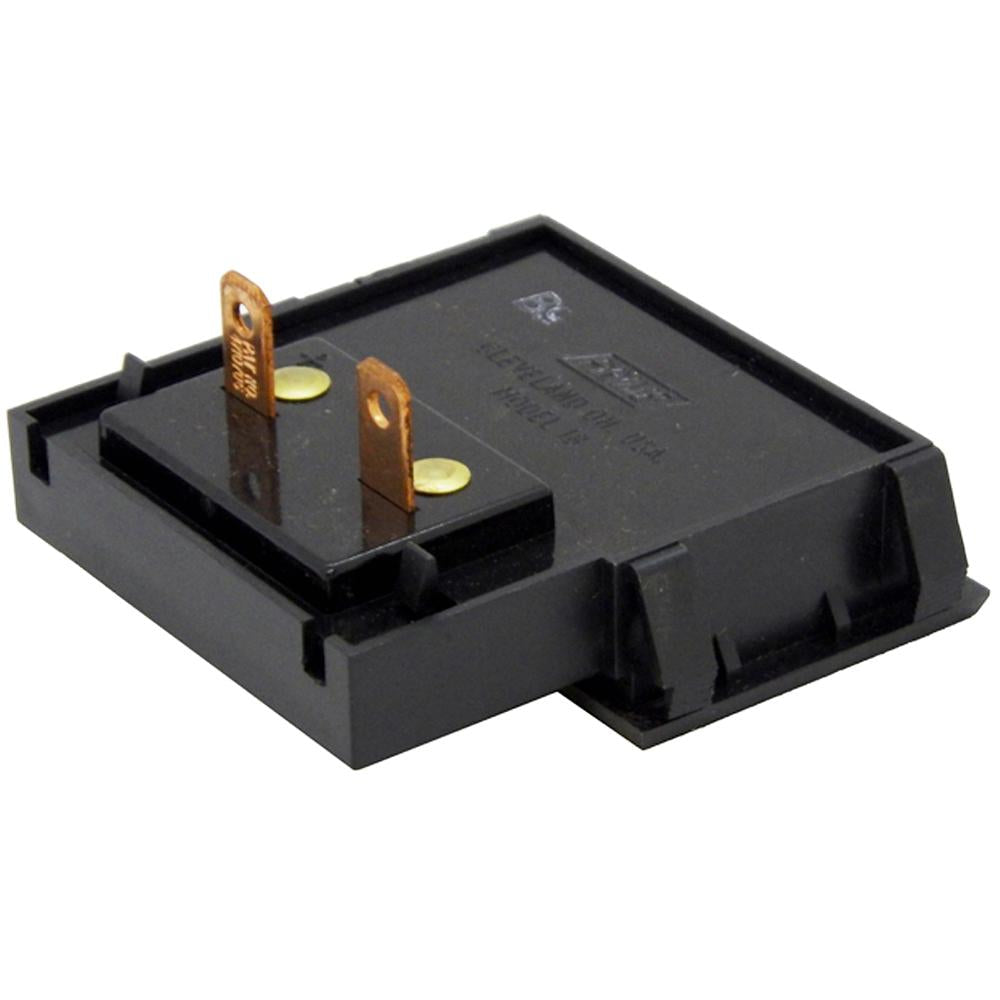

• 0.250-inch push-on connectors.
• Accuracy is 5% of full scale.
• Made in the U.S.A.

Specifications

• Brand: Power Forged®
• Model / SKU: PR18-15

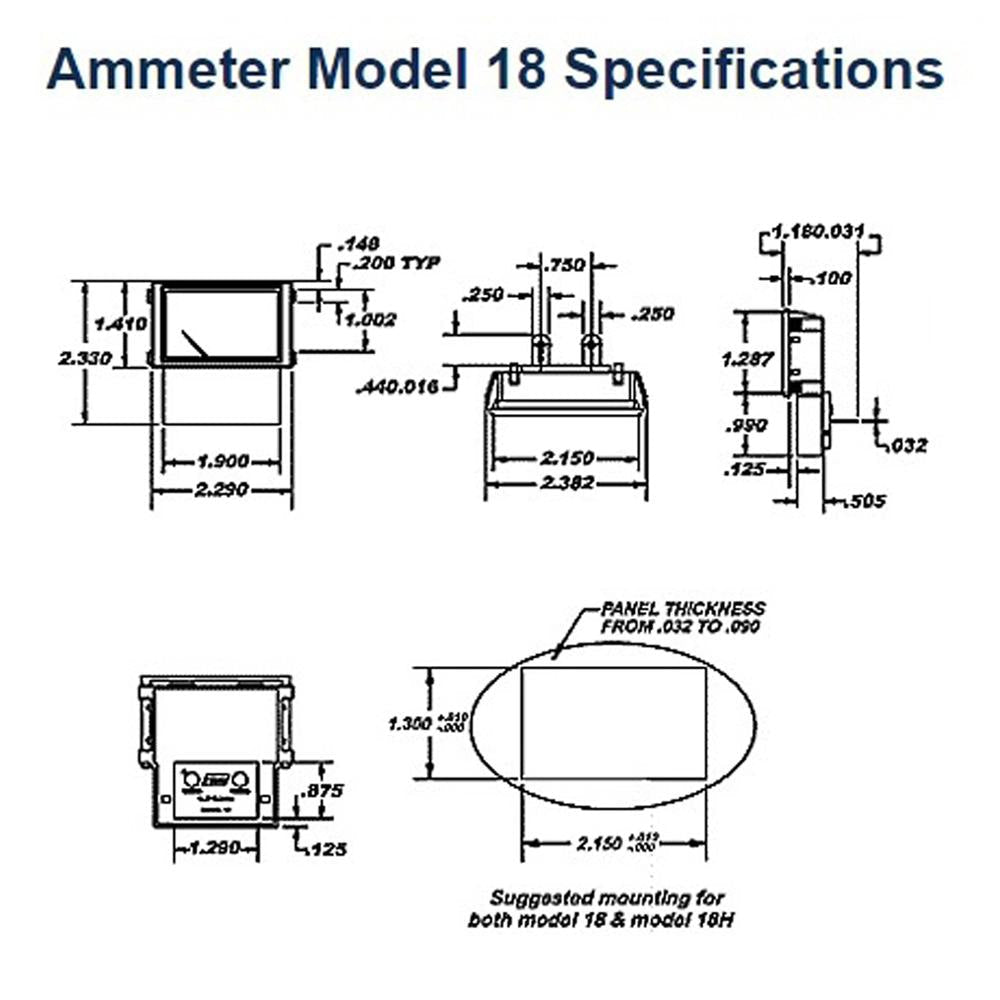

• Bezel outer dimensions: 1.4 inches high × 2.3 inches wide
• Panel mount hole: 1.3 inches high × 2.15 inches wide

Confirm the current range, terminal layout and panel dimensions before ordering. Specific compatible charger model numbers are not provided.
