PR18-15I 0–15A Snap-In Inverted-Movement Ammeter with Internal Shunt for Schumacher Battery Chargers

The Power Forged® PR18-15I is a snap-in 0–15A ammeter made as an original replacement for various 10A Schauer and Schumacher battery chargers. Its inverted top movement places the needle pivot at the top.

Key Features

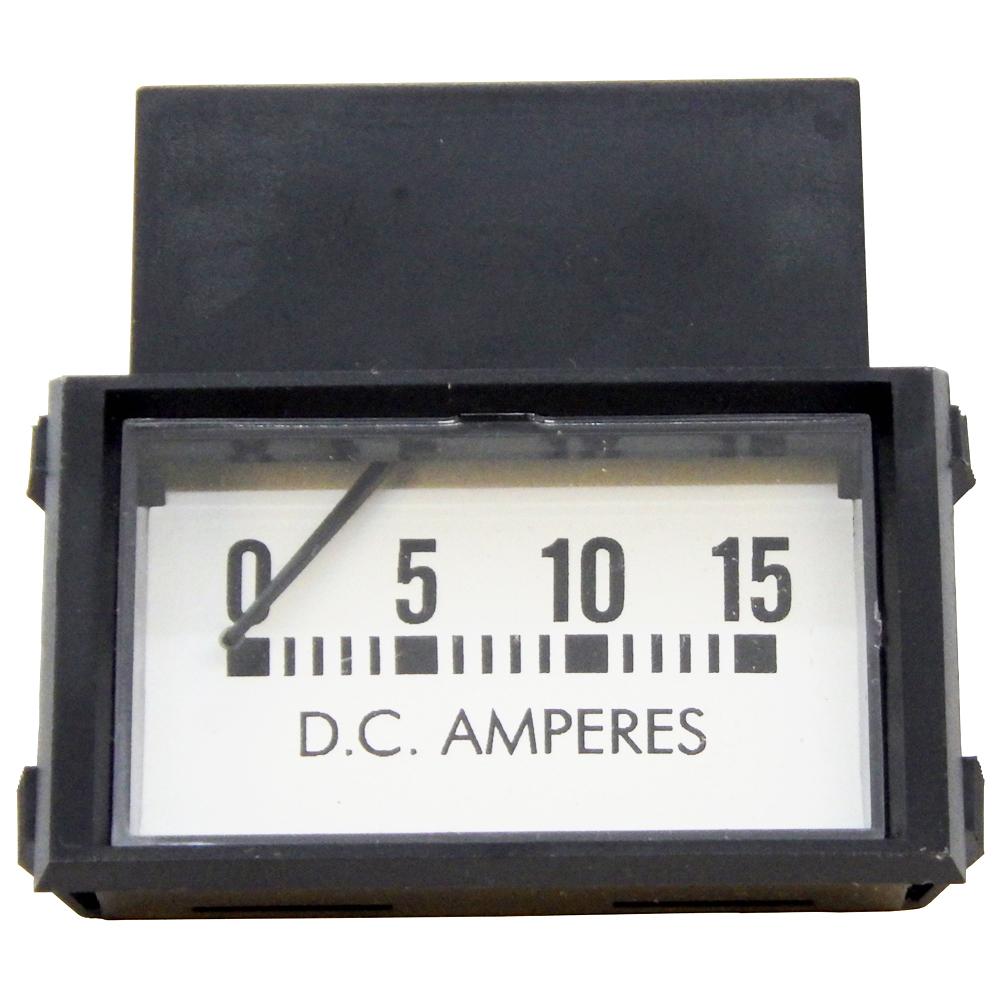

• 0–15 amp analog scale with inverted movement.
• Internal shunt carries charging current through the meter.
• Top movement places the needle pivot at the top.

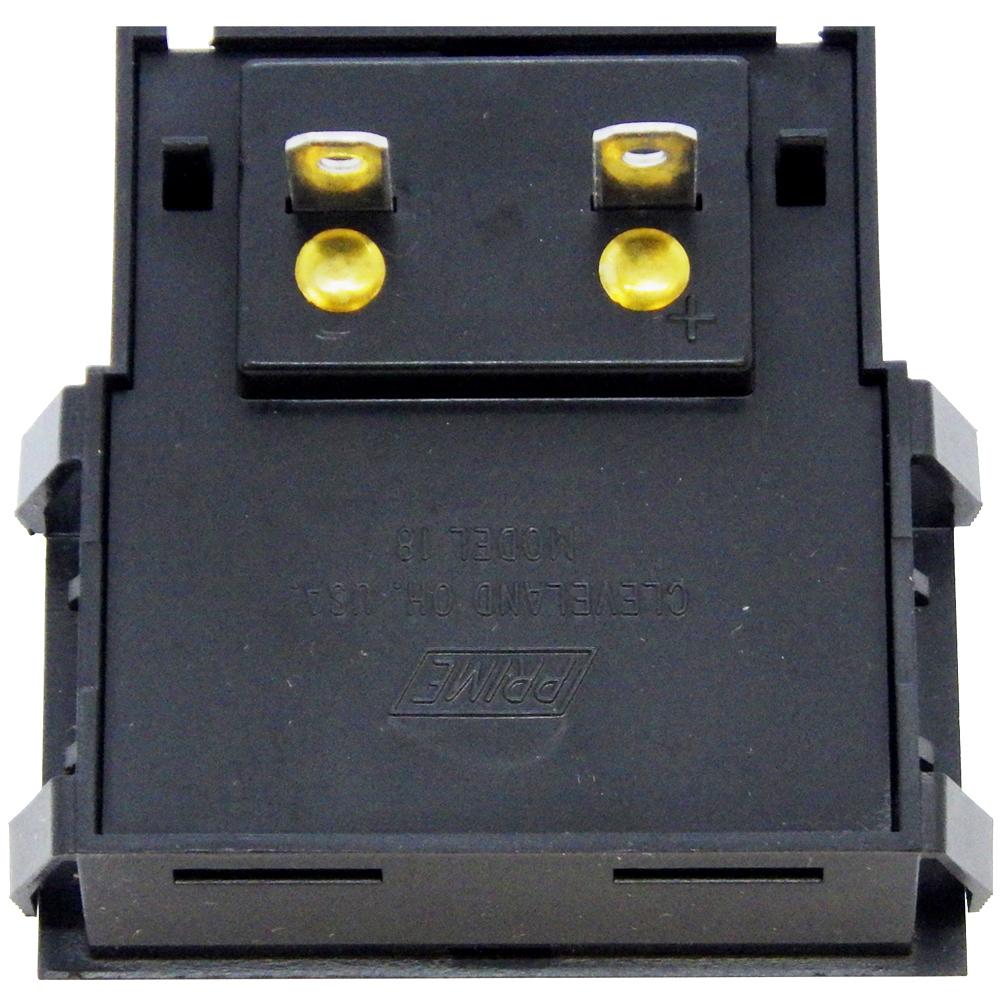

• Snap-in panel mounting.
• 0.250-inch push-on connectors.
• Accuracy is 5% of full scale.
• Made in the U.S.A.

Specifications

• Brand: Power Forged®
• Model / SKU: PR18-15I

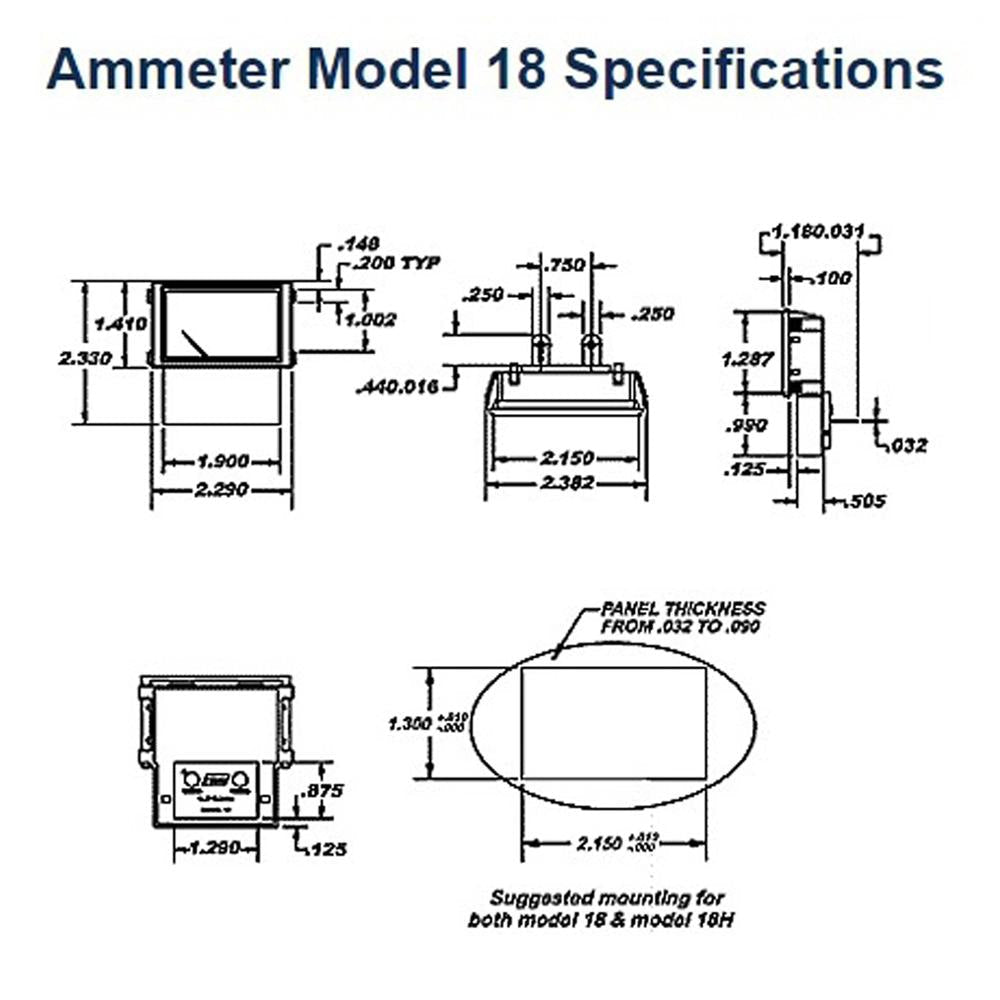

• Bezel outer dimensions: 1.4 inches high × 2.3 inches wide
• Panel mount hole: 1.3 inches high × 2.15 inches wide
• Replaces Schumacher meter numbers: 5399-100-071, 5399100071, 5399-100-073, 5399100073, 5399-100-091, 5399100091, 5399-100-092, 5399100092, 5399-100-098, 5399100098, 5399-100-133, 5399100133, 5399-100-135 and 5399100135

Confirm the replacement meter number, movement direction, terminal layout and panel dimensions before ordering.
