PR18-8 0–8A Snap-In Battery Charger Ammeter with Internal Shunt and 0.250-Inch Push-On Terminals

The PR18-8 is a snap-in analog ammeter for compatible 5A and 6A battery chargers. Its 0–8A scale, internal shunt and push-on terminals provide a replacement current display for supported charger panels.

Key Features

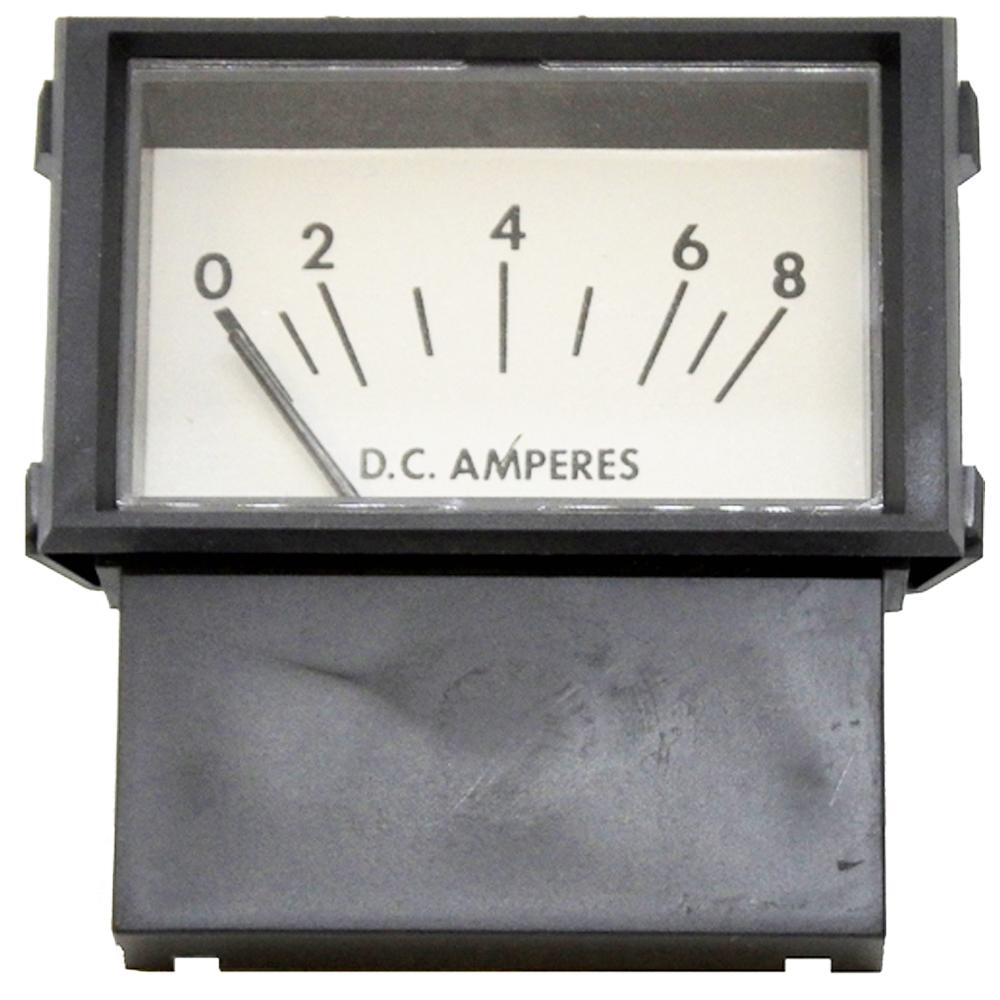

• 0–8A analog scale displays battery-charging current.
• Internal shunt routes charging current through the meter.
• Bottom movement positions the needle pivot at the lower edge of the display.

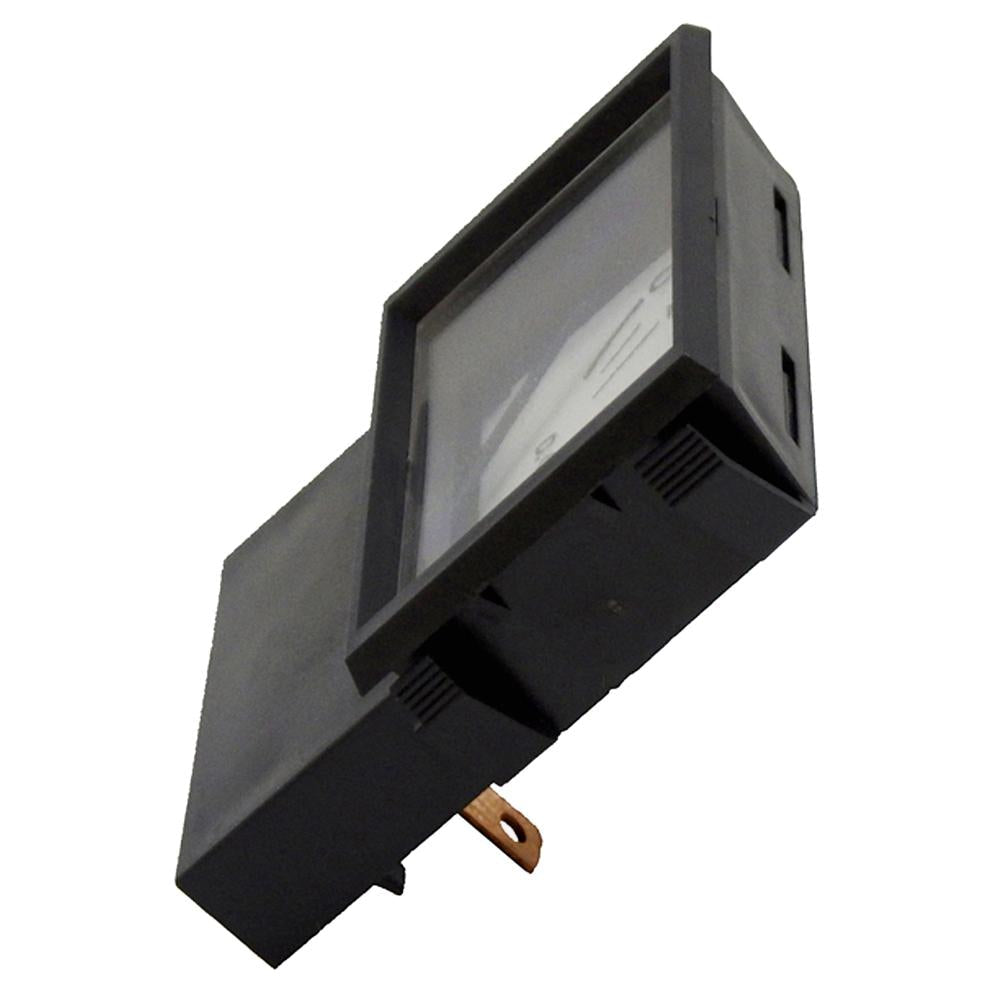

• Snap-in construction mounts directly in a compatible charger panel opening.
• 0.250-inch push-on terminals support the listed electrical connection.
• Specified accuracy is 5% of full scale.
• Made in the United States.

Specifications

• Model and SKU: PR18-8
• Meter type: Snap-in analog ammeter
• Scale: 0–8A
• Movement: Bottom pivot
• Shunt: Internal
• Accuracy: 5% of full scale

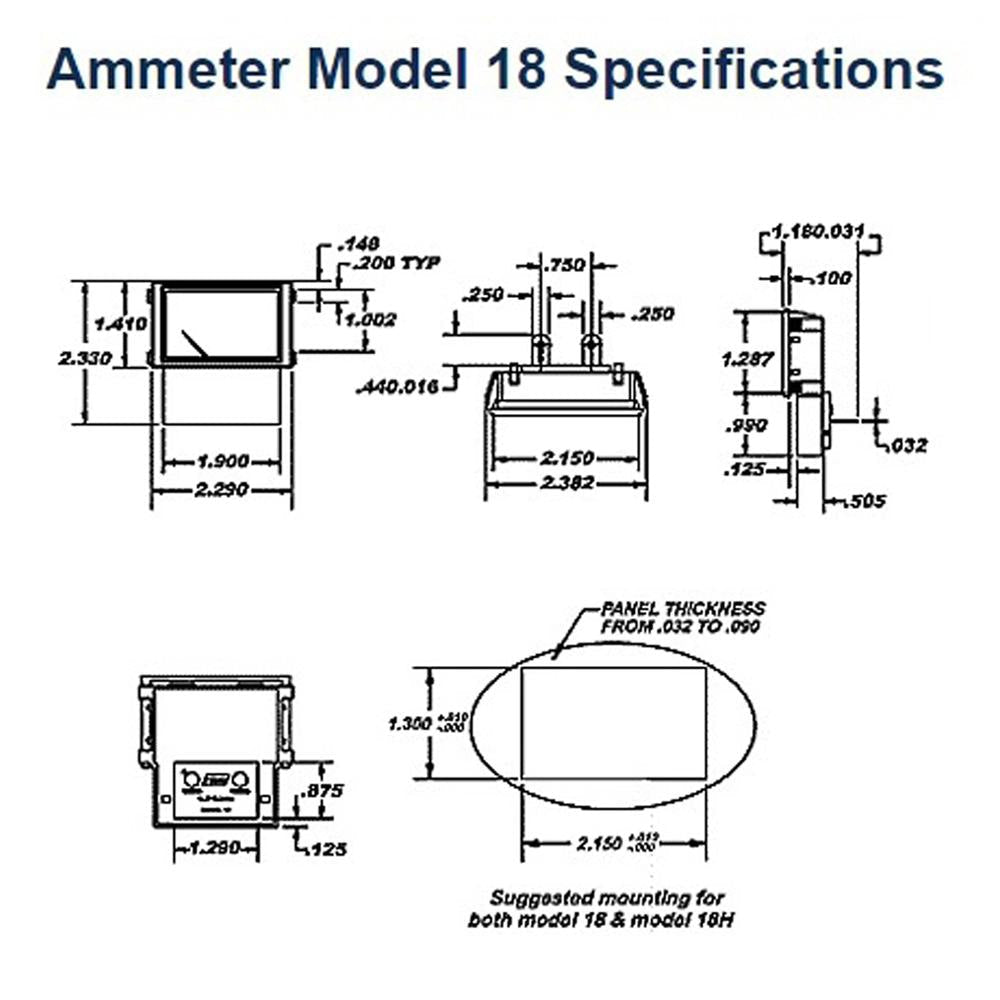

• Bezel frame outer dimensions: 1.4in high × 2.3in wide
• Required panel opening: 1.3in high × 2.15in wide

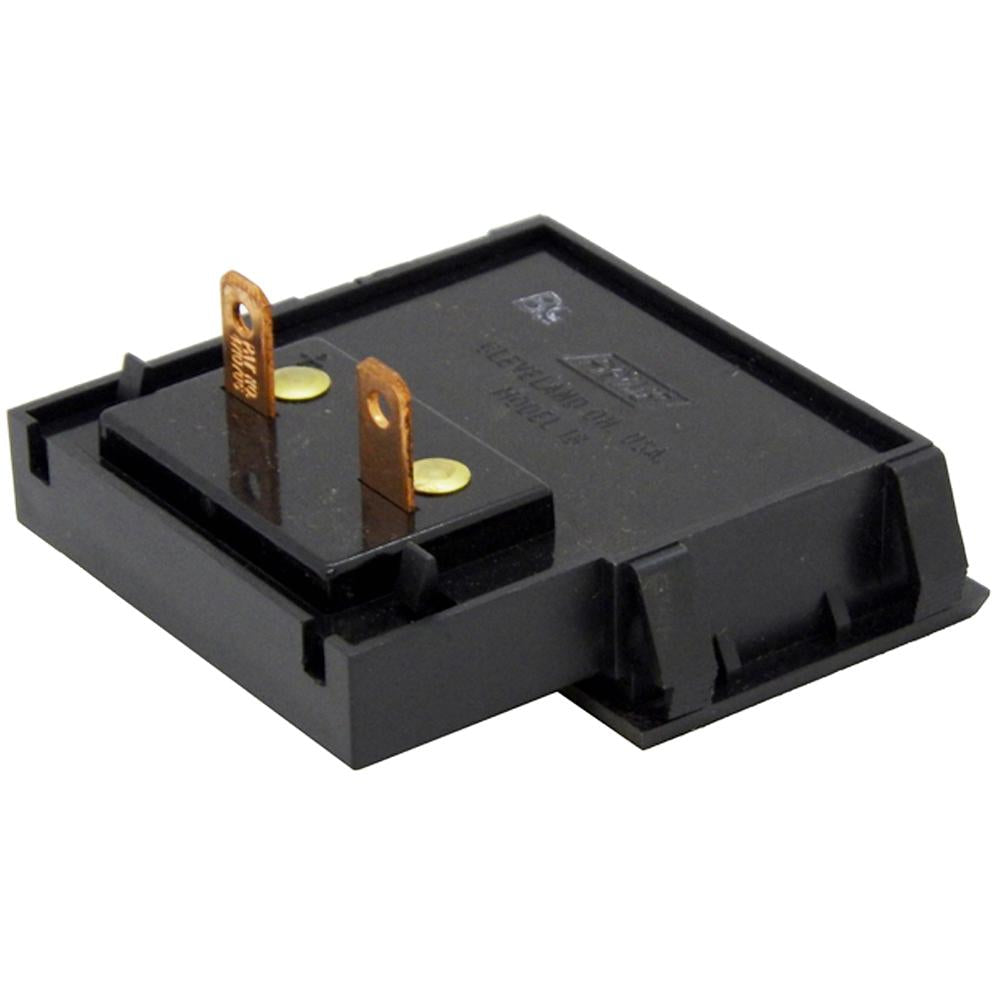

• Electrical terminals: 0.250in push-on
• Listed charger range: Various 5A and 6A Schauer and Schumacher chargers
• Specified Schauer compatibility: BR412 and BH12

Confirm the panel opening, terminal layout, current range and charger wiring before installation.
