PR18HV-60B 0–60A Snap-In Battery Charger Ammeter with Boost Scale, Internal Shunt and Vertical Mount

The PR18HV-60B is a snap-in 0–60A ammeter with a boost scale for compatible Century, Solar and other wheel-style battery chargers.

Key Features

• 0–60A scale includes a boost range.
• Internal shunt routes charging current through the meter.
• Left movement positions the needle pivot at the left side of the display.
• Snap-in construction mounts vertically in a compatible charger panel opening.
• #10-32 brass stud connectors provide the listed electrical connection.
• Specified accuracy is 5% of full scale.
• Connection hardware is included.
• Made in the United States.

Specifications

• Model and SKU: PR18HV-60B
• Meter type: Snap-in analog ammeter

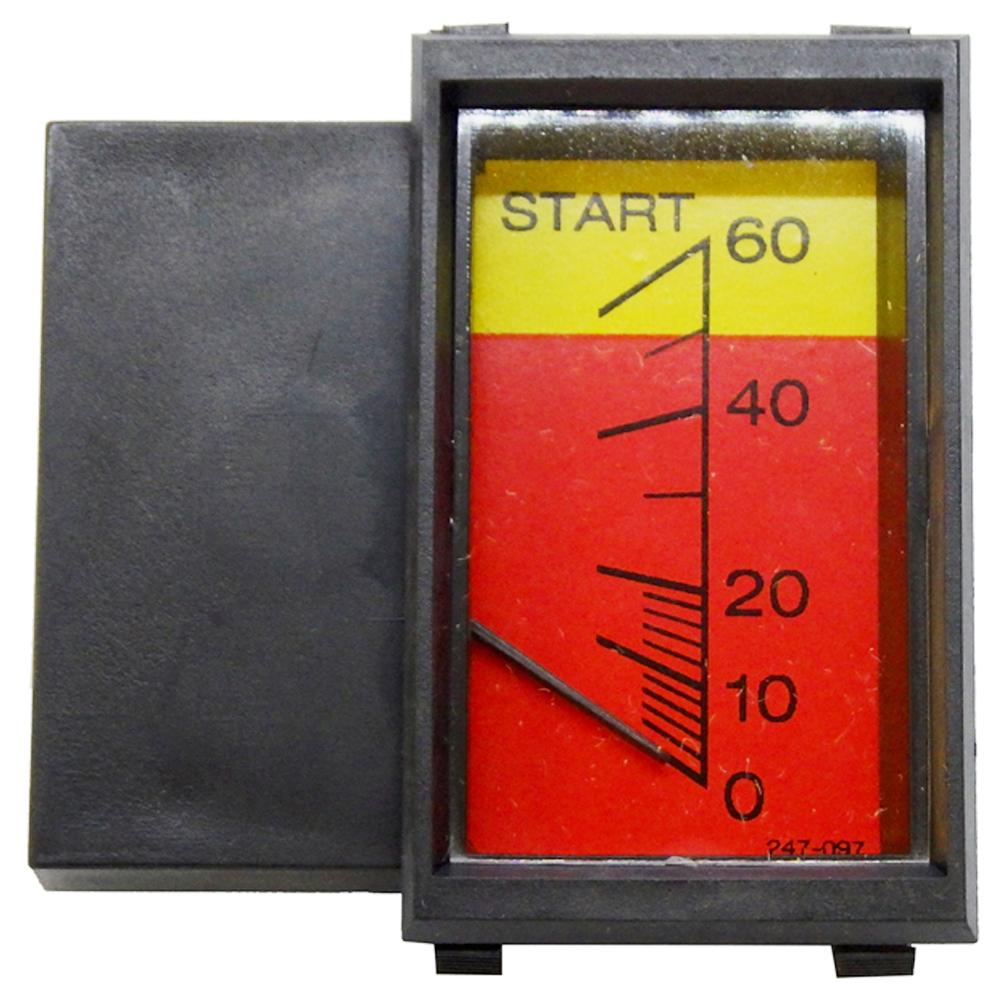

• Scale: 0–60A with boost
• Movement: Left pivot
• Shunt: Internal
• Accuracy: 5% of full scale
• Bezel frame outer dimensions: 2.3in high × 1.4in wide
• Required panel opening: 2.15in high × 1.3in wide

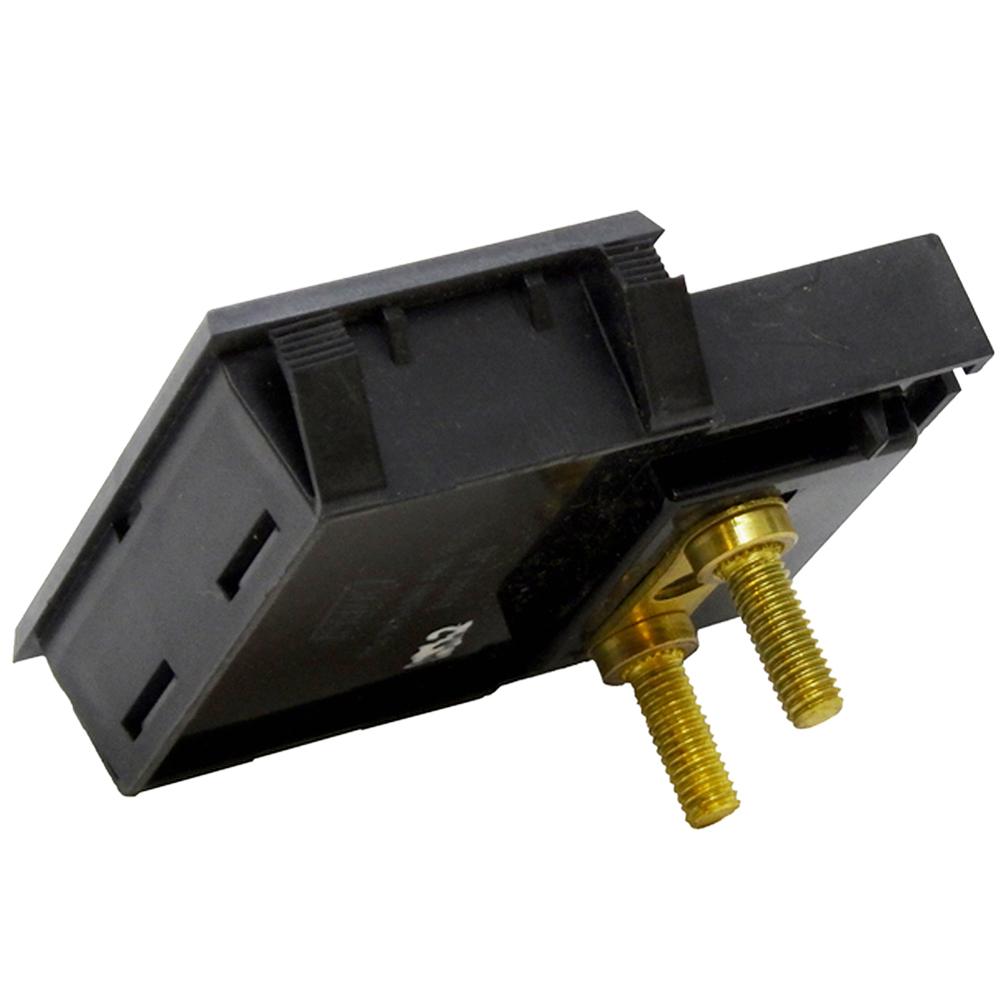

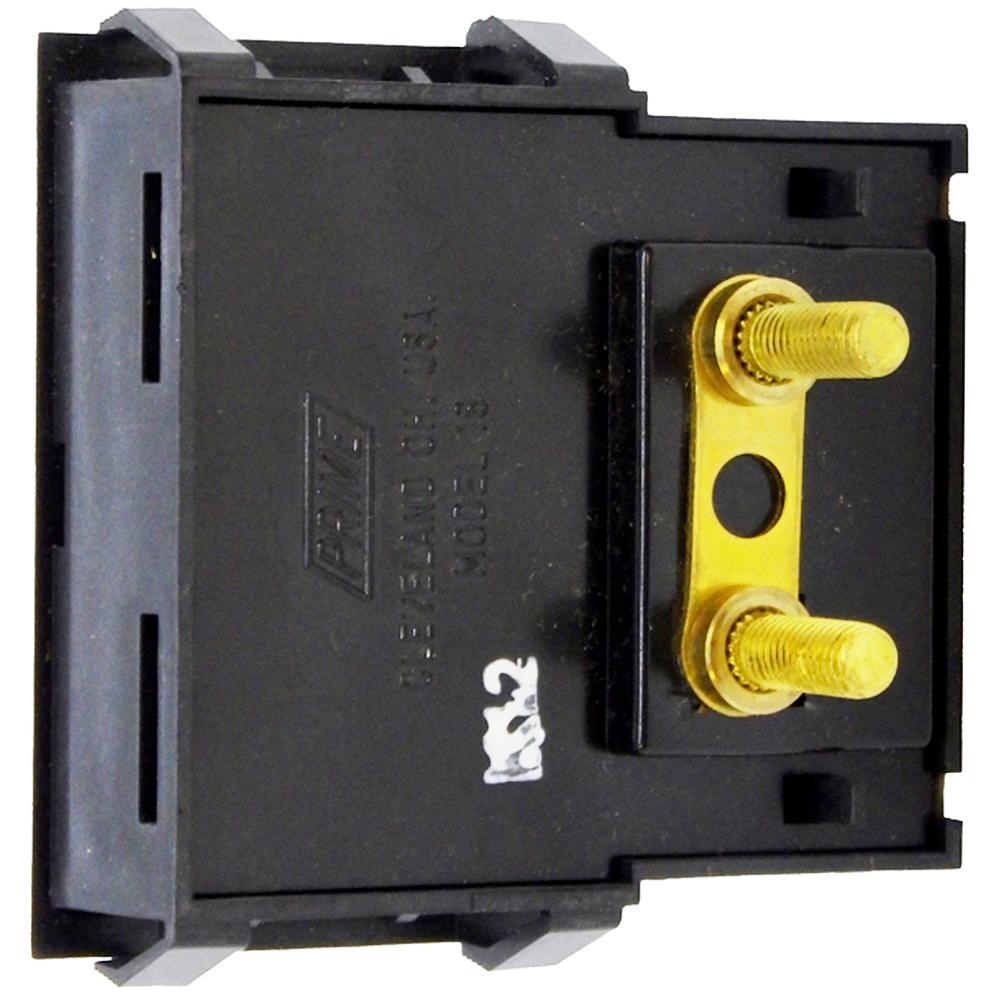

• Electrical terminals: #10-32 brass studs
• Listed replacements: Century/Solar 247-075-666 and 247-041-666

Confirm the panel opening, terminal layout, scale and charger wiring before installation.
