PR37-100B Heavy-Duty 0–100A Boost DC Panel Ammeter with U-Clamp Mount and 1/4-Inch Brass Studs

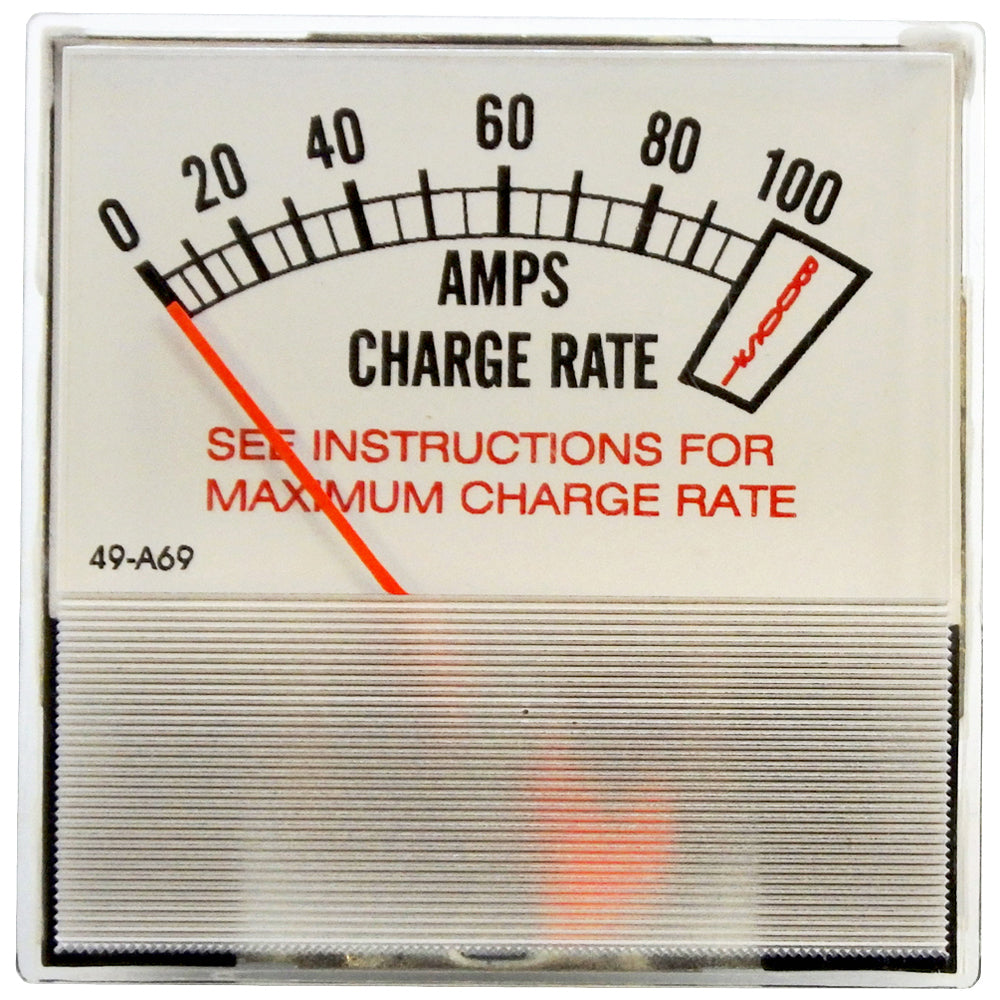

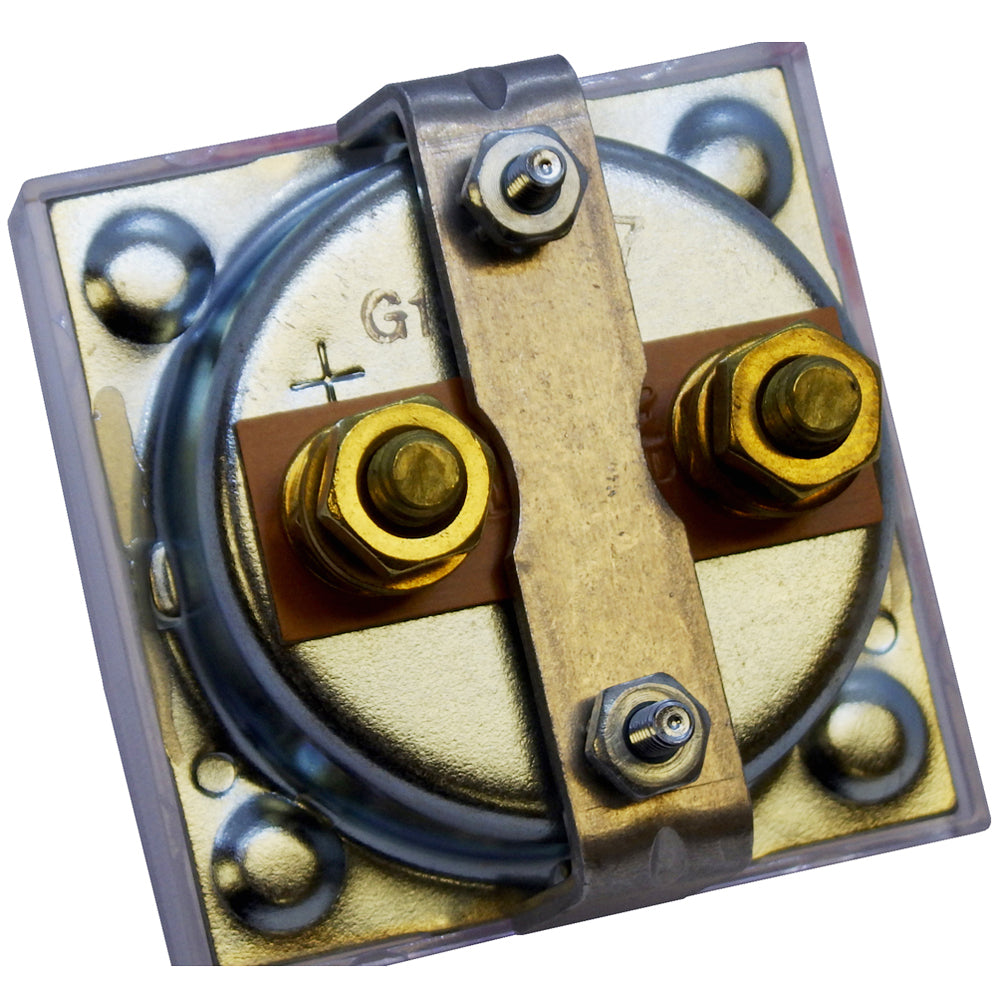

The Power Forged® PR37-100B is a heavy-duty 0–100A DC panel ammeter with a boost scale for compatible battery chargers. Its U-clamp installation fits a 2.03-inch circular panel opening and can replace Associated 605204 using the clamp instead of corner studs.

Key Features

• 0–100 amp DC scale with boost range.
• Rugged moving-magnet construction.
• Internal shunt carries charging current through the meter.
• Bottom movement places the needle pivot at the bottom.
• Polystyrene bezel with zinc-plated steel backplate.
• Accuracy is 5% of full scale.
• Includes mounting and connection hardware.
• Made in the U.S.A.

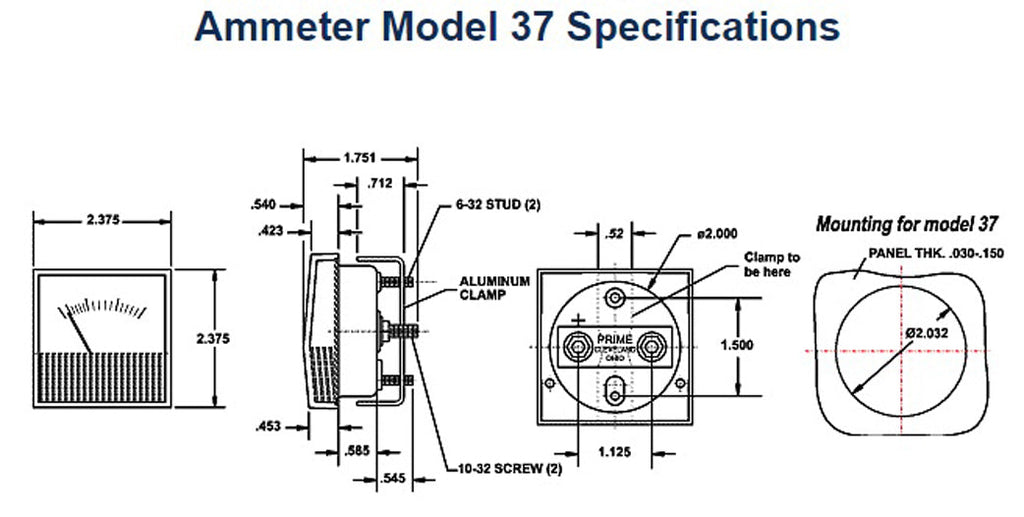

Specifications

• Brand: Power Forged®
• Model / SKU: PR37-100B
• Bezel dimensions: 2.375 × 2.375 × 0.540 inches
• Panel mount hole: 2.03-inch diameter circular hole
• Connectors: 1/4-inch brass studs
• Replacement reference: Associated 605204

Confirm the charger current range, circular panel opening, terminal layout and clamp clearance before ordering.
