The PR37-15 is a heavy-duty 0–15A DC panel ammeter for battery chargers. It replaces meters used in various 8–12A chargers and can retrofit compatible charger panels with a 2.03-inch circular mounting hole.
Key Features

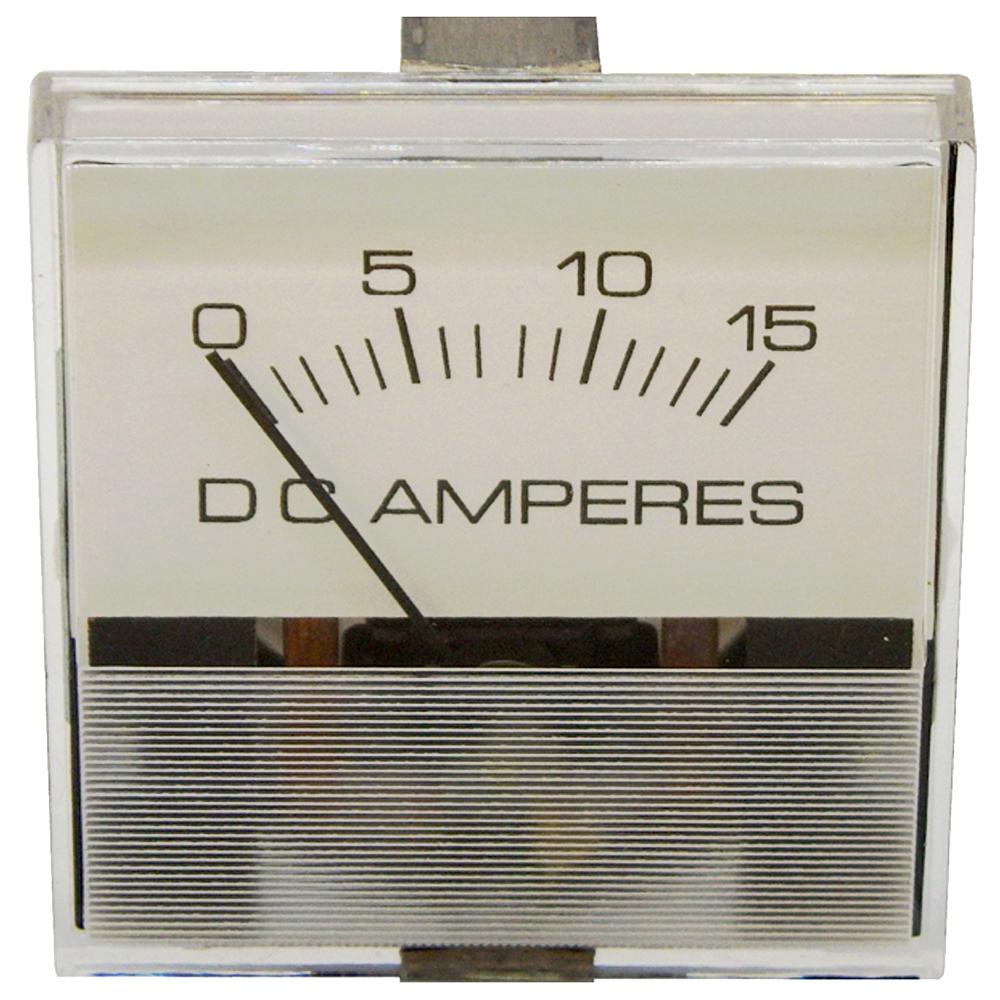

- 0–15A DC range for monitoring battery-charger output current.

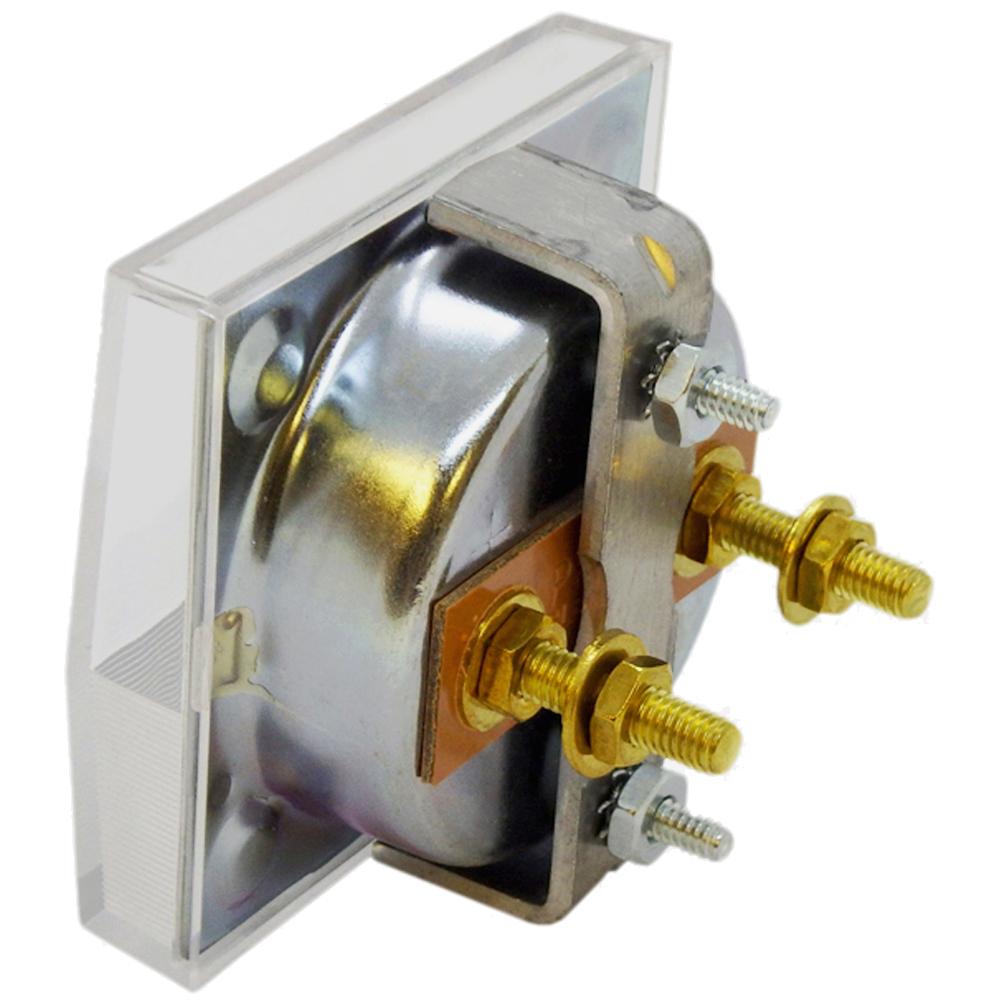

- Rugged moving-magnet construction with a bottom-pivot needle.
- Internal shunt carries charging current through the meter.
- Rated accuracy is 5% of full scale.
- Polystyrene bezel and zinc-plated steel backplate.
- Includes mounting and connection hardware.
- Made in the USA.
Specifications
- Model: PR37-15
- Measurement range: 0–15A DC

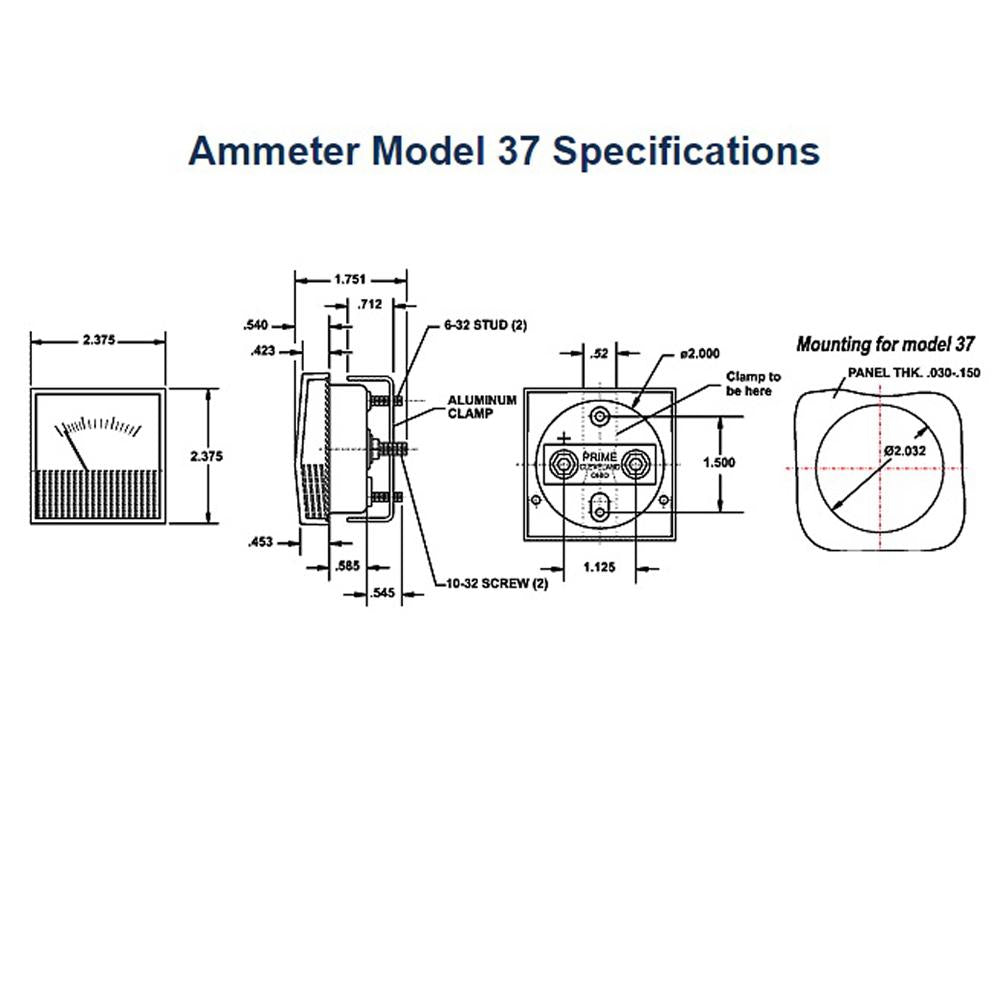

- Bezel dimensions: 2.375 × 2.375 × 0.540 inches
- Required panel opening: 2.03-inch diameter circular hole
- Terminals: #10 brass stud connectors
- Adapters: Stud-to-0.250-inch push-on terminal adapters included
- Weight: 0.5 lb
Confirm the charger current range, panel opening and terminal layout before installation.
