PR57S-100B 0–100A Boost Snap-In Ammeter with Inductive Pickup for Schumacher and Goodall Battery Chargers
$41.83
Sale price
$41.83
Regular price

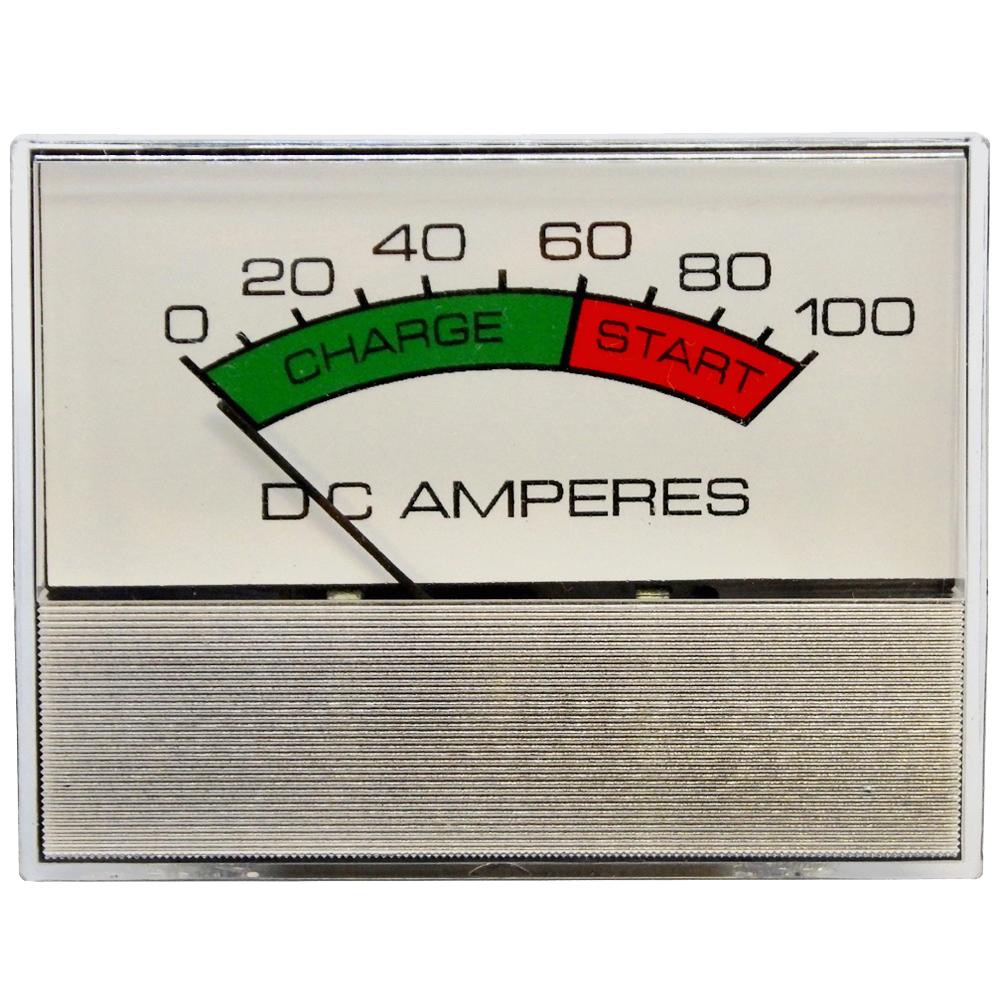

The Power Forged® PR57S-100B is a snap-in 0–100A battery charger ammeter with a boost scale. Its inductive pickup reads current from a charging-circuit wire routed through the pickup tube, so the meter itself needs no electrical connections.
Key Features
- 0–100 amp scale with boost range.

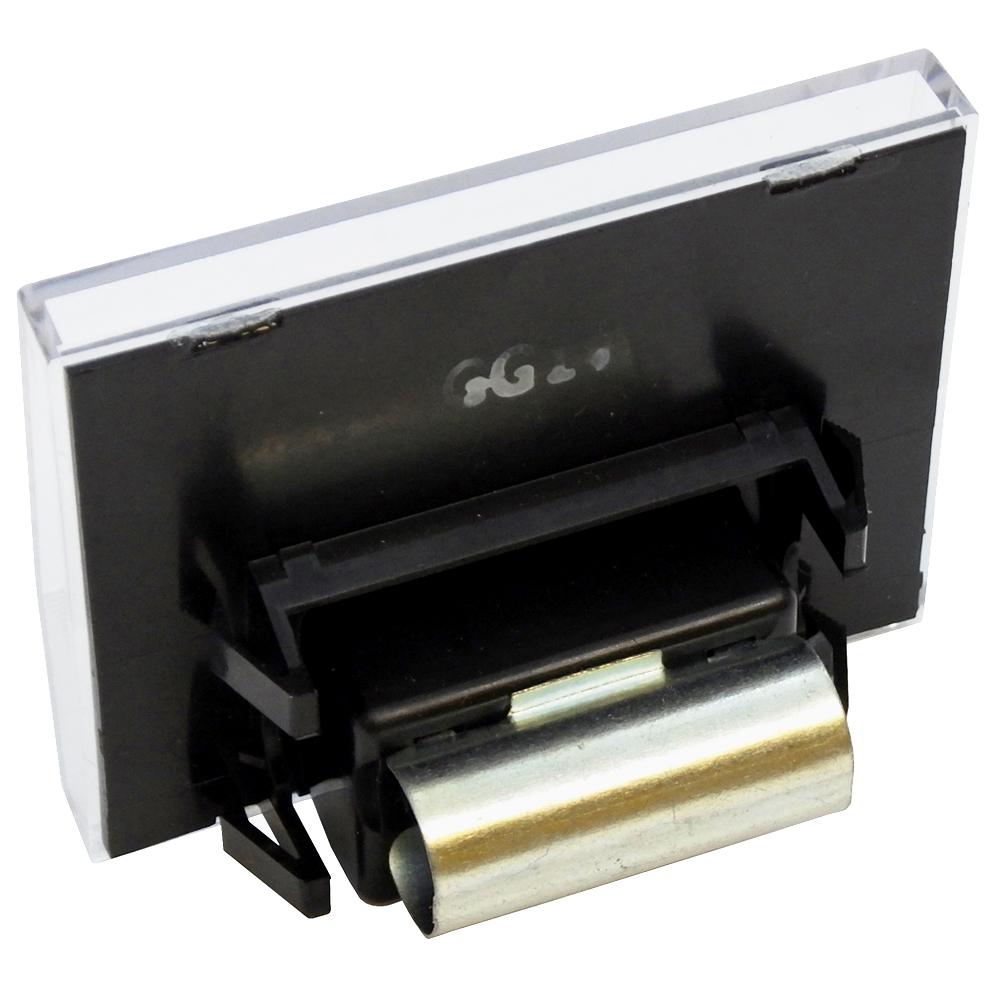

- Inductive pickup tube detects current from the routed charging-circuit wire.
- Bottom movement places the needle pivot at the bottom.
- Black ABS backplate with a clear bezel.
- Accuracy is 5% of full scale.
- Made in the U.S.A.
Specifications
- Brand: Power Forged®
- Model / SKU: PR57S-100B
- Former part number: PR21S-100B

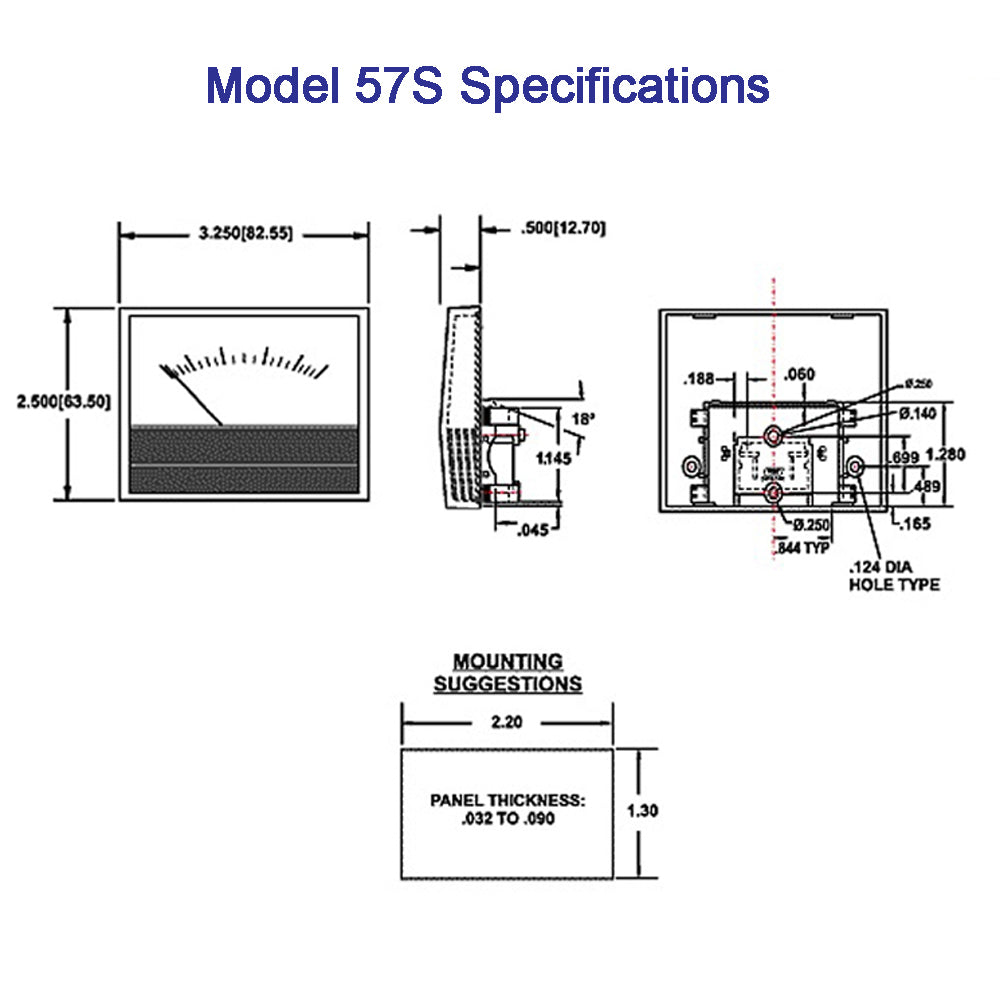

- Bezel outer dimensions: 2.50 inches high × 3.25 inches wide
- Panel mount hole: 1.30 inches high × 2.20 inches wide
- Direct replacement numbers: Schumacher 5399-100-118 and 5399100118
- Also replaces: Schumacher 5399-100-145, 5399100145, 5399-100-153 and 5399100153; Goodall 51-257
The bezel is significantly larger than the mounting hole. Confirm the original meter number and both dimension sets before ordering.
