Rover Li 20A MPPT Solar Charge Controller for 12V/24V Systems with Optional Bluetooth Module

Rover Li 20A MPPT Solar Charge Controller for 12V/24V Systems with Optional Bluetooth Module

$118.26
$118.26
Bluetooth Module

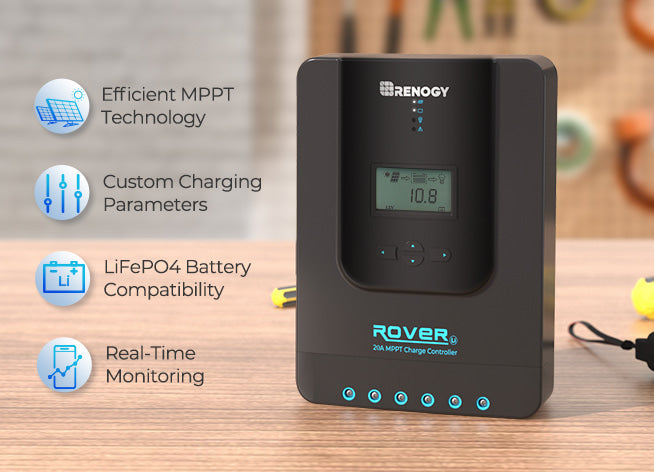

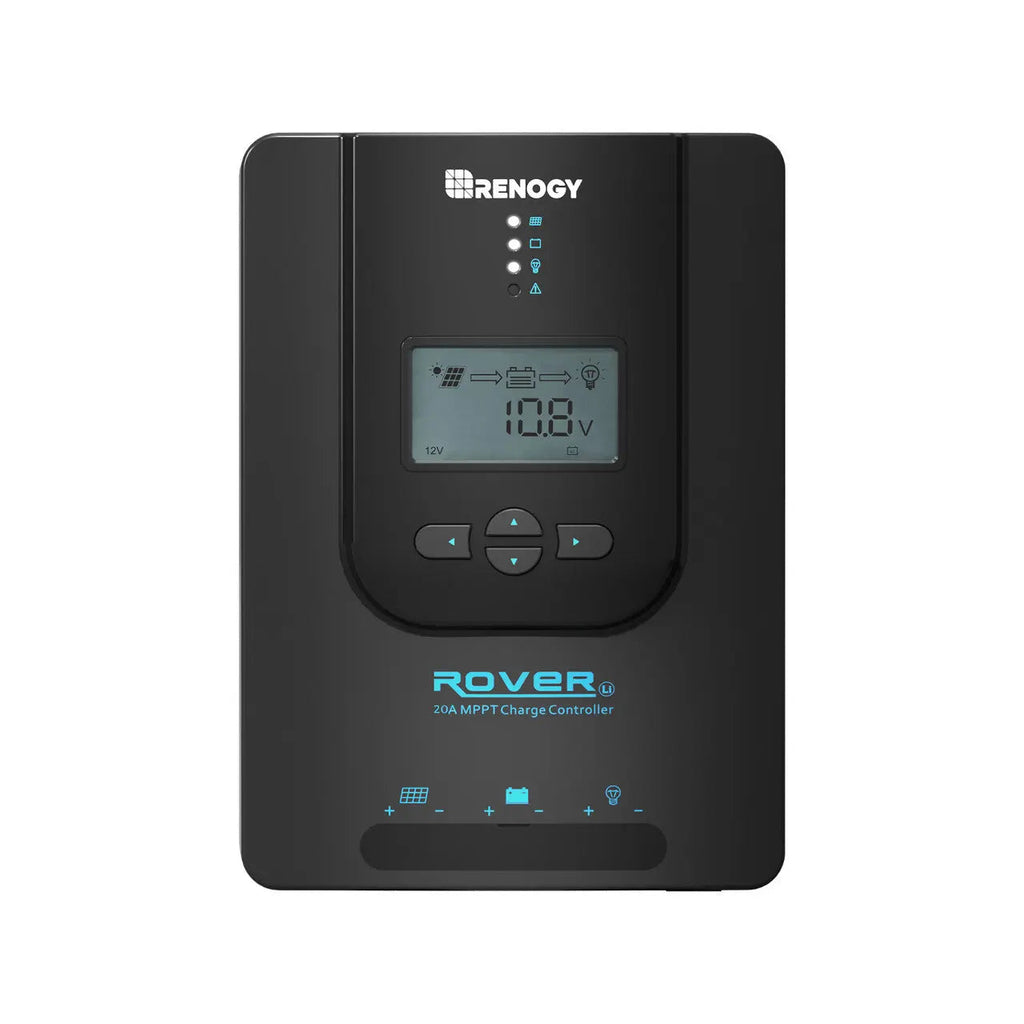

The Renogy Rover Li 20A MPPT Solar Charge Controller manages charging from compatible solar panels to 12V or 24V battery systems.

Key Features

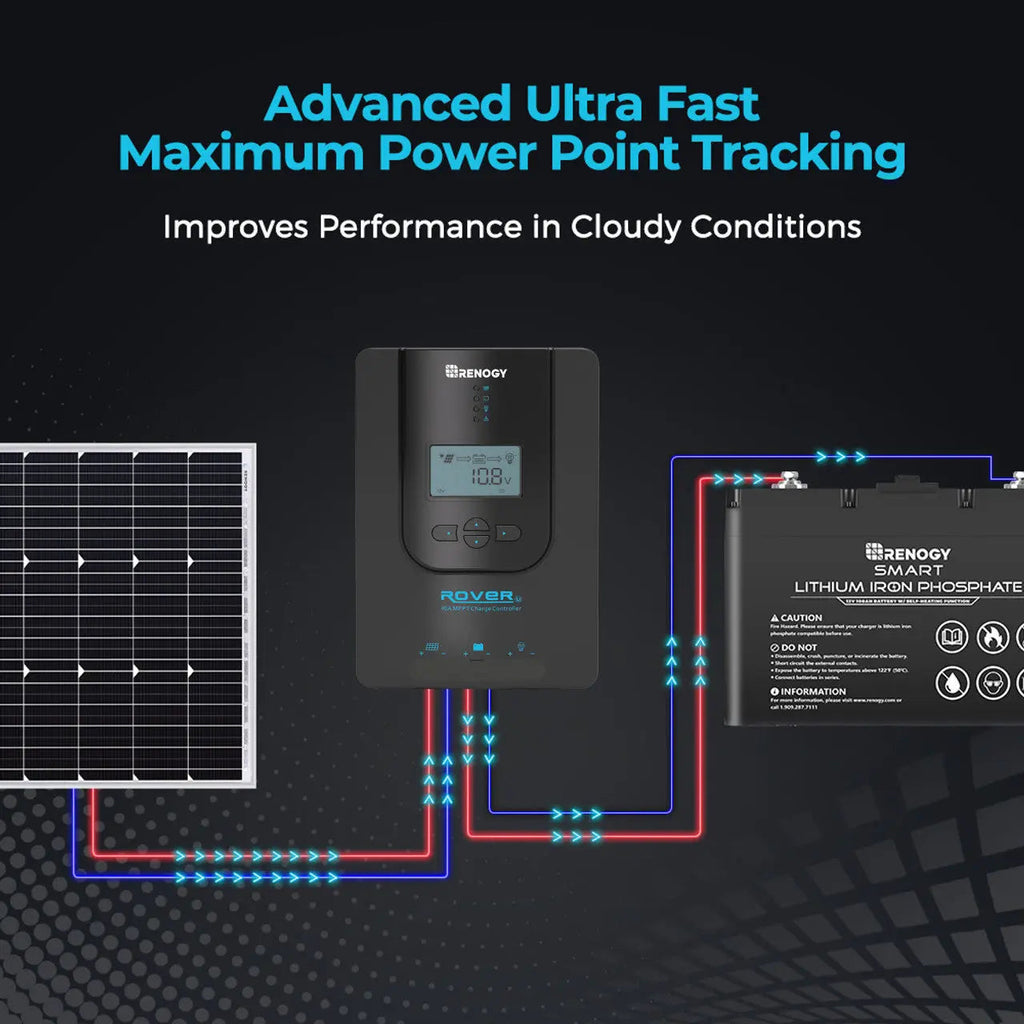

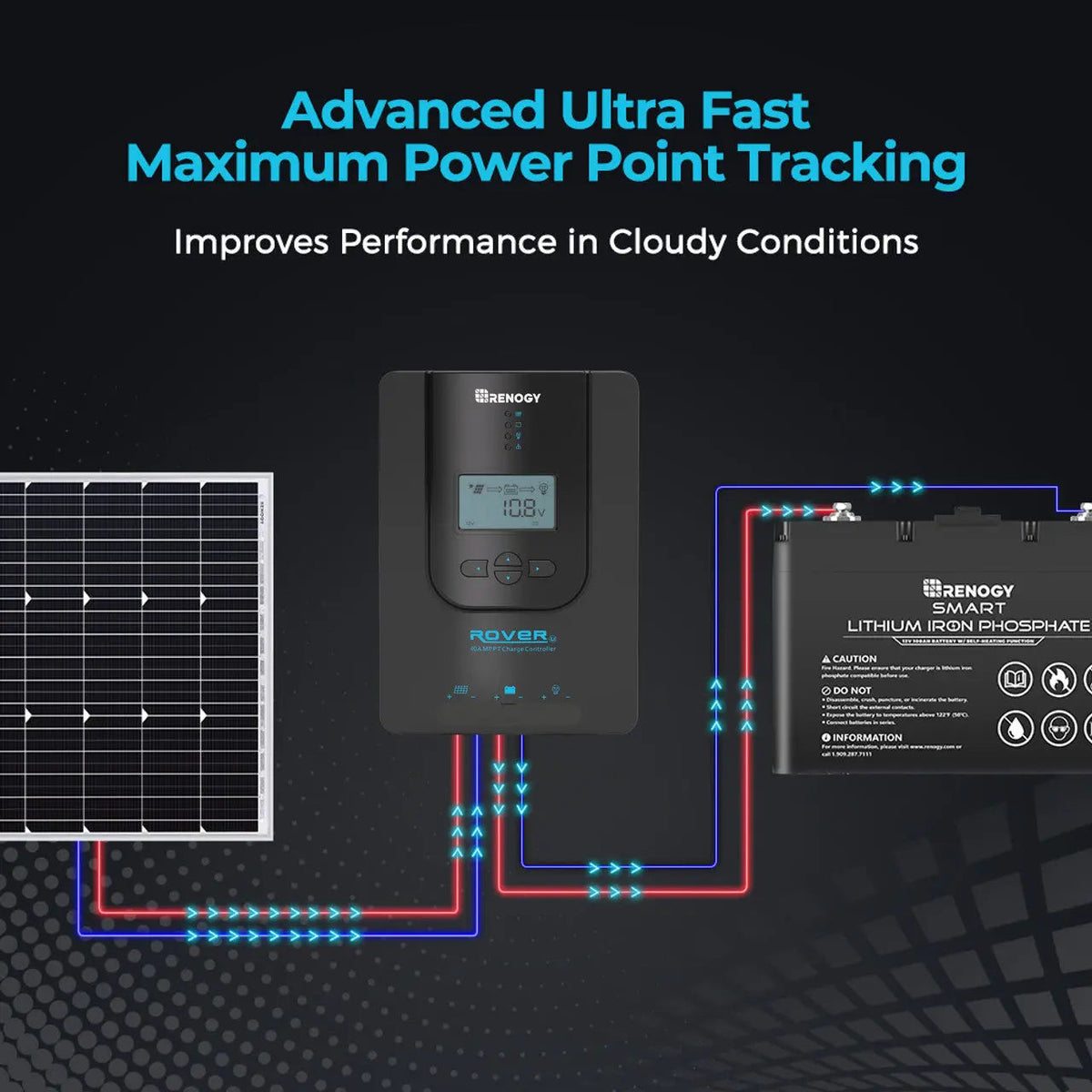

  • MPPT tracking efficiency is stated at up to 99%.

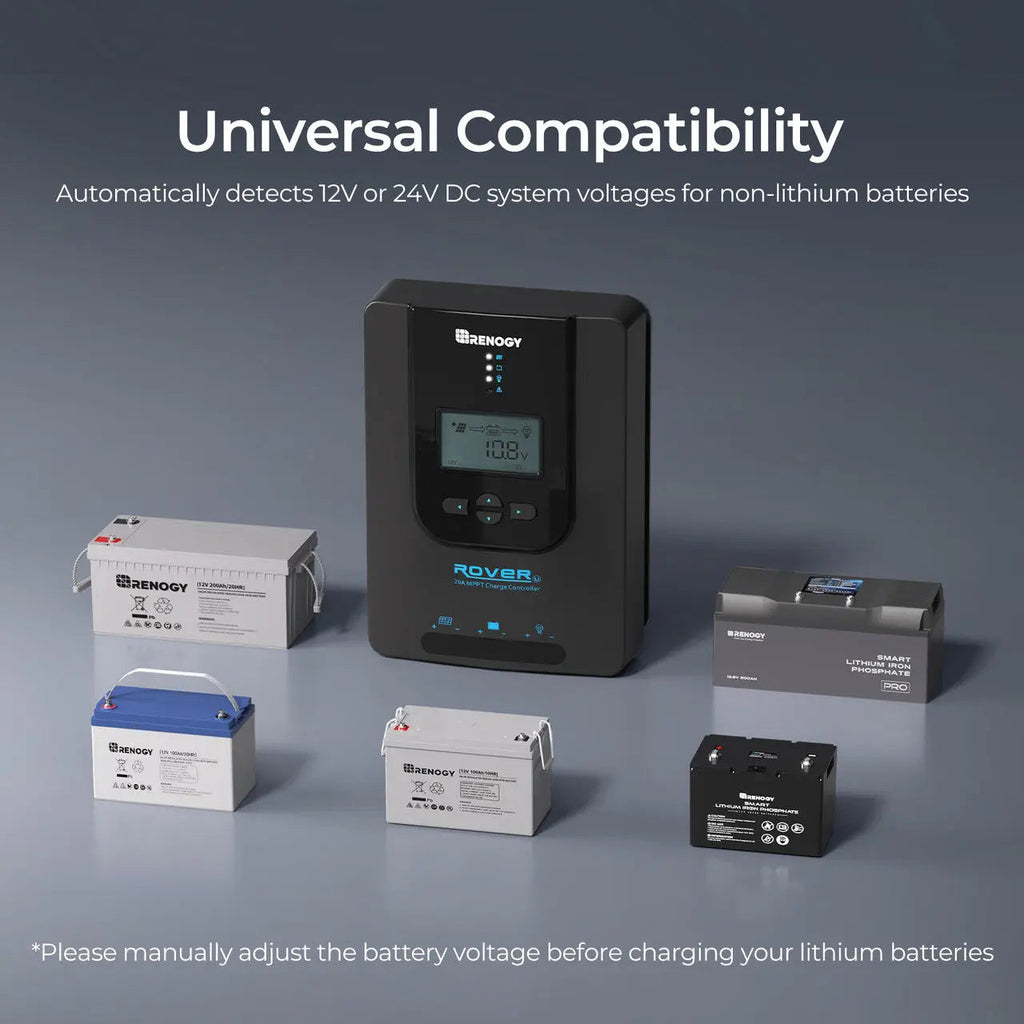

  • Automatically detects 12V or 24V systems for supported non-lithium batteries.
  • Supports up to 100V DC solar input and rated charging current of 20A.

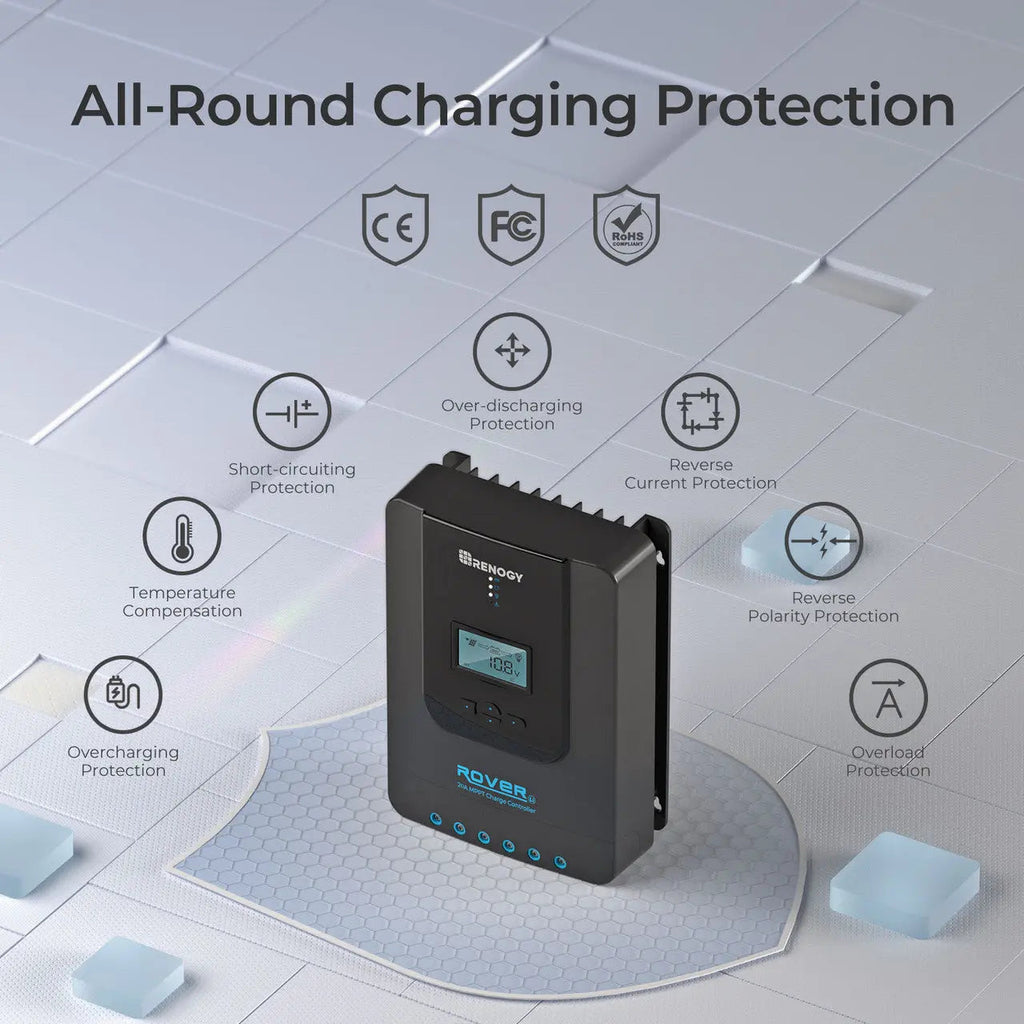

  • Four-stage charging and electronic protection functions support controlled battery charging.

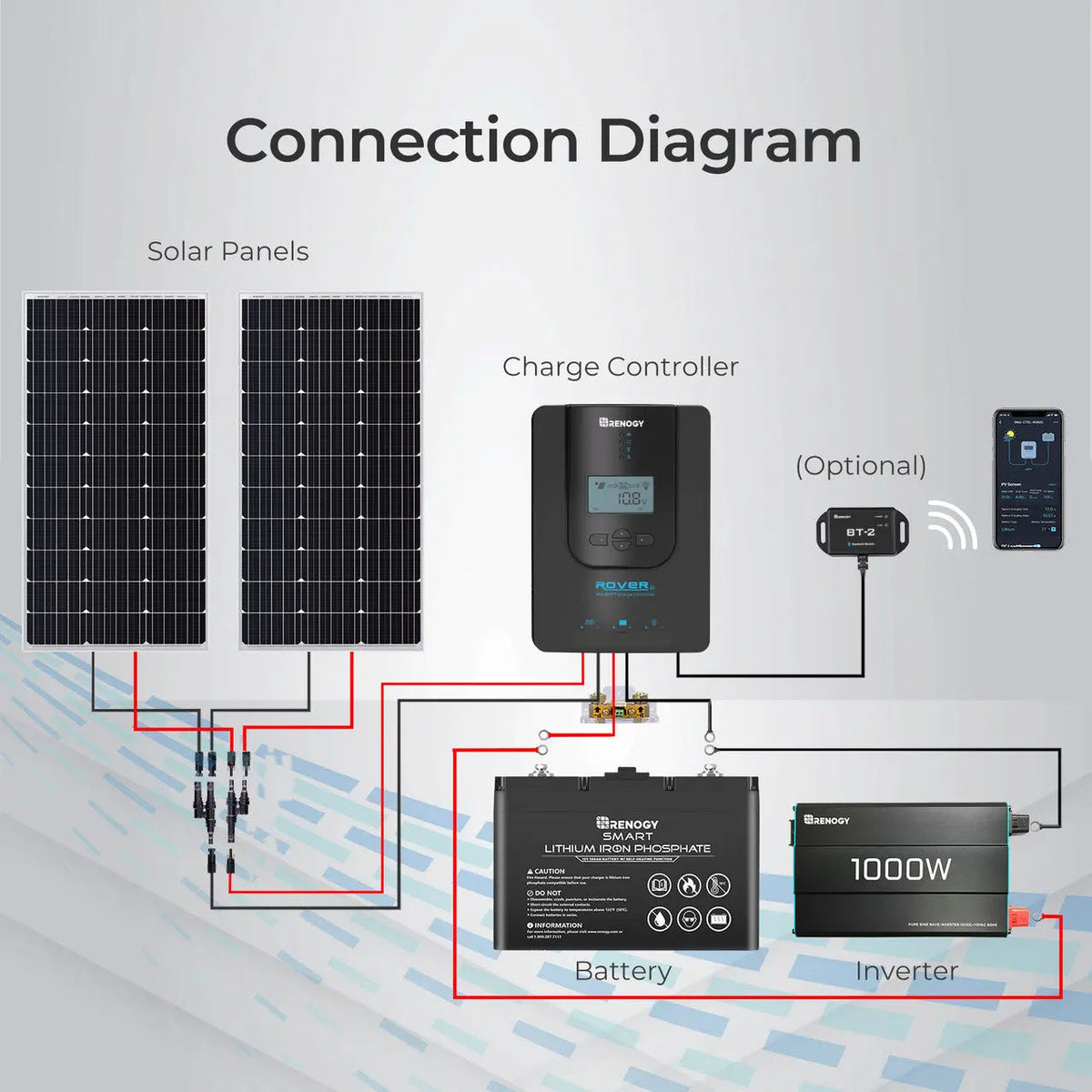

  • Choose the controller alone with an RS485 communication port or the bundle with a BT-2 Bluetooth module.

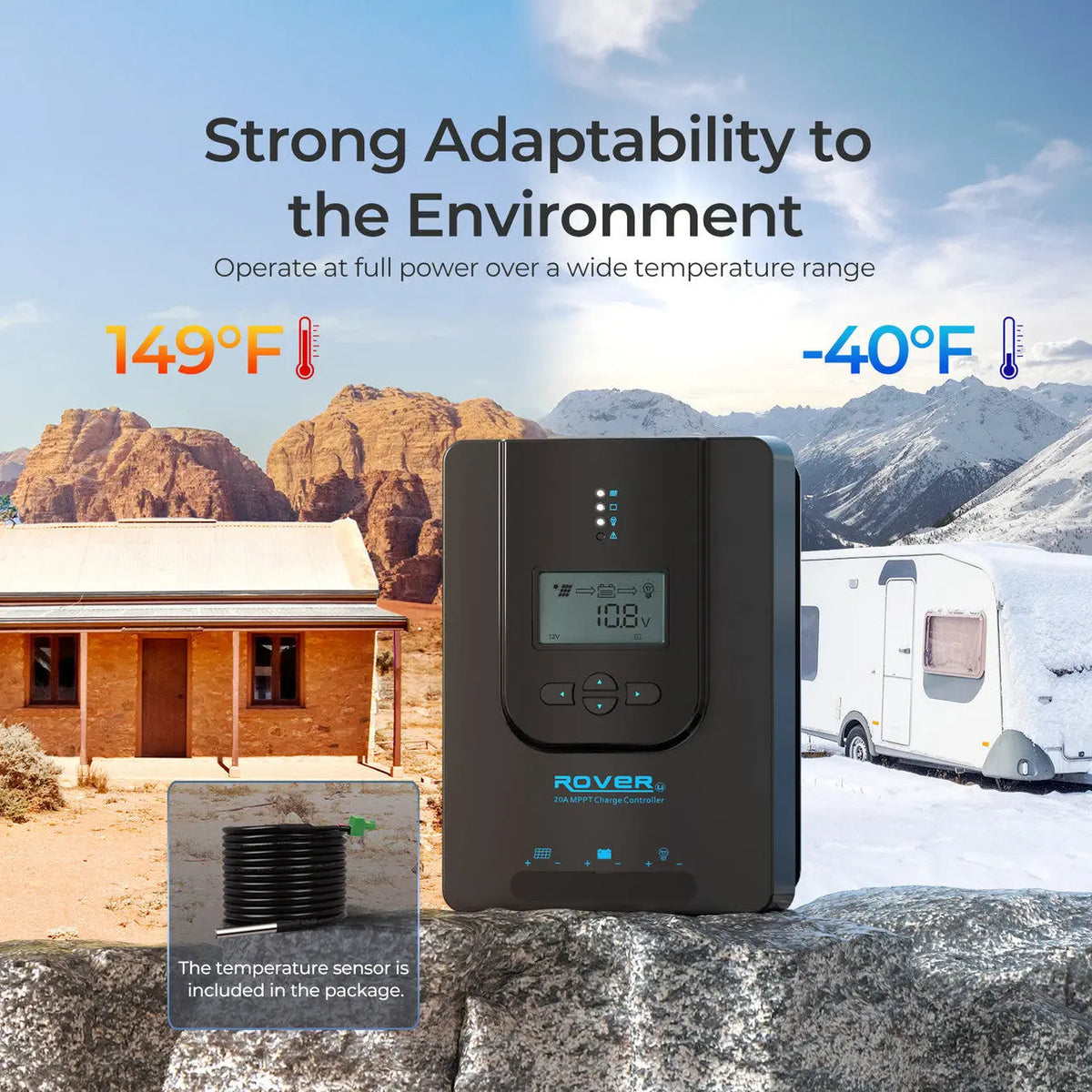

  • Included temperature sensor supports battery temperature compensation.

Specifications

  • Brand/model: Renogy Rover Li 20A
  • Nominal system voltage: 12V/24V
  • Rated charge current: 20A
  • Maximum PV input voltage: 100V DC
  • Maximum PV input power: 260W at 12V; 520W at 24V
  • Protection level: IP32
  • Controller dimensions: 210 × 151 × 59.5mm
  • Controller weight: 1.4kg

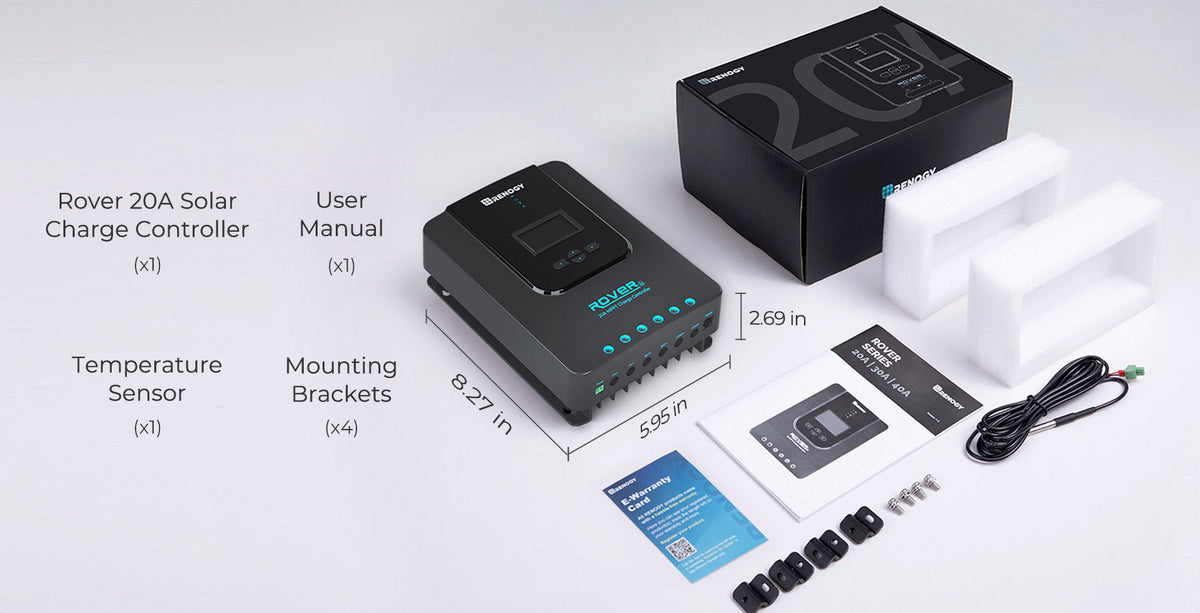

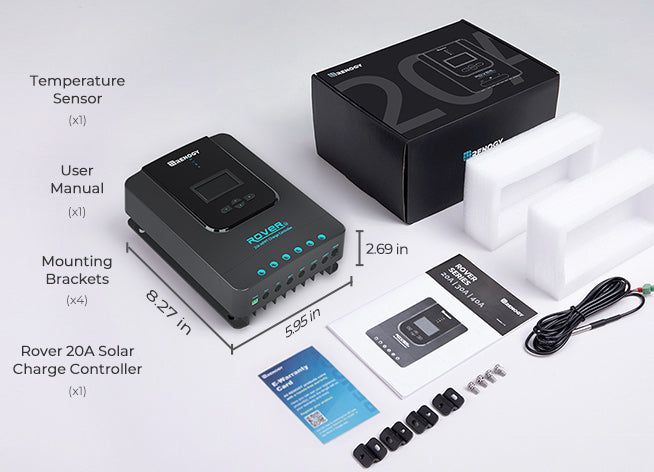

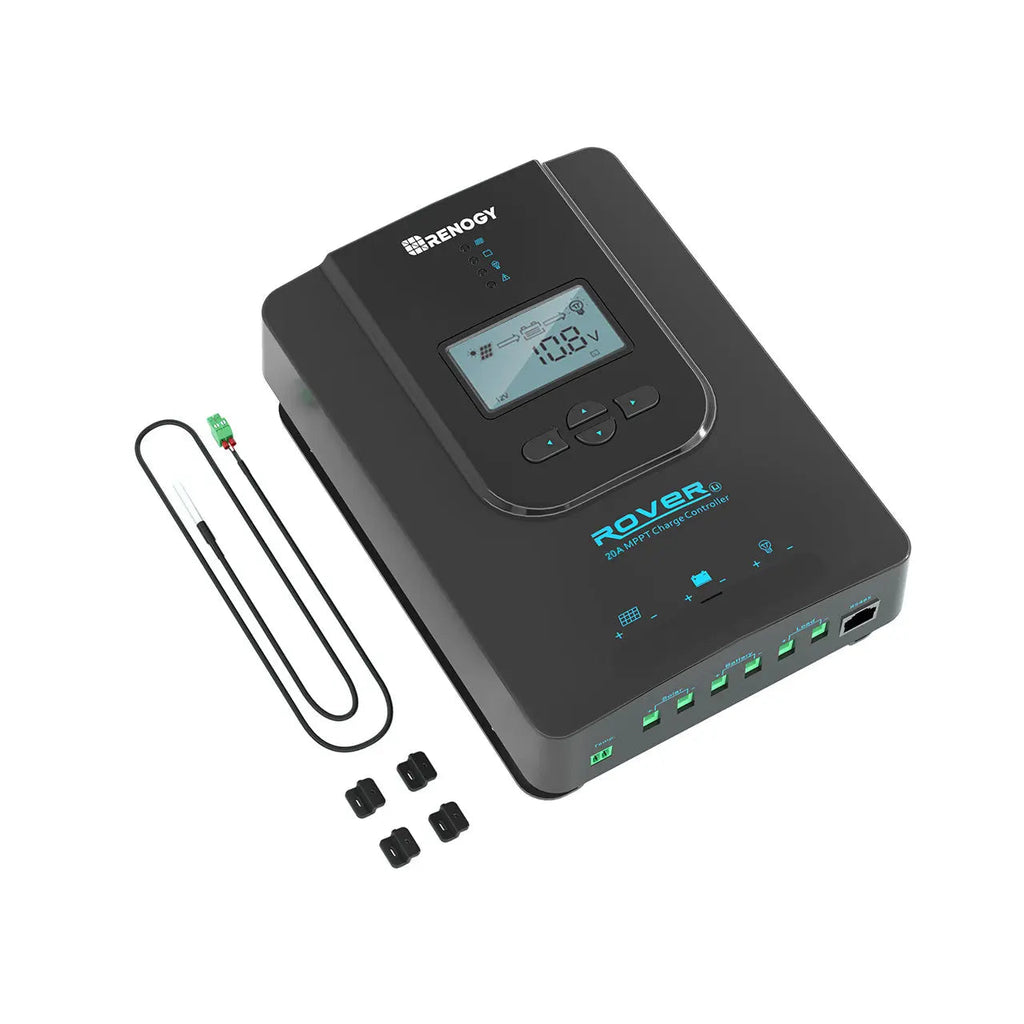

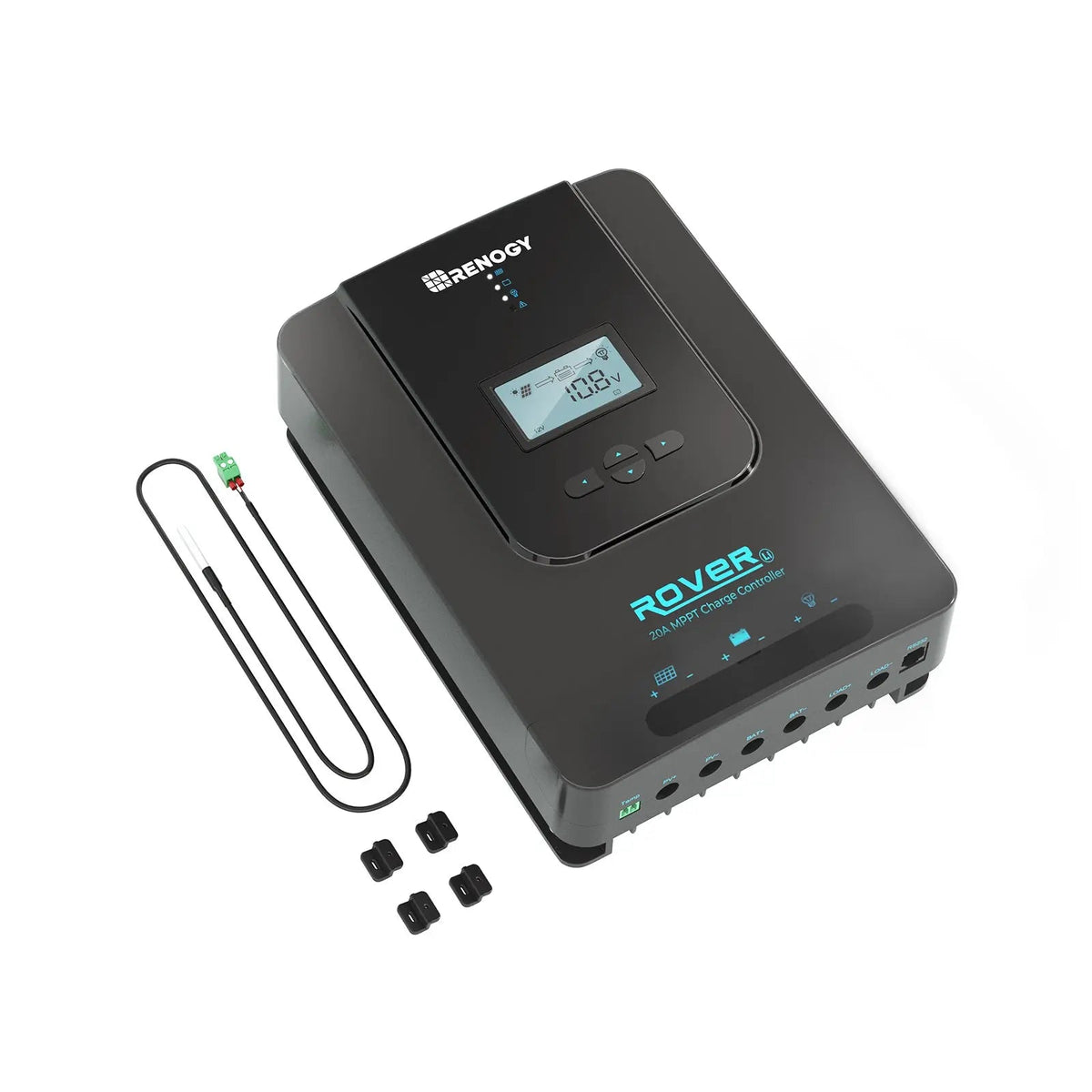

  • Included with both options: Controller, remote temperature sensor, mounting brackets and manual
  • Bluetooth module: Included only with the selected bundle
