S5-WiFi-ST Dual-Band Wi-Fi and Bluetooth 5.0 Data Logger with 4-Pin Port for Up to 10 Inverters

The S5-WiFi-ST connects compatible Solis inverter systems to SolisCloud through a local Wi-Fi network. It collects operational data, supports remote monitoring and can communicate with as many as ten inverters through an RS485 daisy chain.

Key Features

• Supports up to 10 compatible inverters from one logger.
• Dual-band 2.4GHz and 5GHz Wi-Fi connects to a local router.
• Bluetooth 5.0 provides nearby setup and debugging access.
• App and web configuration methods are supported.

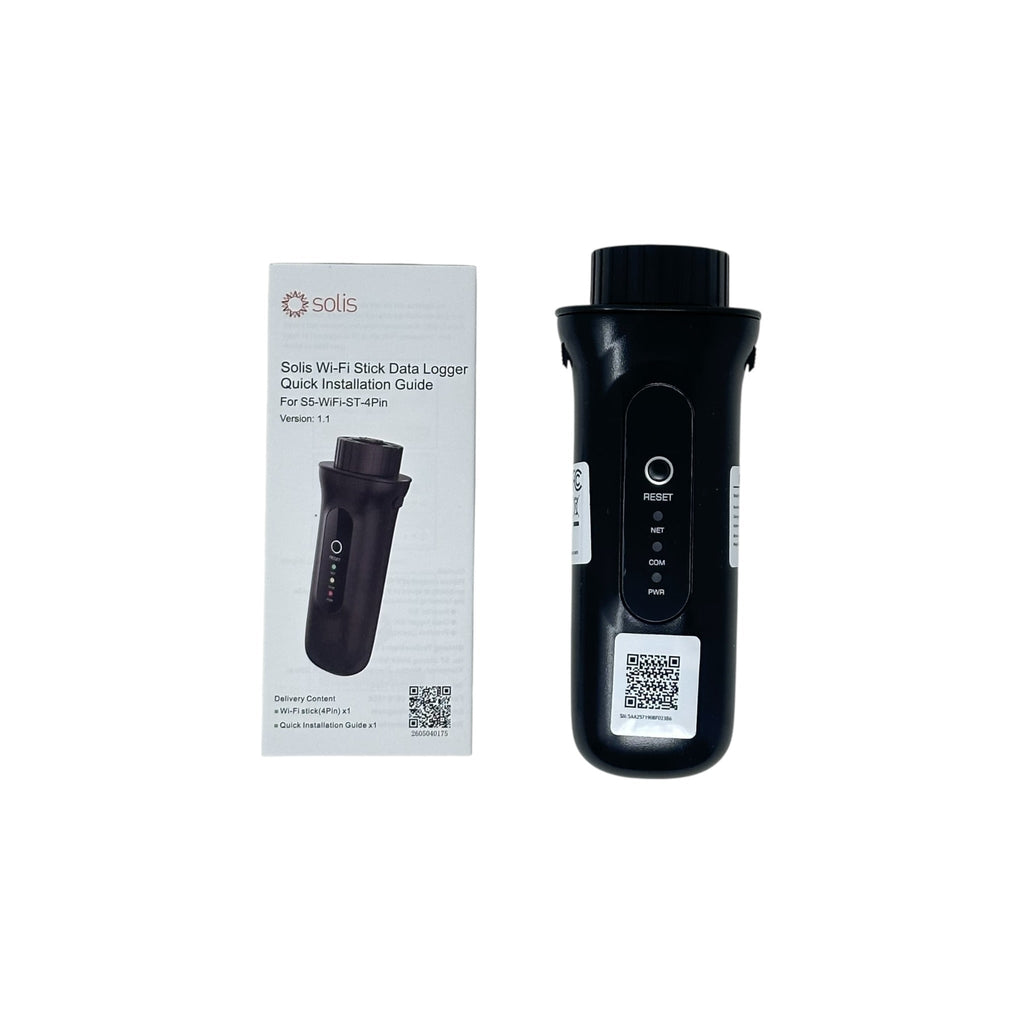

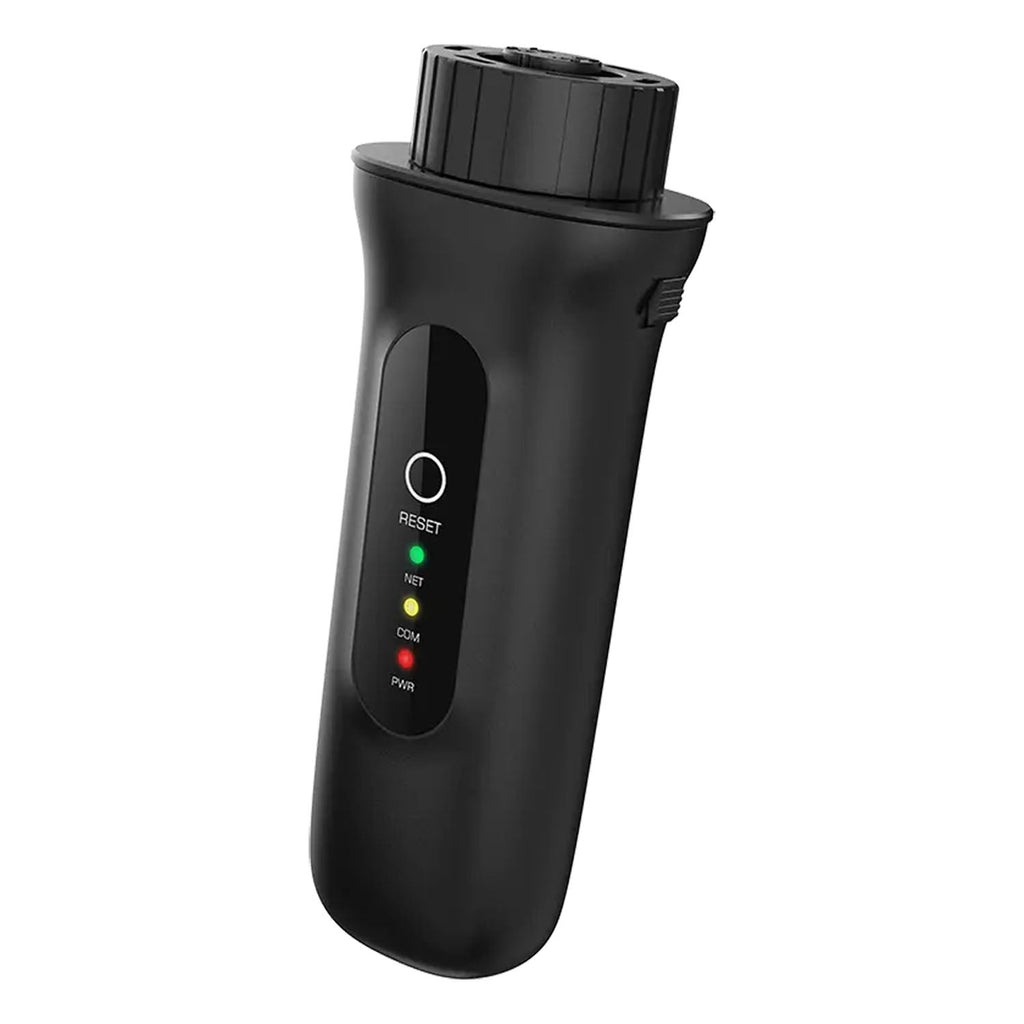

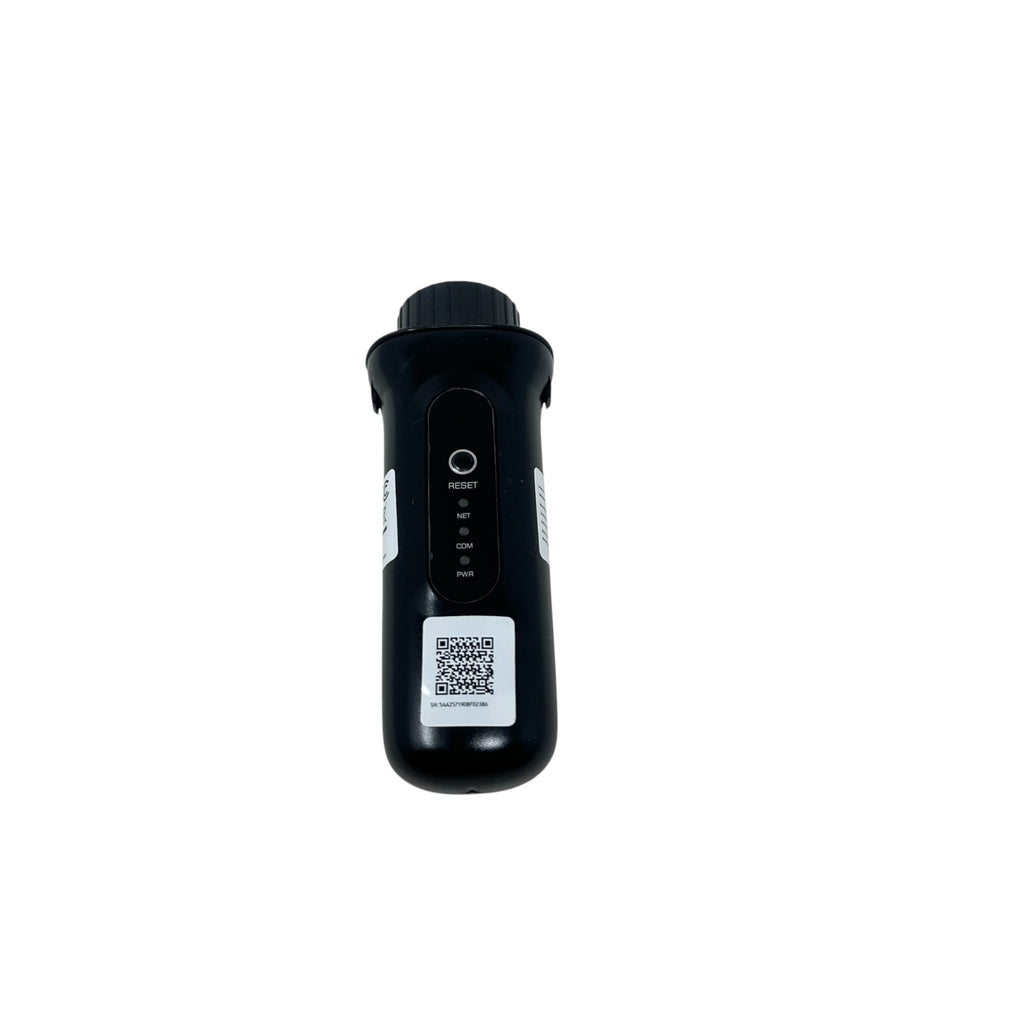

• Three LED indicators show operating status.
• Reset control supports troubleshooting and data resend.
• IP65 enclosure suits exposed inverter installations within the stated environmental limits.

Specifications

• Model: S5-WiFi-ST

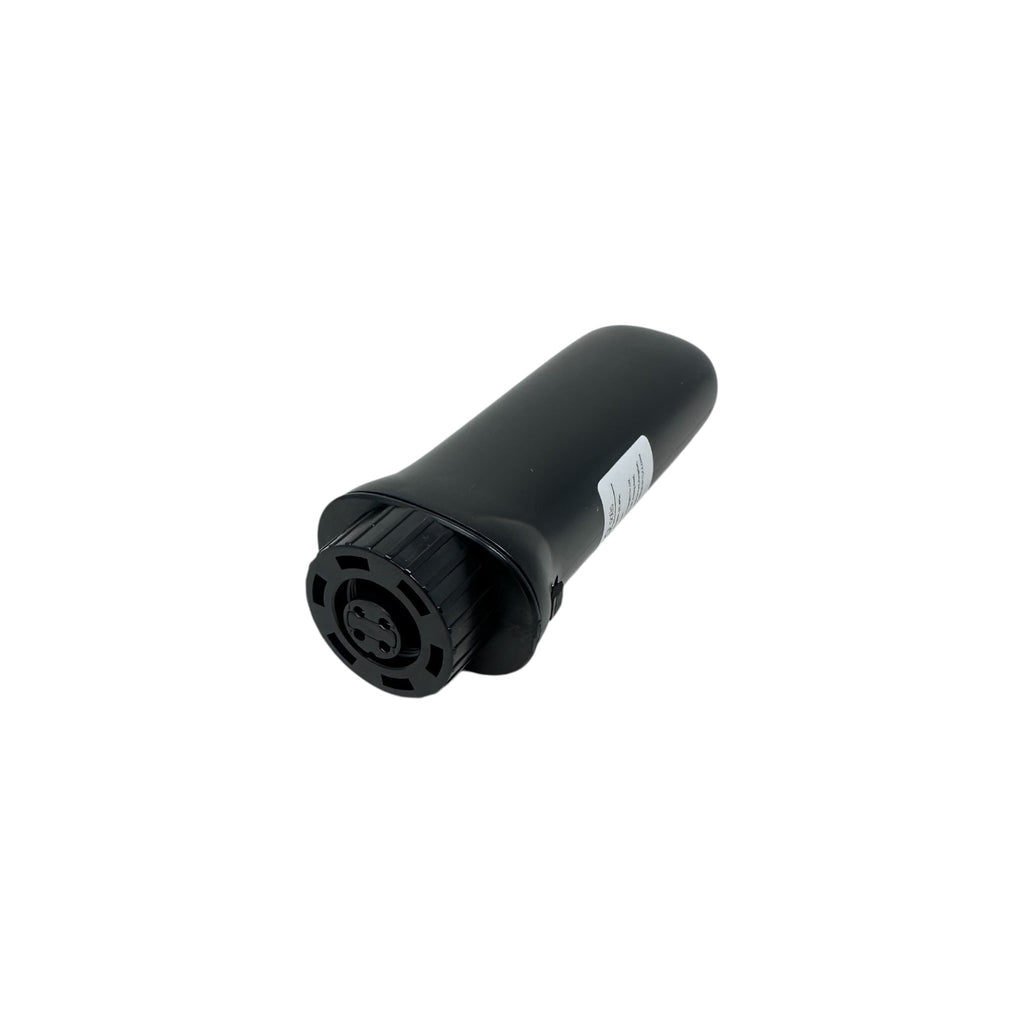

• Inverter connection: External 4-pin port with twist-lock installation
• Maximum connected inverters: 10
• Data collection interval: 5 minutes
• Wireless standards: 802.11a/b/g/n
• Wi-Fi bands: 2.412–2.484GHz, 5.150–5.350GHz and 5.725–5.850GHz
• Nearby communication: Bluetooth 5.0
• Operating input: 5V DC ±5%
• Typical power consumption: 2W
• Ingress protection: IP65
• Dimensions: 128 × 50 × 34mm
• Weight: 80g
• Operating temperature: −30 to 65°C
• Maximum operating altitude: 4000m
• Certifications: CE and FCC

Compatibility

This listing is for the external 4-pin version. Confirm that the inverter has the compatible 4-pin logger port; inverters with a USB logger port require a different version.
