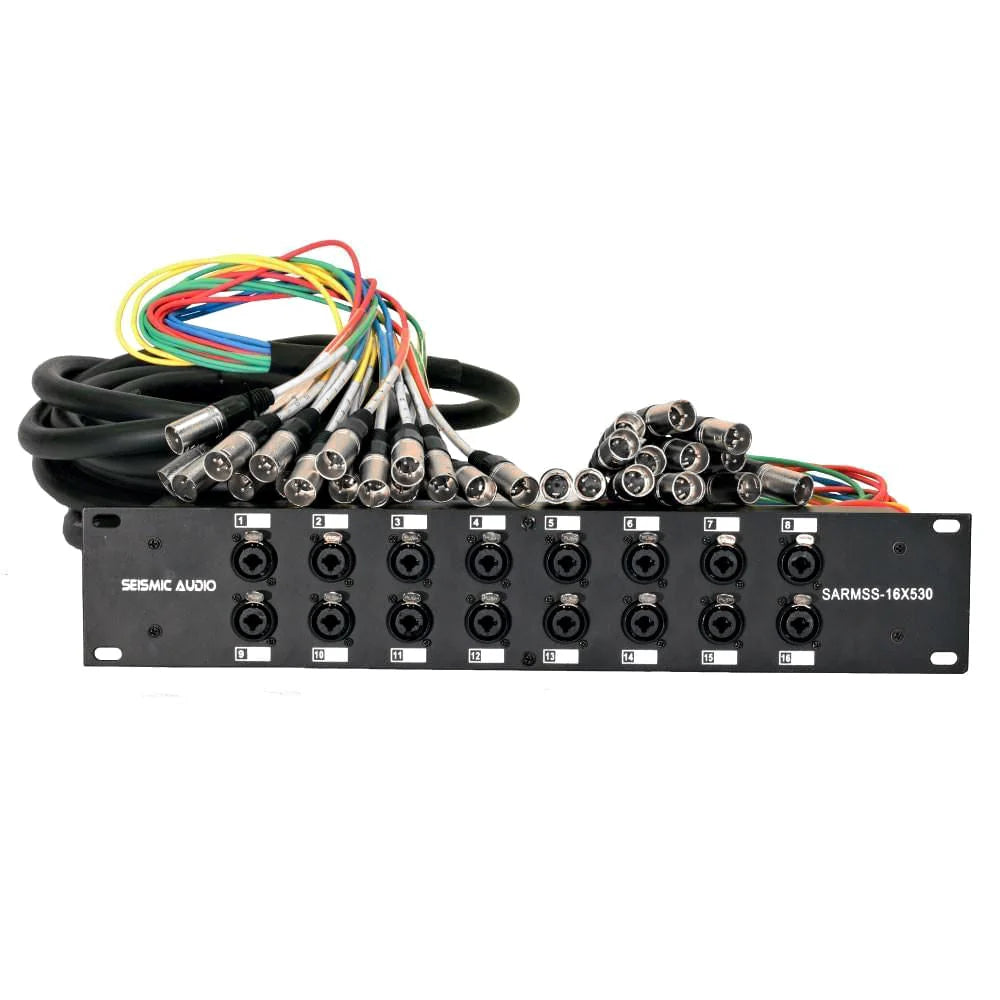

SARMSS-16x530 16-Channel XLR TRS Splitter Snake Cable with 5-Foot and 30-Foot Trunks, 2U Steel Stage Box and Shielded Pairs

The SARMSS-16x530 routes sixteen stage inputs to two mixing positions through a hardwired Y split. Its steel stage box provides XLR/TRS combo inputs, with male XLR fantails on separate 5-foot and 30-foot trunks.

Key Features

• Sixteen female XLR and 1/4-inch TRS combo input jacks; each accepts one connector type at a time.
• Dual output trunks for front-of-house and monitor routing.
• 22-AWG conductors with individually shielded pairs.
• Heavy-duty steel stage box occupying two rack spaces.
• Clearly labeled connectors and color-grouped fantails.
• 48V phantom-power pass-through from compatible mixing equipment; this cable does not generate power.
• Send-only construction with no return channels.

Specifications

• Model: SARMSS-16x530
• Channels: 16
• Inputs: female XLR / 1/4-inch TRS combo
• Outputs: male XLR on both fantails
• Trunk lengths: 5 feet and 30 feet
• Mounting: 2U
• Conductors: 22 AWG; individually shielded pairs
• Steel stage-box assembly; weight: 16.5lb

Setup and Package

Includes one complete stage-box and dual-trunk splitter cable assembly. Use compatible console inputs for live sound, studio monitoring and permanent installations. Microphones, consoles and racks are not included.
