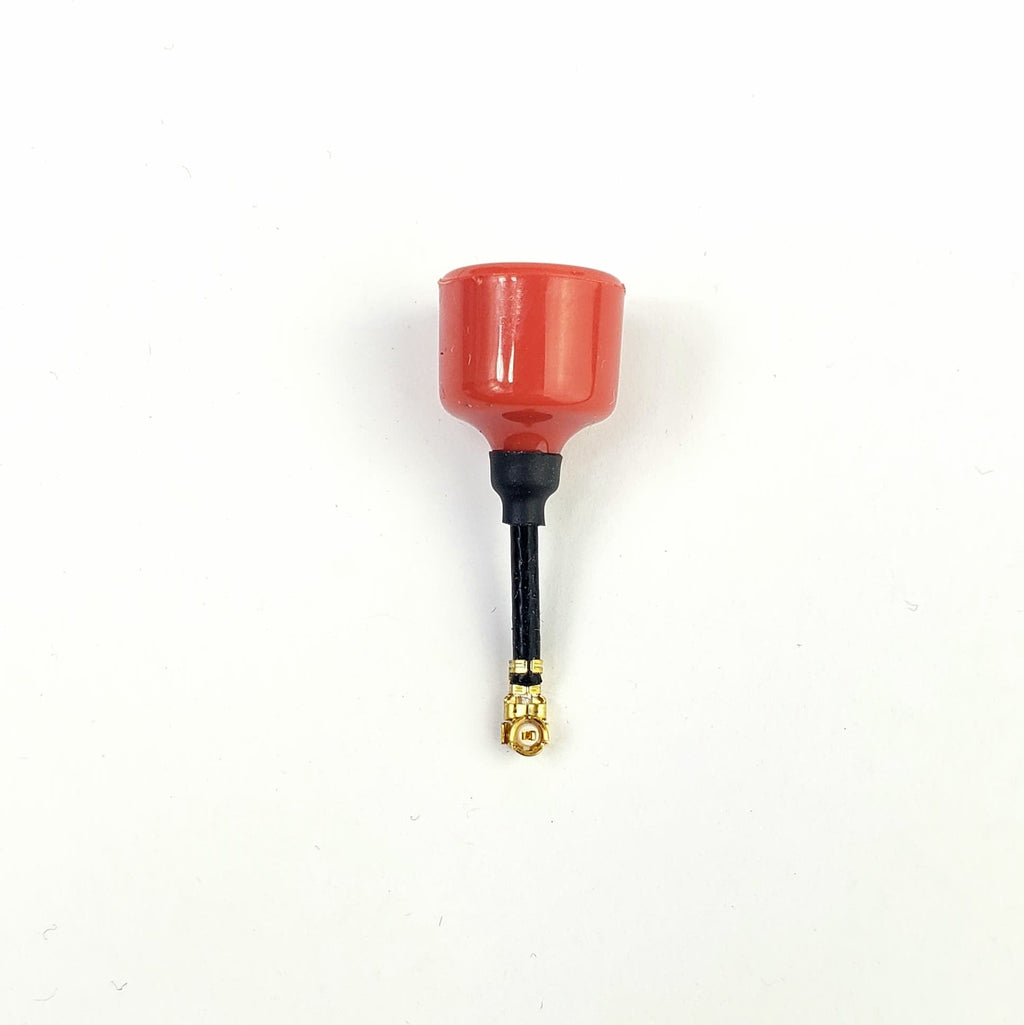

Equip a tiny whoop or compact FPV build with the Singularity RHCP U.FL VTX antenna in one of eight cable lengths.
Key Features
- Right-hand circular polarization for FPV video transmission.
- 5.6–6.0GHz operating bandwidth and 1.9dBic gain.
- 99% stated radiation efficiency and SWR of 1.5:1 or lower.
- Compact 11.8mm diameter antenna head.

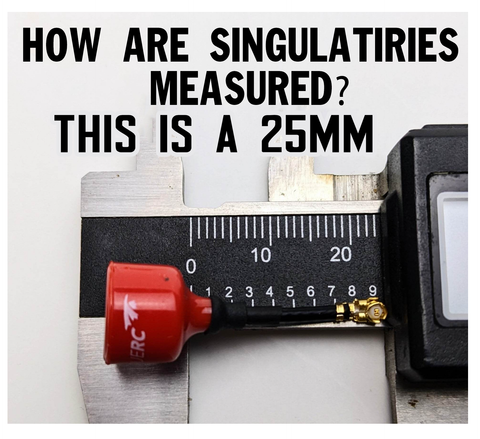

- Choose cable lengths from 10mm to 50mm.
Specifications
- Brand: TrueRC
- Model: Singularity
- Connector: U.FL
- Polarization: RHCP
- Gain: 1.9dBic
- Bandwidth: 5.6–6.0GHz
- Radiation efficiency: 99%
- Head size: 11.8mm diameter x 8.2mm height
- Lengths: 10mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm or 50mm
