6-Button On/Off Wall Keypad 2487S with 20A Relay, Dual-Band Scene Control and Neutral-Wire Installation

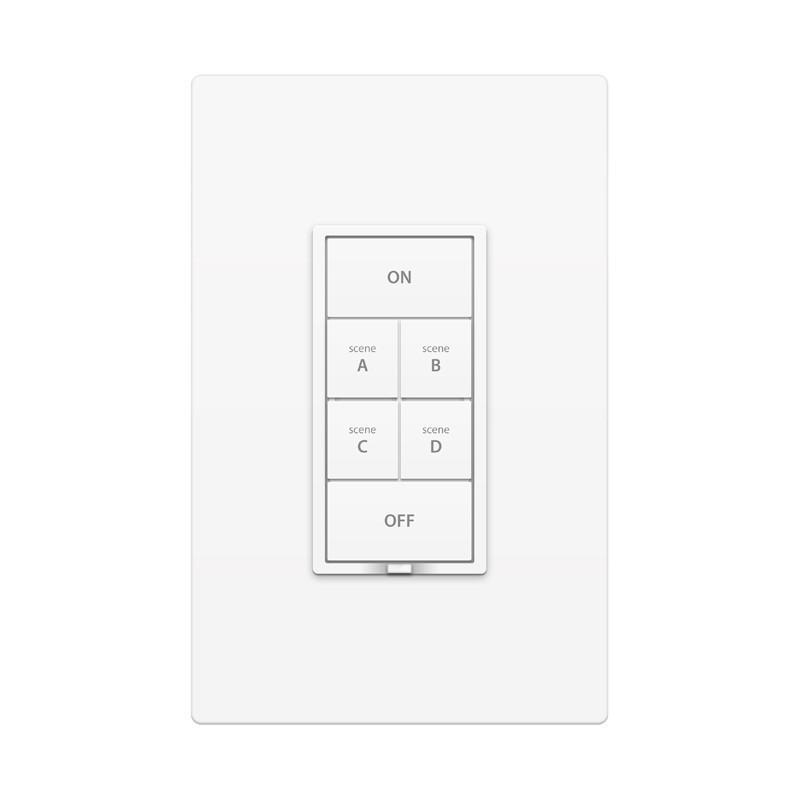

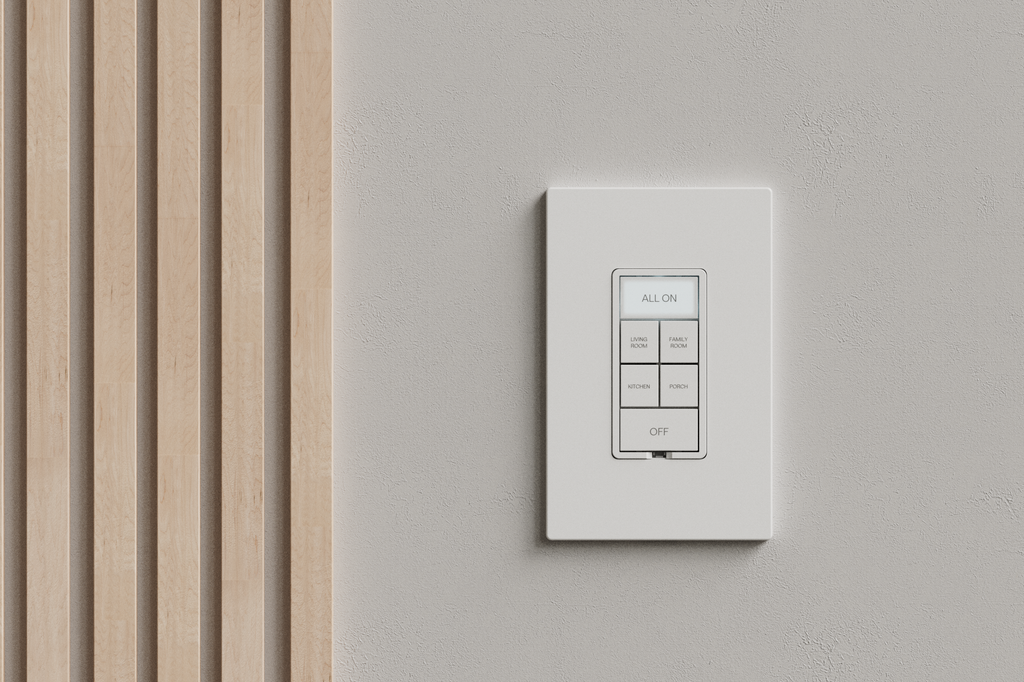

This 2487S six-button wall keypad combines an on/off relay switch with linked scene controls. The main ON and OFF buttons operate the wired load, while four additional buttons control groups of compatible Insteon devices.

Key Features

• Integrated 20A relay, with an incandescent load limit of 1800W.
• Dual-band communication over power lines and wireless radio.
• Buttons can act as scene controllers or responders; up to 400 scenes are supported.
• Toggle, on-trigger and off-command button modes.
• Dimmable status LEDs and configurable beeper.
• Settings are preserved through power interruptions.

Specifications

• Model: 2487S, six-button on/off configuration.
• Use configuration described here: 120VAC, 60Hz, single phase.
• Neutral wire required.

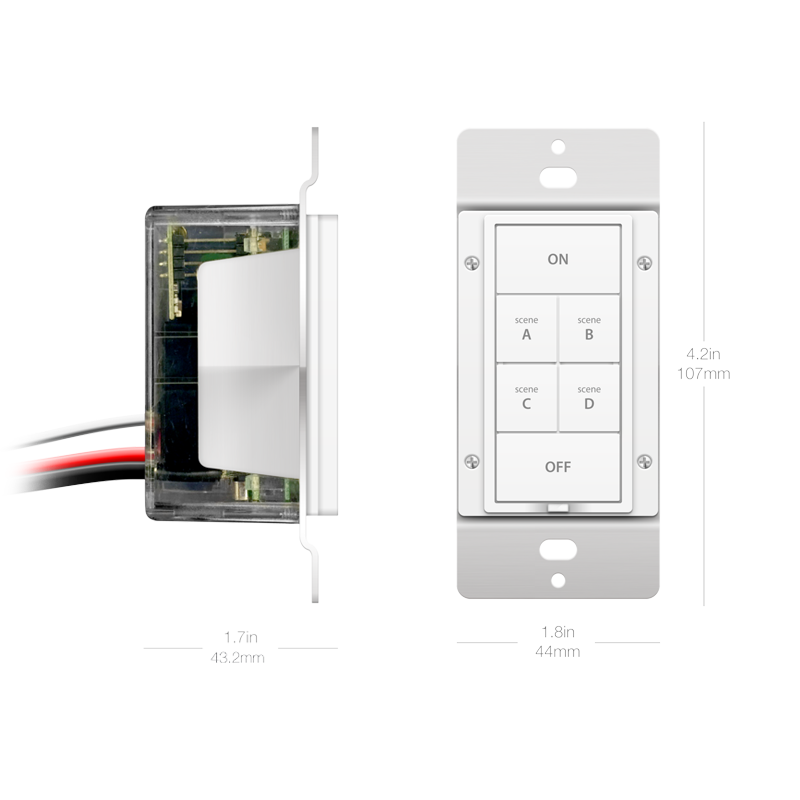

• Dimensions: 4.2 × 1.8 × 1.7 inches.
• Operating temperature: 32–104°F; humidity: 0–85% relative humidity.

Setup and Compatibility

Supports compatible Insteon scenes, X10 and multiway circuits. Device linking and scenes can be set up without Wi-Fi, an app or a hub. Mobile app and Alexa or Google Home voice control require a Hub 2 and Connected Home Access. Follow the manufacturer installation instructions and disconnect power before installation.

Package Contents

• One six-button on/off scene keypad.
• Four wire nuts.
• Two mounting screws.
• Quick-start guide.
