Six-Port 1S LiHV Battery Charger with BT2.0 and PH2.0 Ports, USB-C Input and Board-Only or US Adapter Options

This six-port charging board supports 1S LiHV batteries with BT2.0 or PH2.0 connectors. Power enters through USB-C, and choose the board by itself or a set with a US power adapter.

Key Features

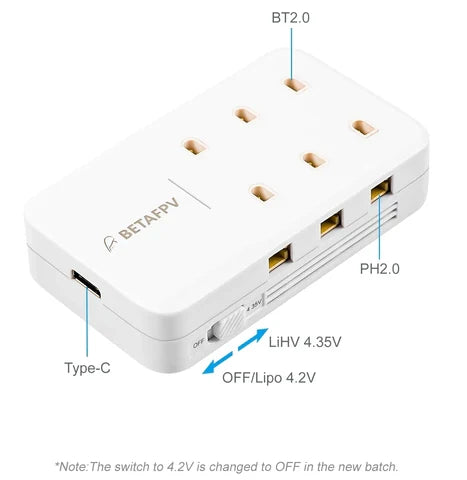

• Six charging ports with BT2.0 and PH2.0 connector support.
• USB-C input supporting PD3.0, QC3.0 and BC1.2.
• Up to 1A charging current per port, subject to the connected power source.

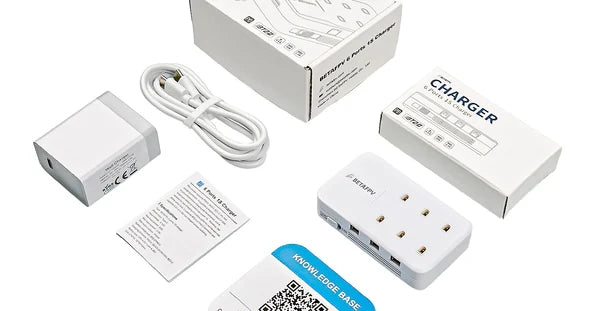

• Board-only and US adapter configurations remain separate purchase options.

Specifications

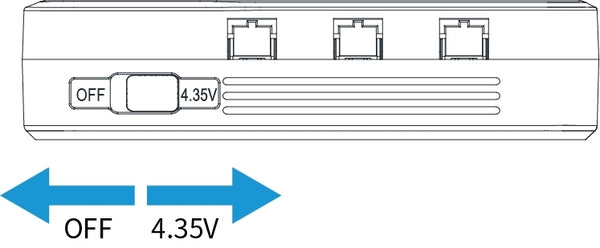

• Battery type: 1S LiHV, 4.35V.
• Input voltage: 5–12V.
• Maximum input power: 30W.
• Maximum input current: 2.5A.
• Maximum single-port charging current: 1A.
• Supported battery connectors: BT2.0 and PH2.0.
• Board dimensions: 79 × 46 × 19mm.
• Adapter configuration: US, 30W; included only with the adapter set.
