SMW12D4 S-Series 12-Inch Shallow-Mount Car Subwoofer with Dual 4-Ohm Voice Coils, 400W RMS and 3.82-Inch Depth
$147.83
Sale price
$147.83
Regular price

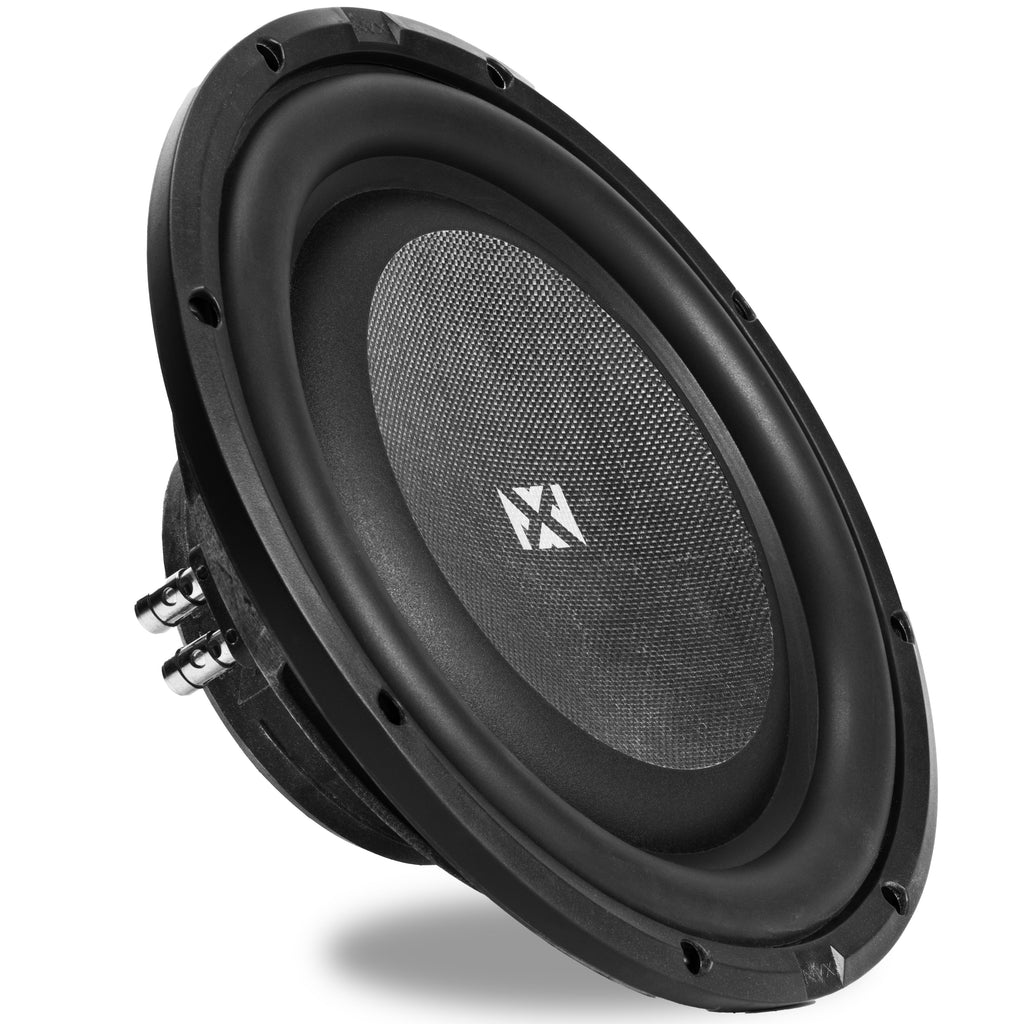

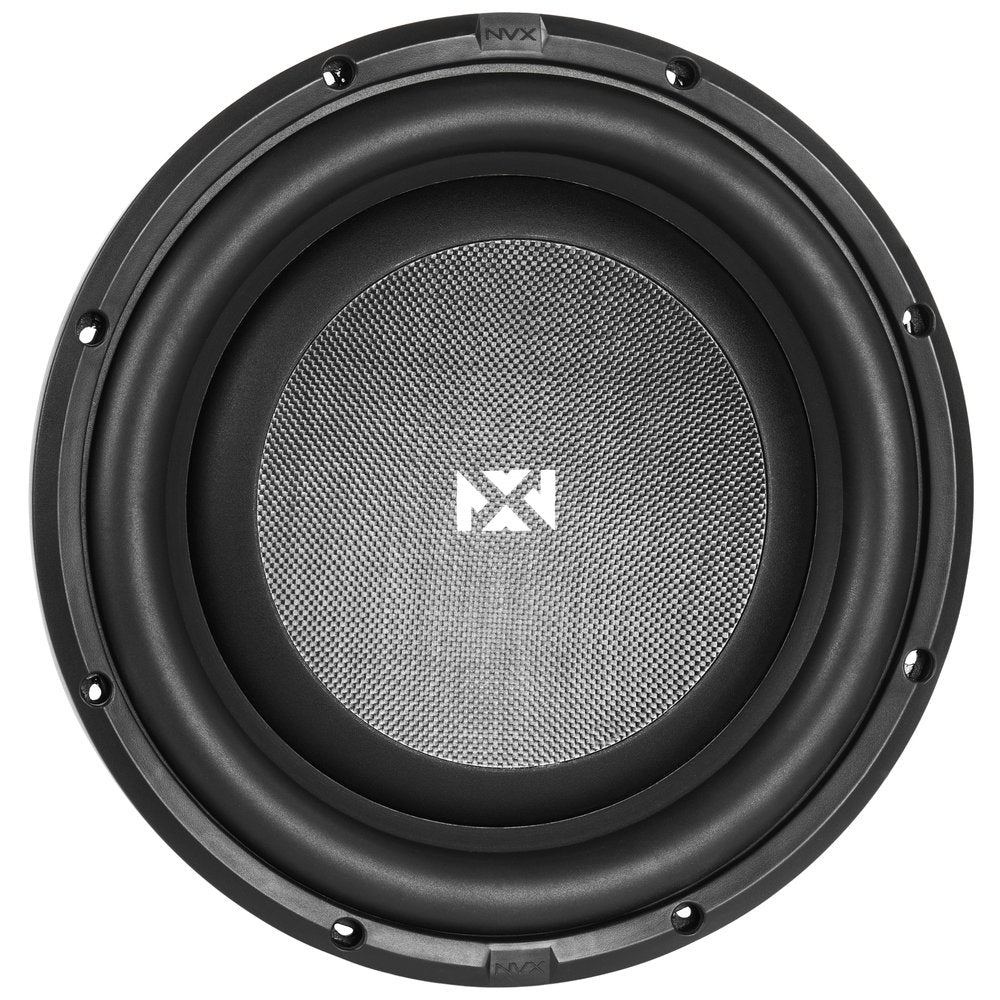

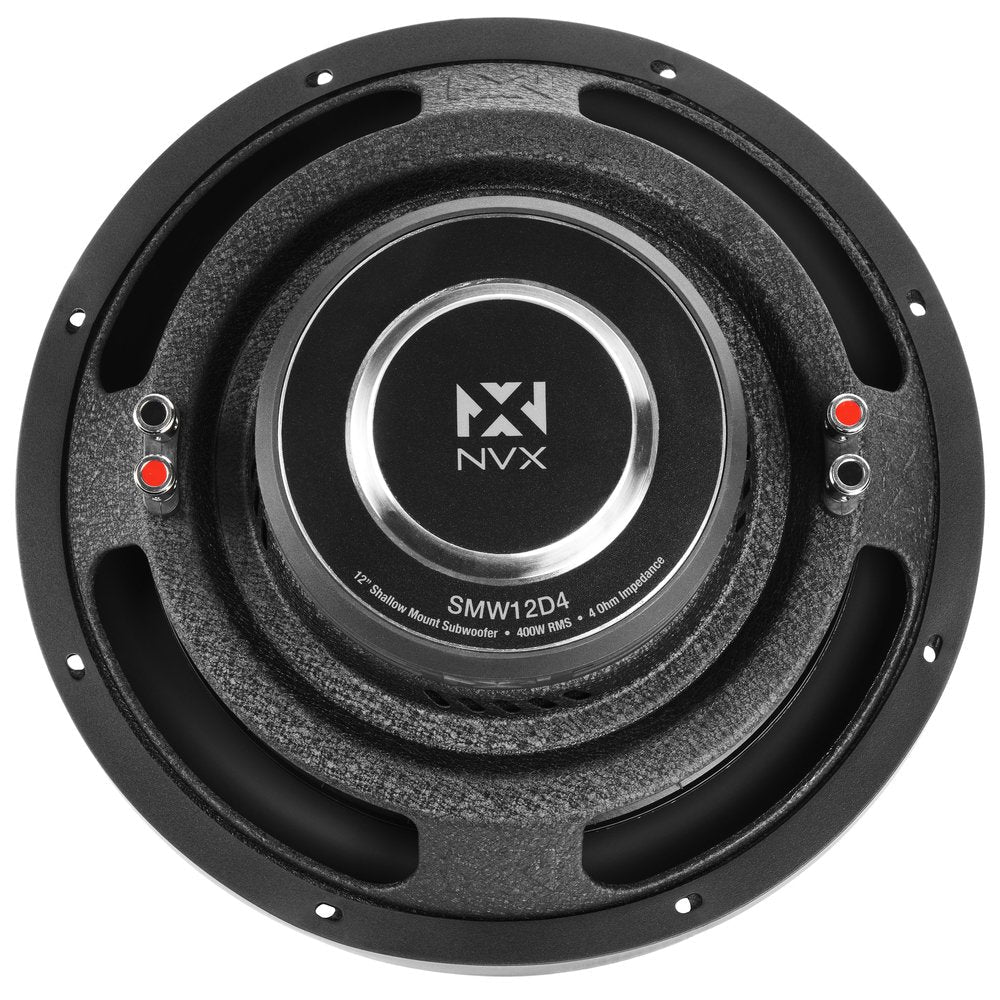

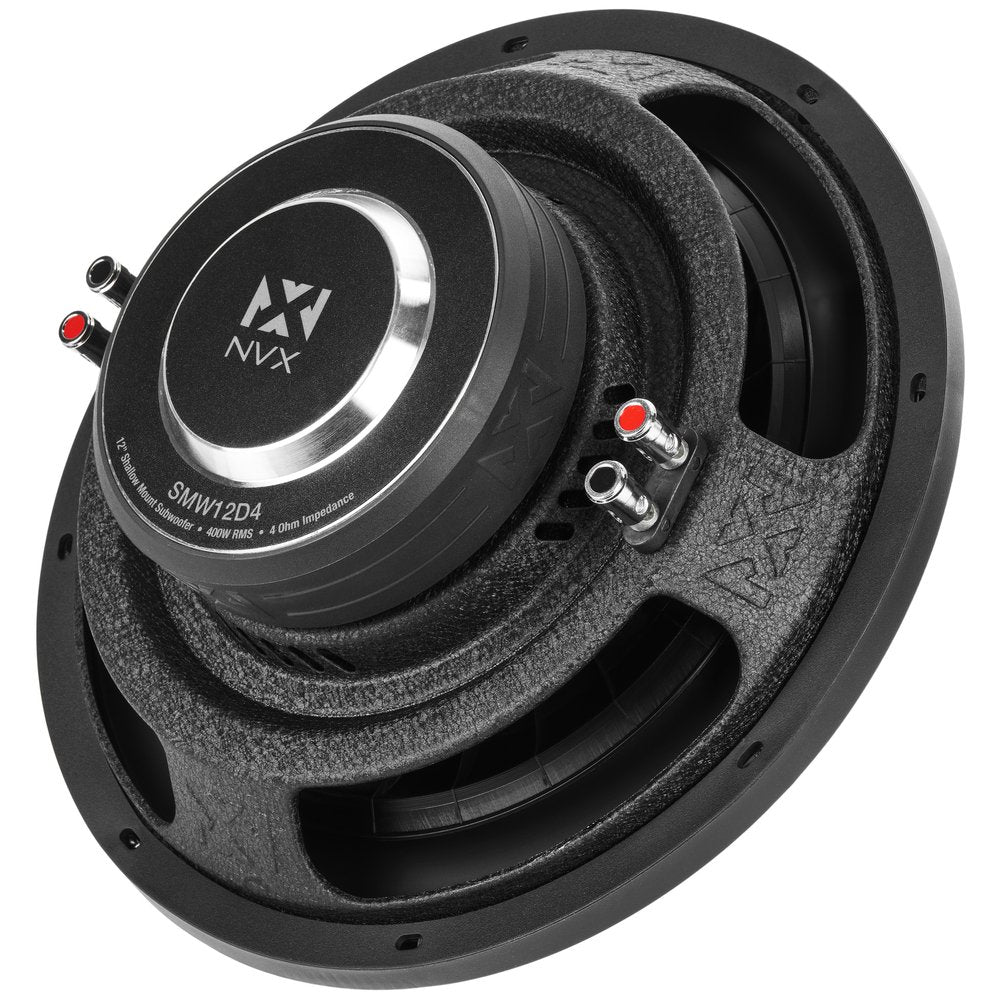

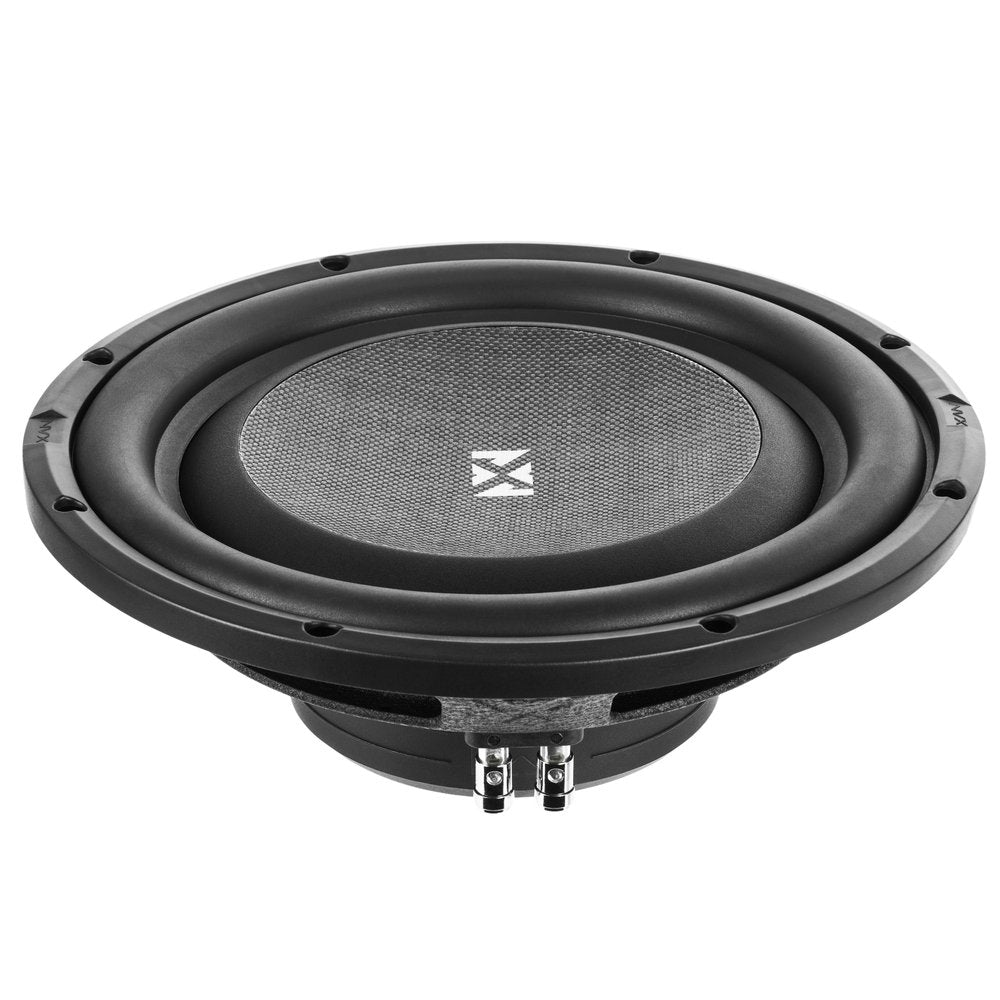

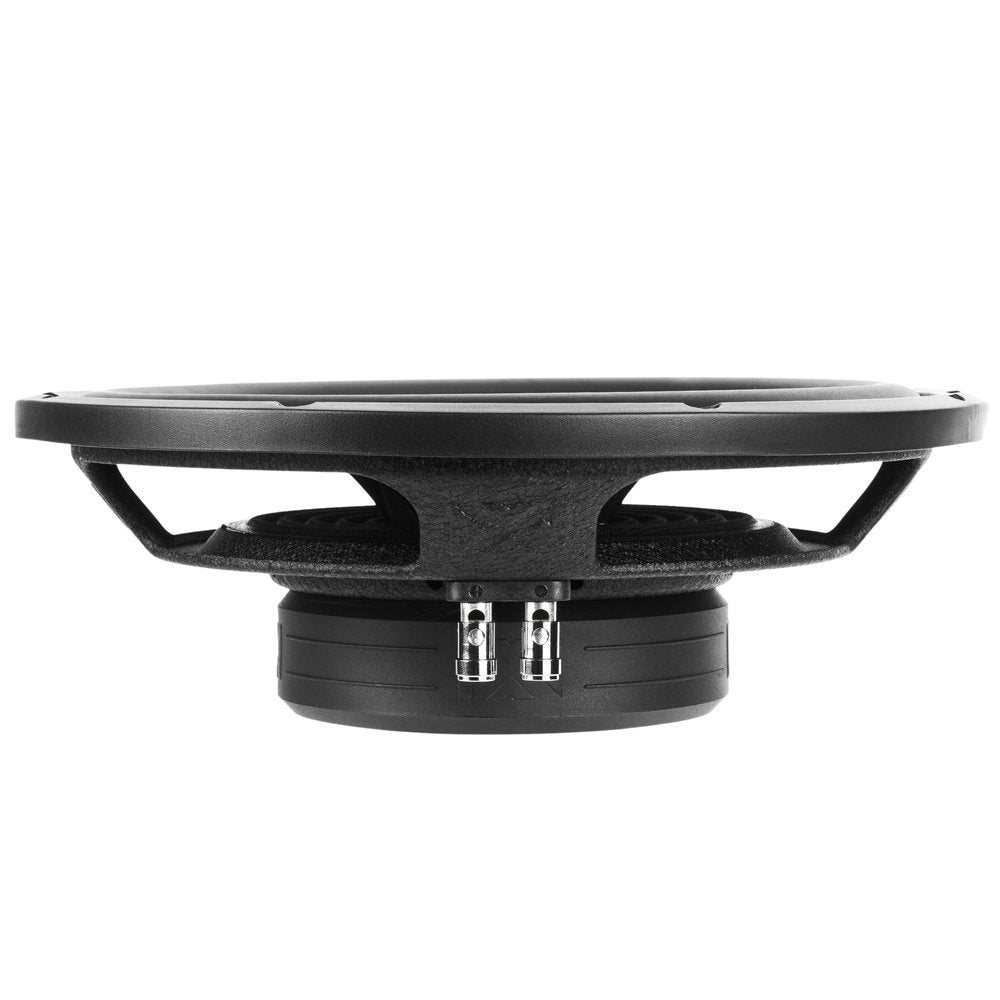

The SMW12D4 is a 12-inch S-Series shallow-mount vehicle subwoofer rated for 400W RMS, with dual 4-ohm voice coils and a 3.82-inch top-mount depth.
Key Features

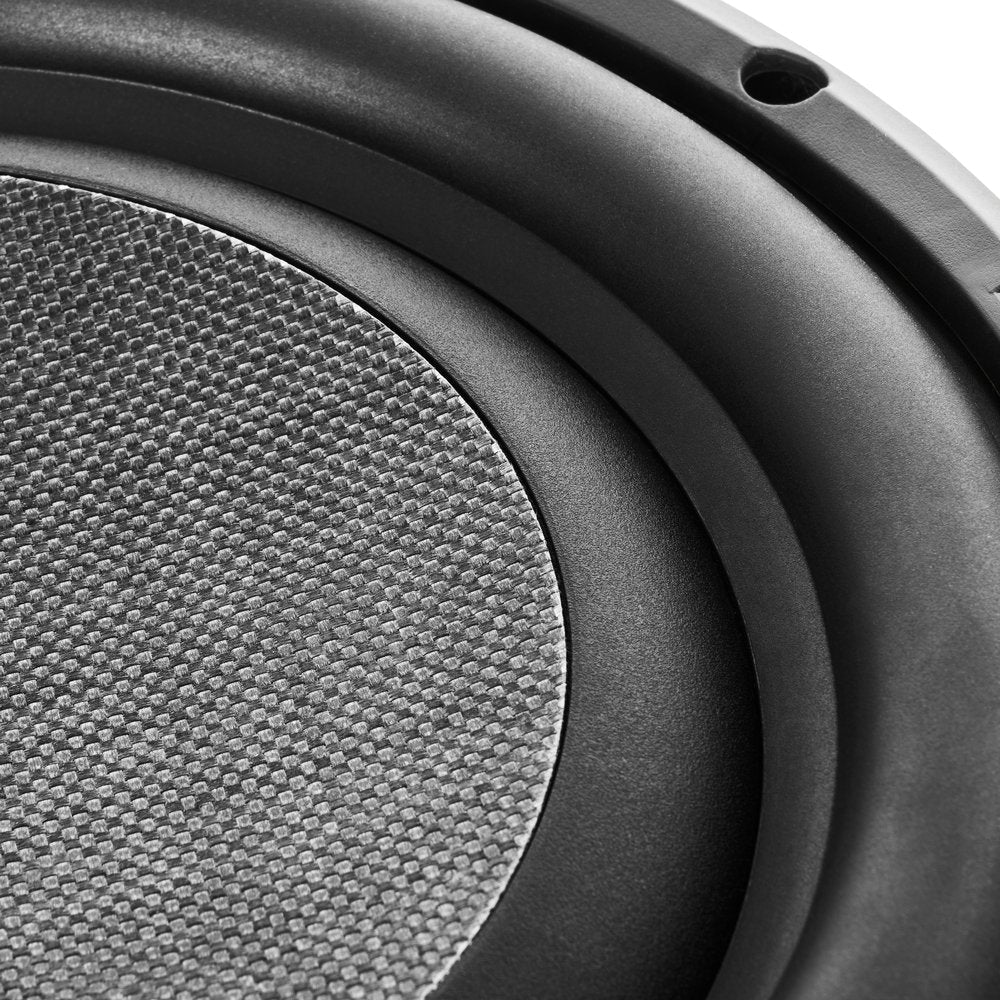

- Carbon-fiber-reinforced polypropylene cone uses a butyl-rubber surround.
- 2.5-inch high-temperature aluminum voice coil handles the listed power rating.
- Dual 4-ohm coils support compatible amplifier wiring configurations.
- 8mm Xmax and a 53oz single-stacked Y30 ferrite magnet support controlled excursion.

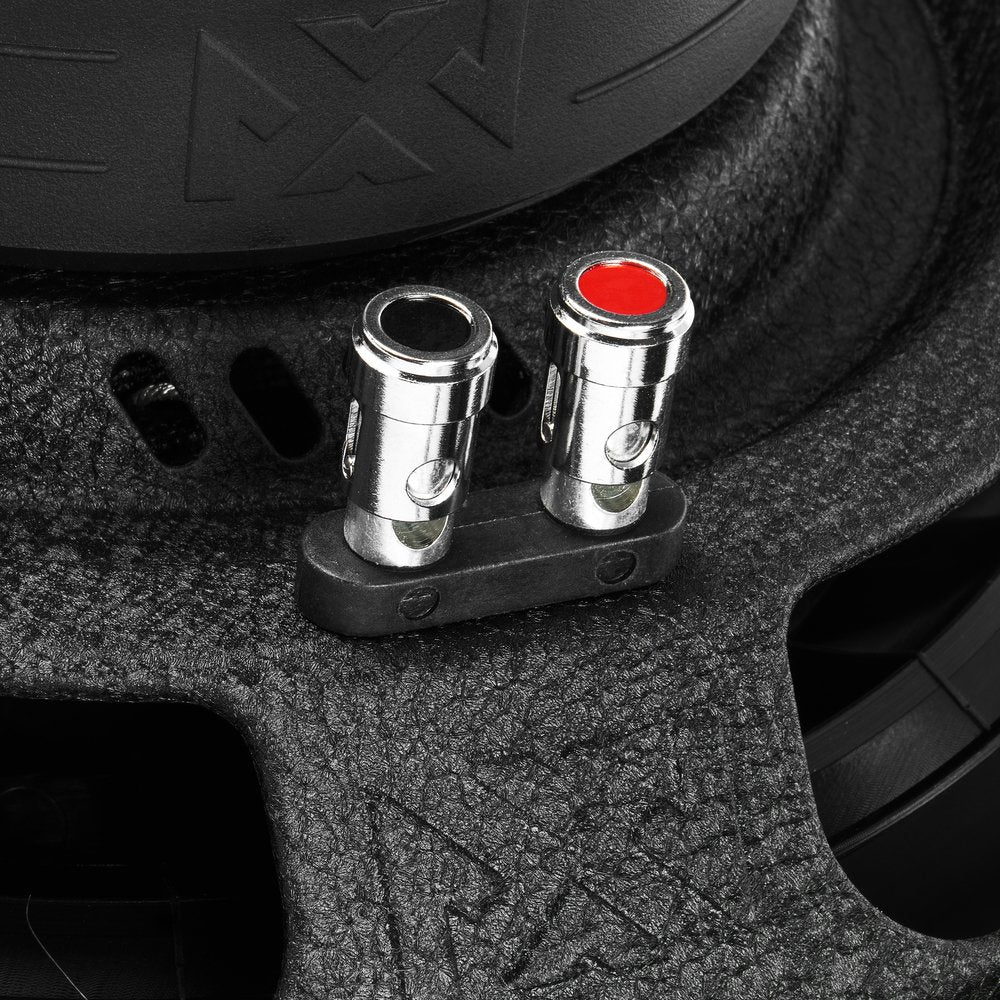

- Chrome-plated spring-loaded push terminals secure speaker wiring.

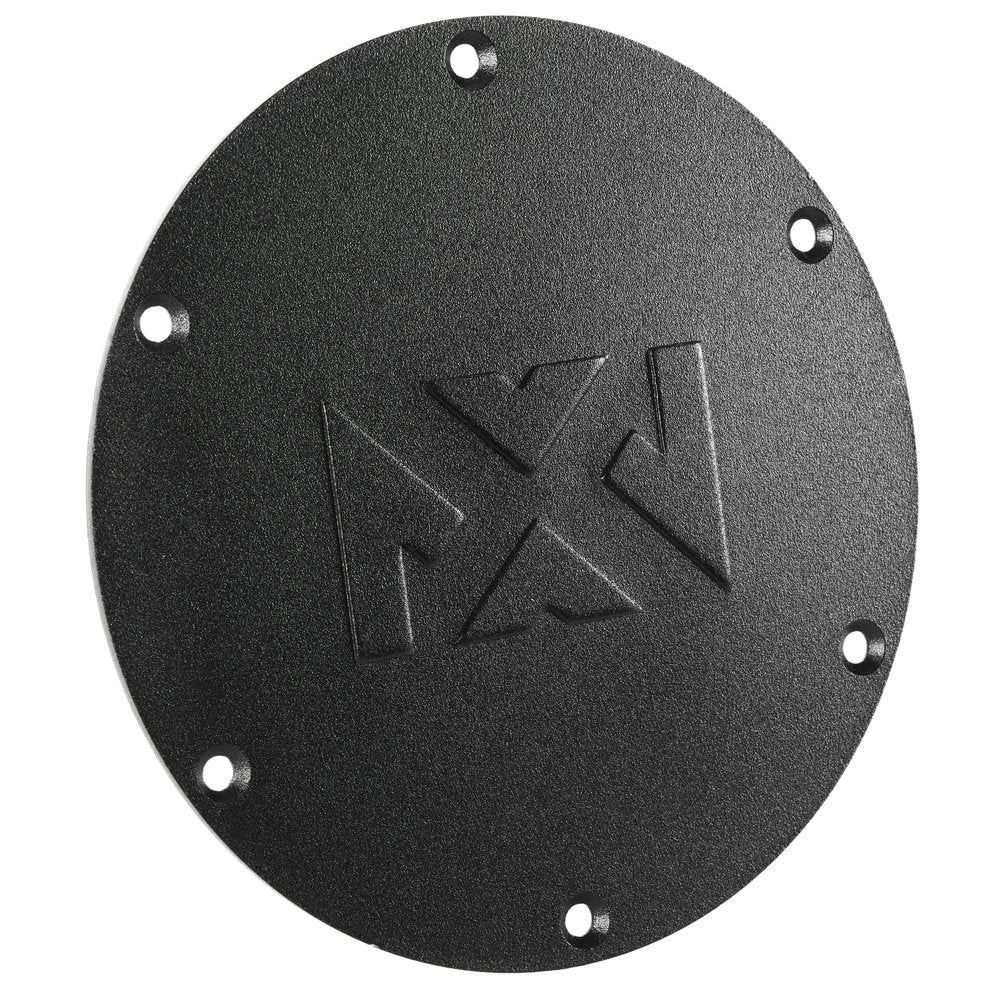

- Included depth-extension plate supports installation in extremely shallow enclosures.
Specifications
- Model: SMW12D4
- Series: S-Series
- Driver diameter: 12 inches
- Voice coils: Dual 4 ohms
- Power handling: 400W RMS; 800W peak
- Xmax: 8mm
- Frequency response: 25–350Hz
- Resonance frequency: 29.1Hz
- Sensitivity: 88dB
- Top-mount depth: 3.82 inches
- Cutout diameter: 11.11 inches
- Recommended sealed enclosure: 1.2 cubic feet
- Recommended ported enclosure: 1.75 cubic feet
- Magnet: 53oz single-stacked Y30 ferrite
- Compliance: CTA-2031
- Warranty: One year from original purchase date
- SKU: smw12d4
- Barcode: 810021844411
