UNIFY PRO32 HV MMCX FPV Video Transmitter with 25mW–1000mW+ Output, PitMode, SmartAudio and CleanSwitch

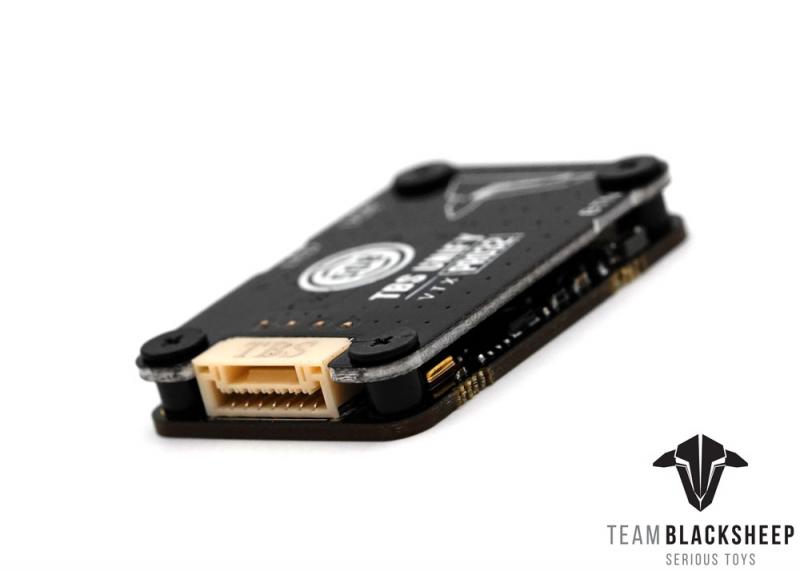

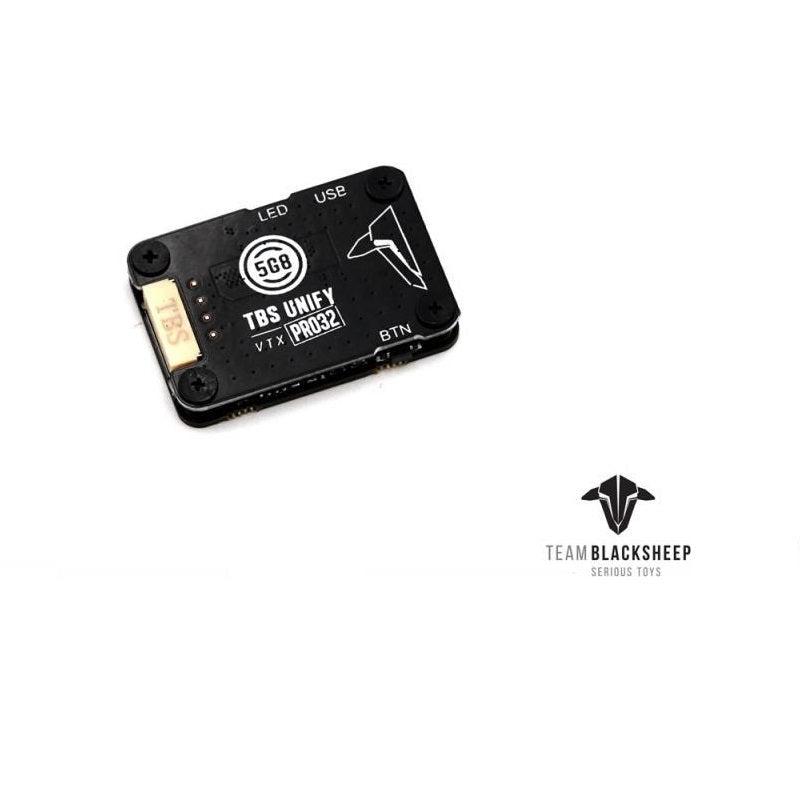

Equip an analog FPV aircraft with the TBS UNIFY PRO32 HV video transmitter and its compact MMCX antenna connection.

Key Features

• Selectable 25mW, 100mW, 400mW and 1000mW+ output levels.
• PitMode supports powered setup with minimal transmission range.
• SmartAudio V2.1 and CRSF provide remote control of power, bands, channels and frequency with compatible equipment.
• CleanSwitch reduces interference during power-up and channel changes.
• Double-decker design supports cooling and durability.

Specifications

• Brand: TBS
• Model: UNIFY PRO32 5G8 HV
• Operating voltage: 6V–25V (2–6S)
• Antenna connector: MMCX
• Video format: NTSC/PAL
• Video input impedance: 75 Ohm
• Dimensions: 37 x 24 x 6mm
• Weight: 8.7g

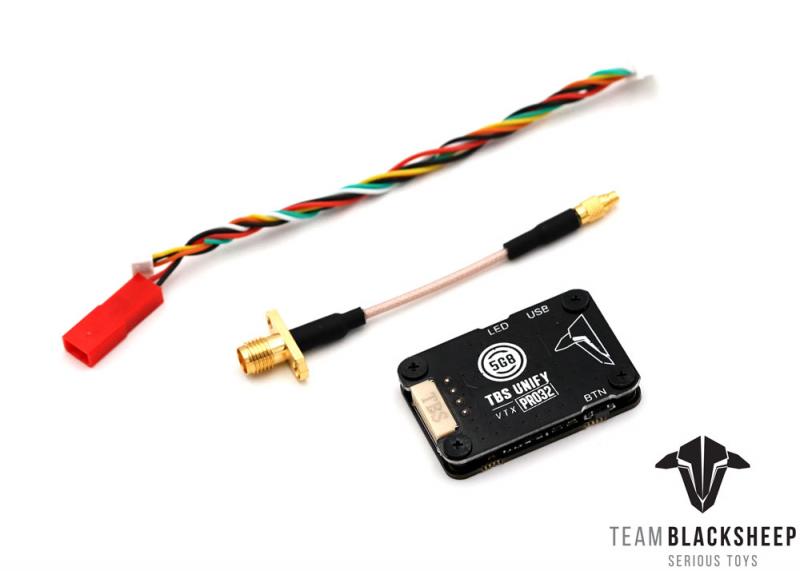

In the Box

• Video transmitter
• Silicone cable with pre-tinned ends
• MMCX to SMA pigtail
