Three-Bank 12V Battery Charger with Independent 10A Outputs and Multi-Chemistry Charging Profiles

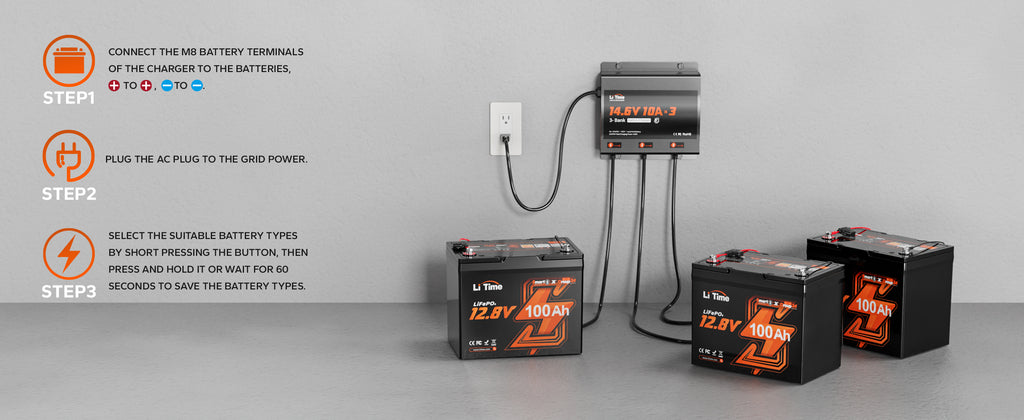

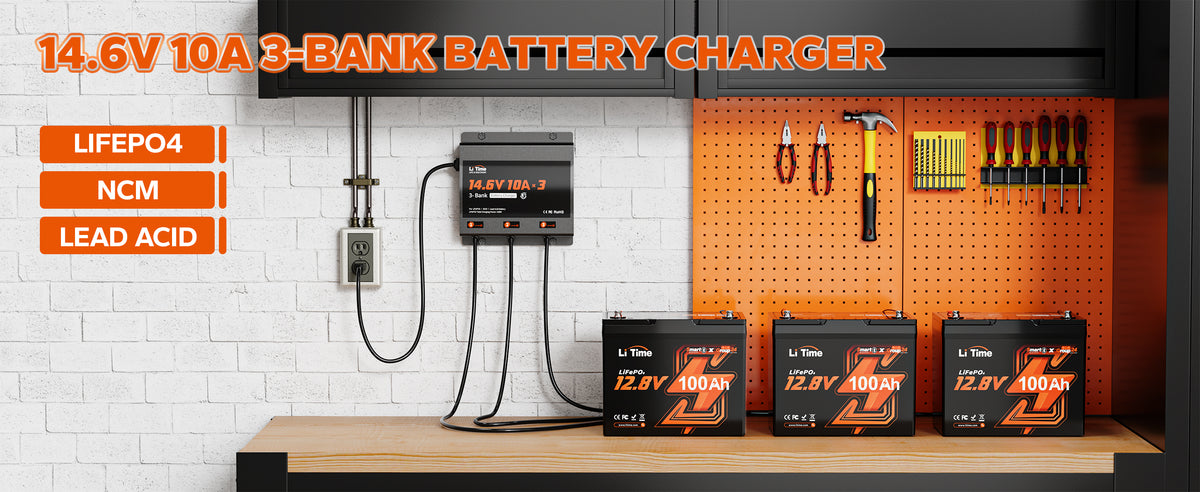

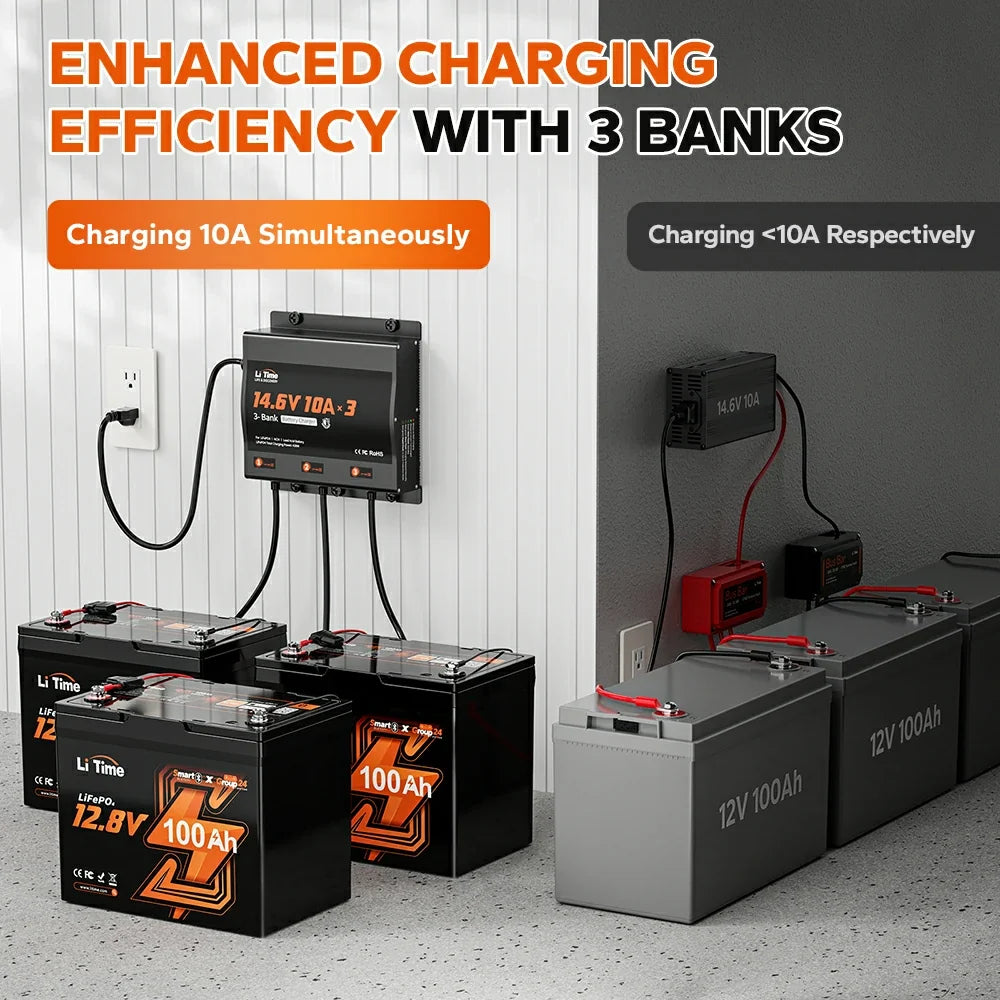

This three-bank battery charger charges up to three compatible 12V batteries simultaneously, with 10A available from each independent bank. It supports LiFePO4, NCM and lead-acid charging profiles, making it suitable for compatible marine, RV and trolling-motor battery systems.

Key Features

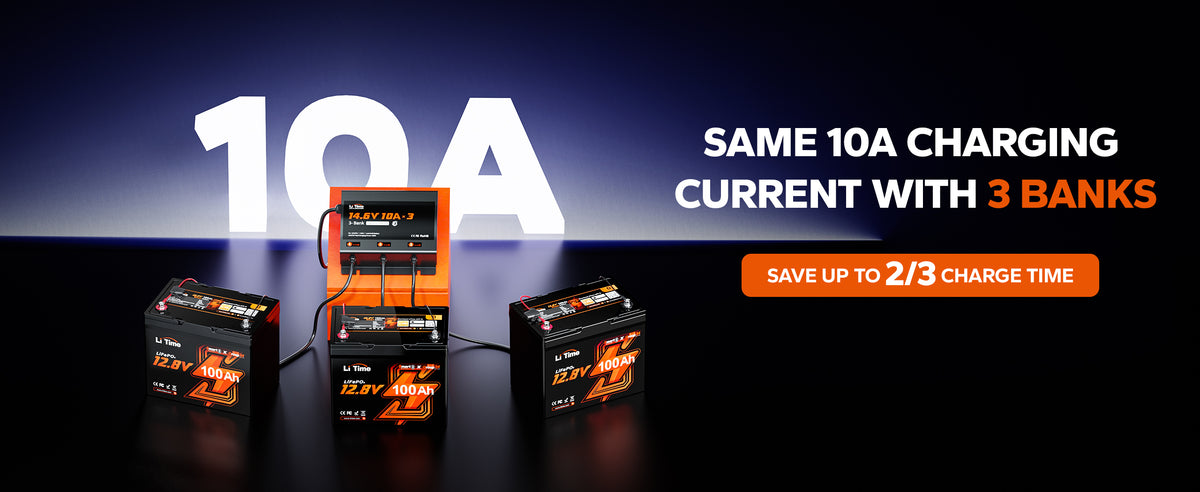

• Three 10A charging banks provide up to 30A total charging current.

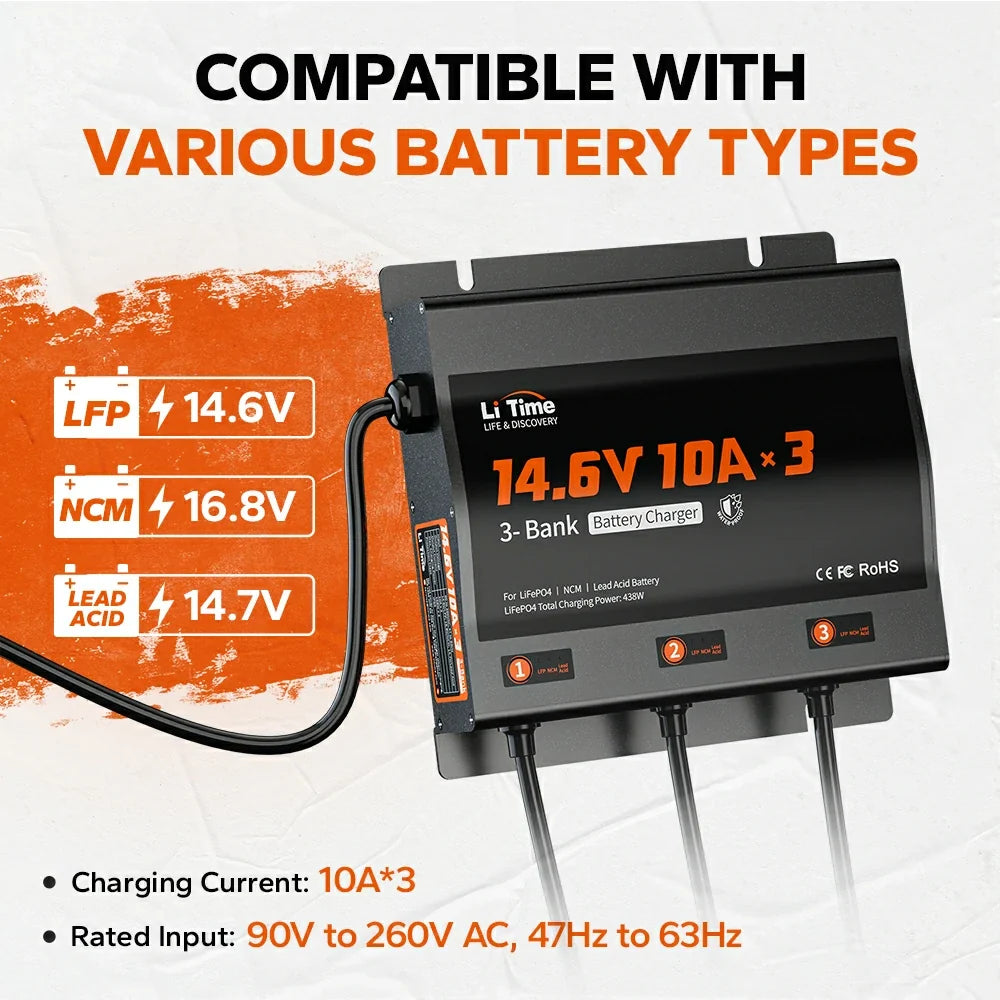

• Charging profiles are 14.6V for LiFePO4, 16.8V for NCM and 14.7V for lead-acid batteries.
• Lithium battery activation helps wake suitable BMS-protected batteries.

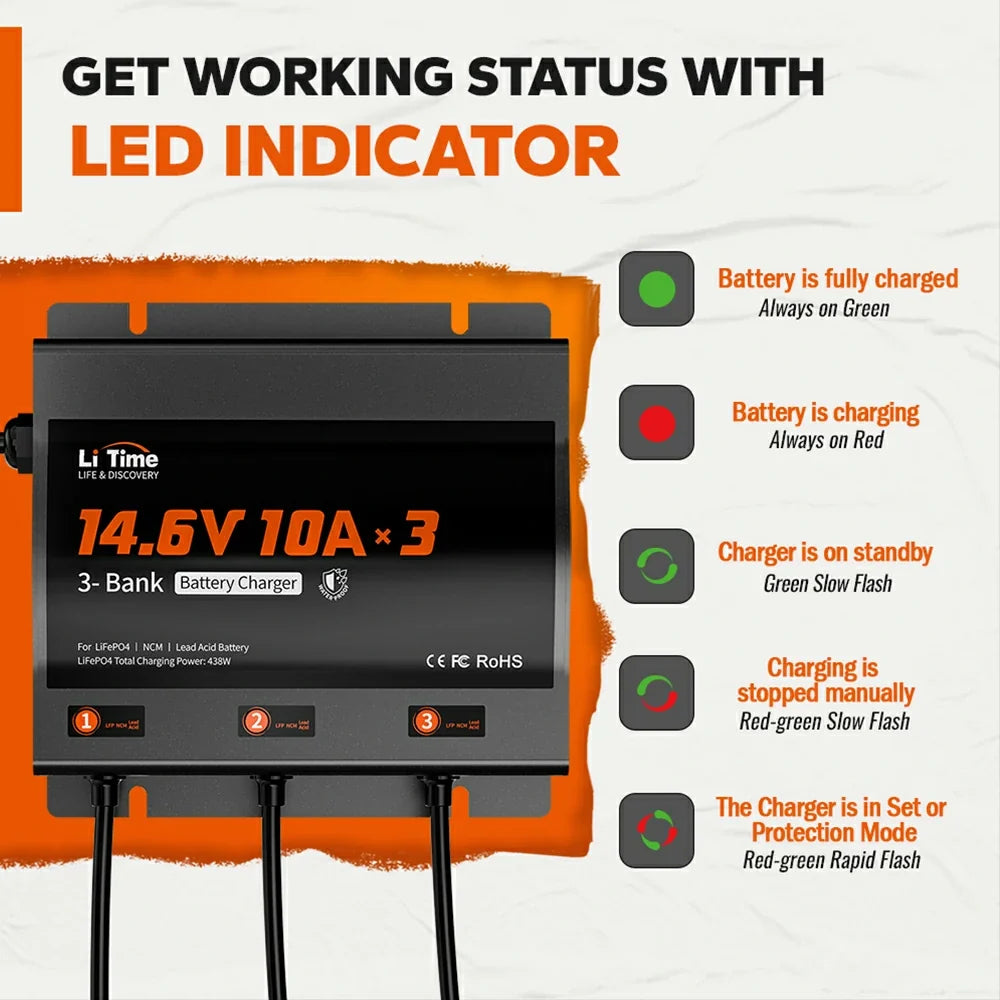

• LED indicators show standby, charging, full-charge and error states.

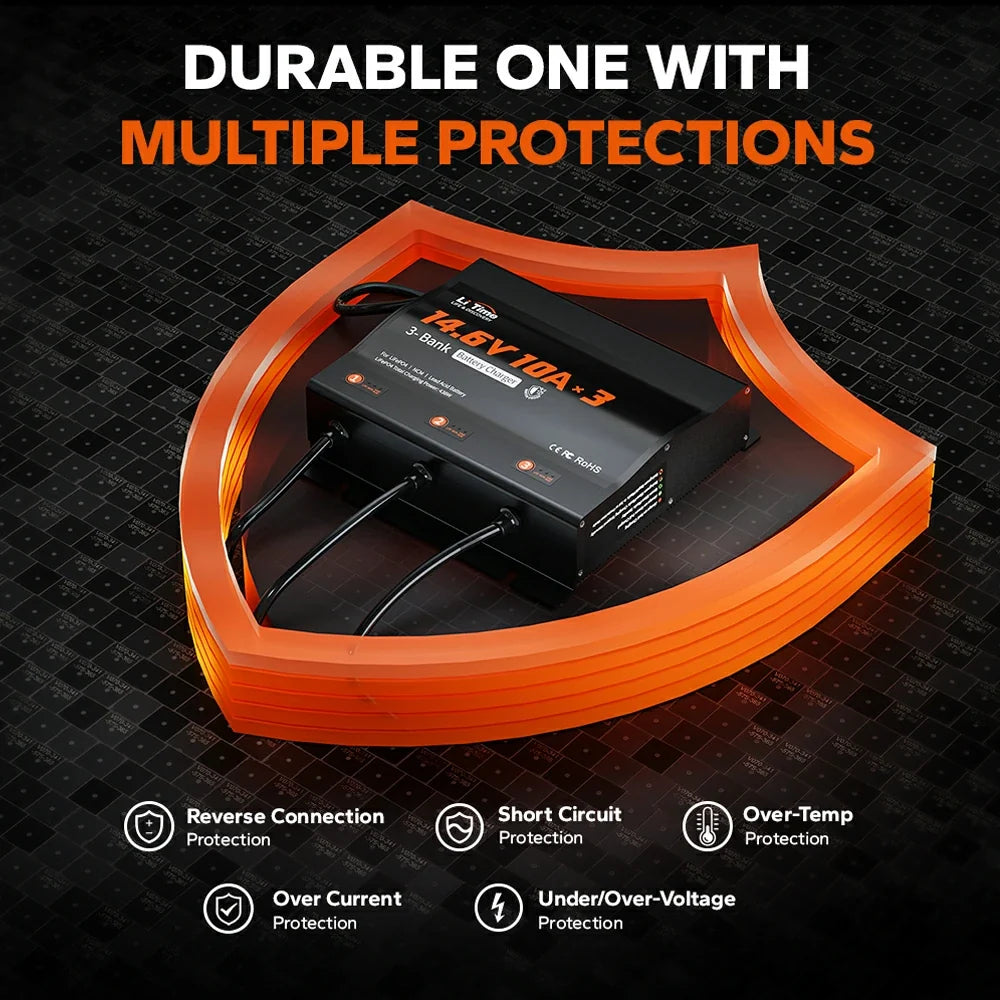

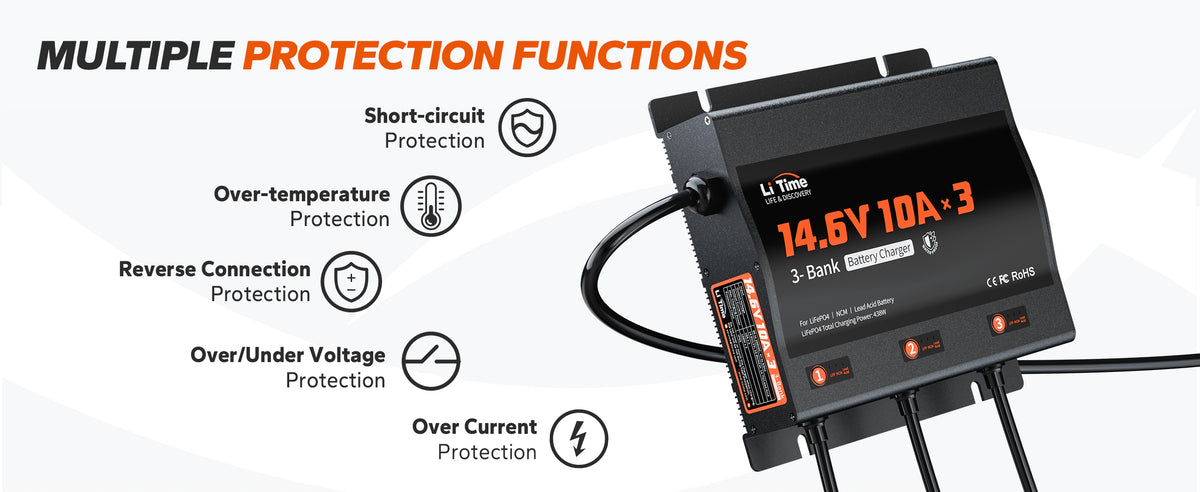

• Protection covers overheating, reverse polarity, short circuits and output overvoltage, overcurrent and undervoltage.

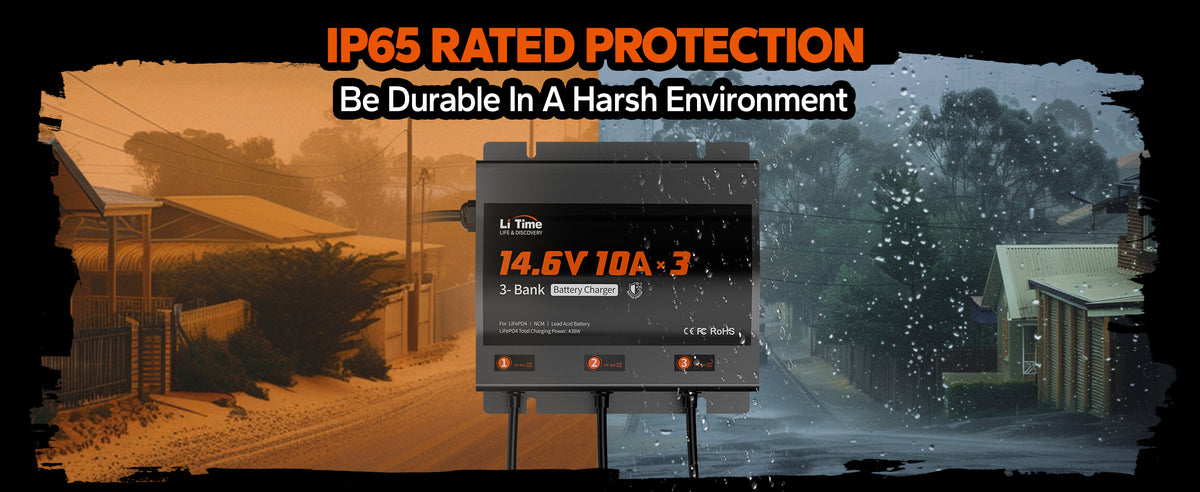

• IP65-rated construction provides dust and water protection. It is not an immersion rating.

Specifications

• Battery application: compatible 12V batteries; not for 24V batteries
• Input: 90–260V AC, 47–63Hz
• Charging banks: three independent 10A outputs
• Charging voltages: 14.6V LiFePO4; 16.8V NCM; 14.7V lead-acid
• Maximum charging power: up to 168W per bank
• Input cable length: 59.06in

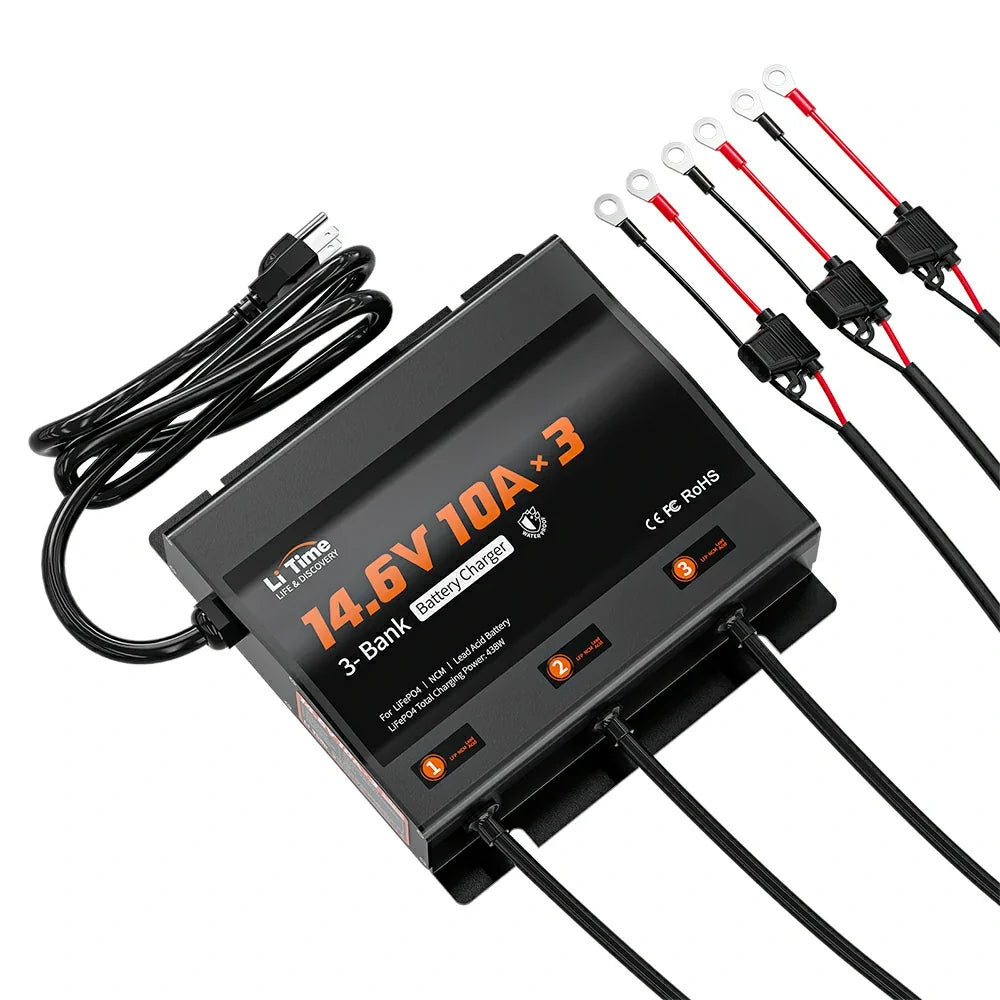

• Output cables: three, 78.74in each

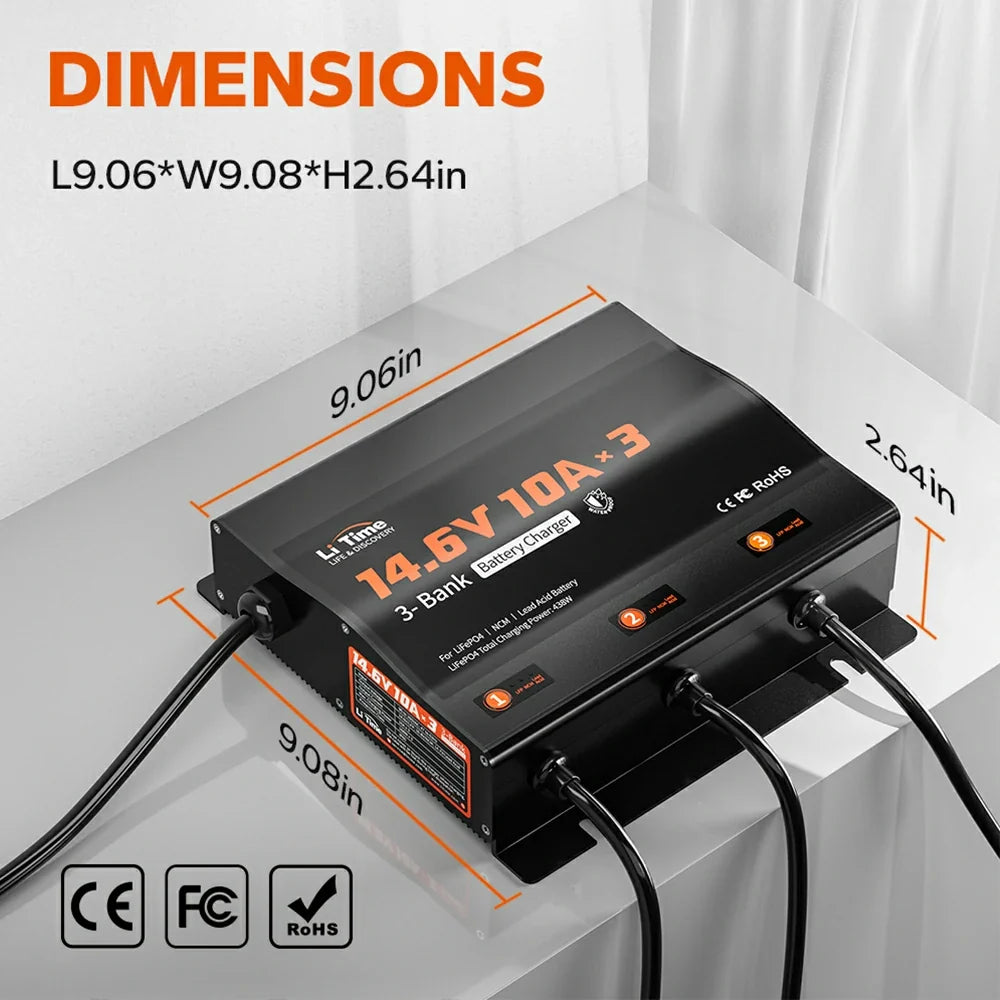

• Size: 9.06in long × 9.08in wide × 2.64in high
• Approximate weight: 9.48lb (4.3kg)
• Operating temperature: −20°C to 40°C
• Storage temperature: −40°C to 70°C
• Ingress rating: IP65

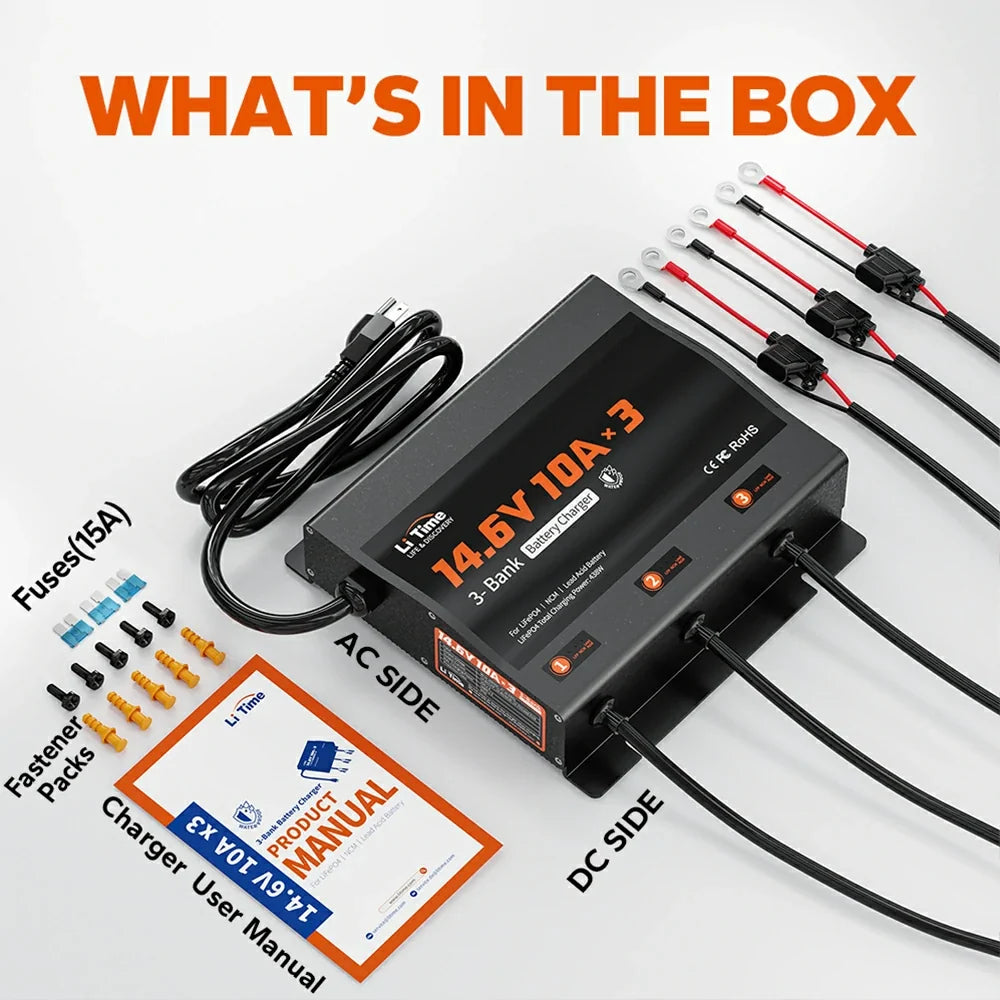

• Purchase quantity: one charger
