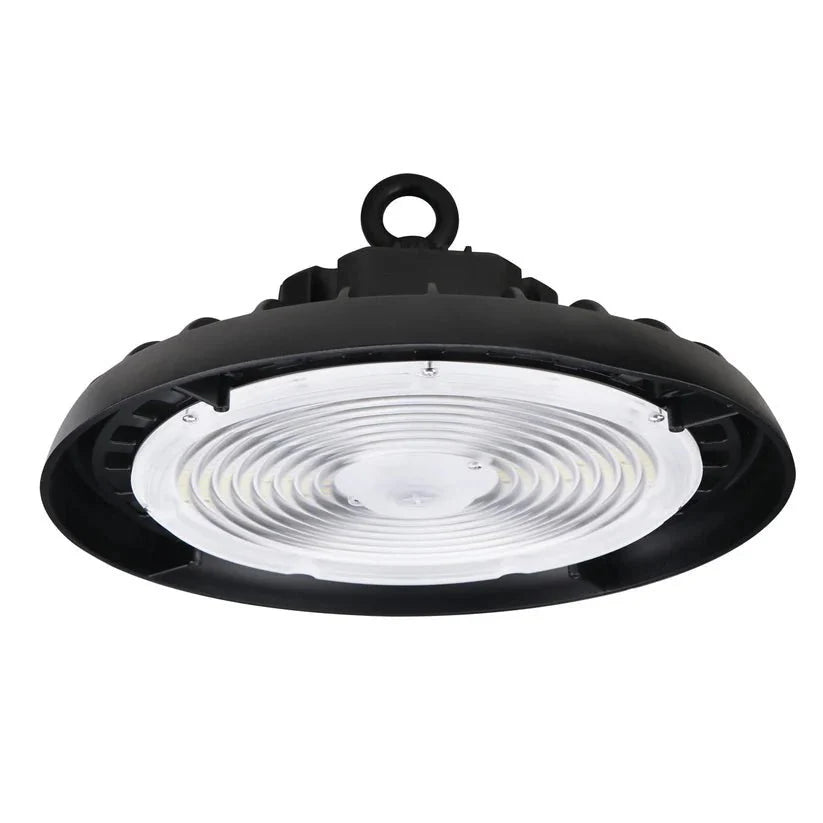

UFO LED High Bay Fixture with 240/220/200W Selection, 4000K Light, Hook Mount and 1–10V Dimming in Two Pack Sizes

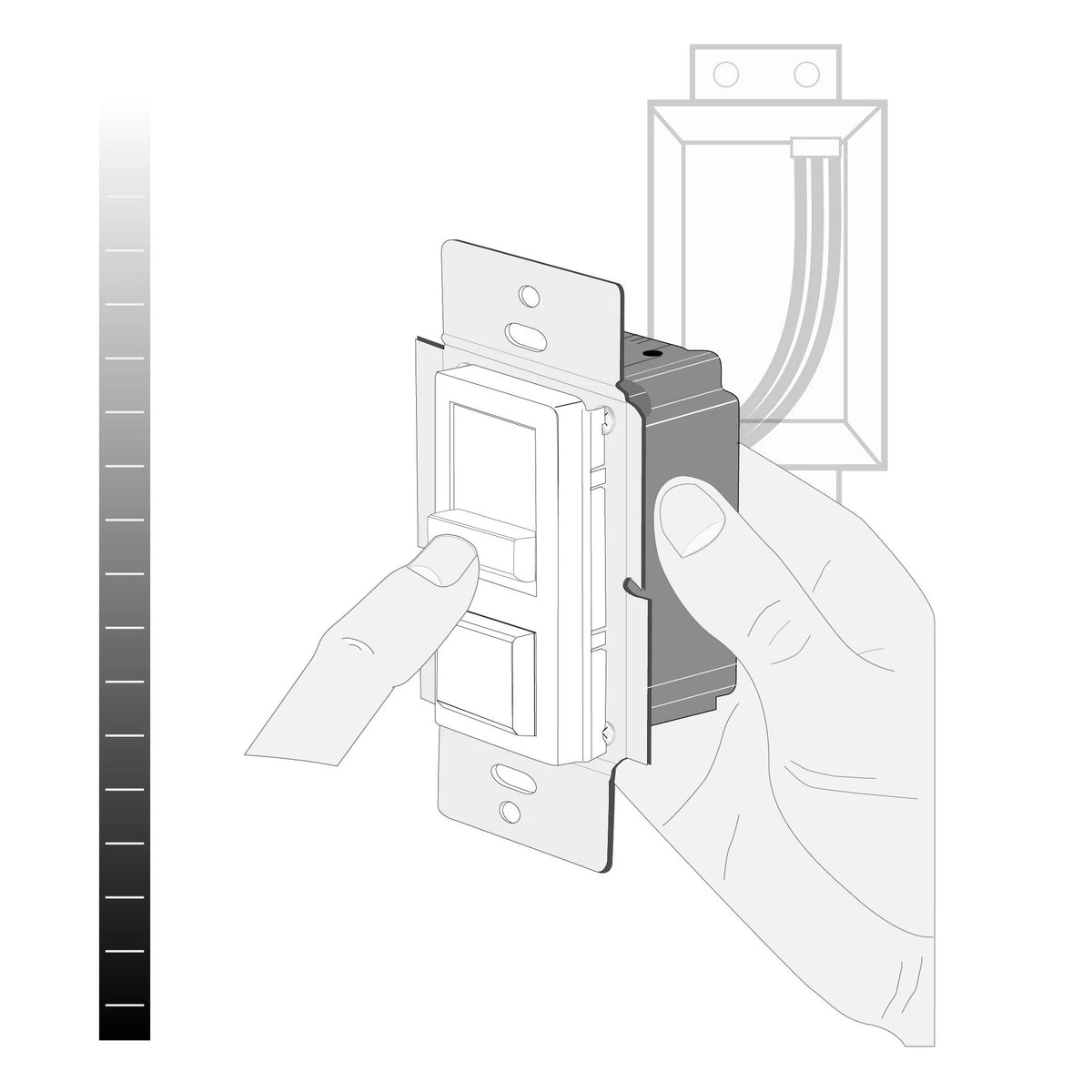

This UFO LED high bay fixture provides 4000K lighting for indoor commercial workspaces. Select 240W, 220W or 200W and use compatible 1–10V dimming controls to adjust the light output.

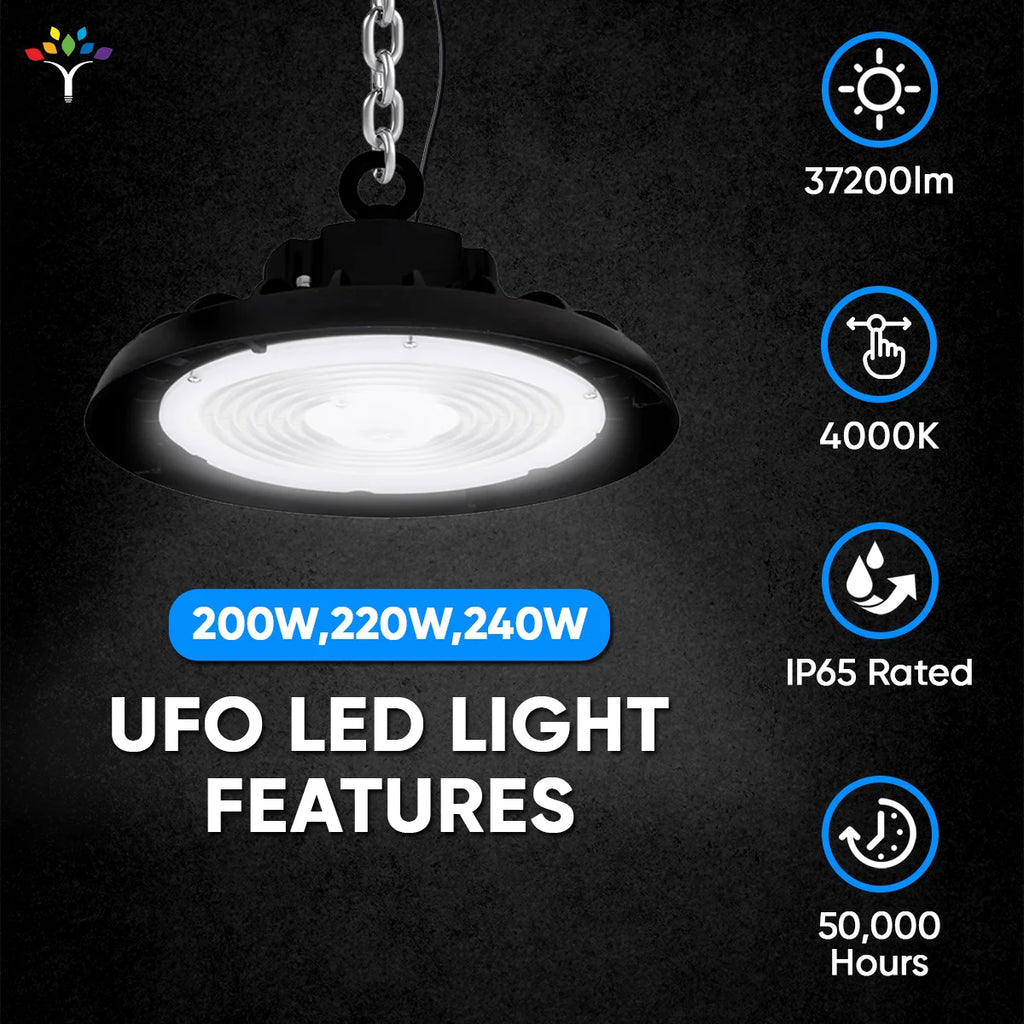

Key Features

• Adjustable 240/220/200W power settings with a 120–277V AC input range.

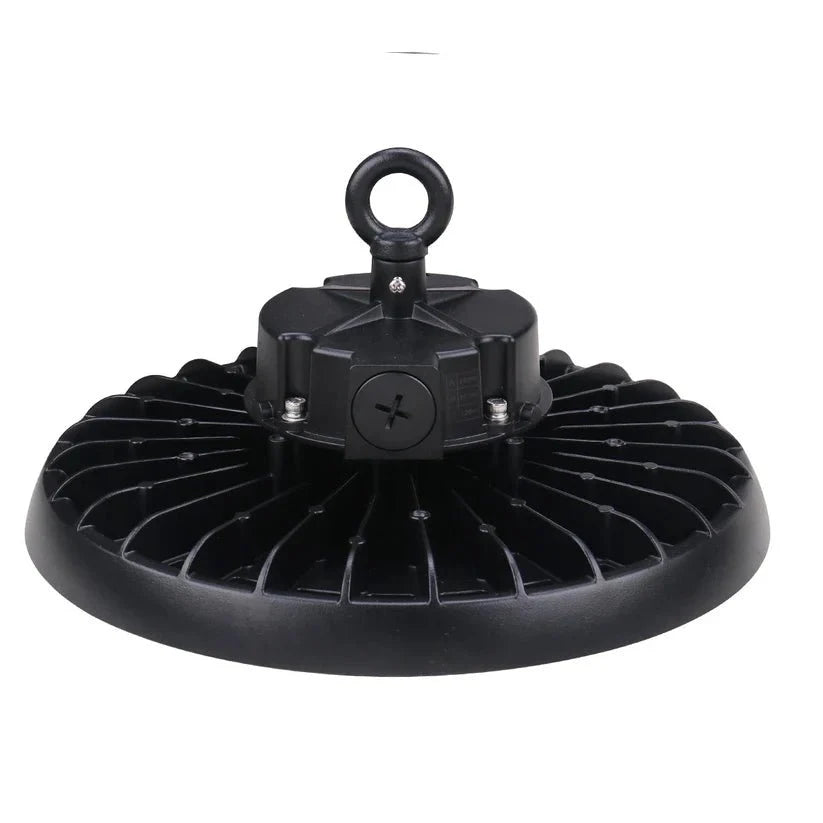

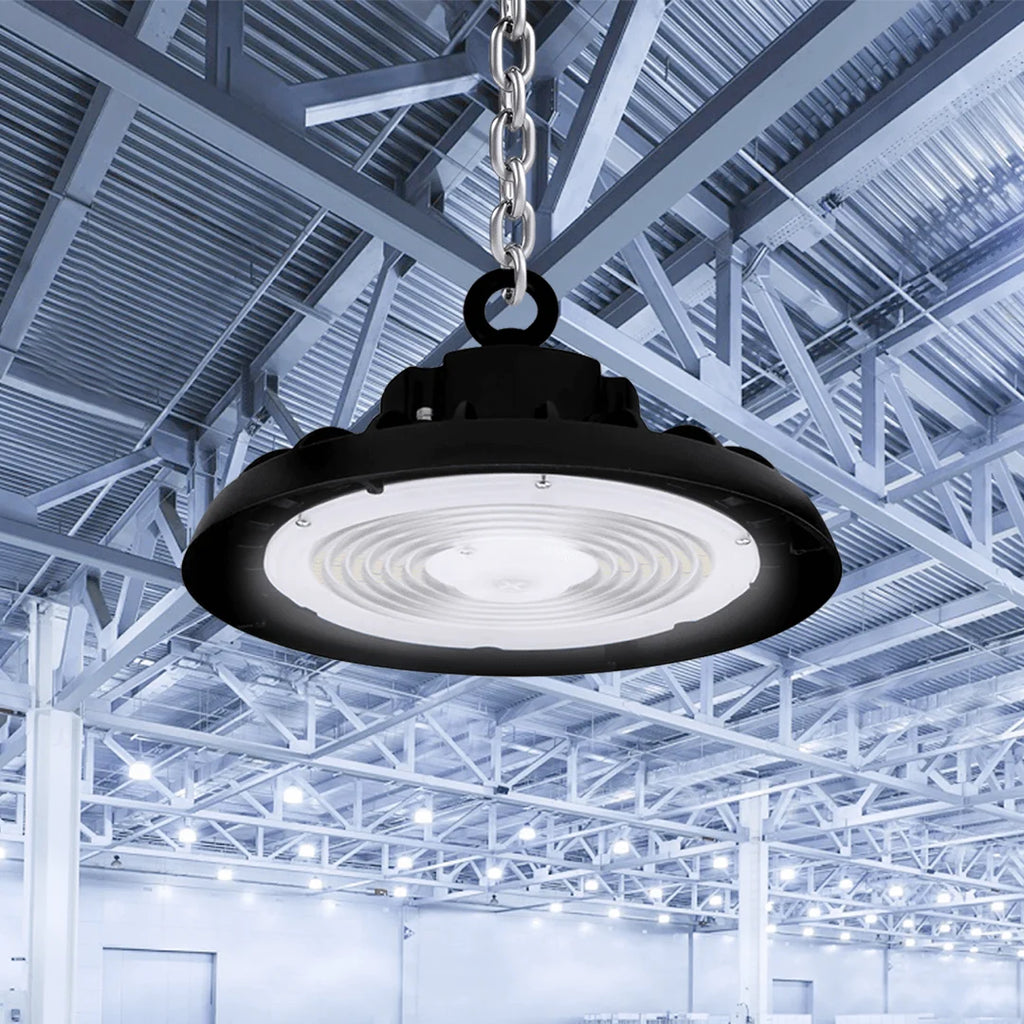

• Hook mounting uses a hanging ring secured into the mounting cavity.

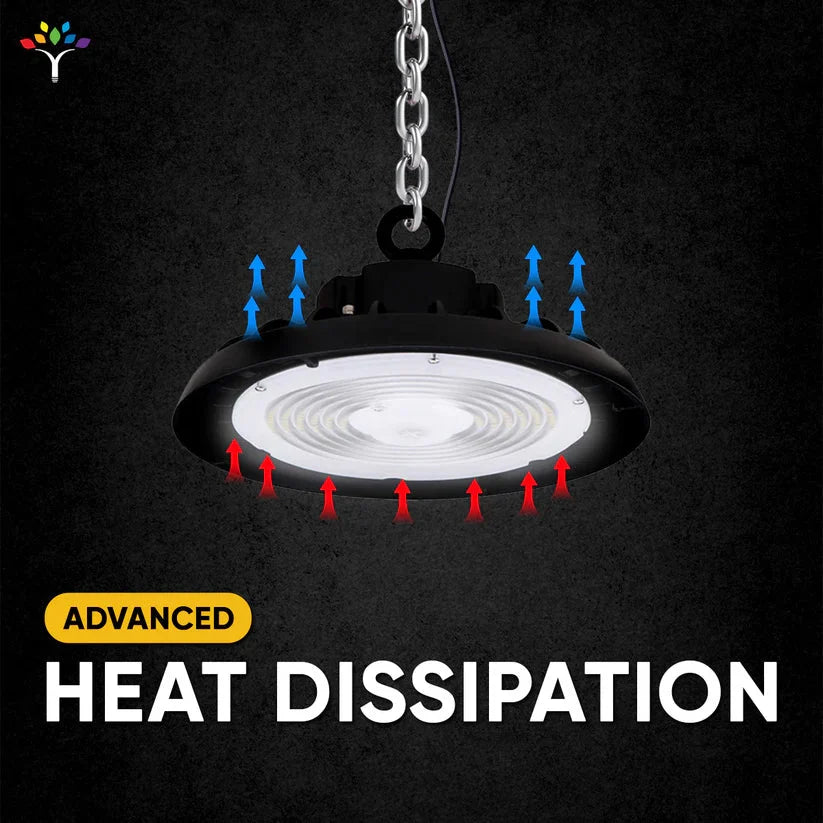

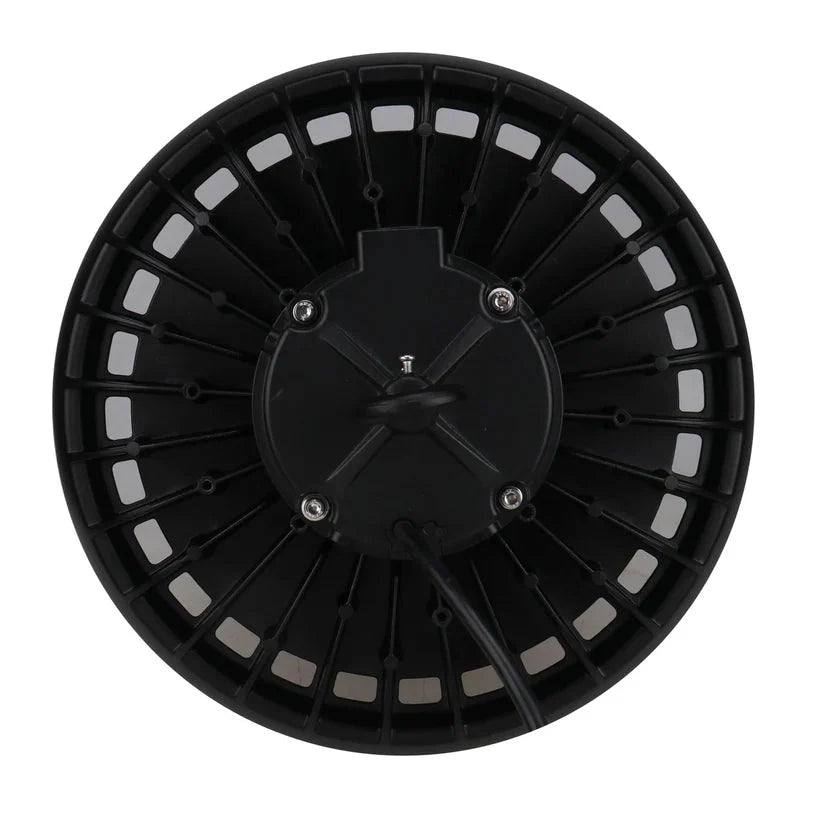

• Die-cast aluminum housing and an aluminum heat sink.

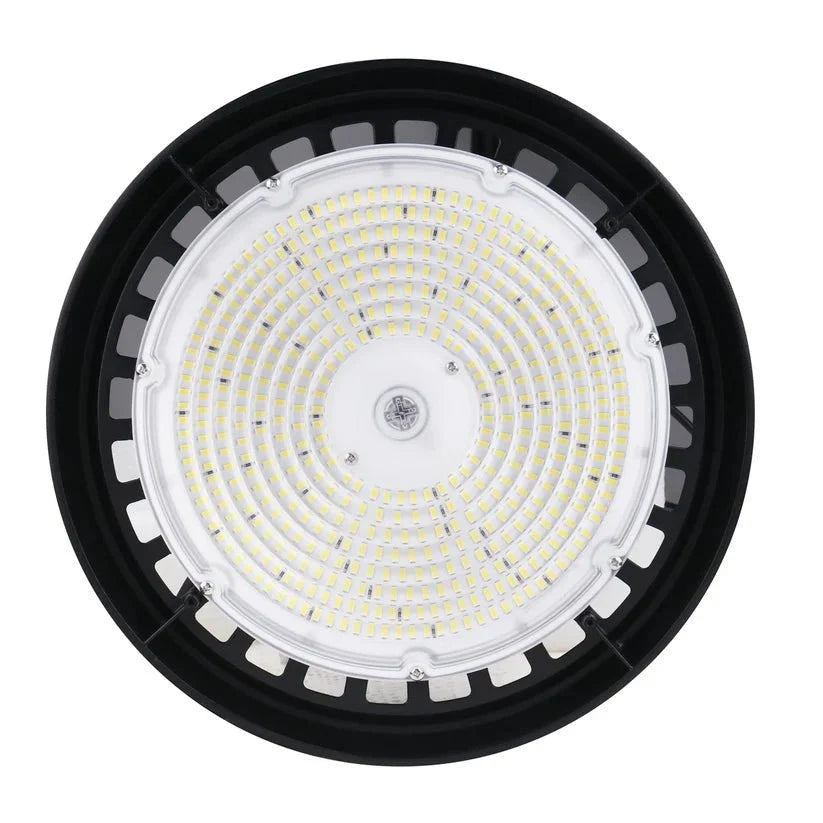

• Clear glass lens with a 90-degree beam angle.
• IP65-rated housing for dust and splash resistance.
• Available as one fixture or a ten-fixture package.

Specifications

• Model: UF004; fixture SKU: WEN-HB02-240WD1-4000K
• Selectable wattage: 240W, 220W or 200W

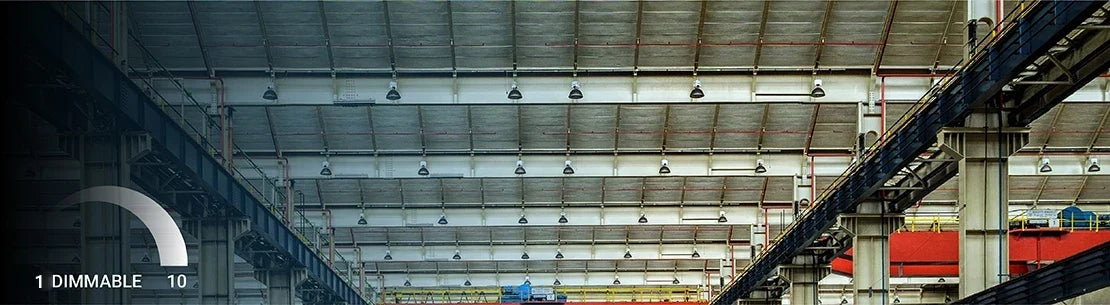

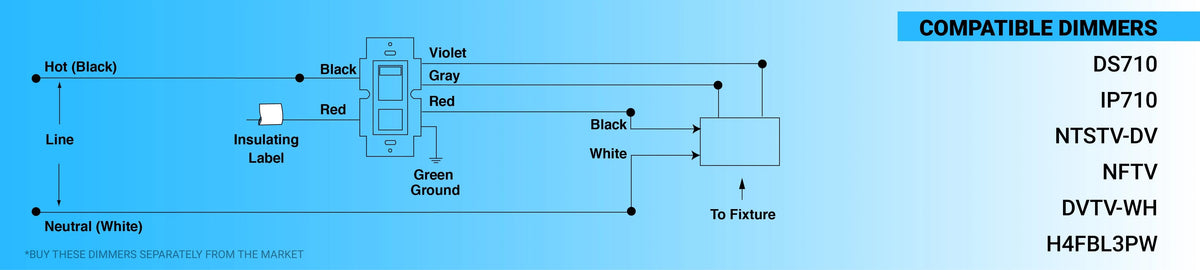

• Input: 120–277V AC; dimming: 1–10V
• Color temperature: 4000K

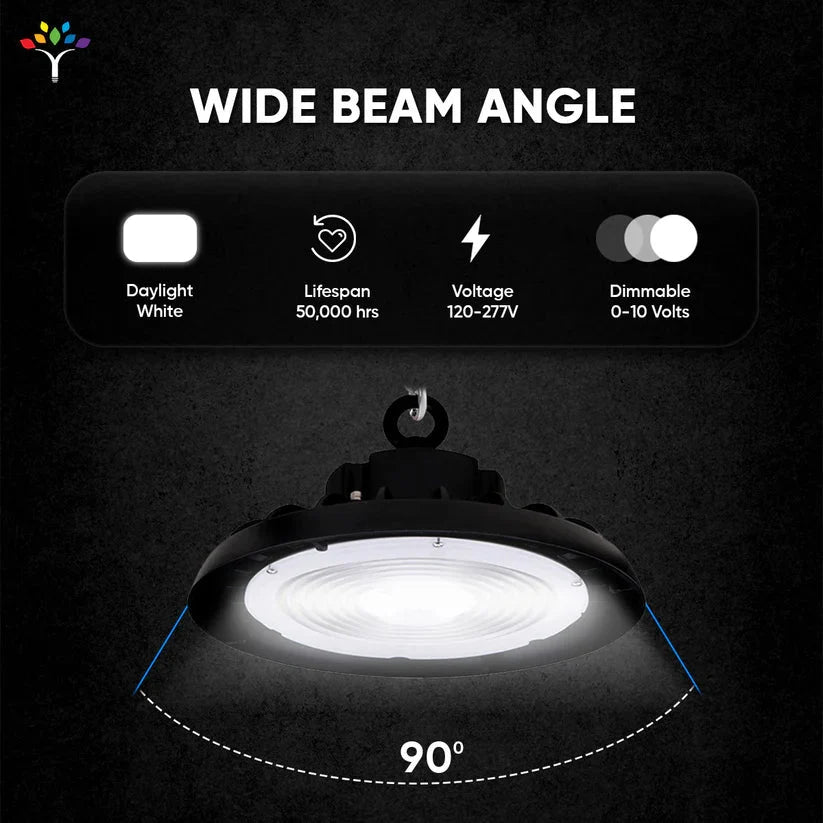

• Rated output at 240W: 36000 lumens; beam angle: 90 degrees

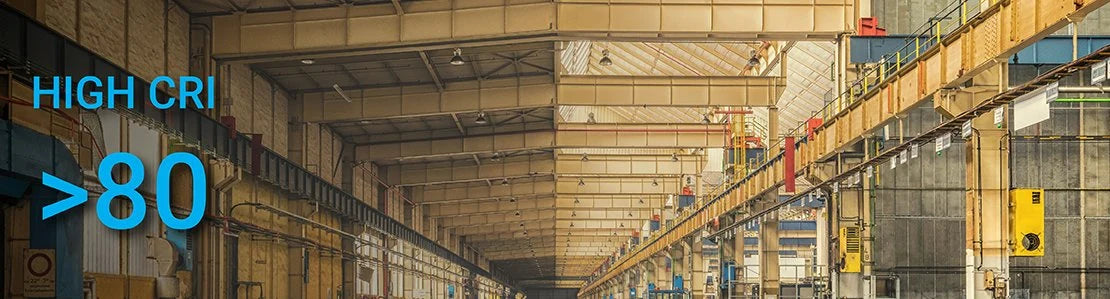

• Color rendering index: above 80; power factor: above 0.9
• Housing: aluminum; lens: clear glass; fixture color: black
• Diameter: 15.75in; operating temperature: −4°F to 113°F
• Included mounting component: hanging ring; installation guide included

Lighting specifications apply to each fixture. Installation requires compatible electrical supply, ceiling support and dimming equipment. A dimmer or optional motion sensor is not promised as part of the package.
