UNIFY PRO32 Nano 5G8 V1.1 FPV Video Transmitter with U.FL, 3–13V Input, PitMode, SmartAudio and CleanSwitch

Build a lightweight analog FPV video link with the compact UNIFY PRO32 Nano 5G8 V1.1 transmitter.

Key Features

• Compact 1g design for weight-sensitive FPV builds.
• Selectable 25mW, 100mW and 400mW output levels.
• PitMode supports powered setup with minimal transmission range.
• SmartAudio V2.1 and CRSF support compatible remote control.
• CleanSwitch reduces interference during power-up and channel changes.

Specifications

• Brand: TBS
• Model: UNIFY PRO32 Nano 5G8 V1.1
• Operating voltage: 3–13V
• Antenna connector: U.FL socket
• Video format: NTSC/PAL
• Video input impedance: 75 Ohm

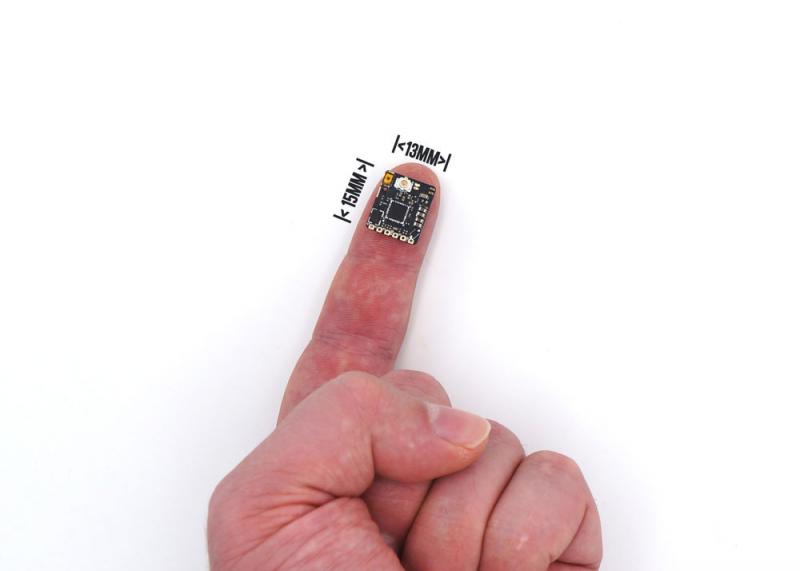

• Dimensions: 15 x 13 x 2mm
• Weight: 1g

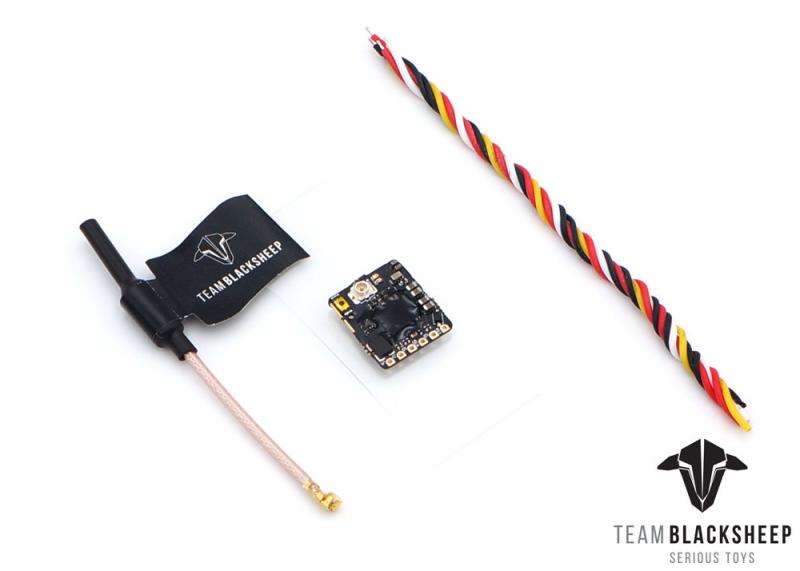

In the Box

• Video transmitter
• Pre-tinned silicone cable set
• Linear whip antenna
• Shrink tube
