VAD10004v2 1000W RMS Marine-Certified Class-D 4-Channel Amplifier with Wired Bass Remote and Crossovers

The VAD10004v2 is a marine-certified V-Series Class-D four-channel amplifier delivering up to 1000W total RMS for compatible vehicle and marine audio systems.

Key Features

• Delivers 150W × 4 at 4 ohms or 250W × 4 at 2 ohms.
• Bridged mode supplies 500W × 2 at 4 ohms.
• Conformal-coated marine-grade circuit board supports properly protected marine installations.

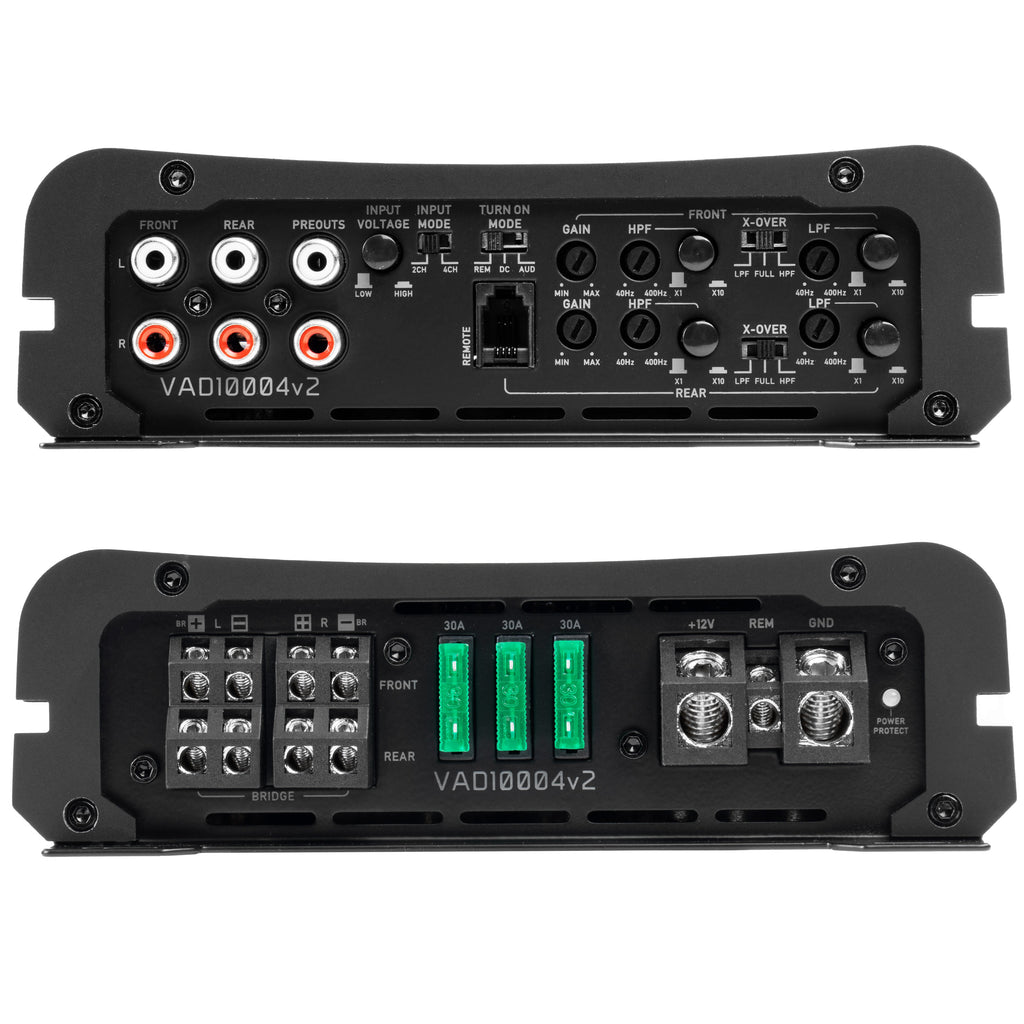

• Balanced differential and speaker-level inputs support flexible integration.
• Selectable two- or four-channel input mode and RCA preamp outputs expand system options.
• Protection covers thermal conditions, overload, speaker shorts and DC offset.

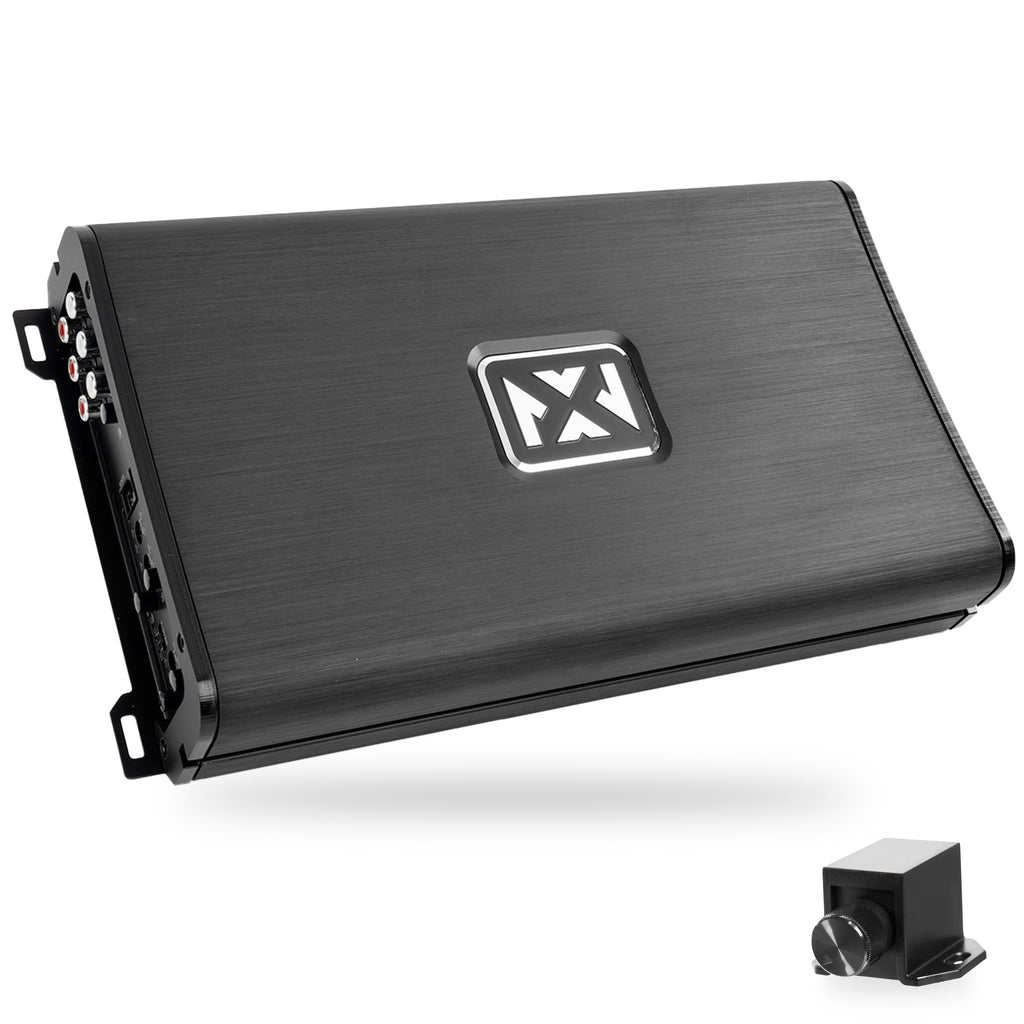

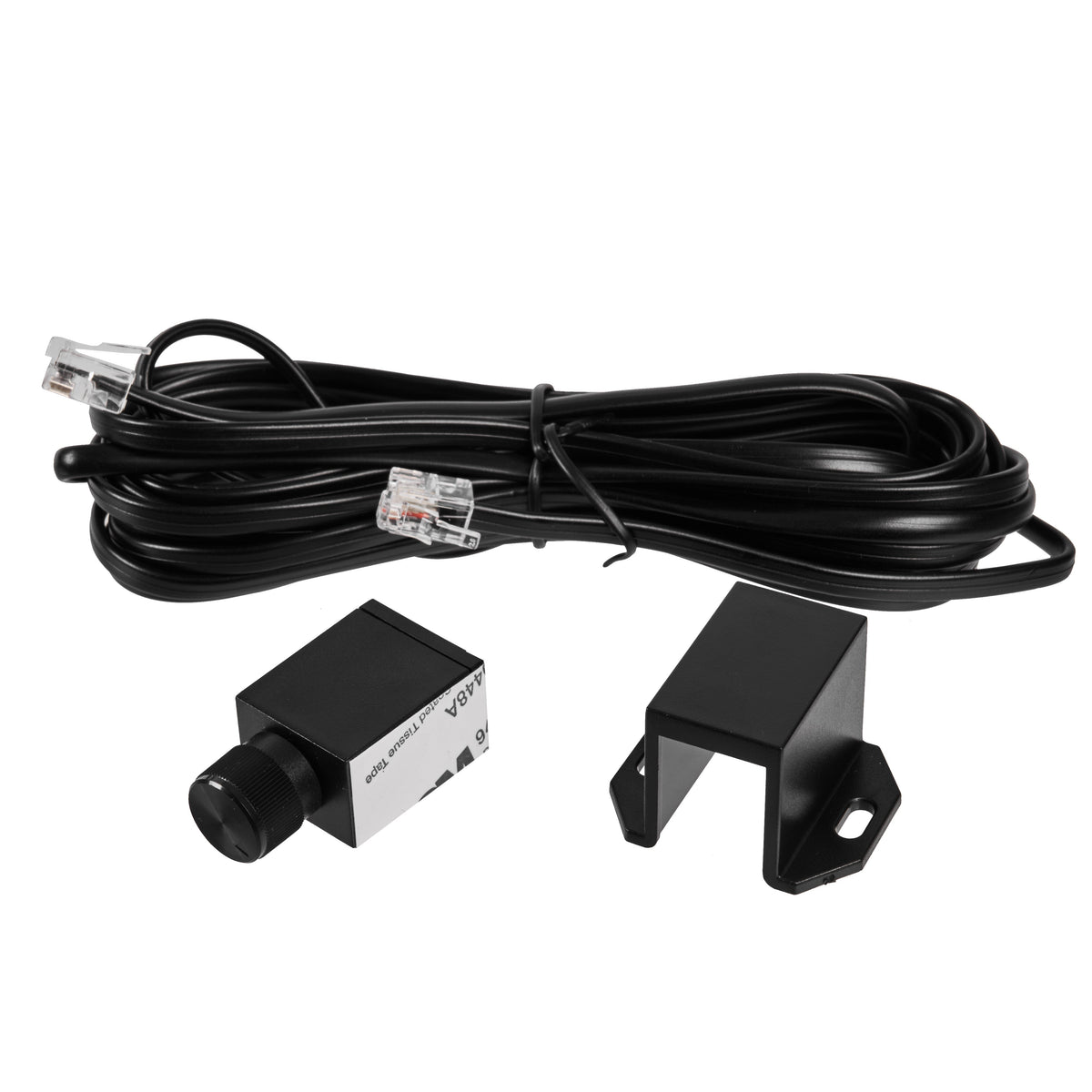

• Includes a wired bass-level remote control.

Specifications

• Model / manufacturer number: VAD10004v2
• Amplifier class: D
• Channels: Four
• Total RMS output: 1000W
• RMS at 4 ohms: 150W × 4
• RMS at 2 ohms: 250W × 4
• Bridged RMS at 4 ohms: 500W × 2
• Input sensitivity: 0.2–18V
• Frequency response: 20Hz–20kHz
• Total harmonic distortion: 0.3%
• Signal-to-noise ratio: Greater than 85dB
• Variable high-pass and low-pass filters: 40–400Hz or 400–4000Hz with ×10 multiplier
• Fuse rating: 90A
• Dimensions: 12.28 × 6.81 × 2.05in
• Recommended installation wiring: 4 AWG amplifier wiring kit
• Manufacturer warranty: One year from original purchase date
