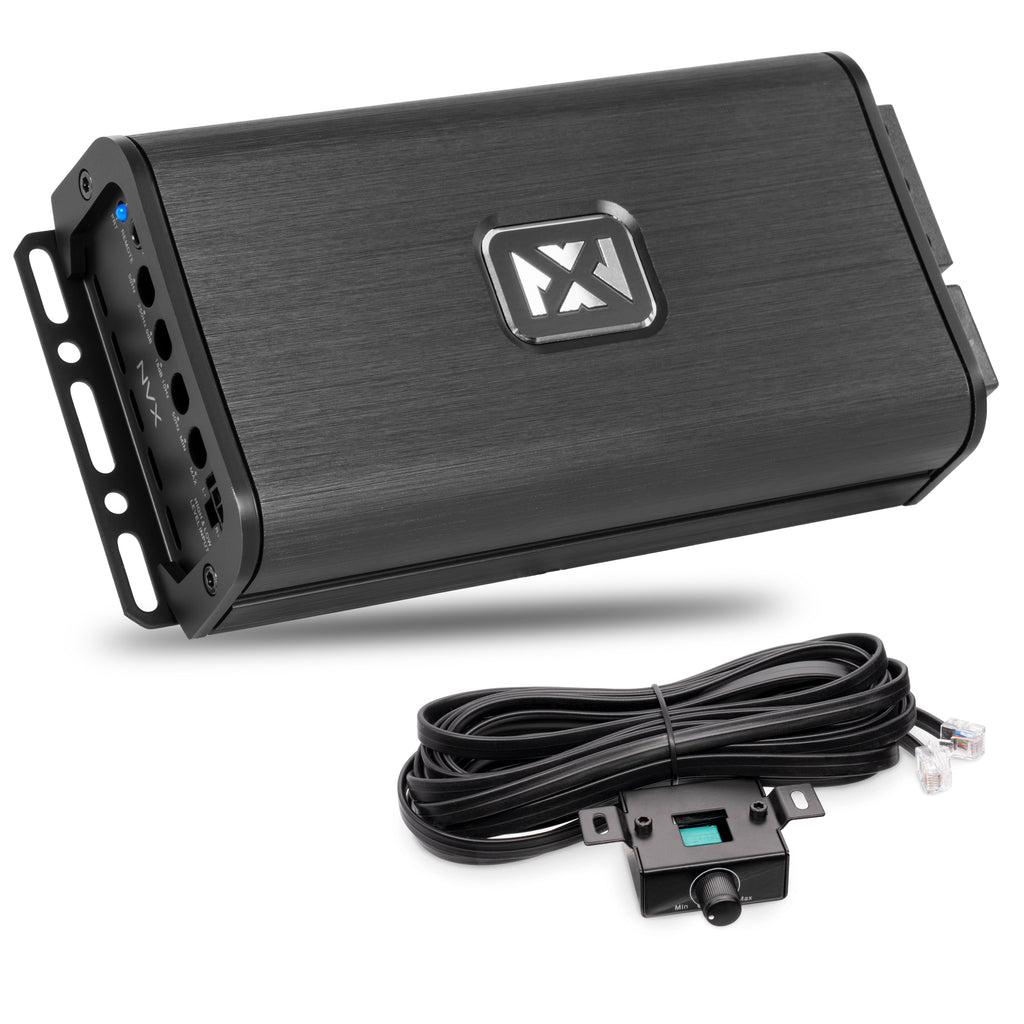

VADM1 v2 600W RMS Micro Class-D 1-Ohm Stable Marine Monoblock Amplifier with Wired Bass Remote

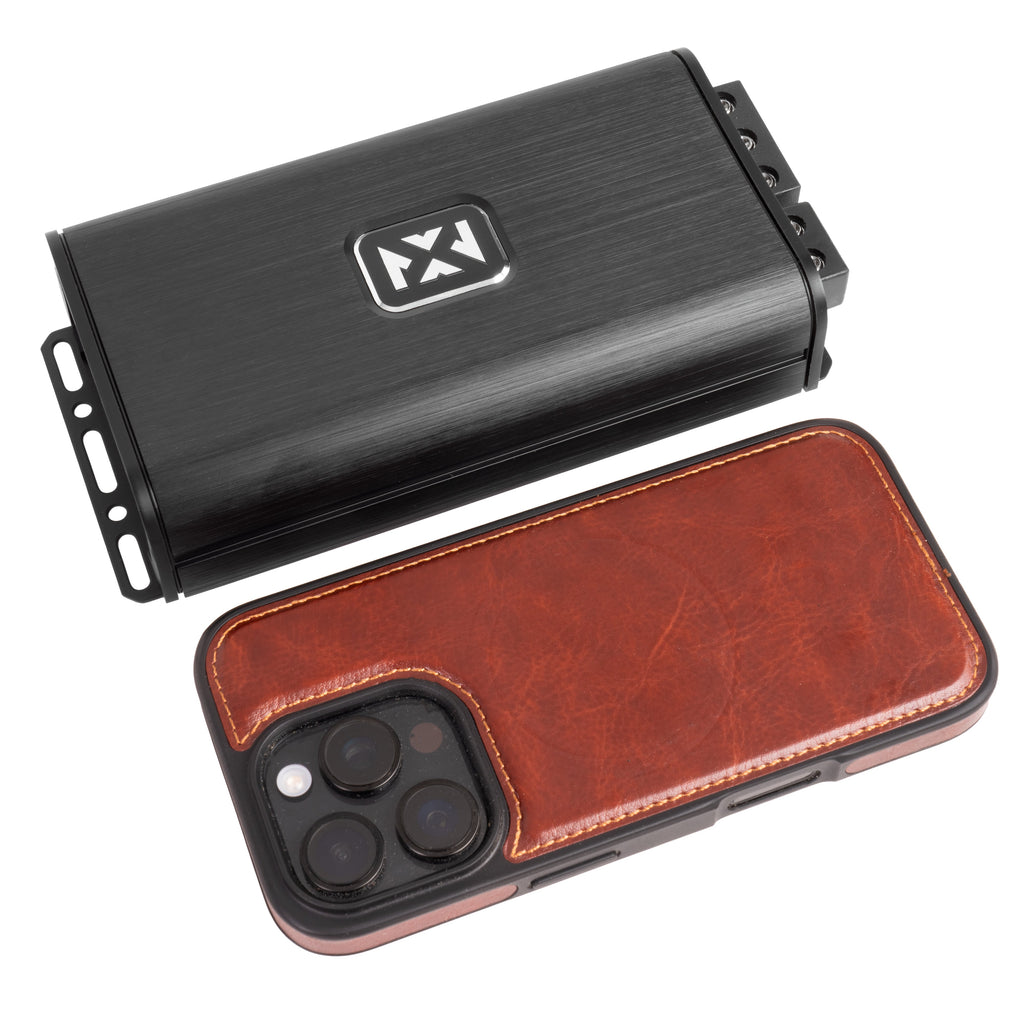

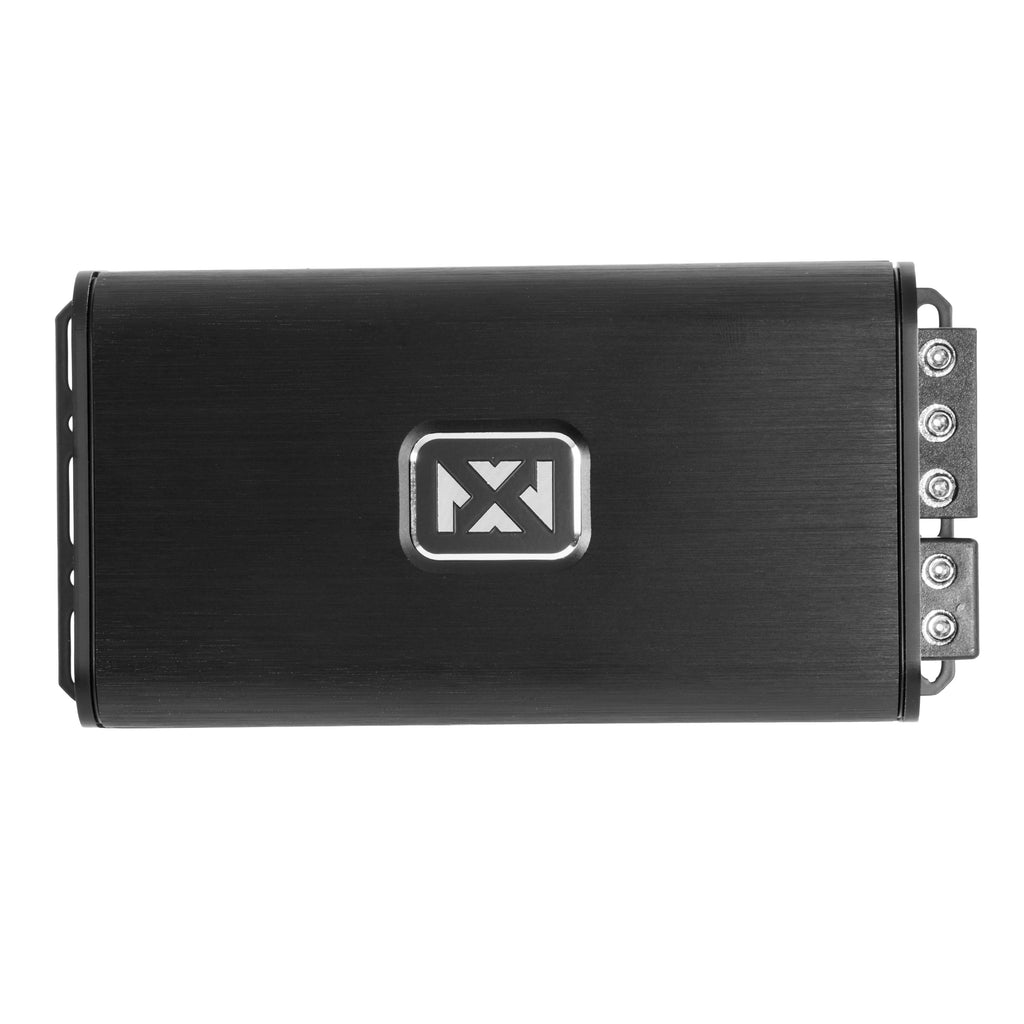

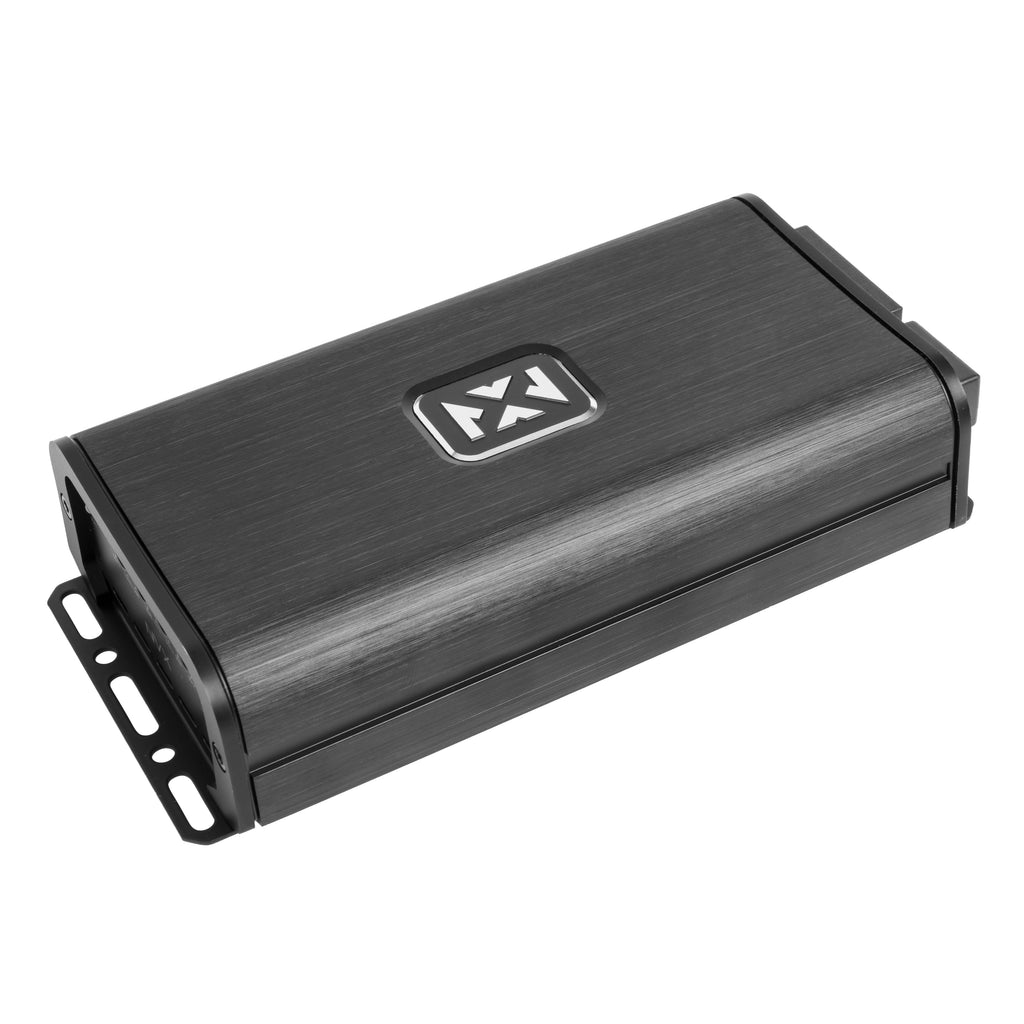

The VADM1 v2 is a compact marine-certified Class-D monoblock amplifier rated for up to 600W RMS at 1 ohm and supplied with a wired bass-level remote.

Key Features

• Delivers 600W RMS at 1 ohm, 400W RMS at 2 ohms or 240W RMS at 4 ohms.
• Speaker-level and low-level inputs support a range of vehicle audio systems.
• Balanced differential inputs help reject noise picked up by signal cables.

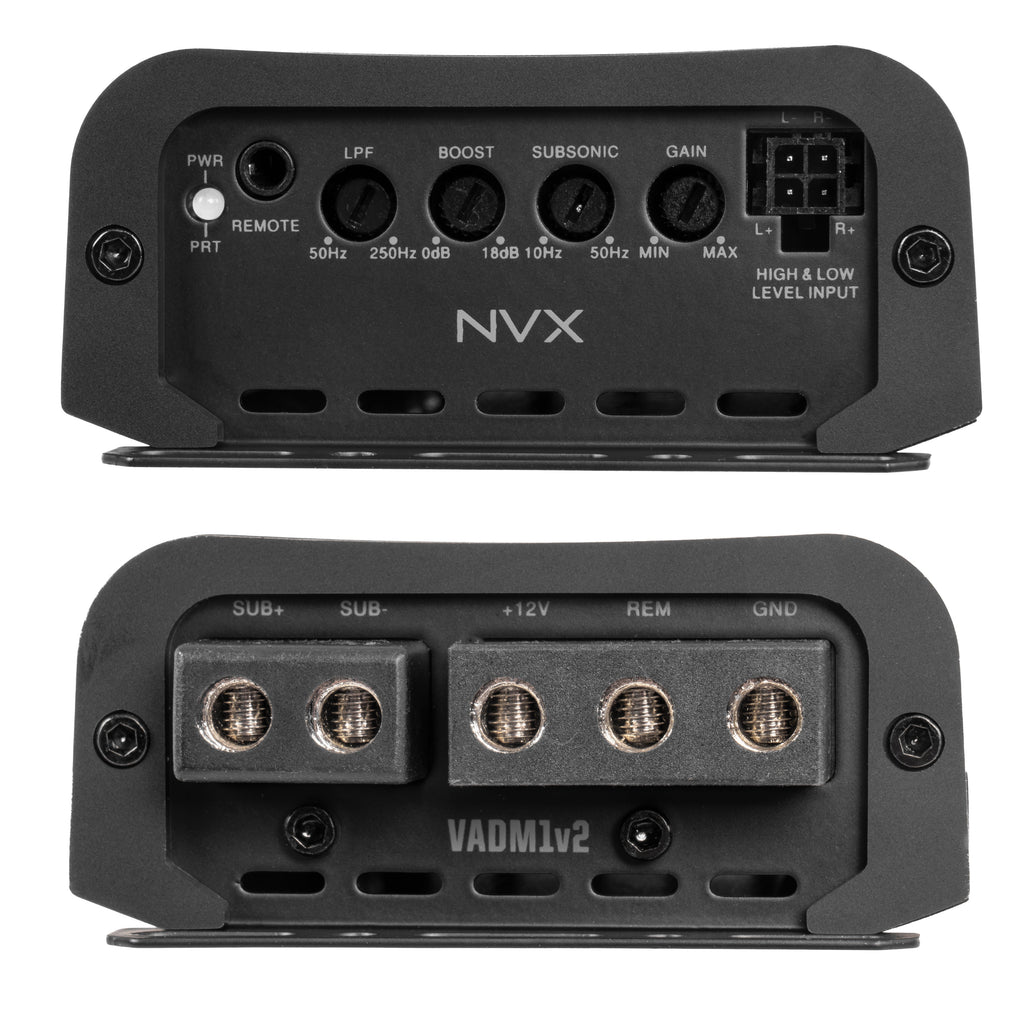

• Variable low-pass, subsonic and bass-boost controls support subwoofer tuning.
• Protection circuitry covers thermal overload, speaker shorts, overload and DC offset.

Specifications

• Model: VADM1 v2 / VADM1v2
• Amplifier class: Class D
• Channels: One mono channel
• Minimum impedance: 1 ohm
• Frequency response: 20Hz–500Hz
• Total harmonic distortion: Less than 0.3%
• Signal-to-noise ratio: Greater than 85dB
• Input sensitivity: 0.2–10V, high or low level
• Low-pass filter: 50–250Hz
• Subsonic filter: 10–50Hz
• Bass boost: 0–18dB at 45Hz
• Dimensions: 6.49 × 3.3 × 1.48 inches
• Installation: 8 AWG amplifier wiring kit recommended

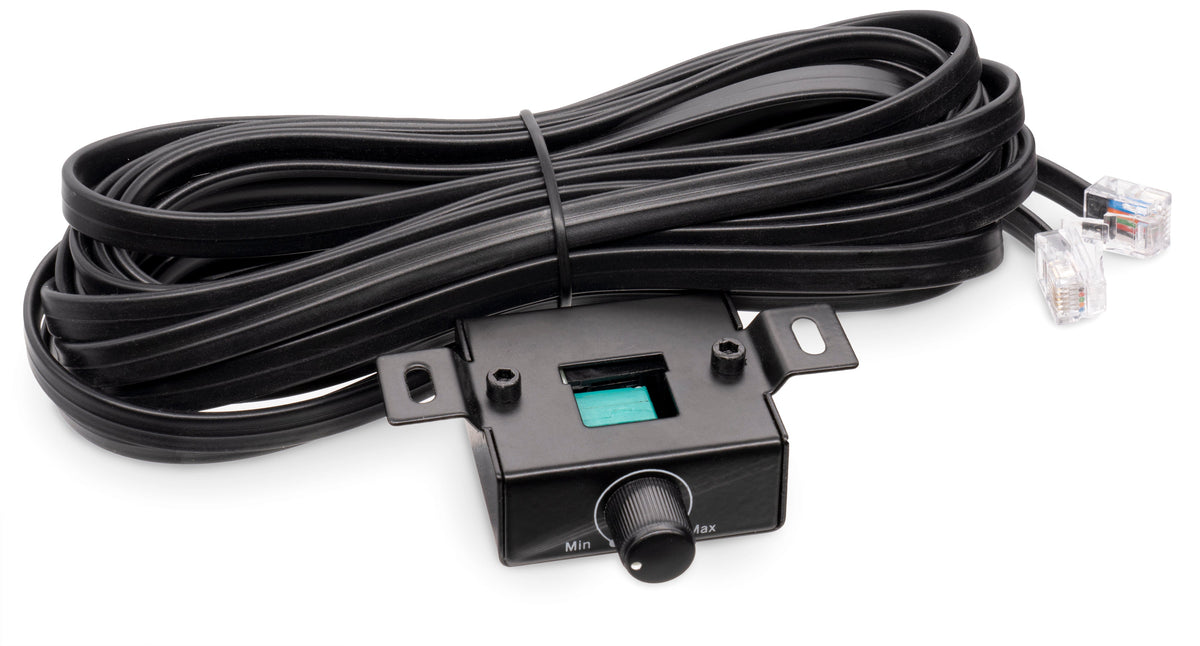

• Included: Wired bass-level remote control
• Manufacturer warranty: One year from original purchase date
