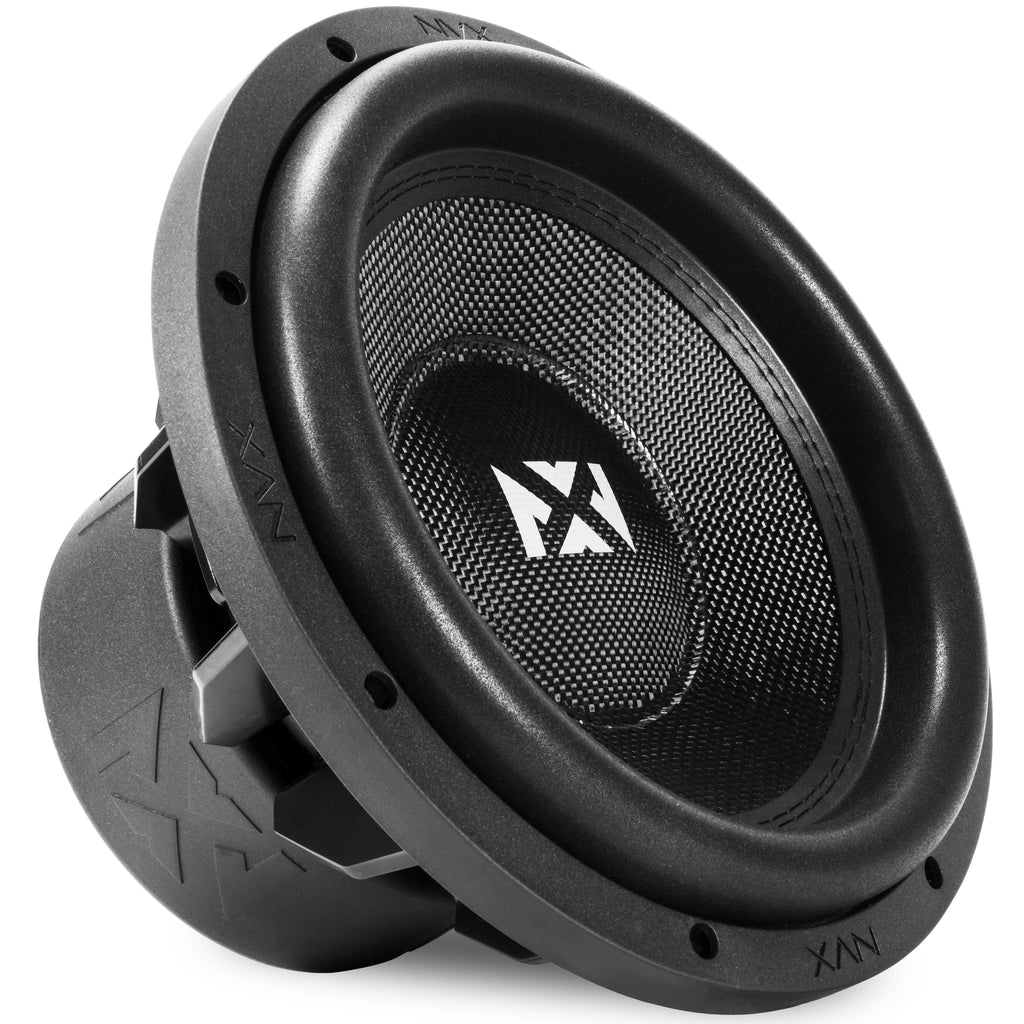

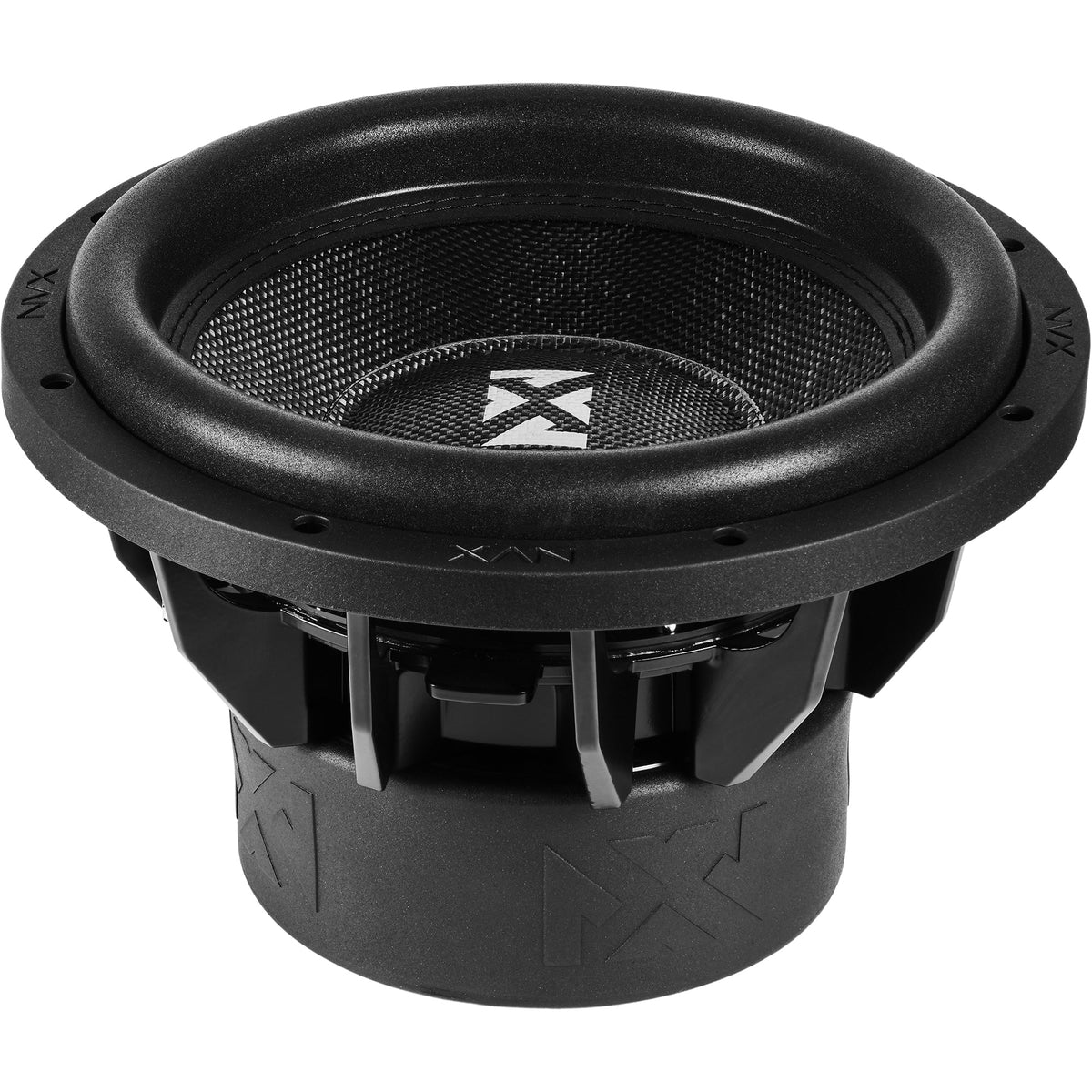

VCW124v3 12-Inch Dual 4-Ohm Car Subwoofer with 1200W RMS, 2400W Peak Power and 23mm Xmax for Vehicle Audio

The VCW124v3 is a 12-inch dual 4-ohm vehicle subwoofer rated for 1200W RMS and 2400W peak power handling.

Key Features

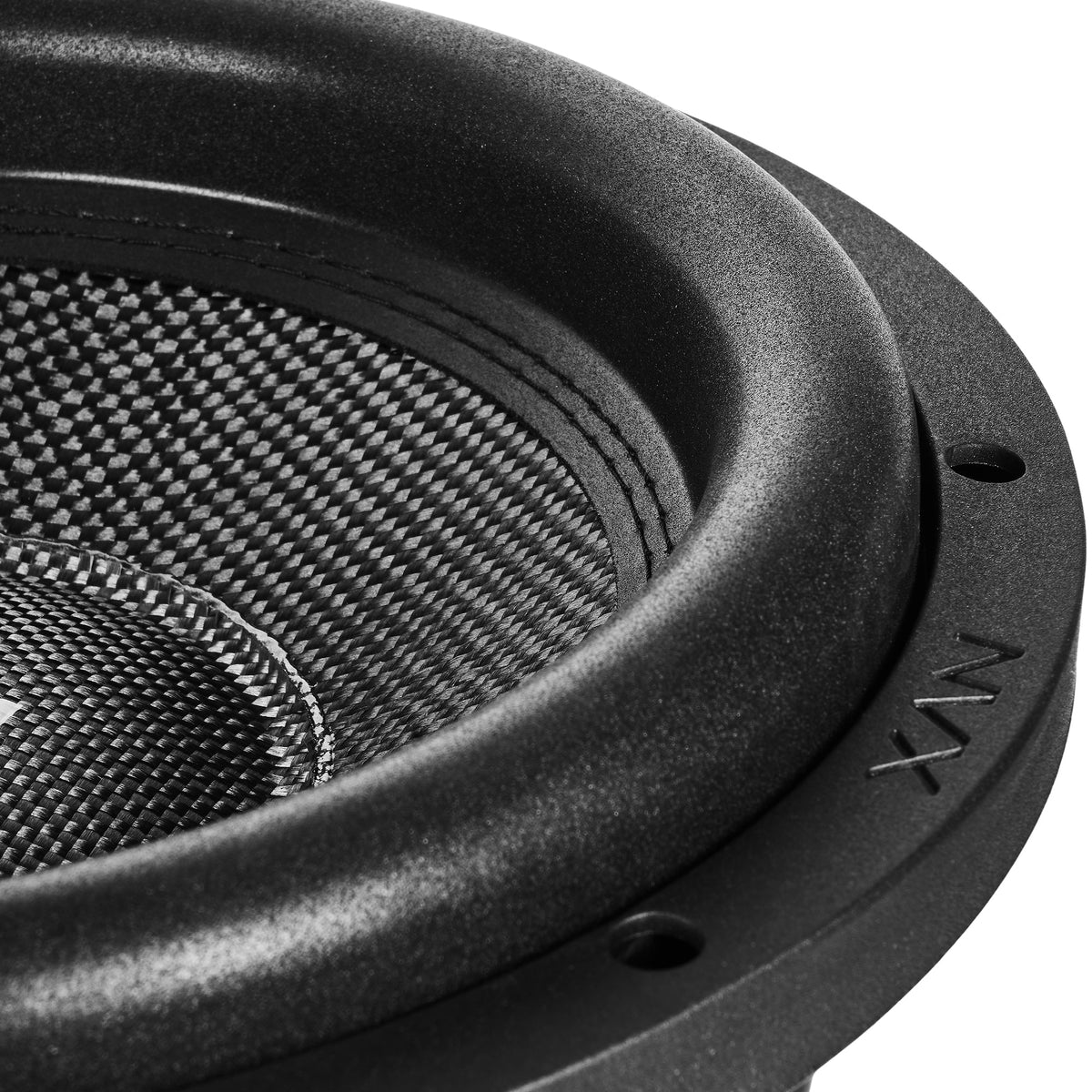

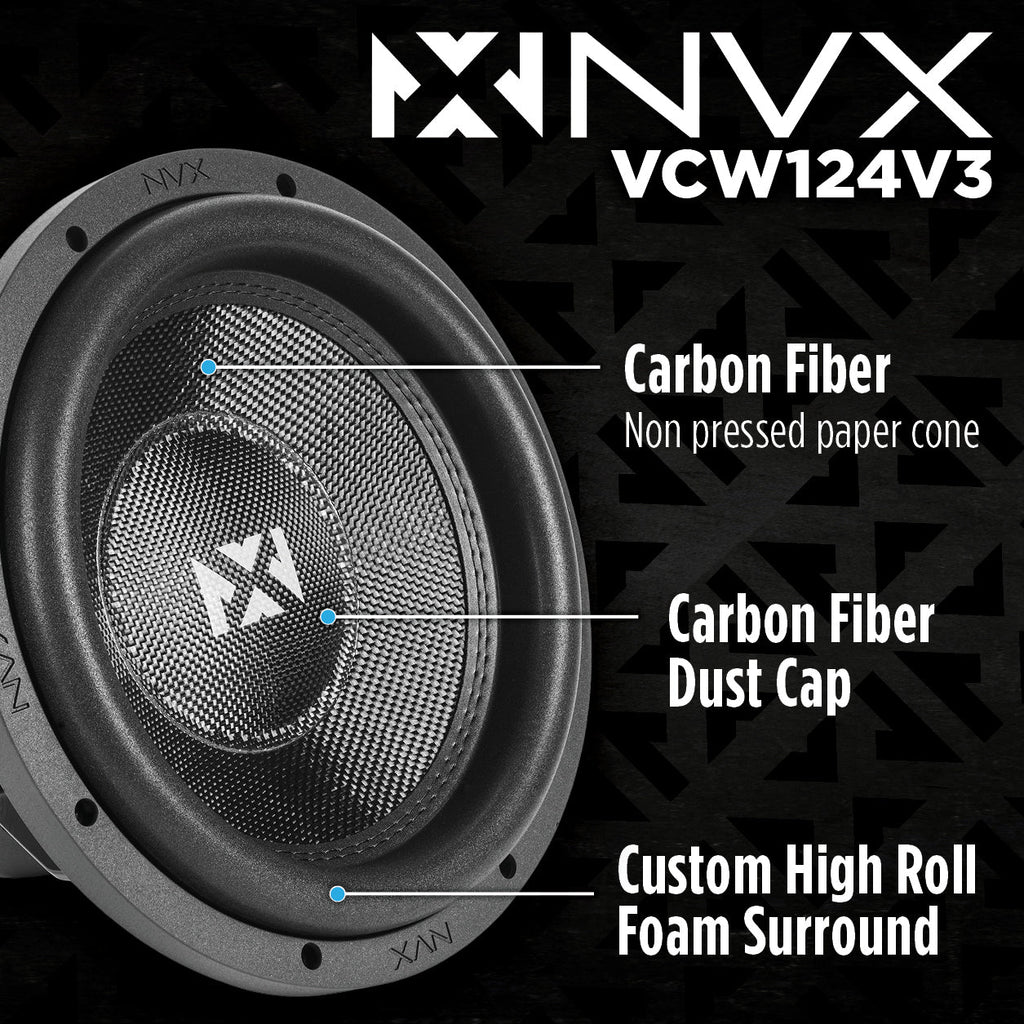

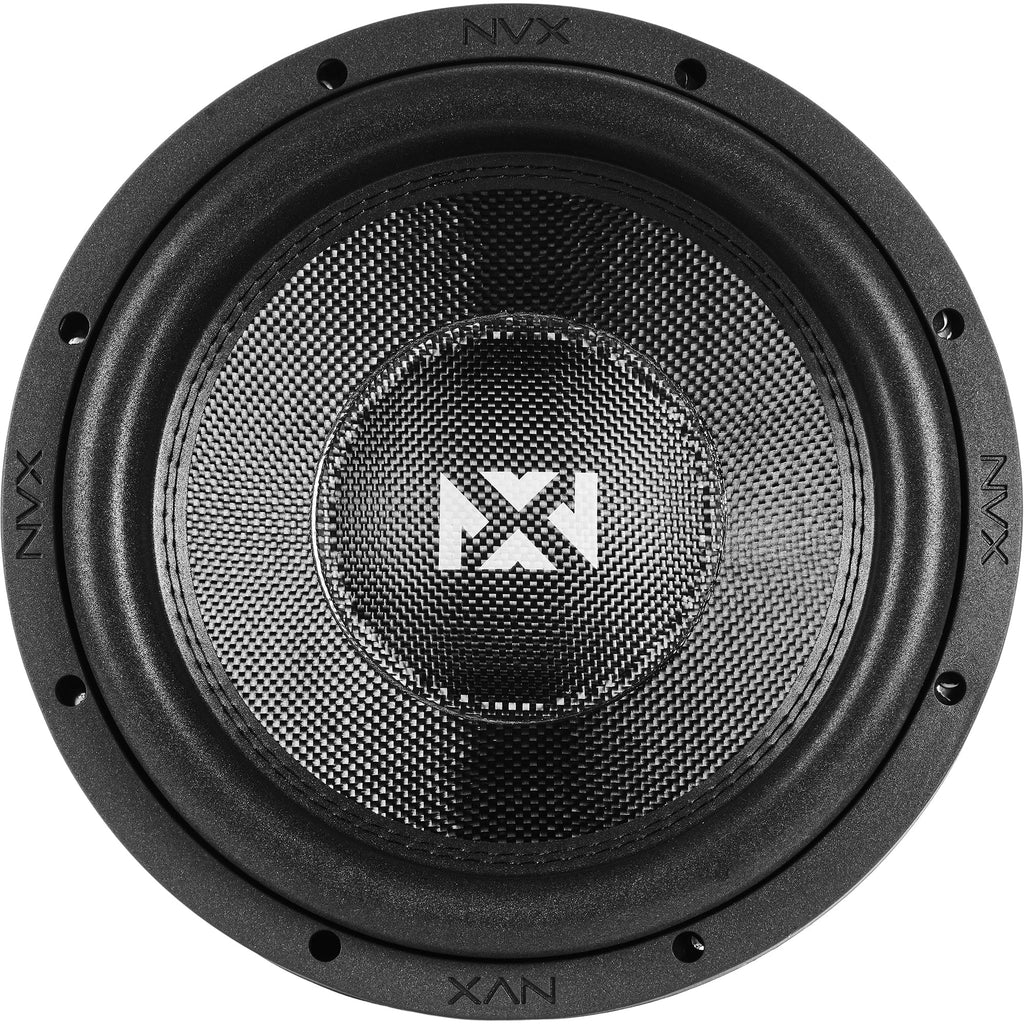

• Carbon-fiber-enhanced non-pressed paper cone uses a high-roll foam surround with black nylon stitching.

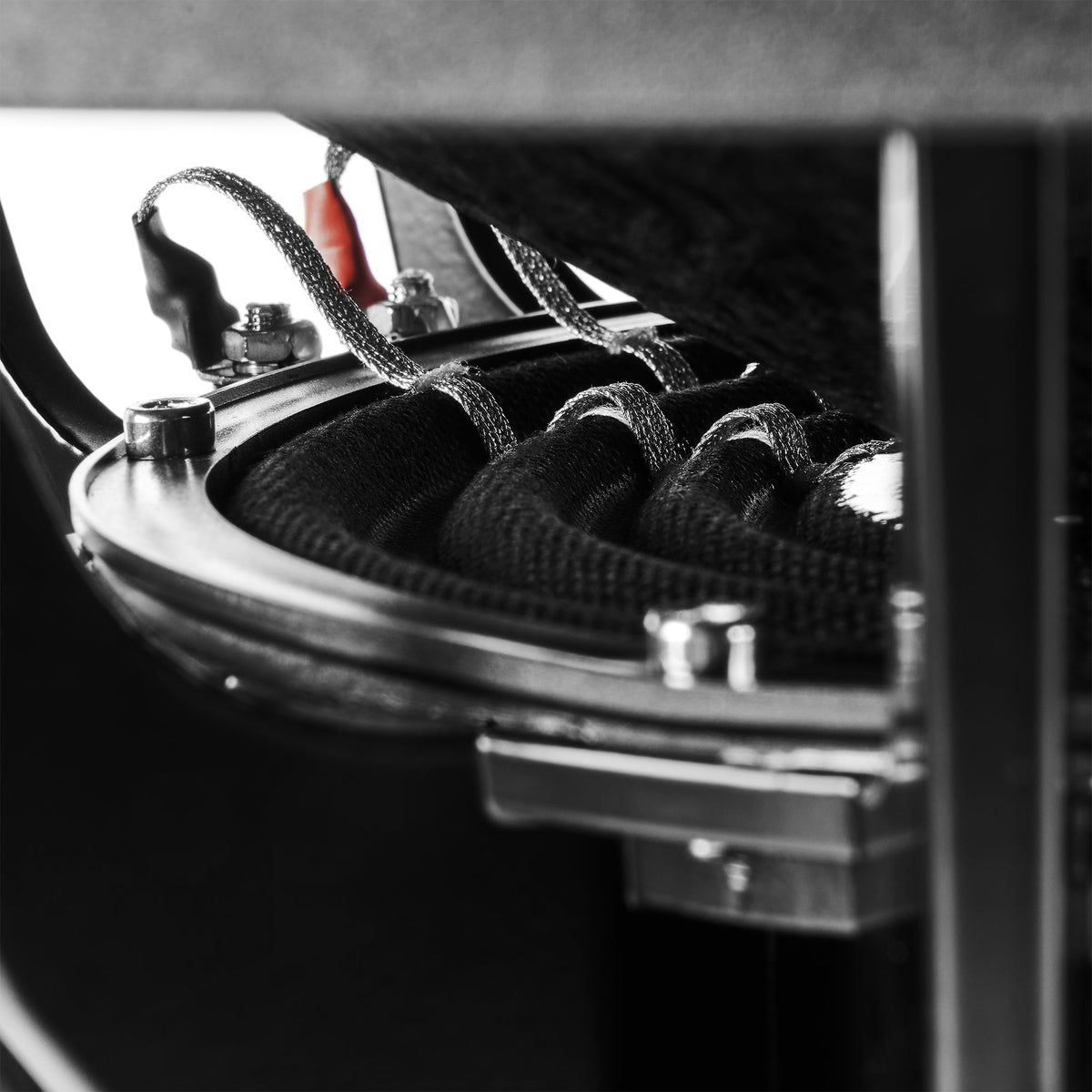

• Three-inch four-layer high-temperature aluminum voice coil works with dual progressive-roll spiders.

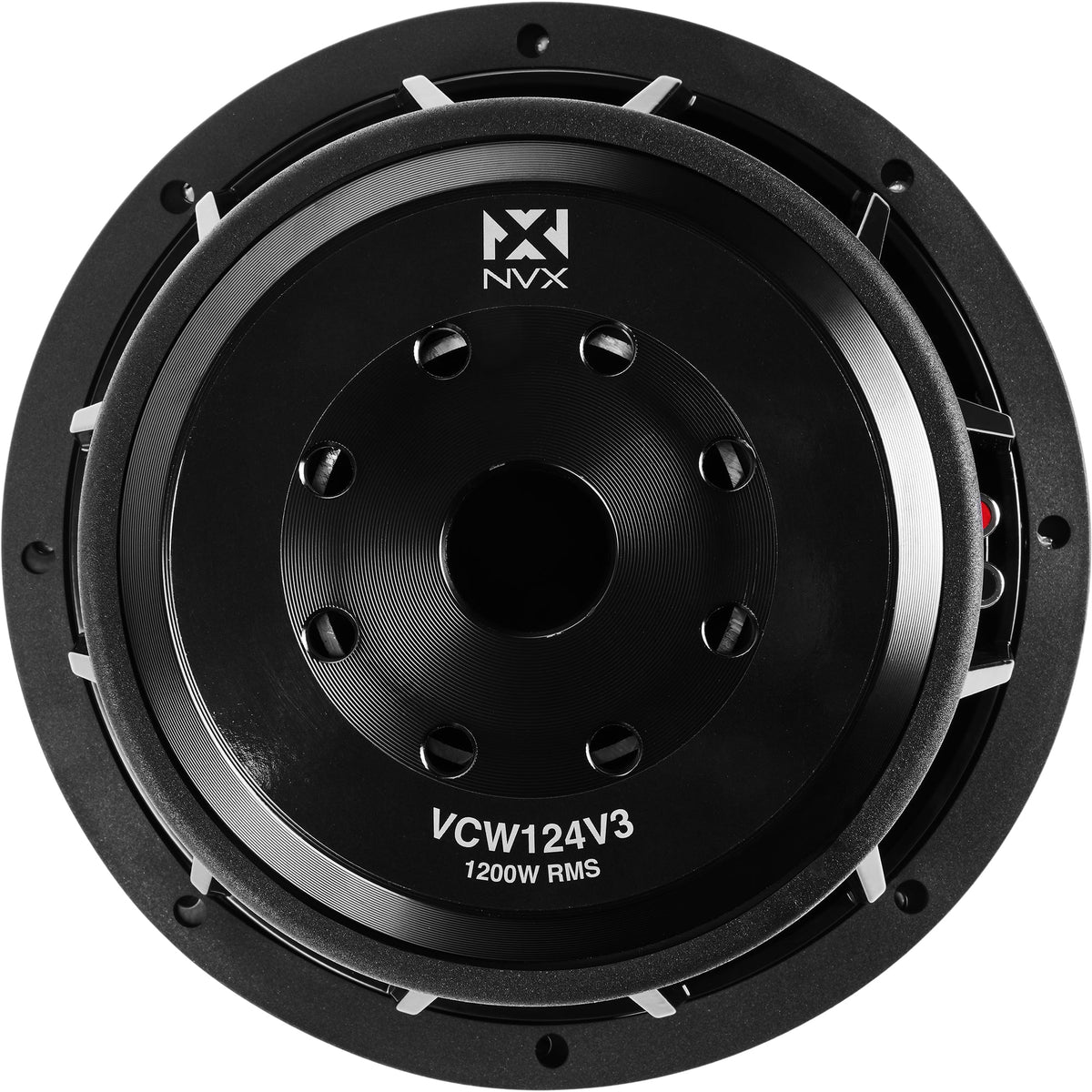

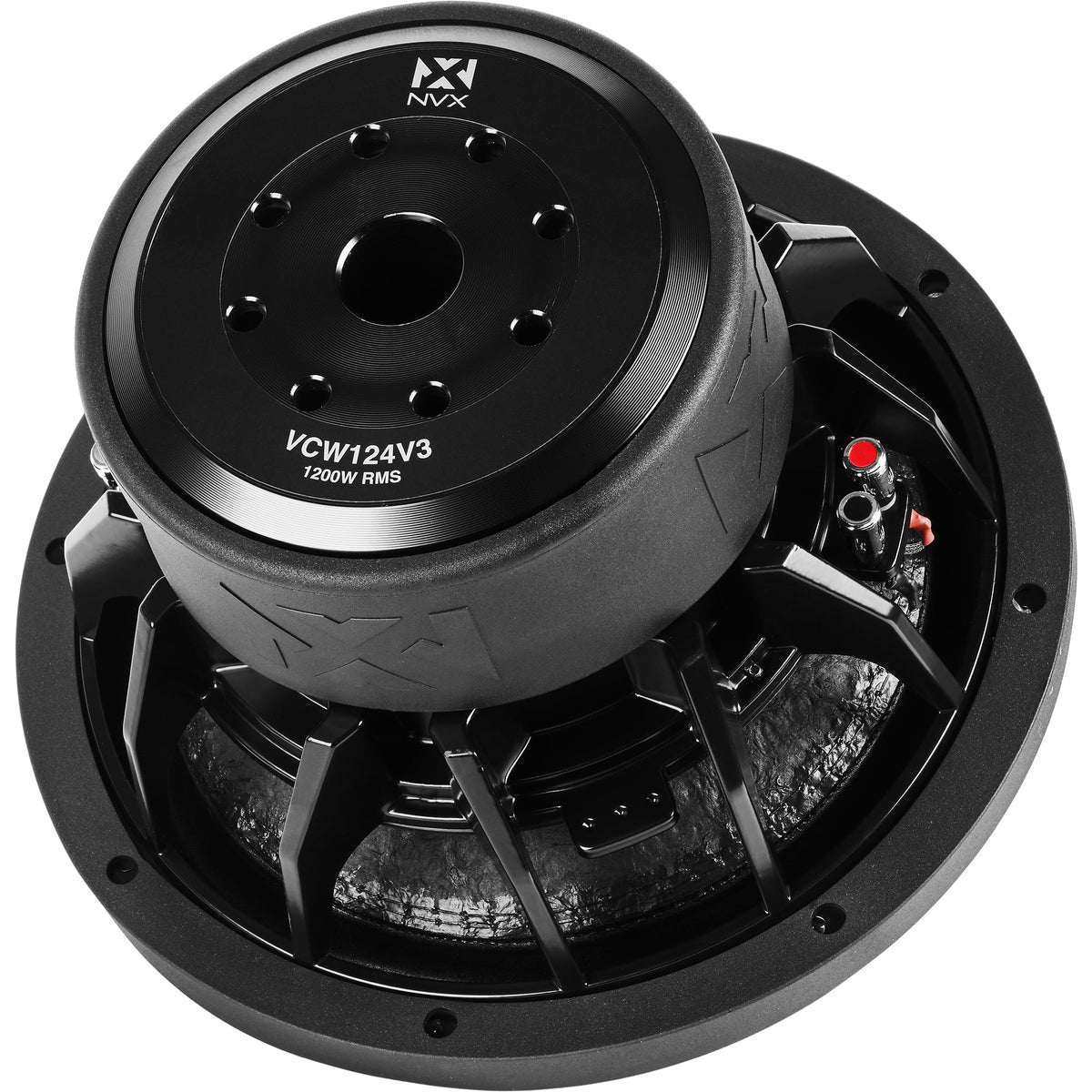

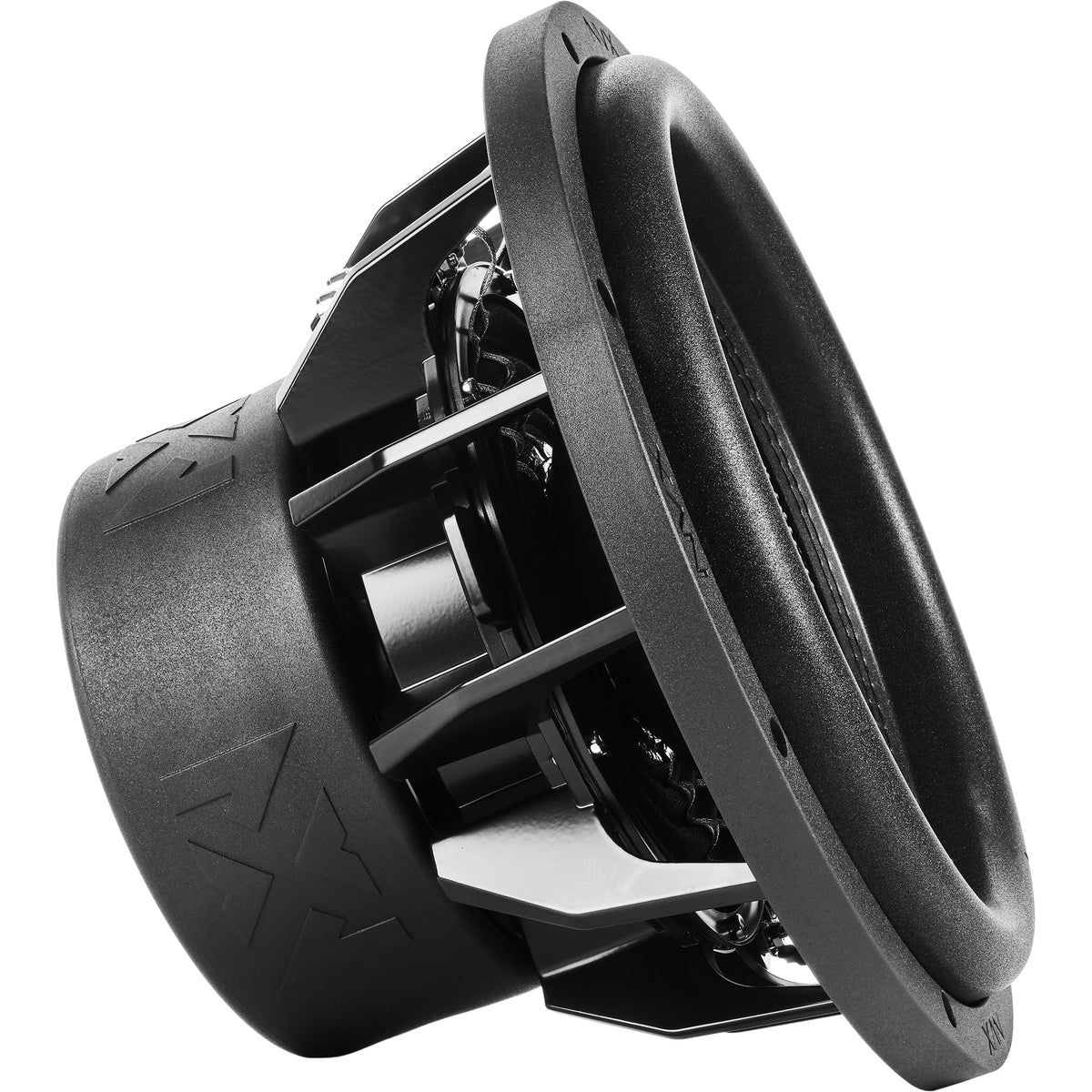

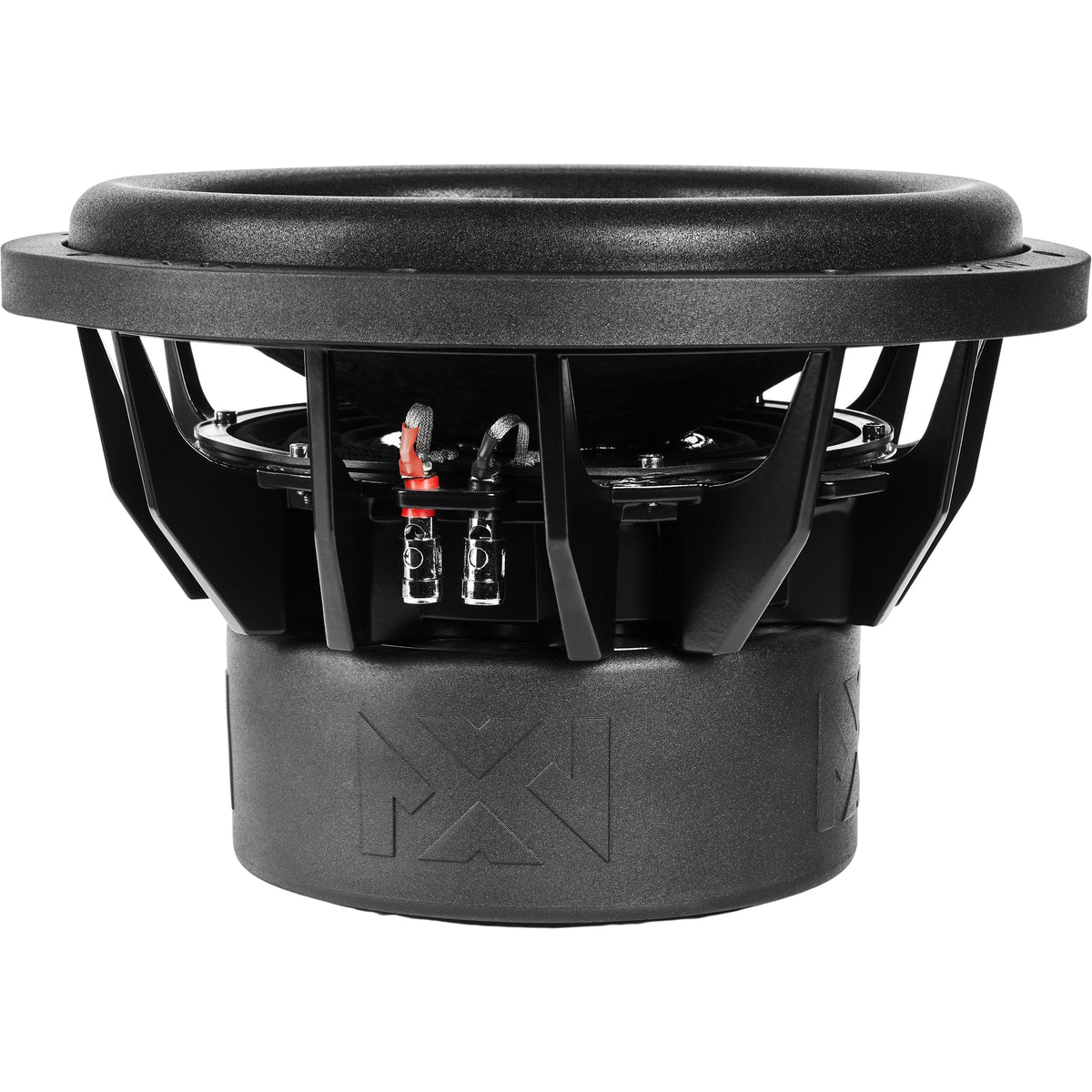

• Die-cast vented aluminum basket and integrated gap ventilation manage airflow around the motor structure.
• Triple-stacked Y35 ferrite motor assembly is listed at 202 oz.
• 23mm one-way Xmax supports high-excursion bass reproduction.

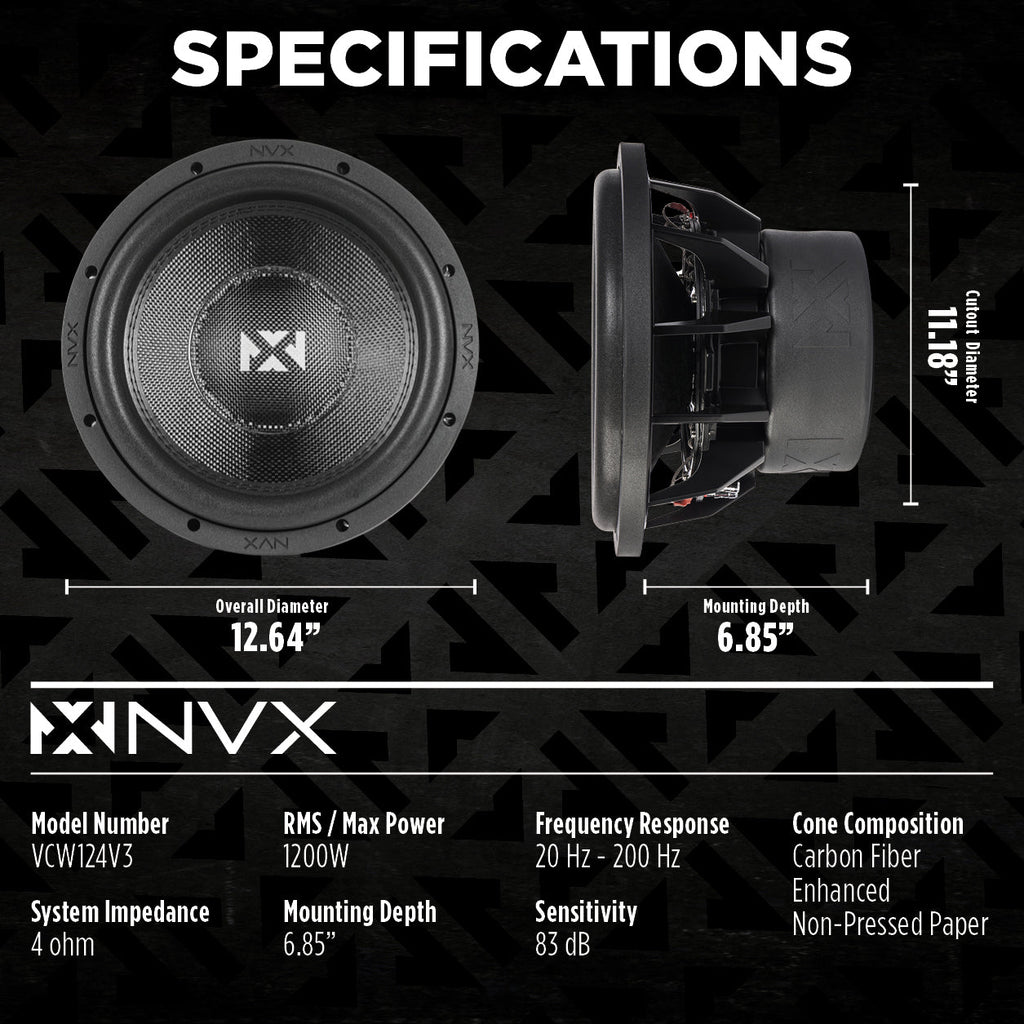

Specifications

• Product type: Motor vehicle subwoofer
• Model: VCW124v3
• Size: 12 inches
• Voice coils: Dual 4 ohm
• Power handling: 1200W RMS; 2400W peak
• Frequency response: 20–200Hz
• Resonance frequency: 25Hz
• Sensitivity: 85dB at 1W/1m
• One-way Xmax: 23mm
• Recommended sealed enclosure: 0.85 cu ft
• Recommended ported enclosure: 1.85 cu ft
• Top-mount depth: 7.02 inches
• Cutout diameter: 11.26 inches
